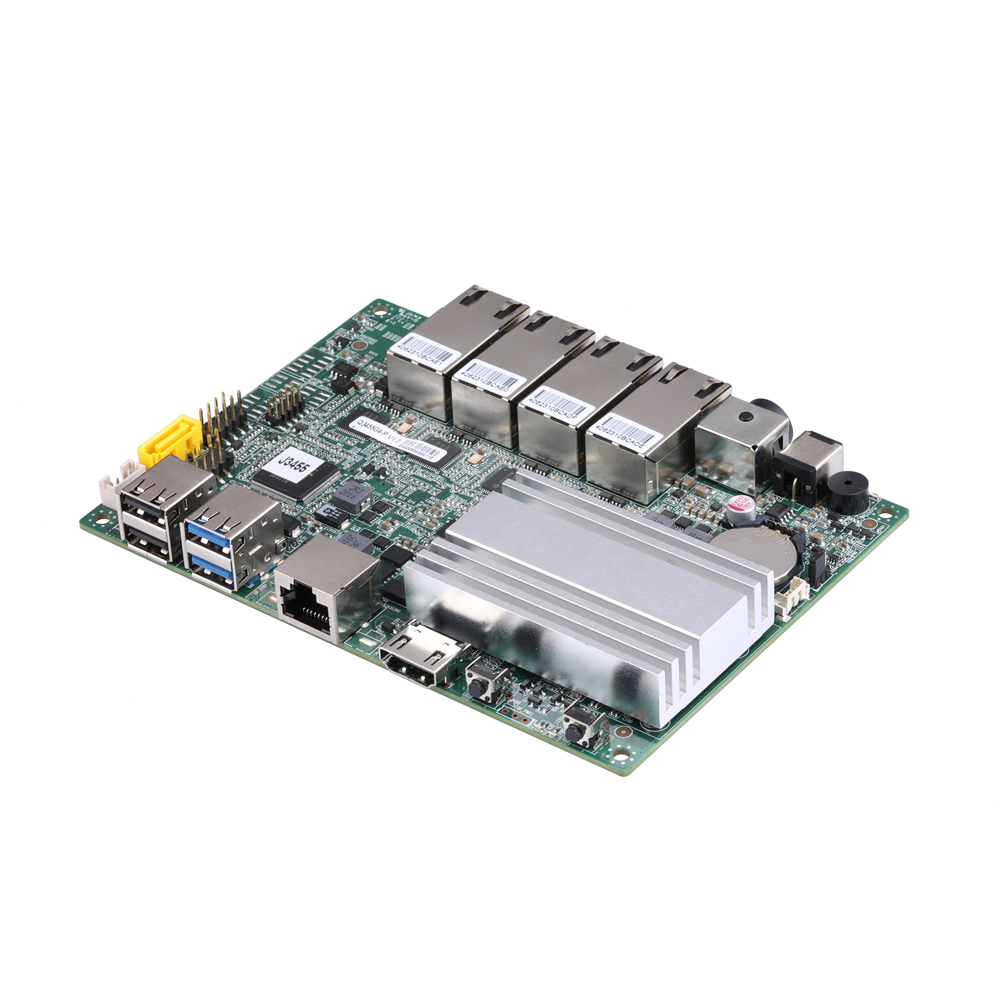

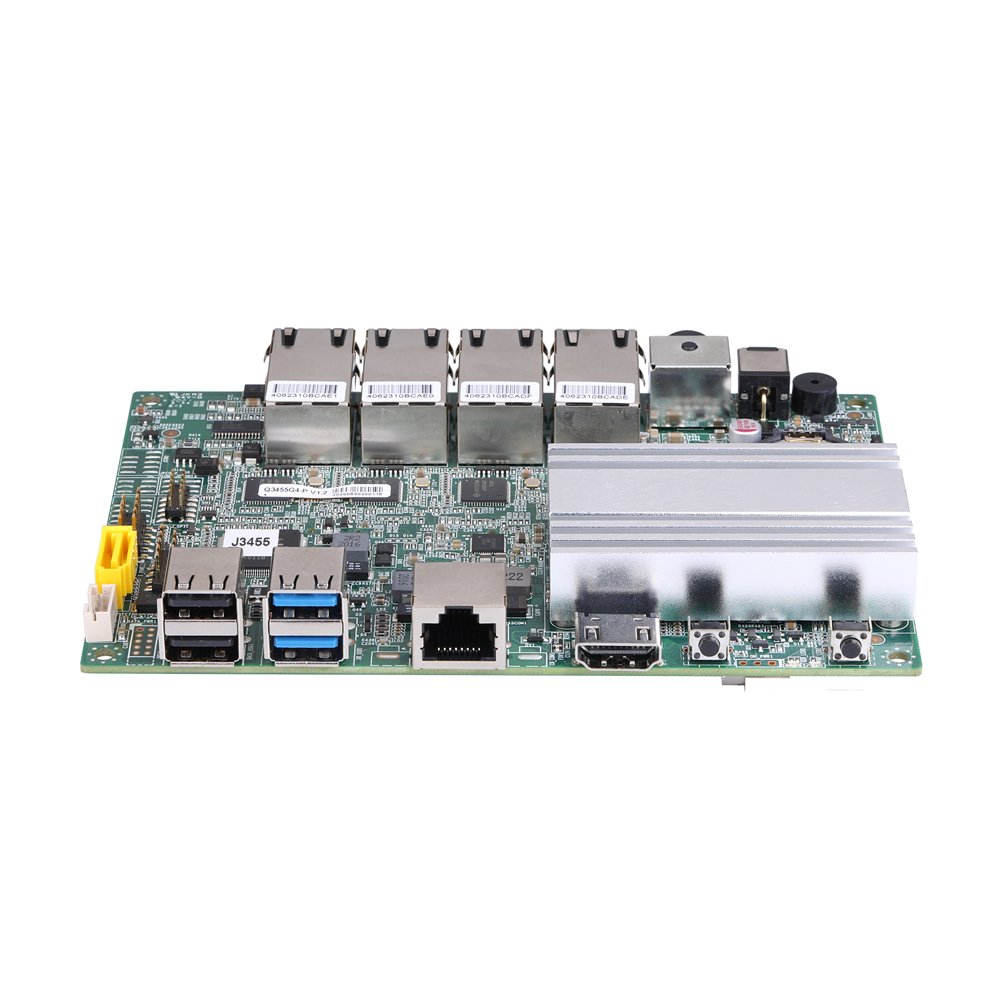

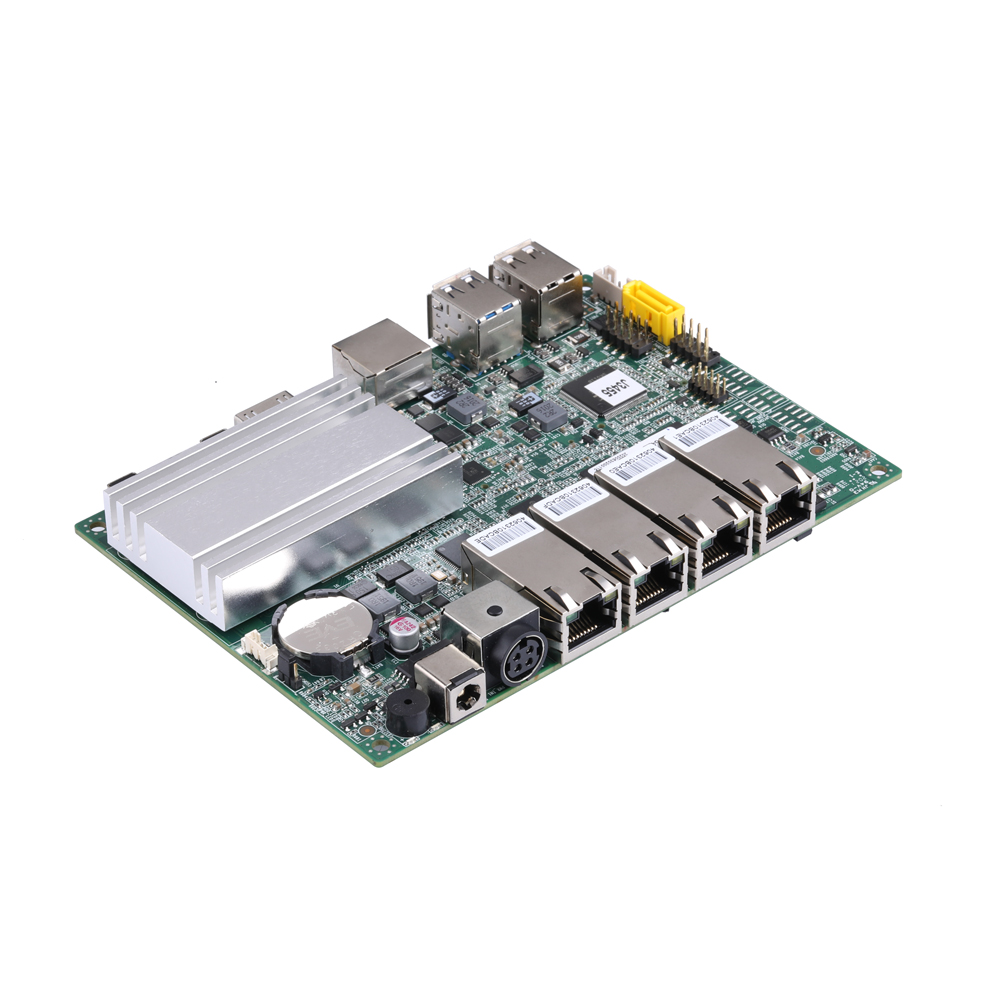

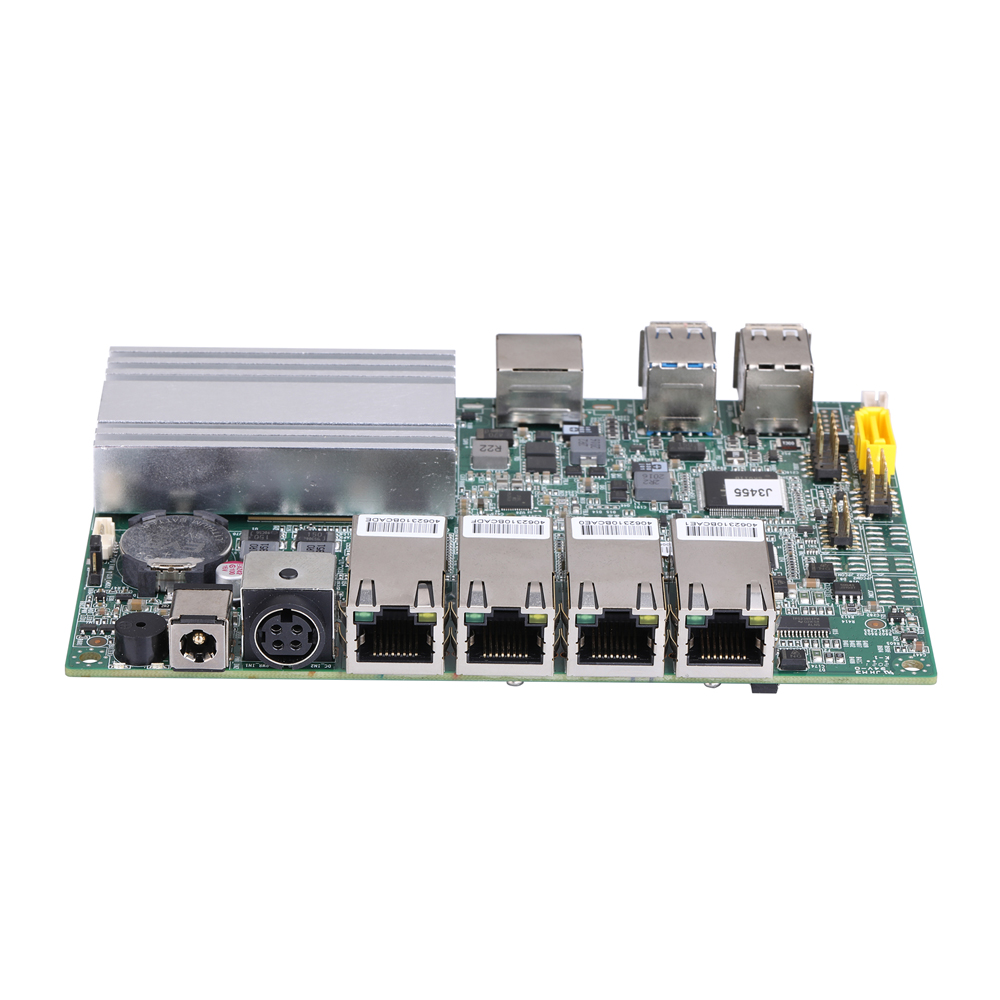

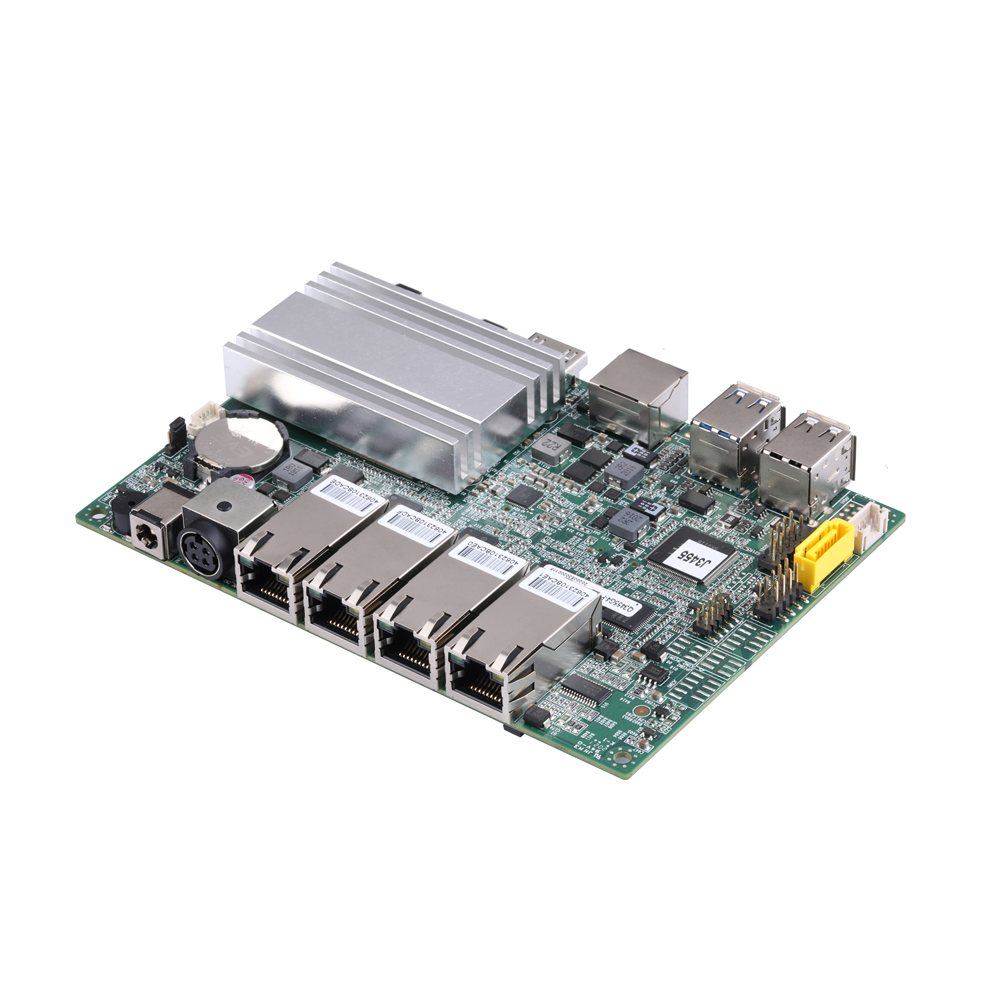

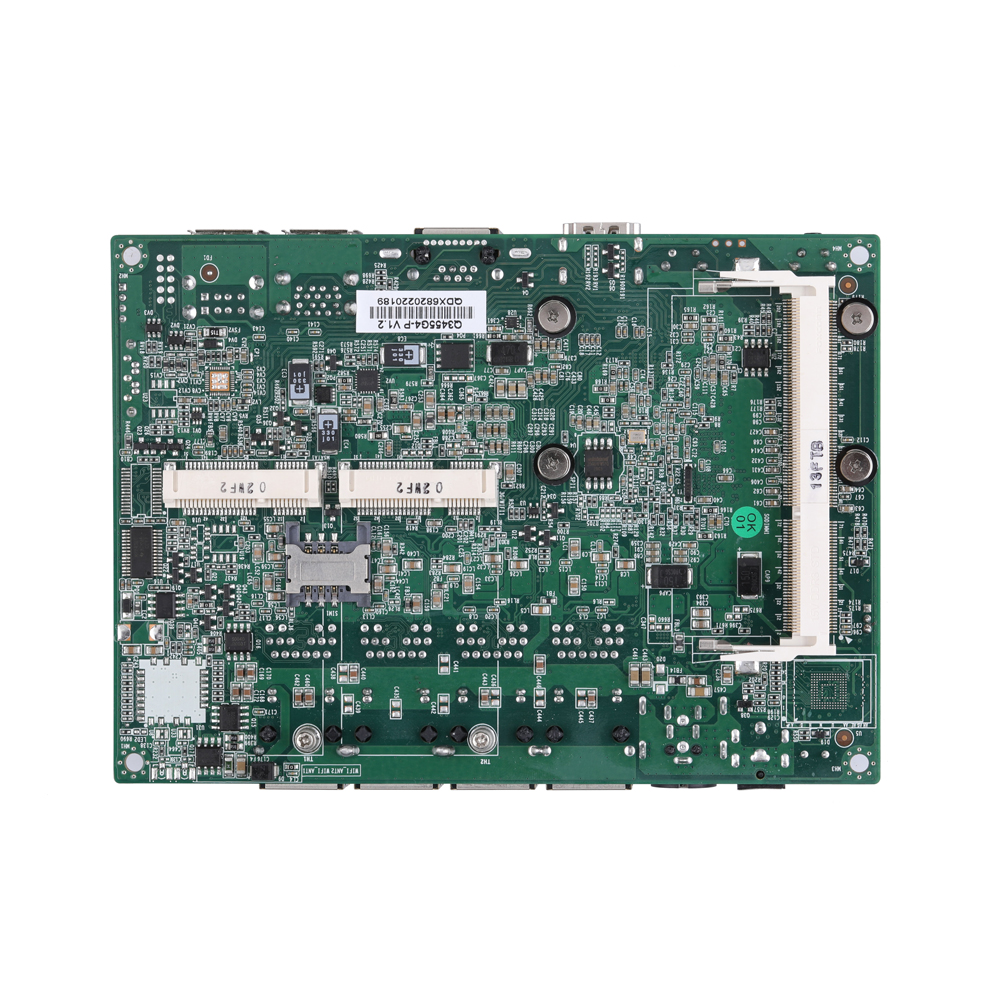

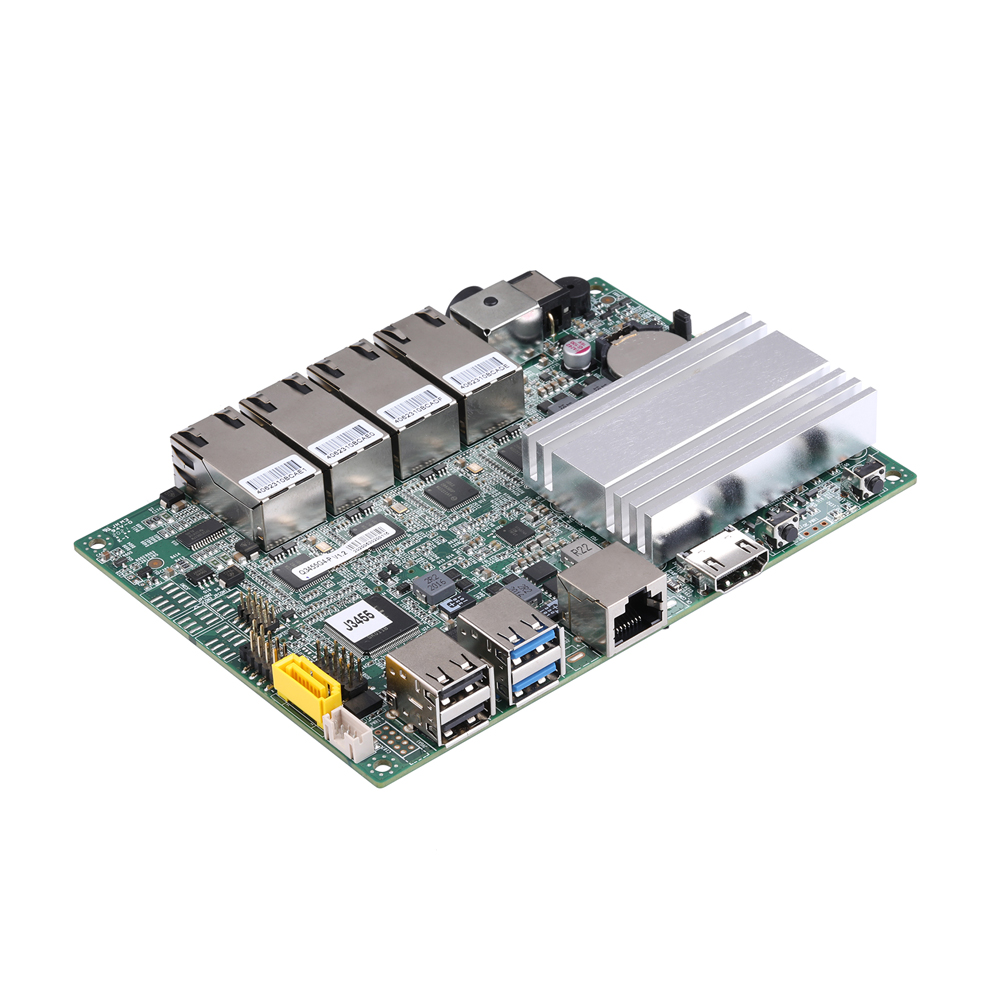

Moederbord MB3J422-0400-reeks

Name: Moederbord MB3J422-0400-reeks
Brand: Qotom
SKU: MB3J422-0400

Model: MB3J422-0400

Totale LAN4

LAN Spoed1G RJ45

Seriële Poorte1

For network and industrial equipment development, MB3J422-0400 offers Apollo Lake embedded motherboard supporting processors including J3355, J3455, N3350, N3450 and N4200. Four Gigabit LAN, serial connectivity and expandable storage make it suitable for IoT gateways, industrial communication, equipment.

Sleutelspesifikasies

CPU: Apollo Lake
Geheue: DDR3L SO-DIMM · Maks 8GB
LAN: 4
Stoor: mSATA, SATA
Bord Grootte: 148x104

Versoenbare Stelsels

Q10400G4-S05

Stuur navraag

Q3355G4-P Q3455G4-P MB3J422-0411 MB3J422-0421 Intel Apollo Lake Pentium Celeron ATOM J3355 J3455 N3350 N3450 N4200 J4205

Main Features

Intel Apollo Lake Processor
1 × HDMI
2 × USB 3.0, 2 × USB 2.0
1 × mSATA,1 × Mini-PCIe, 1 × SATA 3.0
4 × Intel WGI211-AT/I210-AT Gigabit LAN
4 × POE Out

Verwante produkte

Moederbord MB7UT1X-1500-reeks

MB7UT1X-1500

Mini-rekenaar Q10400G4 S05-reeks

Q10400G4-S05

Moederbord MB2J401-0100-reeks

MB2J401-0100

Moederbord MB3J613-0100-reeks

MB3J613-0100

Moederbord MB2J513-0500-reeks

MB2J513-0500

Moederbord MB2J400-0700-reeks

MB2J400-0700

CPU	Intel Apollo Lake Processor
Skyfiestel	By CPU
Afmeting	148 × 104mm
Kernaantal	By CPU
Maks. spoed	By CPU
L2-kasgeheue	By CPU
BIOS	UEFI

Tegnologie	DDR3 1333/1600MHz SDRAM
Maks.	8GB
Socket	1 × SO-DIMM

Beheerder	By CPU
VRAM	Shared Memory
VGA	1 (Option)
HDMI	1 (Support HDMI 1.4a)
Multi-vertoning	Yes

Koppelvlak	10/100/1000Mbps
Beheerder	4 × Intel I211-AT/I210-AT Gigabit LAN (With POE)
Connector	4 × RJ-45

Kragknoppie	1 × Power Button, 1 × Reset Button
LED	1 × Power LED,1 × HDD LED
USB	2 × USB 3.0, 2 × USB 2.0
Seriële poort	1 × Connector,RS-232 (RJ-45) by Default RS-232 (DB9) (Option)
HDMI	1

Moederbord MB3J422-0400-reeks

Sleutelspesifikasies

Versoenbare Stelsels

Main Features

Verwerkerstelsel

Geheue

Grafies

Ethernet

Audio

Voor-I/O

Agterste I/O

Berging

Uitbreiding

Interne verbinder

Waghondtydteller

Power

Omgewing

Toebehore

OS-ondersteuning

Pakkiesinhoud

Bestelling en Spesifikasie Seleksie

BIOS & Firmware

Bestuurder Aflaaie

Verwante produkte

mSATA	1 × Full-length Mini PCIe for SSD
Mini PCIe	1 × Full-length Mini PCIe for 4G

VGA-koppelaar	1, 2 × 5Pin, Pitch 2.0mm (Option)
Seriële poort	3, 2 × 5Pin, Pitch 2.0mm (Option)
RS-485	0
SATA	1, SATA 3.0 (6.0Gb/S)
SATA-kragkonnektor	1, 1 × 4Pin, Pitch PH2.0mm
SIM-gleuf	1
Outostart-springer	No
CMOS-skonspringer	Yes, 1 × 3Pin, Pitch 2.0mm
GPIO-kopstuk	1, 2 × 5Pin, Pitch 2.0mm
USB 2.0-koppelaar	2, 2 × 5Pin, Pitch 2.54mm
Paneele-kopstuk	1, 2 × 5Pin, Pitch 2.54mm
Kraghaaf	1, 12V, 1 × 2Pin, Pitch 5.08mm (Option)
Kraghaaf	1, 48V, 1 × 2Pin, Pitch 5.08mm (Option)

Uitset	From Super I/O to Drag RESETCON#
Interval	256 Segments,0,1,2,3,,,255 sec/min

Ordering Code	Legacy Model	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP	Datablad
MB3J422-0411	Q3355G4-P	Apollo Lake	Celeron	J3355	2 / 2	2.00Ghz ~ 2.50Ghz	2M	Intel HD 500	10W
MB3J422-0421	Q3455G4-P	Apollo Lake	Celeron	J3455	4 / 4	1.50Ghz ~ 2.50Ghz	2M	Intel HD 500	10W

Ethernet	4
GS-IN 1	1, 12V
GS-IN 2	1, 48V Mini Din

Insetkrag	12V DC in, 5.5mm/2.5mm
Insetkrag	48V Mini Din DC in
