Mini PC Q10900XPGV S04 Seria

Model: Q10900XPGV-S04

Total LAN2
Viteză LAN2.5G RJ45
Porturi seriale5

Serial-device integration is the focus of Q10900XPGV-S04, combining Alder Lake-N and Twin Lake embedded Mini PC with 5 serial ports, 2×2.5G LAN and DDR5 up to 48GB. GPIO and VGA expand compatibility with industrial equipment, while N100, N305 and other processor options make it suitable for IoT.

Specificații cheie

CPU
Alder lake N / Twin Lake
Memorie
DDR5 SO-DIMM · Max 48GB
LAN
2
Stocare
M.2 Mkey, SATA

Placă de bază compatibilă

MB3J267-0900
MB3J267-0900
Trimite solicitare Cumpărați acum
Q10911XPGVQ10921XPGVQ10922XPGVQ10923XPGVQ10924XPGVQ10931XPGVQ10932XPGVQ11022XPGVQ11023XPGVQ11031XPGVQ11032XPGVIntelAlder Lake-NTwin LakePentiumCeleronATOMX7425EN50N97N100N200N300N305N150N250N350N355

Main Features

  • Intel Alder Lake-N Processor

  • Intel Twin Lake-N Processor

  • 2 × HDMI, 1 × VGA

  • 1 × USB 3.0, 7 × USB 2.0, 5 × RS-232

  • 3 × M.2, 1 × SATA 3.0

  • 2 × Realtek 2.5G LAN

Sistem procesor

CPUIntel Alder Lake-N Processor Intel Twin Lake-N Processor
TDP CPUBy CPU
Memorie1 × DDR5 SO-DIMM Socket (Up to 48G)
ChipsetBy CPU
GraficăBy CPU
AudioRealtek HD Audio
Watch DogYes

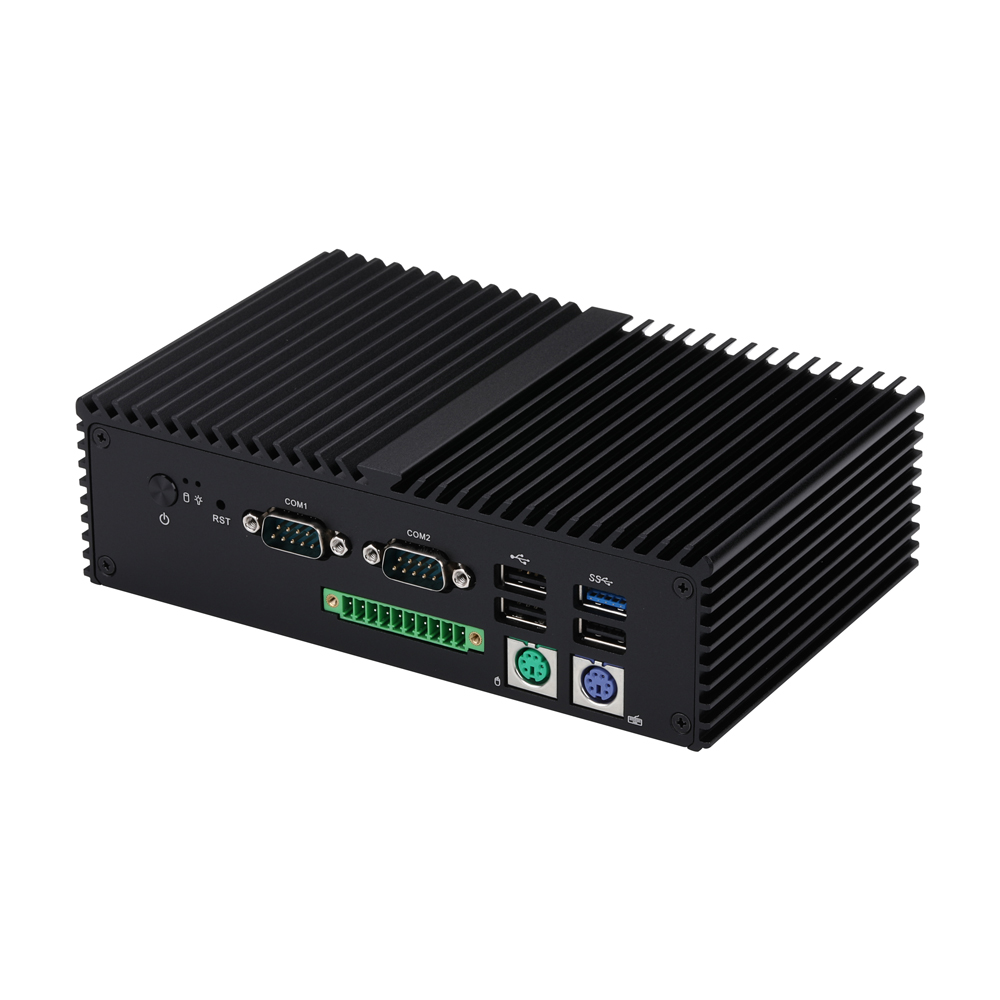

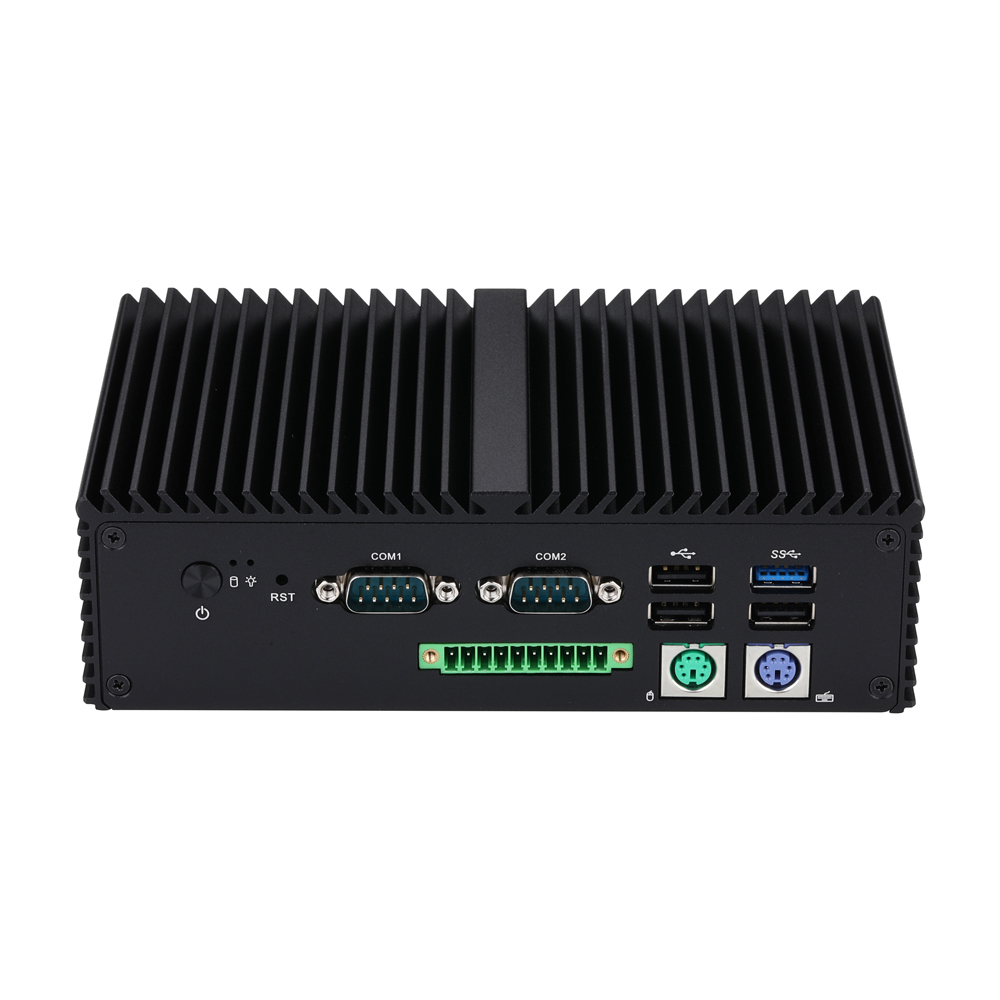

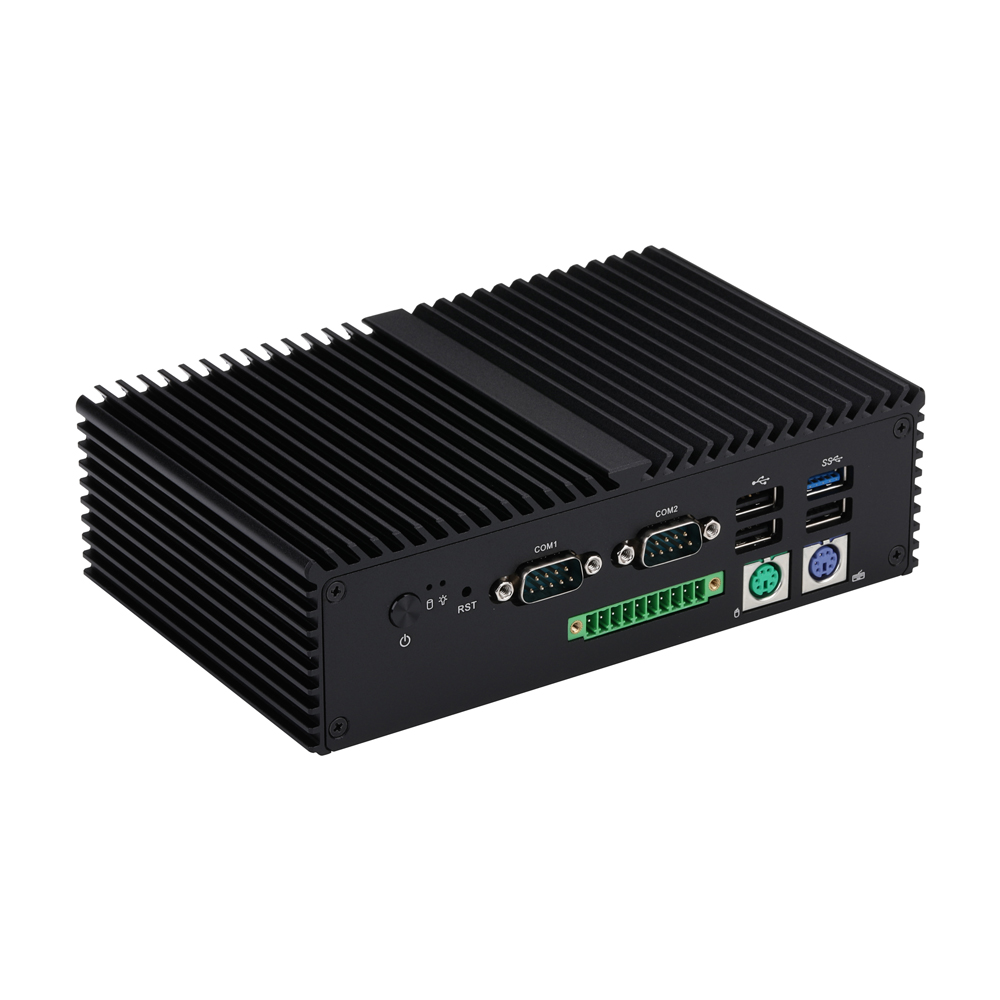

I/O Față

Buton de pornire1 × Power Button,1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB3 × USB 2.0, 1 × USB 3.0
Port serial2 × RS-232 (COM1/2 can be set up as RS-485)
PS/22
GPIO4 DIs/4DOs

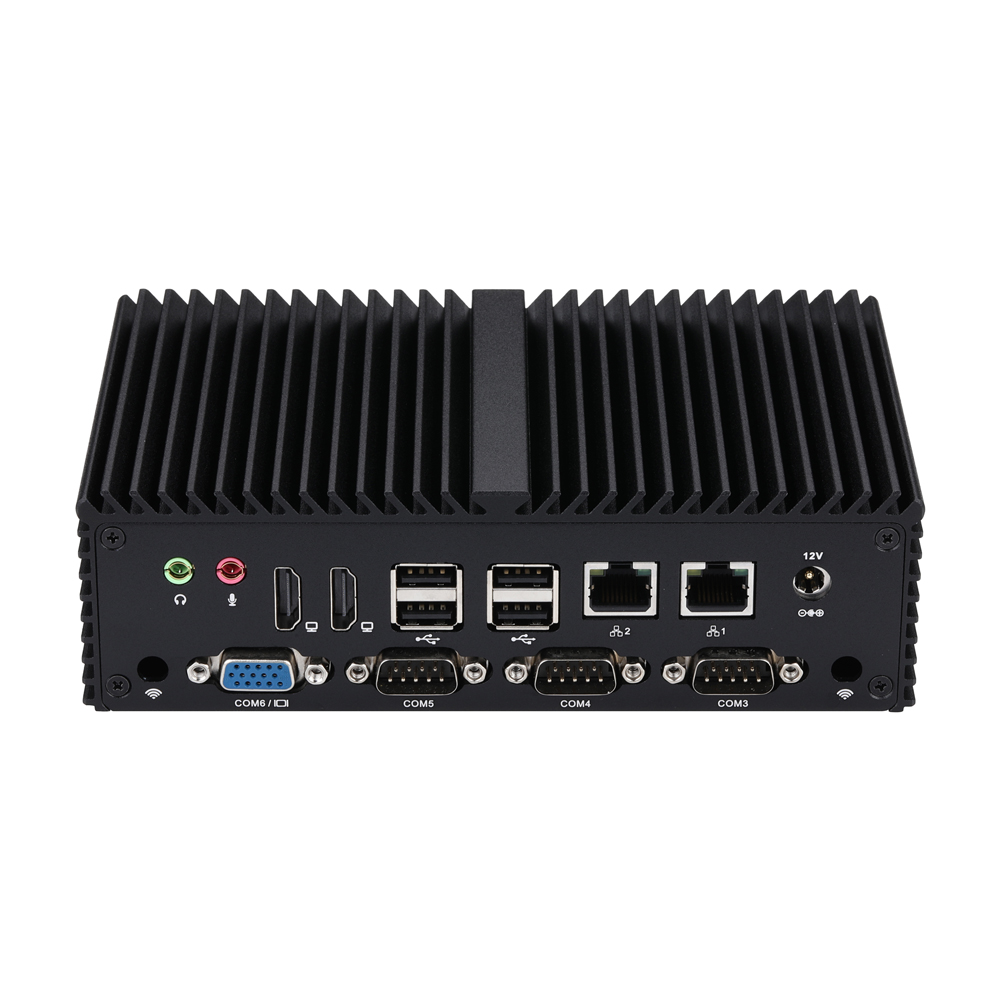

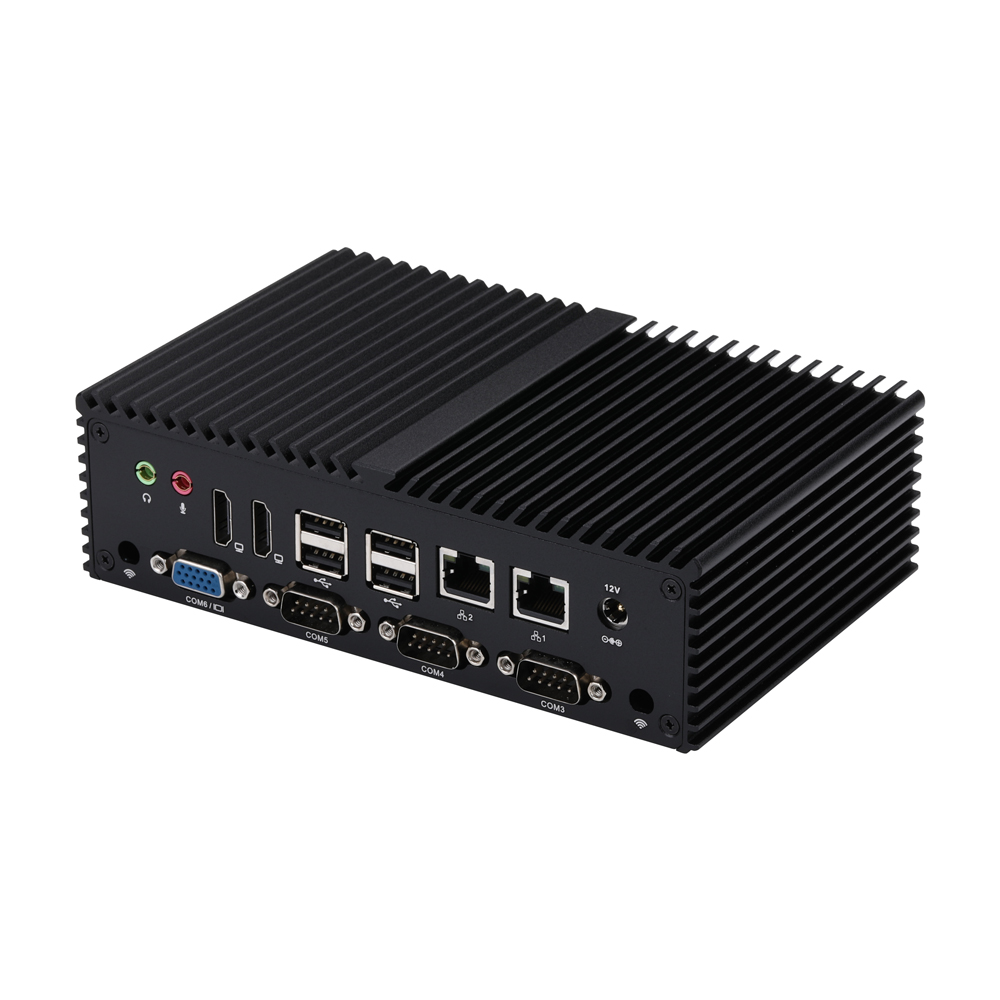

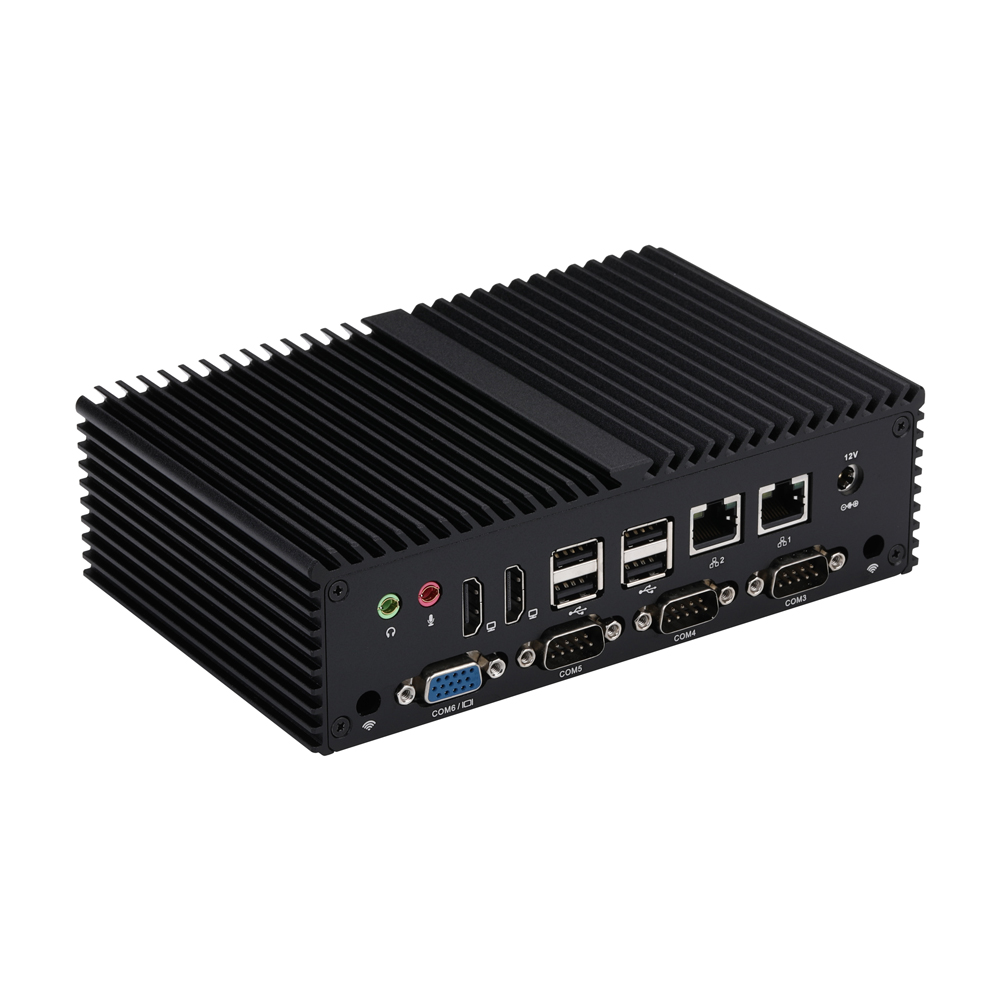

I/O spate

Power1 × DC Jack
LAN2 × Realtek 2.5G LAN
USB4 × USB 2.0
Audio1 × Mic-in,1 × Line-out
Display2 × HDMI,1 × VGA
Port serial3 × RS-232

Stocare

Tip1 × 2.5-inch HDD/SSD
Tip1 × M.2 for SSD (M key, Type:2280,PCIe 3.0 × 2)

Extindere

M.21 × M.2 for SSD (M key, Type:2280,PCIe 3.0 × 2)
M.21 × M.2 for 4G/5G (B key, Type: 3042/3052)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
Slot card SIM1
Jumper AutoStartYes,1 × 3Pin, Pitch 2.54mm
GPIO1,2 × 5Pin, Pitch 2.0mm
VGA0
Port serial0
Jumper Ștergere CMOSYes,1 × 3Pin, Pitch 2.54mm
Conector panou frontal1, 2 × 5Pin, Pitch 2.0mm

Power

Adaptor de alimentare12V3A
Conector DC5.5mm, 2.5mm

Mediu

Temp. de operare0°C~50°C
Temperatură nefuncționare-20°C~80°C
Umiditate10%~90%

Mecanic

MaterialAluminium Alloy
Dimensiune178 × 111 × 52mm
Greutate0.86kg
MontareVESA Mounting Bracket
Dimensiuni ambalaj261 × 218 × 75mm
Blocare KensingtonNo
Mod RăcireFanless Design

Suport OS

OSUEFI Windows 10, UEFI Linux

Conținutul pachetului

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Conținutul real al pachetului poate varia. Subiect la modificări fără notificare prealabilă.

Selectare Comandă și Specificații

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPFișă Tehnică
Q10911XPGV-S04 A lder lake-N - N50 2 / - 3.4GHz 6M Intel UHD Graphics 6W
Q10921XPGV-S04 Alder lake-N - N97 4 / - 3.6GHz 6M Intel UHD Graphics 12W
Q10922XPGV-S04 Alder lake-N - N100 4 / 4 3.4GHz 6M Intel UHD Graphics 6W
Q10923XPGV-S04 Alder lake-N - N200 4 / 4 3.7GHz 6M Intel UHD Graphics 6W
Q10924XPGV-S04 Alder lake-N Atom X7425E 4 / 4 3.4GHz 6M Intel UHD Graphics 12W
Q10931XPGV-S04 Alder lake-N Core i3 N300 8 / 8 3.8GHz 6M Intel UHD Graphics 7W
Q10932XPGV-S04 Alder lake-N Core i3 N305 8 / 8 3.8GHz 6M Intel UHD Graphics 15W
Q11022XPGV-S04 Twin Lake-N - N150 4 / 4 3.6GHz 6M Intel Graphics 6W
Q11023XPGV-S04 Twin Lake-N - N250 4 / 4 3.8GHz 6M Intel Graphics 6W
Q11031XPGV-S04 Twin Lake-N Core i3 N350 8 / 8 3.9GHz 6M Intel Graphics 7W
Q11032XPGV-S04 Twin Lake-N Core i3 N355 8 / 8 3.9GHz 6M Intel Graphics 15W
