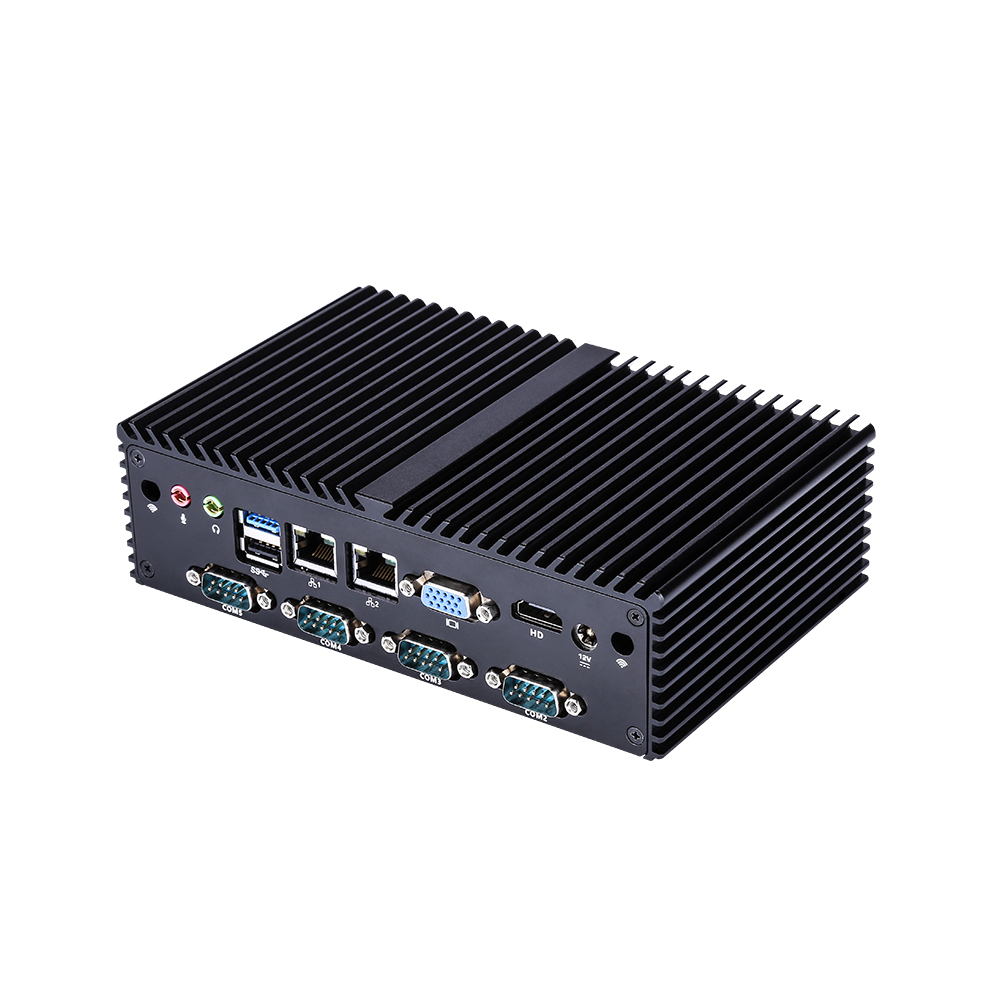

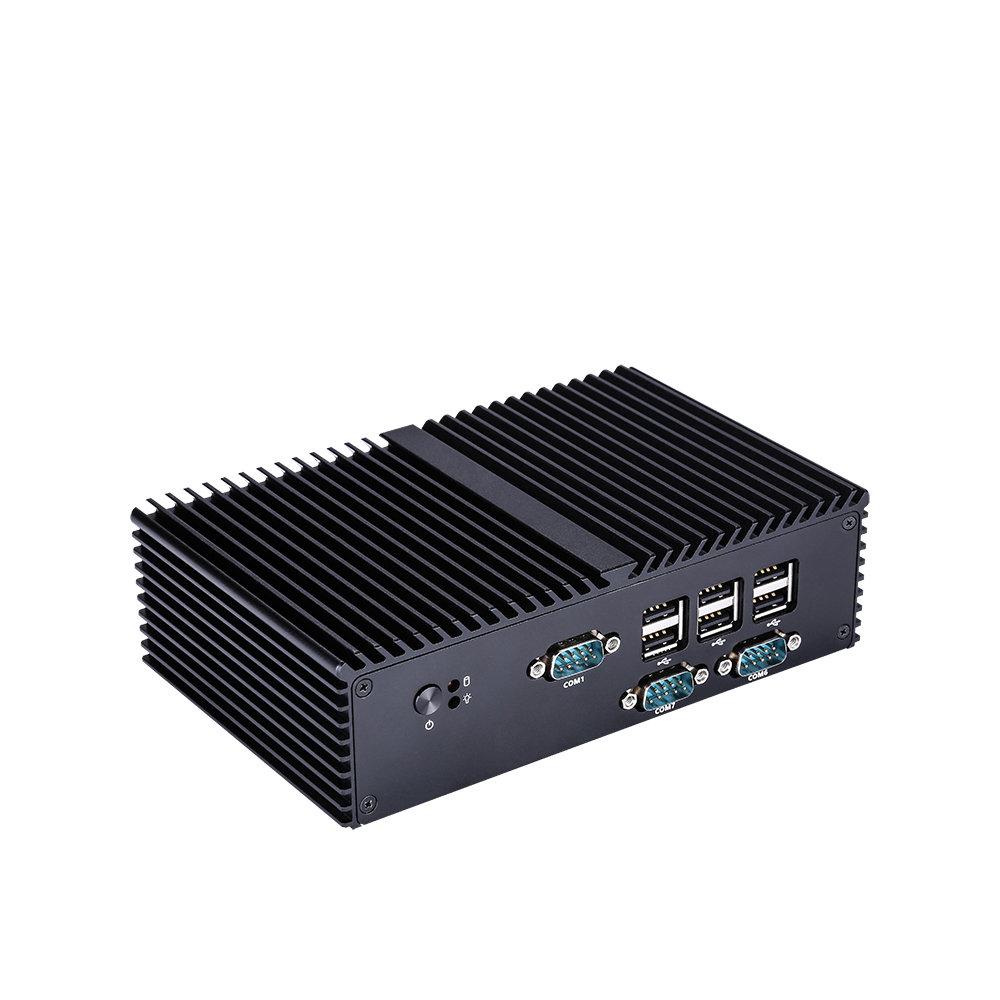

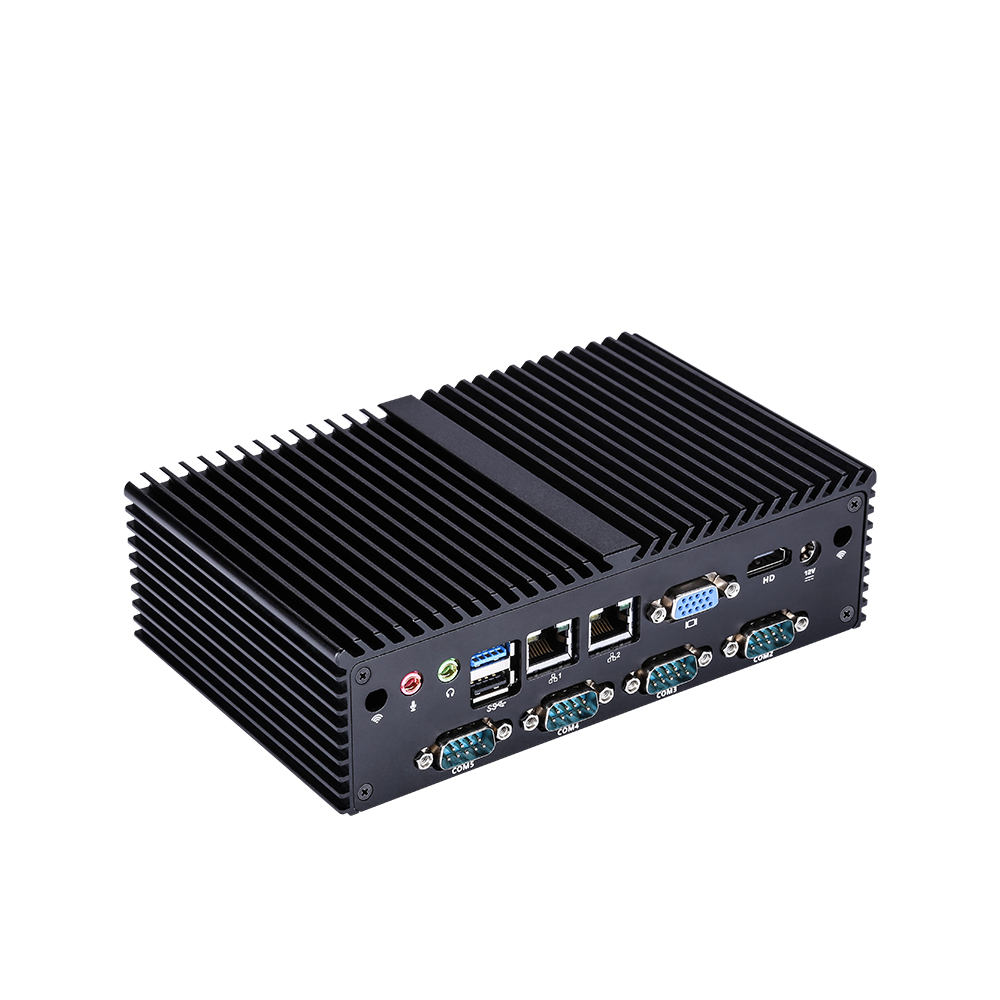

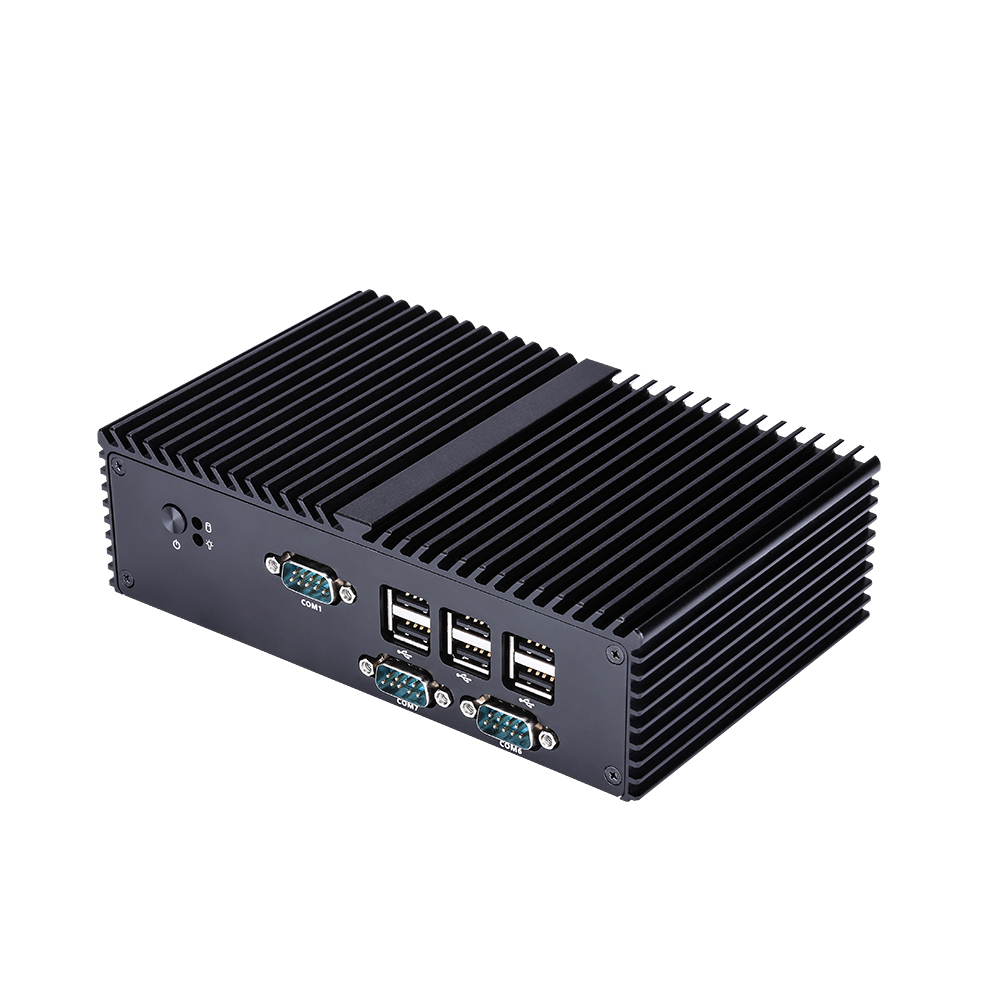

Mini PC Q10100X S04 Series

Name: Mini PC Q10100X S04 Series
Brand: Qotom
SKU: Q10100X-S04

Model: Q10100X-S04

Ukupno LAN2

Brzina LAN-a1G RJ45

Serijski portovi7

Ključne specifikacije

CPU: Bay Trail
Memorija: DDR3L SO-DIMM · Maks. 8GB
LAN: 2
Skladište: mSATA, SATA

Kompatibilna matična ploča

MB3J213-0100

Pošalji upit Kupite odmah

Q180X Q190X Q192X Q193X Q195X Q10111X Q10121X Q10122X Q10123X Q10134X Intel Bay Trail Pentium Celeron ATOM N2840 J1800 J1900 N2920 N2930 N3540

Main Features

Intel Bay Trail Processor
1 × VGA,1 × HDMI,7 × RS-232
1 × USB 3.0,7 × USB 2.0,1 × SATA 3.0
1 × Mini PCIe,1 × mSATA
2 × Realtek Gigabit LAN

Srodni proizvodi

Mini PC Q10700X S08 Series

Q10700X-S08

Mini PC Q30900P S08 Series

Q30900P-S08

Mini PC Q10800XPGV S04 Series

Q10800XPGV-S04

Mini PC Q30900X S20 Series

Q30900X-S20

Mini PC Q31200X S20 Series

Q31200X-S20

Mini PC Q71200X S18 Series

Q71200X-S18

CPU	Intel Bay Trail Processor
CPU TDP	By CPU
Memorija	1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)
Chipset	By CPU
Grafika	By CPU
LAN čipset	2 × Realtek Gigabit LAN
Audio	Realtek HD Audio
Watch Dog	Y es

Dugme za napajanje	1
LED	1 × Power LED
LED	1 × HDD LED
USB	6 × USB 2.0
Serijski port	3 × RS-232 (COM1 Supports 5V/12V)

Power	1 × DC Jack
Video izlaz	1 × HDMI,1 × VGA
LAN	2 × Realtek Gigabit LAN
USB	1 × USB 3.0,1× USB 2.0
Audio	1 × Mic-in,1 × Line-out
Serijski port	4 × RS-232 (COM2/COM3 Support 5V/12V)

mSATA	1 × Full-length Mini PCIe for SSD
Mini PCIe	1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi
Slot za SIM karticu	1
Jumper za automatsko pokretanje	Yes,1 × 3Pin, Pitch 2.54mm
DC-IN	No
VGA	0
GPIO	1, 2 × 5Pin, Pitch 2.0mm

Adapter za napajanje	12V3A
DC Priključak	5.5mm, 2.5mm

Mini PC Q10100X S04 Series

Ključne specifikacije

Kompatibilna matična ploča

Main Features

Procesorski sistem

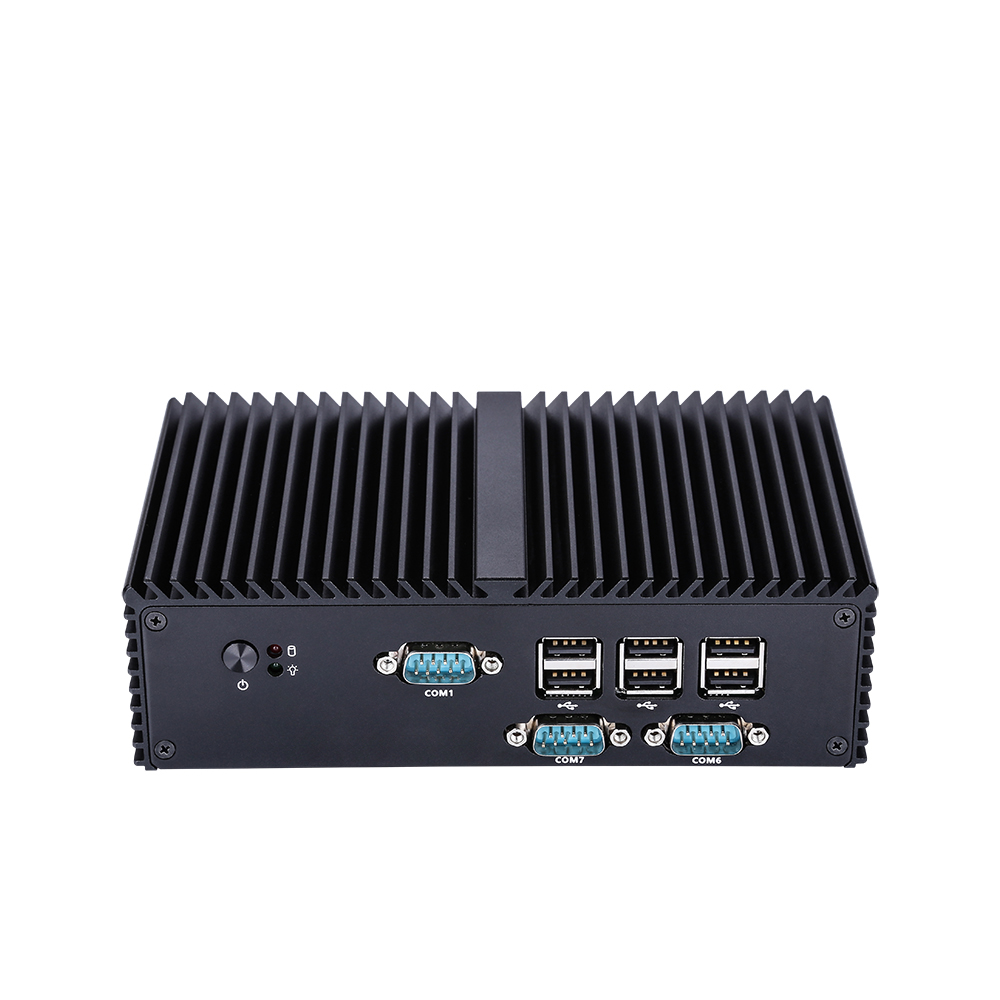

Prednji I/O

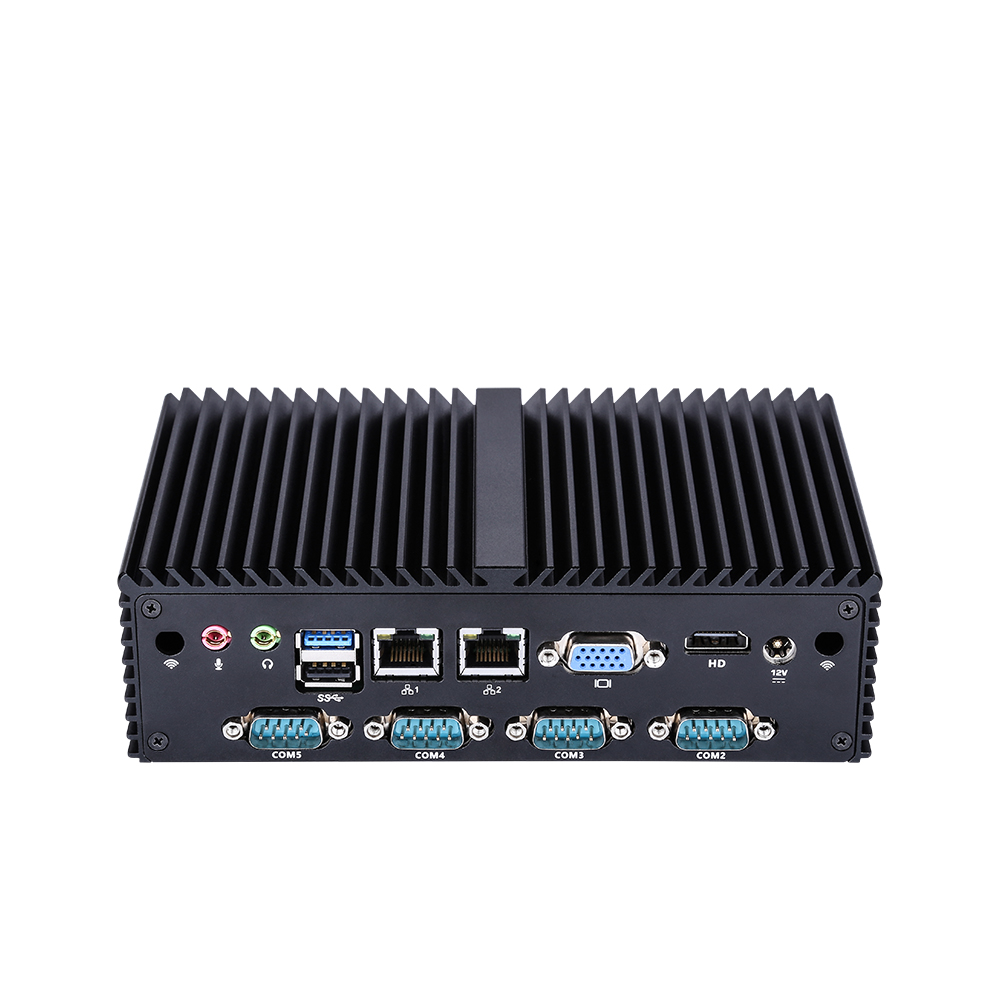

Zadnji I/O

Skladište

Proširenje

Power

Uslovi okoline

Mehanički

Podrška za OS

Sadržaj pakovanja

Izbor porudžbine i specifikacije

OEM / ODM prilagođavanje

BIOS & Firmware

Preuzimanje drajvera

Documents

Srodni proizvodi

Radna temp	0°C~50°C
Temperatura van rada	-20°C~80°C
Vlažnost	10%~90%

Materijal	Aluminium Alloy
Dimenzije	178 × 111 × 52mm
Težina	0.88kg
Montaža	VESA Mounting Bracket
Dimenzije pakovanja	261 × 218 × 75mm
Kensington brava	No
Način hlađenja	Fanless Design

Ordering Code	Legacy Model	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP
Q10111X-S04	Q180X	Bay trail	Celeron	J1800	2 / 2	2.41Ghz ~ 2.58Ghz	1M	Intel HD Graphics	10W
Q10121X-S04	Q190X	Bay trail	Celeron	J1900	4 / 4	2.00Ghz ~ 2.42Ghz	2M	Intel HD Graphics	10W
Q10122X-S04	Q192X	Bay trail	Celeron	N2920	4 / 4	1.86Ghz ~ 2.0Ghz	2M	Intel HD Graphics	7.5W
Q10123X-S04	Q193X	Bay trail	Celeron	N2930	4 / 4	1.83Ghz ~ 2.16Ghz	2M	Intel HD Graphics	7.5W
