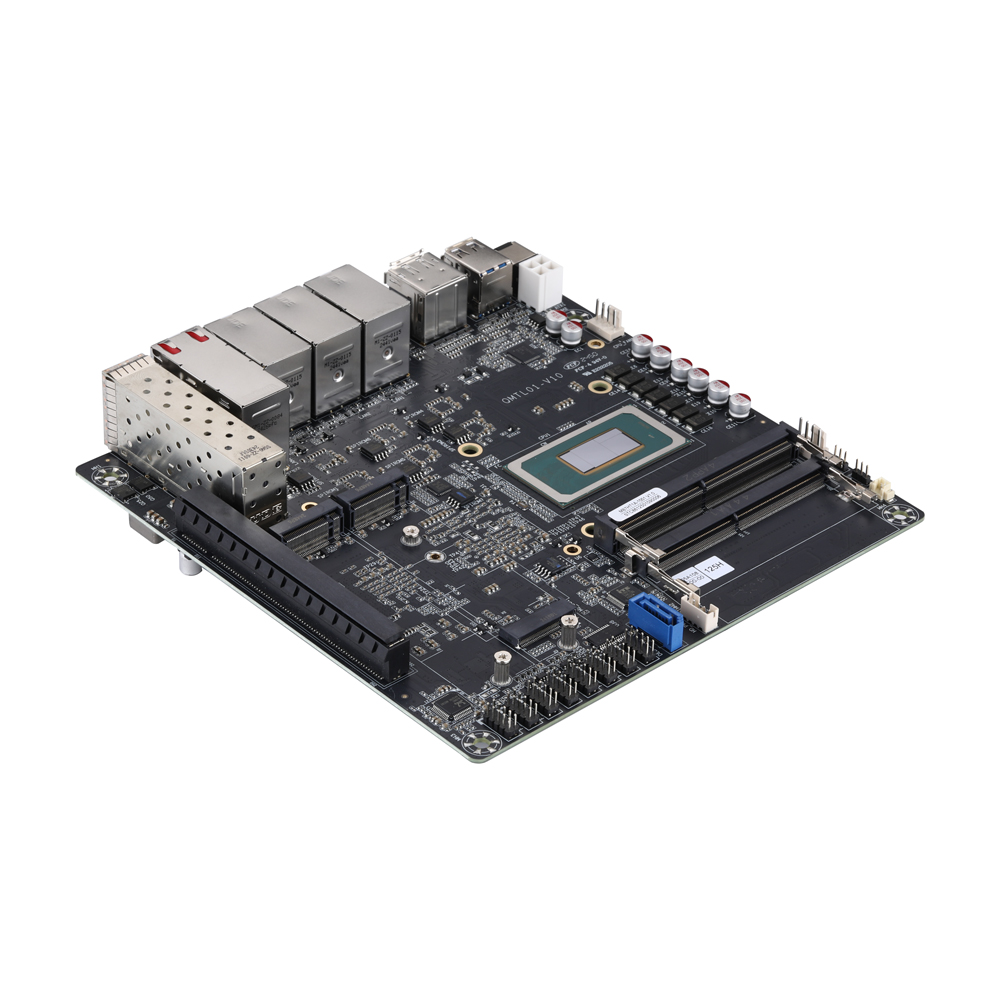

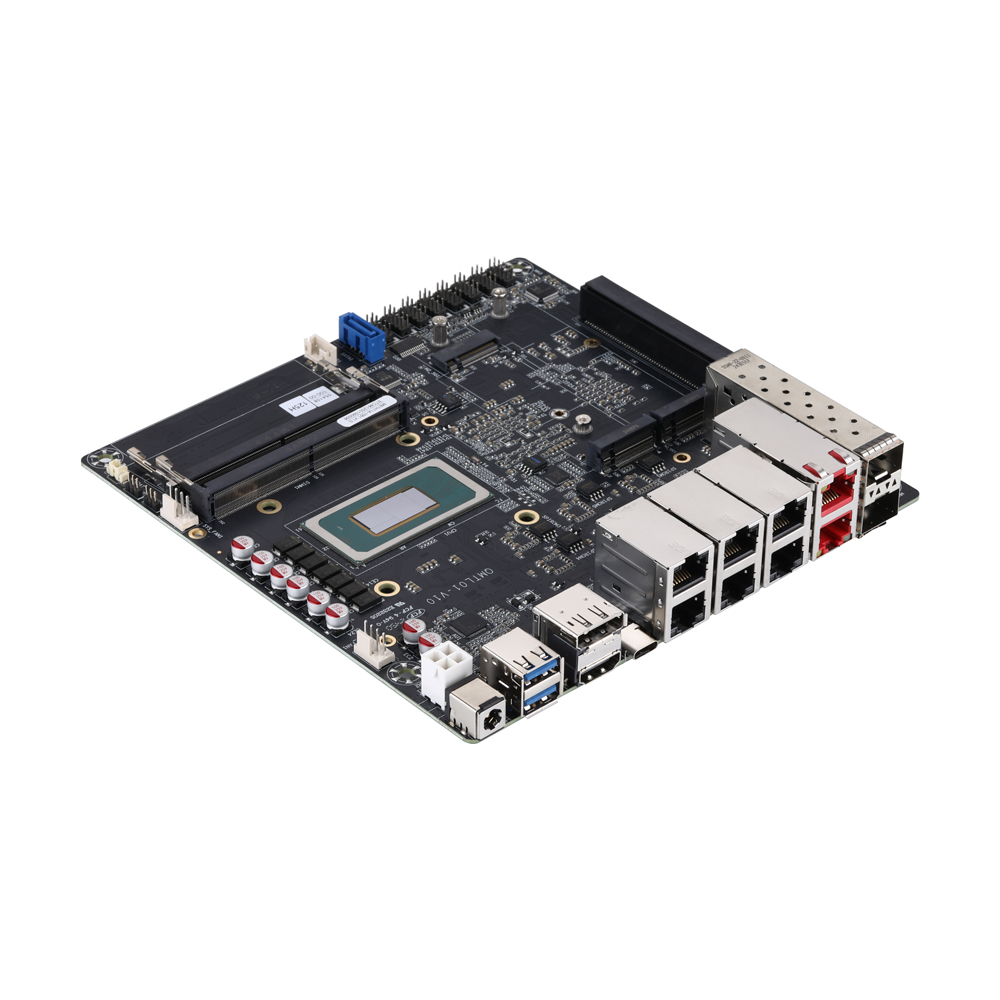

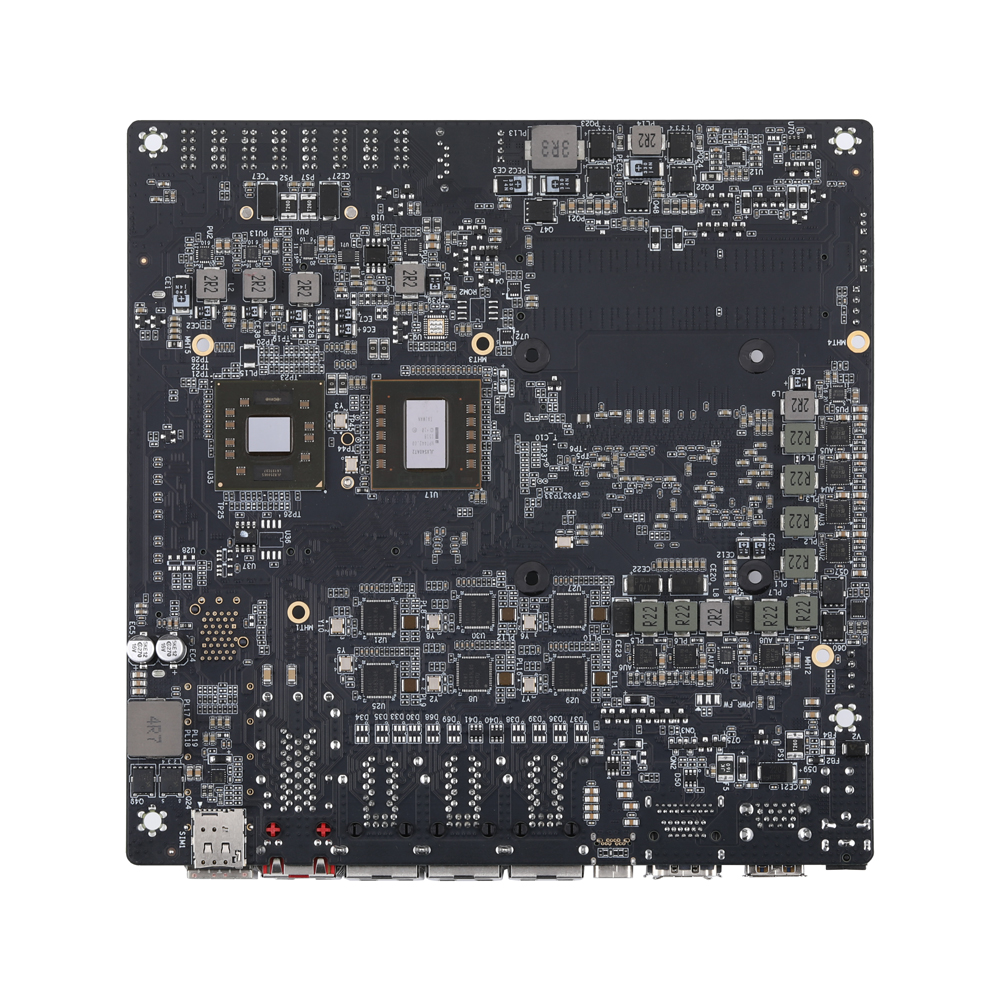

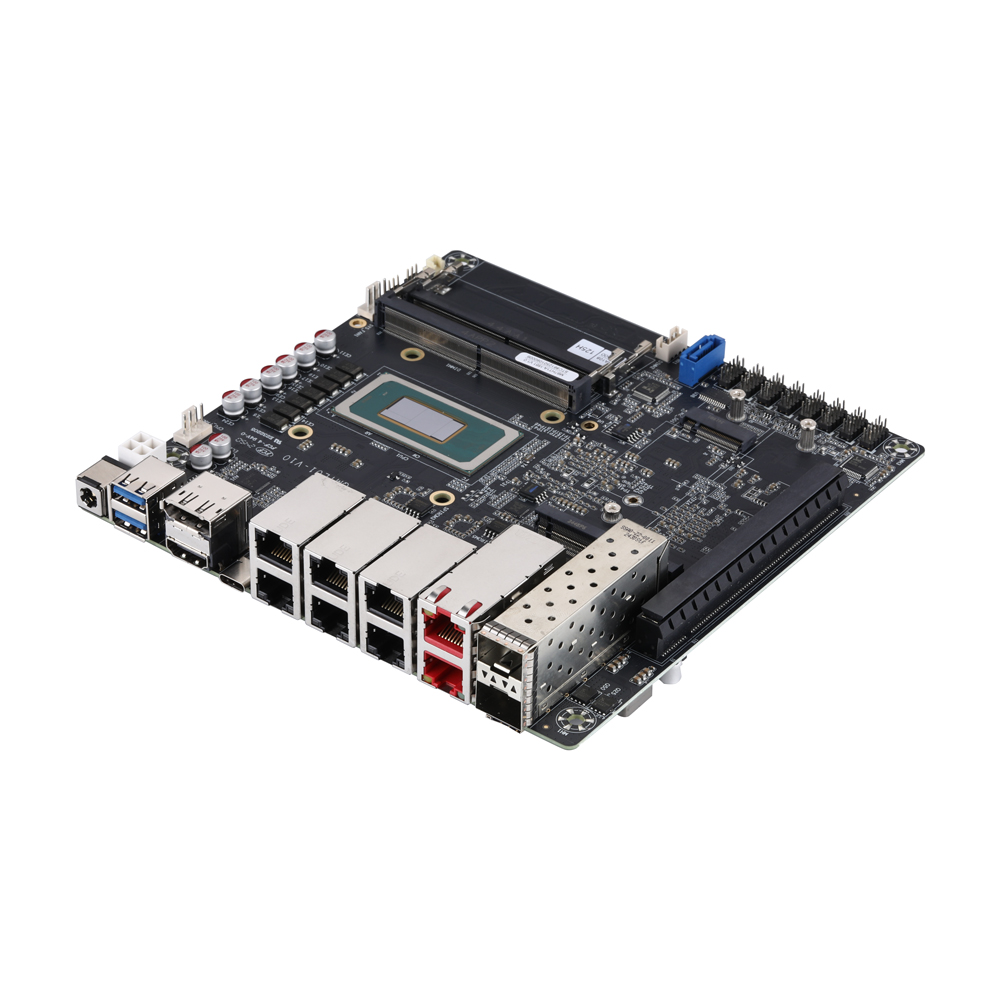

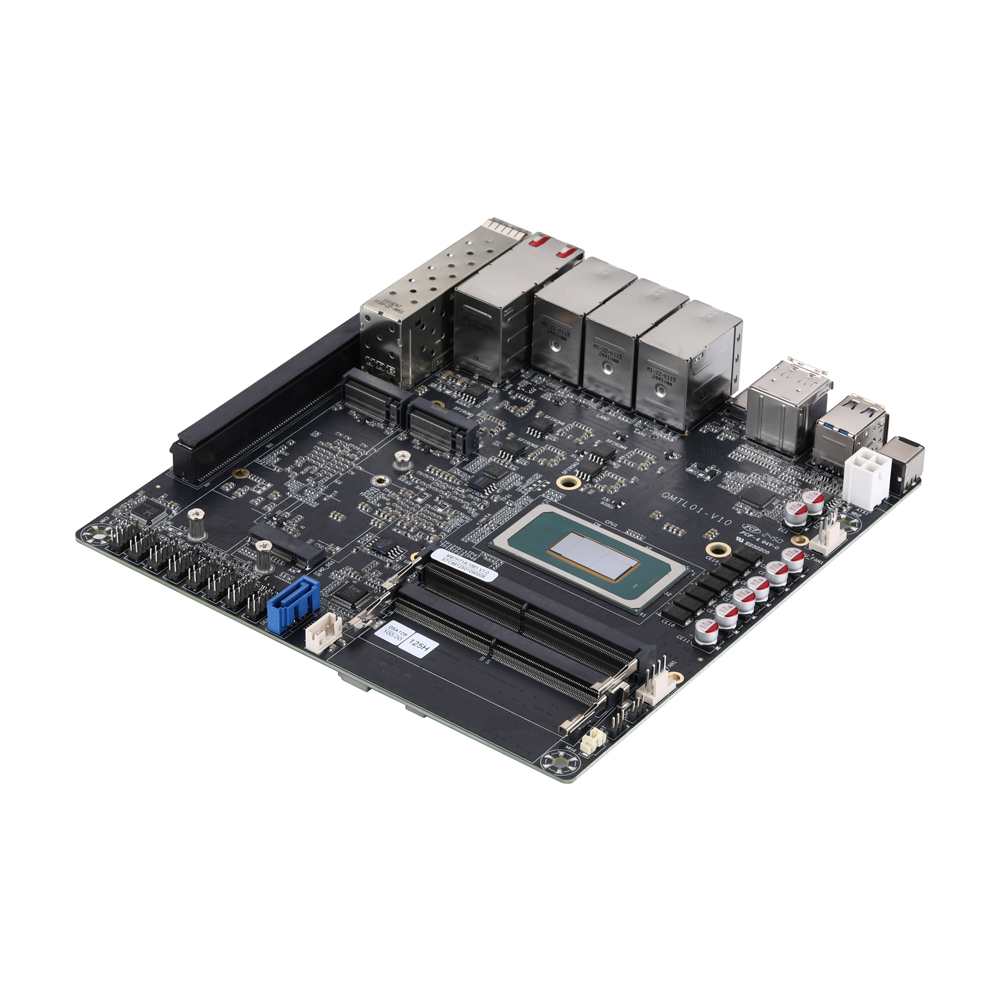

MB7UT1X-1500 image 21 / 6

Motherboard MB7UT1X-1500 Series

Model: MB7UT1X-1500

Total LAN10
LAN Speed2.5G RJ45 / 10G RJ45 / 10G SFP+
Serial Ports1

Key Specs

CPU
Meteor Lake / Arrow Lake
Memory
DDR5 SO-DIMM · Max 96GB
LAN
10
Storage
M.2 Mkey, SATA
Board Size
170x170

Compatible Systems

Q31500ST-1U14
Q31500ST-1U14
Q31500ST-S18
Q31500ST-S18
Send Inquiry
MB7UT1X-1551MB7UT1X-1571MB7HT1X-1551MB7HT1X-1571IntelMeteor LakeArrow LakeUltra 3Ultra 5Ultra 7Ultra 9125U134U135U155U164U165U125H135H155H165H185H

Main Features

  • Intel Meteor Lake U/H Ultra Processor(Series 1)

  • Intel Arrow Lake U/H Ultra Processor(Series 2)

  • 1 × Display Port, 1 × HDMI

  • 3 × USB 3.0, 1 × Type C

  • 3 × M.2, 1 × SATA 3.0, 1 × RS-232

  • 6 × Intel I225-V/I226-V 2.5G LAN

  • 2,Intel X540 10G LAN

  • 2,Intel 82599ES 10G SFP+

  • 1 × PCIe 5.0 × 8 Slot

Processor System

CPU• Intel Meteor Lake U/H Ultra Processor(Series 1) • Intel Arrow Lake U/H Ultra Processor(Series 2)
ChipsetBy CPU
Dimension170× 170mm
Core NumberBy CPU
Max. SpeedBy CPU
L2 CacheBy CPU
BIOSUEFI

Memory

TechnologyDDR5 4800MHz SDRAM
Max.96GB
Socket2× SO-DIMMs

Graphics

ControllerBy CPU
VRAMShared Memory
Display Port1
HDMI1 (Support HDMI 1.4a)
Multi DisplayYes

Ethernet

RJ45/2.5G6, Intel I225-V/I226-V 2.5G LAN
RJ45/10G2,Intel X540 10G LAN (10GbE/1GbE) Both interfaces support up to 12Gbps
SFP+ / 10G2,Intel 82599ES 10G SFP+ (10GbE/1GbE) Both interfaces support up to 12Gbps

Audio

ControllerRealtek HD Audio

Rear I/O

DC-IN1
USB 3.02× USB 3.0 (Type A)
Display1× Display Port,1× HDMI
Type C1, USB 3.0
Ethernet6× 2.5G
Ethernet2× 10G
SFP+2 × 10G SFP+

Storage

Max. Data Transfer RateSATA 3.0 (6.0Gb/S)

Expansion

M.21 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4)
M.21× M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 1)
M.21× M.2 for 4G/5G (B key, Type: 3042/3052)

Internal Connector

PCIe Slot1, PCIe slot (Type: X16, PCIe 5.0 × 8)
Power Header1, 2 × 2Pin, Pitch 5.5mm/4.2mm
CPU FAN Connector1, 1 × 4Pin, Pitch 2.54mm
SYS FAN Connector1, 1 × 4Pin, Pitch 2.54mm
Audio Header1, 2 × 5Pin, Pitch 2.0mm
Front Panel Header1, 2 × 5Pin, Pitch 2.0mm
USB 2.0 Header4, 2 × 5Pin, Pitch 2.0mm
USB 3.0 Header1, 2 × 5Pin, Pitch 2.0mm
Serial Port1, 2 × 5Pin,Pitch 2.0mm
SATA1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector1, 1 × 4Pin, Pitch PH2.0mm
AutoStart JumperYes, 1 × 3Pin, Pitch 2.0mm
Clear CMOS JumperYes, 1 × 3Pin, Pitch 2.0mm
GPIO Header1, 2 × 5Pin, Pitch 2.0mm

Watchdog Timer

OutputFrom Super I/O to Drag RESETCON#
Interval256 Segments,0,1,2,3,,,255 sec/min

Power

Input PWR12V/19V DC in, 5.5mm/2.5mm

Environmental

Operating Temperature0-50℃

Accessories

AccessoriesCable for HDD, Cable for Serial Port

OS Support

OSUEFI Windows 10, UEFI Linux

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPP-CoresE-CoresDatasheet
MB7UT1X-1551 Meteor Lake Core Ultra 5 125U 12 / 14 1.30 GHz ~ 4.30 GHz 12M Intel Graphics 15-57W 2 8
MB7UT1X-1571 Meteor Lake Core Ultra 7 155U 12 / 14 1.70 GHz ~ 4.80 GHz 12M Intel Graphics 15-57W 2 8
MB7HT1X-1551 Meteor Lake Core Ultra 5 125H 14 / 18 1.20 GHz ~ 4.50 GHz 18M I ntel Arc graphics 28-115W 4 8
MB7HT1X-1571 Meteor Lake Core Ultra 7 155H 16 / 22 1.40 GHz ~ 4.80 GHz 24M Intel Arc graphics 28-115W 6 8
