Qotom
Q10500G5-1U06 image 11 / 8

Mini PC Q10500G5 1U06 Series

Model: Q10500G5-1U06

Total LAN5
LAN Speed2.5G RJ45

Key Specs

CPU
Gemini Lake / Gemini Lake-R
Memory
DDR4 SO-DIMM · Max 16GB
LAN
5
Storage
mSATA, SATA

Compatible Motherboard

MB2J513-0500
MB2J513-0500
Send Inquiry Buy Now
Q720G5Q730G5Q740G5Q750G5Q10511G5Q10512G5Q10521G5Q10612G5Q10621G5IntelGemini LakeGemini Lake-RPentiumCeleronATOMN4000N4100J4005J4105N5000J5005N4020N4120J4025J4125N5030J5040

Main Features

  • Intel Gemini Lake Processor

  • Intel Gemini Lake-R Processor

  • 1 × HDMI,1 × SATA 3

  • 2 × USB 3.0, 2 × USB 2.0

  • 1 × M.2, 1 × mSATA, 1 × Mini PCIe

  • 5 × Intel I225-V/I226-V 2.5G LAN

Processor System

CPU• Intel Gemini Lake Processor • Intel Gemini Lake-R Processor
CPU TDPBy CPU
Memory1 × DDR4 SO-DIMM Socket (Up to 16G) Only Supports a Single 1G Memory Chip
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset5 × Intel I225-V/I226-V 2.5G LAN
AudioNo
Watch DogYes

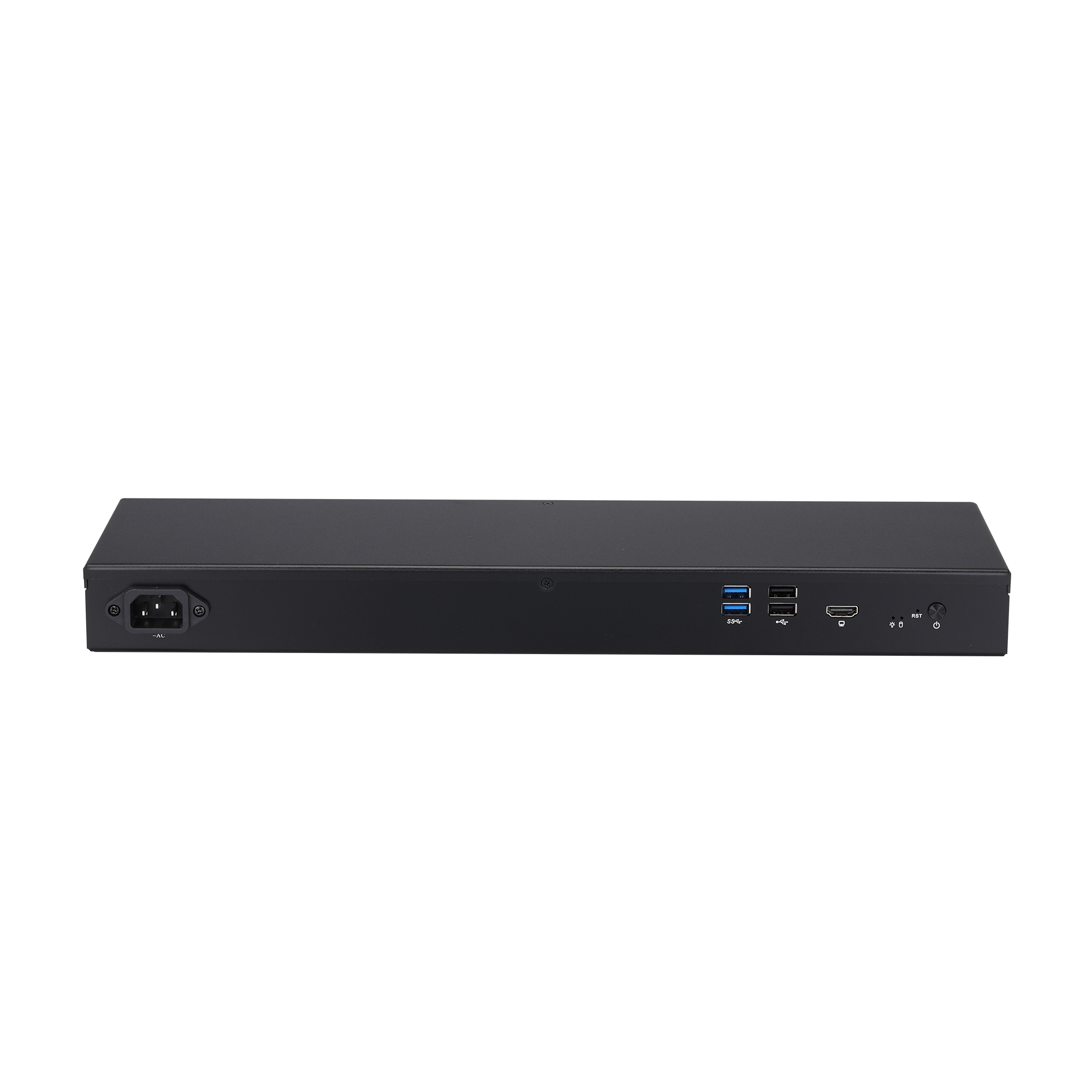

Front I/O

Power Button1
LED1 × Power LED,1 × HDD LED
USB2 × USB 2.0,2 × USB 3.0
Reset Button1
Video Output1 × HDMI

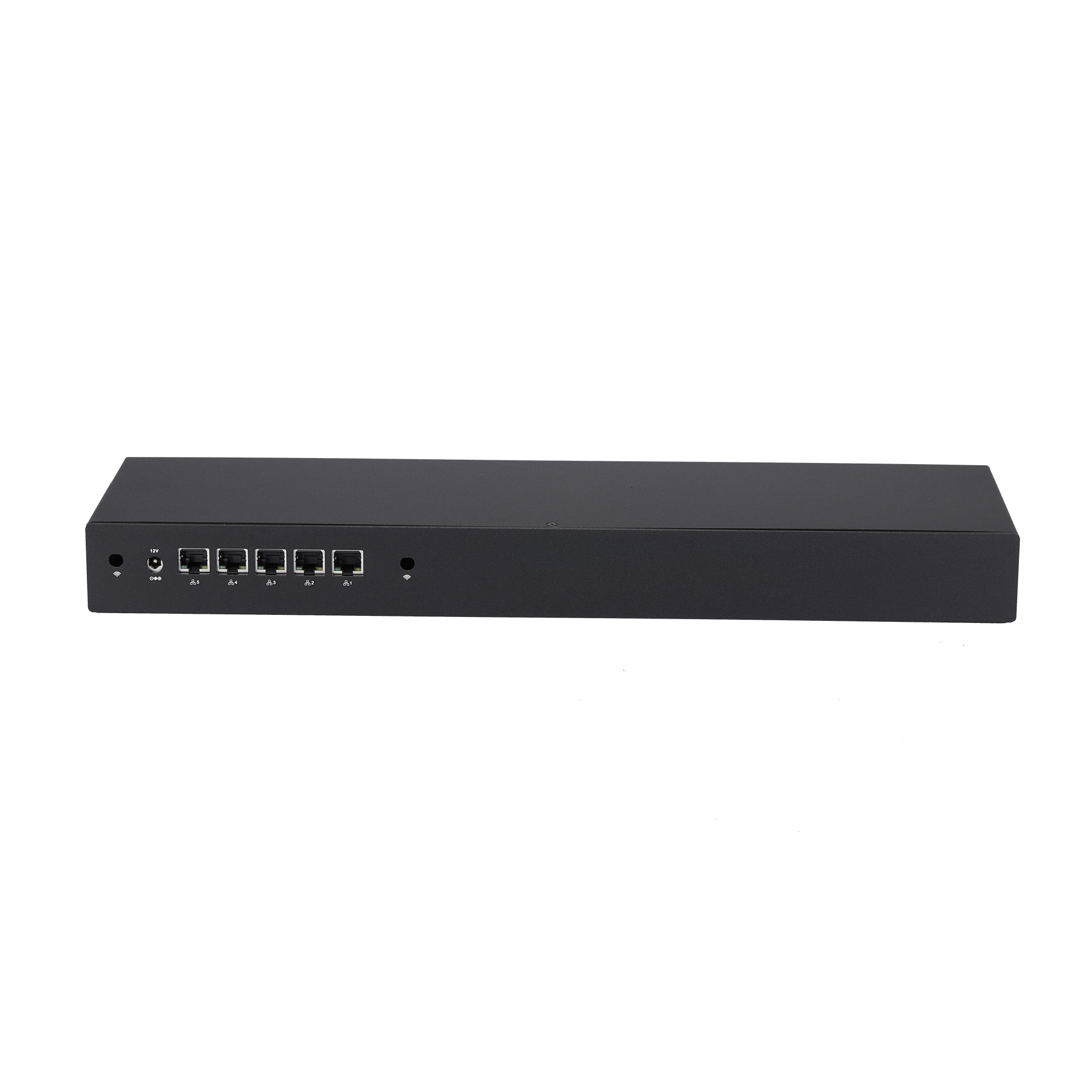

Rear I/O

Power1 × DC Jack
LAN5 × Intel I225-V/I226-V 2.5G LAN
LED1 × Power LED (Optional)

Storage

Type1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD

Expansion

mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi (Default Only Support USB Device)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot1
AutoStart JumperYes,1 × 3Pin, Pitch 2.54mm
GPIO1,2 × 5Pin, Pitch 2.0mm
VGA0
Clear CMOS JumperYes,1 × 3Pin, Pitch 2.54mm

Power

AC InputAC 100-240V b y Default
Power AdapterDC 12V (5.5mm, 2.5mm)

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension440 × 127 × 44mm
Weight1.21kg
MountingN o
Packaging Dimension545 × 180 × 90mm
Kensington LockNo
Cooling ModeFan

OS Support

OSWindows 10, Linux

Package Contents

  • Mini PC × 1
  • AC Power Cable × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPLegacy ModelDatasheet
Q10511G5-1U06 Gemini Lake Celeron J4005 2 / 2 2.0GHz ~ 2.7GHz 4M Intel UHD Graphics 600 10W -
Q10512G5-1U06 Gemini Lake Celeron N4000 2 / 2 1.1GHz ~ 2.6GHz 4M Intel UHD Graphics 600 6W -
Q10521G5-1U06 Gemini Lake Celeron J4105 4 / 4 1.5GHz ~ 2.5GHz 4M Intel UHD Graphics 600 10W Q730G5
Q10612G5-1U06 Gemini Lake Refresh Celeron N4020 2 / 2 1.1GHz ~ 2.8GHz 4M Intel UHD Graphics 600 6W -
Q10621G5-1U06 Gemini Lake Refresh Celeron J4125 4 / 4 2.0GHz ~ 2.7GHz 4M Intel UHD Graphics 600 10W Q750G5
