Mini PC Q31100GT S23 Series

Name: Mini PC Q31100GT S23 Series
Brand: Qotom
SKU: Q31100GT-S23

Model: Q31100GT-S23

Total LAN10

LAN Speed2.5G RJ45

Key Specs

CPU: Tiger Lake
Memory: DDR4 SO-DIMM · Max 64GB
LAN: 10
Storage: M.2 Mkey, SATA

Compatible Motherboard

MB4HT1C-1100

Send Inquiry

Main Features

Intel 11th Tiger Lake Processor
1 × Display Port, 1 × HDMI
2 × USB 3.0
3 × M.2, 1 × SATA 3.0
1 × RS-232 (RJ-45)
10 × Intel I226-V 2.5G LAN

Related Products

Mini PC Q71200G6 S18 Series

Q71200G6-S18

Mini PC Q30900SP S20 Series

Q30900SP-S20

Mini PC Q30900GP S20 Series

Q30900GP-S20

Mini PC Q30900GE S13 Series

Q30900GE-S13

NAS Q31100G4 S17 Series

Q31100G4-S17

Mini PC Q20300S9 S20 Series

Q20300S9-S20

CPU	Intel 11th Tiger Lake Processor
CPU TDP	By CPU
Memory	2 × DDR 4 SO-DIMM Sockets (Up to 64G,21 33/24 00MHz)
Chipset	By CPU
Graphics	By CPU
LAN Chipset	10 × Intel I226-V 2.5G LAN
Watch Dog	Yes

Power Button	1 × Power Button,1 × CMOS Clear Button
LED	1 × Power LED, 1 × HDD LED

Type	1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4)
Type	1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1)
Type	1 × 2.5-inch HDD/SSD

M.2	1 × M.2 for SSD , (Designator:KEY-M1), (M key, Type: 2280, PCIe 4.0 × 4)
M.2	1 × M.2 for 4G/5G (B key, Type: 3042/3052)
M.2	1 × M.2 for SSD, (Designator:KEY-M), (M key, Type: 2280, PCIe 3.0 × 1) (Option 2)
M.2	1 × M.2 for Wi-Fi (E key, Type: 2230), (Designator:WIFI1),(Option 1, Preferred)
SIM Card Slot	1
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
CMOS Clear Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
GPIO	1, 2 × 5Pin, Pitch 2.0mm

Power Adapter	12V7A
DC Jack	5.5mm, 2.5mm

Mini PC Series

Motherboard Series

NAS Storage Series

OPS Series

Panel PC Series

Accessories

Mini PC Q31100GT S23 Series

Key Specs

Compatible Motherboard

Main Features

Processor System

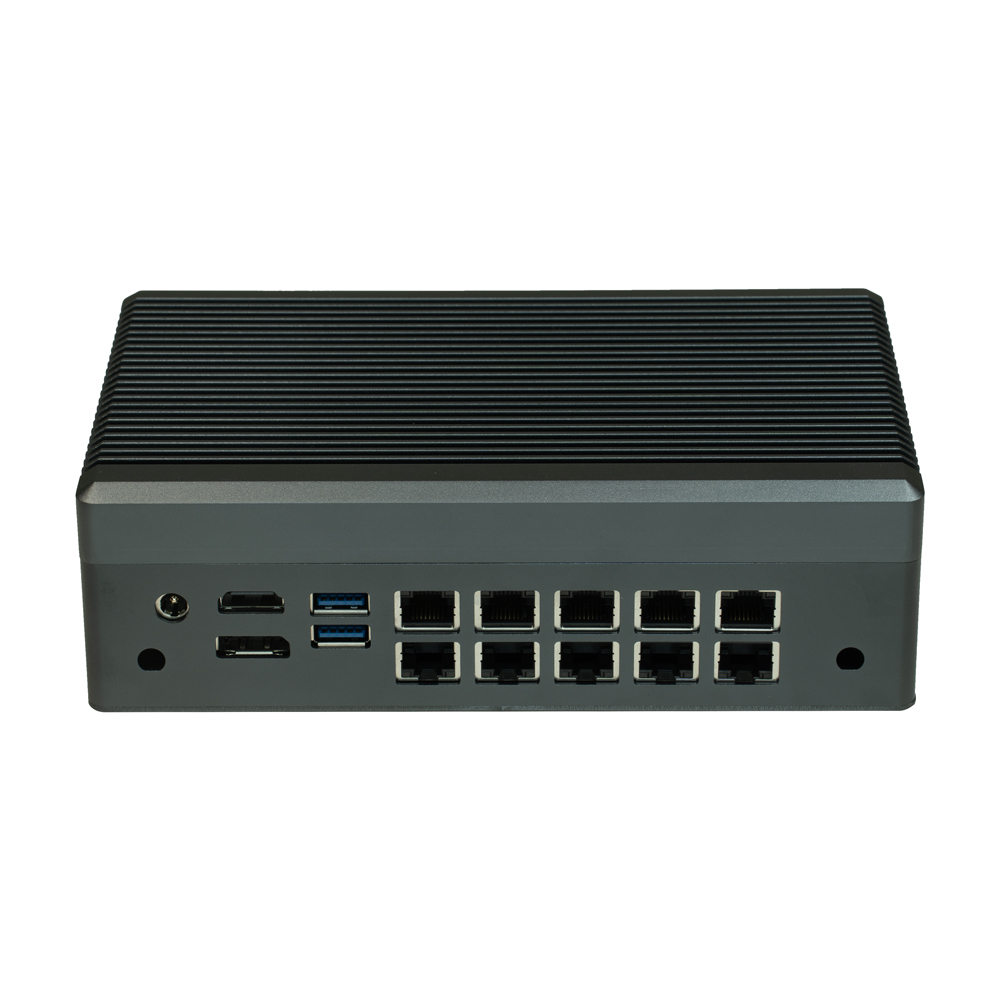

Front I/O

Rear I/O

Storage

Expansion

Power

Environmental

Mechanical

OS Support

Package Contents

Order & Specification Selection

BIOS & Firmware

Driver Downloads

Related Products

Power	1 × DC Jack
Video Output	1 × HDMI,1 × Display Port
LAN	10 × Intel I226-V 2.5G LAN
USB	2 × USB 3.0

Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%

Material	Aluminium Alloy
Dimension	196 × 122 × 59mm
Weight	1.28kg
Mounting	VESA Mounting Bracket
Packaging Dimension	285 × 260 × 93mm
Kensington Lock	No

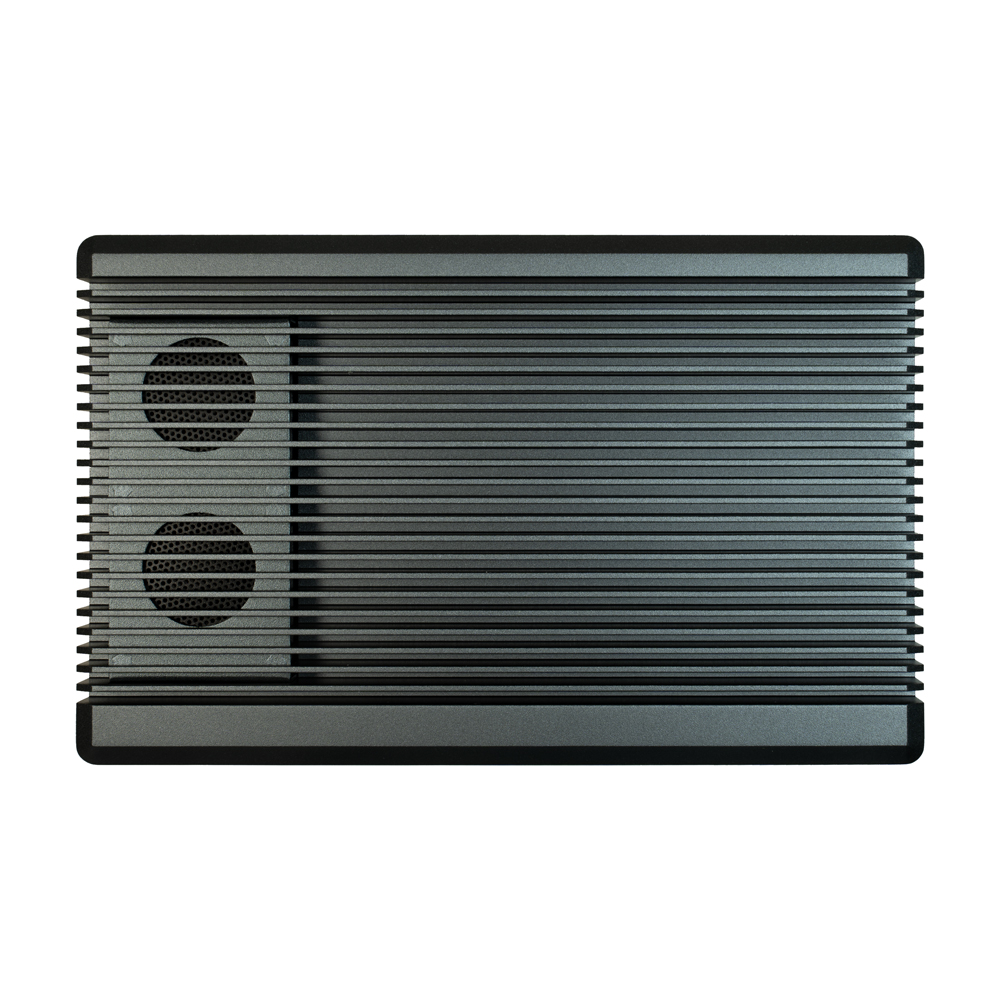

Cooling Mode	Fanless Design, Fan-assisted Cooling

Ordering Code	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP
Q31111GT-S23	Tiger Lake	Celeron	6305	2 / 2	1.80 GHz	4M	Intel UHD Graphics	15W
Q31121GT-S23	Tiger Lake	Pentium	7505	2 / 4	2.00 GHz ~ 3.50 GHz	4M	Intel UHD Graphics	15W
Q31131GT-S23	Tiger Lake	Core i3	1115G4	2 / 4	3.00 GHz ~ 4.10 GHz	6M	Intel UHD Graphics	12-28W
Q31132GT-S23	Tiger Lake	Core i3	1125G4	4 / 8	2.00 GHz ~ 3.70 GHz	8M	Intel UHD Graphics	12-28W
Q31151GT-S23	Tiger Lake	Core i5	1135G7	4 / 8	2.40 GHz ~ 4.20 GHz	8M	Intel Iris Xe Graphics	12-28W
Q31152GT-S23	Tiger Lake	Core i5	1145G7	4 / 8	2.60 GHz ~ 4.40 GHz	8M	Intel Iris Xe Graphics	12-28W
Q31153GT-S23	Tiger Lake	Core i5	1155G7	4 / 8	2.50 GHz ~ 4.50 GHz	8M	Intel Iris Xe Graphics eligible	12-28W
Q31171GT-S23	Tiger Lake	Core i7	1165G7	4 / 8	2.80 GHz ~ 4.70 GHz	12M	Intel Iris Xe Graphics	12-28W
Q31172GT-S23	Tiger Lake	Core i7	1185G7	4 / 8	3.00 GHz ~ 4.80 GHz	12M	Intel Iris Xe Graphics	12-28W
Q31173GT-S23	Tiger Lake	Core i7	1195G7	4 / 8	2.90 GHz ~ 5.00 GHz	12M	Intel Iris Xe Graphics eligible	12-28W
Q51151GT-S23	Tiger Lake	Core i5	11300H	4 / 8	2.60 GHz ~ 4.40 GHz	8M	Intel Iris Xe Graphics	28-35W
Q51152GT-S23	Tiger Lake	Core i5	11320H	4 / 8	2.50 GHz ~ 4.50 GHz	8M	Intel Iris Xe Graphics eligible	28-35W
Q51171GT-S23	Tiger Lake	Core i7	11370H	4 / 8	3.00 GHz ~ 4.80 GHz	12M	Intel Iris Xe Graphics	28-35W
Q51172GT-S23	Tiger Lake	Core i7	11375H	4 / 8	3.00 GHz ~ 5.00 GHz	12M	Intel Iris Xe Graphics	28-35W
Q51173GT-S23	Tiger Lake	Core i7	11390H	4 / 8	2.90 GHz ~ 5.00 GHz	12M	Intel Iris Xe Graphics eligible	28-35W
