OPS Q31200OPS S00 Series

Model: Q31200OPS-S00

Total LAN1
LAN Speed1G RJ45

Key Specs

CPU
Alder Lake-P / Raptor Lake-P
Memory
DDR4 SO-DIMM · Max 64GB
LAN
1
Storage
M.2 Mkey

This product is available via inquiry and OEM/ODM customization.

Send Inquiry
IntelPentiumCeleronCore i3Core i5Core i7Raptor Lake-PRaptor Lake-R-PCore i9Core 3Core 5Core 7730585051215U1235U1245U1255U1265U1220P1240P1250P1260P1270P1280P12450H12500H12600H12650H12700H12800H12900HU3001305U1315U1334U1335U1355U1365U1340P1350P1360P1370P13420H13500H13600H13620H13700H13800H13900H100U120U150U220U250U210H220H240H250H270HQ31211OPSQ31221OPSQ31231OPSQ31251OPSQ31271OPSQ41231OPSQ41251OPSQ41271OPSQ51251OPSQ51271OPSQ51291OPSAlder Lake

Main Features

  • Intel 12 th Alder Lake–P Processor
  • Intel 13 th Raptor Lake–P Processor
  • 1 × Display Port, 1 × HDMI
  • 2 × USB 3.0, 2 × USB 2.0, 1 × Type C
  • 2 × M.2,1 × SATA 3.0
  • 1 × Intel I225-V/I226-V 2.5G LAN

Processor System

CPU• Intel 12 th Alder Lake–P Processor • Intel 13 th Raptor Lake–P Processor
CPU TDPBy CPU
Memory1 × DDR 4 SO-DIMM Socket (Up to 64G,3200 MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset1 × Intel I225-V/I226-V 2.5G LAN
AudioCmedia USB Audio（HS100B）
Watch DogNo

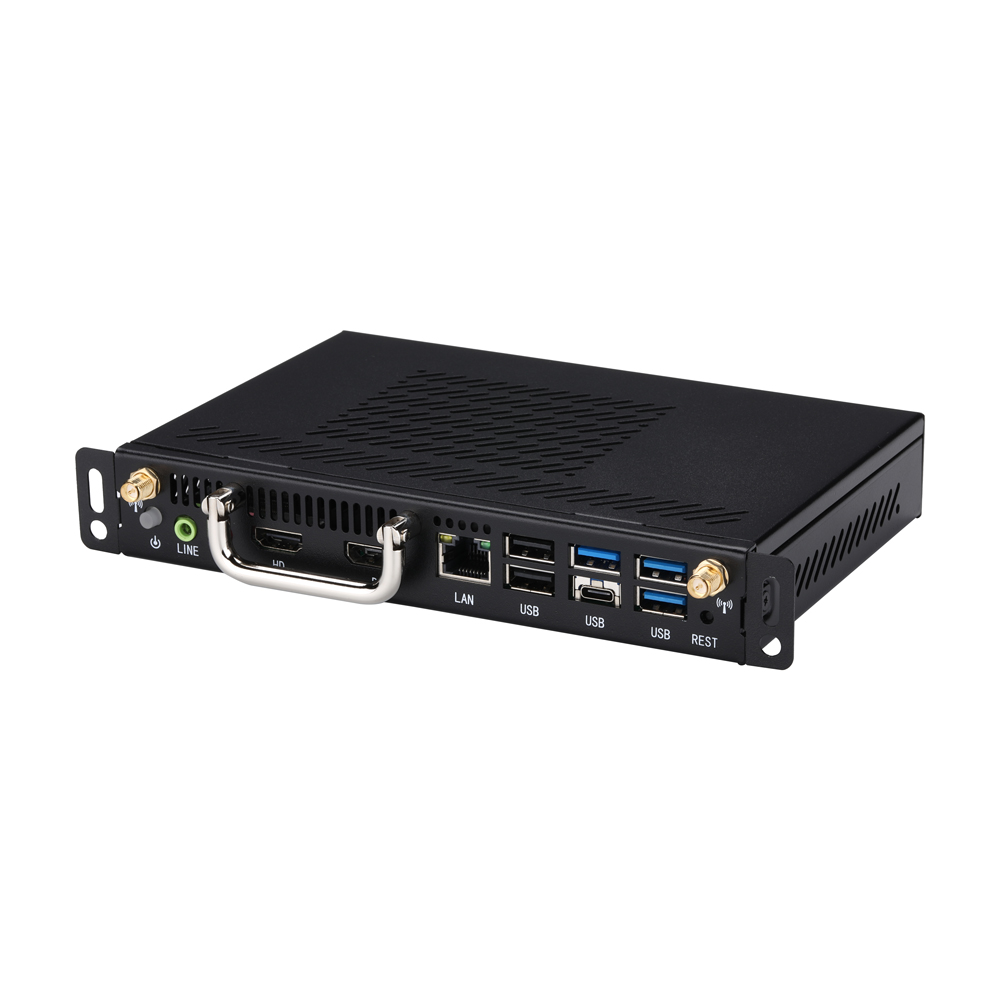

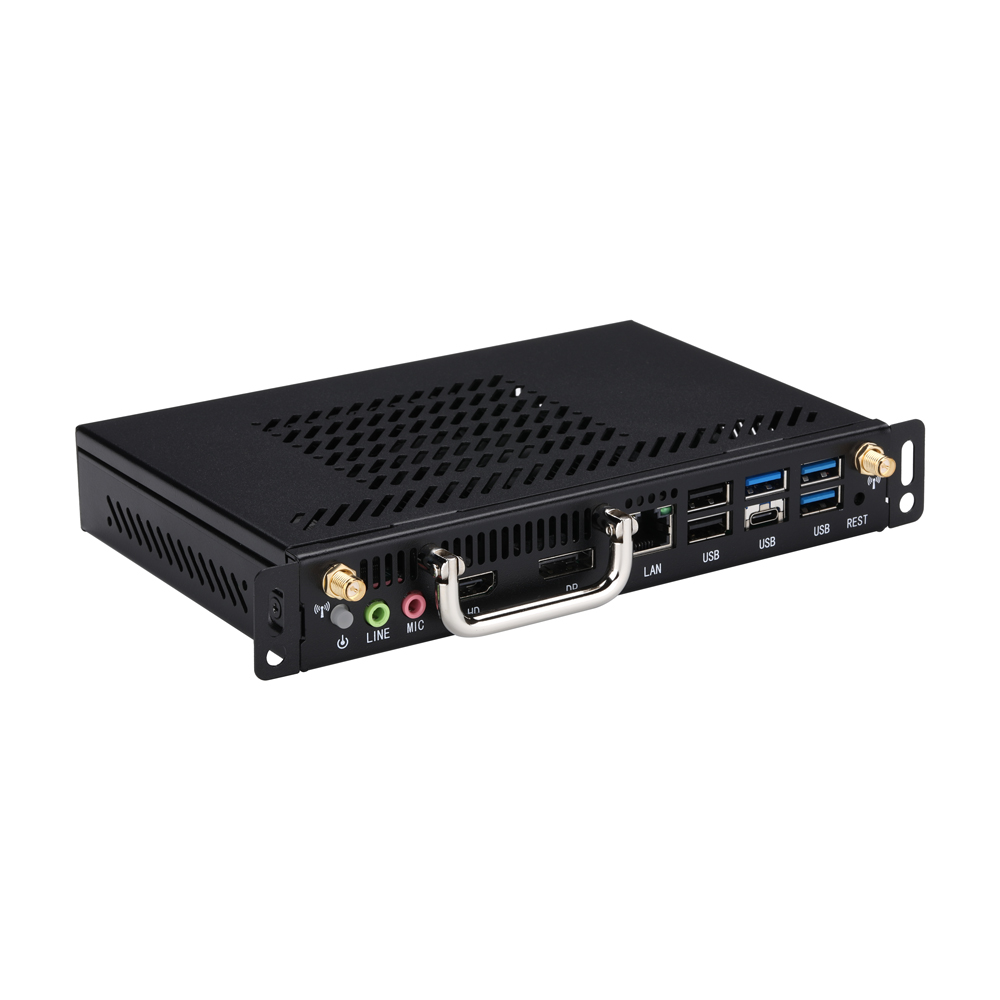

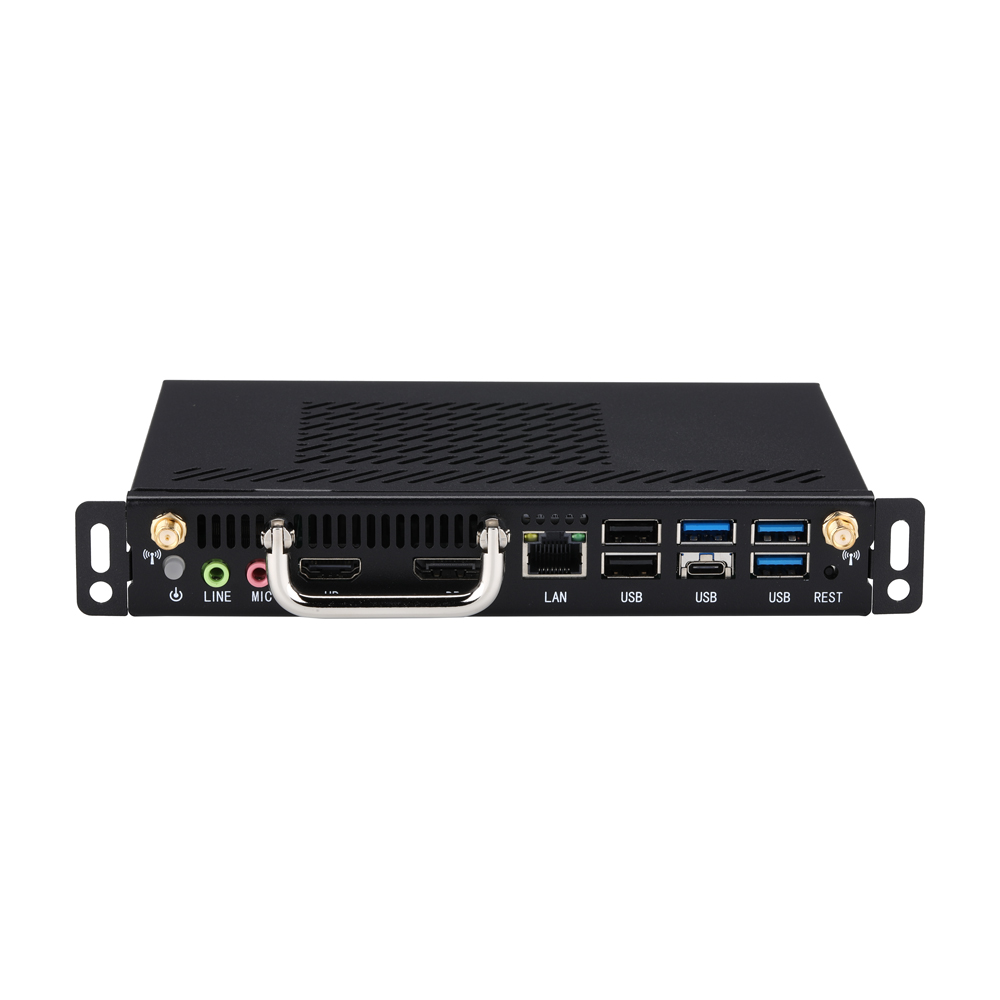

Front I/O

Power Button1 × Power Button,1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB2 × USB 3.0,2 × USB 2.0
Audio1 × Mic-in,1 × Line-out
Video Output1 × Display Port 1.4,1 × HDMI 2.0
Type C1 × Type C (USB3.0 , Display Port)
LAN1 × Intel I225-V/I226-V 2.5G LAN

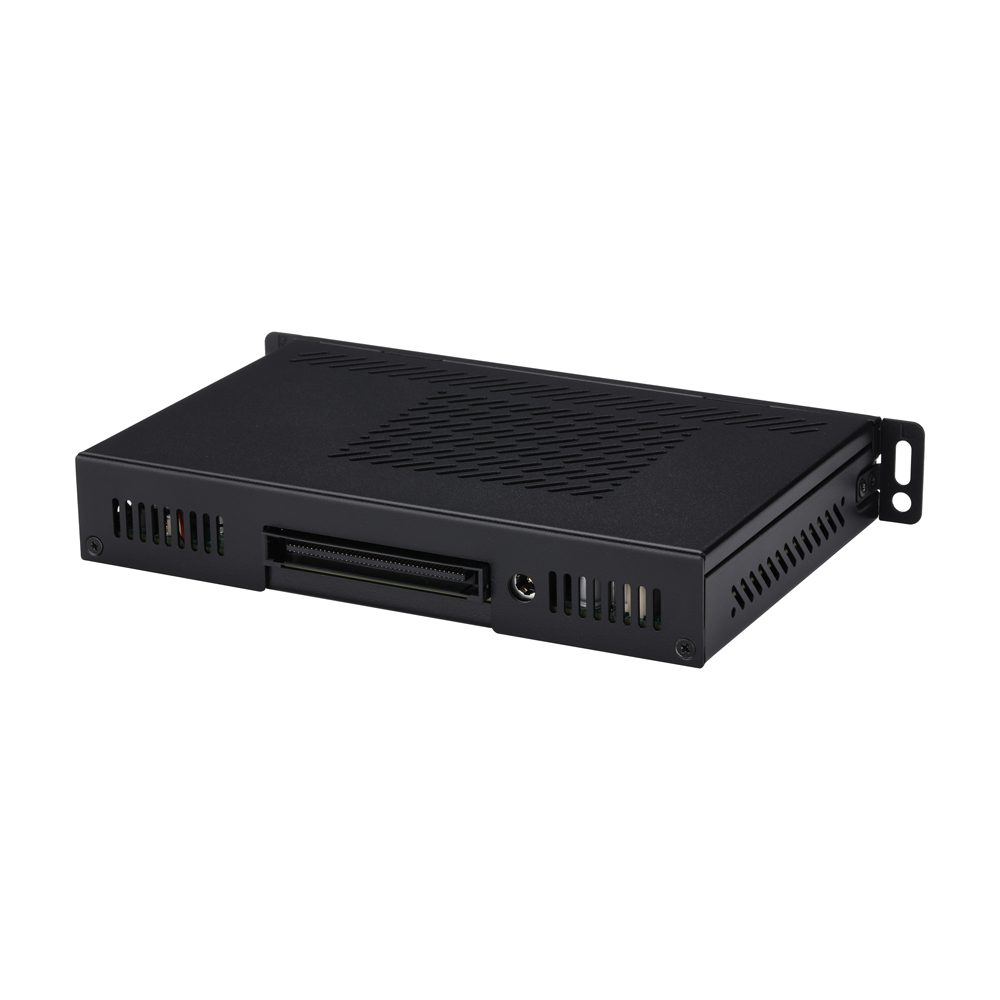

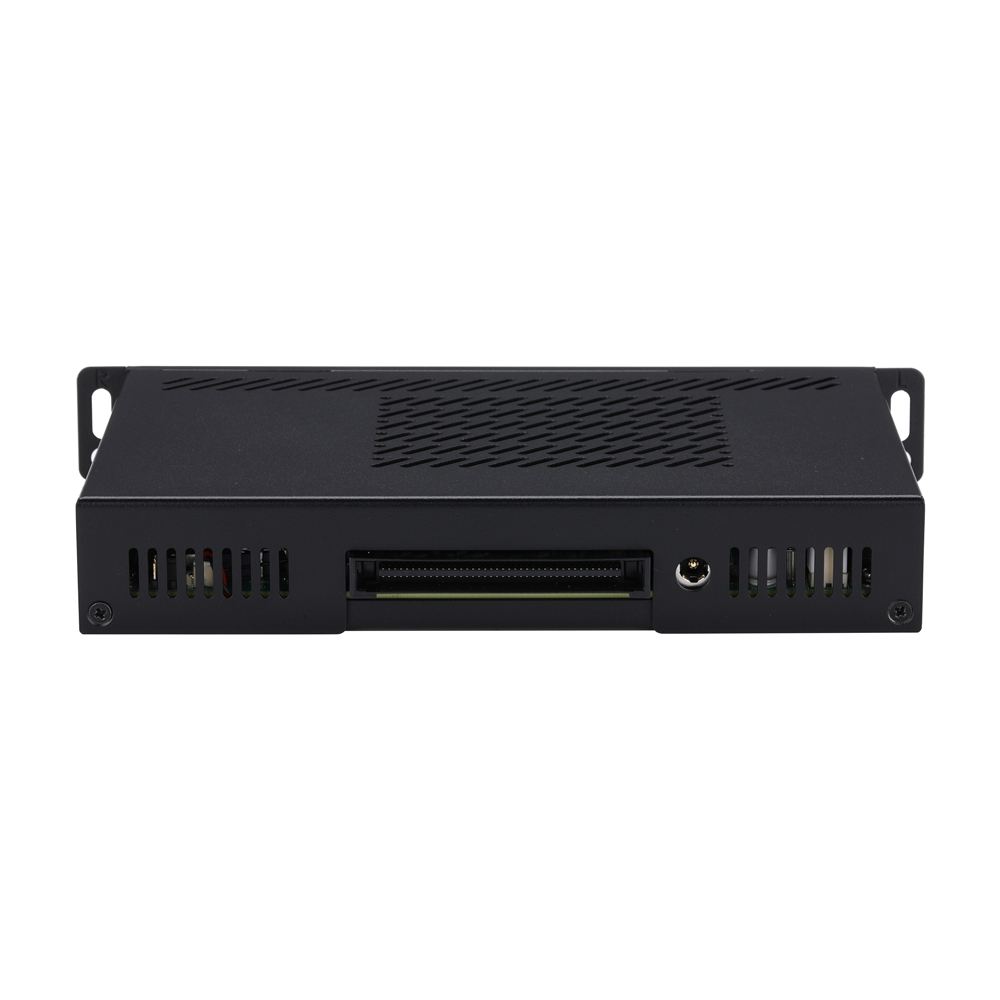

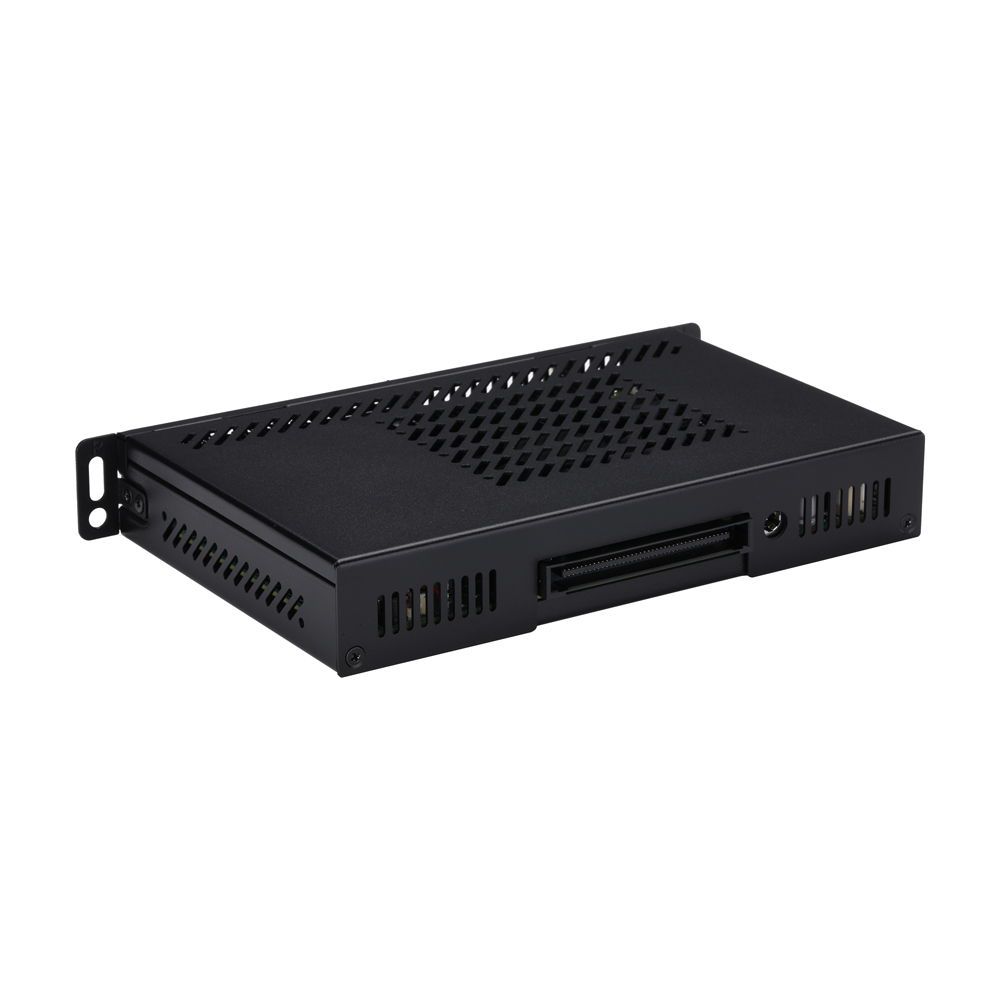

Rear I/O

Power1 × DC Jack
JAE1 × JAE Port (80pin)

Storage

Type1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4)

Expansion

M.21 × M.2 for SSD (M key, Type: 2280)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot0
AutoStart Jumper0
DC-IN0
CMOS Clear Jumper0
GPIO0
RS-4850

Power

Power Adapter19V
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~45°C
Non-Operating Temp-40°C~80°C
Humidity10%~95%

Mechanical

MaterialAluminium Alloy
Dimension118 × 180 × 30mm
Weight0.74kg
MountingN one
Packaging Dimension282 × 257 × 79mm
Kensington LockNo
Cooling ModeFan

OS Support

OSUEFI Windows 10, UEFI Linux

Package Contents

  • Mini PC × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPP-CoresE-CoresLegacy ModelDatasheet
Q31211OPS-S00 Alder Lake U Celeron 7305 5 / 5 1.10 GHz 8M Intel UHD Graphics 15-55W 1 4 -
OPS-S00 Alder Lake U Pentium 8505 5 / 6 1.20 GHz ~ 4.40 GHz 8M Intel UHD Graphics 15-55W 1 4 Q31221
OPS-S00 Alder Lake U Core i3 1215U 6 / 8 1.20 GHz ~ 4.40 GHz 10M Intel UHD Graphics 15-55W 2 4 Q31231
OPS-S00 Alder Lake U Core i5 1235U 10 / 12 1.30 GHz ~ 4.40 GHz 12M Intel Iris Xe Graphics eligible 15-55W 2 8 Q31251
OPS-S00 Alder Lake U Core i7 1255U 10 / 12 1.70 GHz ~ 4.70 GHz 12M Intel Iris Xe Graphics eligible 15-55W 2 8 Q31271
OPS-S00 Alder Lake P Core i3 1220P 10 / 12 1.50 GHz ~ 4.40 GHz 12M Intel UHD Graphics 28-64W 2 8 Q41231
OPS-S00 Alder Lake P Core i5 1240P 12 / 16 1.70 GHz ~ 4.40 GHz 12M Intel Iris Xe Graphics eligible 28-64W 4 8 Q41251
OPS-S00 Alder Lake P Core i7 1260P 12 / 16 2.10 GHz ~ 4.70 GHz 18M Intel Iris Xe Graphics eligible 28-64W 4 8 Q41271
