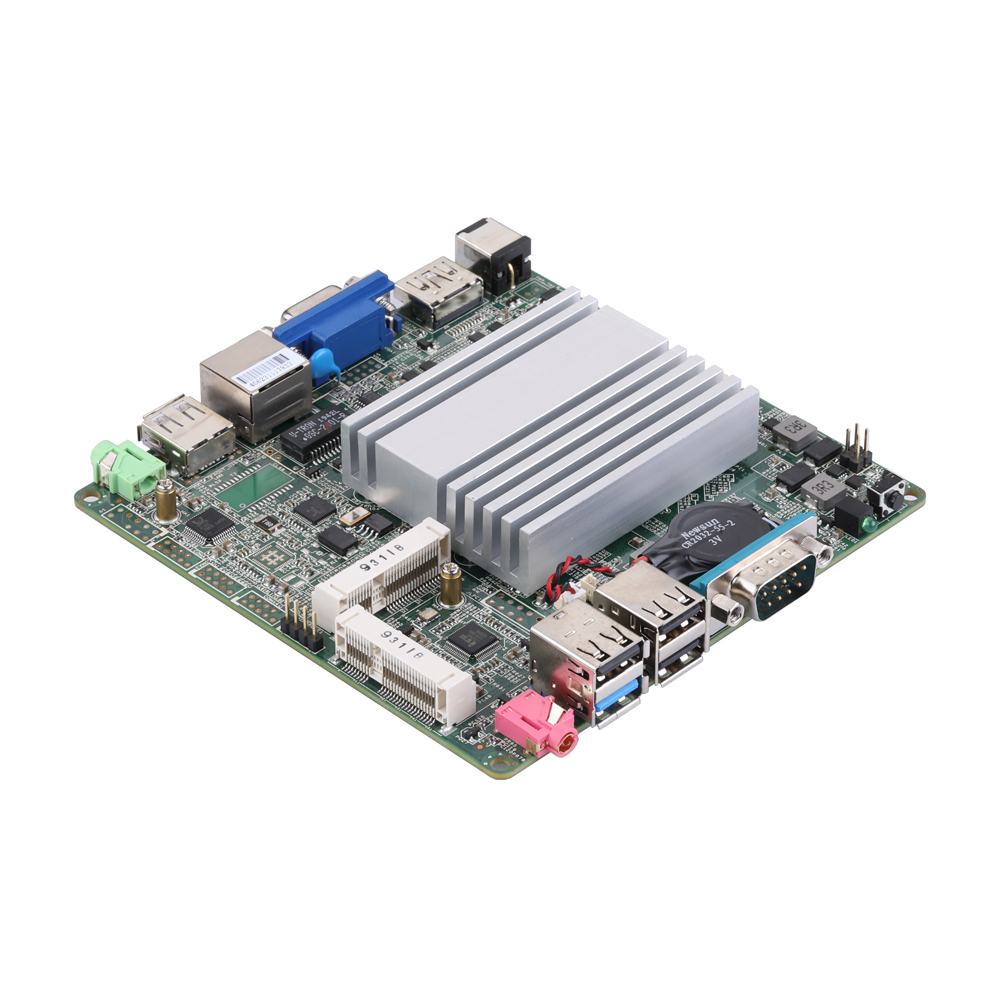

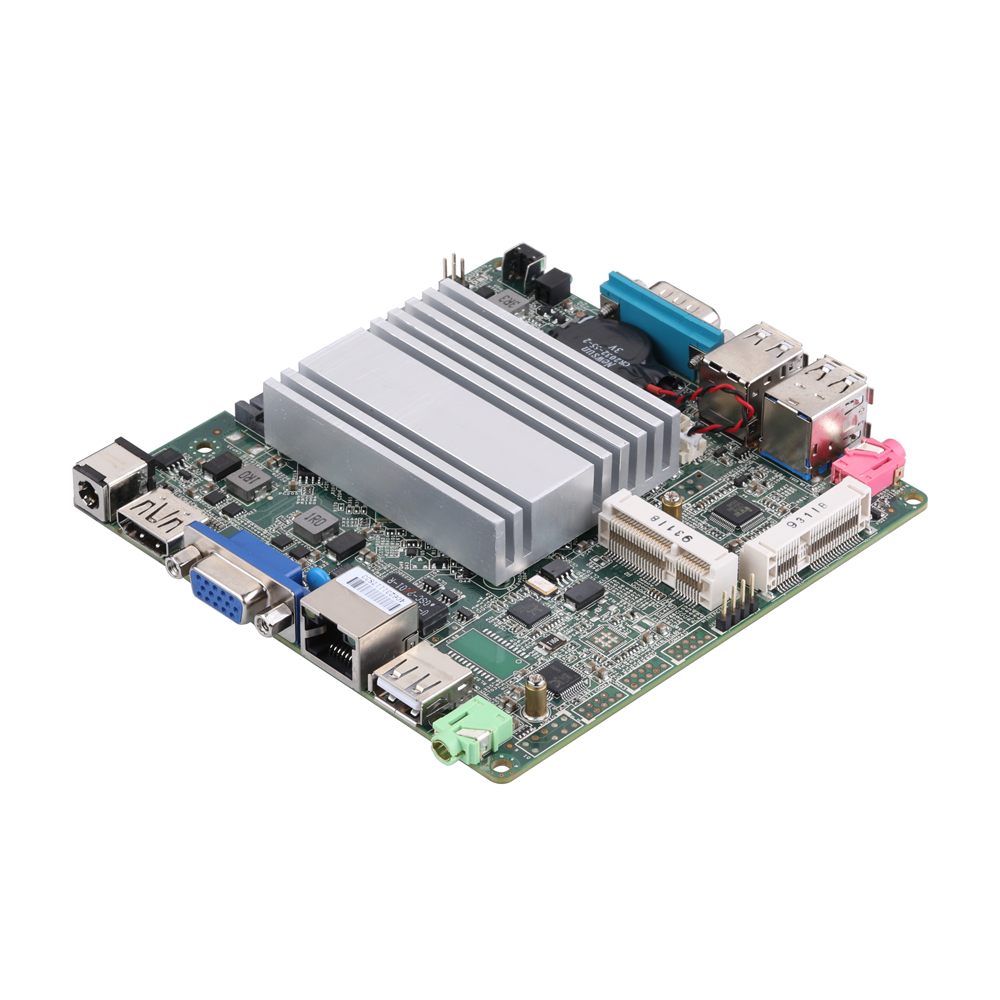

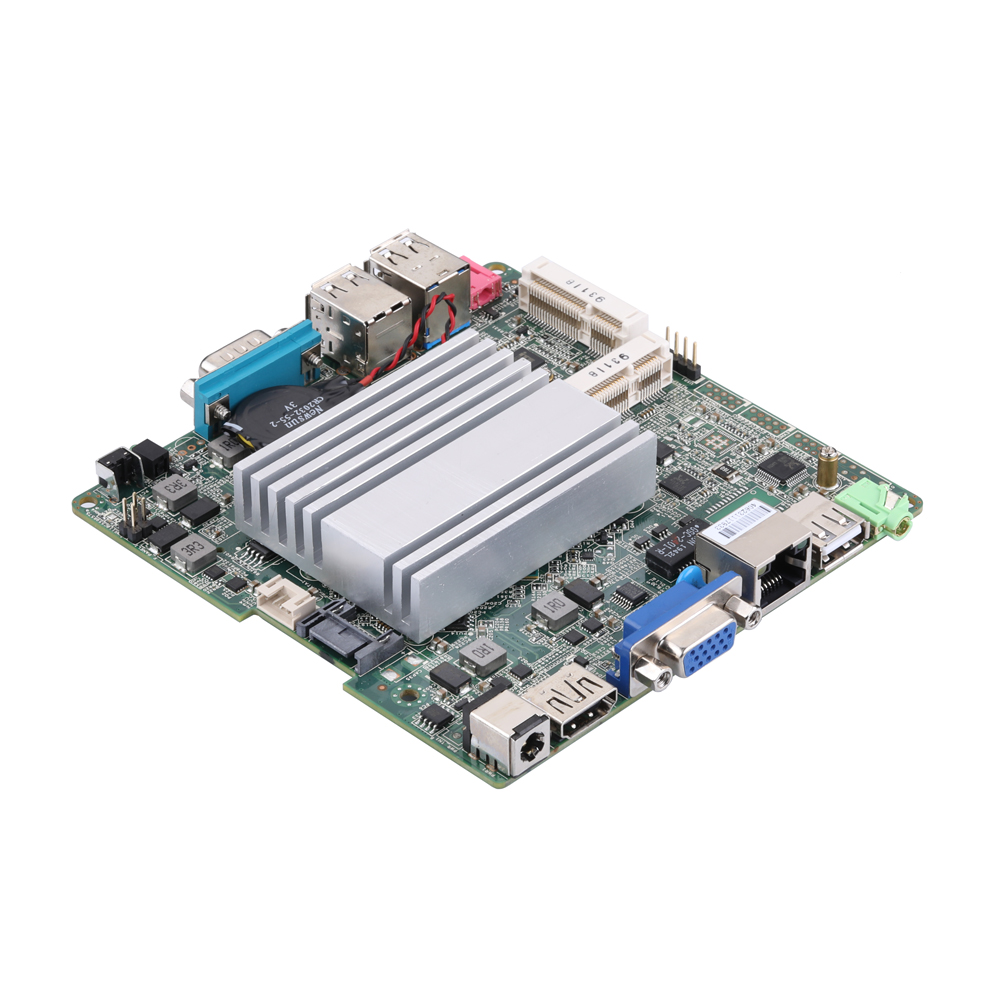

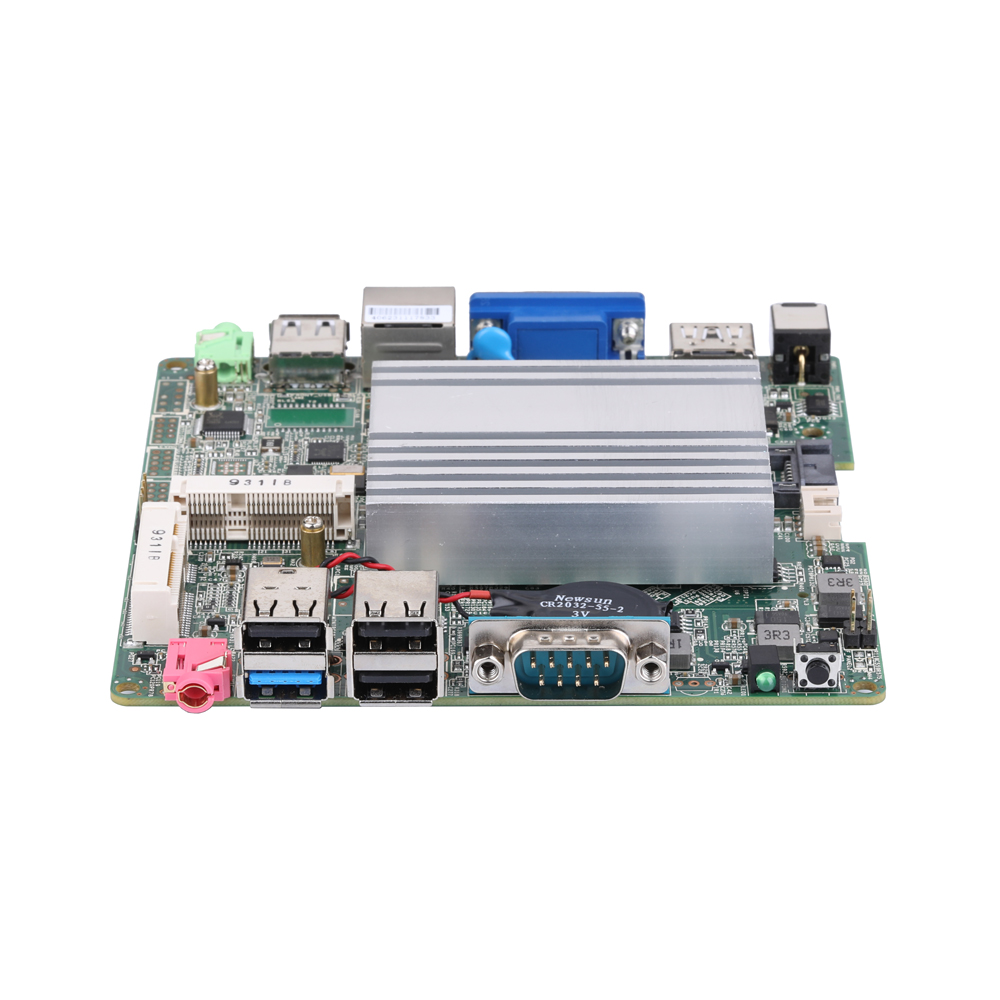

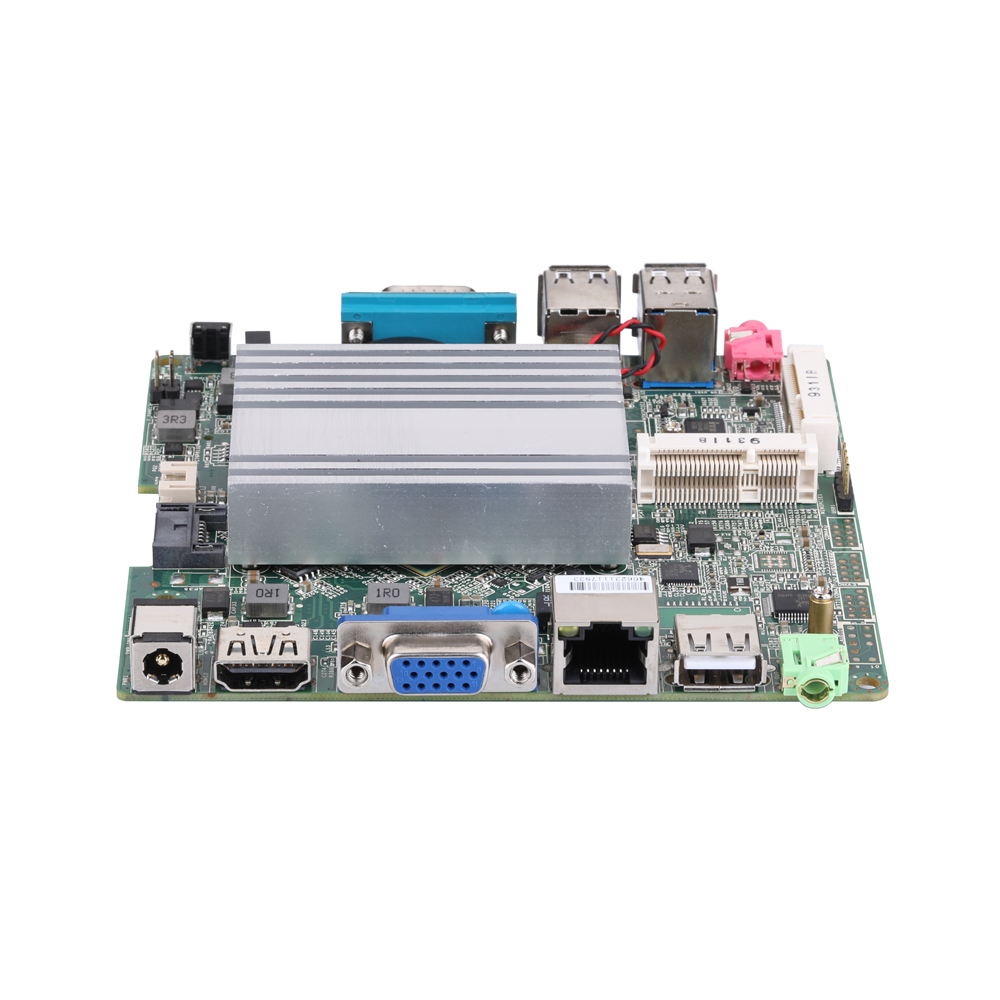

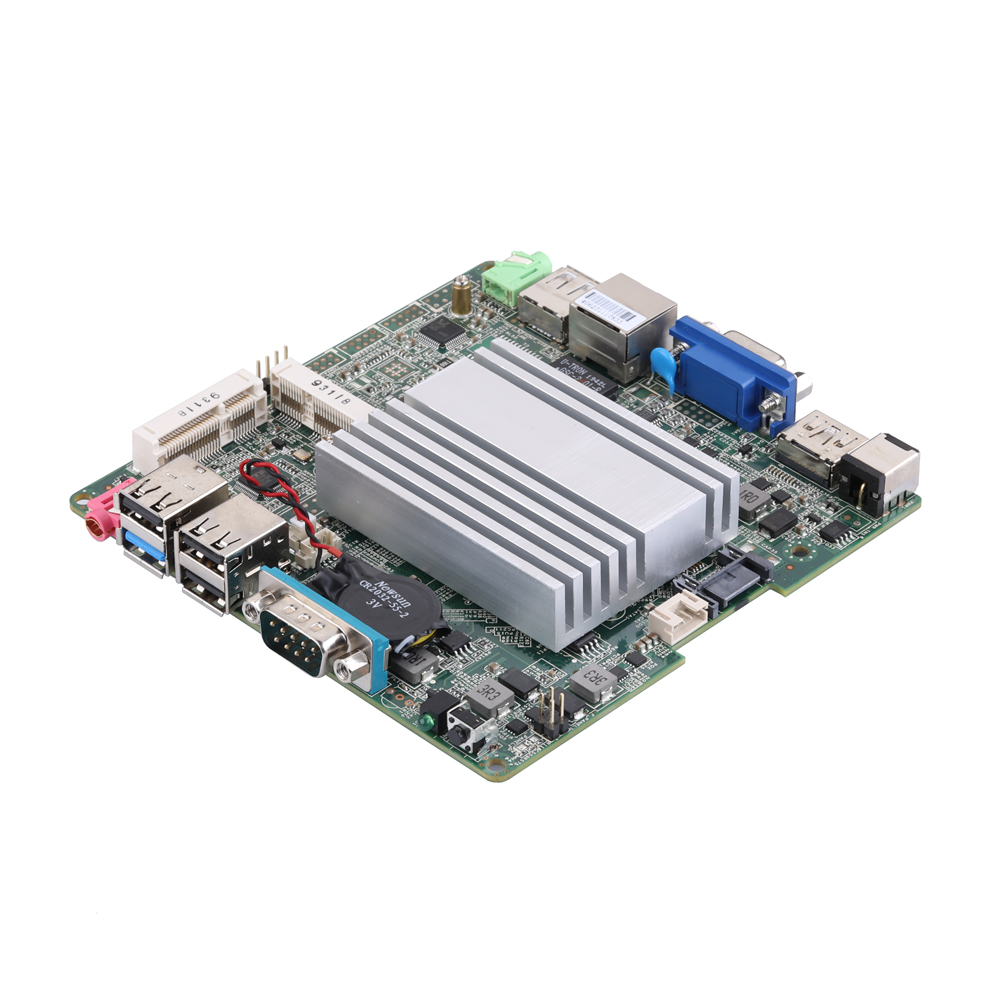

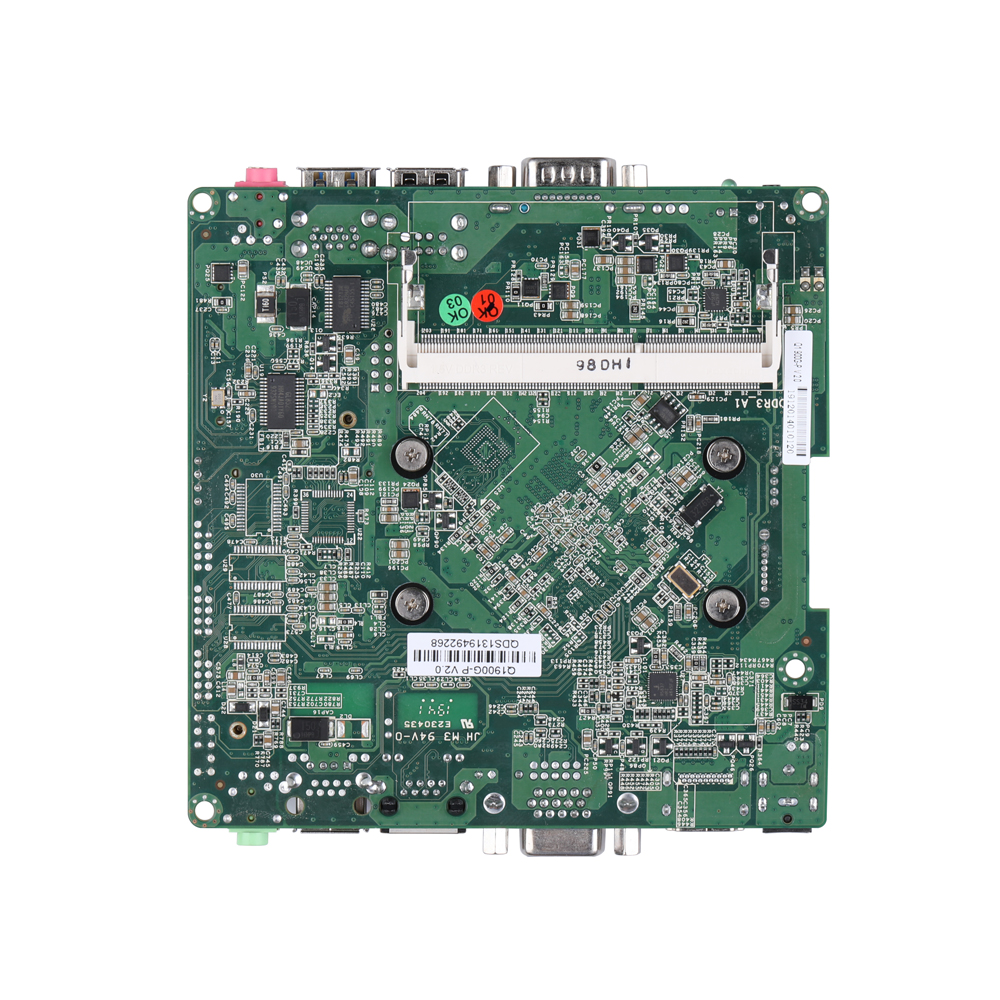

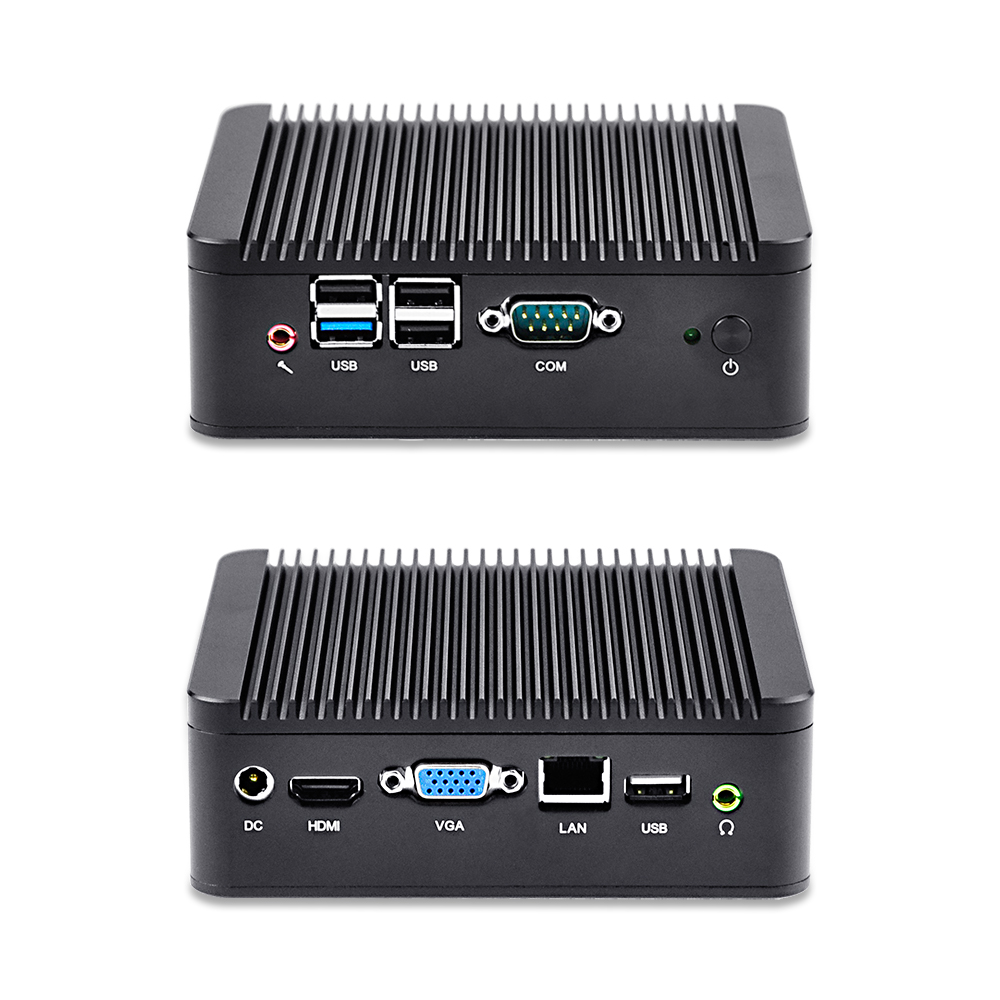

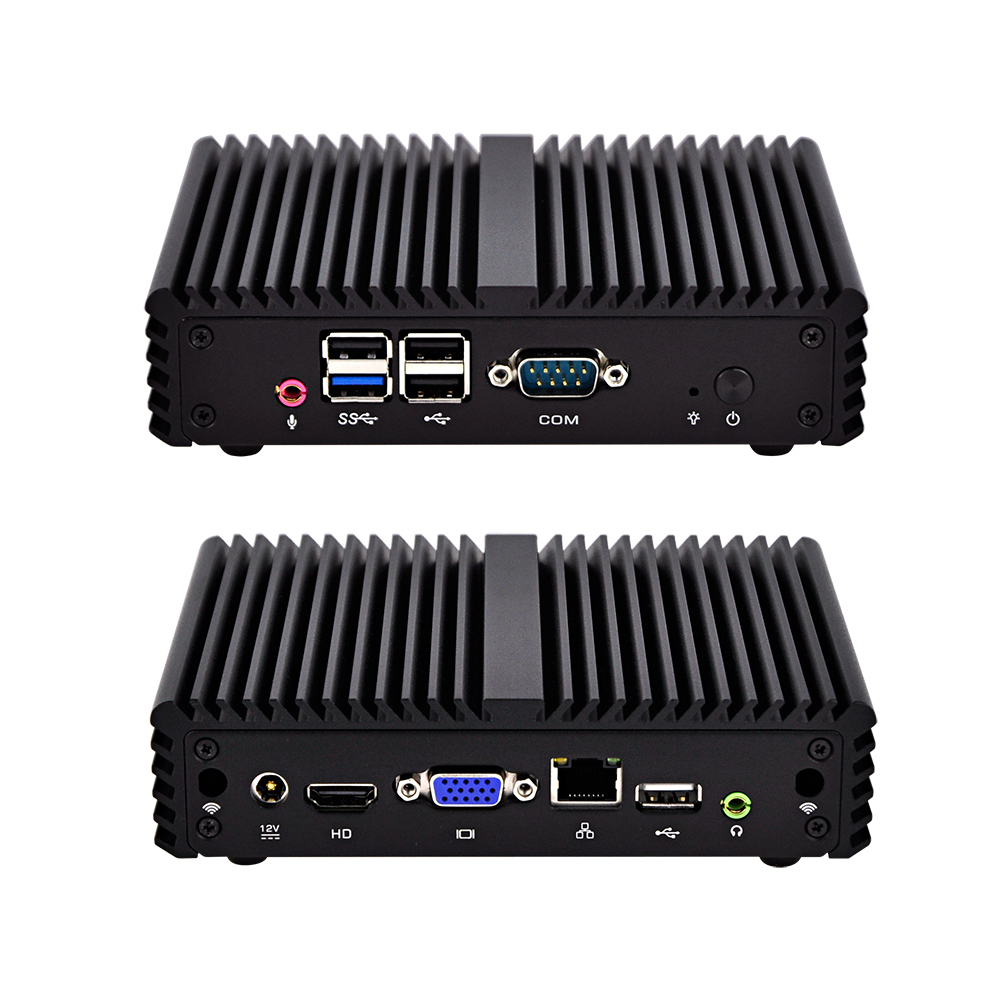

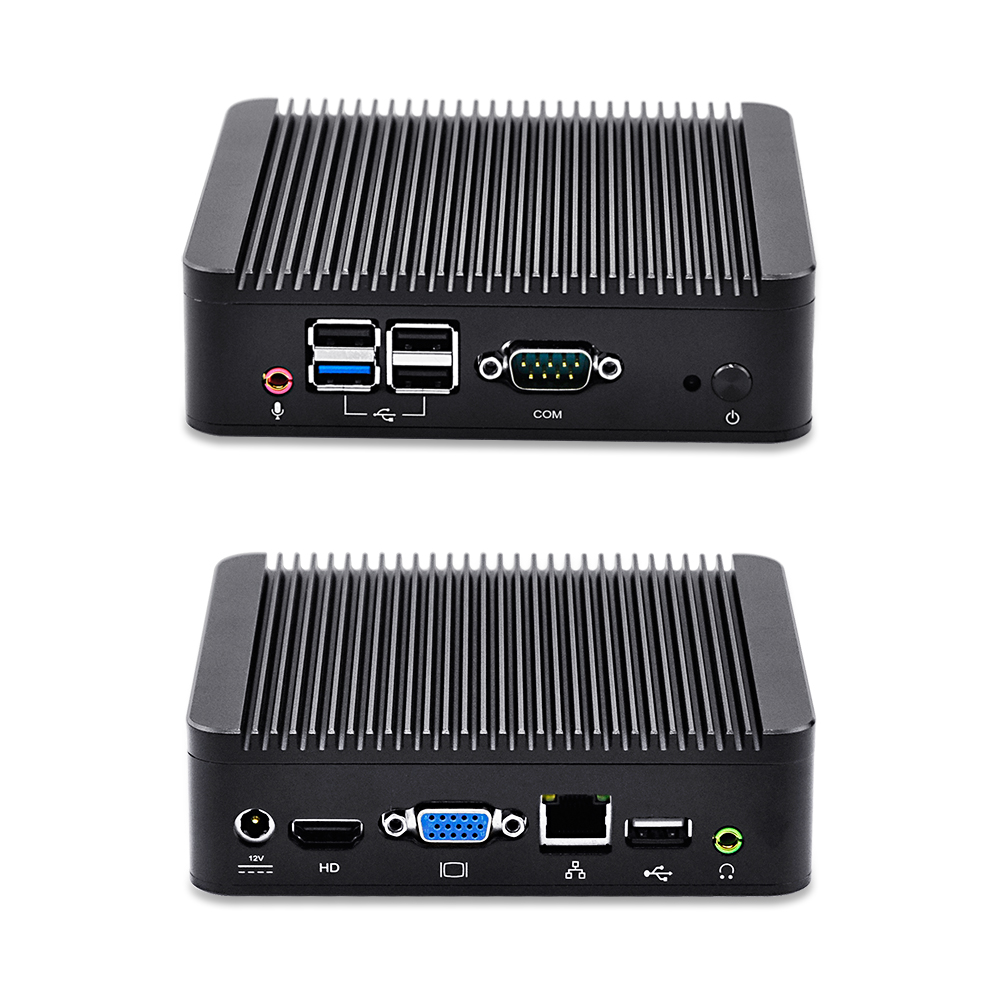

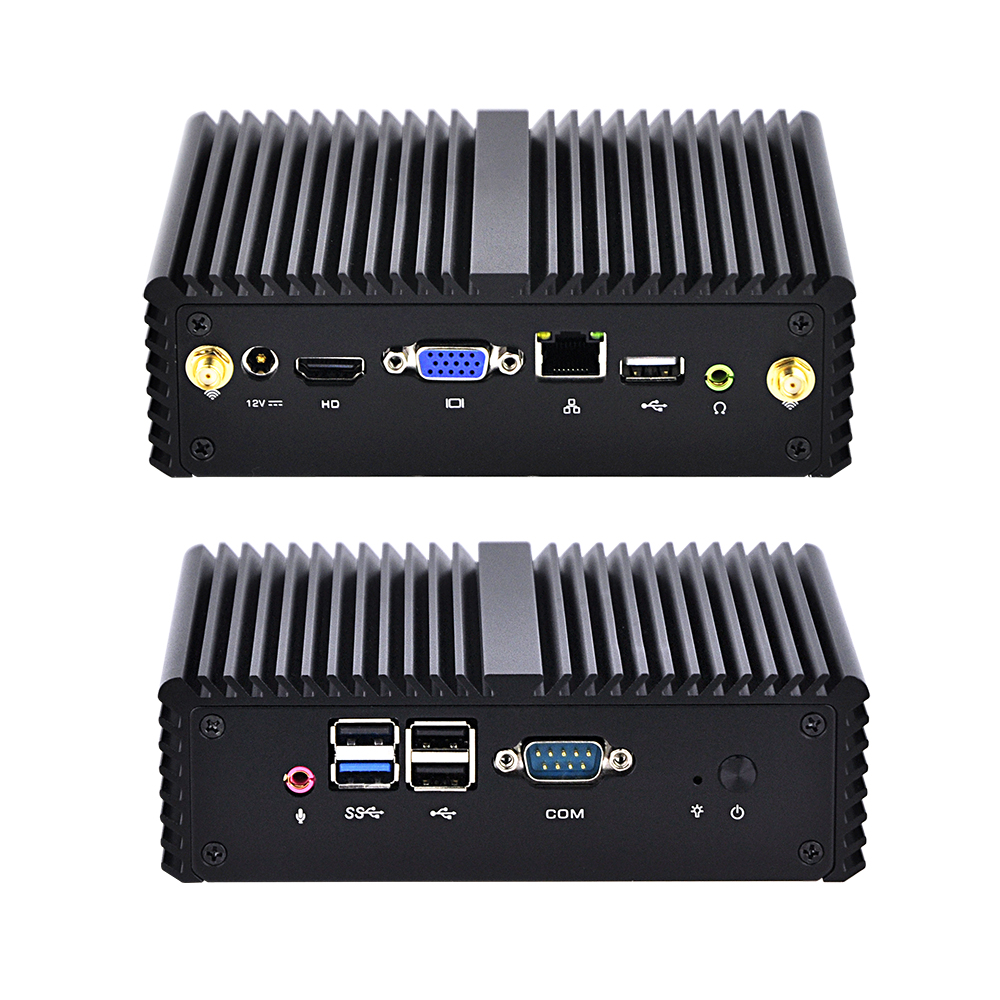

Motherboard MB2J113-0100 Series

Name: Motherboard MB2J113-0100 Series
Brand: Qotom
SKU: MB2J113-0100

Model: MB2J113-0100

Total LAN1

LAN Speed1G RJ45

Serial Ports1

For OEM system builders, MB2J113-0100 integrates compact 120 × 120mm motherboard supporting J1800, J1900, N2920, N2930 and N3540 processors with up to 8GB DDR3L. Four RS232 ports, HDMI + VGA, Gigabit LAN, USB 3.0, mSATA and SATA make it suitable.

Key Specs

CPU: Bay Trail
Memory: DDR3L SO-DIMM · Max 8GB
LAN: 1
Storage: mSATA, SATA
Board Size: 120x120

Compatible Systems

Q1800G-P Q1900G-P MB2J113-0111 MB2J113-0121 MB2J113-0123 MB2J113-0134 Intel Bay Trail Pentium Celeron ATOM N2840 J1800 J1900 N2920 N2930 N3540

Main Features

Intel Bay Trail Processor
1 × VGA, 1 × HDMI, 4 × RS-232
1 × USB 3.0, 4 × USB 2.0, 1 × SATA 3.0
1 × Mini-PCIe, 1 × mSATA
1 × Realtek Gigabit LAN

Related Products

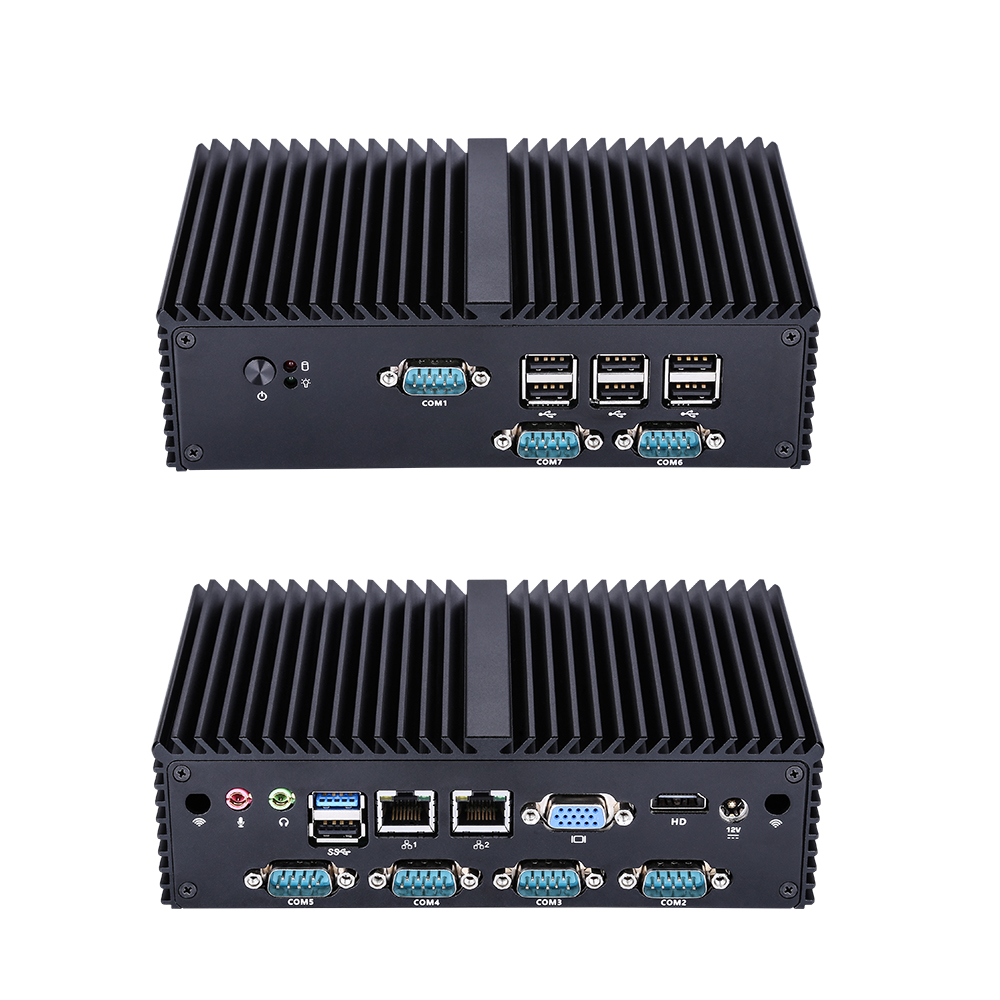

Mini PC Q10100X S04 Series

Q10100X-S04

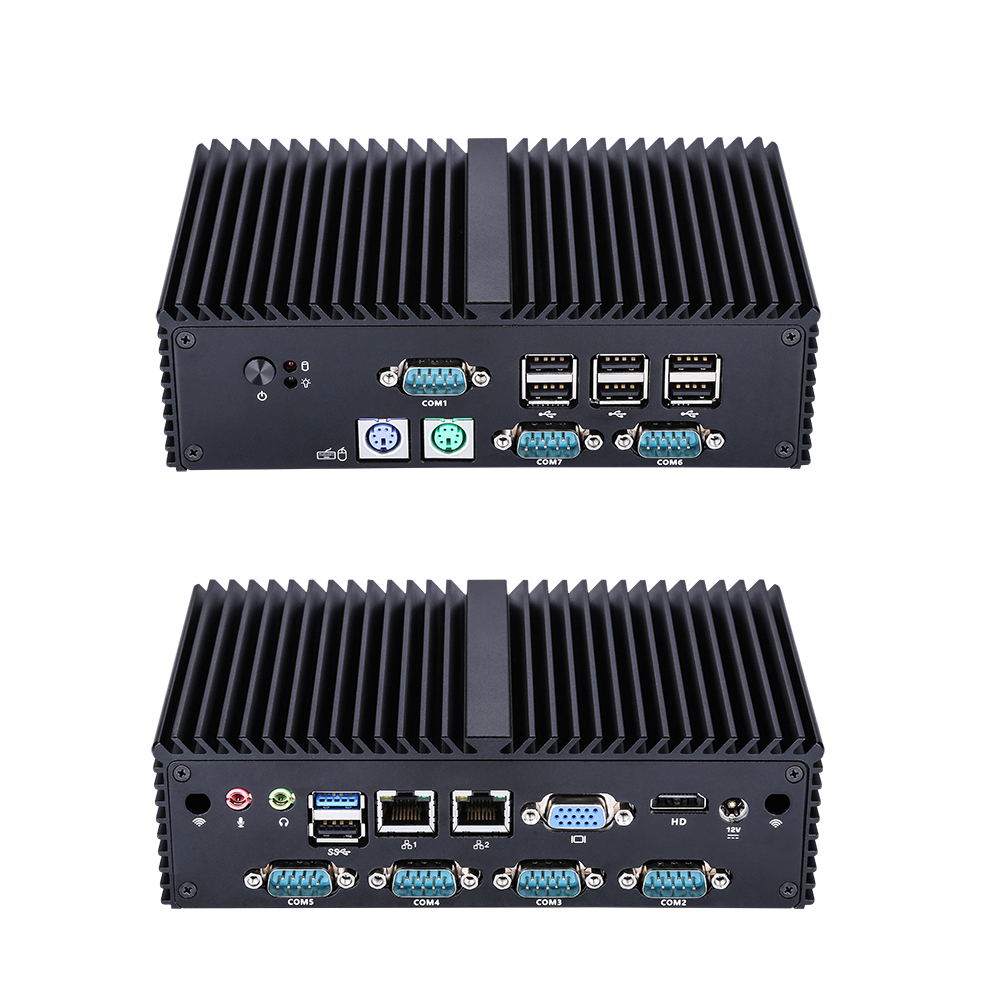

Mini PC Q10100XP S04 Series

Q10100XP-S04

Mini PC Q10100XL S04 Series

Q10100XL-S04

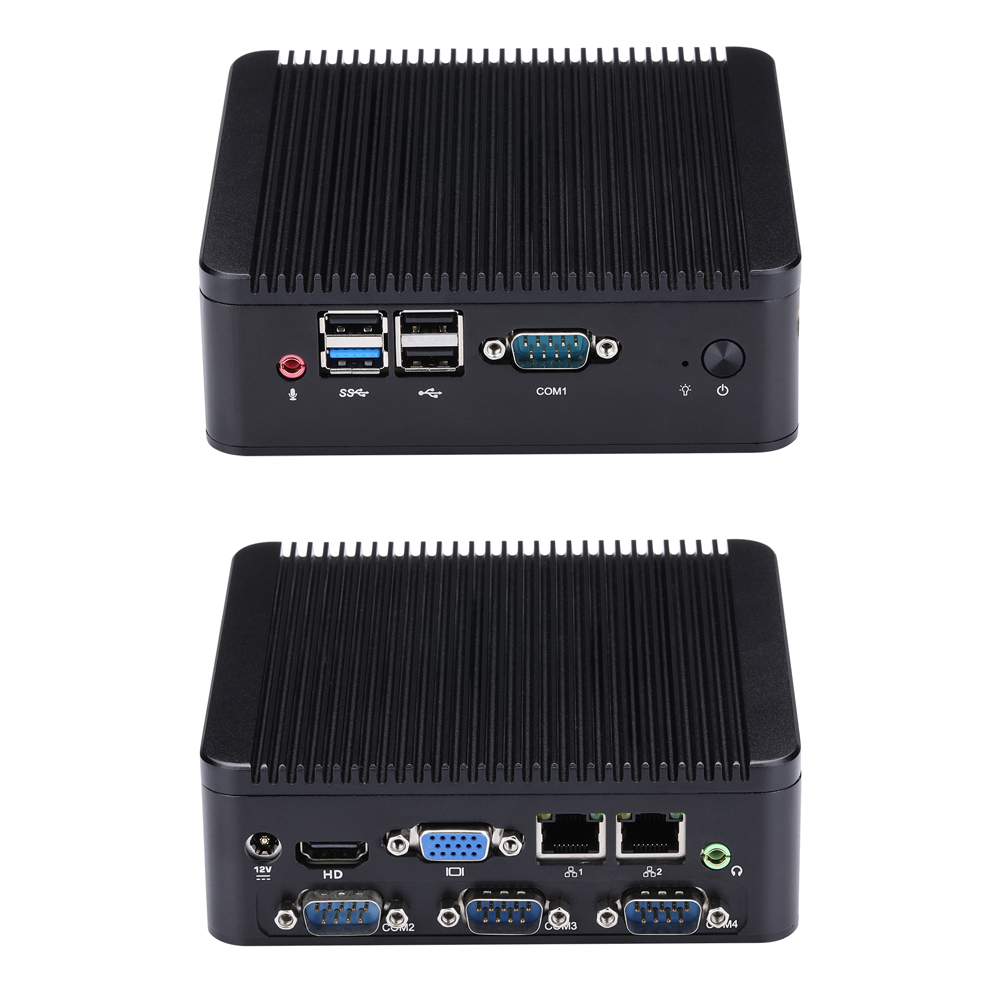

Mini PC Q10100P S02 Series

Q10100P-S02

Mini PC Q10100P S08 Series

Q10100P-S08

Mini PC Q10100G4 S01 Series

Q10100G4-S01

CPU	Intel Bay Trail Processor
Chipset	By CPU
Dimension	120 × 120mm
Core Number	By CPU
Max. Speed	By CPU
L2 Cache	By CPU
BIOS	UEFI

Technology	DDR3L 1333/1600MHz SDRAM
Max.	8GB
Socket	1 × SO-DIMM

Controller	By CPU
VRAM	Shared Memory
VGA	1
LVDS	0
HDMI	1
Multi Display	Yes

Interface	10/100/1000Mbps
Controller	1 × Realtek Gigabit LAN
Connector	1 × RJ-45

Power Button	1
LED	1 × Power LED
USB	1 × USB 3.0, 3 × USB 2.0
Serial Port	1 × RS-232
Audio	1 (Mic-in)

Motherboard MB2J113-0100 Series

Key Specs

Compatible Systems

Main Features

Processor System

Memory

Graphics

Ethernet

Audio

Front I/O

Rear I/O

Storage

Expansion

Internal Connector

Environmental

Accessories

OS Support

Package Contents

Order & Specification Selection

BIOS & Firmware

Driver Downloads

Related Products

mSATA	1 × Full-length Mini PCIe for SSD
Mini PCIe	1 × Half-length Mini PCIe for Wi-Fi

LVDS	0
VGA	1, 2 × 5Pin, Pitch 2.0mm
Serial Port	0
RS-485	0
SATA	1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector	1, 1 × 4Pin, Pitch PH2.0mm
SIM Slot	0
AutoStart Jumper	No
Clear CMOS Jumper	0
GPIO Header	0
USB 2.0 Header	1, 1 × 4Pin, Pitch 2.54mm
Front Panel Header	1, 2 × 2Pin, Pitch 2.54mm
Speakers Header	1, 2 × 5Pin, Pitch 2.54mm
Power Header	1, 1 × 2Pin, Pitch 2.5mm (Option)
Input PWR	12V DC in, 5.5mm/2.5mm

Ordering Code	Legacy Model	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP
MB2J113-0111	Q1800G-P	Bay trail	Celeron	J1800	2 / 2	2.41Ghz ~ 2.58Ghz	1M	Intel HD Graphics	10W
MB2J113-0121	Q1900G-P	Bay trail	Celeron	J1900	4 / 4	2.00Ghz ~ 2.42Ghz	2M	Intel HD Graphics	10W
MB2J113-0122	-	Bay trail	Celeron	N2920	4 / 4	1.86Ghz ~ 2.00Ghz	2M	Intel HD Graphics	7.5W
MB2J113-123	-	Bay trail	Celeron	N2930	4 / 4	1.83Ghz ~ 2.16Ghz	2M	Intel HD Graphics	7.5W
MB2J113-0134	MB2J113-0125	Bay trail	Pentium	N3540	4 / 4	2.16Ghz ~ 2.66Ghz	2M	Intel HD Graphics	7.5W
