Mini PC Q10100XL S04 Series

Model: Q10100XL-S04

Total LAN2
LAN Speed1G RJ45
Serial Ports7

Built around industrial I/O requirements, Q10100XL-S04 provides fanless Bay Trail industrial Mini PC featuring 7×RS232, 1×LPT, dual Gigabit LAN and DDR3L up to 8GB. The platform also includes J1900 and other processor options, it is. It can serve machine connectivity, industrial data acquisition and controller integration.

Key Specs

CPU
Bay Trail
Memory
DDR3L SO-DIMM · Max 8GB
LAN
2
Storage
mSATA, SATA

Compatible Motherboard

MB3J213-0100
MB3J213-0100
Send Inquiry Buy Now
Q180XLQ190XLQ192XLQ193XLQ195XLQ10111XLQ10121XLQ10122XLQ10123XLQ10134XLIntelBay TrailPentiumCeleronATOMN2840J1800J1900N2920N2930N3540

Main Features

  • Intel Bay Trail Processor

  • 1 × VGA,1 × HDMI,7 × RS-232,1 × LPT

  • 1 × USB 3.0,7 × USB 2.0,1 × SATA 3.0

  • 1 × Mini PCIe,1 × mSATA

  • 2 × Realtek Gigabit LAN

Processor System

CPUIntel Bay Trail Processor
CPU TDPBy CPU
Memory1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset2 × Realtek Gigabit LAN
AudioRealtek HD Audio
Watch DogY es

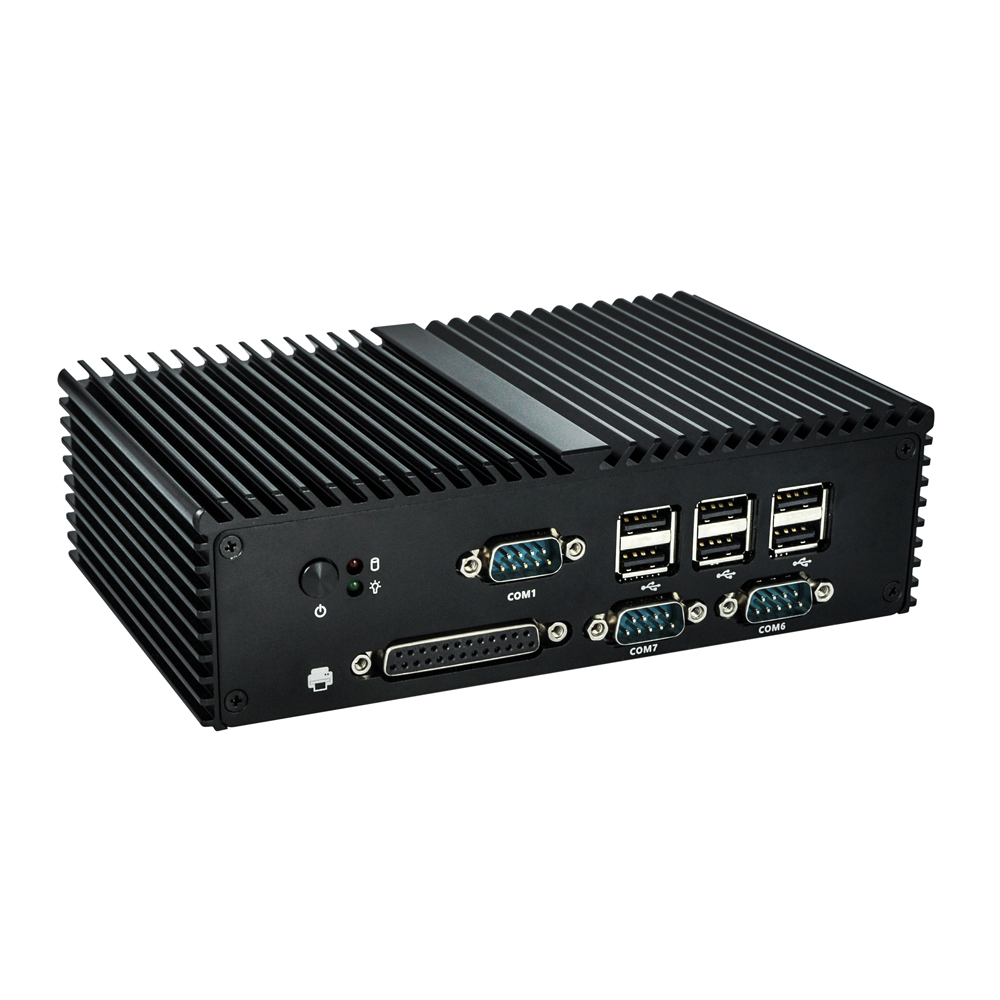

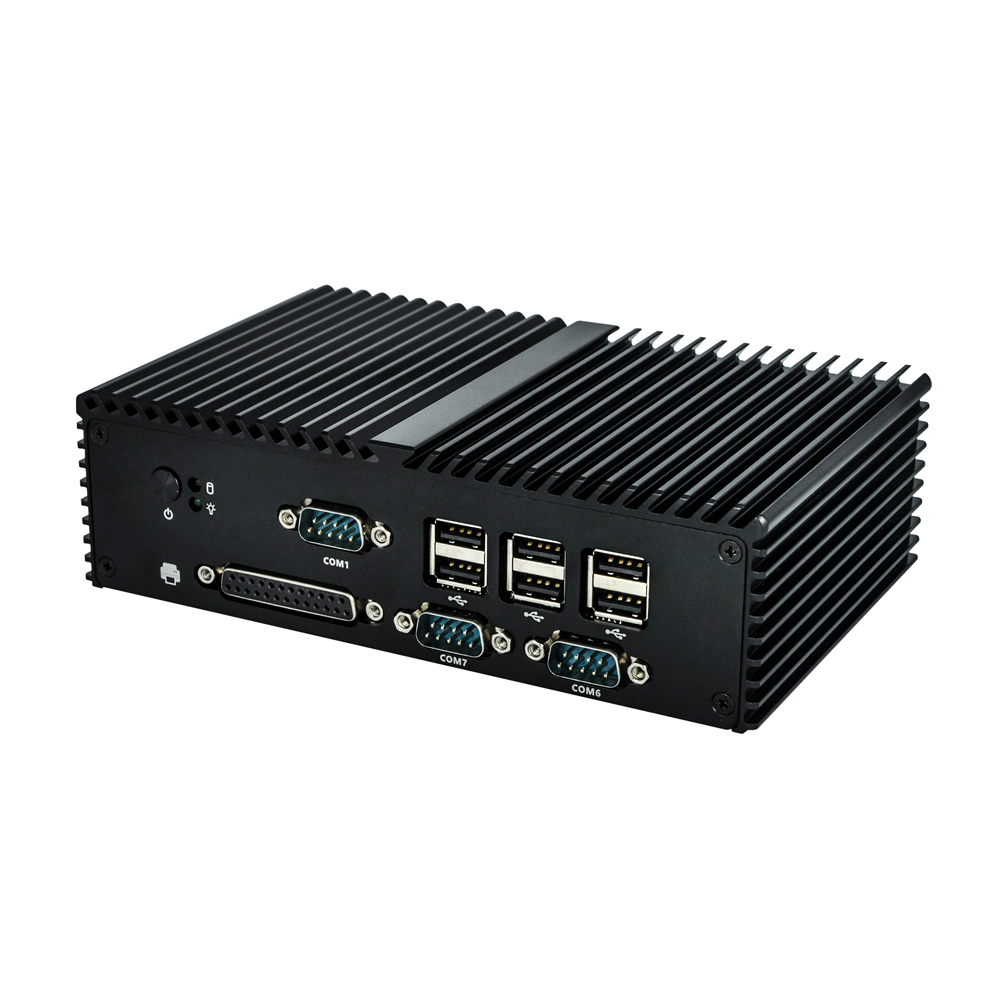

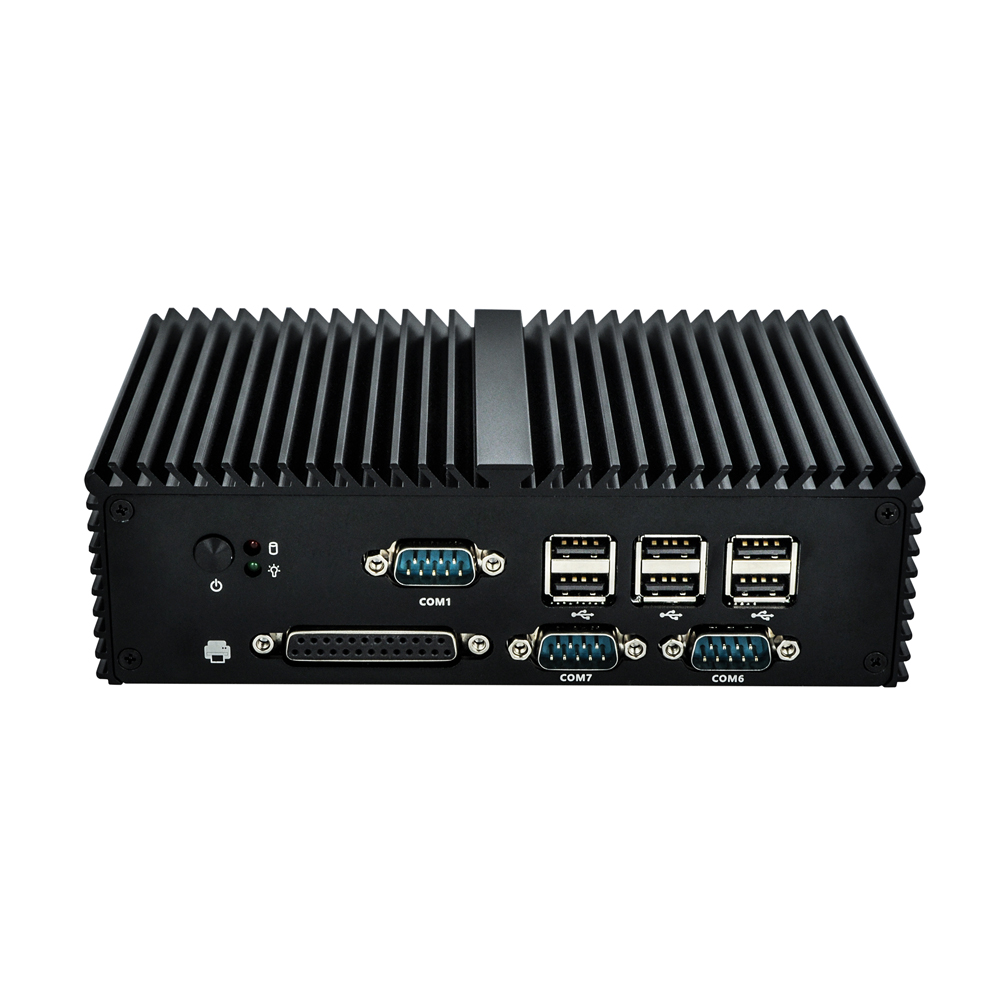

Front I/O

Power Button1
LED1 × Power LED,1 × HDD LED
USB6 × USB 2.0
Serial Port3 × RS-232 (COM1 Supports 5V/12V)
LPT1

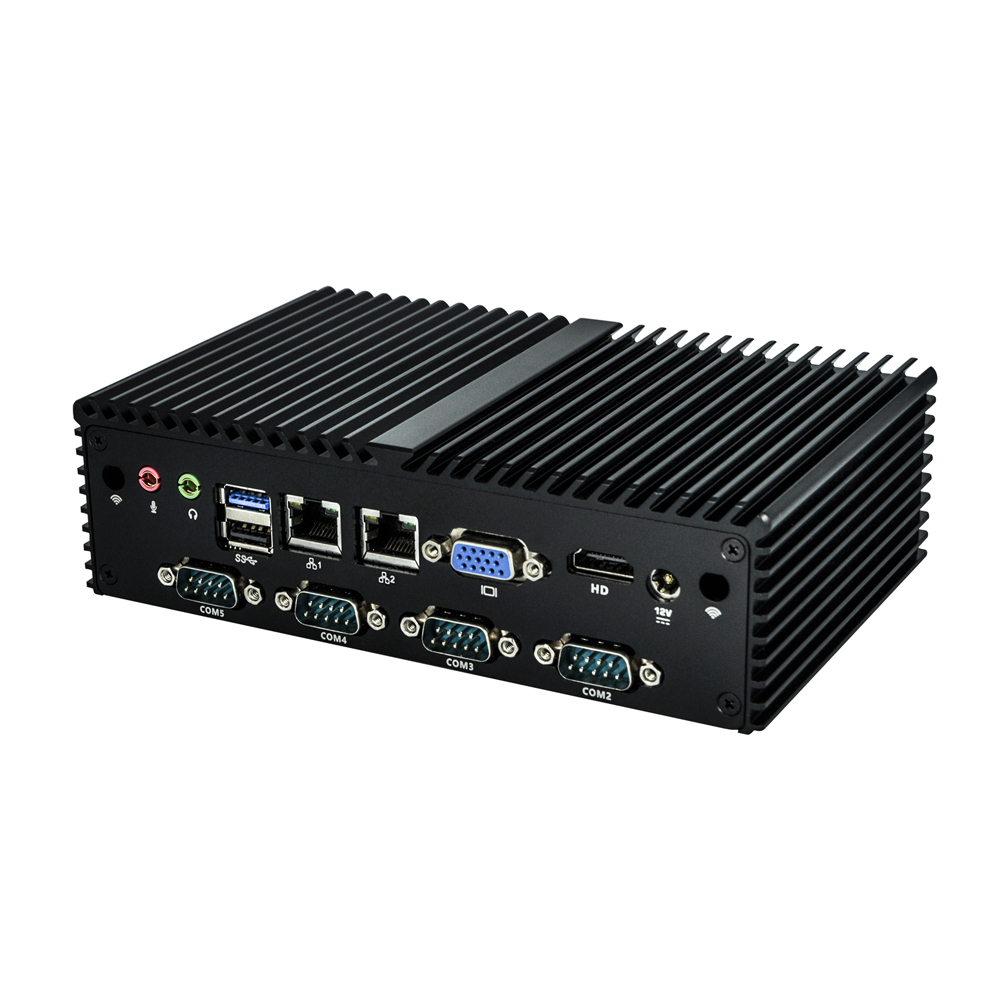

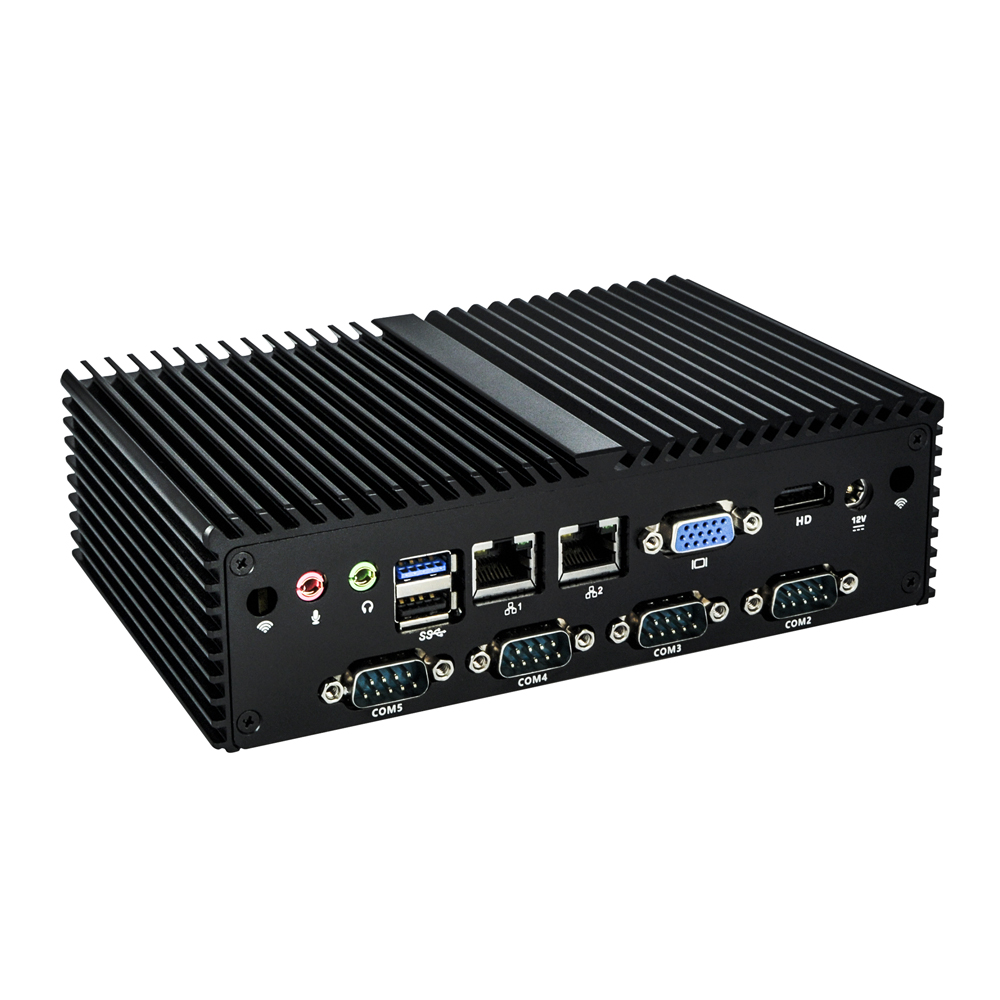

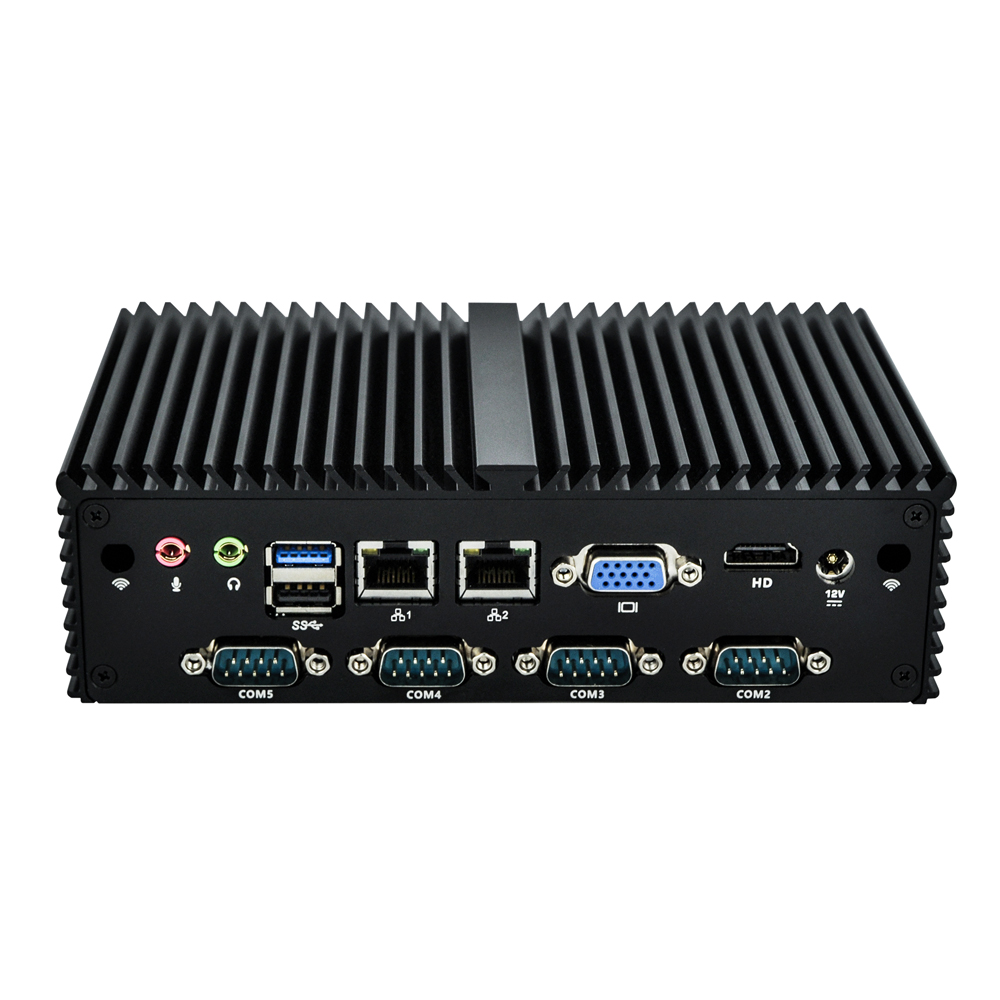

Rear I/O

Power1 × DC Jack
Video Output1 × HDMI,1 × VGA
LAN2 × Realtek Gigabit LAN
USB1 × USB 3.0,1× USB 2.0
Audio1 × Mic-in,1 × Line-out
Serial Port4 × RS-232 (COM2/COM3 Support 5V/12V)

Storage

Type1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD

Expansion

mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi
SIM Card Slot1
AutoStart JumperYes,1 × 3Pin, Pitch 2.54mm
DC-INNo
VGA0
GPIO1,2 × 5Pin, Pitch 2.0mm

Power

Power Adapter12V3A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension178 × 111 × 52mm
Weight0.90kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSWindows 7, Windows 8, Windows 10, Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q10111XL-S04 Q180XL Bay trail Celeron J1800 2 / 2 2.41Ghz ~ 2.58Ghz 1M Intel HD Graphics 10W
Q10121XL-S04 Q190XL Bay trail Celeron J1900 4 / 4 2.00Ghz ~ 2.42Ghz 2M Intel HD Graphics 10W
Q10122XL-S04 Q192XL Bay trail Celeron N2920 4 / 4 1.86Ghz ~ 2.0Ghz 2M Intel HD Graphics 7.5W
Q10123XL-S04 Q193XL Bay trail Celeron N2930 4 / 4 1.83Ghz ~ 2.16Ghz 2M Intel HD Graphics 7.5W
