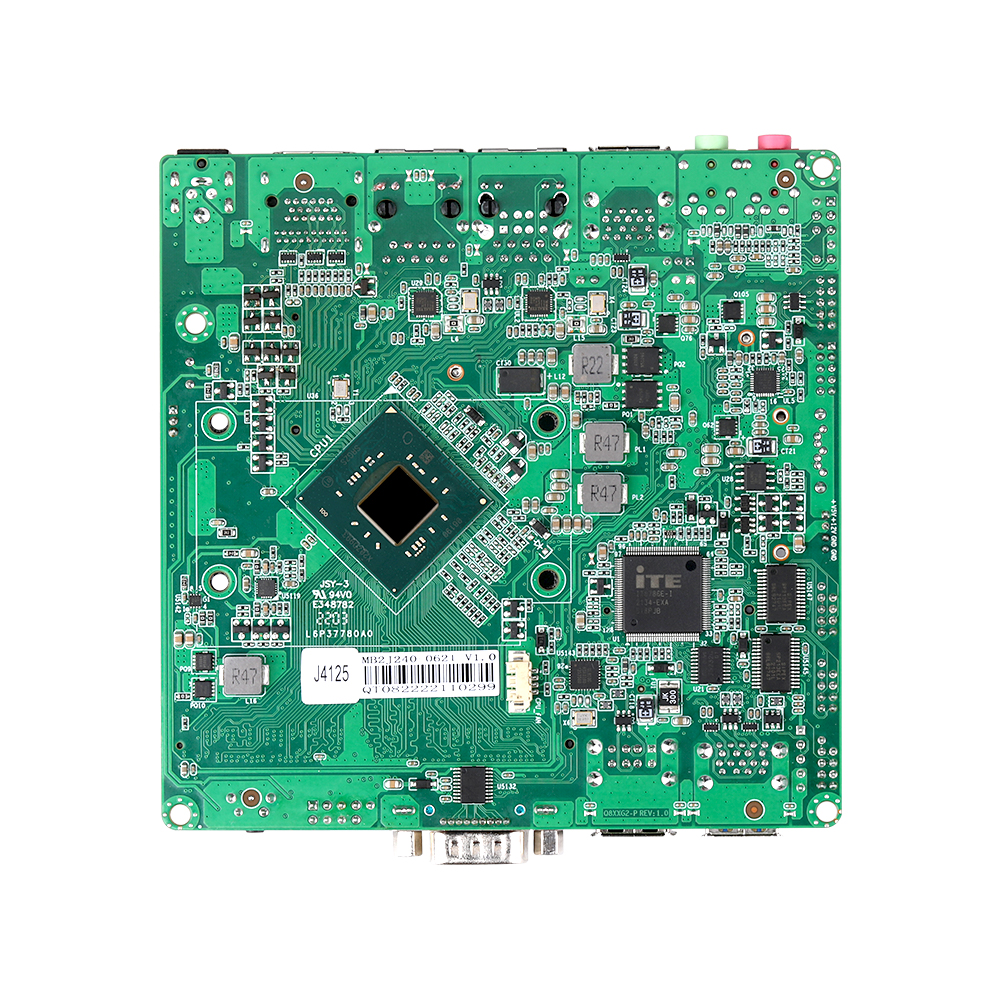

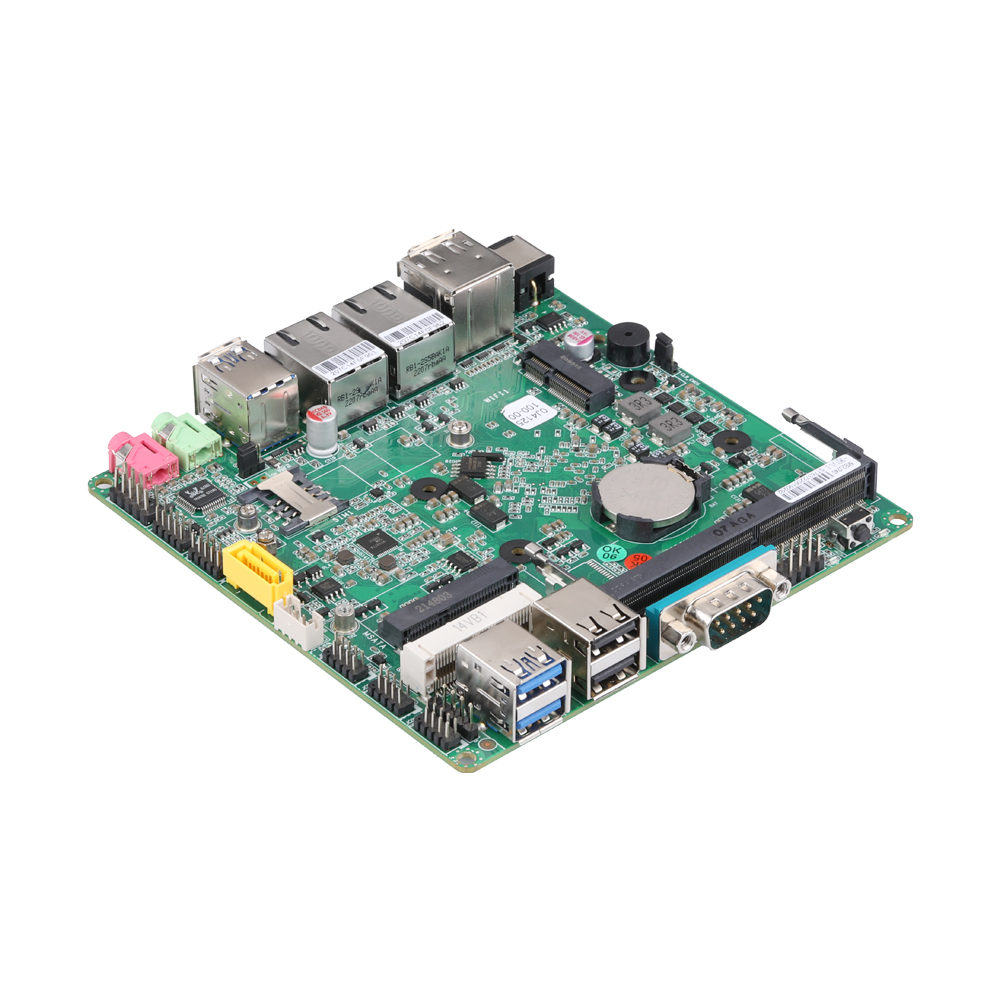

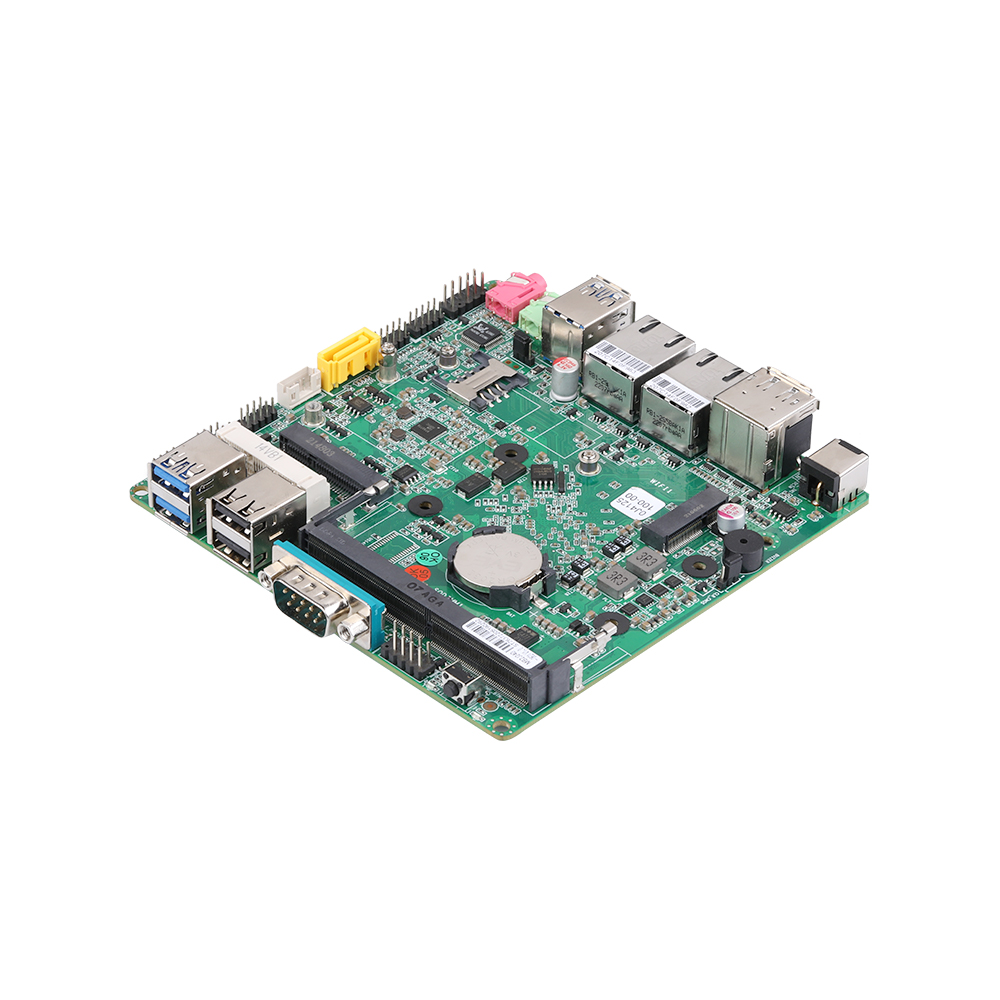

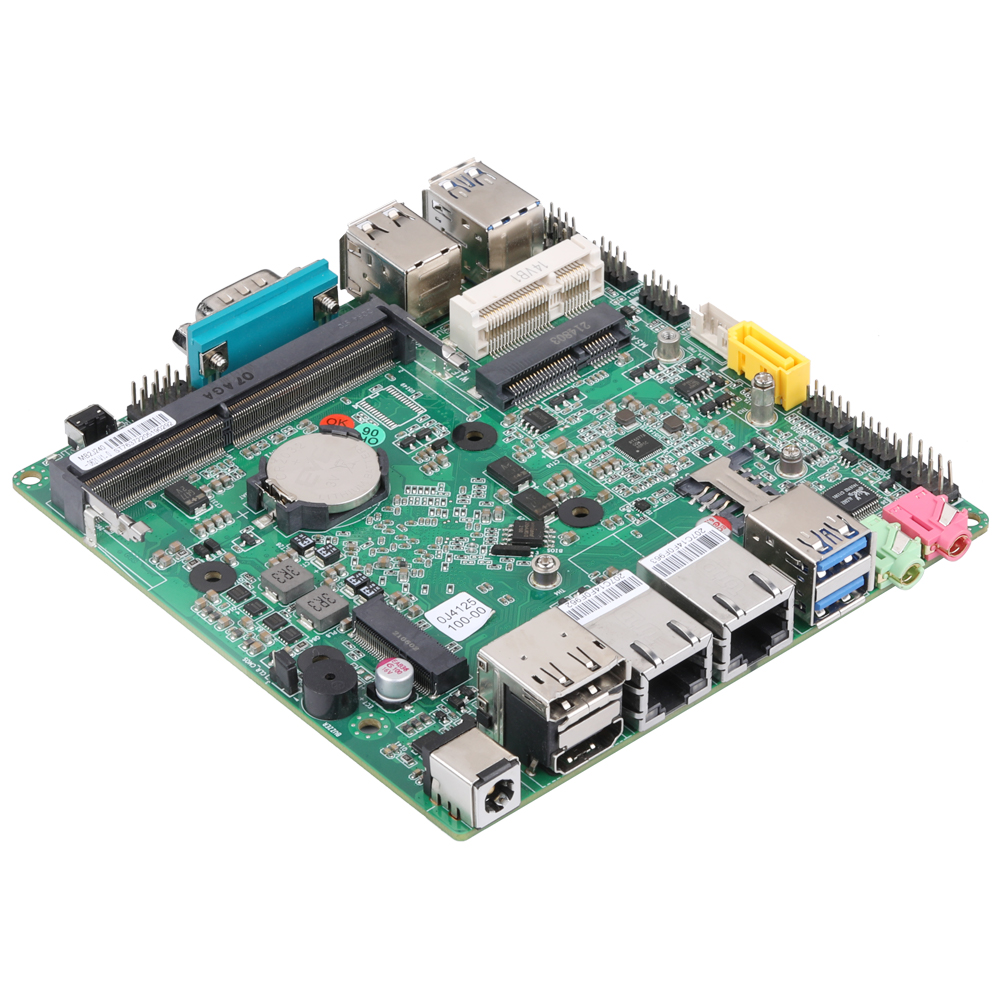

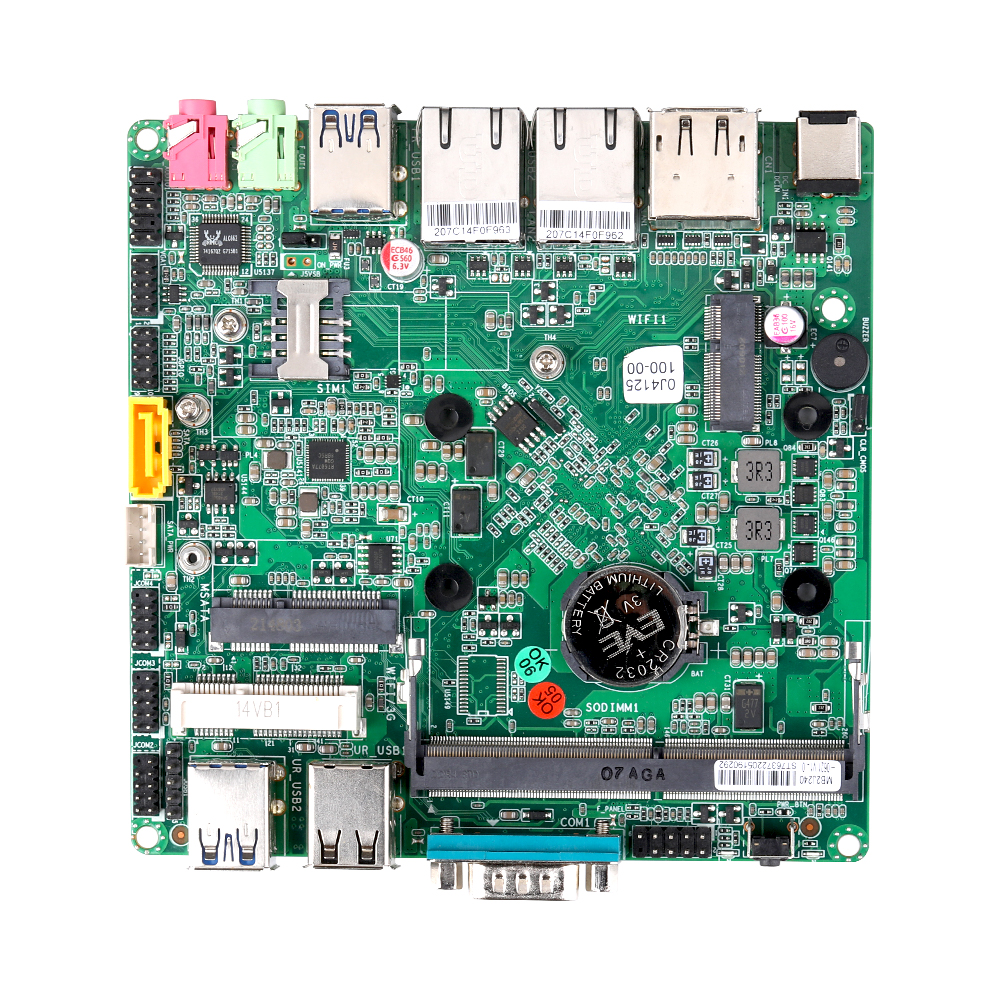

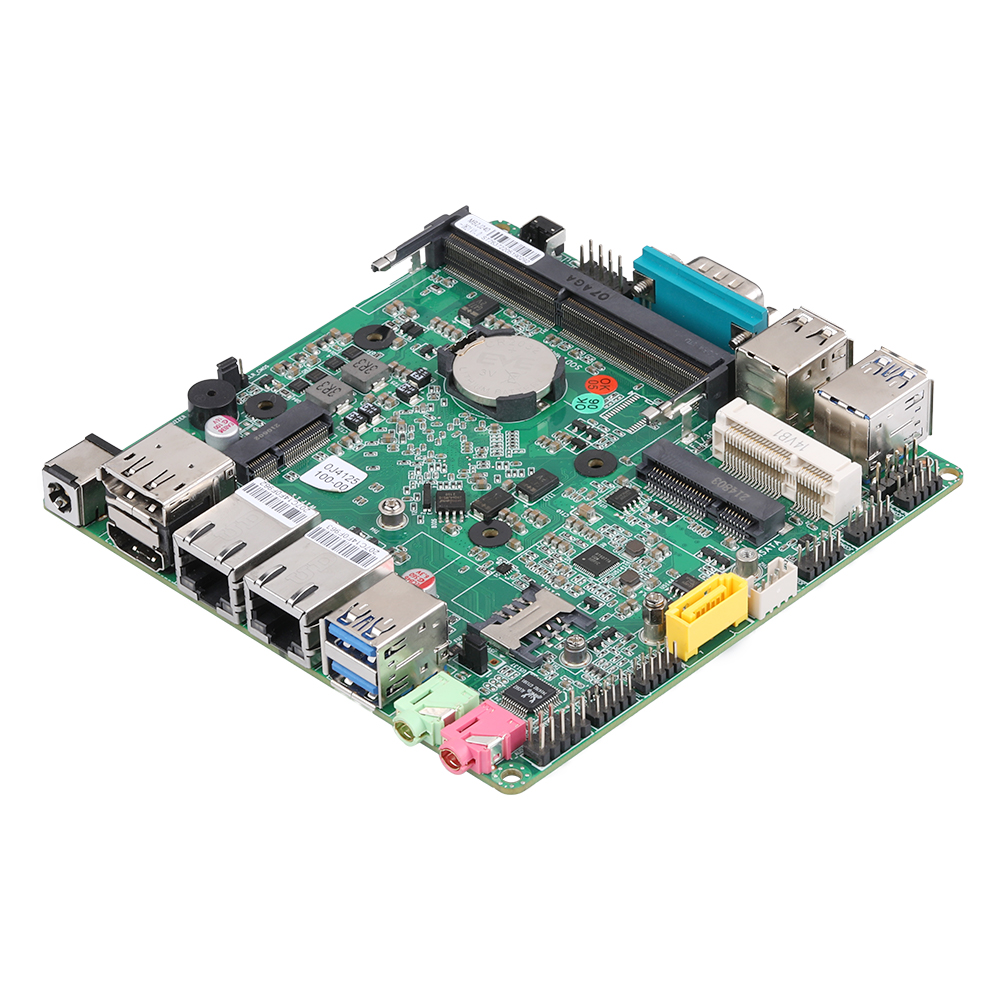

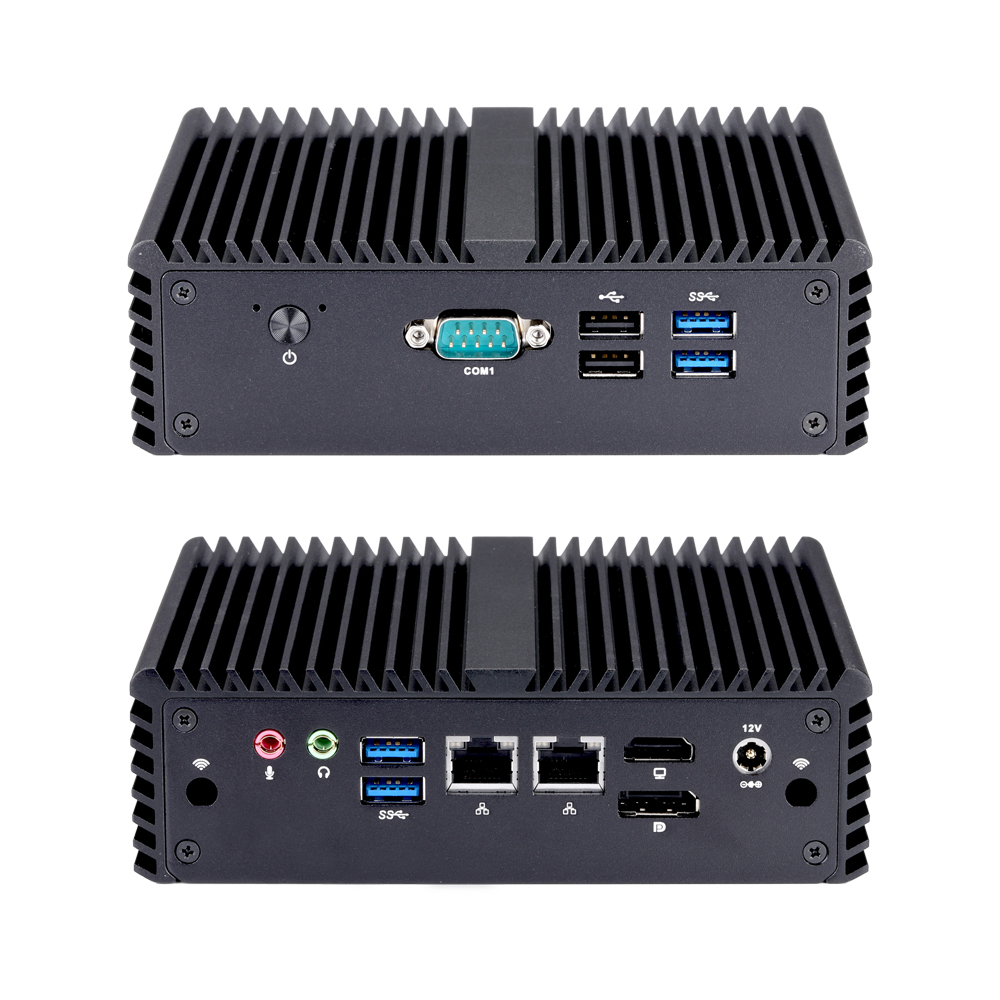

Motherboard MB2J240-0500 Series

Name: Motherboard MB2J240-0500 Series
Brand: Qotom
SKU: MB2J240-0500

Model: MB2J240-0500

Total LAN2

LAN Speed1G RJ45

Serial Ports4

MB2J240-0500 integrates compact industrial motherboard with 4 RS232 ports, dual LAN, multiple USB ports and flexible display and storage interfaces. It can serve industrial equipment integration and system integrator projects.

Key Specs

CPU: Gemini Lake / Gemini Lake-R
Memory: DDR4 SO-DIMM · Max 16GB
LAN: 2
Storage: mSATA, SATA
Board Size: 120x120

Compatible Systems

MB2J240-0511 MB2J240-0512 MB2J240-0521 MB2J240-0611 MB2J240-0621 Intel Gemini Lake Gemini Lake-R Pentium Celeron ATOM N4000 N4100 J4005 J4105 N5000 J5005 N4020 N4120 J4025 J4125 N5030 J5040

Main Features

Intel Gemini Lake Processor
1 × HDMI,1 × Display Port,1 × VGA (Header)
4 × USB 3.0, 2 × USB 2.0, 4 × RS-232
1 × M.2, 1 × mSATA, 1 × Mini PCIe
2 × Realtek Gigabit LAN

Related Products

Mini PC Q10500P S08 Series

Q10500P-S08

Mini PC Q10500PV S08 Series

Q10500PV-S08

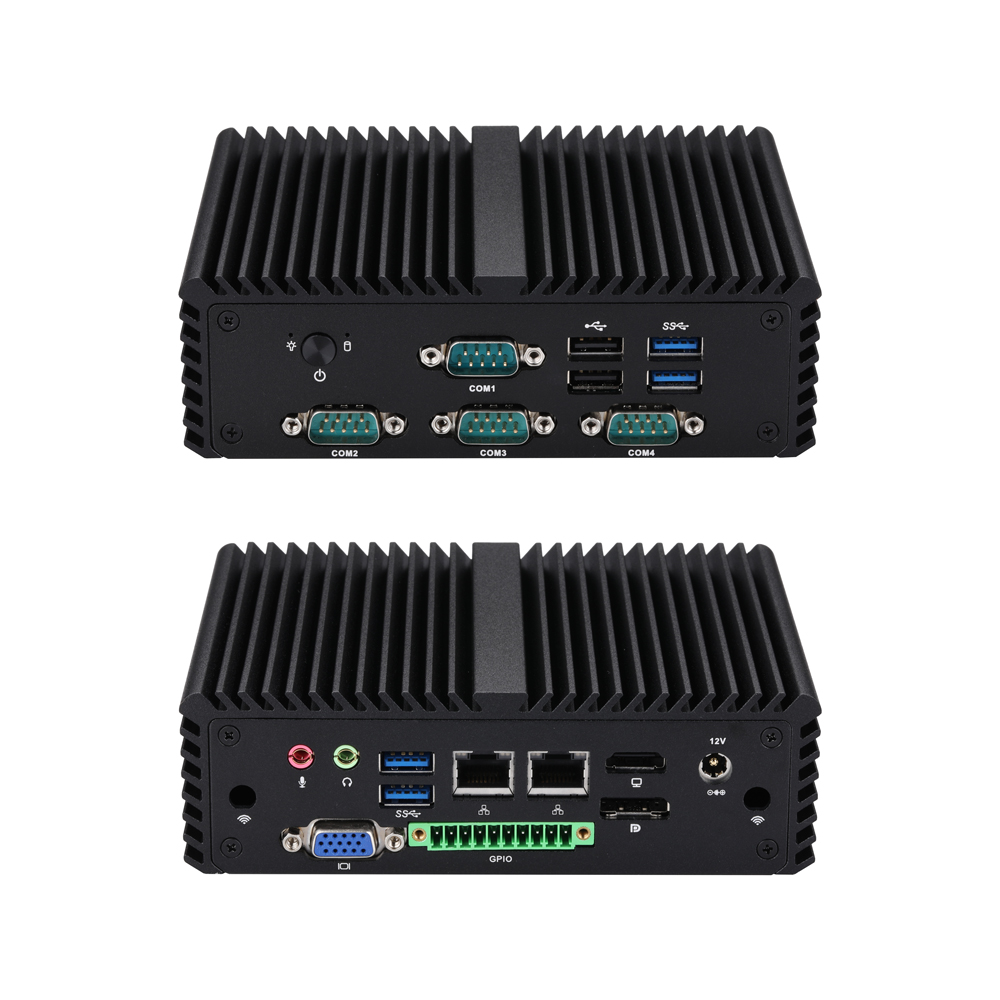

Mini PC Q10500PVG S08 Series

Q10500PVG-S08

Mini PC Q10500G5 S08 Series

Q10500G5-S08

Mini PC Q10500G5C S08 Series

Q10500G5C-S08

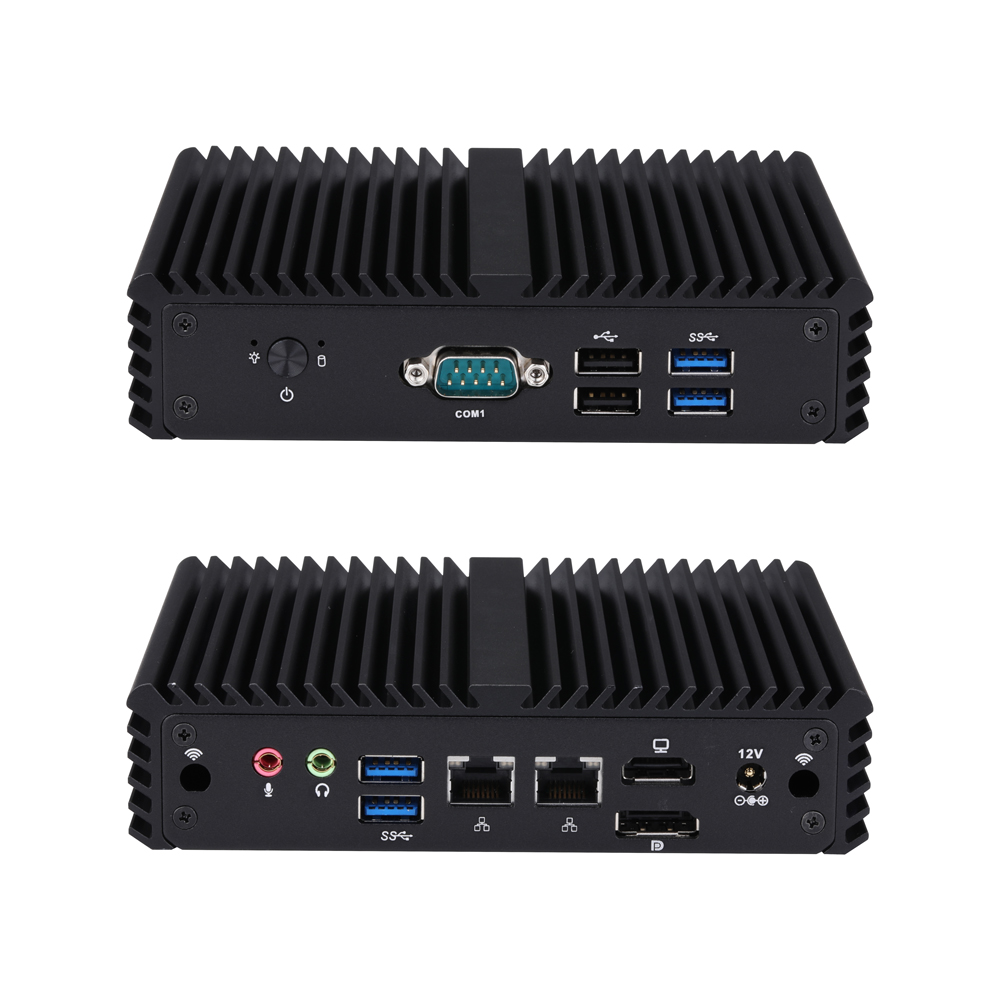

Mini PC Q10500G5 S07 Series

Q10500G5-S07

CPU	Intel Gemini Lake Processor
Chipset	By CPU
Dimension	120 × 120mm
Core Number	By CPU
Max. Speed	By CPU
L2 Cache	By CPU
BIOS	UEFI

Technology	DDR4 2133/2400MHz SDRAM Only Supports a Single 1G Memory Chip
Max.	16GB
Socket	1 × SO-DIMM

Controller	By CPU
VGA	1 (Header)
HDMI	1
Display Port	1
Multi Display	Y es

Interface	10/100/1000Mbps
Controller	2 × Realtek Gigabit LAN
Connector	2 × RJ-45

Power Button	1
LED	1 × Power LED,1 × HDD LED
USB	2 × USB 3.0,2 × USB 2.0
Serial Port	1× RS-232

Motherboard MB2J240-0500 Series

Key Specs

Compatible Systems

Main Features

Processor System

Memory

Graphics

Ethernet

Audio

Front I/O

Rear I/O

Storage

Expansion

Internal Connector

Watchdog Timer

Power

Environmental

Accessories

OS Support

Package Contents

Order & Specification Selection

BIOS & Firmware

Driver Downloads

Related Products

USB	2 × USB 3.0
Audio	1 (Mic-in, Line-out)
DC-IN	1
Display	1 × HDMI, 1 × Display Port
Ethernet	2

mSATA	1 × Full-length Mini PCIe for SSD
M.2	1× M.2 for Wi-Fi (E key, Type: 2230)
Mini PCIe	1× Mini PCIe,Half-length Mini PCIe for Wi-Fi by Default, Full-length Mini PCIe for 4G

VGA Header	1, 2 × 5Pin, Pitch 2.0mm
Serial Port	3, 2 × 5Pin, Pitch 2.0mm
RS-485	COM1/2 can be set up as RS-485
PS/2	1, 2 × 5Pin, Pitch 2.0mm
SATA	1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector	1, 1 × 4Pin, Pitch PH2.0mm
SIM Slot	1
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.54mm
Clear CMOS Jumper	Yes, 1 × 3Pin, Pitch 2.54mm
GPIO Header	1, 2 × 5Pin, Pitch 2.0mm
GPIO Power Select	Yes, 1 × 3Pin, Pitch 2.54mm
USB 2 Header	1, 1 × 5Pin, Pitch 2.54mm
Front Panel Header	1, 2 × 5Pin, Pitch 2.0mm
Power Header	1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Option)

Output	From Super I/O to Drag RESETCON#
Interval	256 Segments,0,1,2,3,,,255 sec/min

Ordering Code	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP
MB2J240-0511	Gemini Lake	Celeron	J4005	2 / 2	2.0GHz ~ 2.7GHz	4M	Intel UHD Graphics 600	10W
MB2J240-0512	Gemini Lake	Celeron	N4000	2 / 2	1.1GHz ~ 2.6GHz	4M	Intel UHD Graphics 600	6W
MB2J240-0521	Gemini Lake	Celeron	J4105	4 / 4	1.5GHz ~ 2.5GHz	4M	Intel UHD Graphics 600	10W
MB2J240-0611	Gemini Lake Refresh	Celeron	N4020	2 / 2	1.1GHz ~ 2.8GHz	4M	Intel UHD Graphics 600	6W
MB2J240-0621	Gemini Lake Refresh	Celeron	J4125	4 / 4	2.0GHz ~ 2.7GHz	4M	Intel UHD Graphics 600	10W
