Mini PC Q10500PVG S08 Series

Name: Mini PC Q10500PVG S08 Series
Brand: Qotom
SKU: Q10500PVG-S08

Model: Q10500PVG-S08

Total LAN2

LAN Speed1G RJ45

Serial Ports4

Built around industrial I/O requirements, Q10500PVG-S08 provides fanless Gemini Lake platform Mini PC with serial connectivity plus VGA and GPIO for industrial equipment integration. Processor options including J4105 and J4125 provide an efficient platform for machine interfaces, control terminals, POS systems and. Typical applications include equipment integration, industrial gateways and embedded control.

Key Specs

CPU: Gemini Lake / Gemini Lake-R
Memory: DDR4 SO-DIMM · Max 16GB
LAN: 2
Storage: mSATA, SATA

Compatible Motherboard

MB2J240-0500

Send Inquiry Buy Now

Q720PVG Q730PVG Q740PVG Q750PVG Q10511PVG Q10512PVG Q10521PVG Q10612PVG Q10621PVG Intel Gemini Lake Gemini Lake-R Pentium Celeron ATOM N4000 N4100 J4005 J4105 N5000 J5005 N4020 N4120 J4025 J4125 N5030 J5040

Main Features

Intel Gemini Lake Processor
Intel Gemini Lake-R Processor
1 × HDMI,1 × Display Port

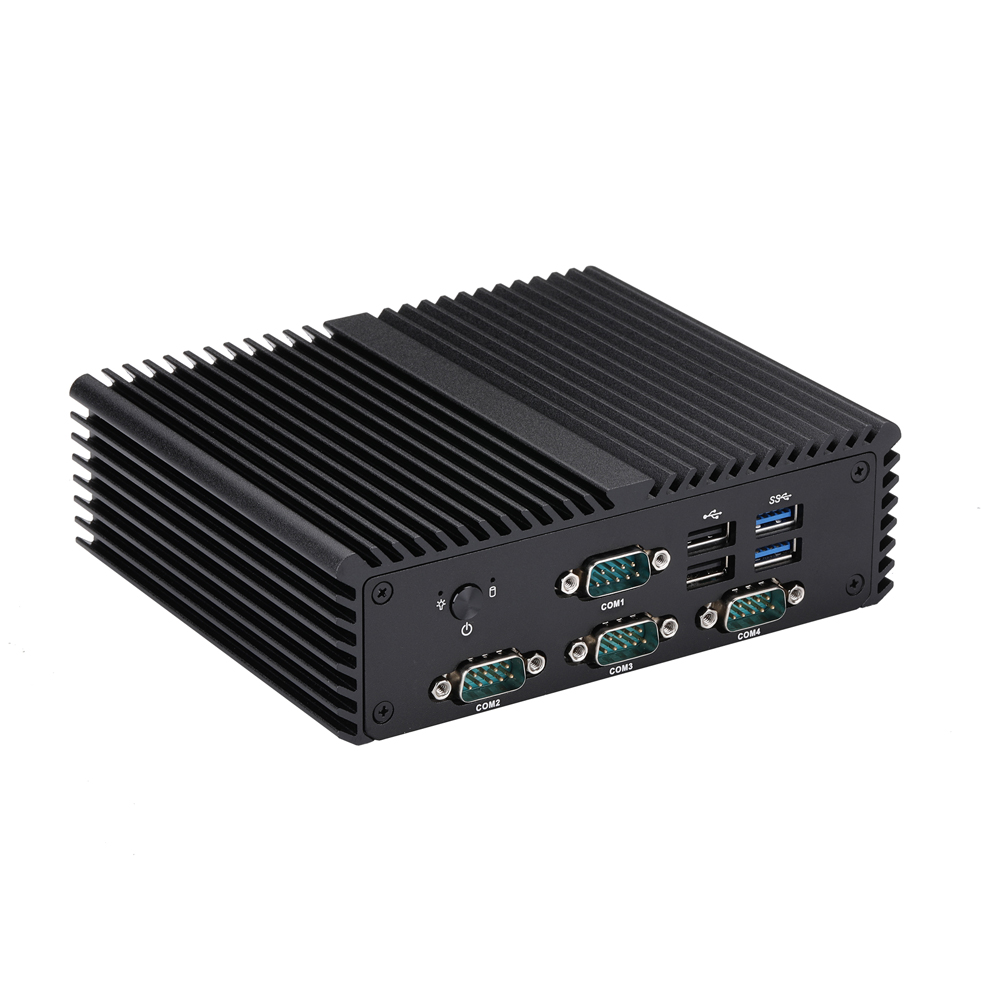

1 × VGA,4 × RS-232
4 × USB 3.0,2 × USB 2.0,1 × SATA 3.0
1 × M.2,1 × mSATA,1 × Mini PCIe
2 × Realtek Gigabit LAN

Related Products

Mini PC Q10700X S08 Series

Q10700X-S08

Mini PC Q30900P S08 Series

Q30900P-S08

Mini PC Q10800XPGV S04 Series

Q10800XPGV-S04

Mini PC Q30900X S20 Series

Q30900X-S20

Mini PC Q31200X S20 Series

Q31200X-S20

Mini PC Q71200X S18 Series

Q71200X-S18

CPU	• Intel Gemini Lake Processor • Intel Gemini Lake-R Processor
CPU TDP	By CPU
Memory	1 × DDR4 SO-DIMM Socket (Up to 16G) Only Supports a Single 1G Memory Chip
Chipset	By CPU
Graphics	By CPU
LAN Chipset	2 × R ealtek Gigabit LAN
Audio	Realtek HD Audio
Watch Dog	Yes

Power Button	1
LED	1 × Power LED,1 × HDD LED
USB	2 × USB2.0,2 × USB3.0

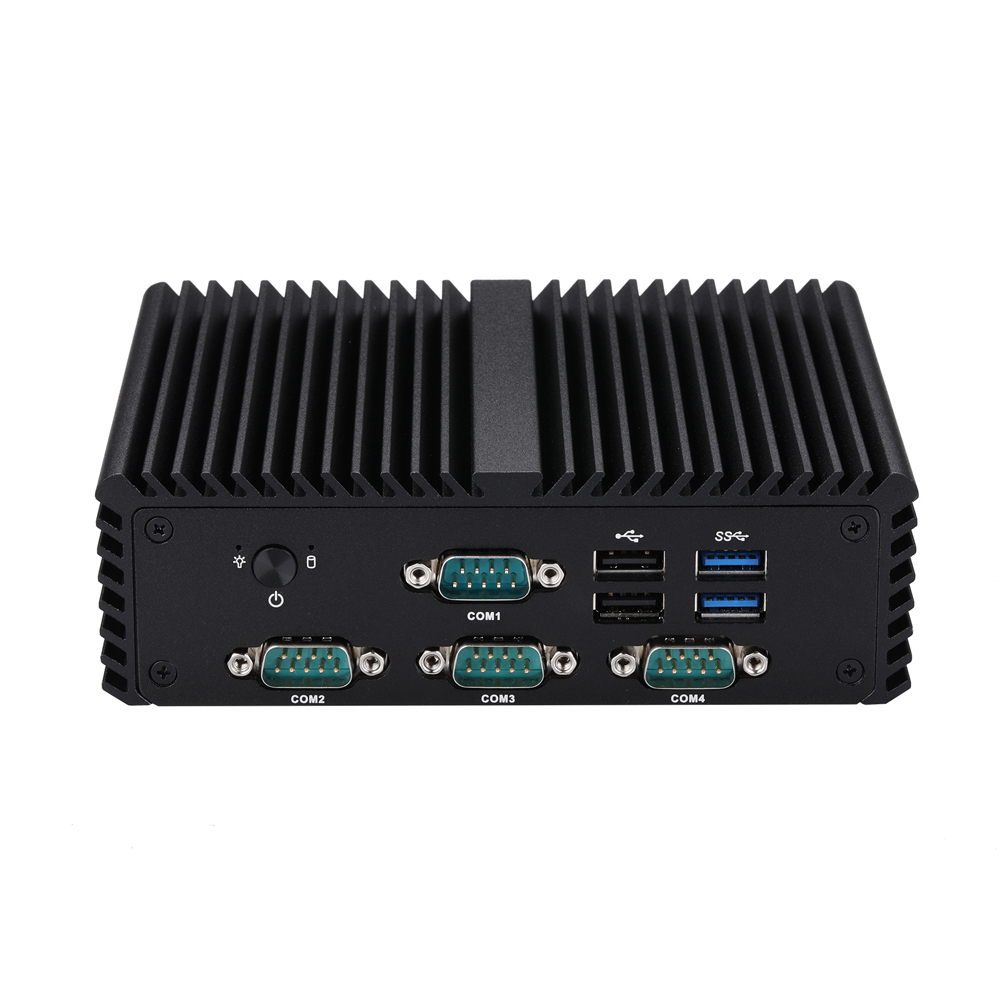

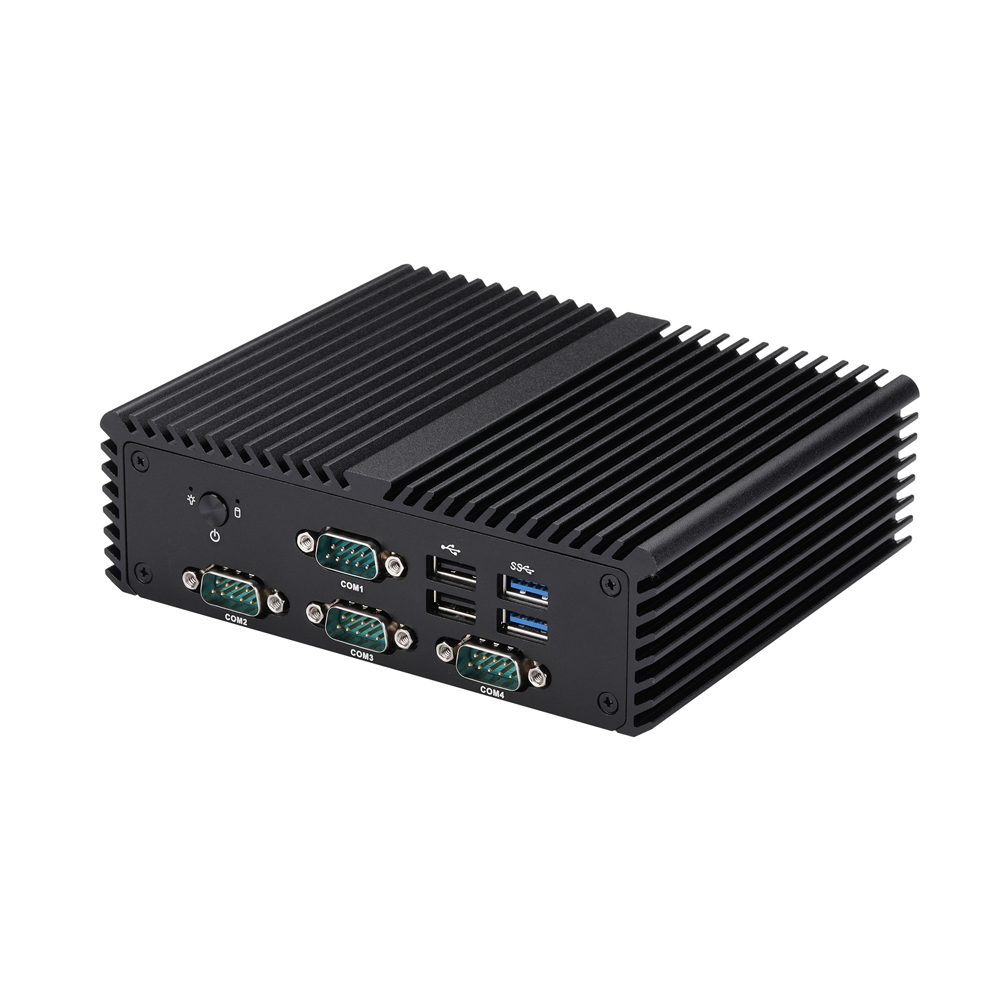

Serial Port	4 × RS-232 -COM3/4 can be set up as RS-485 -Pin 9 Factory Setting Support s 5V/12V)

Power	1 × DC Jack

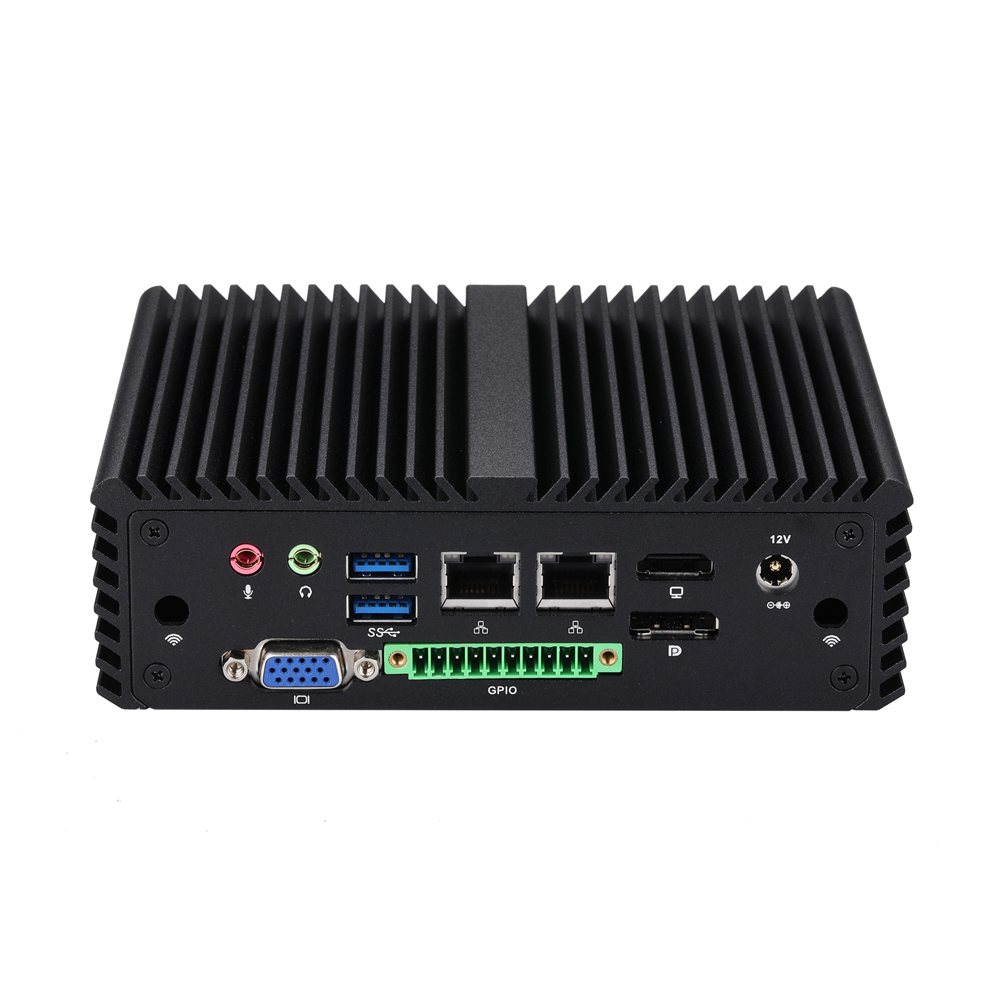

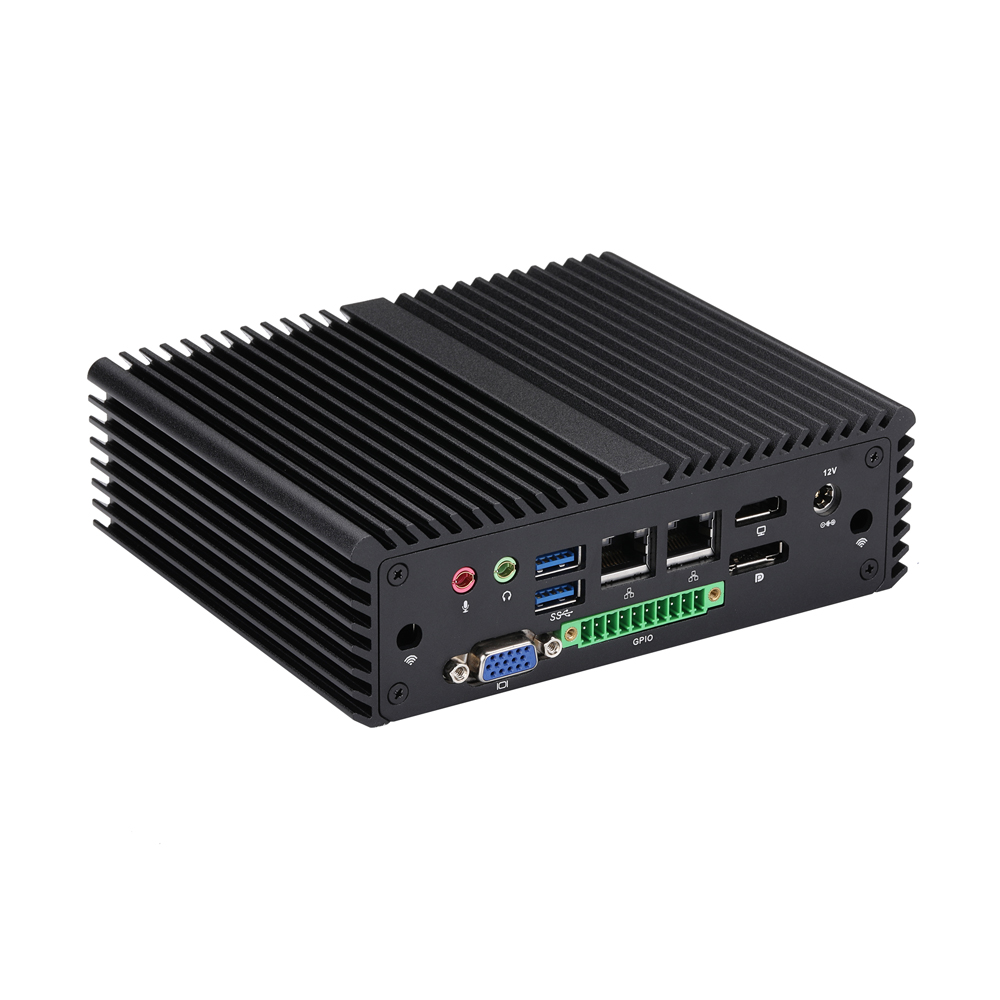

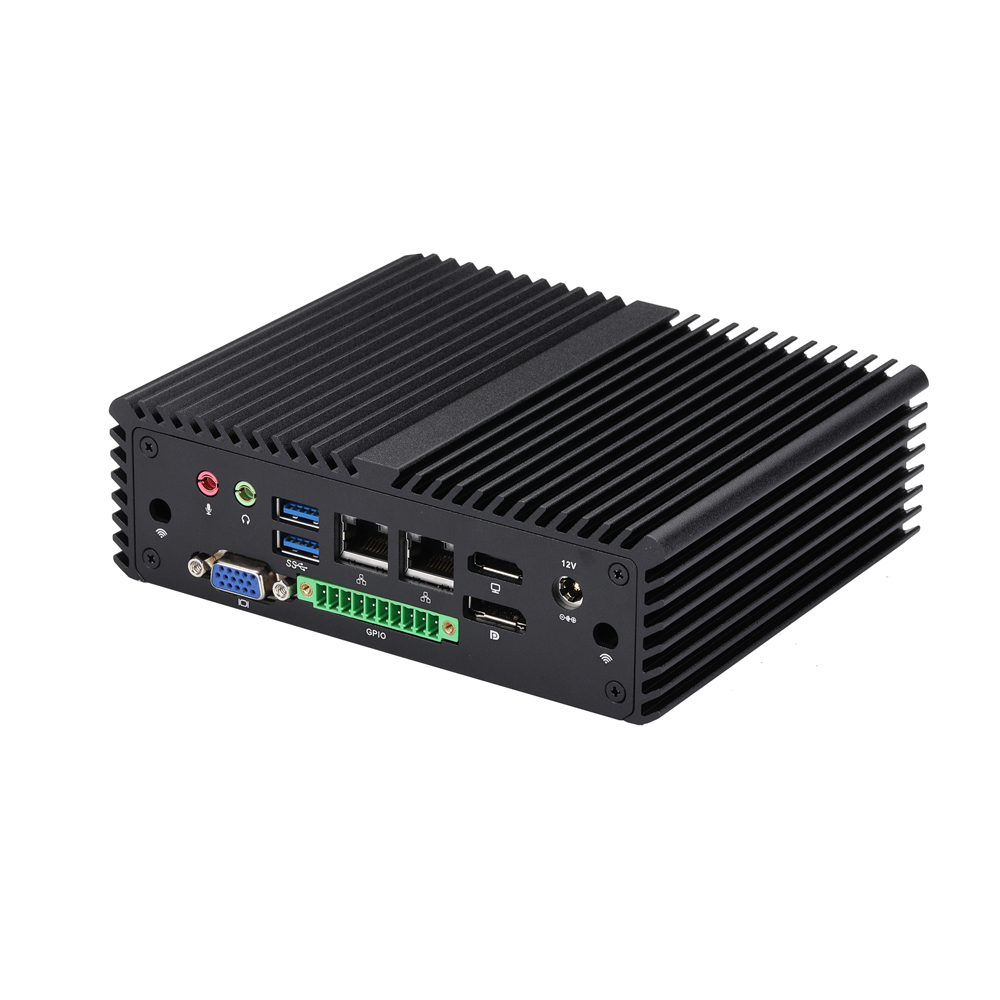

Video Output	1 × HDMI,1 × Display Port,1 × VGA
LAN	2 × Realtek Gigabit LAN
USB	2 × USB 3.0
Audio	1 × Mic-in, 1 × Line-out
GPIO	4 DIs/4DOs

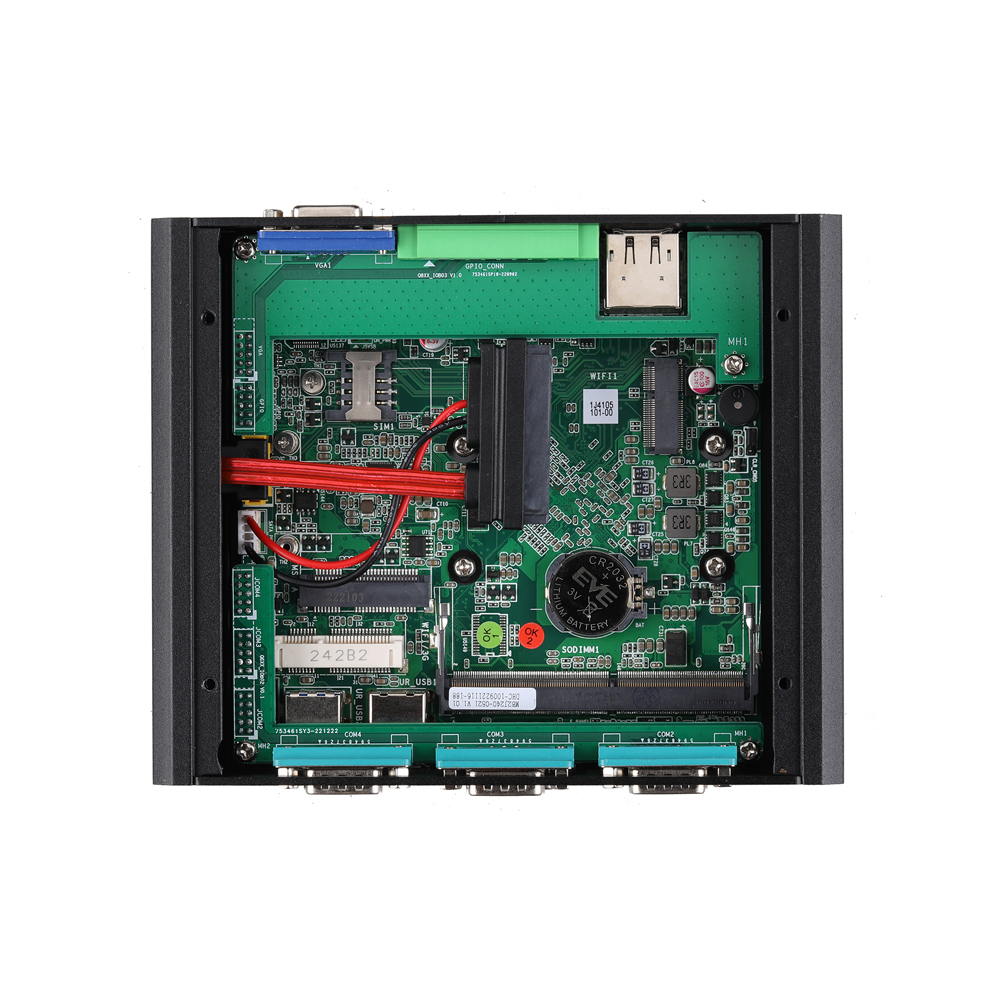

Type	1 × 2.5-inch HDD/SSD
Type	1 × Mini PCIe for mSATA SSD

mSATA	1 × Full-length Mini PCIe for SSD
Mini PCIe	1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi
M.2	1 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot	1
AutoStart Jumper	Yes,1 × 3Pin, Pitch 2.0mm
GPIO	1,2 × 5Pin, Pitch 2.0mm
VGA	0
Clear CMOS Jumper	Yes,1 × 3Pin, Pitch 2.0mm

Mini PC Q10500PVG S08 Series

Key Specs

Compatible Motherboard

Main Features

Processor System

Front I/O

Rear I/O

Storage

Expansion

Power

Environmental

Mechanical

OS Support

Package Contents

Order & Specification Selection

BIOS & Firmware

Driver Downloads

Related Products

Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%

Material	Aluminium Alloy
Dimension	155 × 127 × 48mm
Weight	0.89kg
Mounting	VESA Mounting Bracket
Packaging Dimension	261 × 218 × 75mm
Kensington Lock	No
Cooling Mode	Fanless Design

Ordering Code	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP	Legacy Model
Q10511PVG-S08	Gemini Lake	Celeron	J4005	2 / 2	2.0GHz ~ 2.7GHz	4M	Intel UHD Graphics 600	10W	-
Q10512PVG-S08	Gemini Lake	Celeron	N4000	2 / 2	1.1GHz ~ 2.6GHz	4M	Intel UHD Graphics 600	6W	Q720PVG
Q10521PVG-S08	Gemini Lake	Celeron	J4105	4 / 4	1.5GHz ~ 2.5GHz	4M	Intel UHD Graphics 600	10W	Q730PVG
Q10612PVG-S08	Gemini Lake Refresh	Celeron	N4020	2 / 2	1.1GHz ~ 2.8GHz	4M	Intel UHD Graphics 600	6W	Q740PVG
Q10621PVG-S08	Gemini Lake Refresh	Celeron	J4125	4 / 4	2.0GHz ~ 2.7GHz	4M	Intel UHD Graphics 600	10W	Q750PV

Power Adapter	12V3A
DC Jack	5.5mm, 2.5mm
