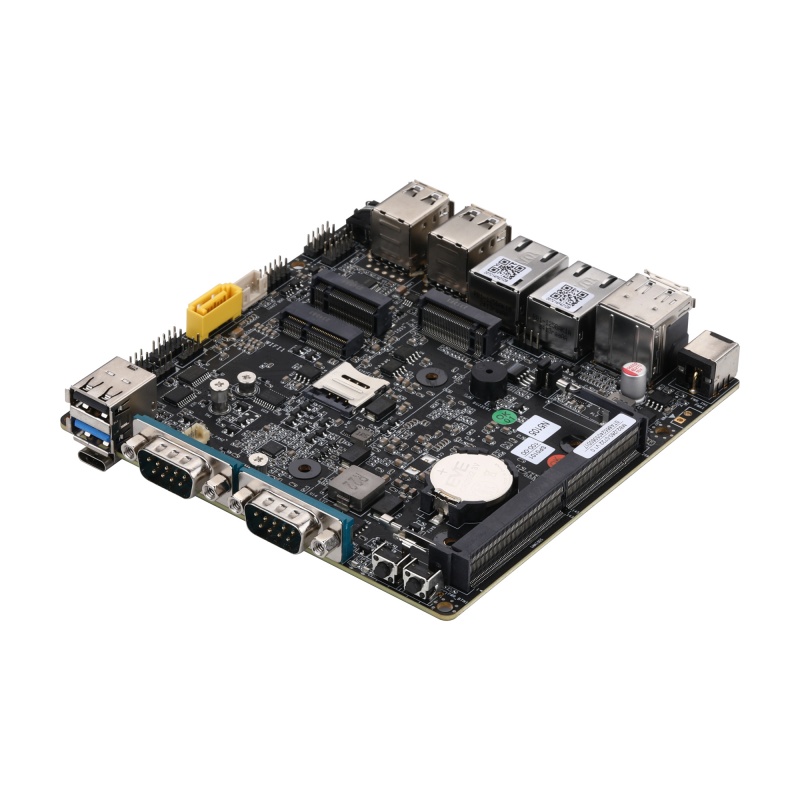

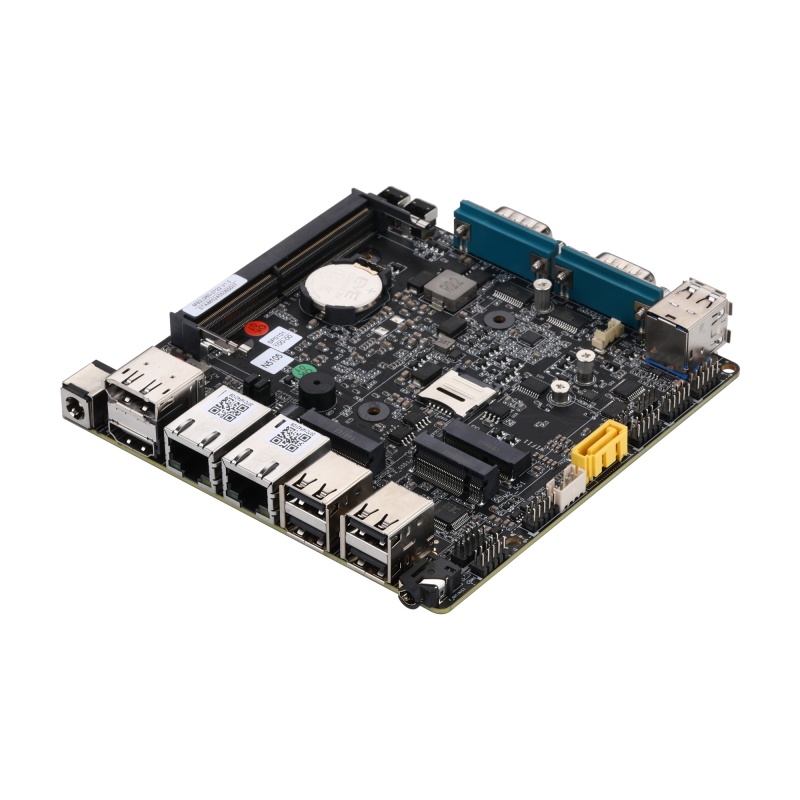

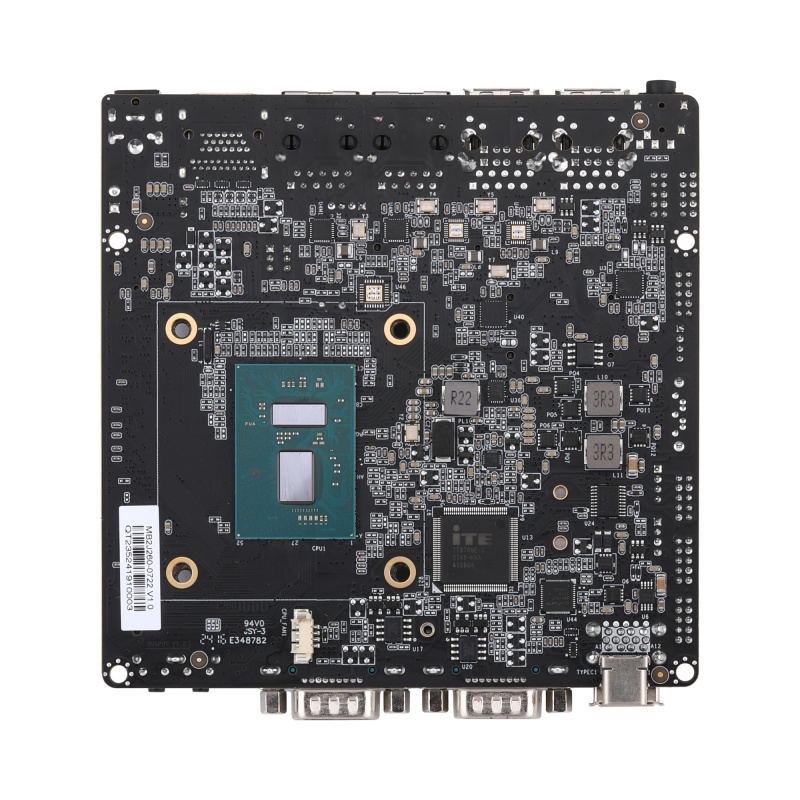

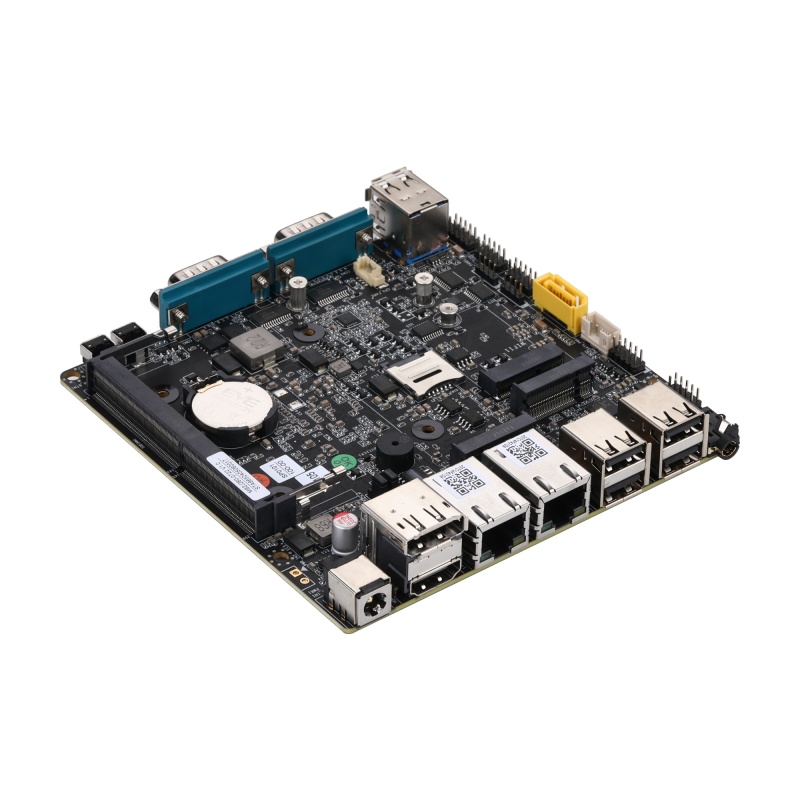

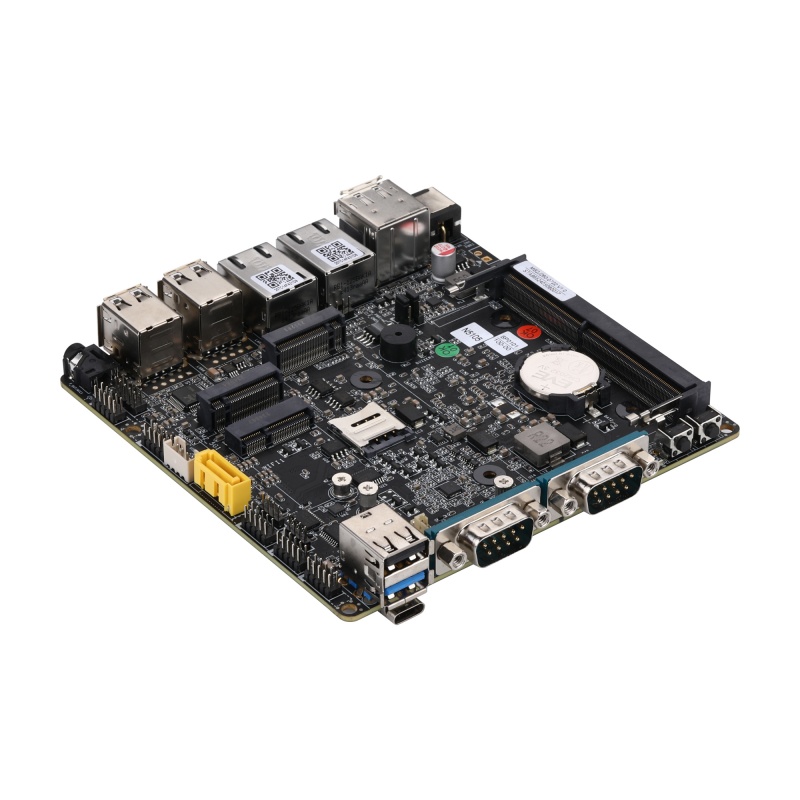

Motherboard MB2J260-0700 Series

Name: Motherboard MB2J260-0700 Series
Brand: Qotom
SKU: MB2J260-0700

Model: MB2J260-0700

Total LAN2

LAN Speed1G RJ45

Serial Ports6

MB2J260-0700 is a compact 120 脳 120mm industrial mini PC motherboard with 6 serial ports, multiple M.2 expansion, SATA, dual LAN and wireless connectivity options. Designed for OEM/ODM projects, factory automation, HMI, IoT gateways and customized industrial computers requiring rich I/O and flexible expansion.

Key Specs

CPU: Jasper Lake
Memory: DDR4 SO-DIMM · Max 32GB
LAN: 2
Storage: M.2 Mkey, SATA
Board Size: 120x120

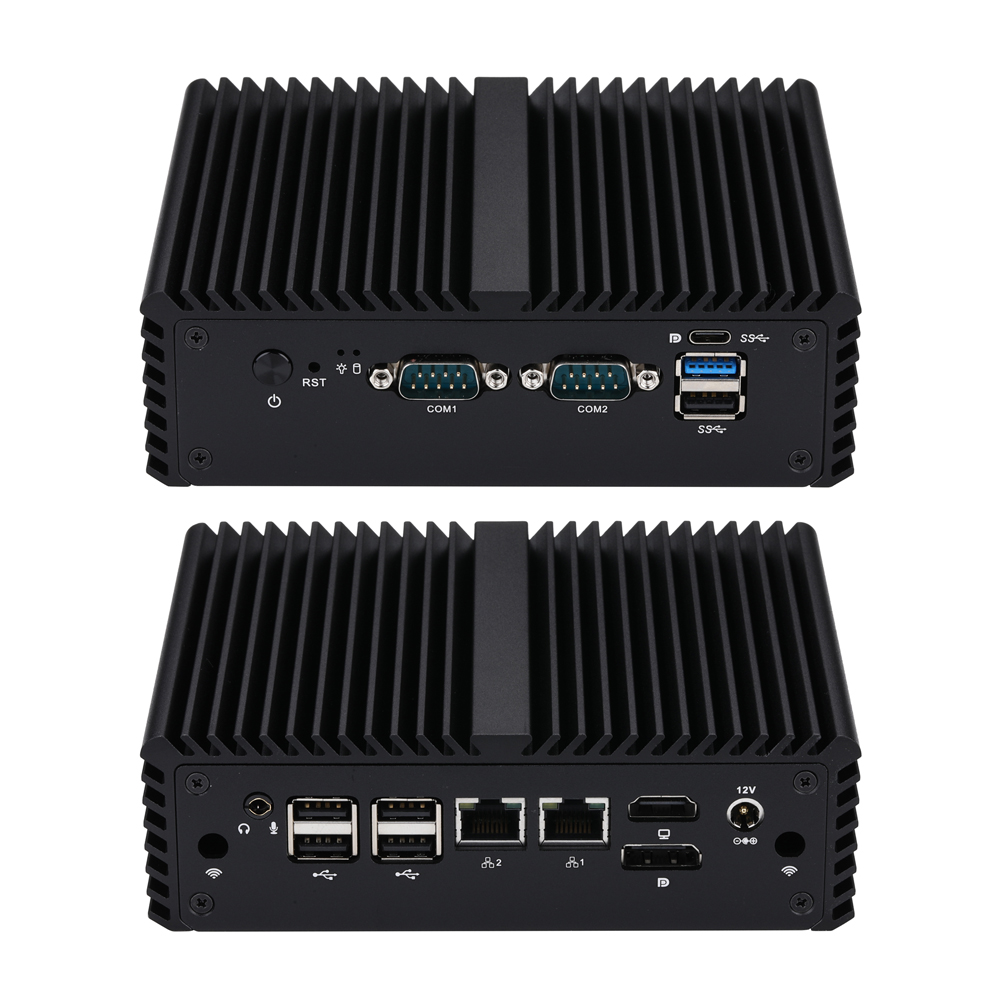

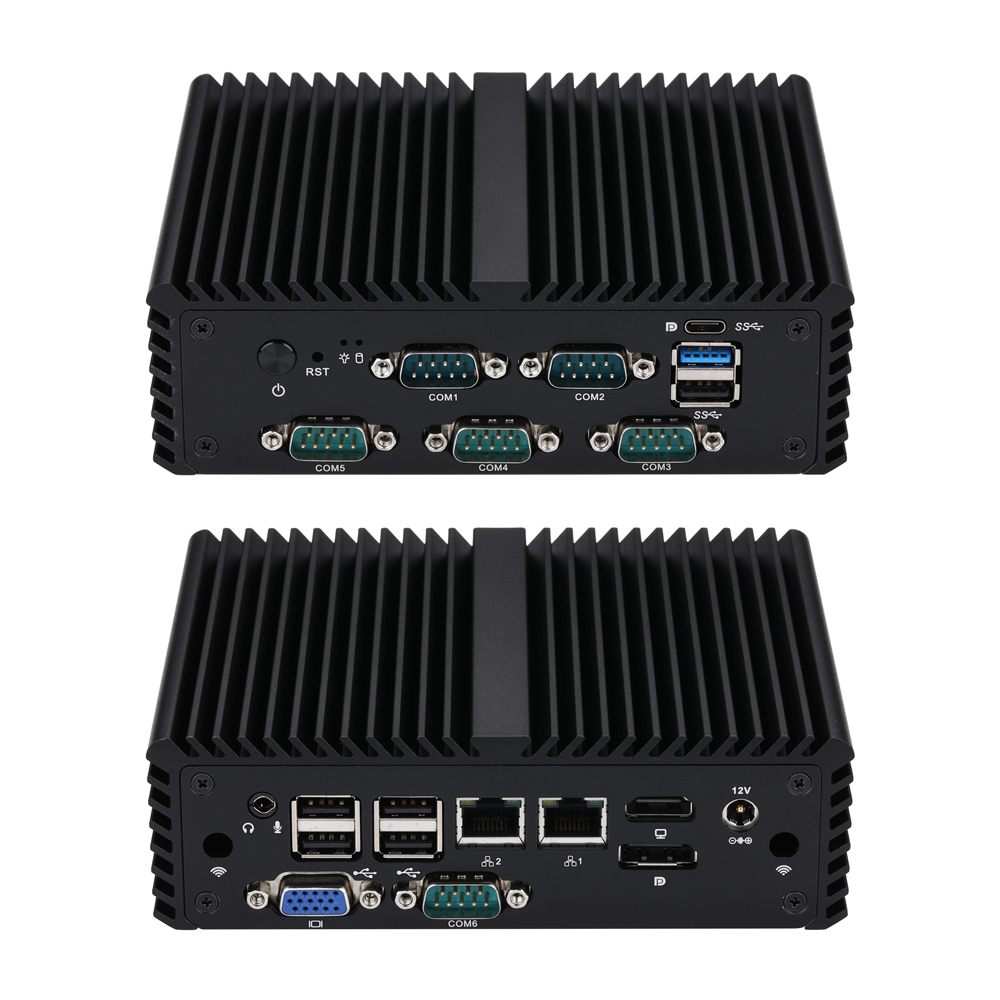

Compatible Systems

MB2J260-0711 MB2J260-0712 MB2J260-0721 MB2J260-0722 MB2J260-0723 MB2J260-0731 MB2J260-0732 MB2J163-0723 MB2J263-0723 Intel Jasper Lake Pentium Celeron ATOM N5095 N5100 N5105 N4505 N4500 N6000 N6005

Main Features

Intel Jasper Lake Processor
1 × HDMI,1 × Display Port, 1 × VGA (Header)
1 × USB 3.0, 5 × USB 2.0, 1 × Type C
3 × M.2, 1 × SATA 3.0
6 × RS-232, 2 × PS/2
2 × Realtek Gigabit LAN
