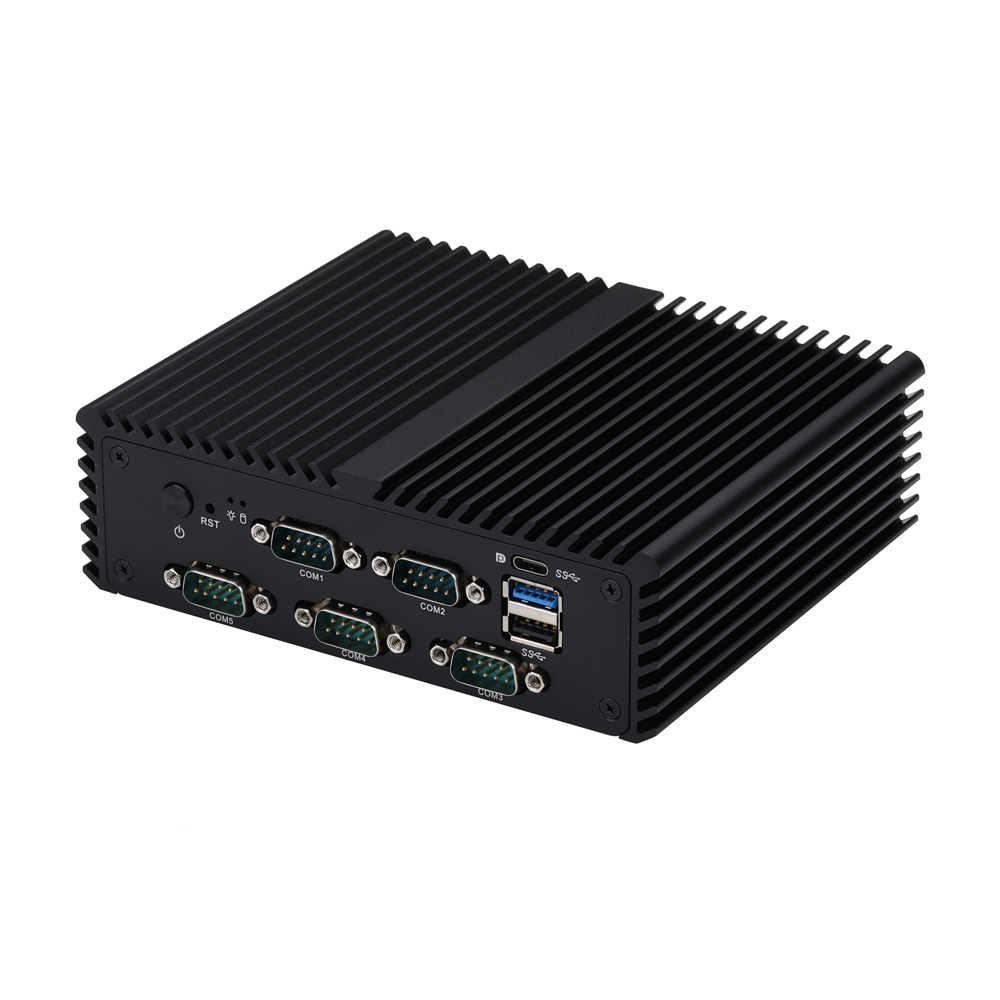

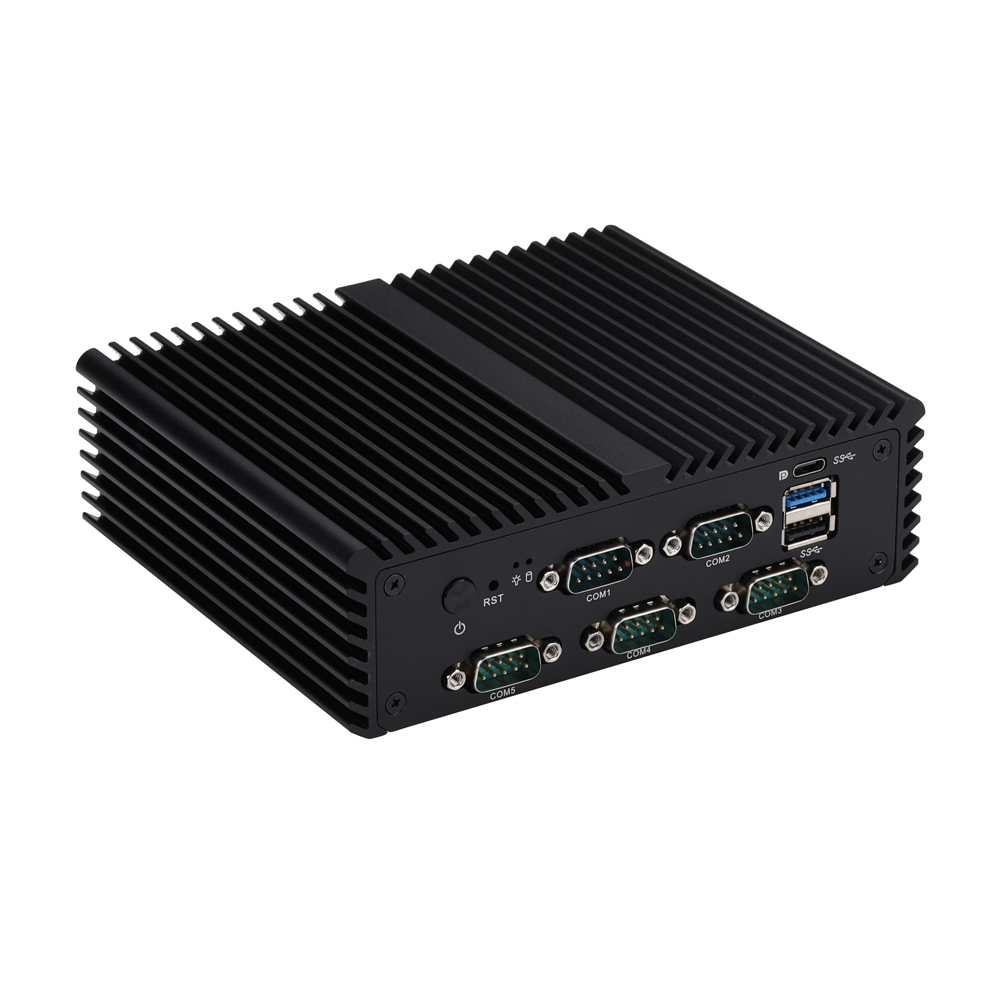

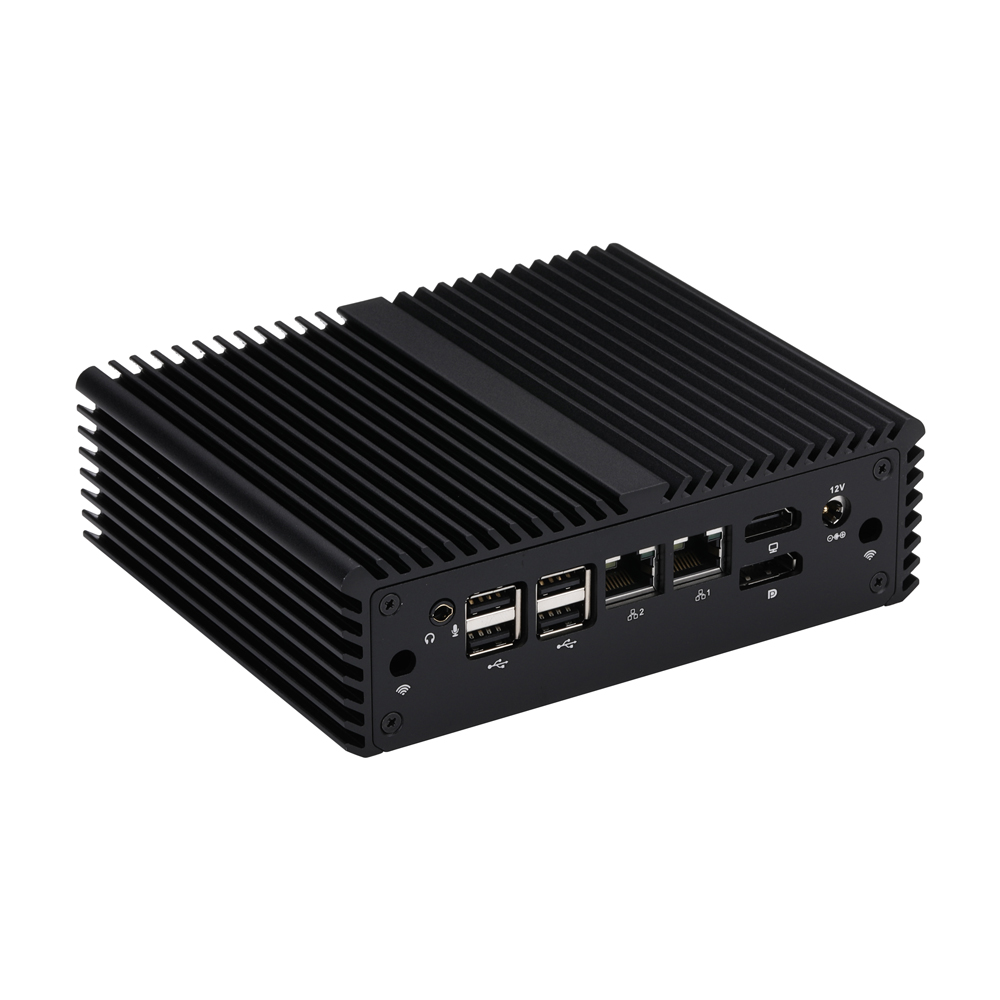

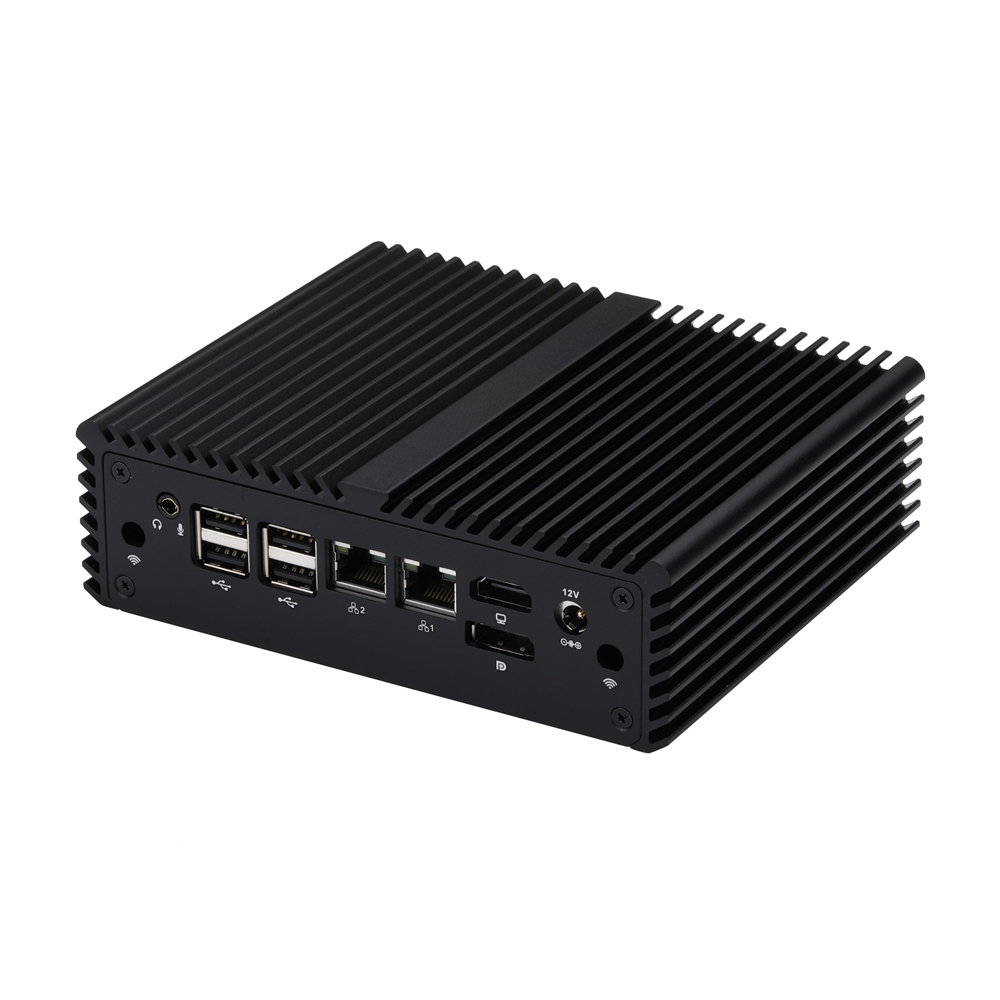

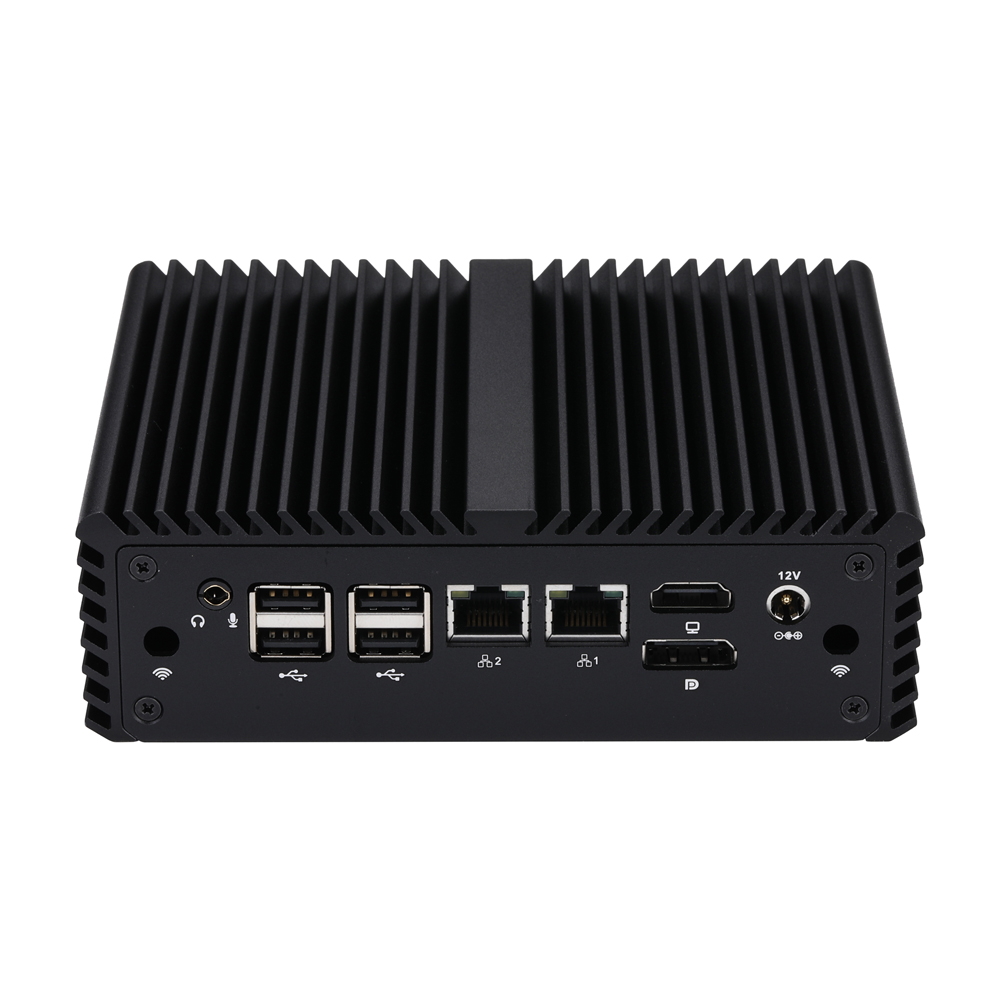

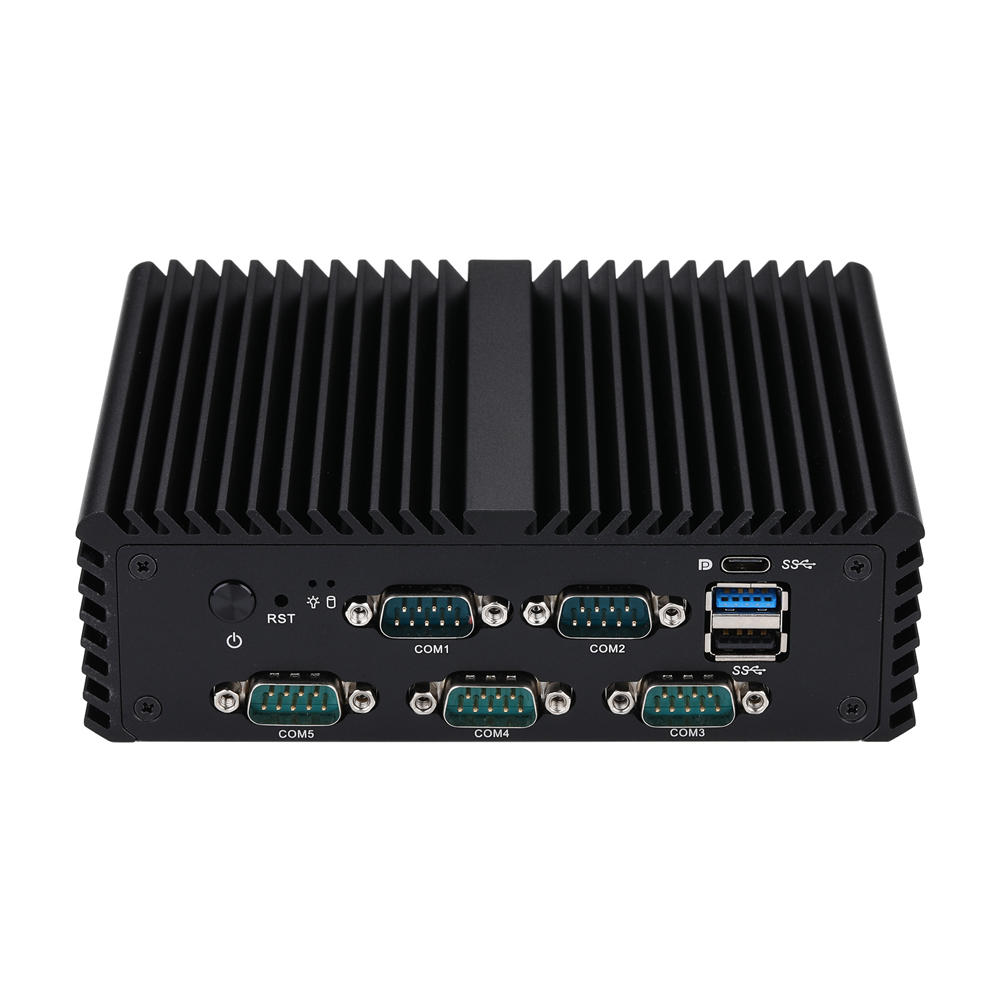

Mini PC Q10700X S08 Series

Name: Mini PC Q10700X S08 Series
Brand: Qotom
SKU: Q10700X-S08

Model: Q10700X-S08

Total LAN2

LAN Speed1G RJ45

Serial Ports5

Q10700X-S08 brings fanless Jasper Lake industrial Mini PC built for serial communication and embedded applications to industrial communication and embedded control projects. The platform also includes Multiple COM interfaces, DDR4 memory and network connectivity provide a compact platform for PLC communication, machine control, POS. It can serve factory automation, data collection and control terminals.

Key Specs

CPU: Jasper Lake
Memory: DDR4 SO-DIMM · Max 32GB
LAN: 2
Storage: M.2 Mkey, SATA

Compatible Motherboard

MB2J260-0700

Send Inquiry Buy Now

Q10711X Q10712X Q10721X Q10722X Q10723X Q10731X Q10732X Intel Jasper Lake Pentium Celeron ATOM N5095 N5100 N5105 N4505 N4500 N6000 N6005

Main Features

Intel Jasper Lake Processor
1 × HDMI, 1 × Display Port
5 × RS-232
1 × USB 3.0, 5 × USB 2.0, 1 × Type C
3 × M.2,1 × SATA 3.0
2 × Realtek Gigabit LAN

Related Products

Mini PC Q30900P S08 Series

Q30900P-S08

Mini PC Q10800XPGV S04 Series

Q10800XPGV-S04

Mini PC Q30900X S20 Series

Q30900X-S20

Mini PC Q31200X S20 Series

Q31200X-S20

Mini PC Q71200X S18 Series

Q71200X-S18

Mini PC Q10100X S04 Series

Q10100X-S04

CPU	Intel Jasper Lake Processor
CPU TDP	By CPU
Memory	1 × DDR4 SO-DIMM Socket (Up to 32G)
Chipset	By CPU
Graphics	By CPU
LAN Chipset	2 × R ealtek Gigabit LAN
Audio	Realtek HD Audio
Watch Dog	Yes

Power Button	1 × Power Button,1 × Reset Button
LED	1 × Power LED,1 × HDD LED
USB	1 × USB3.0,1 × USB2.0,1 × Type C (USB 3.0)
Serial Port	5 × RS-232 (COM1/2 can be set up as RS-485) (COM1-5 support 5V/12V,Requires Customization)

Power	1 × DC Jack
Video Output	1 × HDMI,1 × Display Port
LAN	2 × Realtek Gigabit LAN
USB	4 × USB 2.0
Audio	1 (Mic-in, Line-out)
PS/2	0
Serial Port	0

M.2	1 × M.2 for SSD (M key, Type:2280,PCIe 3.0 × 1)
M.2	1 × M.2 for 4G/5G (B key,Type:3042/3052)
M.2	1 × M.2 for Wi-Fi (E key,Type:2230)
SIM Card Slot	1
AutoStart Jumper	Yes,1 × 3Pin, Pitch 2.0mm
GPIO	0
Power Header	1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Optional)
Clear CMOS Jumper	Yes,1 × 3Pin, Pitch 2.0mm

Power Adapter	12V3A
DC Jack	5.5mm, 2.5mm

Mini PC Q10700X S08 Series

Key Specs

Compatible Motherboard

Main Features

Processor System

Front I/O

Rear I/O

Storage

Expansion

Power

Environmental

Mechanical

OS Support

Package Contents

Order & Specification Selection

BIOS & Firmware

Driver Downloads

Related Products

Type	1 × 2.5-inch HDD/SSD
Type	1 × M.2 for SSD (M key, Type:2280,PCIe 3.0 × 1)

Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%

Material	Aluminium Alloy
Dimension	155 × 127 × 48mm
Weight	0.89kg
Mounting	VESA Mounting Bracket
Packaging Dimension	261 × 218 × 75mm
Kensington Lock	No
Cooling Mode	Fanless Design

Ordering Code	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP
Q10711X-S08	Jasper Lake	Celeron	N4500	2 / 2	1.1GHz ~ 2.8GHz	4M	Intel UHD Graphics	6W
Q10712X-S08	Jasper Lake	Celeron	N4505	2 / 2	2.0GHz ~ 2.9GHz	4M	Intel UHD Graphics	10W
Q10721X-S08	Jasper Lake	Celeron	N5100	4 / 4	1.1GHz ~ 2.8GHz	4M	Intel UHD Graphics	6W
Q10722X-S08	Jasper Lake	Celeron	N5105	4 / 4	2.0GHz ~ 2.9GHz	4M	Intel UHD Graphics	10W
Q10723X-S08	Jasper Lake	Celeron	N5095	4 / 4	2.0GHz ~ 2.9GHz	4M	Intel UHD Graphics	15W
Q10731X-S08	Jasper Lake	Pentium	N6000	4 / 4	1.1GHz ~ 3.0GHz	4M	Intel UHD Graphics	6W
Q10732X-S08	Jasper Lake	Pentium	N6005	4 / 4	2.0GHz ~ 3.3GHz	4M	Intel UHD Graphics	10W
