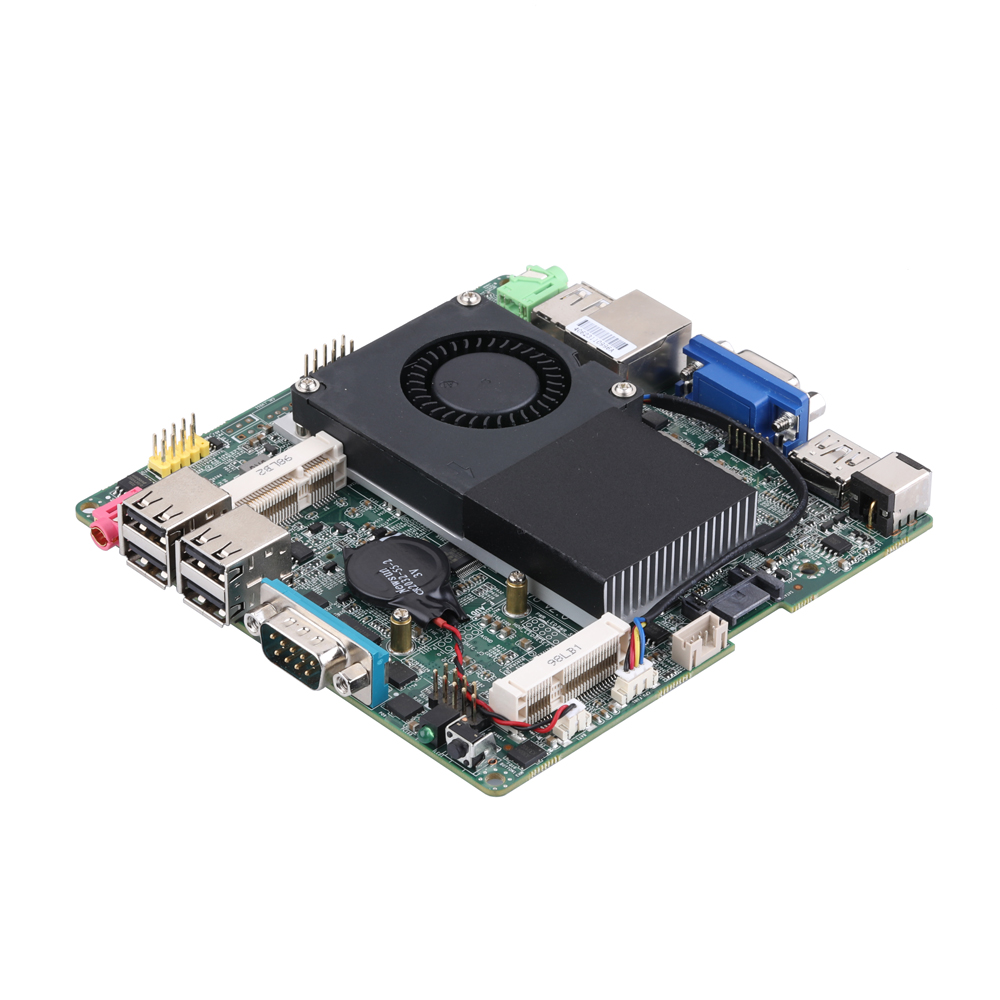

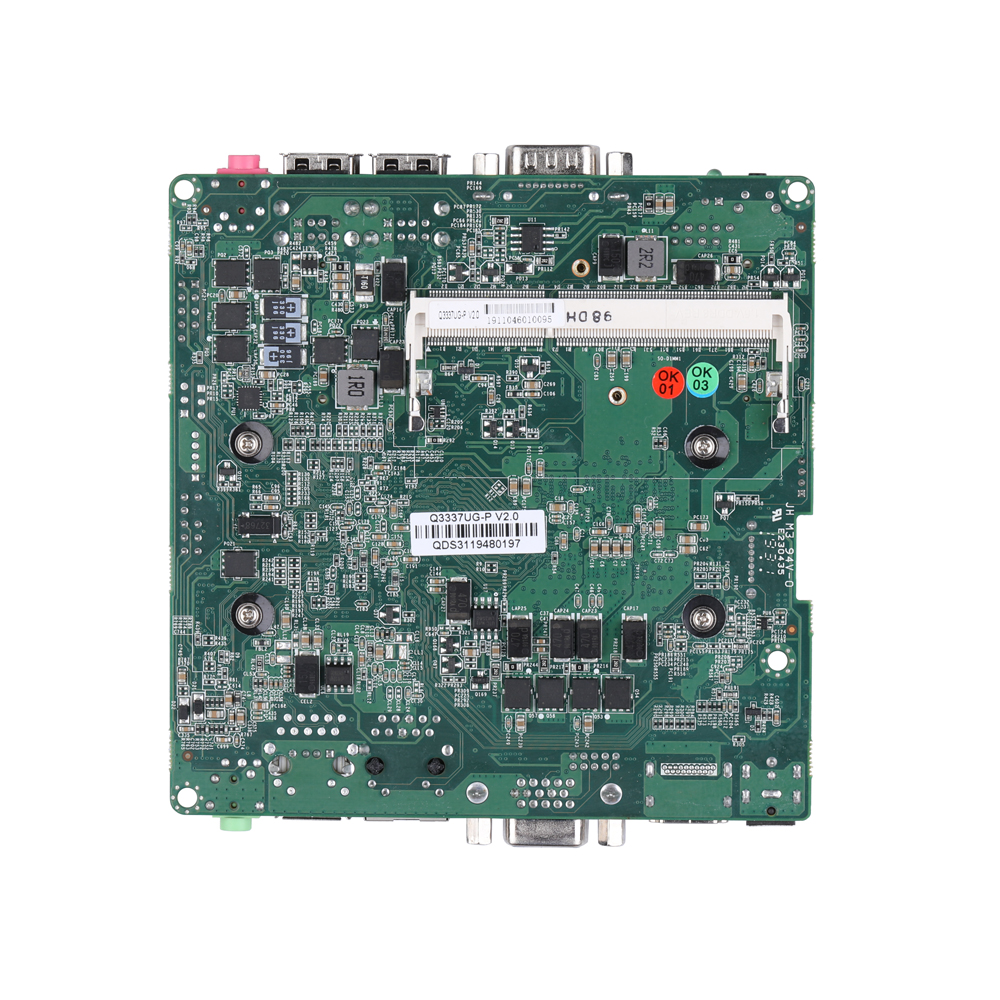

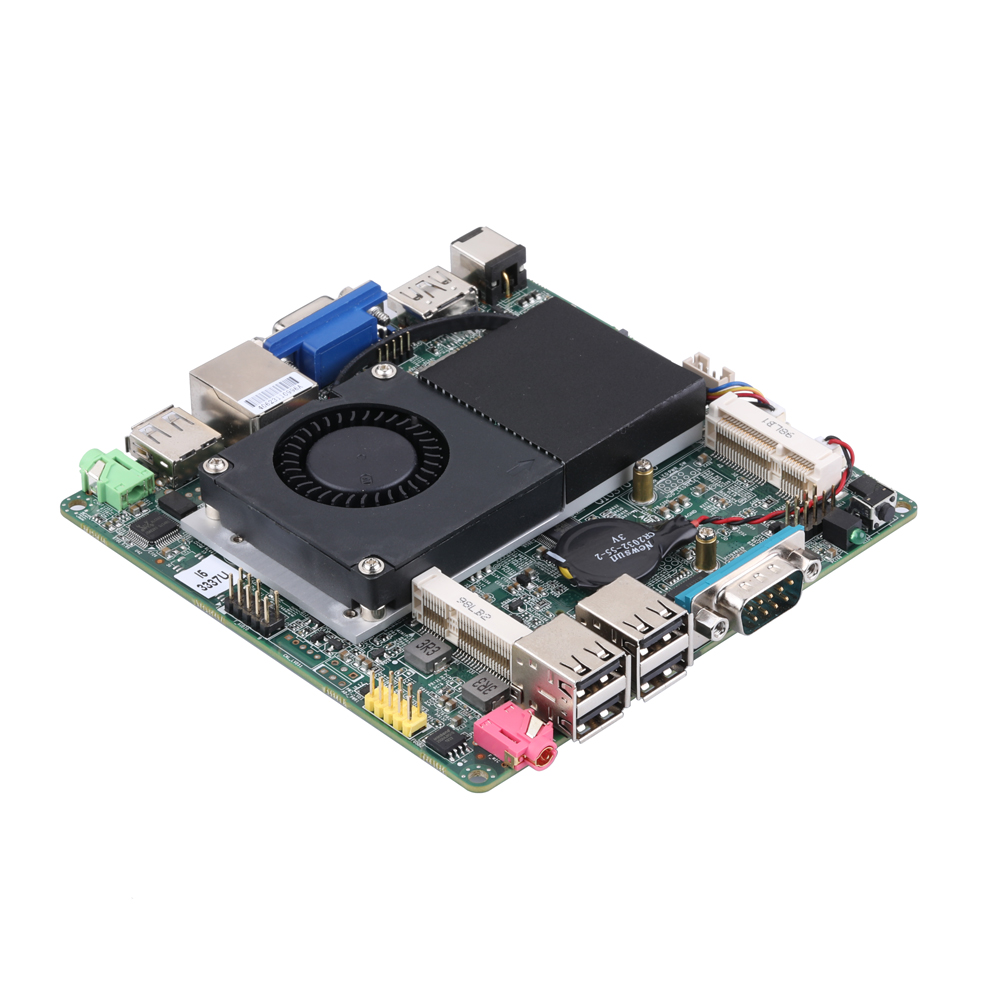

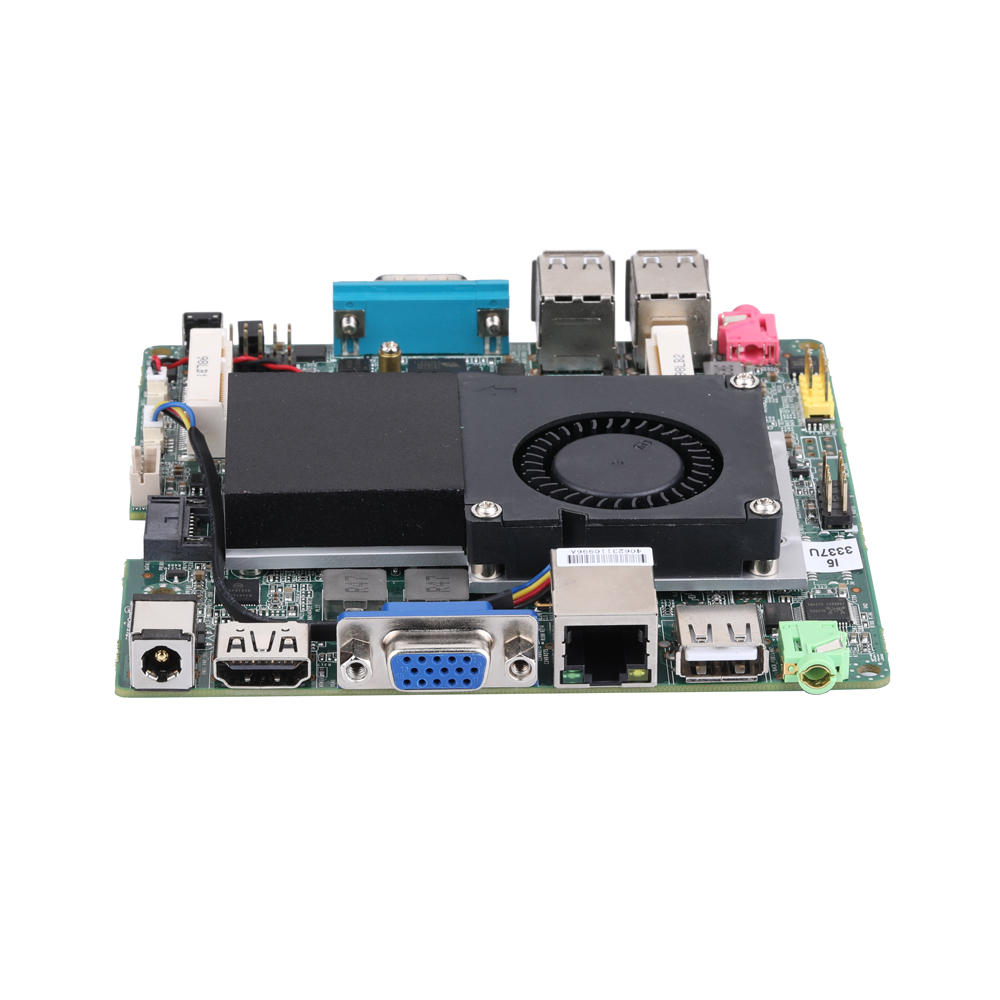

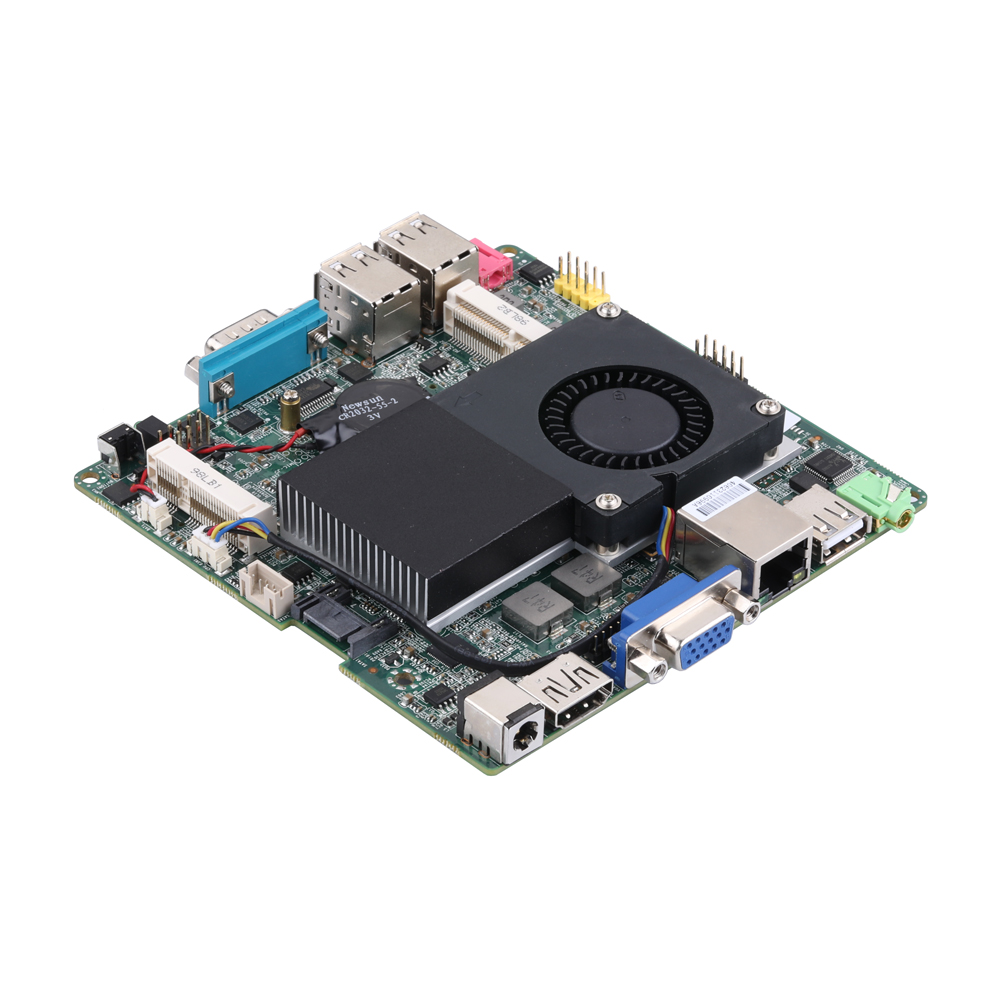

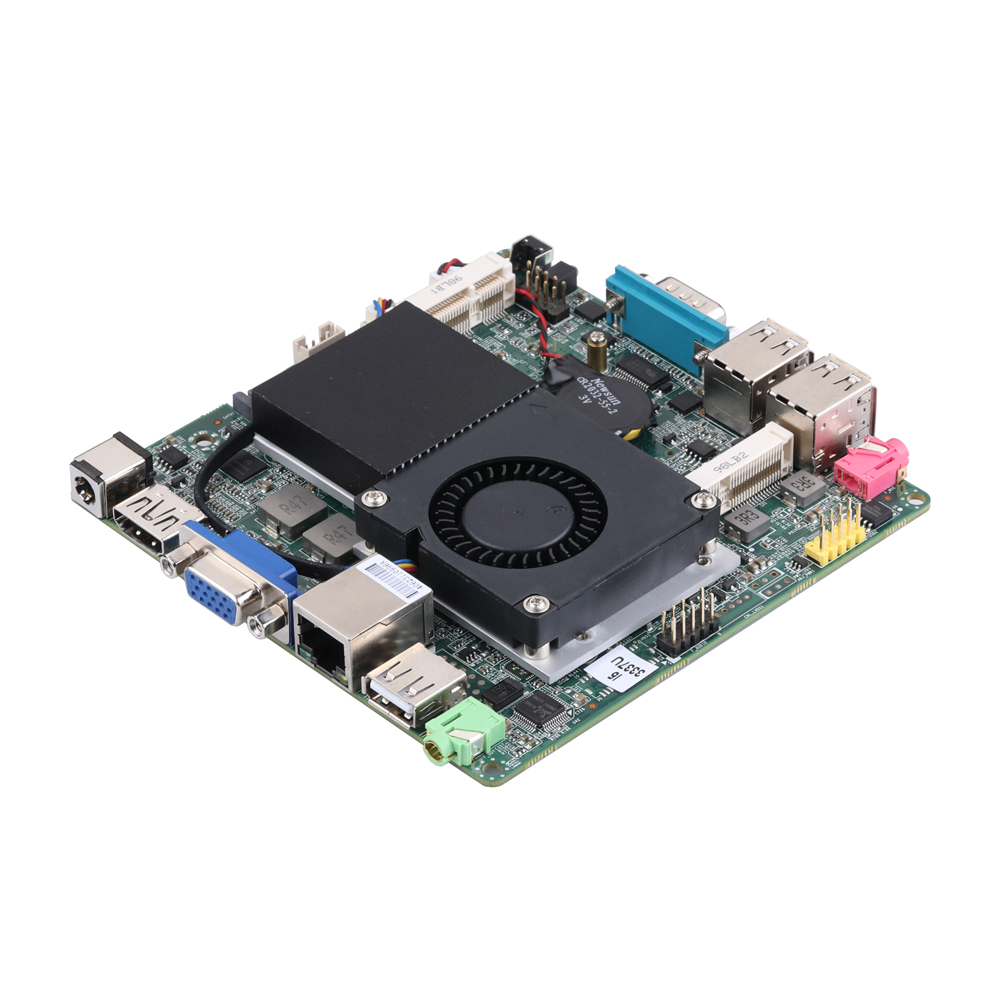

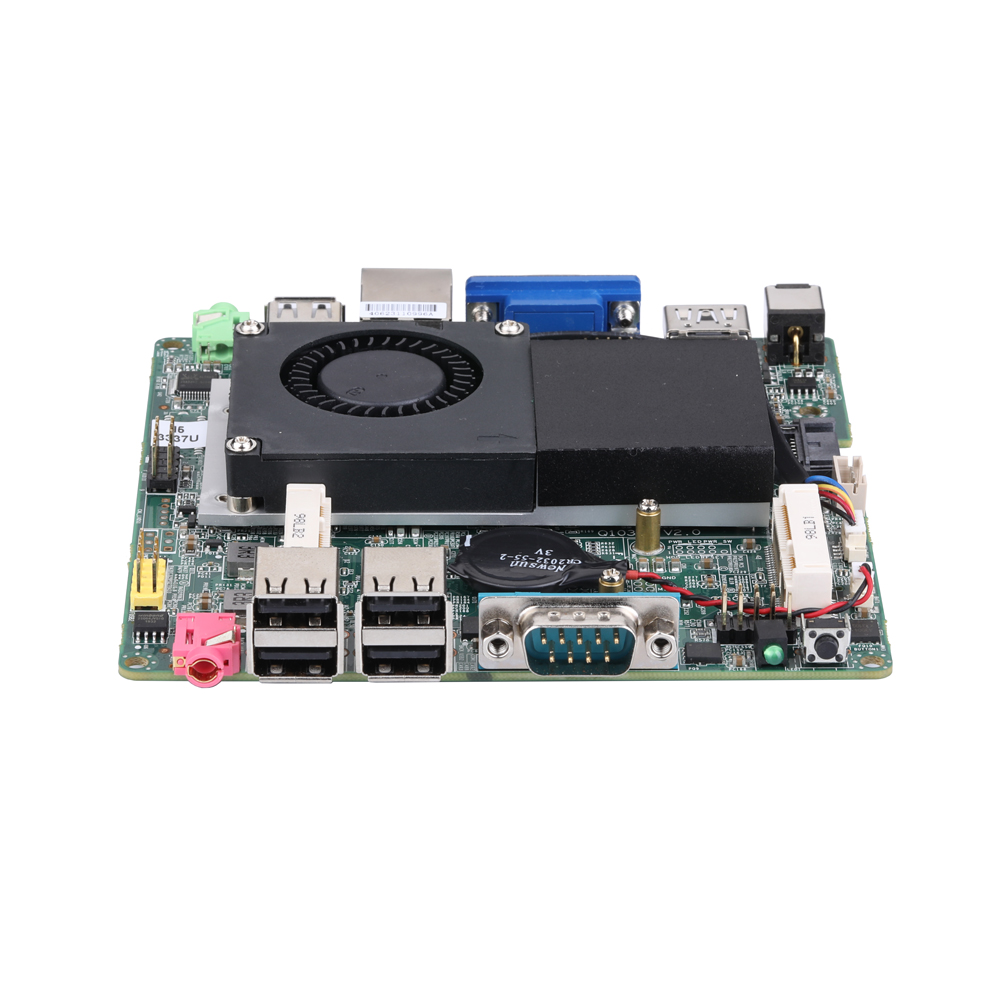

Motherboard MB2U113-0300 Series

Name: Motherboard MB2U113-0300 Series
Brand: Qotom
SKU: MB2U113-0300

Model: MB2U113-0300

Total LAN1

LAN Speed1G RJ45

Serial Ports1

Embedded hardware designs can start with MB2U113-0300, featuring compact 120 × 120mm embedded motherboard supporting Intel Ivy Bridge processors including Core i3 and Core i5 options. RS232, HDMI + VGA, Gigabit LAN, mSATA, SATA and Mini PCIe provide flexible connectivity for mini PCs, kiosks, POS terminals and. Deployment scenarios range from OEM network appliances, embedded systems and custom computer builds.

Key Specs

CPU: Ivy Bridge
Memory: DDR3L SO-DIMM · Max 8GB
LAN: 1
Storage: mSATA, SATA
Board Size: 120x120

Compatible Systems

Q1007UG-P Q1037UG-P Q3217UG-P Q3317UG-P MB2U113-0311 MB2U113-0312 MB2U113-0331 MB2U113-0351 Intel Ivy Bridge Celeron Pentium Core i3 Core i5 Core i7 1007U 1017U 1037U 3217U 3227U 3317U 3427U 3337U 3537U

Main Features

Intel 3rd Ivy Bridge Processor
1 × VGA, 1 × HDMI, 1 × RS-232
5 × USB 2.0, 1 × SATA 3.0
1 × Mini-PCIe, 1 × mSATA
1 × Realtek Gigabit LAN

Related Products

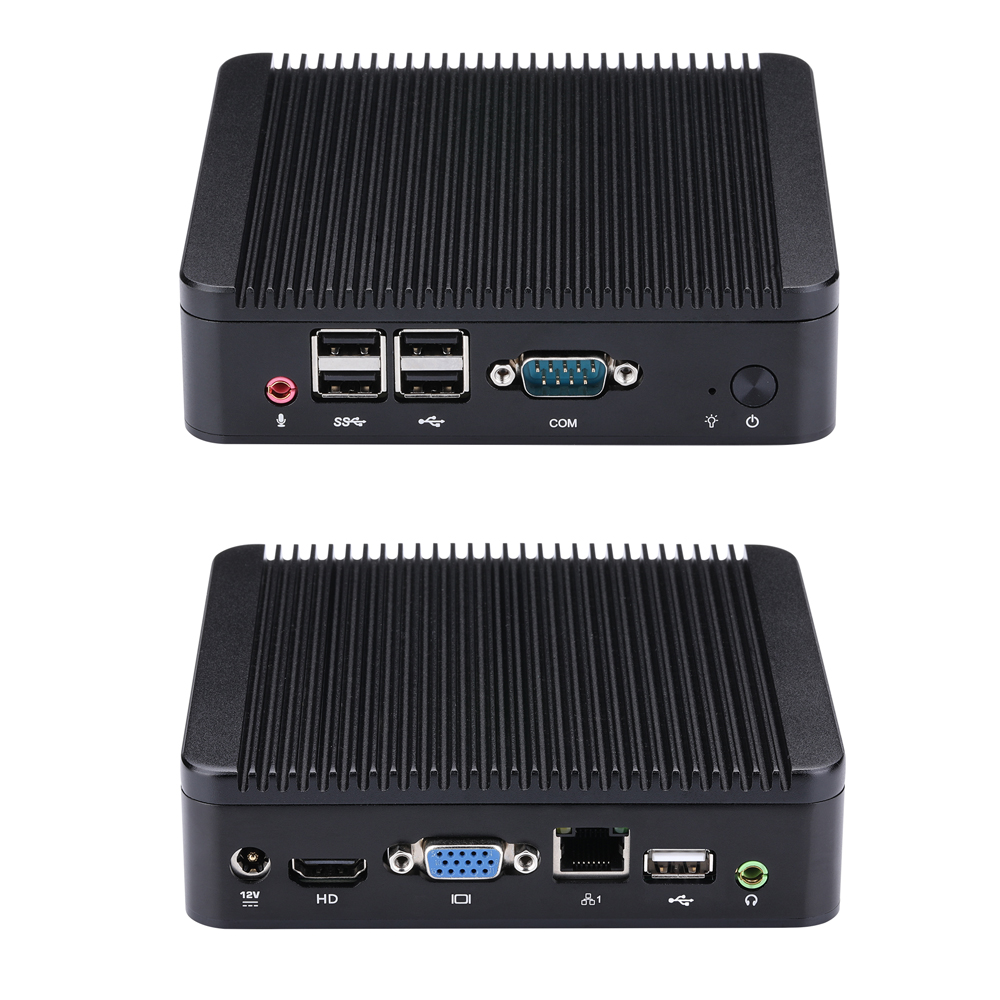

Mini PC Q30300N S01 Series

Q30300N-S01

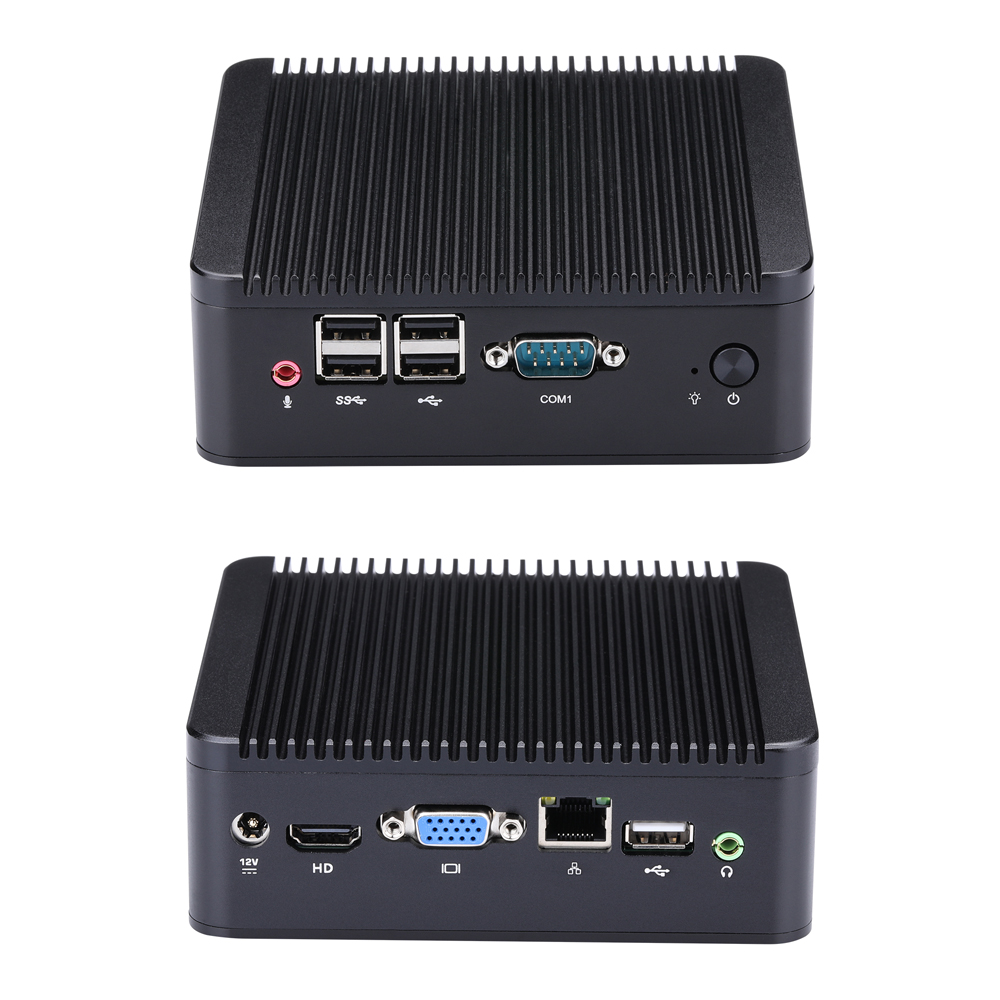

Mini PC Q30300N S02 Series

Q30300N-S02

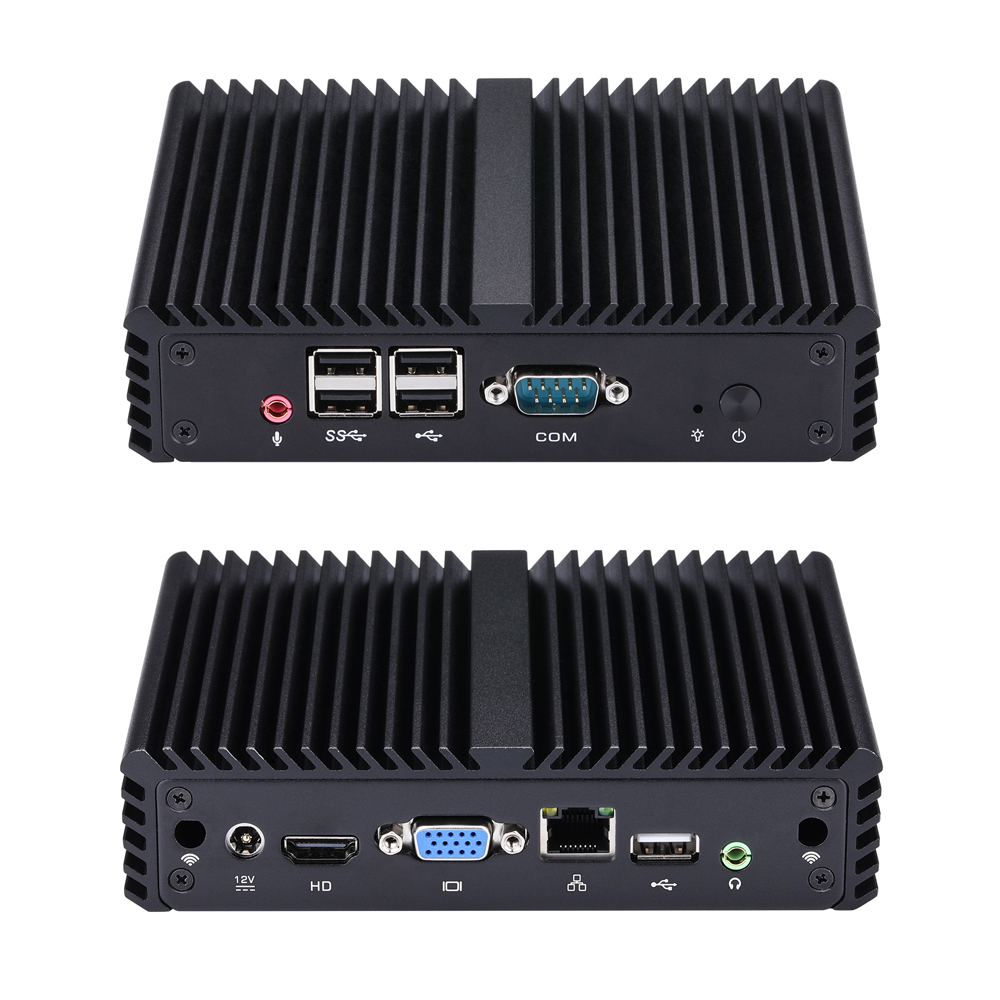

Mini PC Q30300N S07 Series

Q30300N-S07

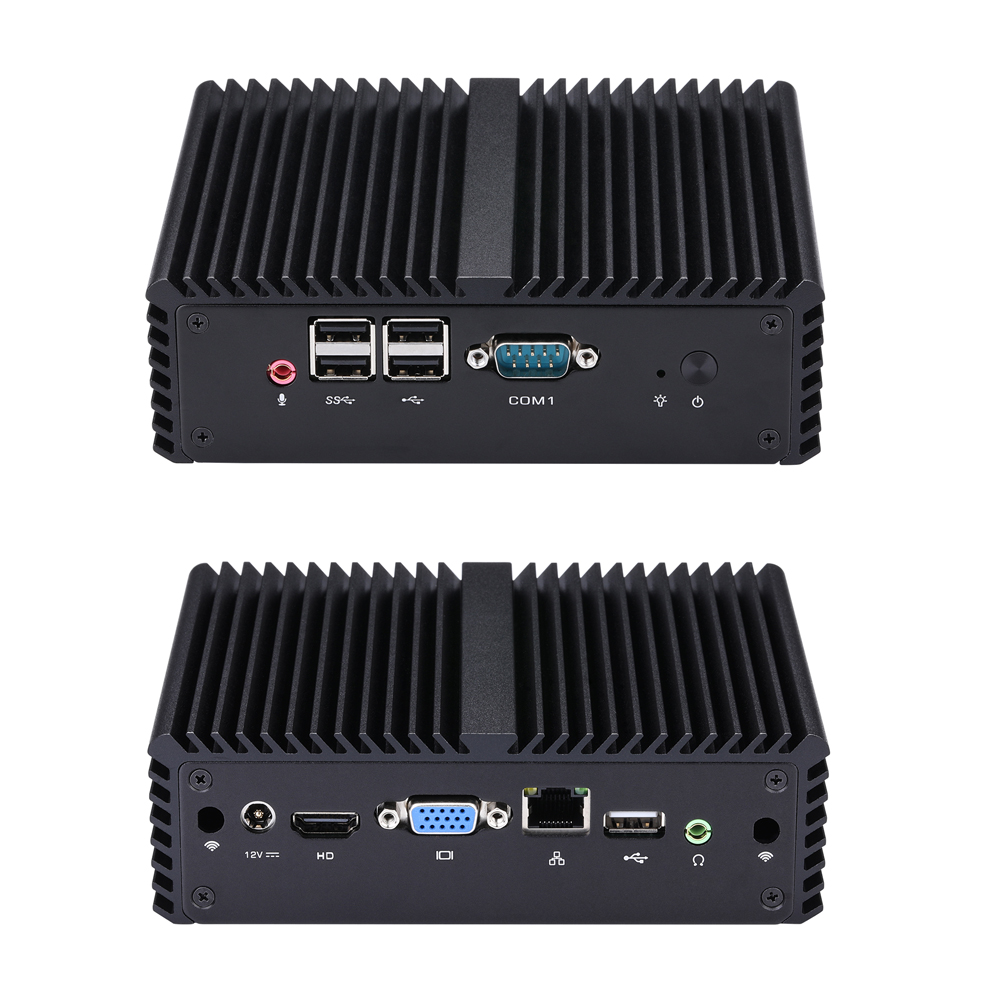

Mini PC Q30300N S08 Series

Q30300N-S08

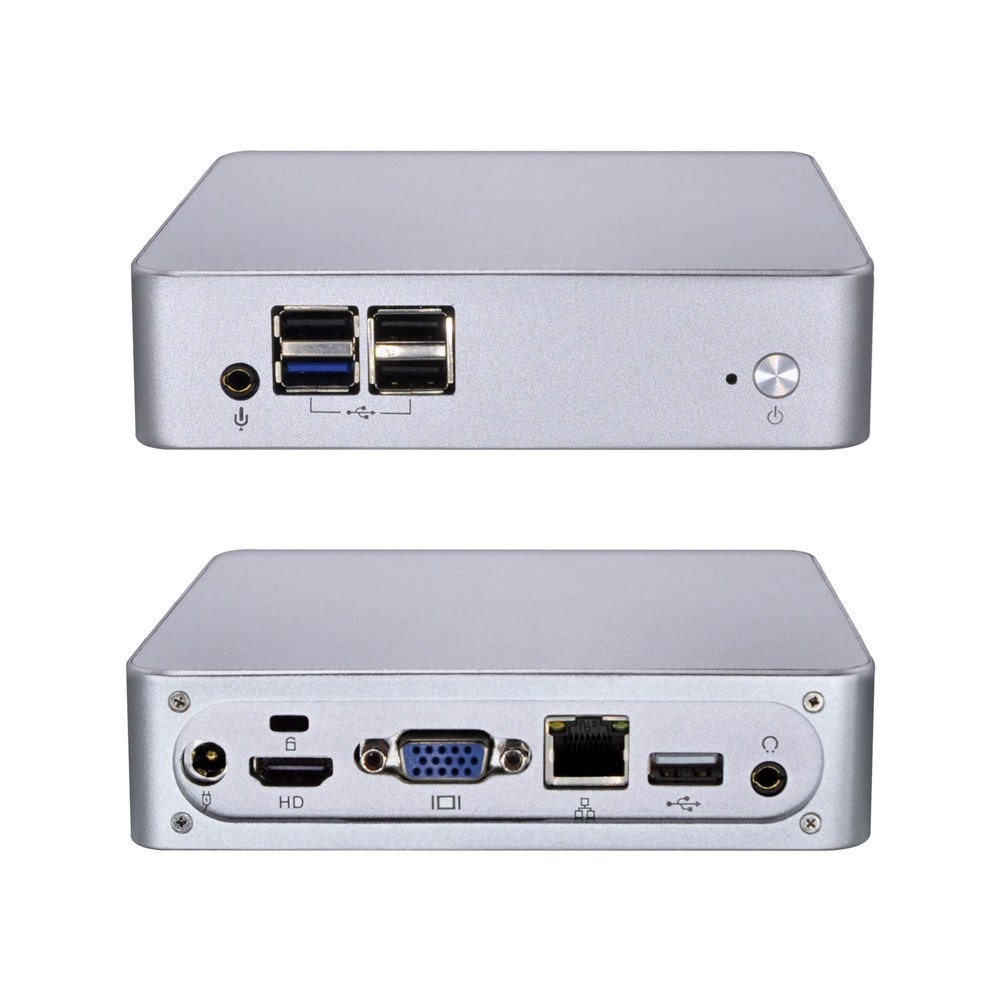

Mini PC Q30300N S03 Series

Q30300N-S03

Mini PC Q30300S S01 Series

Q30300S-S01

CPU	Intel 3rd Ivy Bridge Processor
Chipset	By CPU
Dimension	120 × 120mm
Core Number	By CPU
Max. Speed	By CPU
L2 Cache	By CPU
BIOS	Legacy

Technology	DDR3 1333/1600MHz SDRAM
Max.	8GB
Socket	1 × SO-DIMM

Controller	By CPU
VRAM	Shared Memory
VGA	1
LVDS	1 (Option)
HDMI	1
Multi Display	Yes

Interface	10/100/1000Mbps
Controller	1 × Realtek Gigabit LAN
Connector	1 × RJ-45

Power Button	1
LED	1 × Power LED
USB	4 × USB 2.0
Serial Port	1 × RS-232
Audio	1 (Mic-in)

Motherboard MB2U113-0300 Series

Key Specs

Compatible Systems

Main Features

Processor System

Memory

Graphics

Ethernet

Audio

Front I/O

Rear I/O

Storage

Expansion

Internal Connector

Power

Environmental

Accessories

OS Support

Package Contents

Order & Specification Selection

BIOS & Firmware

Driver Downloads

Related Products

mSATA	1 × Full-length Mini PCIe for SSD
Mini PCIe	1 × Half-length Mini PCIe for Wi-Fi

LVDS	1, 2 × 15Pin, Pitch 1.0mm (Option)
VGA Header	1, 2 × 5Pin, Pitch 2.0mm
SATA	1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector	1, 1 × 4Pin, Pitch PH2.0mm
USB 2.0 Header	2, 2 × 5Pin, Pitch 2.54mm
Front Panel Header	1, 2 × 5Pin, Pitch 2.54mm
Speakers Header	1, 2 × 5Pin, Pitch 2.54mm
Power Header	1, 1 × 2Pin, Pitch 2.5mm (Option)

Ordering Code	Legacy Model	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP
MB2U113-0311	Q1007UG-P	Ivy Bridge	Celeron	1007U	2 / 2	1.5GHz	2M	Intel HD Graphics	17W
MB2U113-0312	Q1037UG-P	Ivy Bridge	Celeron	1037U	2 / 2	1.8GHz	2M	Intel HD Graphics	17W
MB2U113-0331	Q3217UG-P	Ivy Bridge	Core i3	3217U	2 / 4	1.8GHz	3M	Intel HD Graphics 4000	17W
MB2U113-0351	Q3317UG-P	Ivy Bridge	Core i5	3317U	2 / 4	1.7GHz ~ 2.6GHz	3M	Intel HD Graphics 4000	17W
