Mini PC Q30300N S07 Series

Model: Q30300N-S07

Total LAN1
LAN Speed1G RJ45
Serial Ports1

Key Specs

CPU
Ivy Bridge
Memory
DDR3L SO-DIMM · Max 8GB
LAN
1
Storage
mSATA, SATA

Compatible Motherboard

MB2U113-0300MB2U113-0300

This product is available via inquiry and OEM/ODM customization.

Send Inquiry
Q107NQ100NQ210NQ220NQ30311NQ30312NQ30331NQ30351NIntelIvy BridgeCeleronPentiumCore i3Core i5Core i71007U1017U1037U3217U3227U3317U3427U3337U3537U

Main Features

  • Intel 3 rd Ivy Bridge Processor
  • 1 × VGA,1 × HDMI,1 × RS-232
  • 5 × USB 2.0
  • 1 × Mini PCIe,1 × mSATA
  • 1 × Realtek Gigabit LAN

Processor System

CPUIntel 3 rd Ivy Bridge Processor
CPU TDPBy CPU
Memory1 × DDR3 SO-DIMM Socket (Up to 8G, 1333/1600MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset1 × Realtek Gigabit LAN
AudioRealtek HD Audio
Watch DogNo

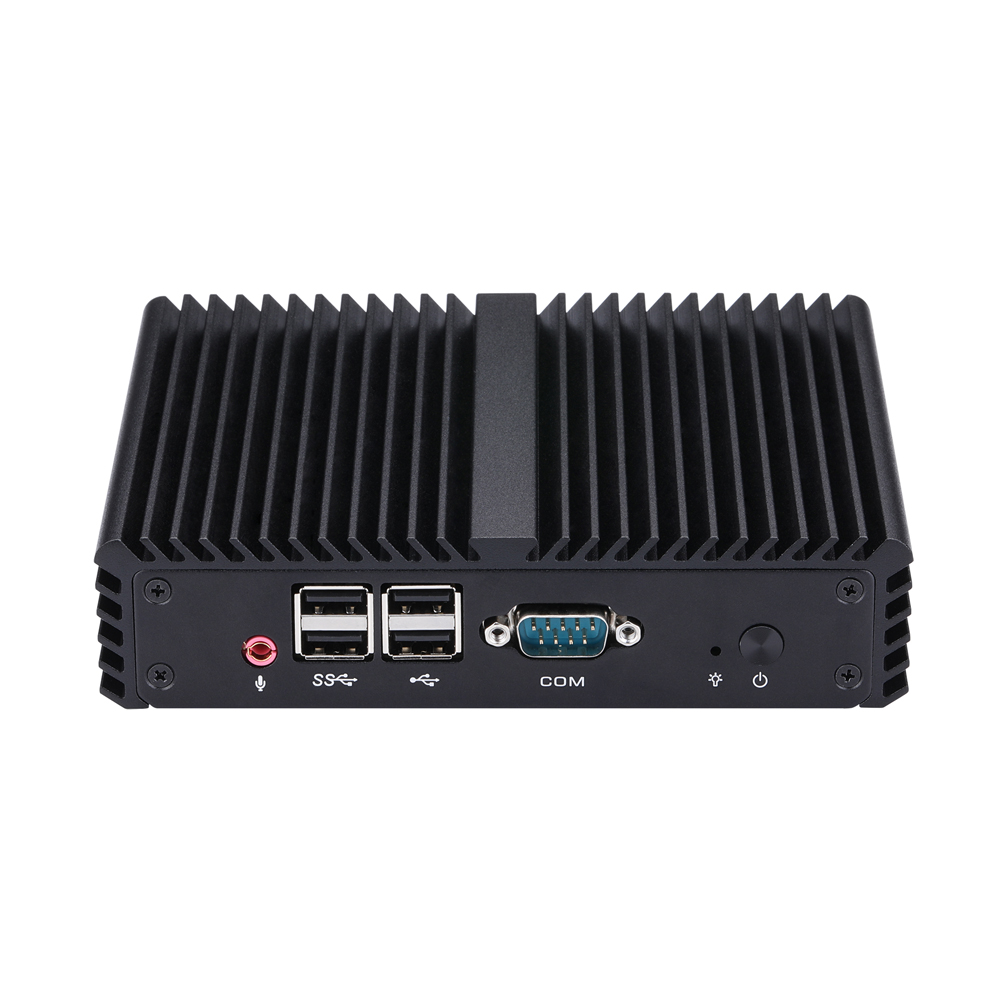

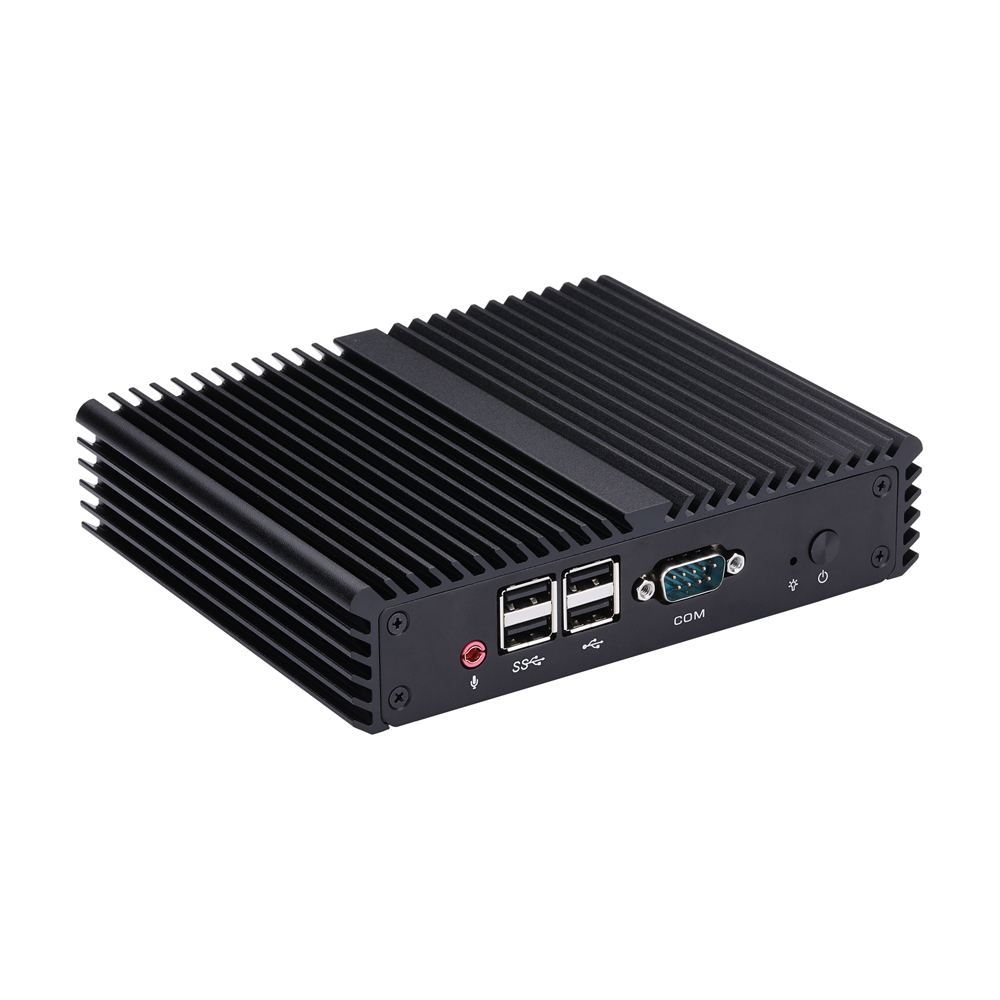

Front I/O

Power Button1
LED1 × Power LED
USB4 × USB 2.0
Serial Port1 × RS-232
Audio1 (Mic-in)

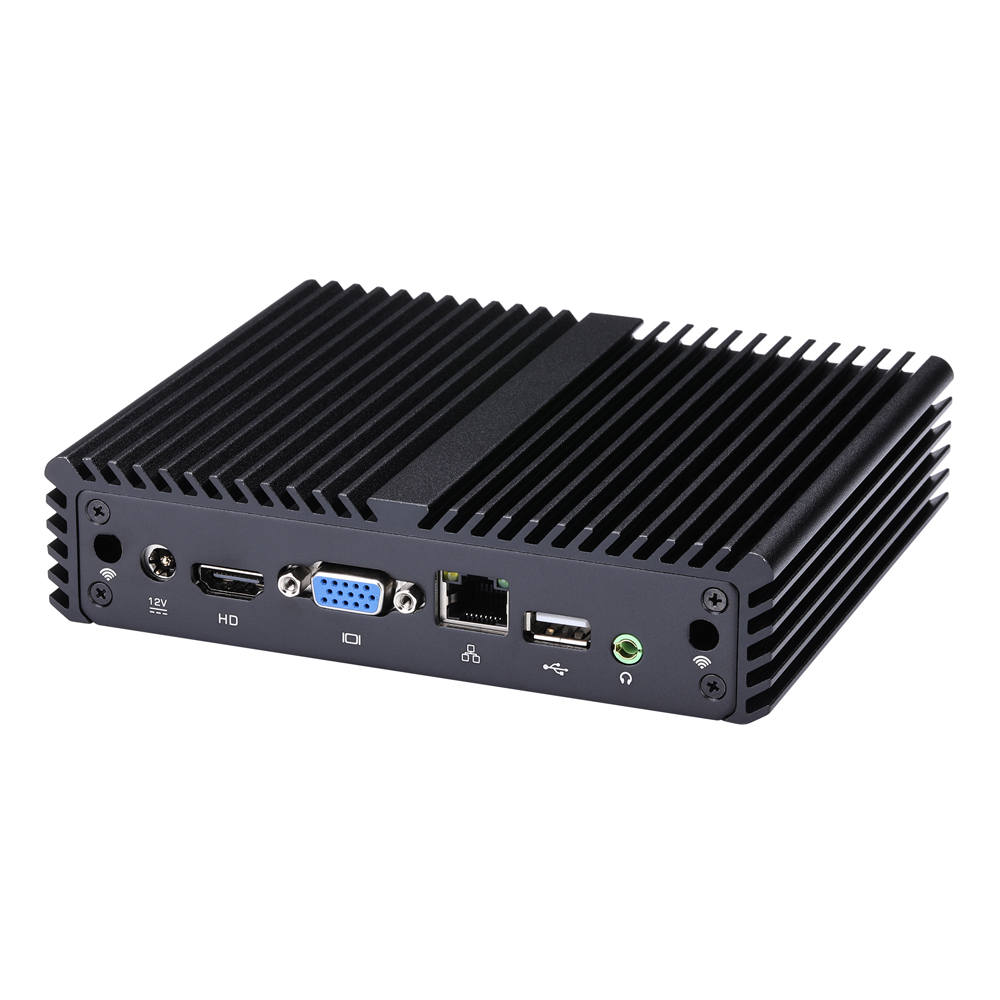

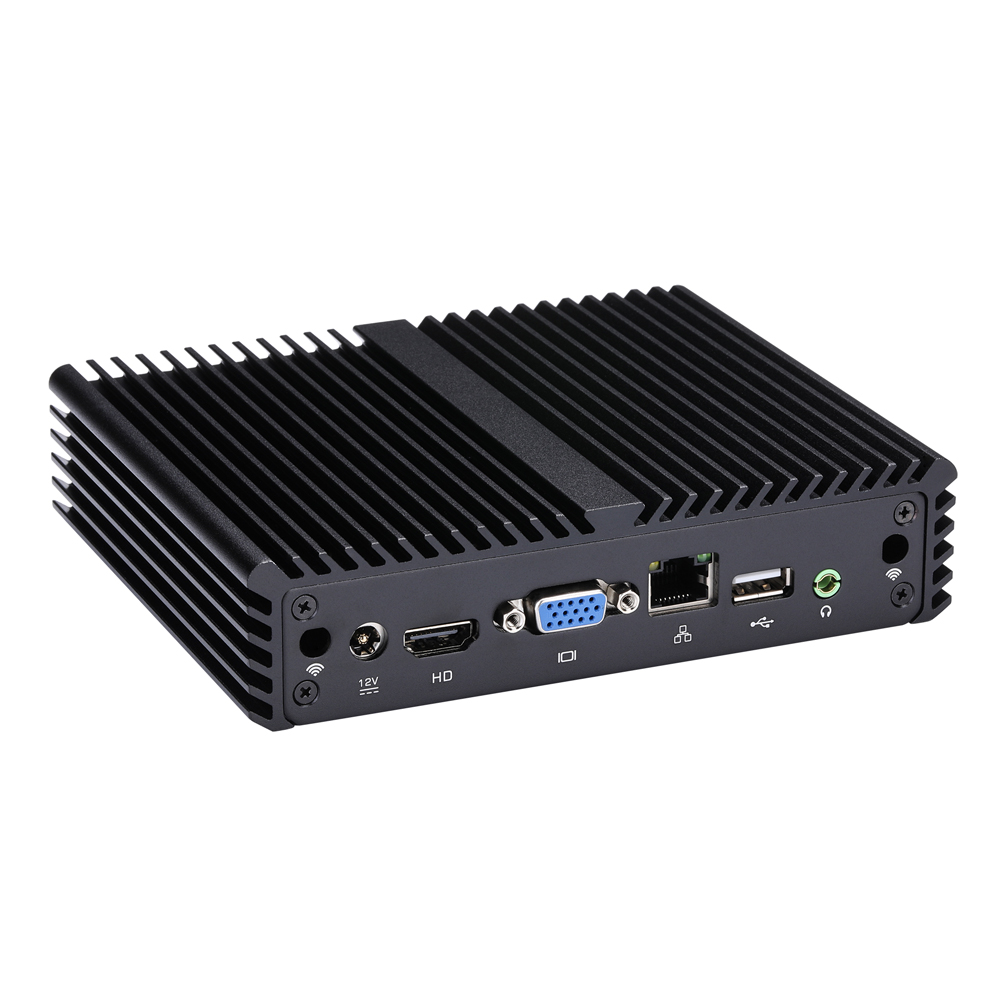

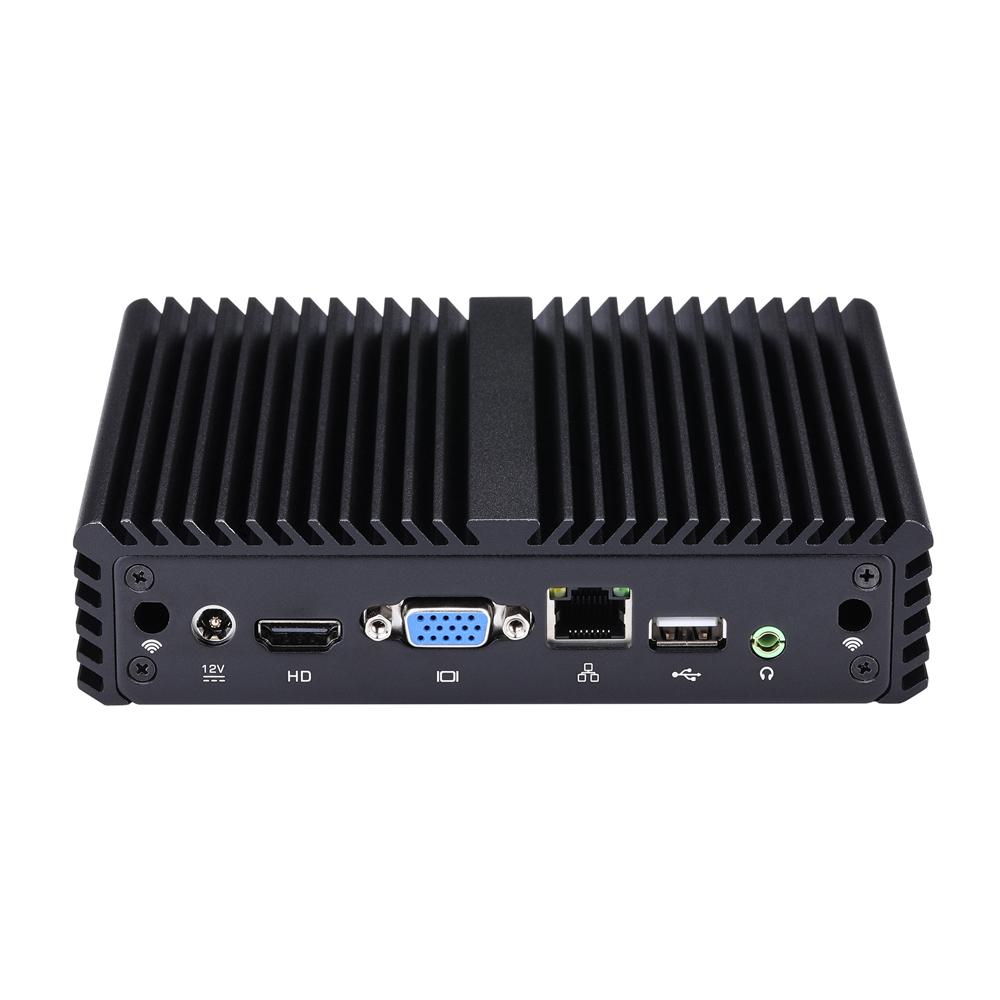

Rear I/O

Power1 × DC Jack
LAN1 × Realtek Gigabit LAN
USB1 × USB 2.0
Audio1 (Line-out)
Video Output1 × HDMI,1 × VGA
Serial Port0

Storage

Type1 × Mini PCIe for mSATA SSD

Expansion

mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Half-length Mini PCIe for Wi-Fi
SIM Card Slot0
AutoStart JumperNo
DC-INNo
VGA0
GPIONo

Power

Power Adapter12V4A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension155 × 127 × 36mm
Weight0.78kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo
Cooling ModeFanless

OS Support

OSWindows XP, Windows 7, Windows 8, Windows 10, Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q30311N-S07 Q107N Ivy Bridge Celeron 1007U 2 / 2 1.5GHz 2M Intel HD Graphics 17W
Q30312N-S07 Q100N Ivy Bridge Celeron 1037U 2 / 2 1.8GHz 2M Intel HD Graphics 17W
Q30331N-S07 Q210N Ivy Bridge Core i3 3217U 2 / 4 1.8GHz 3M Intel HD Graphics 4000 17W
Q30351N-S07 Q220N Ivy Bridge Core i5 3317U 2 / 4 1.7GHz ~ 2.6GHz 3M Intel HD Graphics 4000 17W
