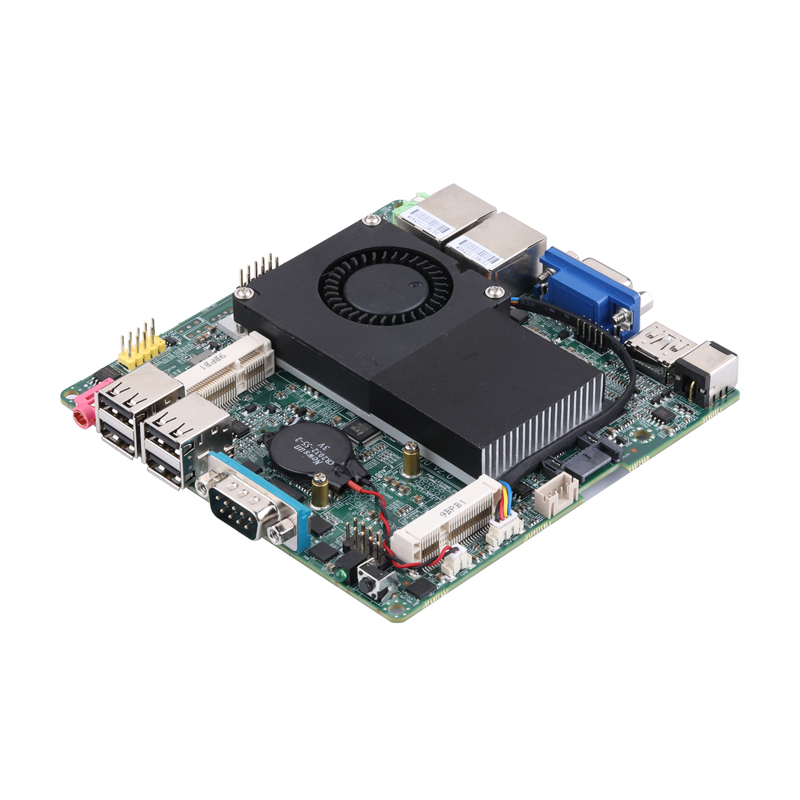

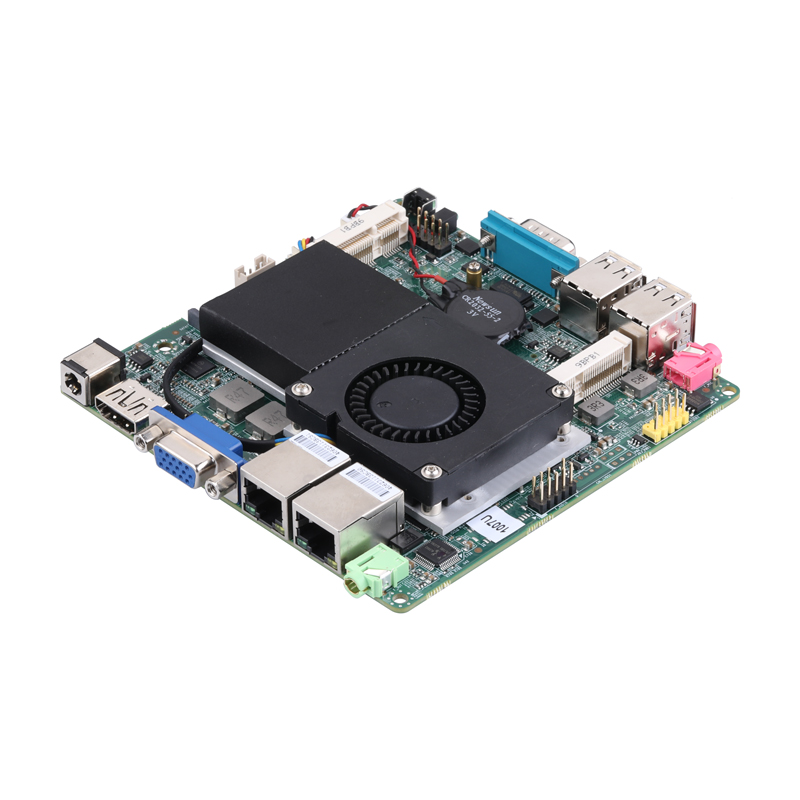

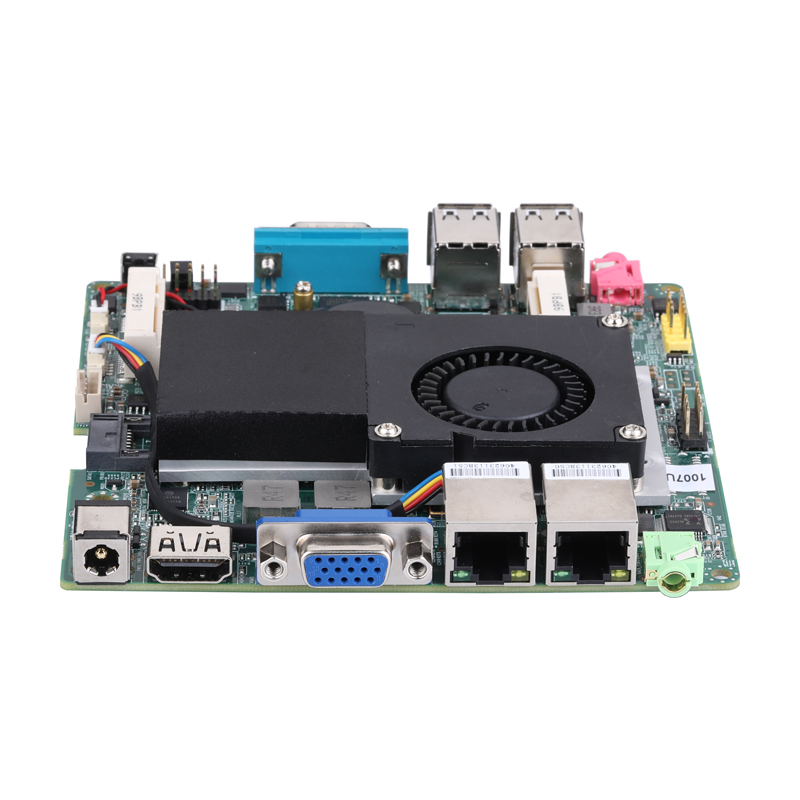

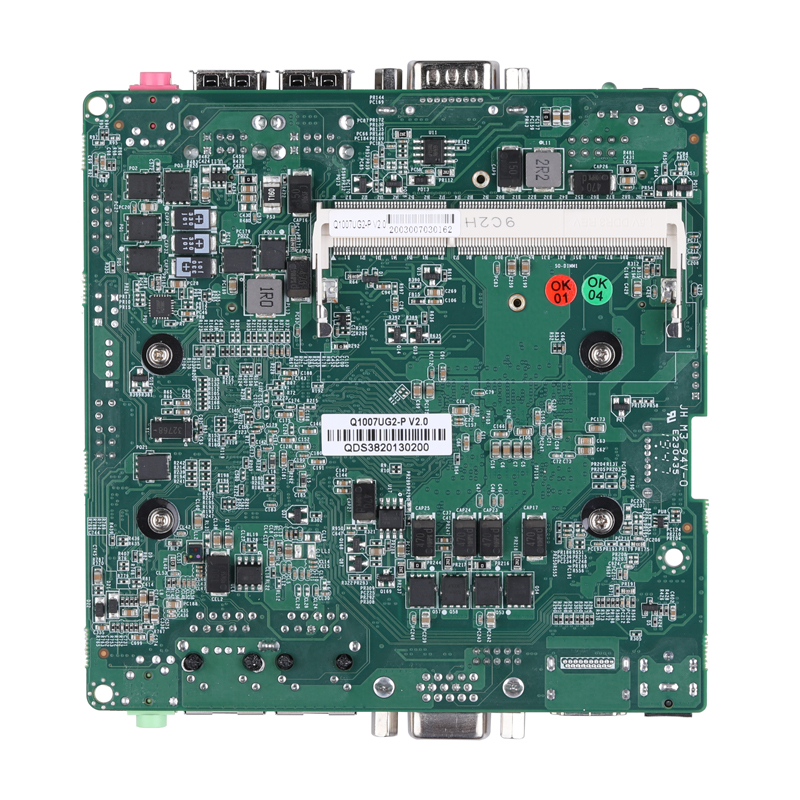

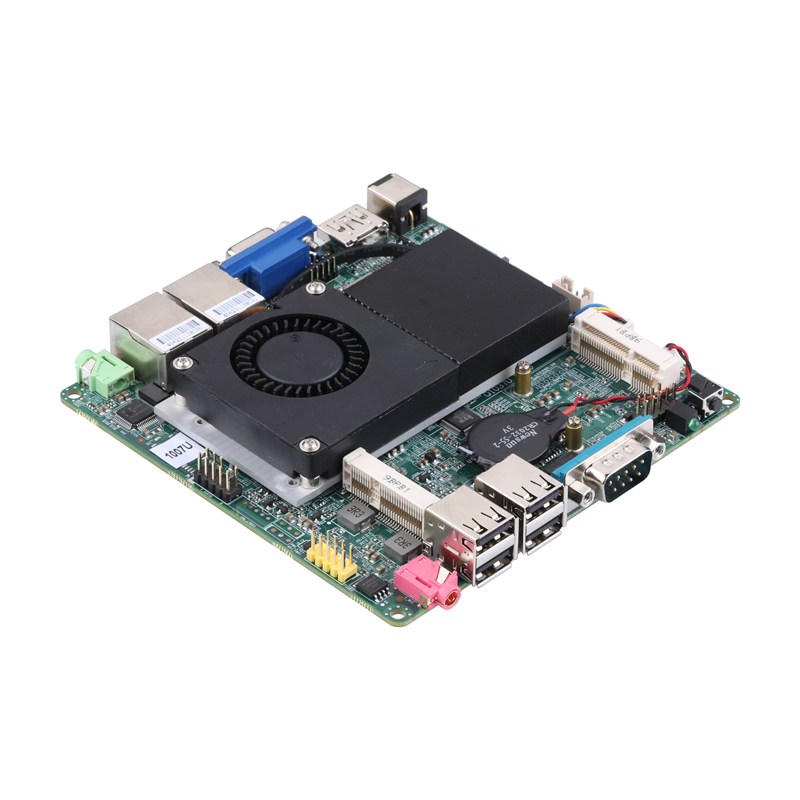

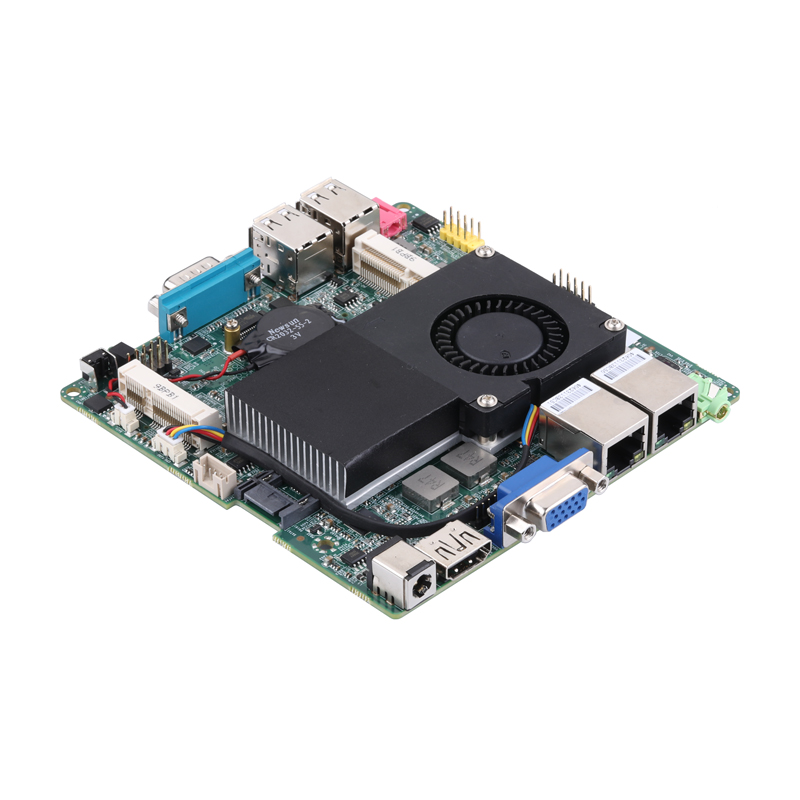

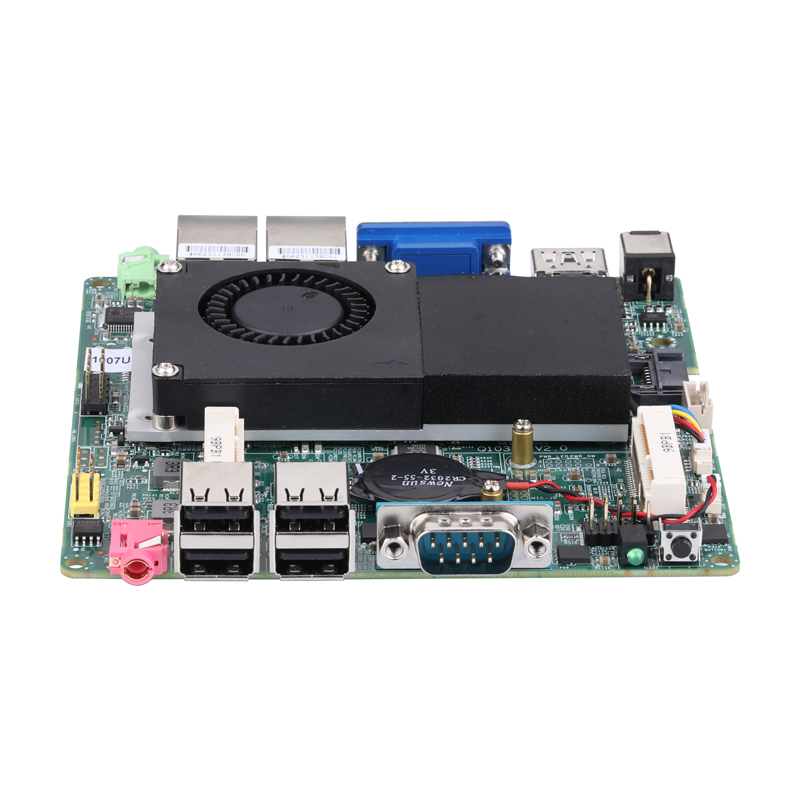

Motherboard MB2U213-0300 Series

Model: MB2U213-0300

Total LAN2
LAN Speed1G RJ45
Serial Ports1

Key Specs

CPU
Ivy Bridge
Memory
DDR3L SO-DIMM · Max 8GB
LAN
2
Storage
mSATA, SATA
Board Size
120x120

Compatible Systems

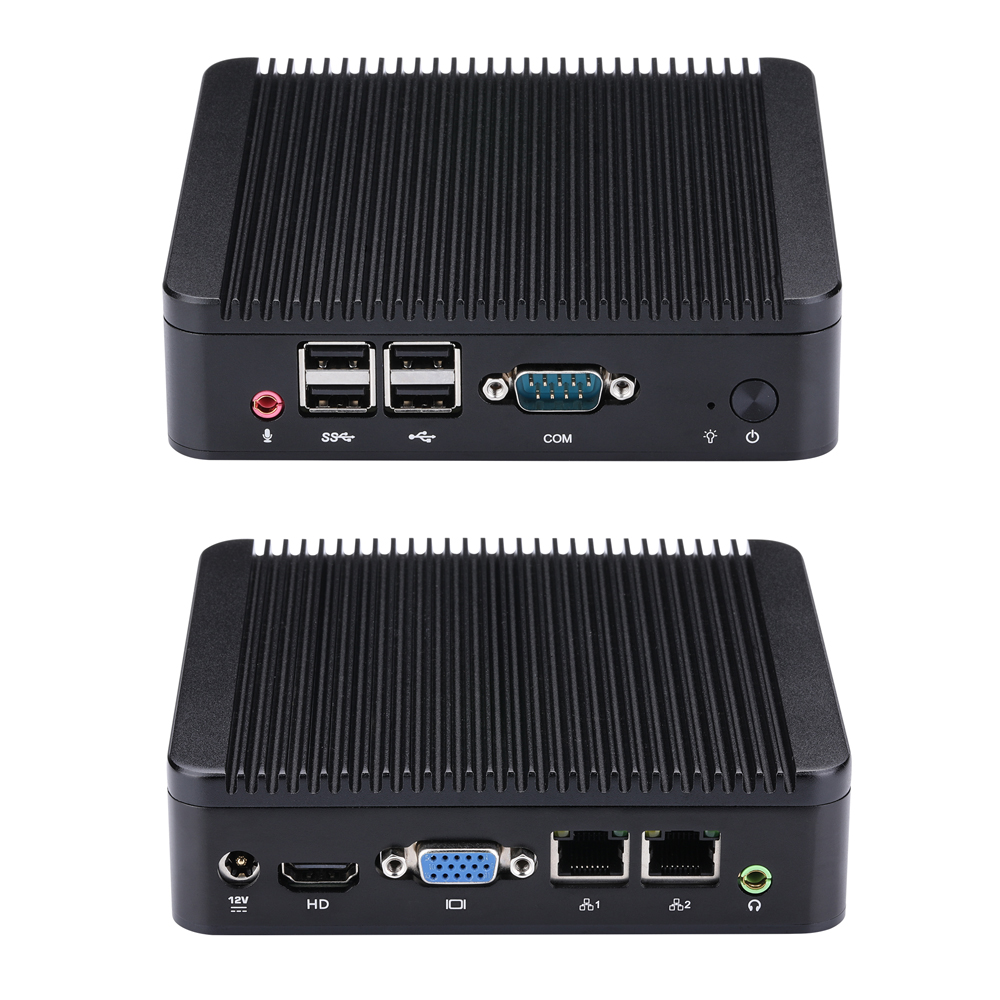

Q30300S-S01
Q30300S-S01

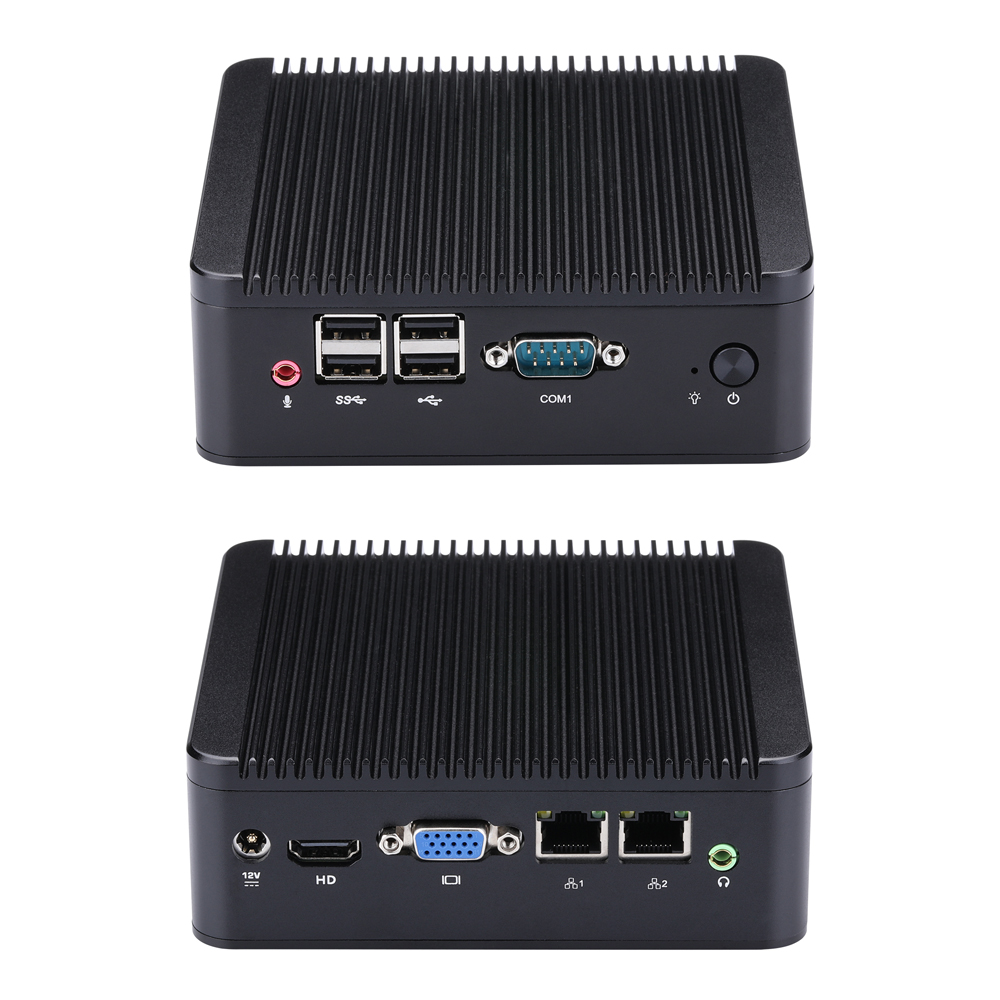

Q30300S-S02
Q30300S-S02
Q30300S-S07
Q30300S-S07
Q30300S-S08
Q30300S-S08
Send Inquiry
Q1007UG2-PQ1037UG2-PQ3217UG2-PQ3317UG2-PMB2U213-0311MB2U213-0312MB2U213-0331MB2U213-0351IntelIvy BridgeCeleronPentiumCore i3Core i5Core i71007U1017U1037U3217U3227U3317U3427U3337U3537U

Main Features

  • Intel 3rd Ivy Bridge Processor

  • 1 × VGA, 1 × HDMI, 1 × RS-232

  • 4 × USB 2.0, 1 × SATA 3.0

  • 1 × Mini-PCIe, 1 × mSATA

  • 2 × Realtek Gigabit LAN

Processor System

CPUIntel 3rd Ivy Bridge Processor
ChipsetBy CPU
Dimension120 × 120mm
Core NumberBy CPU
Max. SpeedBy CPU
L2 CacheBy CPU
BIOSLegacy

Memory

TechnologyDDR3 1333/1600MHz SDRAM
Max.8GB
Socket1 × SO-DIMM

Graphics

ControllerBy CPU
VRAMShared Memory
VGA1
LVDS1 (Option)
HDMI1
Multi DisplayYes

Ethernet

Interface10/100/1000Mbps
Controller2 × Realtek Gigabit LAN
Connector2 × RJ-45

Audio

ControllerRealtek HD Audio

Front I/O

Power Button1
LED1 × Power LED
USB4 × USB 2.0
Serial Port1 × RS-232
Audio1 (Mic-in)

Rear I/O

Audio1 (Line-out)
DC-IN1
VGA1
HDMI1
Ethernet2

Storage

Max. Data Transfer RateSATA 3.0 (6.0Gb/S)

Expansion

mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Half-length Mini PCIe for Wi-Fi

Internal Connector

LVDS1, 2 × 15Pin, Pitch 1.0mm (Option)
VGA Header1, 2 × 5Pin, Pitch 2.0mm
SATA1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector1, 1 × 4Pin, Pitch PH2.0mm
USB 2.0 Header2, 2 × 5Pin, Pitch 2.54mm
Front Panel Header1, 2 × 5Pin, Pitch 2.54mm
Speakers Header1, 2 × 5Pin, Pitch 2.54mm
Power Header1, 1 × 2Pin, Pitch 2.5mm (Option)

Power

Input PWR12V DC in, 5.5mm/2.5mm

Environmental

Operating Temperature0-50 ℃

Accessories

AccessoriesCable for HDD

OS Support

OSWindows XP, Windows 7,Windows 10, Linux

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
MB2U213-0311 Q1007UG2-P Ivy Bridge Celeron 1007U 2 / 2 1.5GHz 2M Intel HD Graphics 17W
MB2U213-0312 Q1037UG2-P Ivy Bridge Celeron 1037U 2 / 2 1.8GHz 2M Intel HD Graphics 17W
MB2U213-0331 Q3217UG2-P Ivy Bridge Core i3 3217U 2 / 4 1.8GHz 3M Intel HD Graphics 4000 17W
MB2U213-0351 Q3317UG2-P Ivy Bridge Core i5 3317U 2 / 4 1.7GHz ~ 2.6GHz 3M Intel HD Graphics 4000 17W
