Motherboard MB2U240-0900 Series

Name: Motherboard MB2U240-0900 Series
Brand: Qotom
SKU: MB2U240-0900

Model: MB2U240-0900

Total LAN2

LAN Speed2.5G RJ45

Serial Ports4

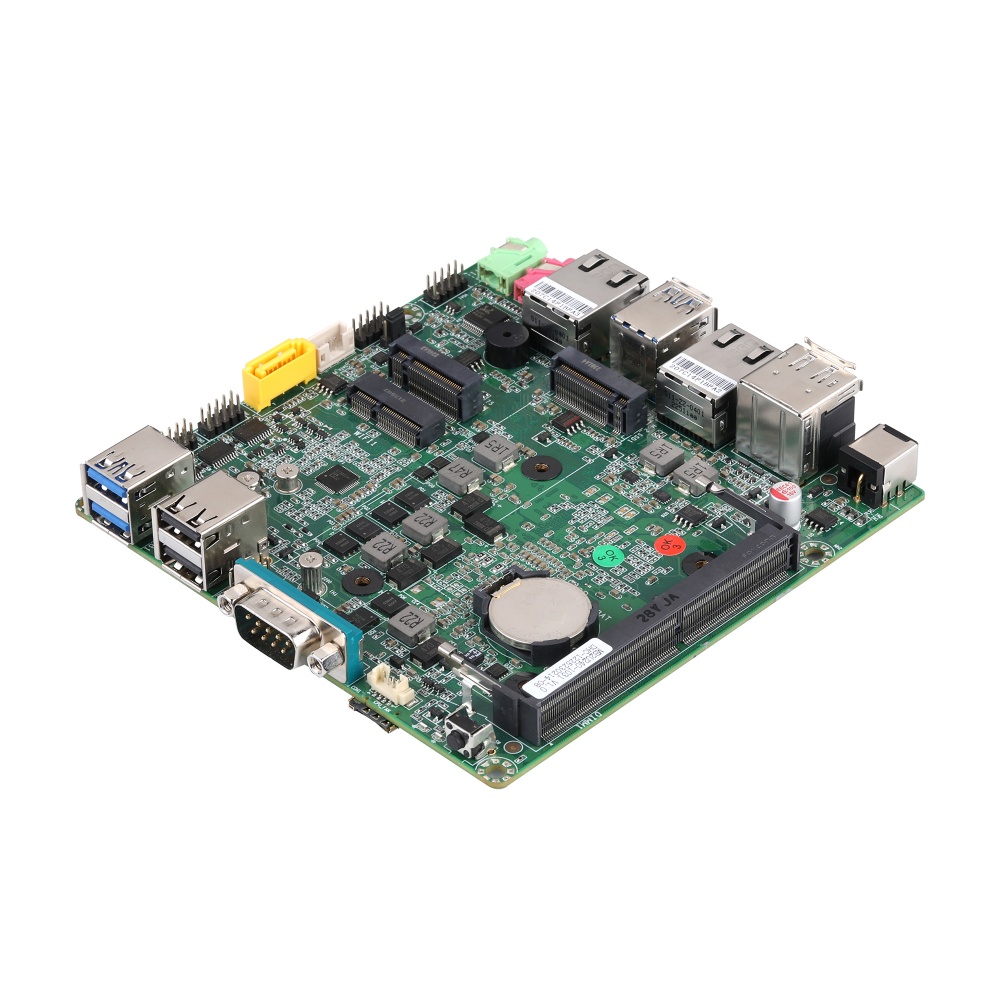

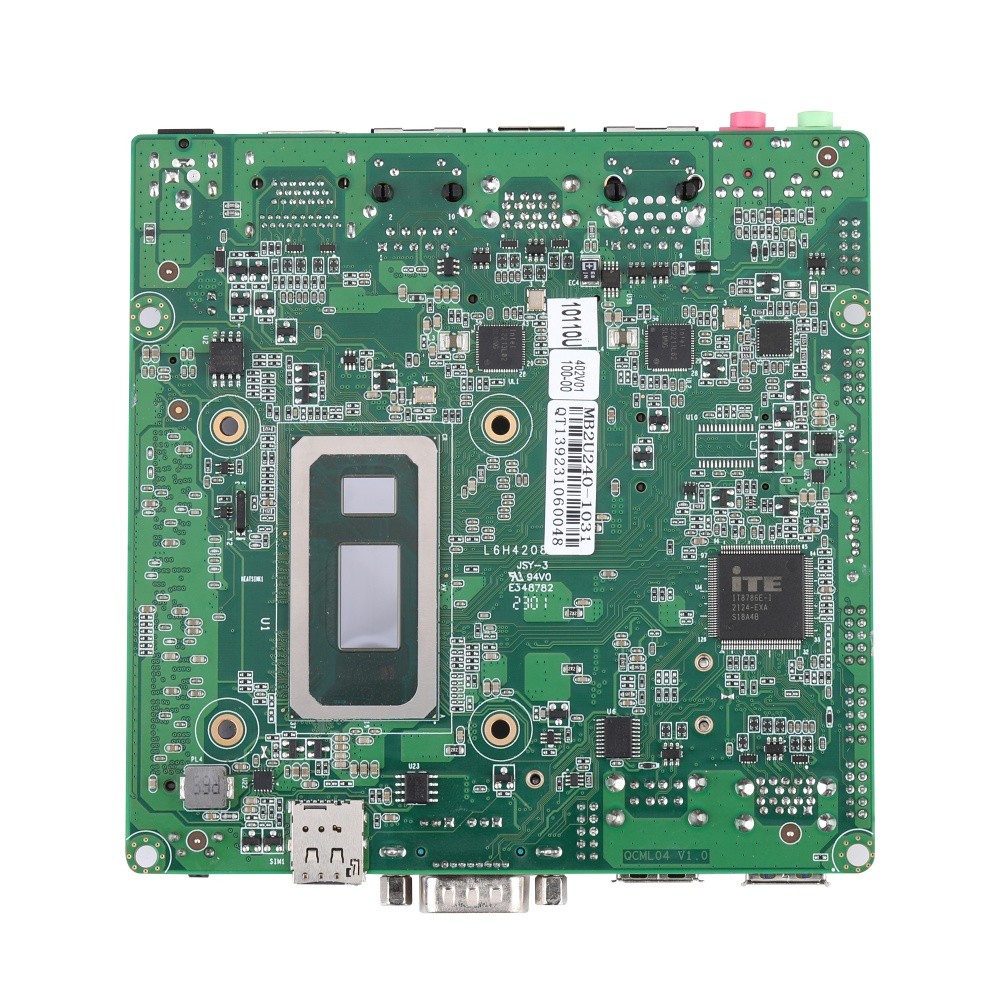

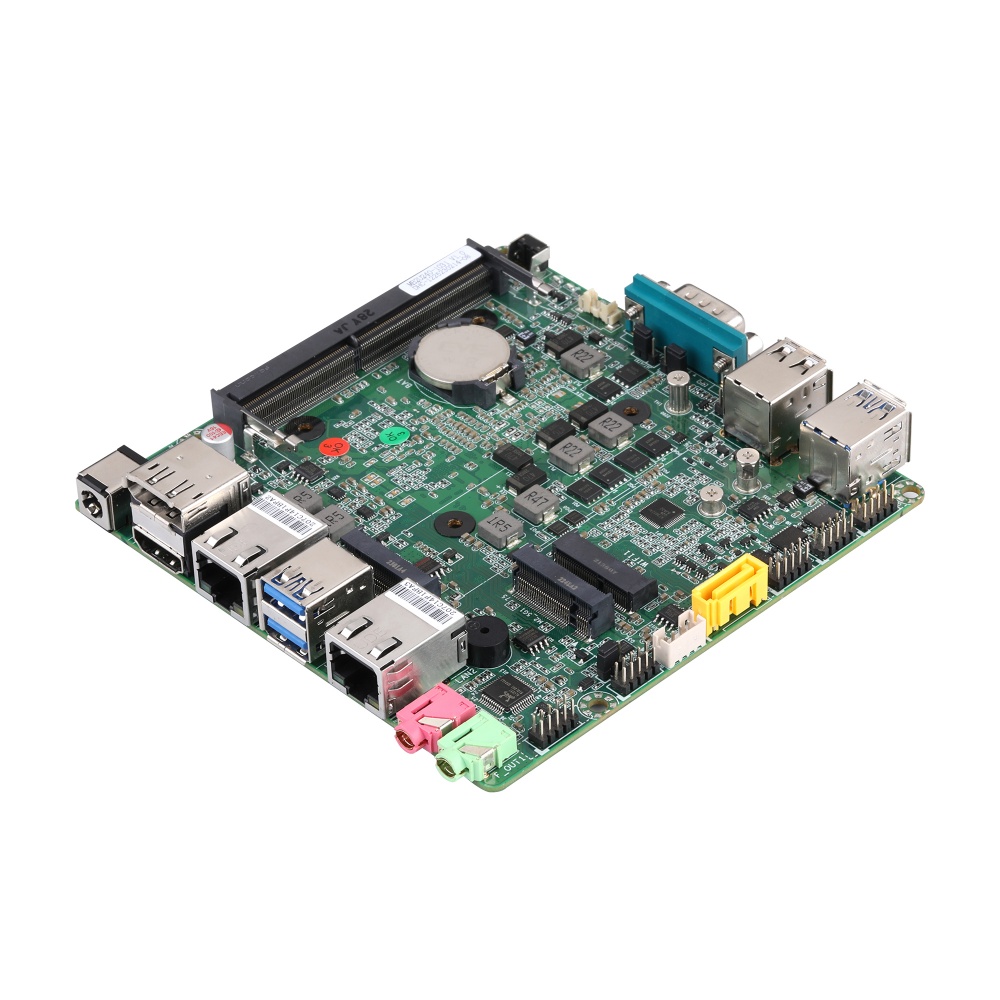

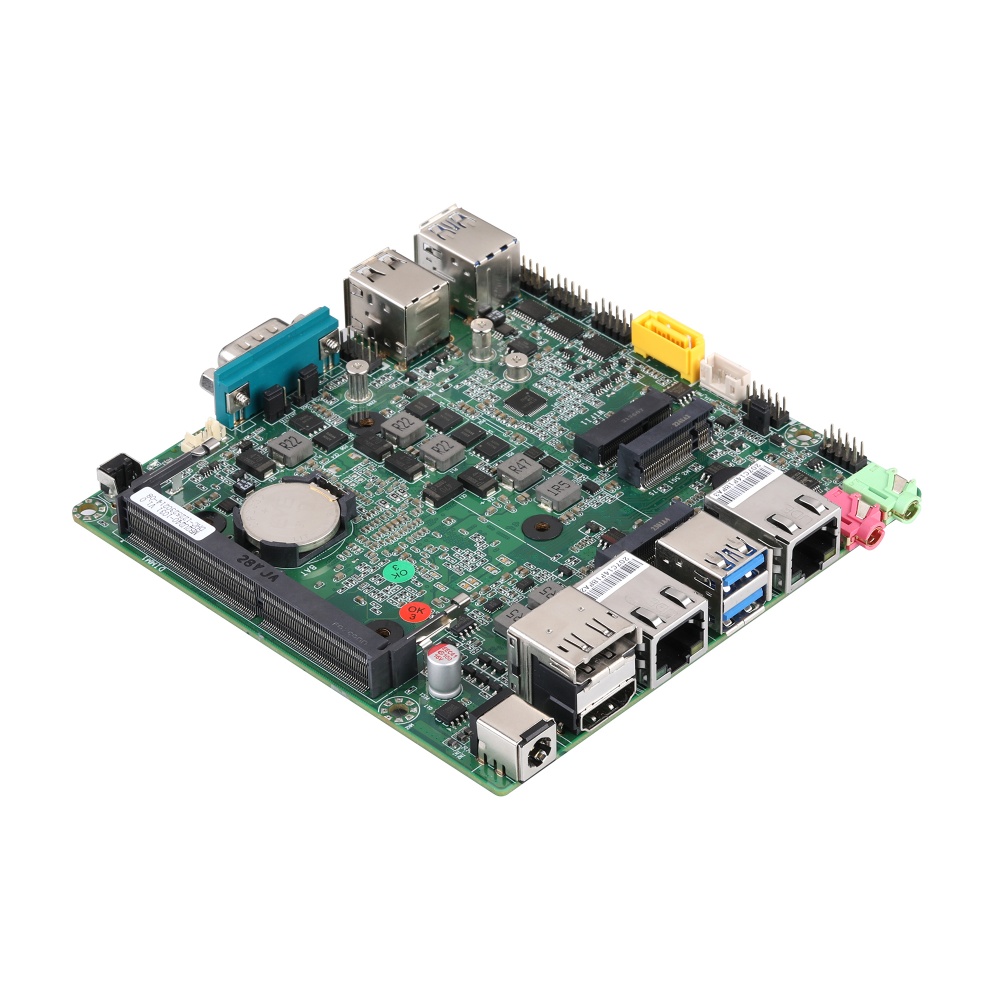

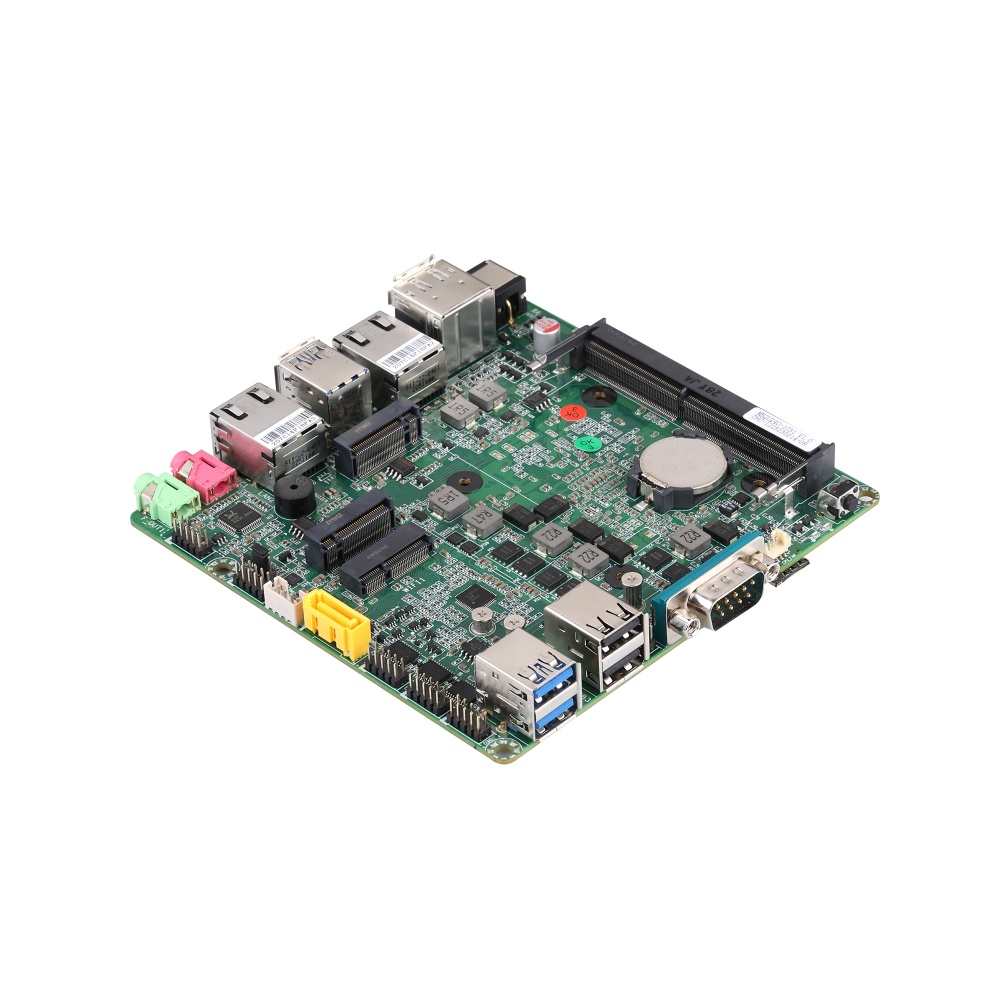

MB2U240-0900 provides a board-level foundation with compact 120 × 120mm embedded motherboard supporting Intel Whiskey Lake, Coffee Lake and Comet Lake processors with DDR4 memory. Four serial ports, network connectivity and expandable storage make it suitable.

Key Specs

CPU: Whiskey Lake / Coffee Lake / Comet lake
Memory: DDR4 SO-DIMM · Max 32GB
LAN: 2
Storage: M.2 Mkey, SATA
Board Size: 120x120

Compatible Systems

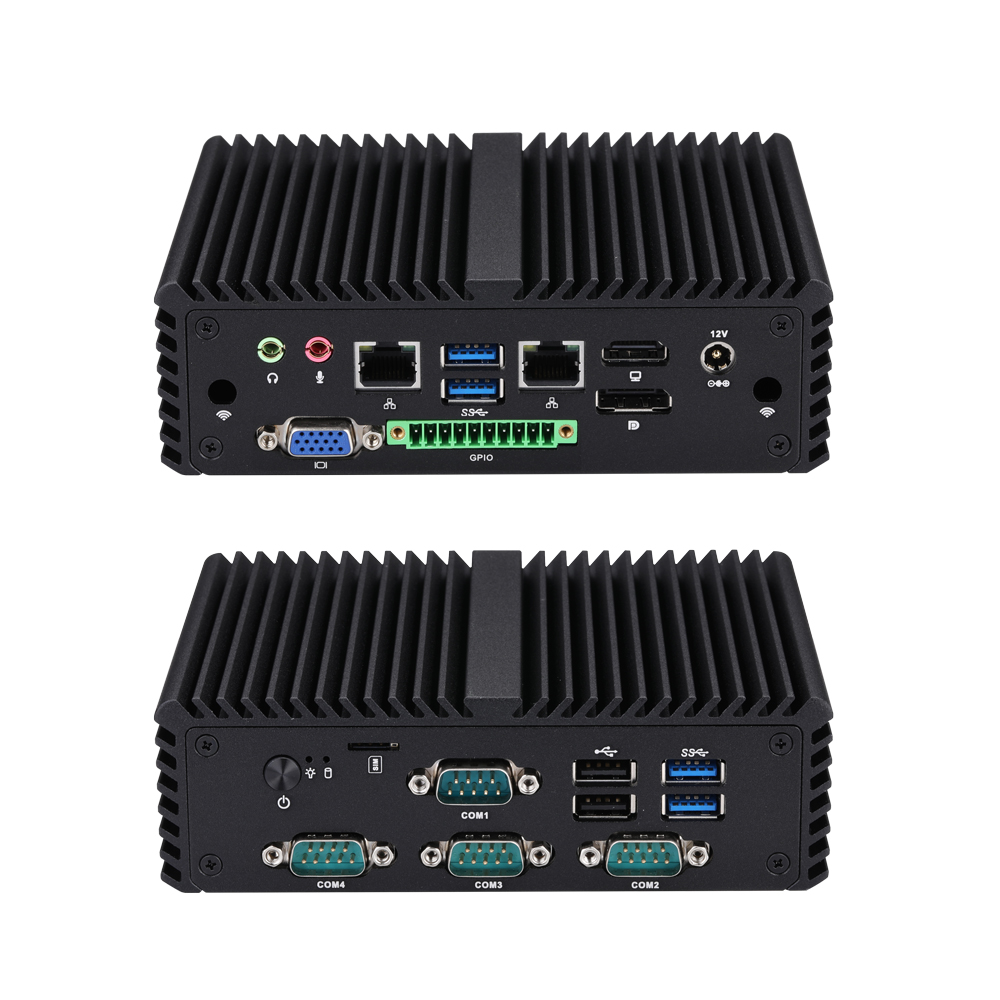

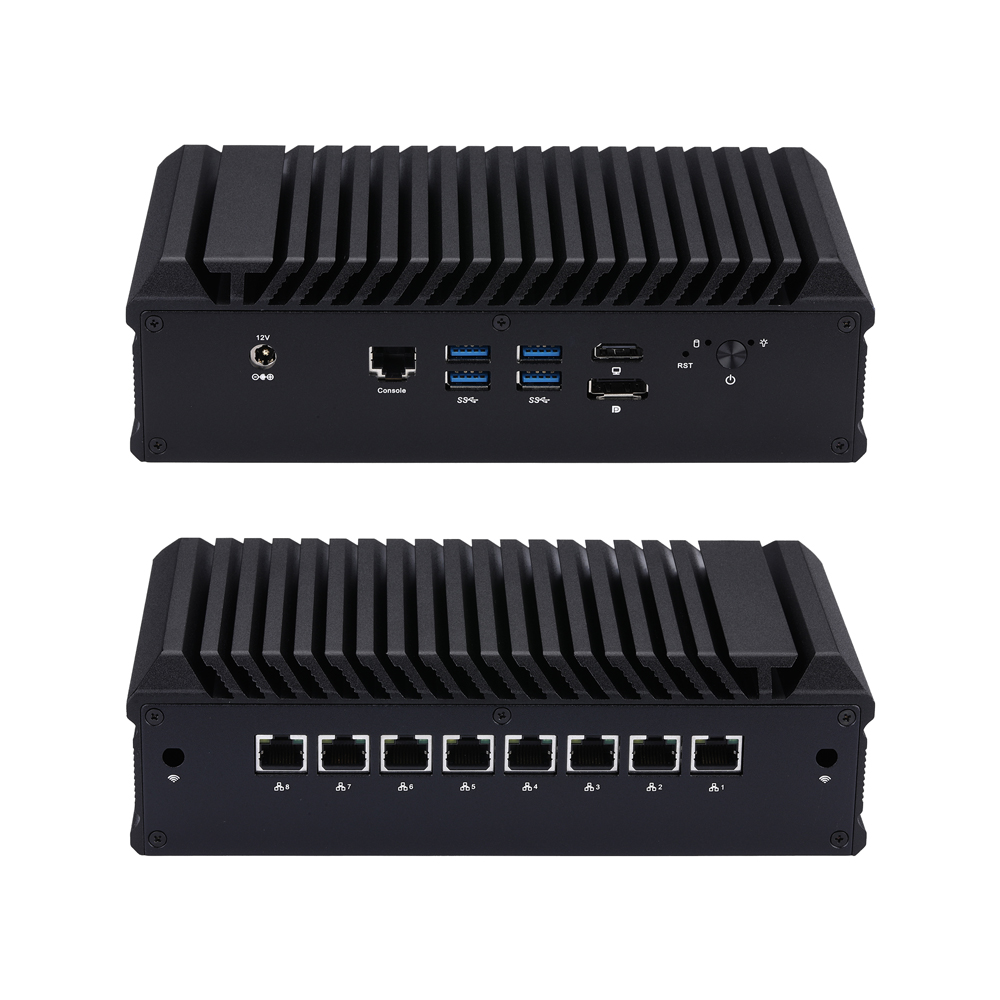

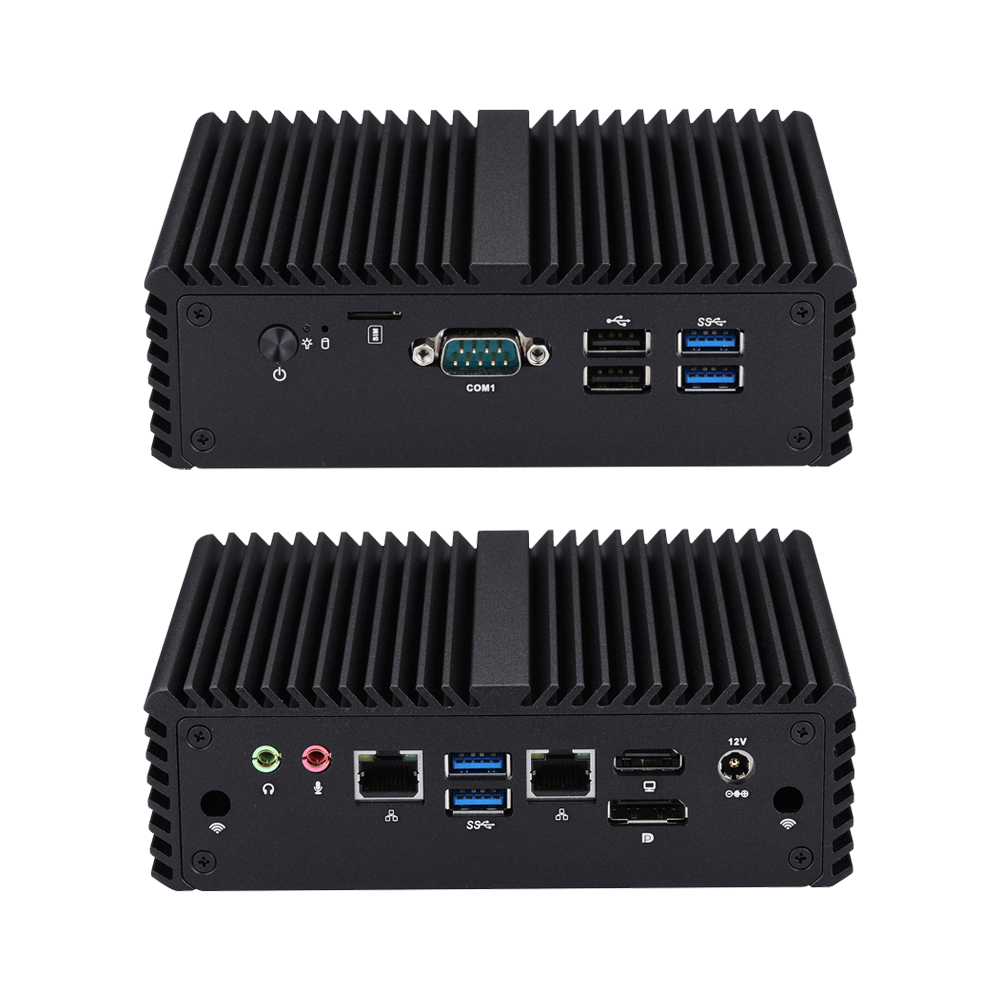

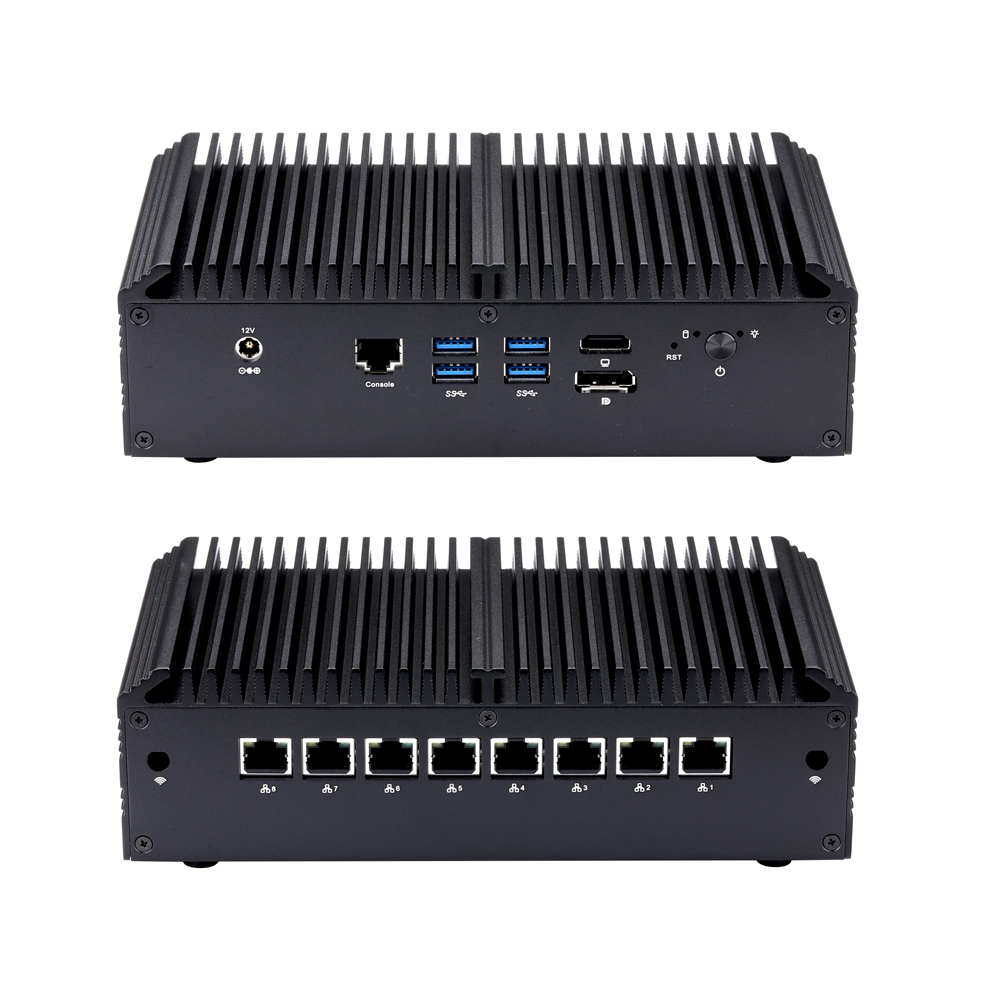

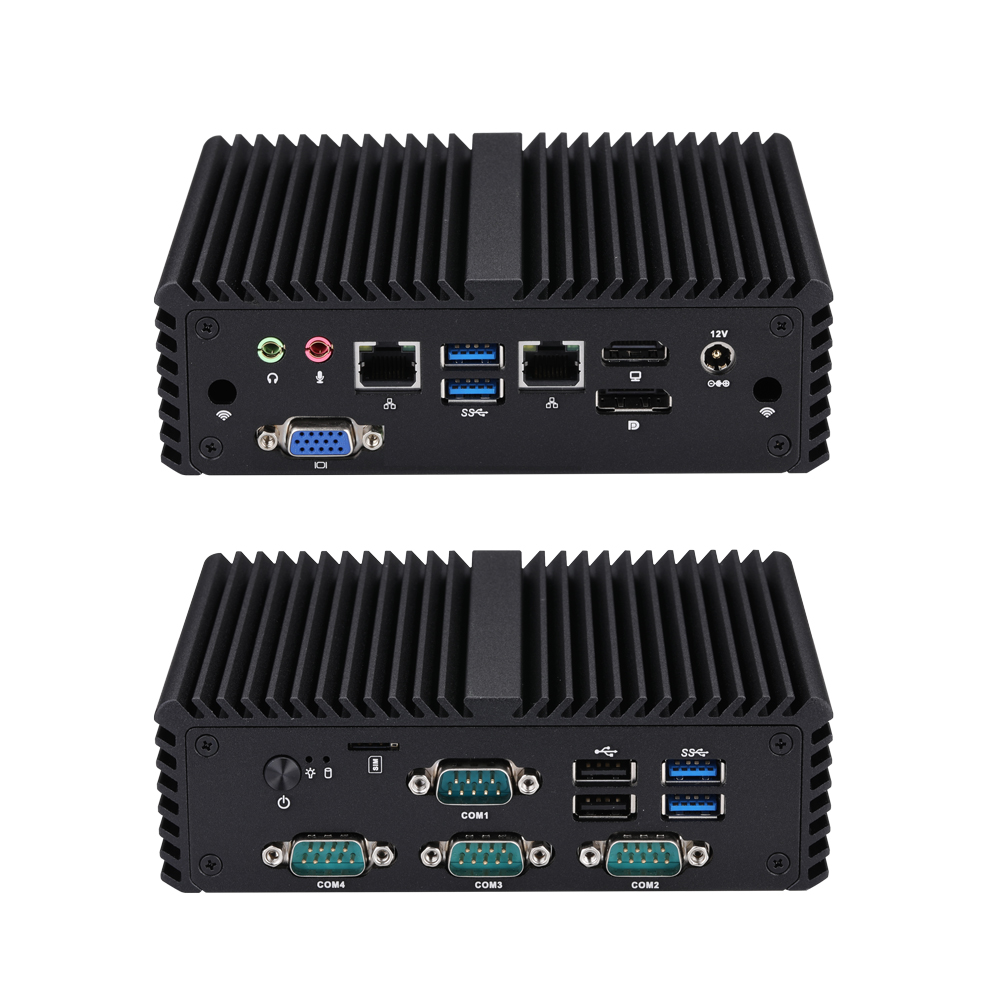

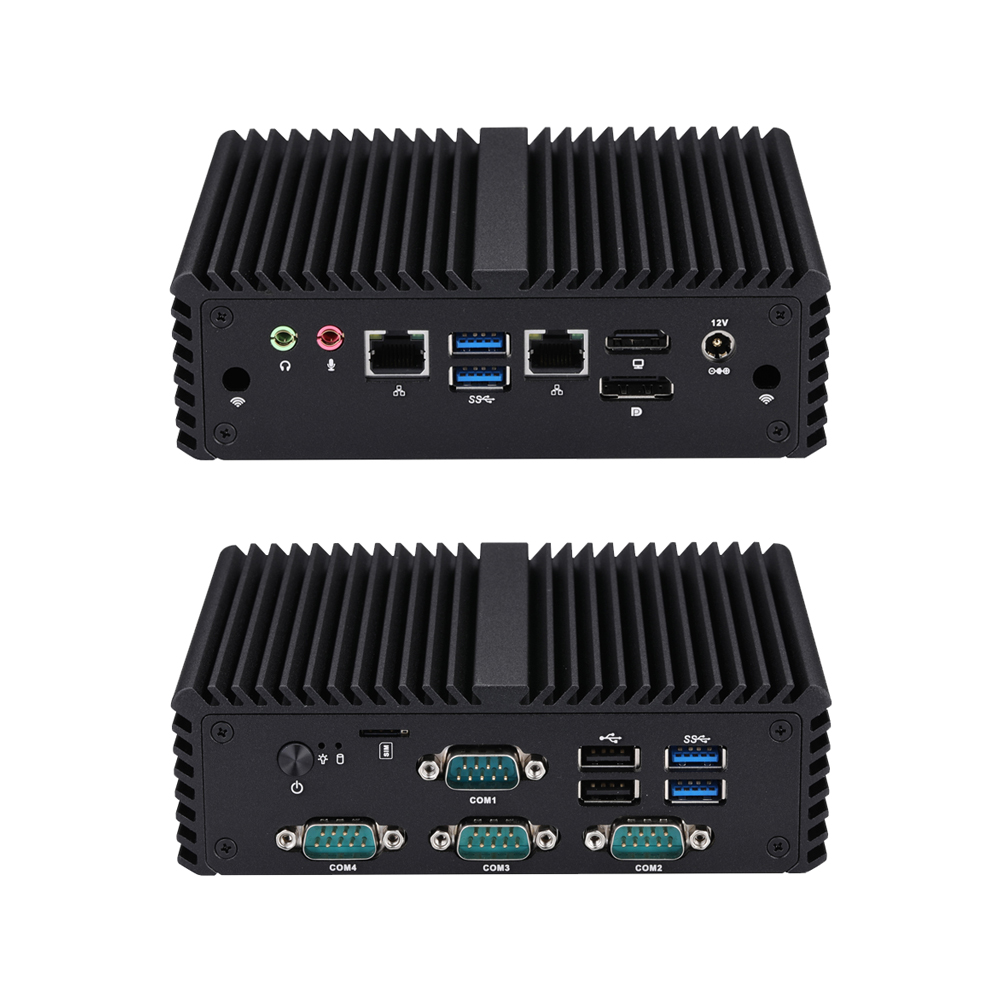

Main Features

Intel 8th Whiskey Lake-U Processor
Intel 8th Coffee Lake-U Processor
Intel 10th Comet lake-U Processor
1 × Display Port, 1 × HDMI, 1 × VGA (Header)
4 × USB 3.0, 2 × USB 2.0
3 × M.2, 1 × SATA 3.0
4 × RS-232
2 × Intel I225-V/I226-V 2.5G LAN
