NAS Q30900DS S14 Series

Name: NAS Q30900DS S14 Series
Brand: Qotom
SKU: Q30900DS-S14

Model: Q30900DS-S14

Total LAN4

LAN Speed2.5G RJ45

Key Specs

CPU: Whiskey Lake / Coffee Lake / Comet lake
Memory: DDR4 SO-DIMM · Max 64GB
LAN: 4
Storage: M.2 Mkey, SATA

Compatible Motherboard

MB6U419-0900

Send Inquiry Buy Now

Main Features

Intel 8th Whiskey Lake-U Processor
Intel 8th Coffee Lake-U Processor
Intel 10th Comet lake-U Processor
1 × Display Port, 2 × HDMI
3 × USB 3.0, 1 × USB 2.0, 1 × Type C
2 × M.2, 4 × SATA 3.0
4 × Intel I225-V/I226-V 2.5G LAN

Related Products

Mini PC Q30900SP S20 Series

Q30900SP-S20

Mini PC Q30900GP S20 Series

Q30900GP-S20

Mini PC Q30900P S08 Series

Q30900P-S08

Mini PC Q30900GE S13 Series

Q30900GE-S13

Mini PC Q30900X S20 Series

Q30900X-S20

NAS Q31100G4 S17 Series

Q31100G4-S17

CPU	• Intel 8th Whiskey Lake-U Processor • Intel 8th Coffee Lake-U Processor • Intel 10th Comet lake-U Processor
CPU TDP	By CPU
Memory	1 × DDR 4 SO-DIMM Socket (Up to 64G,21 33/24 00MHz)
Chipset	By CPU
Graphics	By CPU
LAN Chipset	4 × Intel I225-V/I226-V 2.5G LAN
Watch Dog	Yes

Power Button	1 × Power Button,1 × Reset Button
LED	1 × Power LED,1 × HDD LED
USB	1 × USB 3.0,1 × USB 2.0

M.2	1 × M.2 for SSD (M key, PCIe 3.0 × 4) (Type: 2242/2260/2280)
M.2	1 × M.2 for SSD (M key, PCIe 3.0 × 1) (Type: 2242/2260/2280)
AutoStart Jumper	1, 1 × 3Pin, Pitch 2.0mm
CMOS Clear Jumper	1, 1 × 3Pin, Pitch 2.0mm
GPIO	1,2 × 5Pin, Pitch 2.0mm
USB	1,2 × 5Pin, Pitch 2.0mm
Serial Port	1 × RS-232,1, 2 × 5Pin, Pitch 2.0mm

Power Adapter	19V4.74A
DC Jack	5.5mm, 2.5mm

Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%

Mini PC Series

Motherboard Series

NAS Storage Series

OPS Series

Panel PC Series

Accessories

NAS Q30900DS S14 Series

Key Specs

Compatible Motherboard

Main Features

Processor System

Front I/O

Rear I/O

Storage

Expansion

Power

Environmental

Mechanical

OS Support

Package Contents

Order & Specification Selection

BIOS & Firmware

Driver Downloads

Related Products

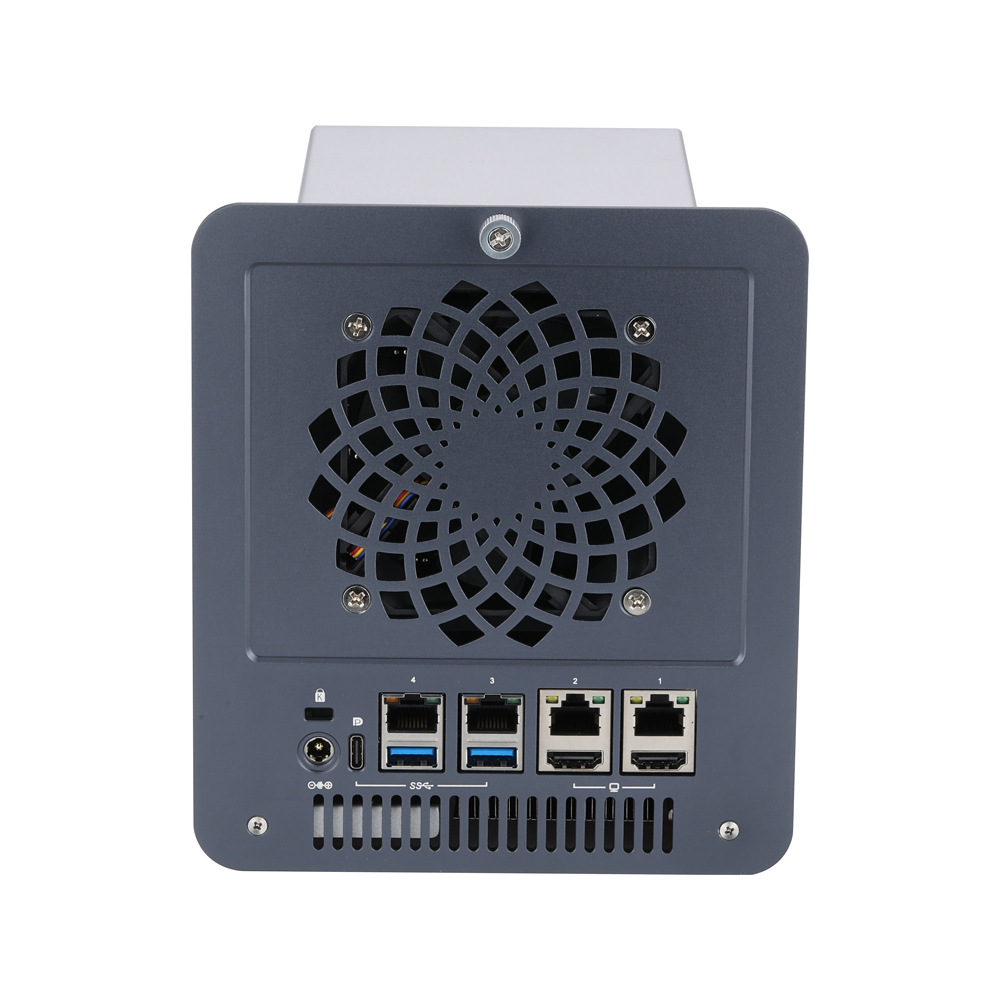

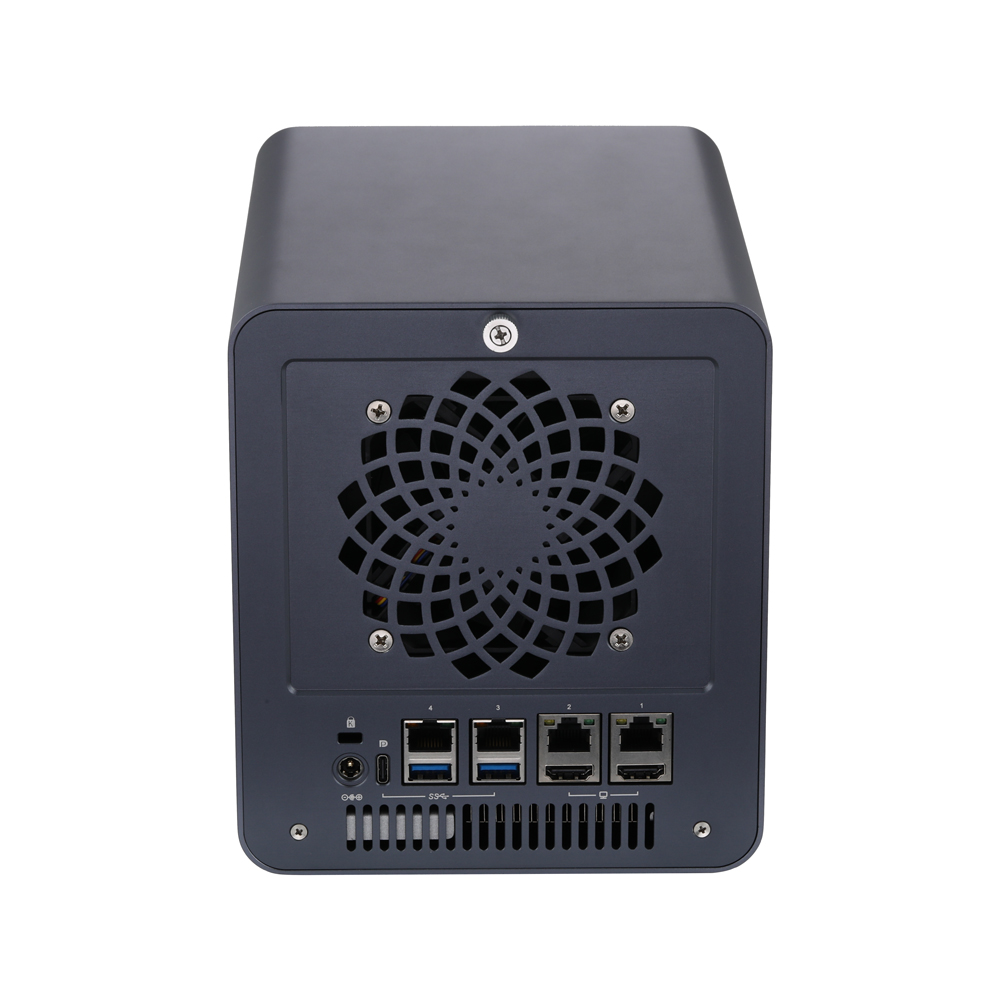

Power	1 × DC Jack
Video Output	2 × HDMI
LAN	4 × Intel I225-V/I226-V 2.5G LAN
USB	2 × USB 3.0
Type C	1 × Type C (USB3.0, Display Port)

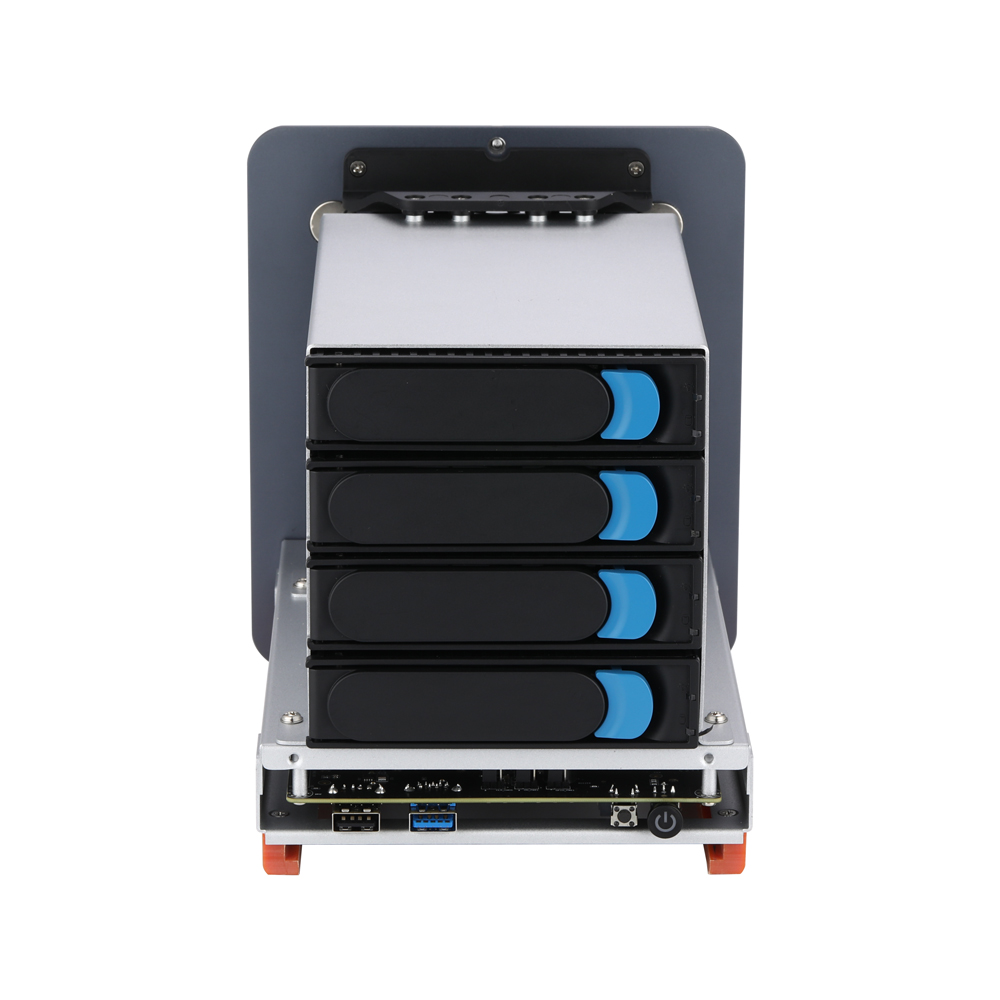

Type	4 x 3.5-inch HDD or 4 x 2.5-inch HDD/SSD
Type	2 × M.2 for SSD (M key, Type: 2242/2260/2280)

Material	Aluminium Alloy
Dimension	159 × 220 × 180mm
Weight	3.13kg
Mounting	-
Packaging Dimension	290 × 240 × 260mm
Kensington Lock	Y es
Cooling Mode	Fan

Ordering Code	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP
Q30912DS-S14	Whiskey Lake	Celeron	4305U	2 / 2	2.2GHz	2M	Intel UHD Graphics	15W
Q30921DS-S14	Whiskey Lake	Pentium	5405U	2 / 4	2.3GHz	2M	Intel UHD Graphics	15W
Q30931DS-S14	Whiskey Lake	Core i3	8145U	2 / 4	2.1GHz ~ 3.9GHz	4M	Intel UHD Graphics	15W
Q30951DS-S14	Whiskey Lake	Core i5	8265U	4 / 8	1.6GHz ~ 3.9GHz	6M	Intel UHD Graphics	15W
Q30971DS-S14	Whiskey Lake	Core i7	8565U	4 / 8	1.8GHz ~ 4.6GHz	8M	Intel UHD Graphics	15W
Q30952DS-S14	Coffee Lake	Core i5	8260U	4 / 8	1.6GHz ~ 3.9GHz	6M	Intel UHD Graphics 620	15W
Q31011DS-S14	Comet Lake	Celeron	5205U	2 / 2	1.9GHz	2M	Intel UHD Graphics	15W
Q31012DS-S14	Comet Lake	Celeron	5305U	2 / 2	2.3GHz	2M	Intel UHD Graphics	15W
Q31021DS-S14	Comet Lake	Pentium	6405U	2 / 4	2.4GHz	2M	Intel UHD Graphics	15W
Q31031DS-S14	Comet Lake	Core i3	10110U	2 / 4	2.1GHz ~ 4.1GHz	4M	Intel UHD Graphics	15W
Q31051DS-S14	Comet Lake	Core i5	10210U	4 / 8	1.6GHz ~ 4.2GHz	6M	Intel UHD Graphics	15W
Q31071DS-S14	Comet Lake	Core i7	10610U	4 / 8	1.8GHz ~ 4.9GHz	8M	Intel UHD Graphics	15W
Q31072DS-S14	Comet Lake	Core i7	10810U	6 / 12	1.1GHz ~ 4.9GHz	12M	Intel UHD Graphics	15W
Q31073DS-S14	Comet Lake	Core i7	10710U	6 / 12	1.1GHz ~ 4.7GHz	12M	Intel UHD Graphics	15W
Q31074DS-S14	Comet Lake	Core i7	10510U	4 / 8	1.8GHz ~ 4.9GHz	8M	Intel UHD Graphics	15W
