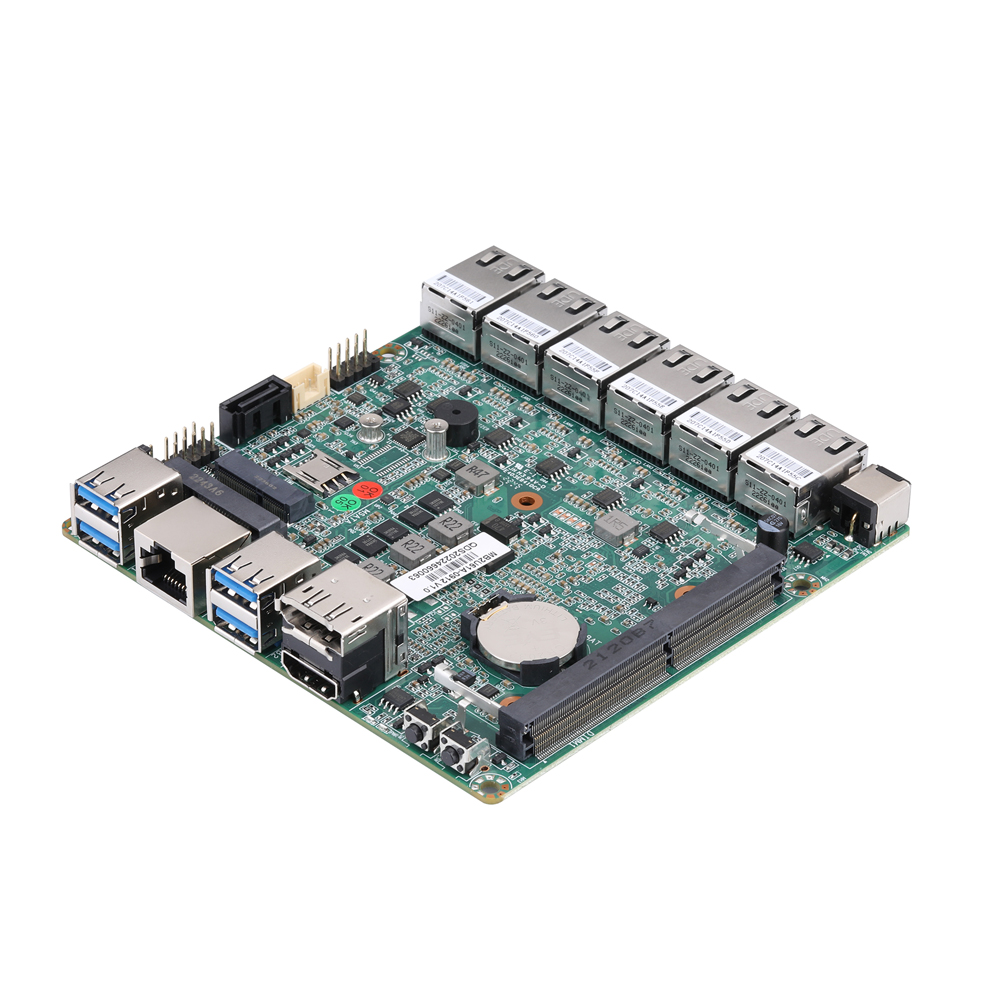

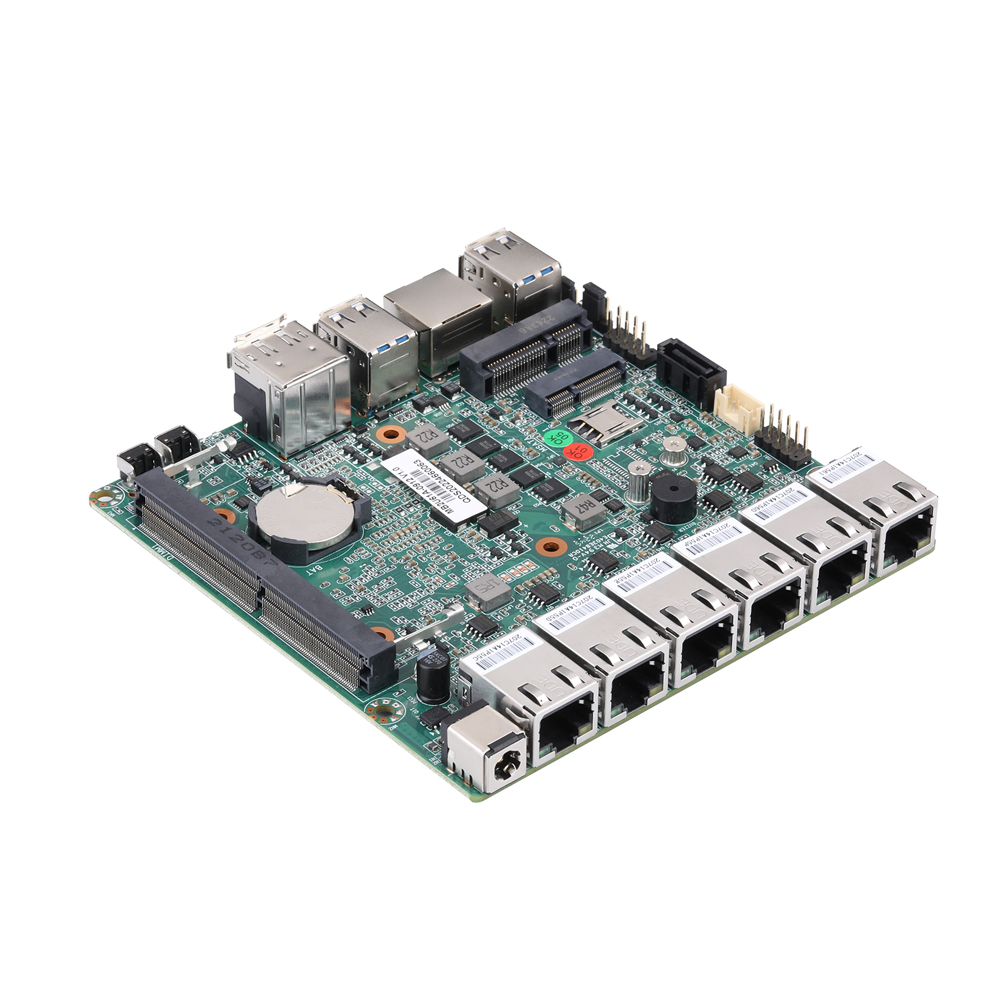

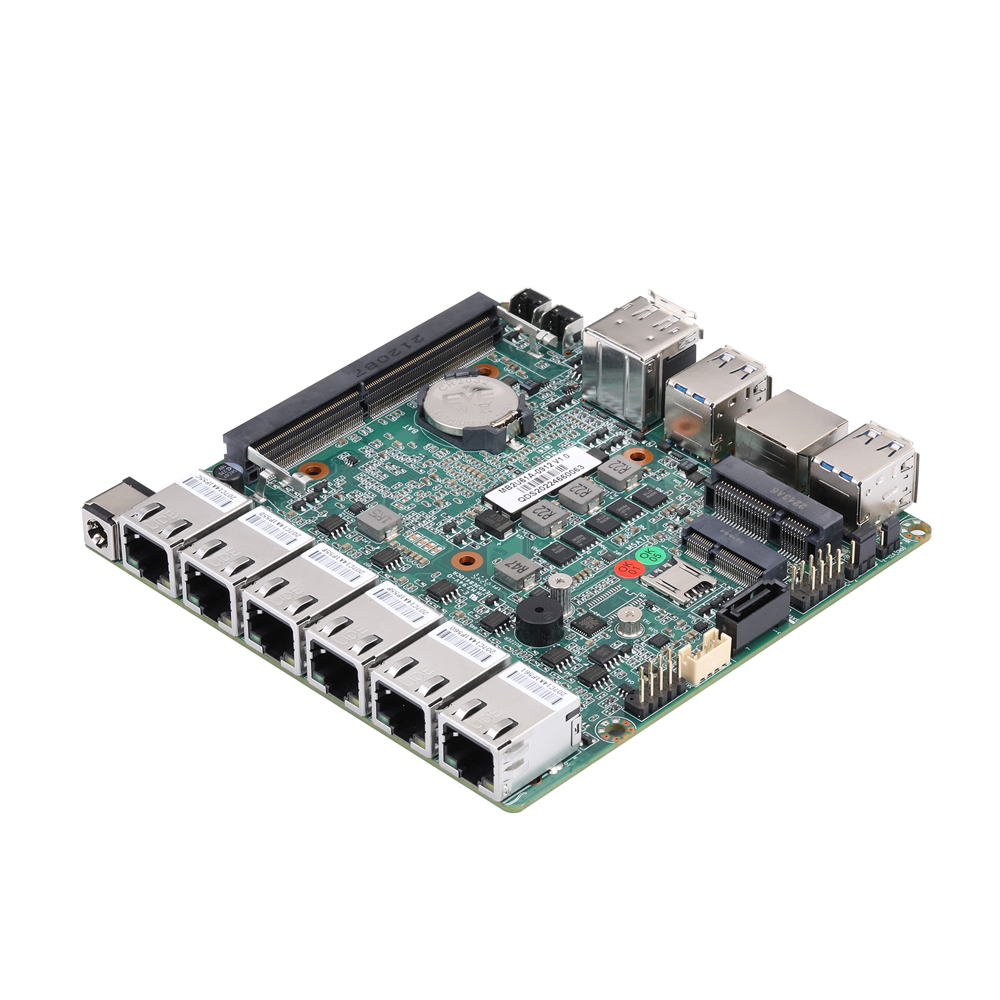

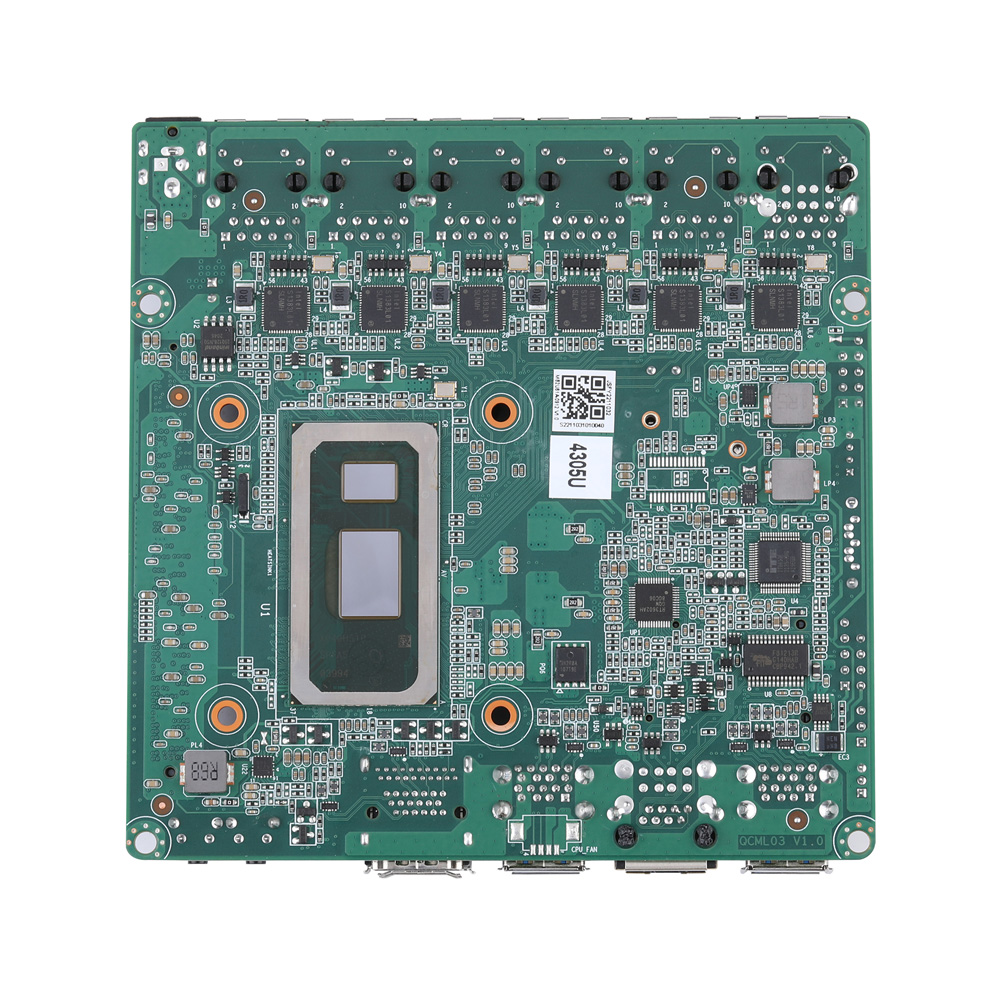

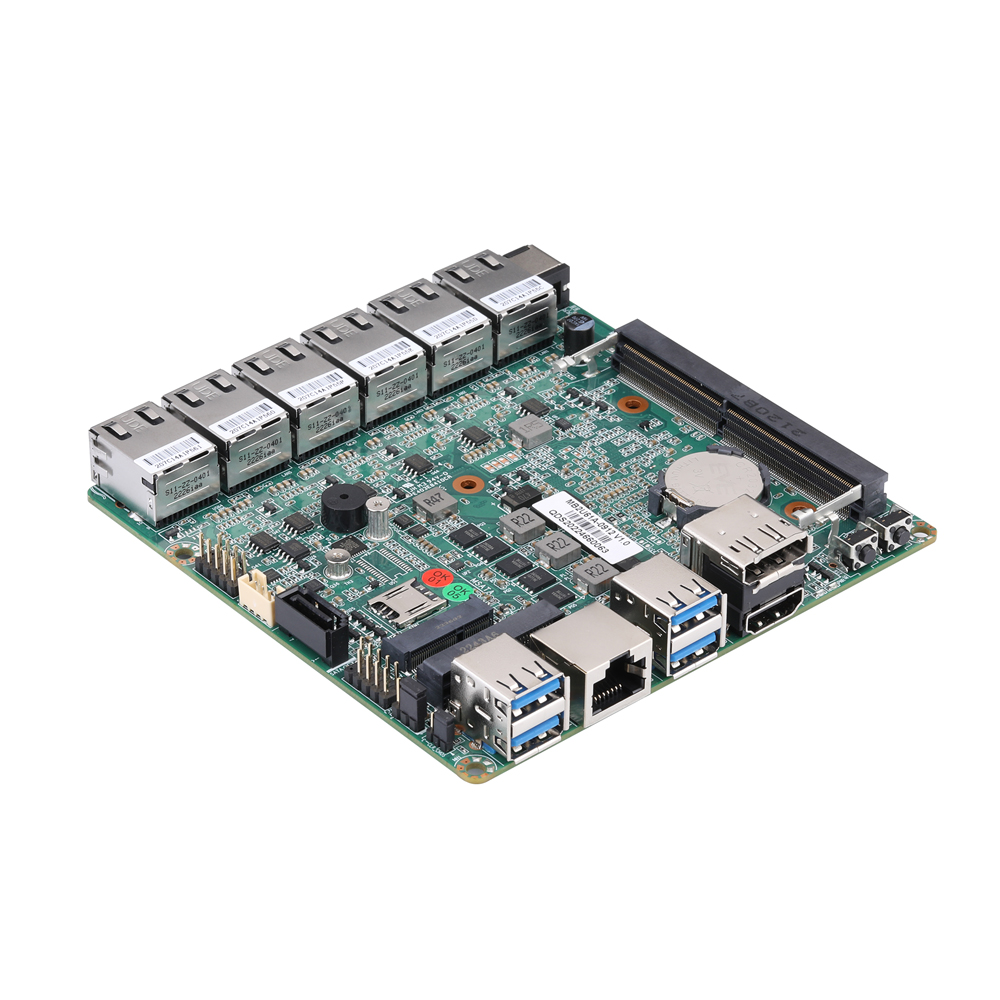

1 / 6Motherboard MB2U61A-0900 Series
Model: MB2U61A-0900
MB2U61A-0900 integrates compact 120 × 120mm mini PC motherboard supporting Intel Whiskey Lake, Coffee Lake and Comet Lake processors with DDR4 memory. Six 2.5G LAN ports and expandable storage make it suitable for compact x86 routers, firewall appliances, IoT gateways and embedded.
Key Specs
- CPU
- Whiskey Lake / Coffee Lake / Comet lake
- Memory
- DDR4 SO-DIMM · Max 32GB
- LAN
- 6
- Storage
- mSATA, SATA
- Board Size
- 120x120

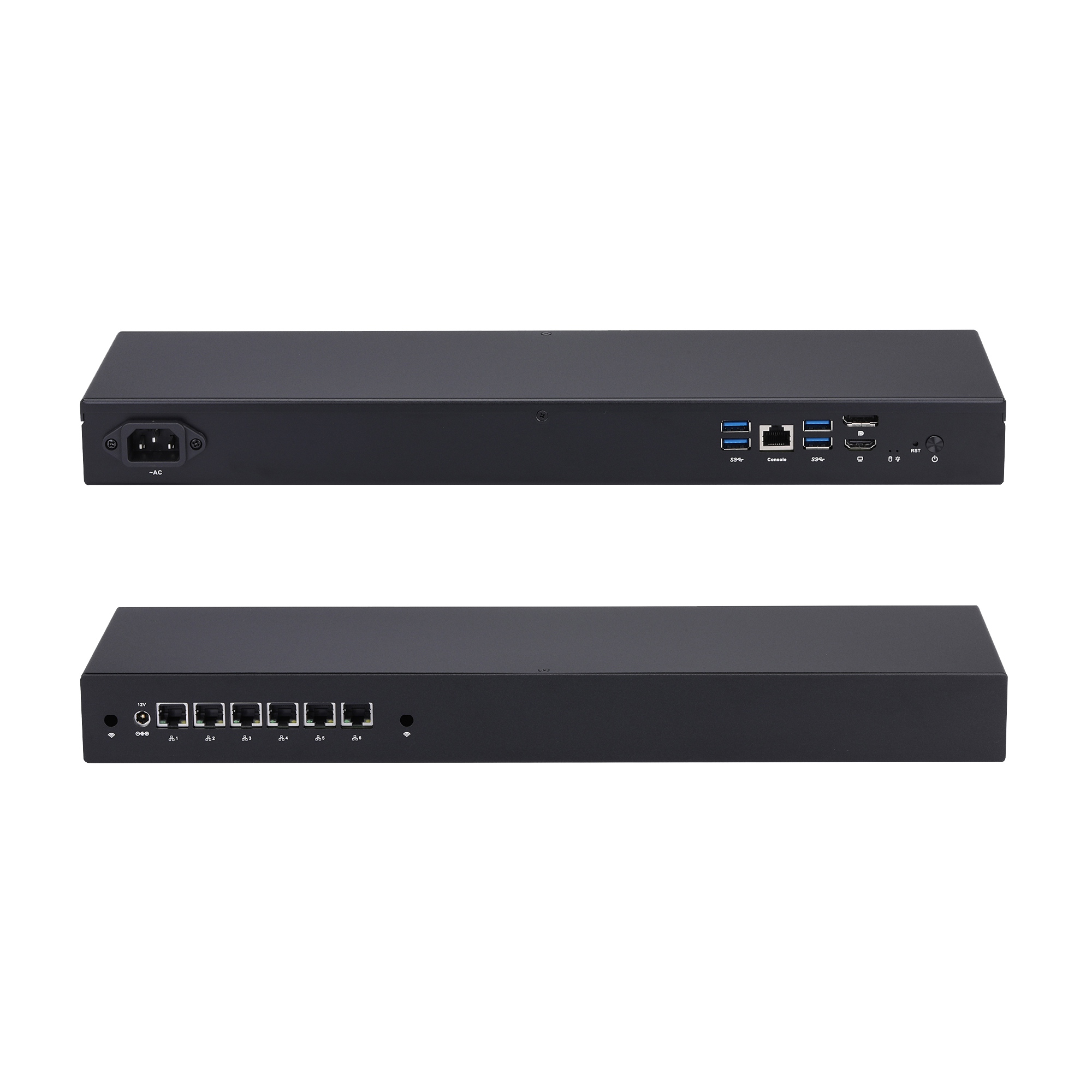

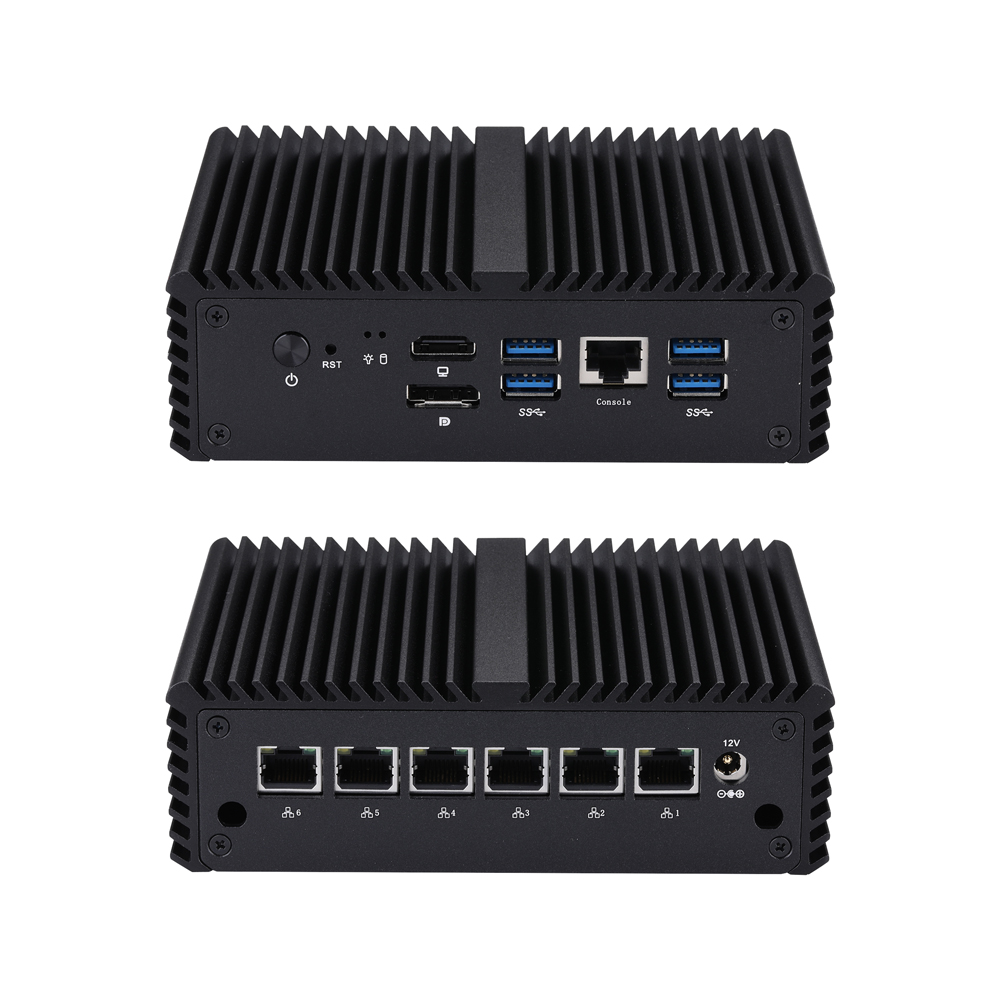

Compatible Systems
MB2U61A-0912MB2U61A-0921MB2U61A-0931MB2U61A-0951MB2U61A-0971MB2U61A-0952MB2U61A-1011MB2U61A-1012MB2U61A-1021MB2U61A-1031MB2U61A-1051MB2U61A-1071MB2U61A-1072MB2U61A-1073IntelWhiskey LakeCoffee LakeComet lakeCeleronPentiumCore i3Core i5Core i74205U4305U5405U8145U8265U8365U8565U8665U8140U8260U5205U5305U6405U10110U10210U10310U10510U10610U10710U10810U
Main Features
Intel 8th Whiskey Lake-U Processor
Intel 8th Coffee Lake-U Processor
Intel 10th Comet lake-U Processor
1 × Display Port, 1 × HDMI
4 × USB 3.0, 1 × SATA 3.0
1 × M.2, 1 × mSATA,1 × Mini-PCIe
6 × Intel I225-V/I226-V 2.5G LAN
