1 / 6Motherboard MB4C911-0300 Series

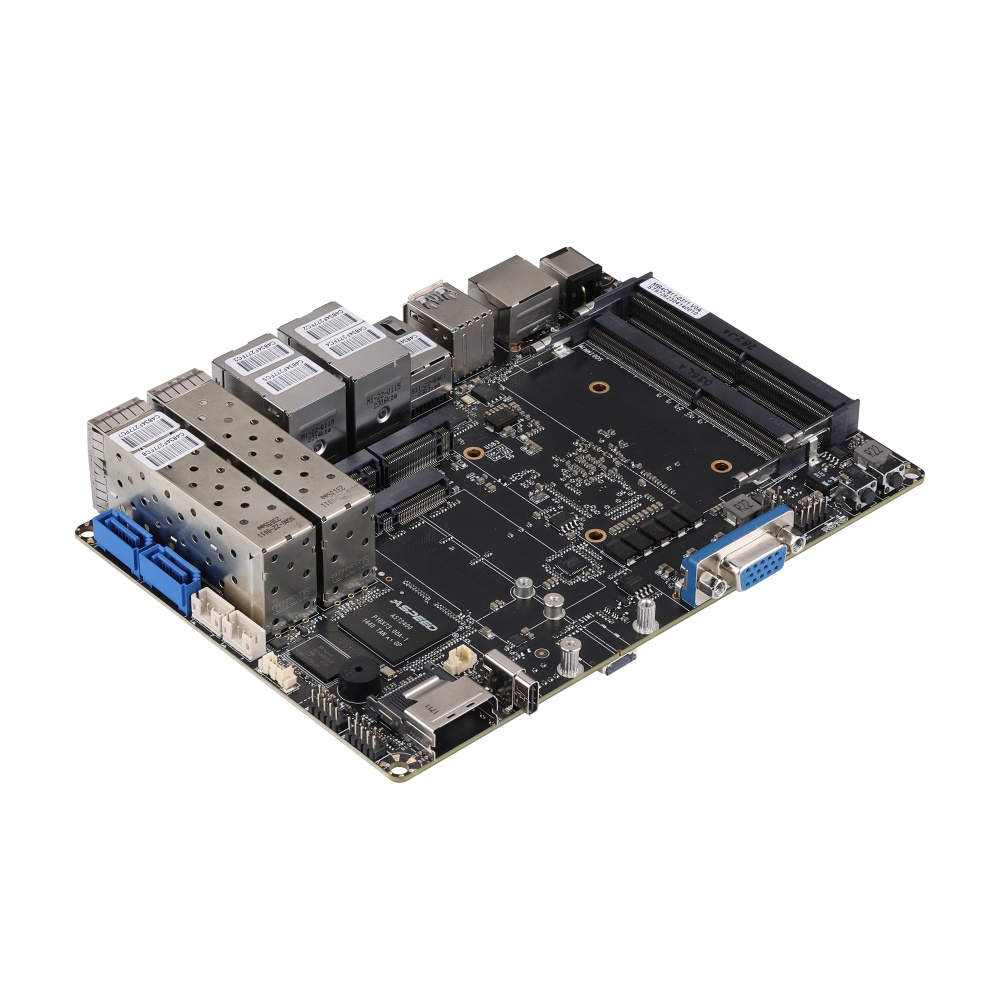

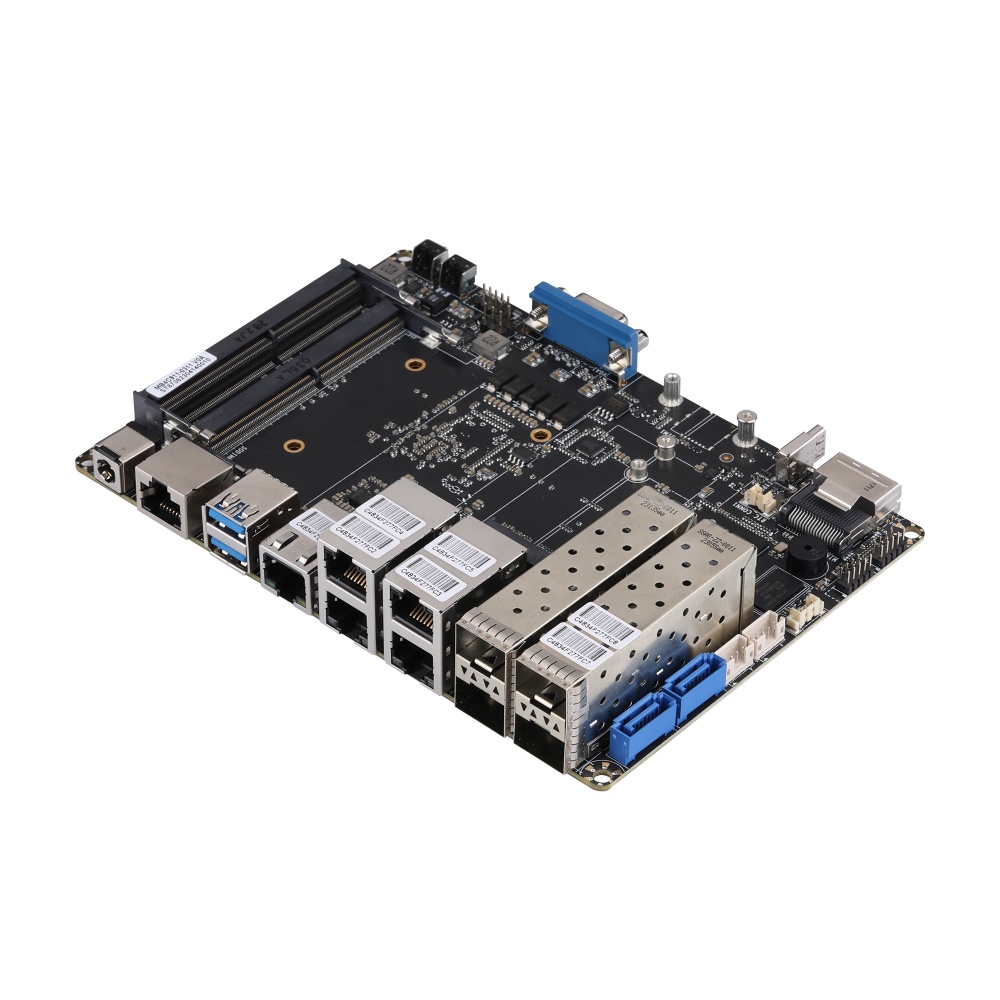

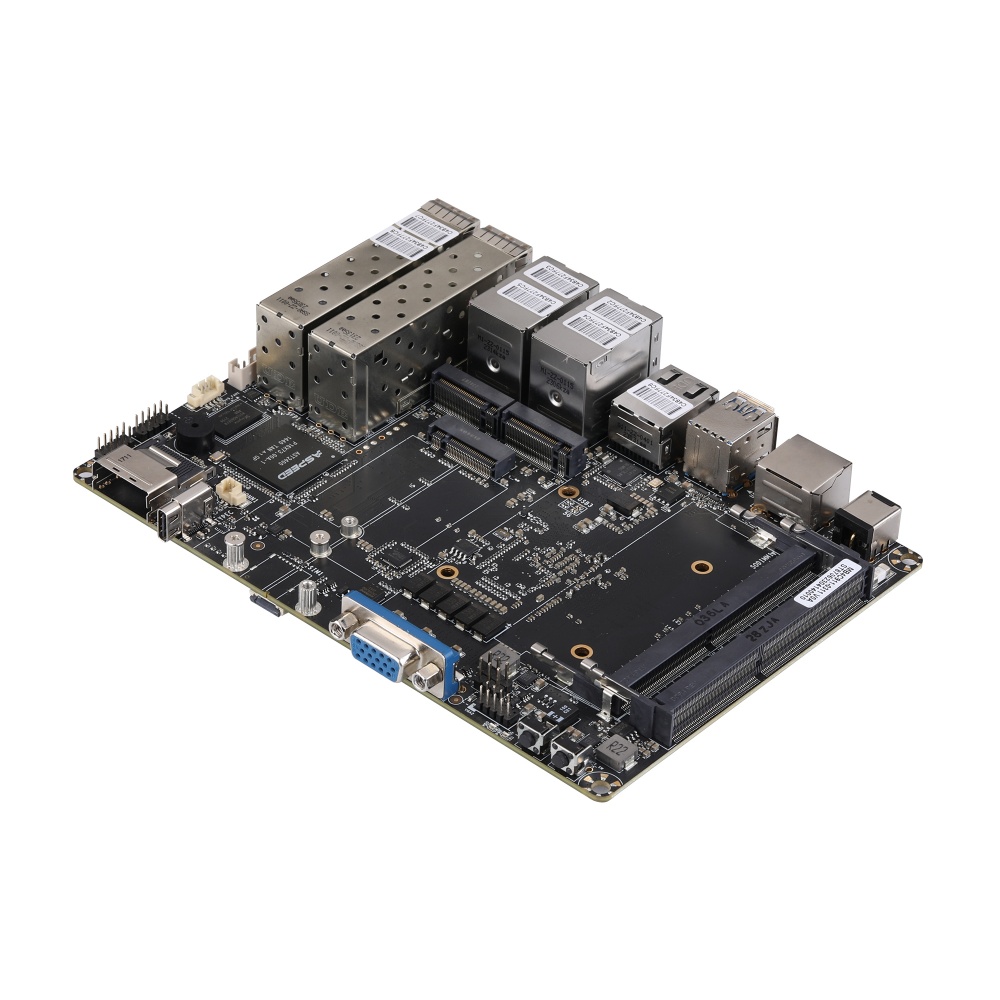

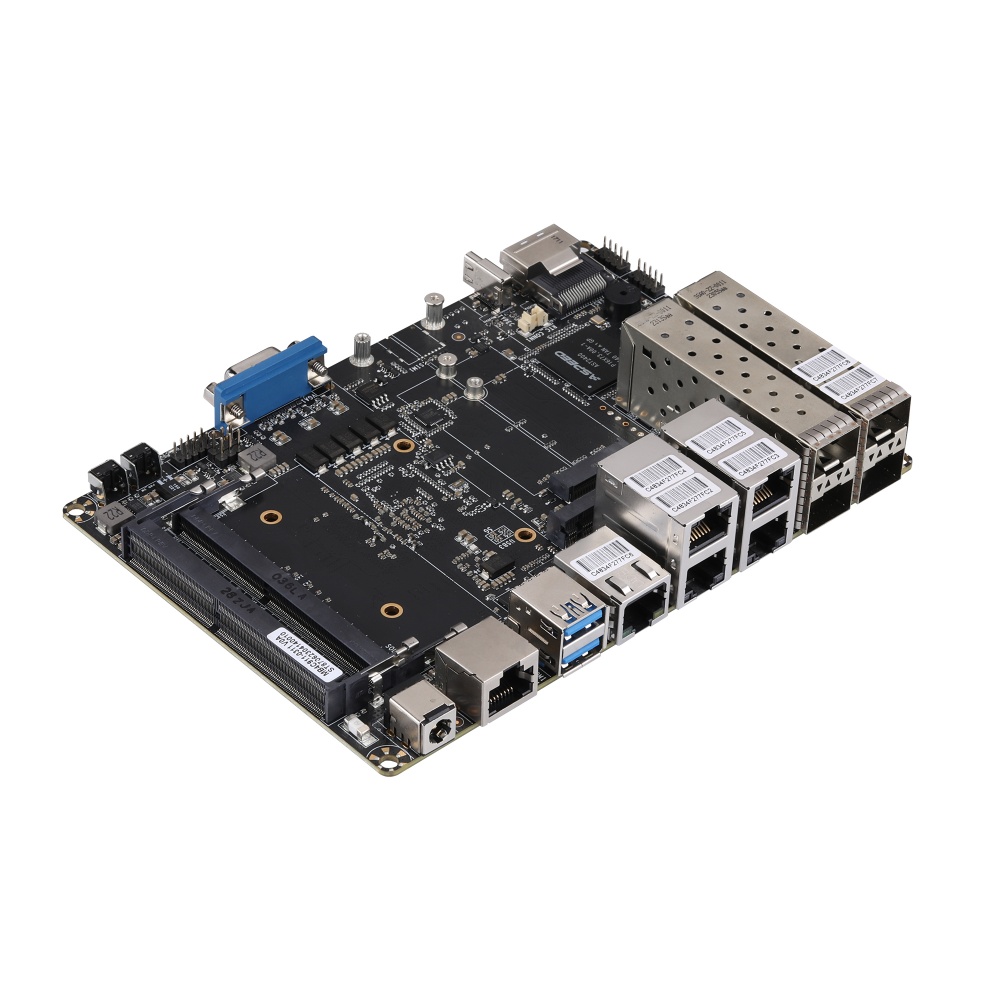

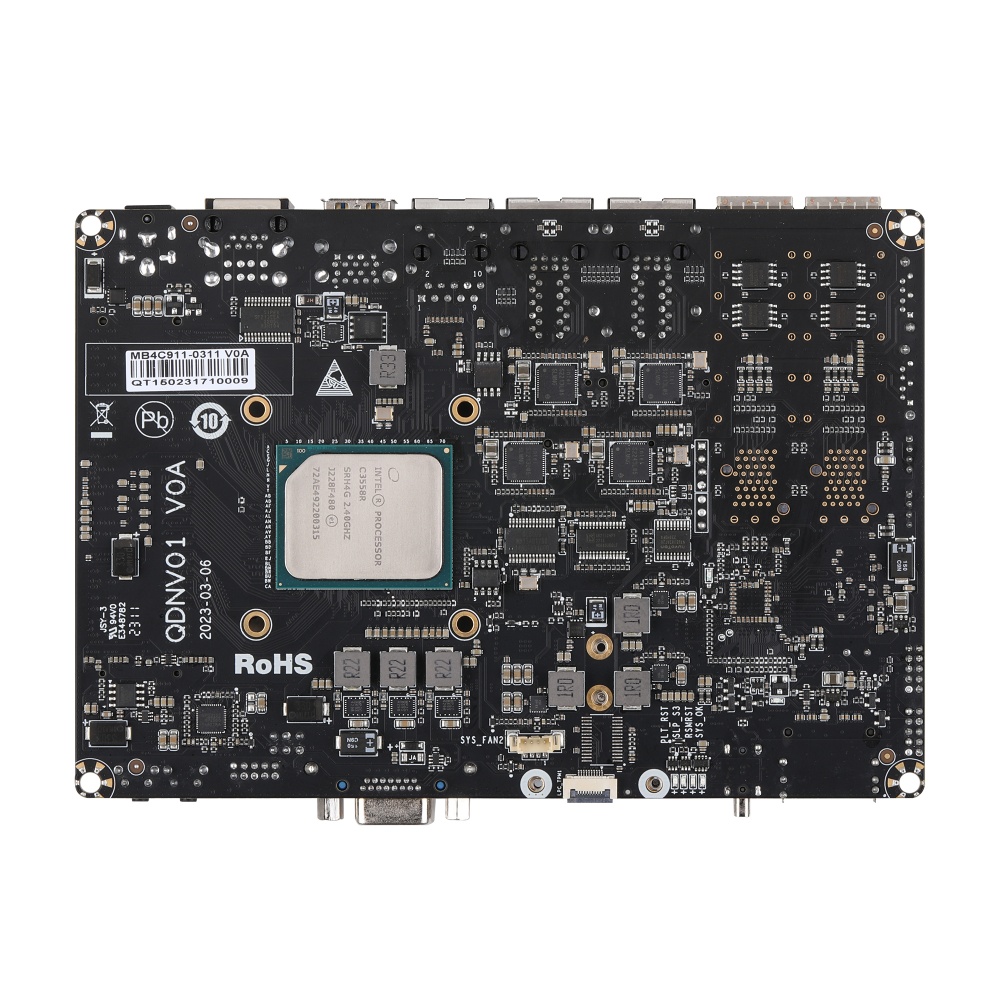

Model: MB4C911-0300
MB4C911-0300 targets custom computer integration through Denverton network motherboard with 5 × Intel 2.5G LAN + 4 × 10G SFP+, Dual DDR4 up to 64GB, 2 × M.2, Mini SAS and dual SATA. The platform also includes mixed-speed networking and storage expansion suit firewall appliances, edge servers, NAS systems and high-performance network mini. Its intended uses include custom embedded computers and commercial equipment development.
Key Specs
- CPU
- Denverton
- Memory
- DDR4 SO-DIMM · Max 64GB
- LAN
- 9
- Storage
- M.2 Mkey, SATA, Mini SAS
- Board Size
- 165x115
Compatible Systems
Main Features
Intel Denverton Processor
1 × VGA, 1 × RS-232 (RJ-45)
1 × USB 3.0, 1 × USB 2.0, 1 × Type C (USB 3.0)
2 × M.2 (PCIe 3.0 × 2)
1 × Mini SAS, 2 × SATA 3.0
4 × 10G SFP(+) (1G SFP)
5 × Intel I225-V/I226-V 2.5G LAN
