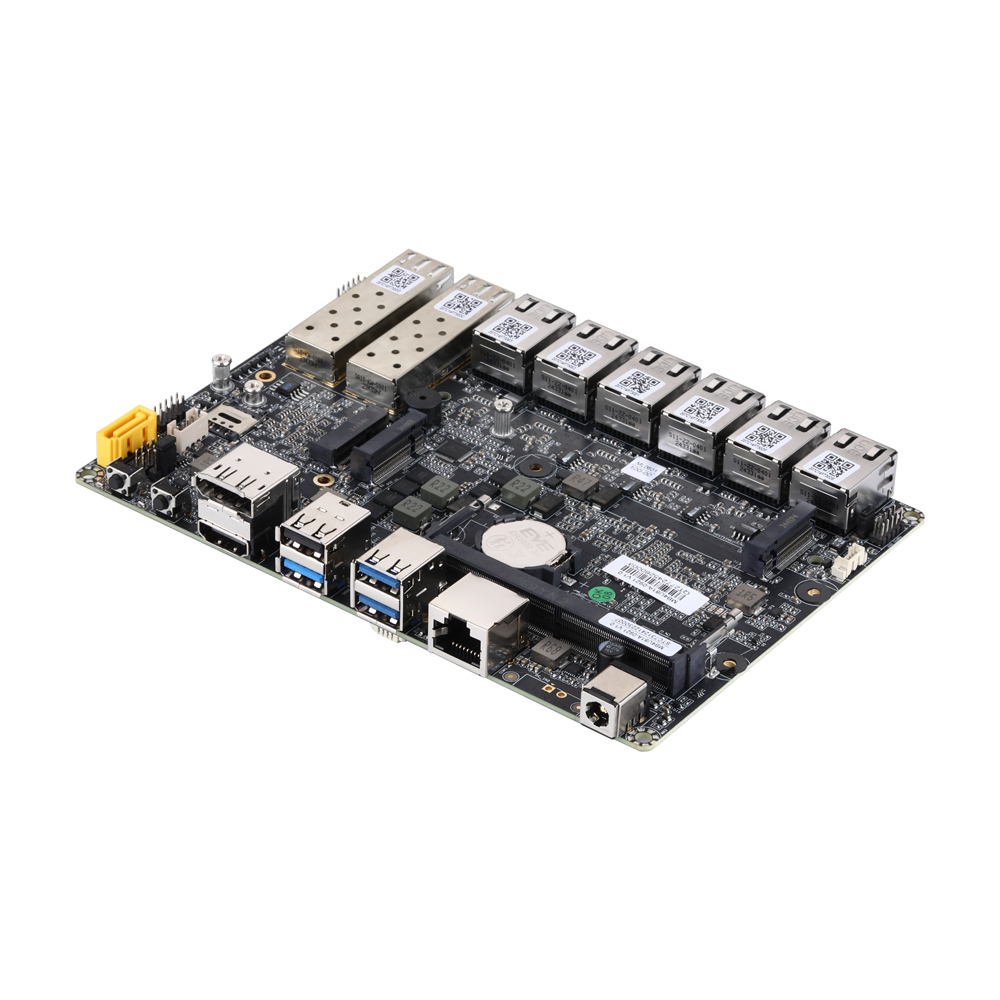

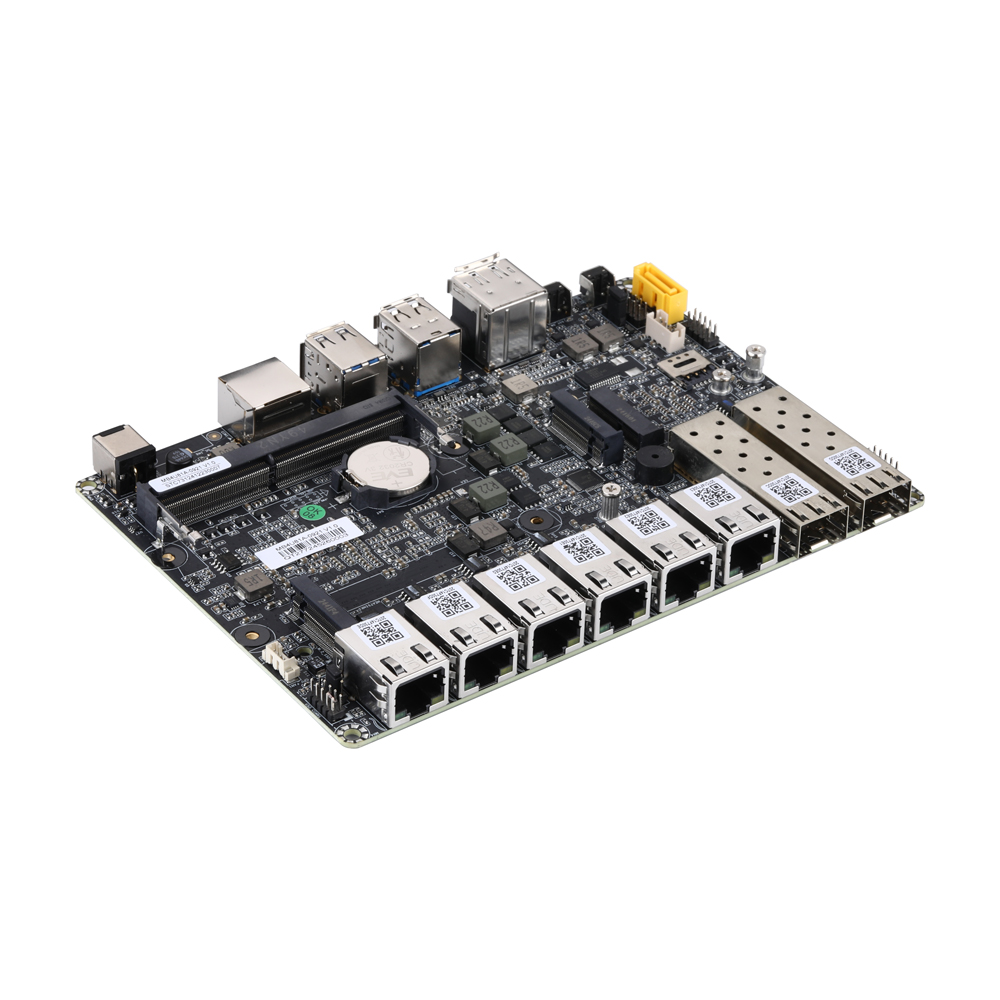

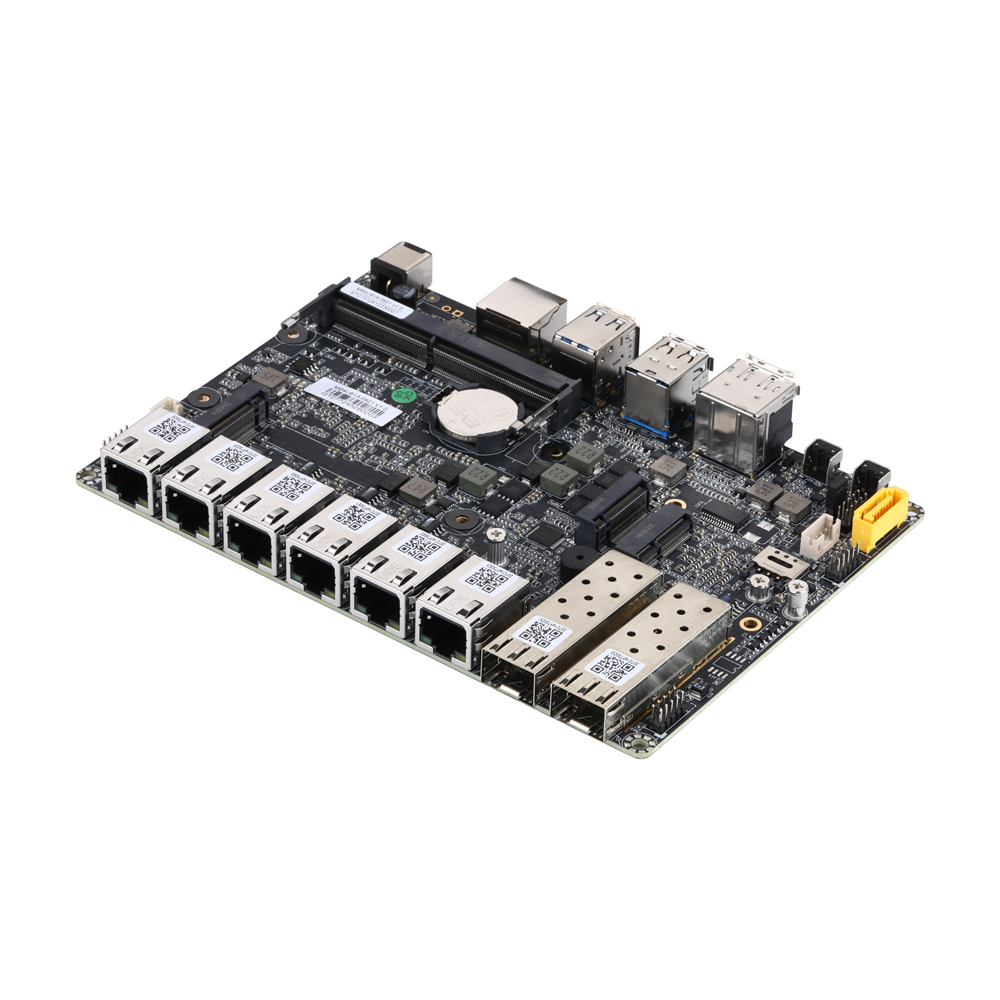

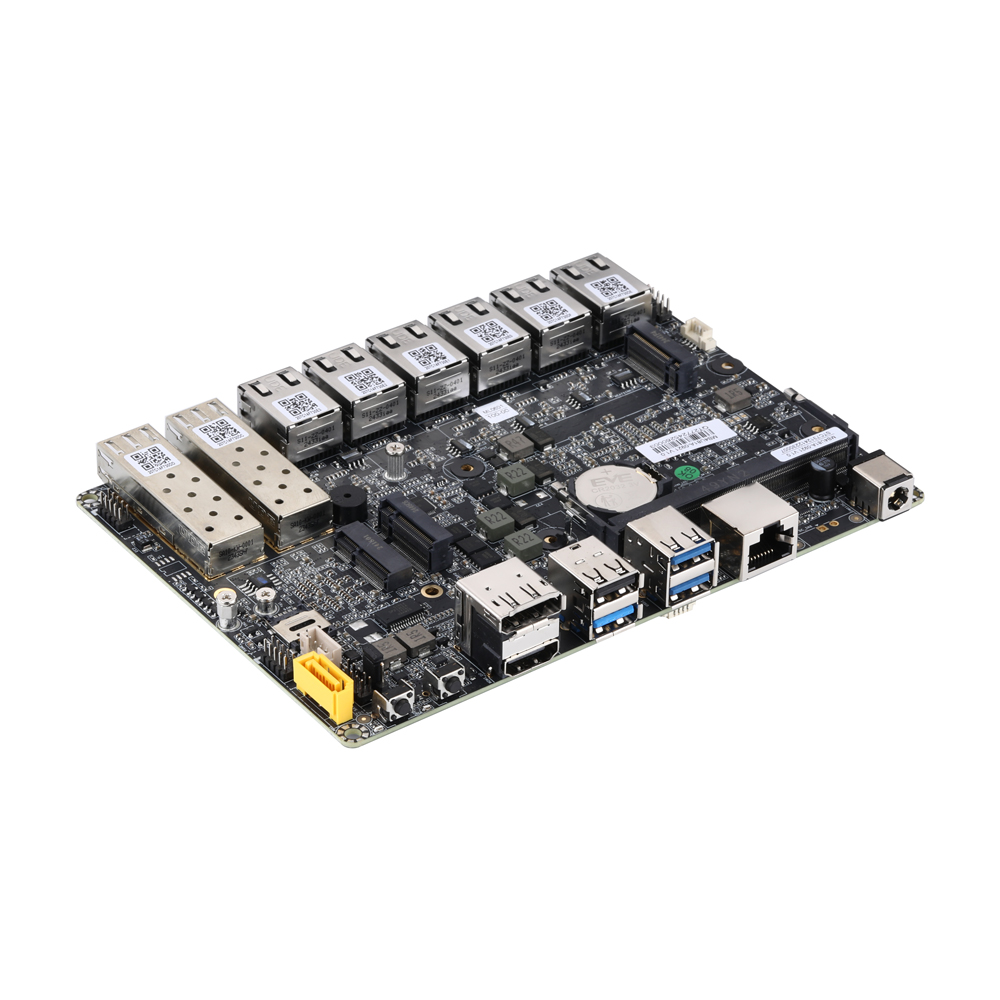

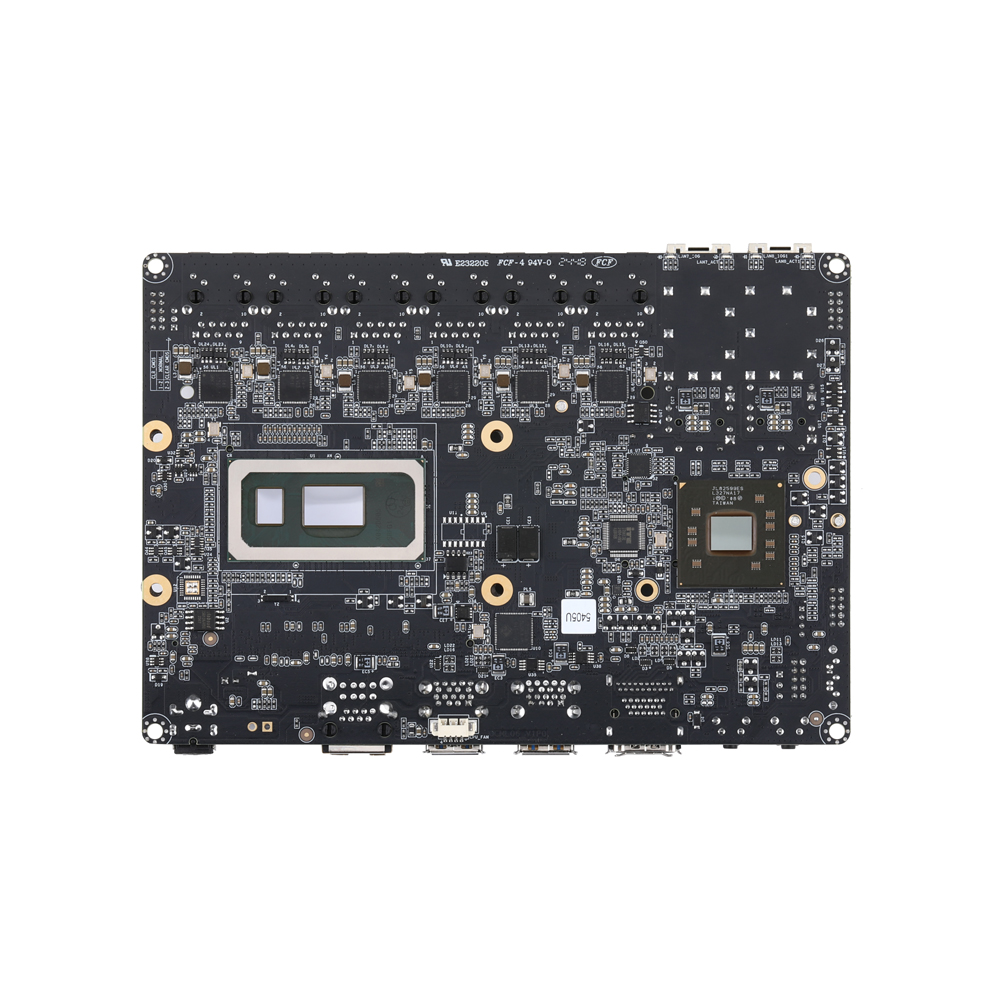

1 / 6Motherboard MB4U81Y-0900 Series
Model: MB4U81Y-0900
For network and industrial equipment development, MB4U81Y-0900 offers compact multi-LAN mini PC motherboard supporting Intel 8th/10th Gen processors including Core i5 and Core i7 options. The platform also includes 6 × 2.5G Ethernet, 2 × 10G SFP+, M.2 and SATA expansion, it suits high-speed routers, network security appliances, Linux. This configuration suits compact server platforms and specialized hardware designs.
Key Specs
- CPU
- Whiskey Lake / Coffee Lake / Comet lake
- Memory
- DDR4 SO-DIMM · Max 32GB
- LAN
- 8
- Storage
- M.2 Mkey, SATA
- Board Size
- 165x115

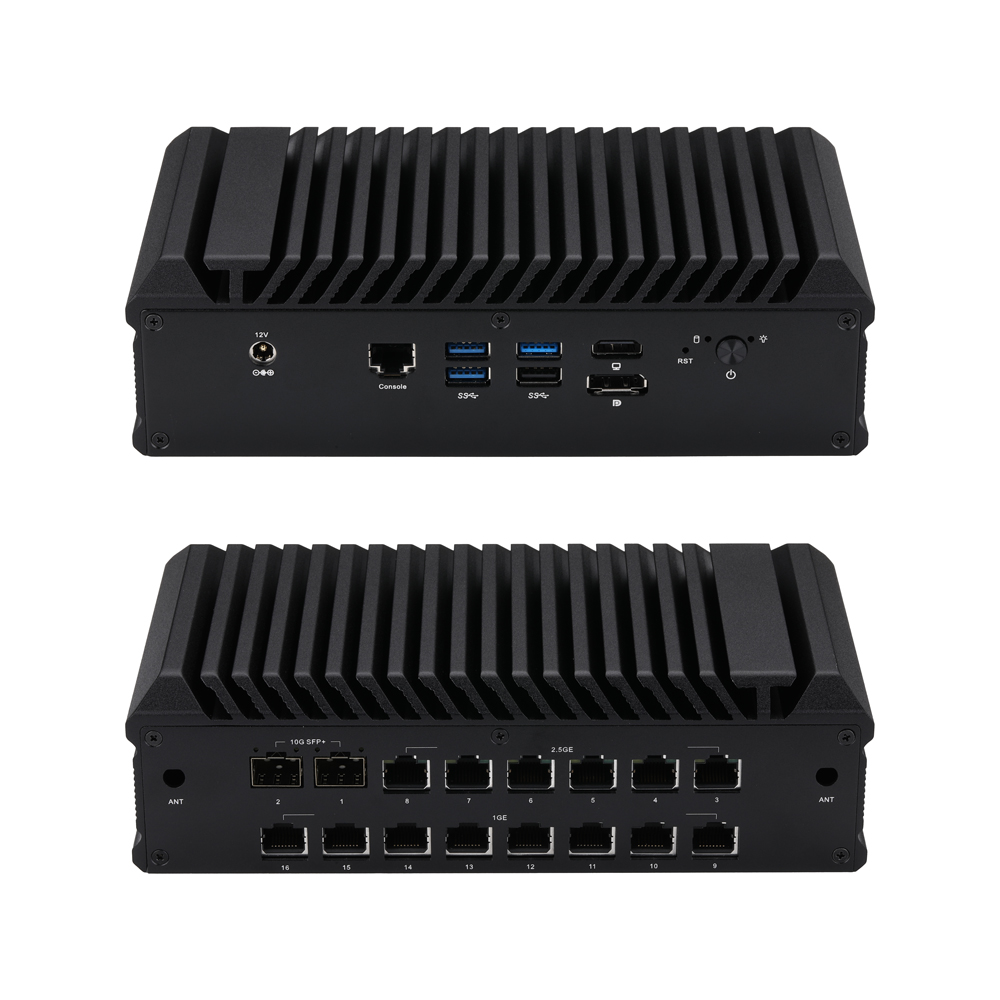

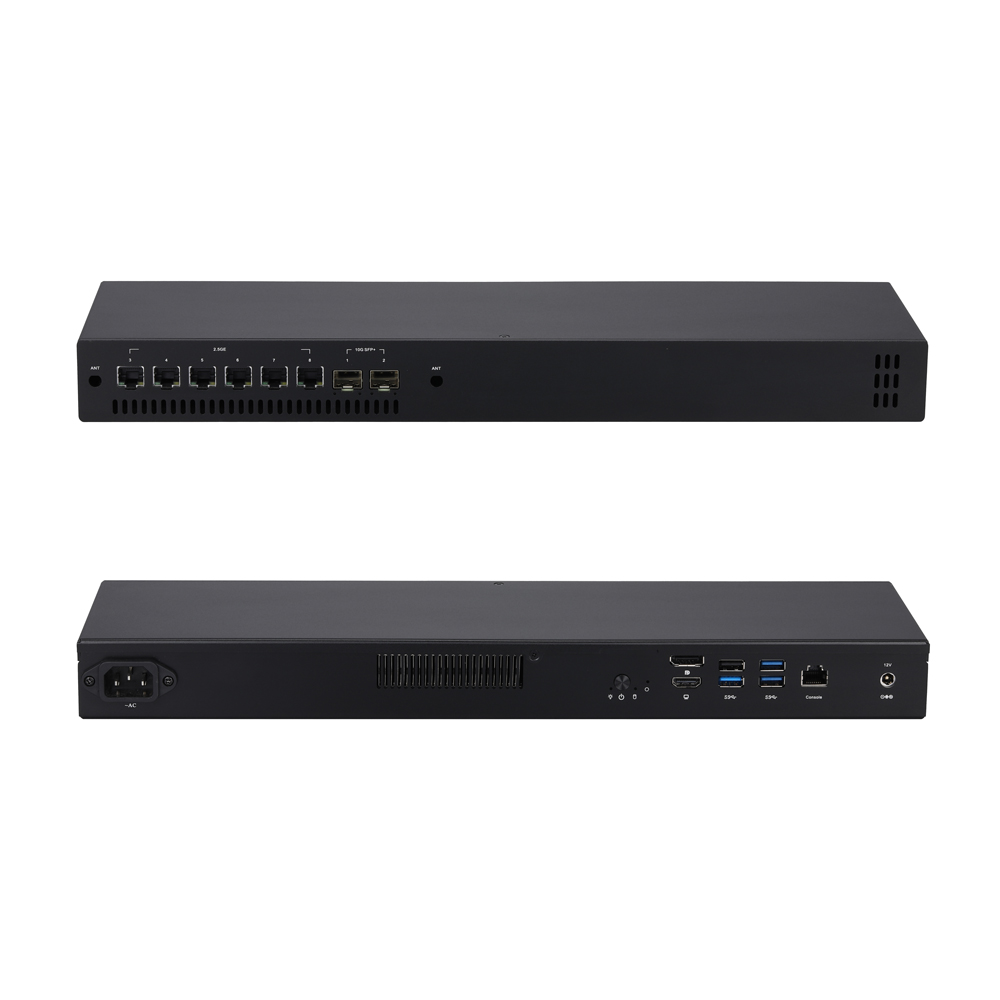

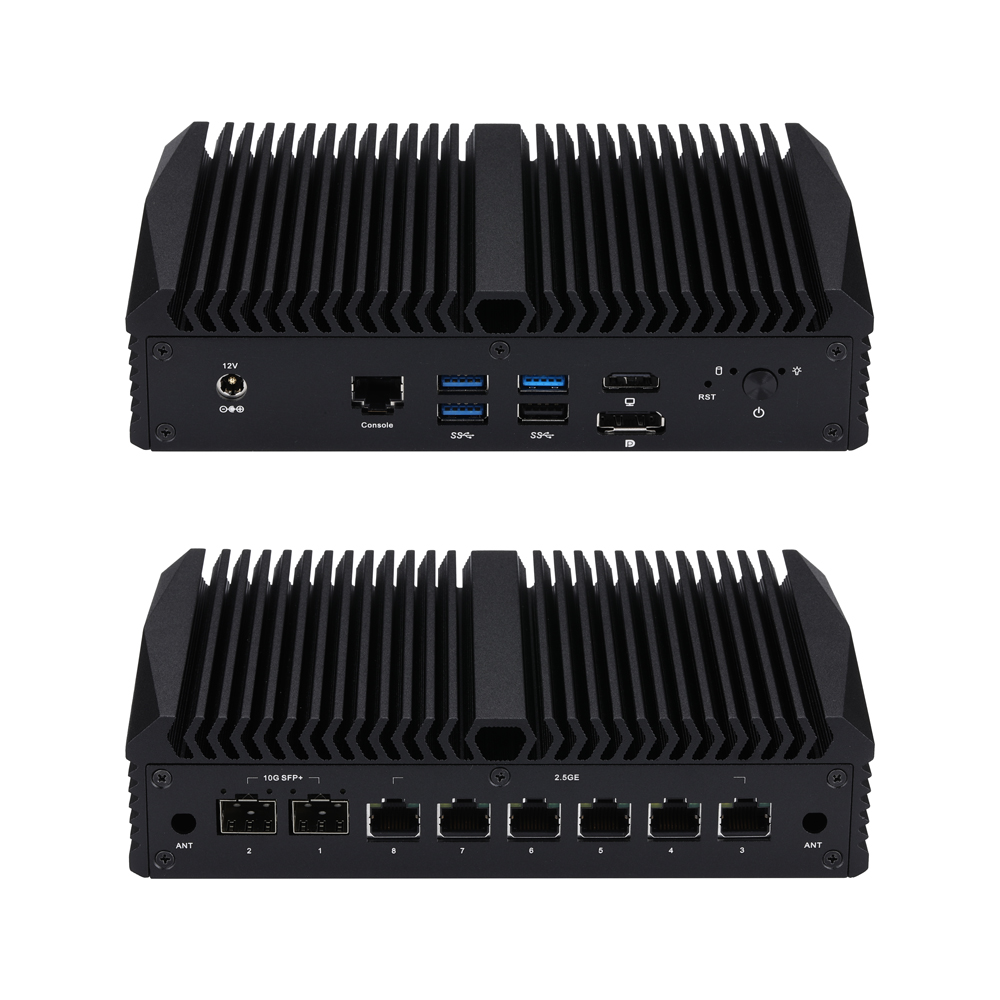

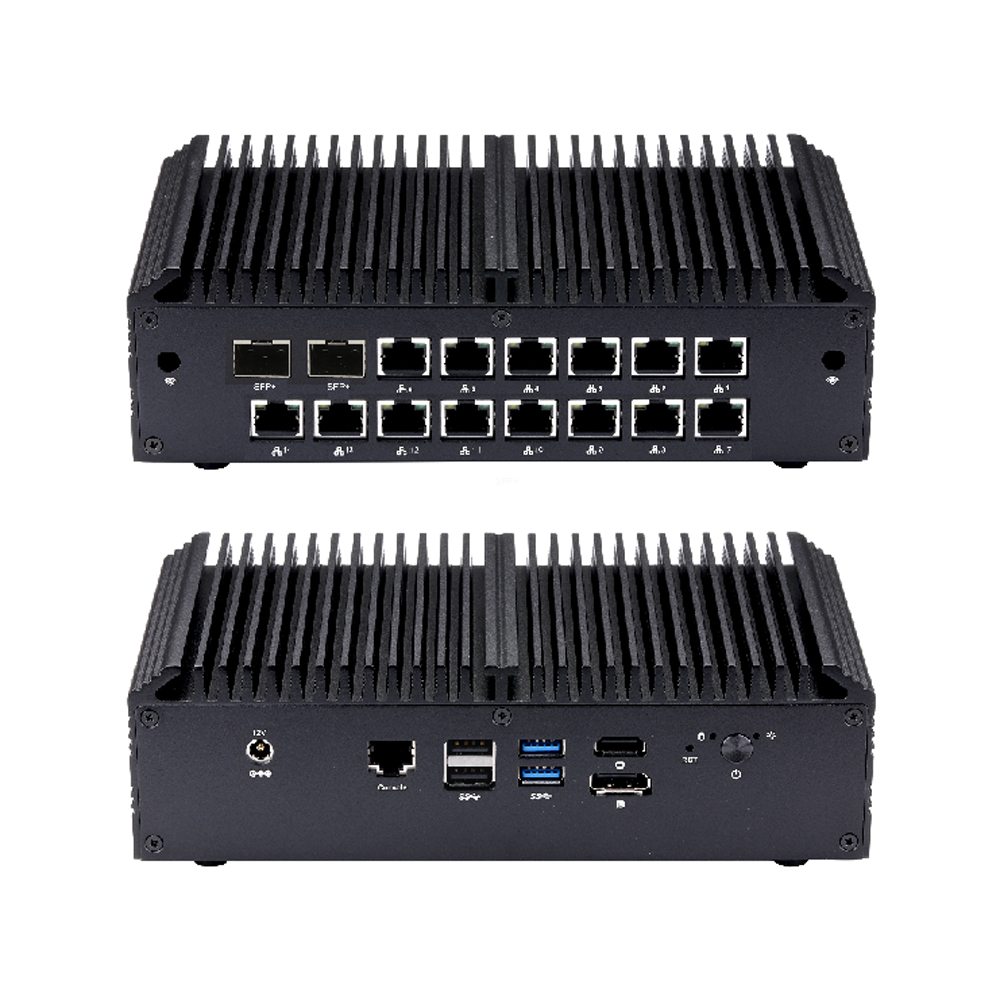

Compatible Systems
MB4U81A-0912MB4U81A-0921MB4U81A-0931MB4U81A-0951MB4U81A-0971MB4U81A-0952MB4U81A-1011MB4U81A-1012MB4U81A-1021MB4U81A-1031MB4U81A-1051MB4U81A-1071MB4U81A-1072MB4U81A-1073MB4U81Y-0912MB4U81Y-0921MB4U81Y-0931MB4U81Y-0951MB4U81Y-0971MB4U81Y-0952MB4U81Y-1011MB4U81Y-1012MB4U81Y-1021MB4U81Y-1031MB4U81Y-1051MB4U81Y-1071MB4U81Y-1072MB4U81Y-1073IntelWhiskey LakeCoffee LakeComet lakeCeleronPentiumCore i3Core i5Core i74205U4305U5405U8145U8265U8365U8565U8665U8140U8260U5205U5305U6405U10110U10210U10310U10510U10610U10710U10810U
Main Features
Intel 8th Whiskey Lake-U Processor
Intel 8th Coffee Lake-U Processor
Intel 10th Comet lake-U Processor
1 × Display Port, 1 × HDMI
3 × USB 3.0, 1 × USB 2.0
3 × M.2, 1 × SATA 3.0
2,Intel 82599ES 10G SFP+
6 × Intel I225-V/I226-V 2.5G LAN
