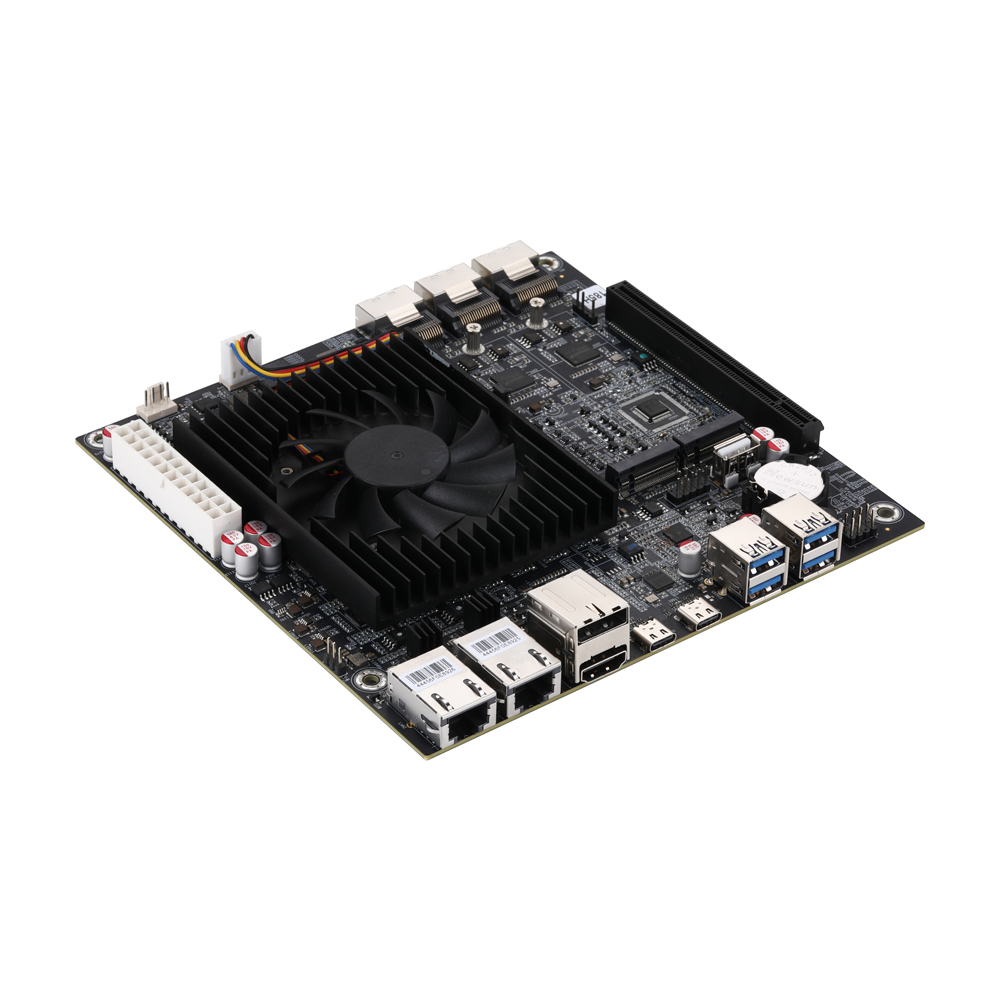

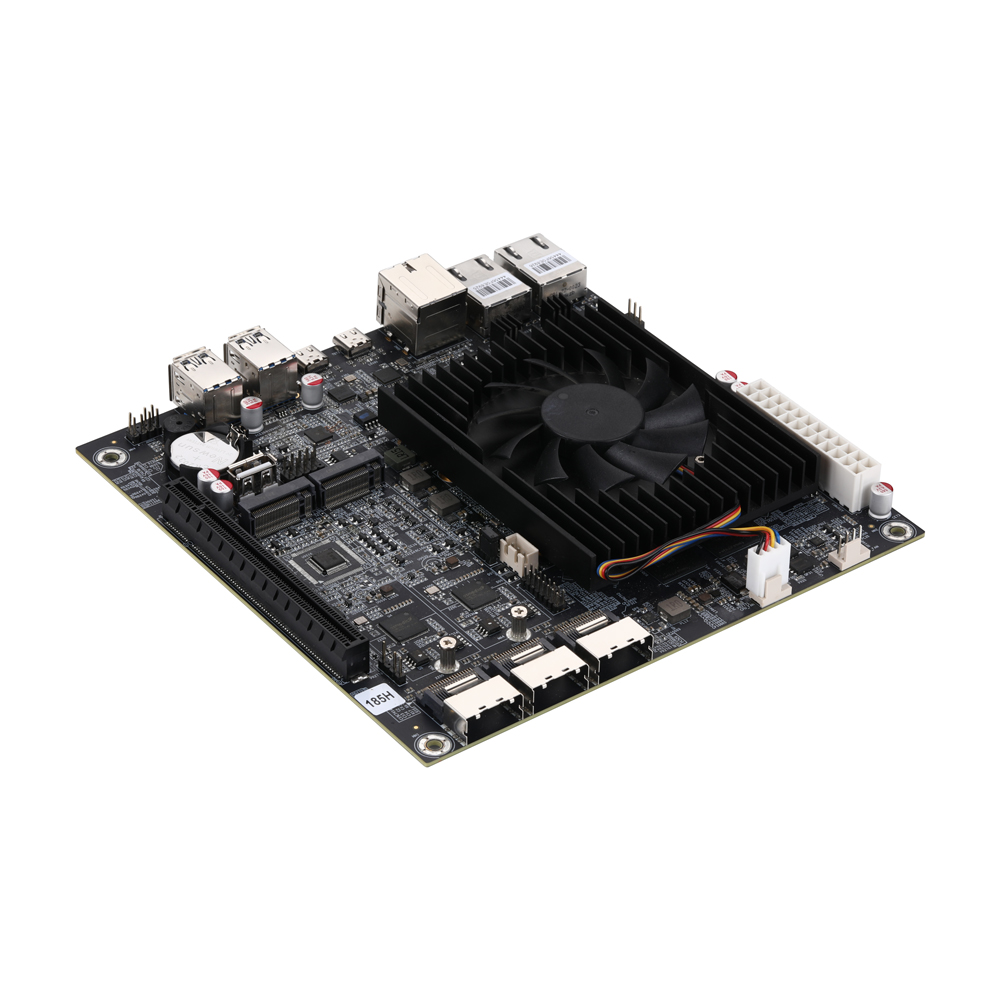

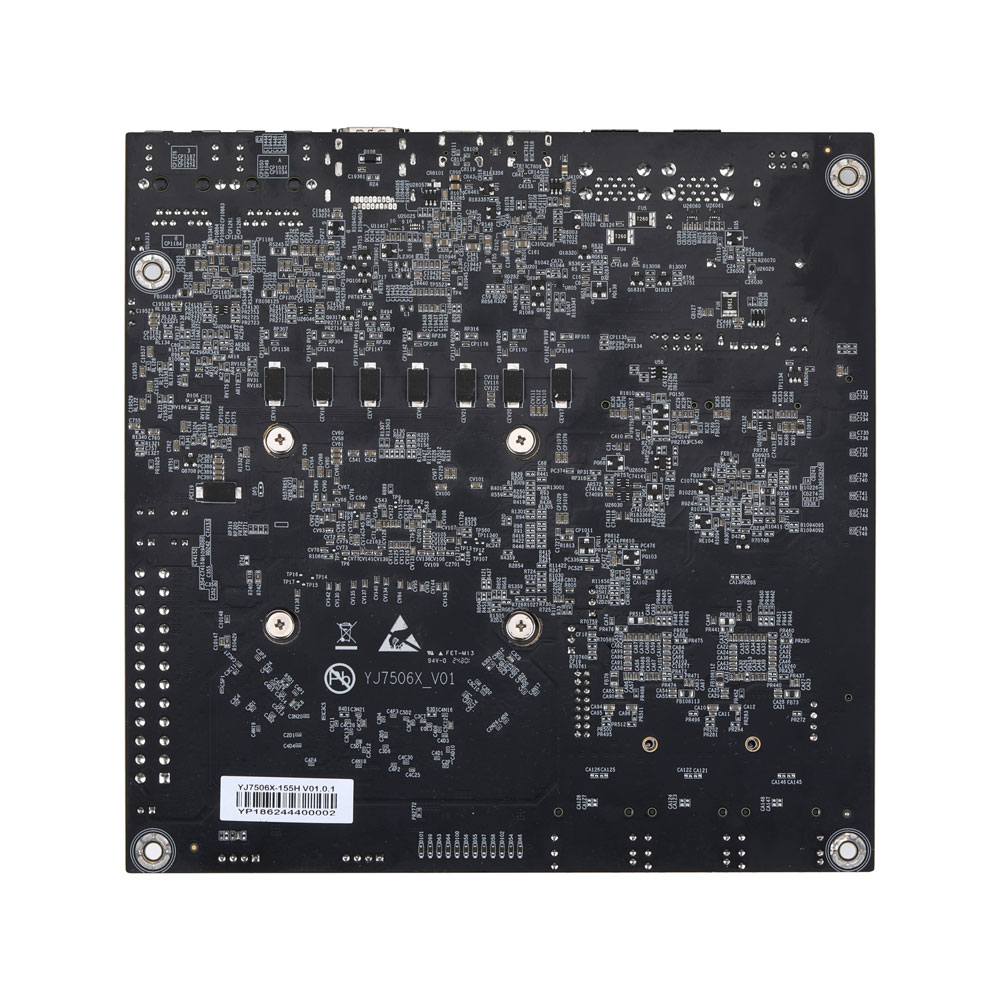

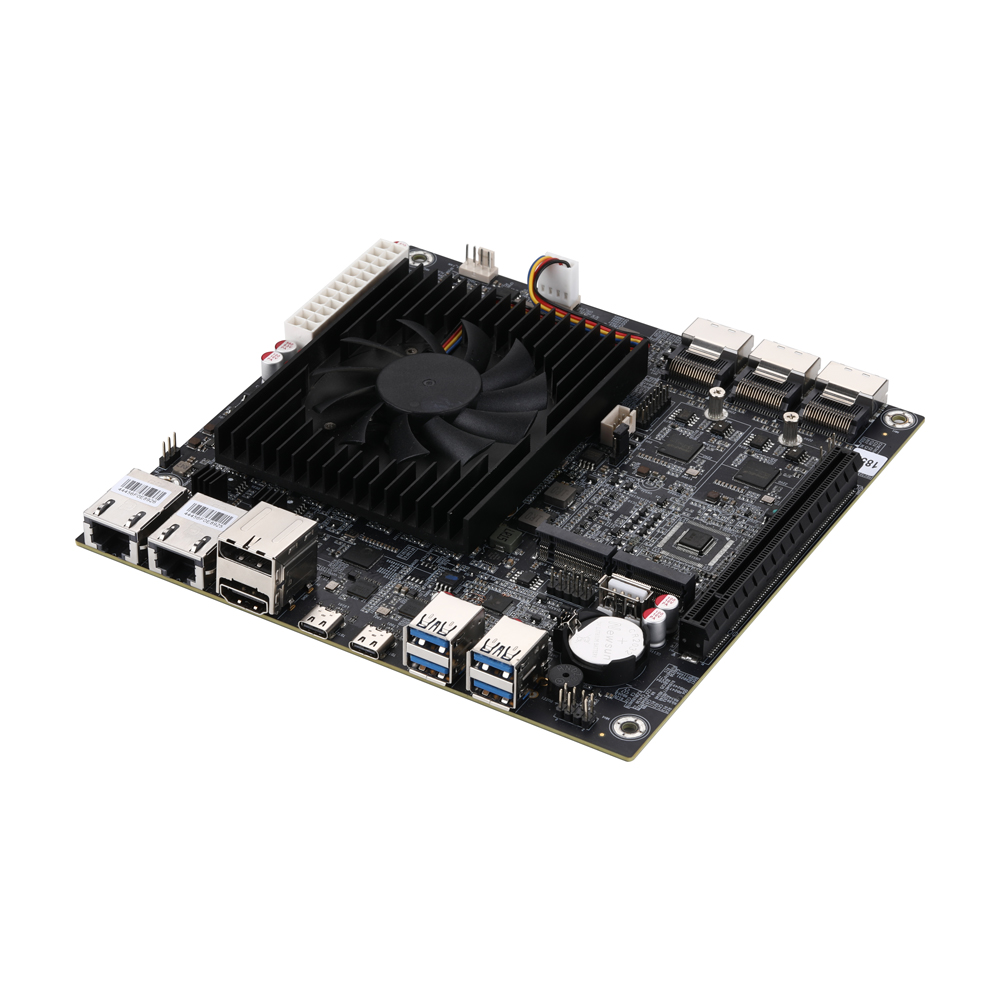

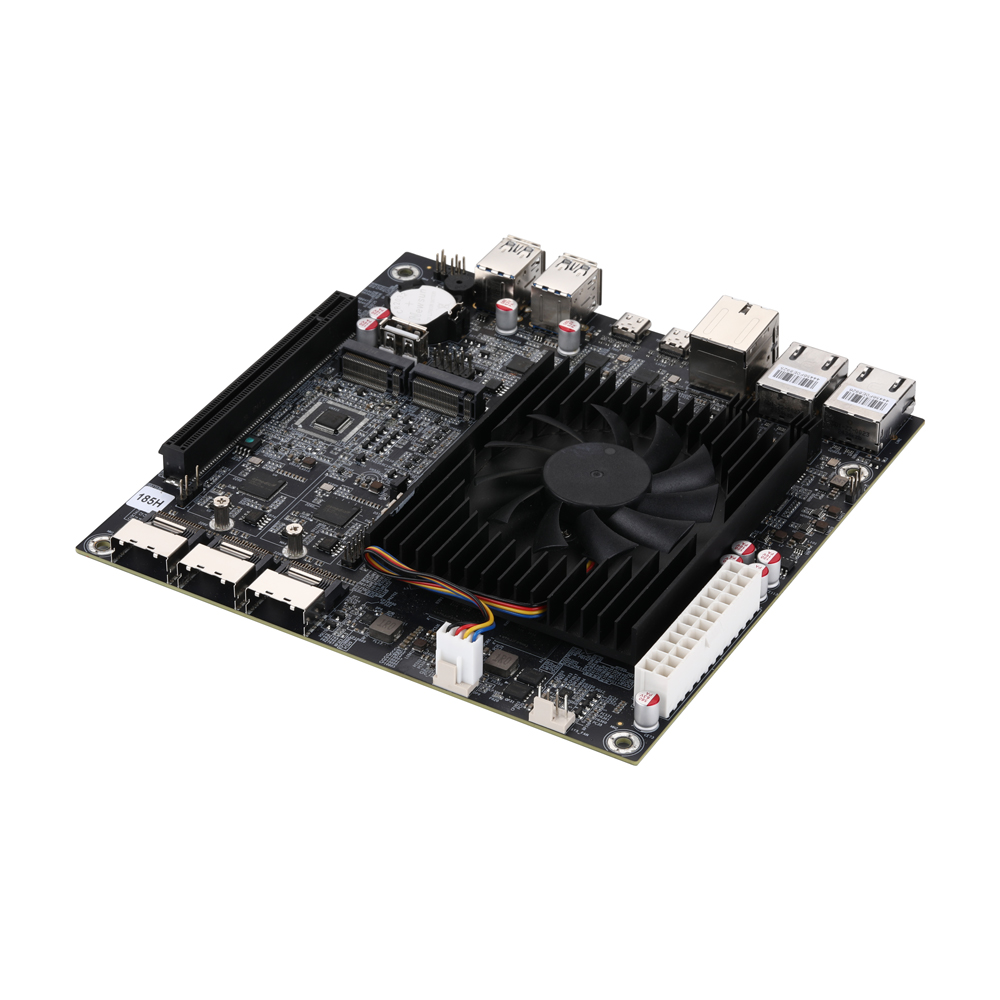

Motherboard MB7U20Z-1500 Series

Name: Motherboard MB7U20Z-1500 Series
Brand: Qotom
SKU: MB7U20Z-1500

Model: MB7U20Z-1500

Total LAN2

LAN Speed10G RJ45

Embedded hardware designs can start with MB7U20Z-1500, featuring Core Ultra AI NAS motherboard with 12 SATA ports, dual 10G networking, PCIe 5.0 and high-speed memory support for private AI storage, local AI servers, high-capacity NAS and edge data applications. Deployment scenarios range from compact server platforms and specialized hardware designs.

Key Specs

CPU: Meteor Lake / Arrow Lake
Memory: Integrated · Max Integrated
LAN: 2
Storage: M.2 Mkey, Mini SAS
Board Size: 170x170

Send Inquiry

Main Features

Intel Meteor Lake U/H Ultra Processor(Series 1)
Intel Arrow Lake U/H Ultra Processor(Series 2)
1 × Display Port, 1 × HDMI
2 × Thunderbolt 4, 4 × USB 3.2, 1 × USB 2.0
2 × M.2, 3 × Mini SAS ( 12 × SATA 3.0)
2 × Marvell AQC113C 10G LAN
1 × PCIe × 16 Slot ( PCIe 5.0 × 8)

Related Products

Motherboard MB7UT1X-1500 Series

MB7UT1X-1500

Mini PC Q31500ST S18 Series

Q31500ST-S18

Mini PC Q31500ST 1U14 Series

Q31500ST-1U14

Mini PC Q31500UT S18 Series

Q31500UT-S18

Mini PC Q31500UT 1U14 Series

Q31500UT-1U14

Mini PC Q31500VT S18 Series

Q31500VT-S18

CPU	• Intel Meteor Lake U/H Ultra Processor(Series 1) • Intel Arrow Lake U/H Ultra Processor(Series 2)
Chipset	By CPU
Dimension	170× 170mm
Core Number	By CPU
Max. Speed	By CPU
L2 Cache	By CPU
BIOS	UEFI

Technology	LPDDR5 8400MHz SDRAM
Default	32GB, Integrated
Max.	64GB (Option)

Controller	By CPU
VRAM	Shared Memory
Display Port	1
HDMI	1 (Support HDMI 1.4a)
Multi Display	Yes

USB	4× USB 3.2 Gen2 10Gbps (Type A)
Ethernet	2× 10G
Display	1× Display Port,1× HDMI
Thunderbolt 4	2

M.2	2 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4)
PCIe Slot	1× PCIe Slot (Type: X16, PCIe 5.0 × 8)

Motherboard MB7U20Z-1500 Series

Key Specs

Main Features

Processor System

Memory

Graphics

Ethernet

Front I/O

Rear I/O

Storage

Expansion

Internal Connector

Watchdog Timer

Power

Environmental

Accessories

OS Support

Package Contents

Order & Specification Selection

Driver Downloads

Related Products

M.2	2 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4)
Mini SAS	3 × Mini SAS ( 12 × SATA 3.0)

PCIe Slot	1, PCIe slot (Type: X16, PCIe 5.0 × 8)
Power Connector	ATX PWR (24 pin)
CPU FAN Connector	1, 1 × 4Pin, Pitch 2.54mm
SYS FAN Connector	1, 1 × 4Pin, Pitch 2.54mm
Front Panel Header	1, 2 × 8Pin, Pitch 2.0mm
USB 2.0 Connector	1 × USB 2.0 (Type A)
USB 2.0 Header	2, 2 × 5Pin, Pitch 2.54mm
Serial Port	1, 1 × 4Pin,Pitch 2.54mm
Clear CMOS Jumper	Yes, 1 × 3Pin, Pitch 2.54mm

Output	From Super I/O to Drag RESETCON#
Interval	256 Segments,0,1,2,3,,,255 sec/min

Ordering Code	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP	P-Cores	E-Cores
MB7U20Z-1551	Meteor Lake	Core Ultra 5	125U	12 / 14	1.30 GHz ~ 4.30 GHz	12M	Intel Graphics	15-57W	2	8
MB7U20Z-1571	Meteor Lake	Core Ultra 7	155U	12 / 14	1.70 GHz ~ 4.80 GHz	12M	Intel Graphics	15-57W	2	8
MB7H20Z-1551	Meteor Lake	Core Ultra 5	125H	14 / 18	1.20 GHz ~ 4.50 GHz	18M	I ntel Arc graphics	28-115W	4	8
MB7H20Z-1571	Meteor Lake	Core Ultra 7	155H	16 / 22	1.40 GHz ~ 4.80 GHz	24M	Intel Arc graphics	28-115W	6	8
MB7H20Z-1591	Meteor Lake	Core Ultra 9	185H	16 / 22	2.30 GHz ~ 5.10 GHz	24M	Intel Arc graphics	45-115W	6	8
