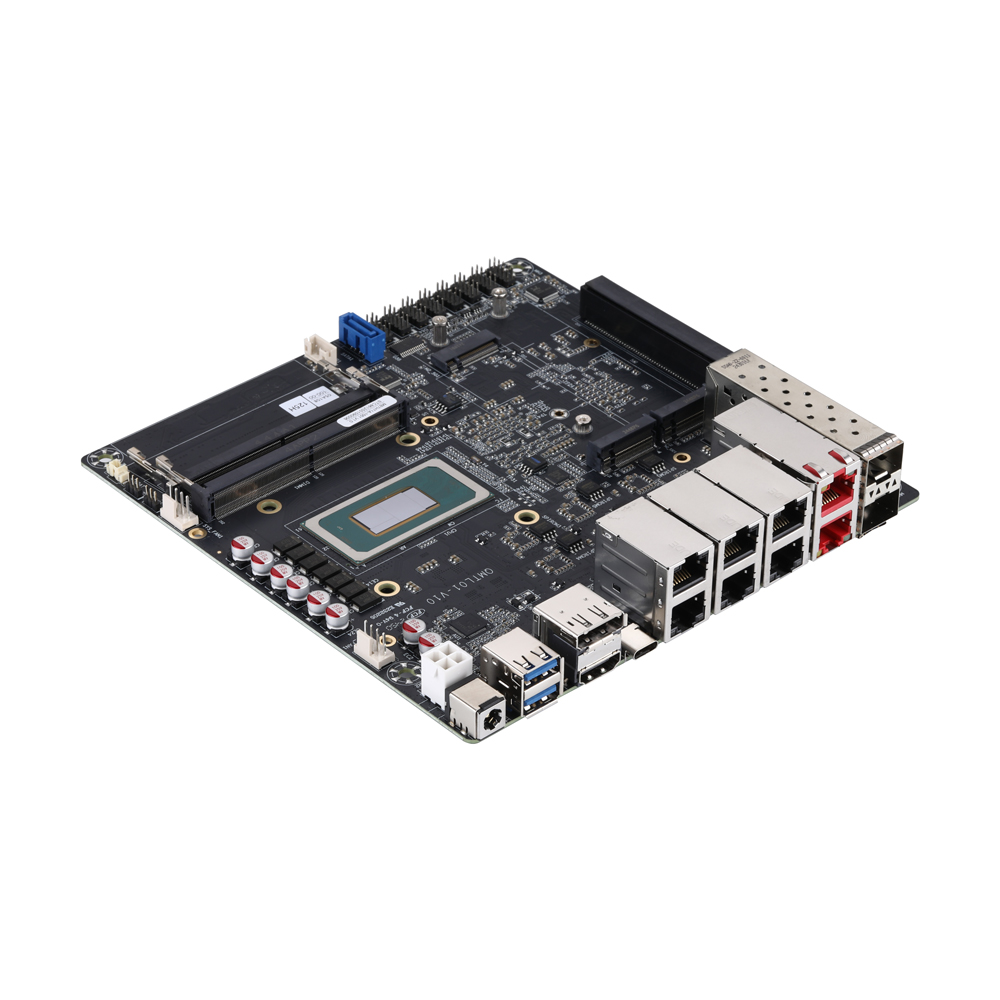

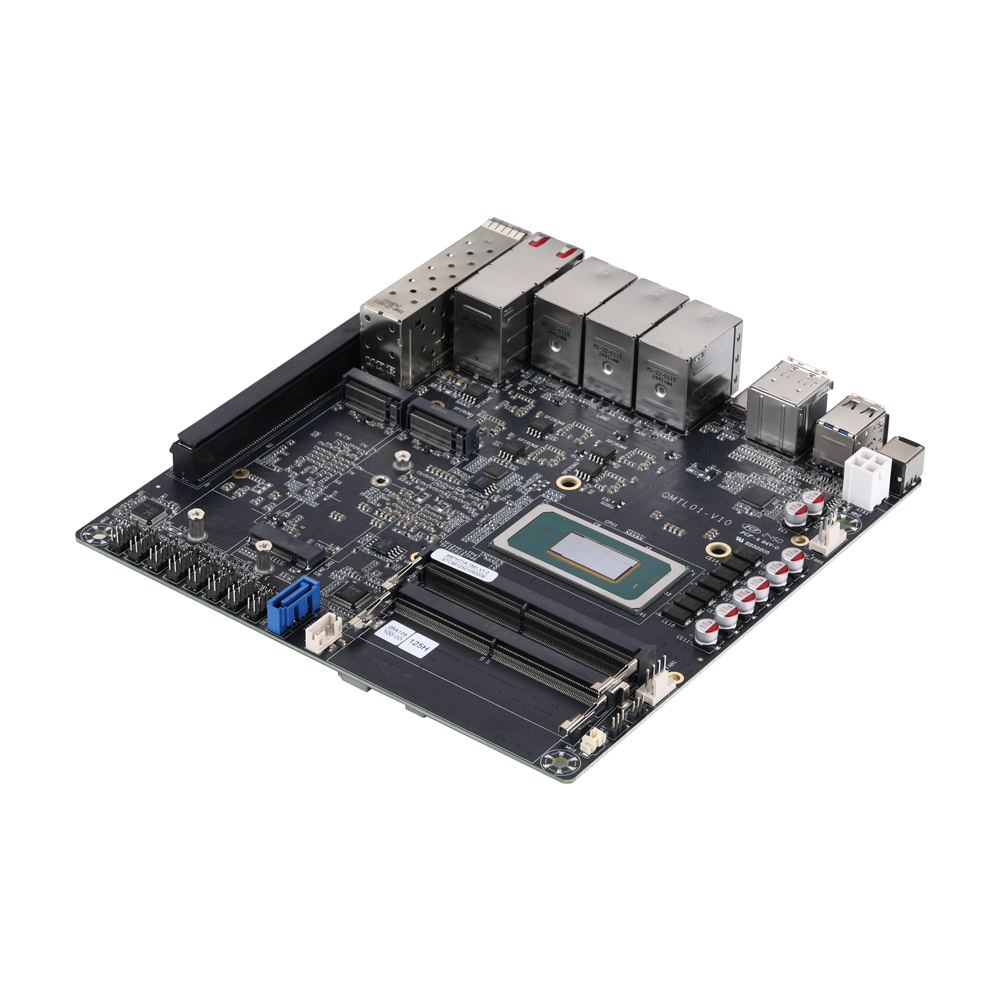

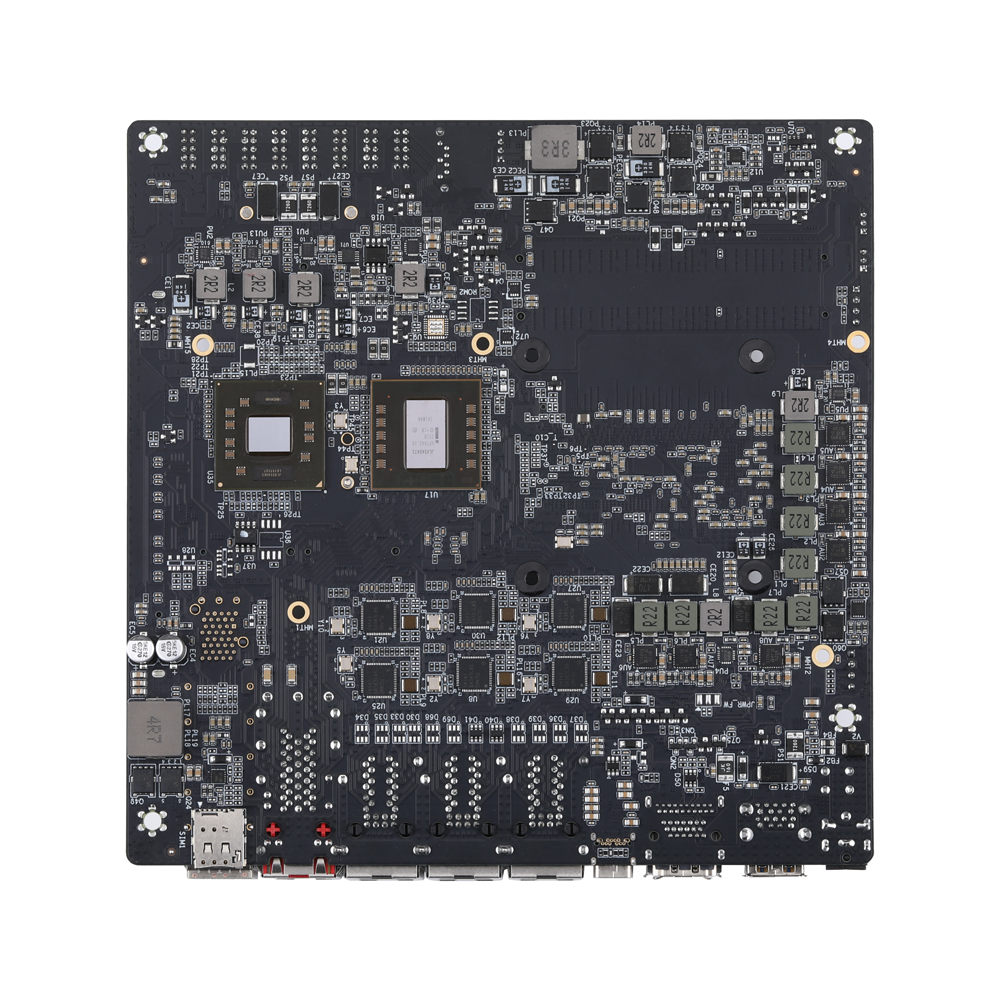

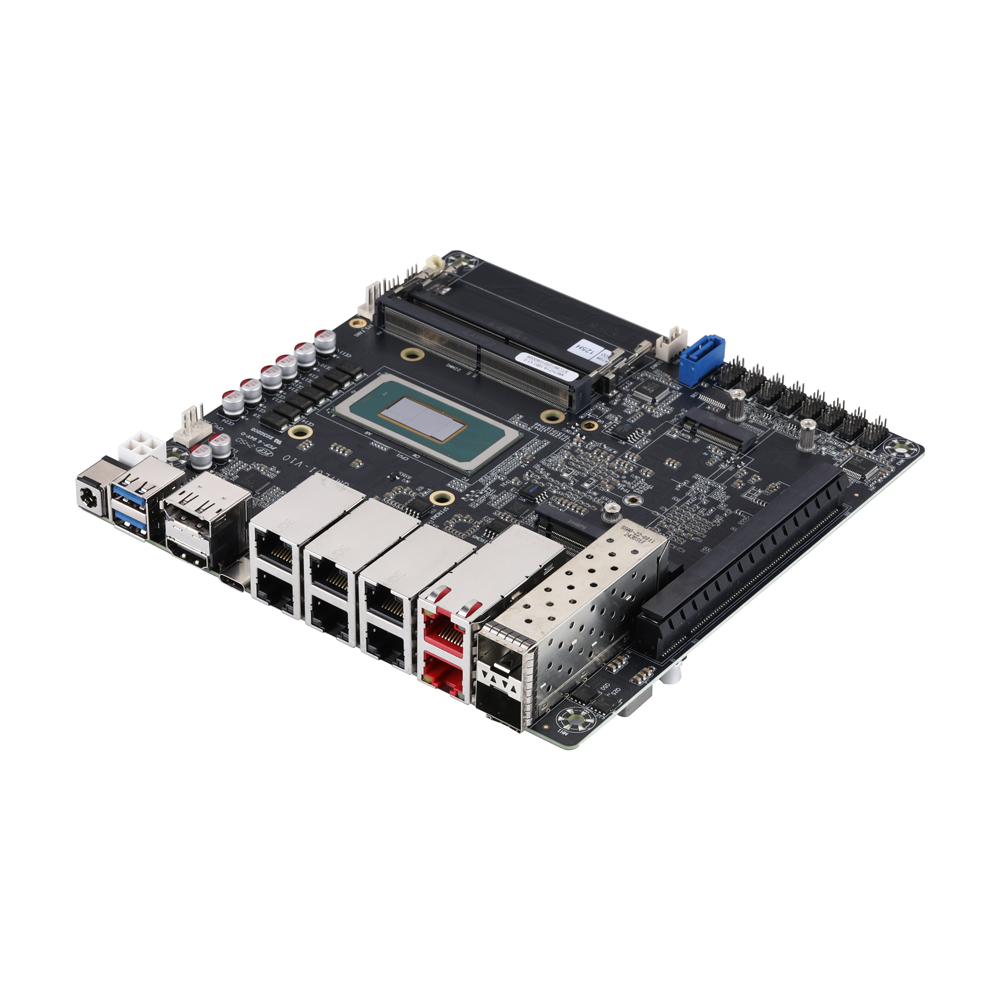

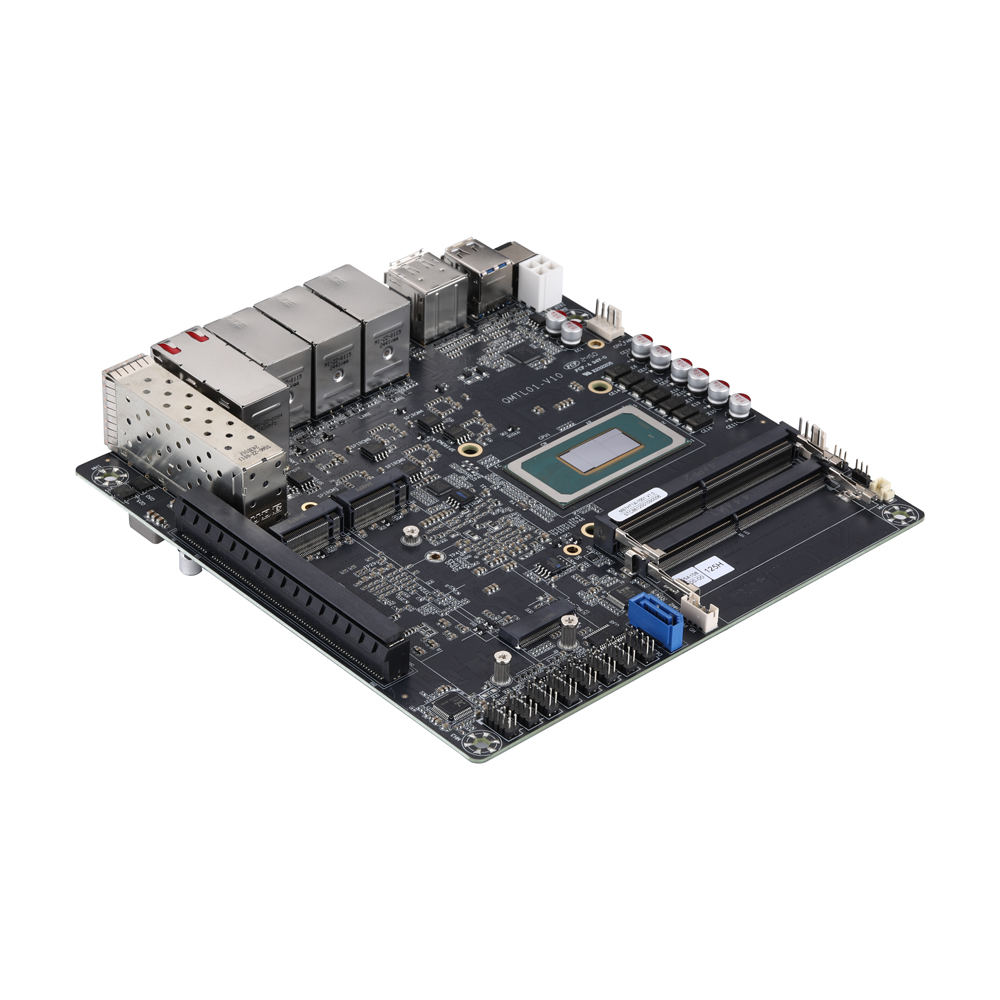

Motherboard MB7UT1X-150U Series

Name: Motherboard MB7UT1X-150U Series
Brand: Qotom
SKU: MB7UT1X-150U

Model: MB7UT1X-150U

Total LAN10

LAN Speed2.5G RJ45 / 10G RJ45 / 10G SFP+

Serial Ports1

MB7UT1X-150U is a high-end x86 motherboard supporting Intel Core Ultra U/H processors and Dual DDR5 up to 96GB. Its 10-port network architecture combines 2.5G LAN, 10G RJ45 and 10G SFP+ with PCIe and M.2 expansion for enterprise firewall appliances, high-speed routers, edge servers and network security systems.

Key Specs

CPU: Meteor Lake / Arrow Lake
Memory: DDR5 SO-DIMM · Max 96GB
LAN: 10
Storage: M.2 Mkey, SATA
Board Size: 170x170

Compatible Systems

Q31500VT-S18

Q31500VT-1U14

Send Inquiry

MB7UT1X-155U MB7UT1X-157U MB7HT1X-155U MB7HT1X-157U Intel Meteor Lake Arrow Lake Ultra 3 Ultra 5 Ultra 7 Ultra 9 125U 134U 135U 155U 164U 165U 125H 135H 155H 165H 185H

Main Features

Intel Meteor Lake U/H Ultra Processor(Series 1)
Intel Arrow Lake U/H Ultra Processor(Series 2)
1 × Display Port, 1 × HDMI
3 × USB 3.0, 1 × Type C
3 × M.2, 1 × SATA 3.0, 1 × RS-232
6 × Intel I225-V/I226-V 2.5G LAN
2,Intel X550 10G LAN
2,Intel X710-BM2 10G SFP+
1 × PCIe 5.0 × 8 Slot

Related Products

Motherboard MB7UT1X-1500 Series

MB7UT1X-1500

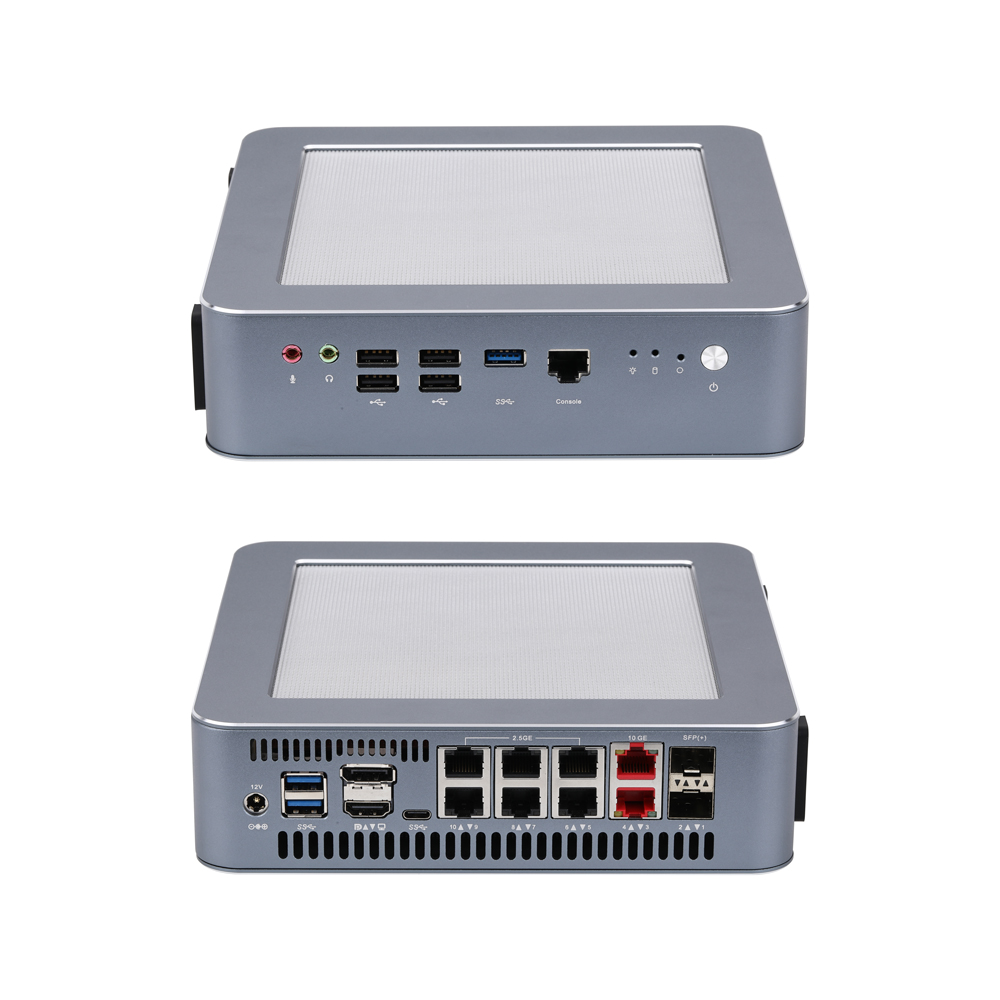

Mini PC Q31500ST S18 Series

Q31500ST-S18

Mini PC Q31500ST 1U14 Series

Q31500ST-1U14

Mini PC Q31500UT S18 Series

Q31500UT-S18

Mini PC Q31500UT 1U14 Series

Q31500UT-1U14

Mini PC Q31500VT S18 Series

Q31500VT-S18

CPU	• Intel Meteor Lake U/H Ultra Processor(Series 1) • Intel Arrow Lake U/H Ultra Processor(Series 2)
Chipset	By CPU
Dimension	170× 170mm
Core Number	By CPU
Max. Speed	By CPU
L2 Cache	By CPU
BIOS	UEFI

Technology	DDR5 4800MHz SDRAM
Max.	96GB
Socket	2 × SO-DIMMs

Controller	By CPU
VRAM	Shared Memory
Display Port	1
HDMI	1 (Support HDMI 1.4a)
Multi Display	Yes

RJ45/2.5G	6, Intel I225-V/I226-V 2.5G LAN
RJ45/10G	2, Intel X550 10G LAN (10GbE/5Gbe/2.5Gbe/1GbE) Both interfaces support up to 12Gbps
SFP+ / 10G	2,Intel X710-BM2 10G SFP+ (10GbE/1GbE)

DC-IN	1
USB 3.0	2× USB 3.0 (Type A)
Display	1 × Display Port,1 × HDMI
Type C	1, USB 3.0
Ethernet	6× 2.5G
Ethernet	2× 10G
SFP+	2 × 10G SFP+

Motherboard MB7UT1X-150U Series

Key Specs

Compatible Systems

Main Features

Processor System

Memory

Graphics

Ethernet

Audio

Rear I/O

Storage

Expansion

Internal Connector

Watchdog Timer

Power

Environmental

Accessories

OS Support

Package Contents

Order & Specification Selection

BIOS & Firmware

Driver Downloads

Related Products

M.2	1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4)
M.2	1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 1)
M.2	1 × M.2 for 4G/5G (B key, Type: 3042/3052)

PCIe Slot	1, PCIe slot (Type: X16, PCIe 5.0 × 8)
Power Header	1, 2 × 2Pin, Pitch 5.5mm/4.2mm
CPU FAN Connector	1, 1 × 4Pin, Pitch 2.54mm
SYS FAN Connector	1, 1 × 4Pin, Pitch 2.54mm
Audio Header	1, 2 × 5Pin, Pitch 2.0mm
Front Panel Header	1, 2 × 5Pin, Pitch 2.0mm
USB 2.0 Header	4, 2 × 5Pin, Pitch 2.0mm
USB 3.0 Header	1, 2 × 5Pin, Pitch 2.0mm
Serial Port	1, 2 × 5Pin,Pitch 2.0mm
SATA	1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector	1, 1 × 4Pin, Pitch PH2.0mm
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
Clear CMOS Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
GPIO Header	1, 2 × 5Pin, Pitch 2.0mm

Output	From Super I/O to Drag RESETCON#
Interval	256 Segments,0,1,2,3,,,255 sec/min

Ordering Code	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP	P-Cores	E-Cores
MB7UT1A-155U	Meteor Lake	Core Ultra 5	125U	12 / 14	1.30 GHz ~ 4.30 GHz	12M	Intel Graphics	15-57W	2	8
MB7UT1A-157U	Meteor Lake	Core Ultra 7	155U	12 / 14	1.70 GHz ~ 4.80 GHz	12M	Intel Graphics	15-57W	2	8
MB7HT1A-155U	Meteor Lake	Core Ultra 5	125H	14 / 18	1.20 GHz ~ 4.50 GHz	18M	I ntel Arc graphics	28-115W	4	8
MB7HT1A-157U	Meteor Lake	Core Ultra 7	155H	16 / 22	1.40 GHz ~ 4.80 GHz	24M	Intel Arc graphics	28-115W	6	8
