Mini PC Q10531 S19 Series

Model: Q10531-S19

Total LAN1
LAN Speed1G RJ45

Q10531-S19 uses the Intel Pentium J5005 quad-core processor with up to 16GB DDR4, dual HDMI, 4 × USB 3.0 and 2.5-inch HDD/SSD support. The compact aluminum chassis, fan cooling and VESA mounting make it suitable for quiet offices, classrooms, reception desks and everyday business computing.

Key Specs

CPU
Gemini Lake / Gemini Lake-R
Memory
DDR4 SO-DIMM · Max 16GB
LAN
1
Storage
SATA

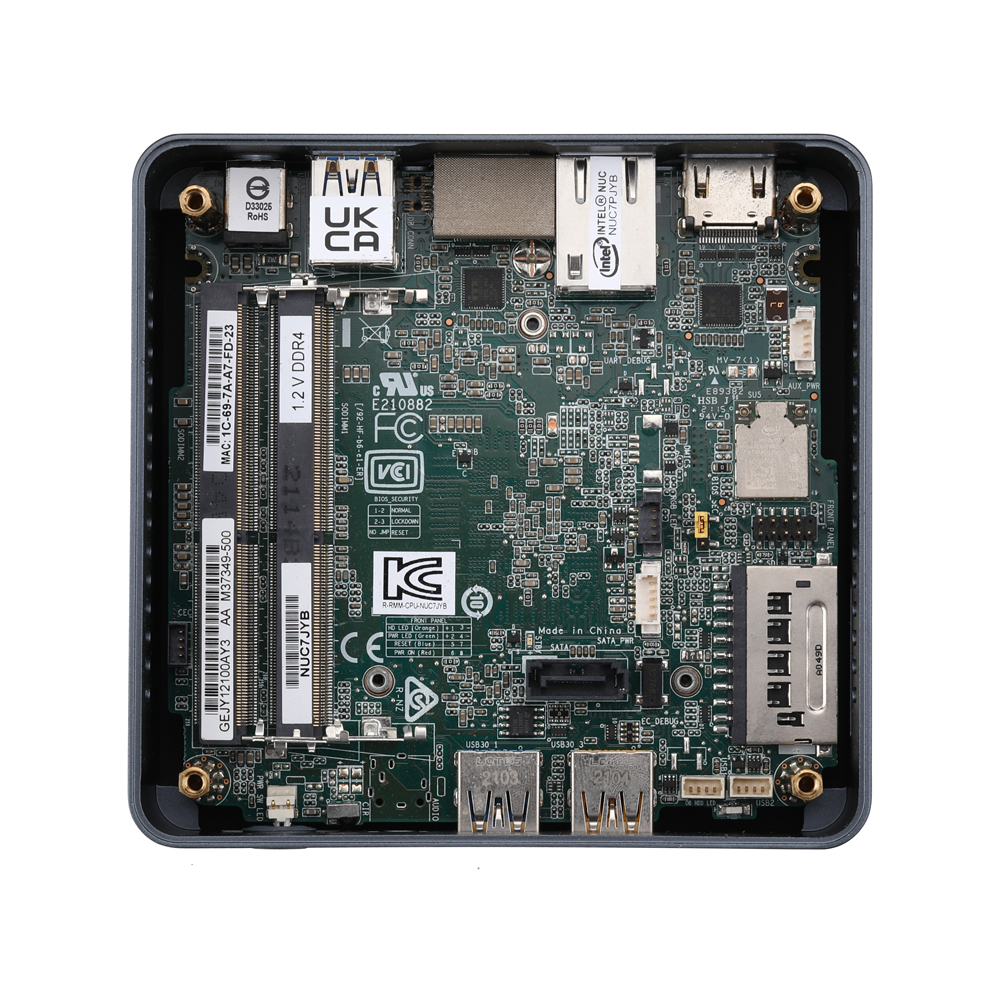

Compatible Motherboard

NUC7JYB
NUC7JYB
Send Inquiry Buy Now
Q10531NQ10531IntelGemini LakeGemini Lake-RPentiumCeleronATOMN4000N4100J4005J4105N5000J5005N4020N4120J4025J4125N5030J5040

Main Features

  • Intel Pentium J5005 Gemini Lake Processor

  • Intel UHD Graphics 605

  • 2 × HDMI

  • 4 × USB 3.0

  • 1 × SATA

  • 1 × Realtek Gigabit LAN

Processor System

CPUIntel Gemini Lake Processor Default Pentium J5005 Quad Cores Processor 1.5GHz, up to 2.8GHz, 4M Cache
CPU TDP10W
Memory2 × DDR4 SO-DIMM Sockets (Up to 16G) Only Supports a Single 1G Memory Chip
ChipsetBy CPU
GraphicsIntel UHD Graphics 605
LAN Chipset1 × R ealtek Gigabit LAN
AudioNo
Watch DogNo

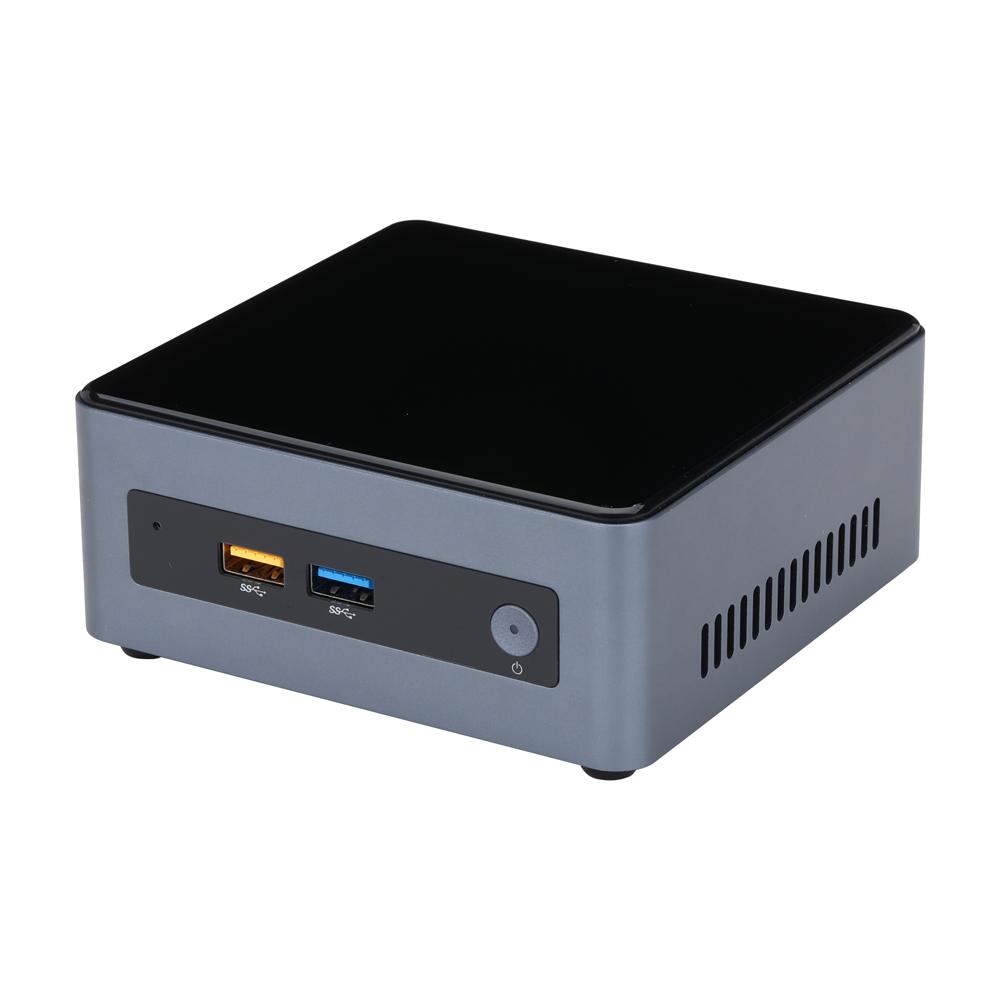

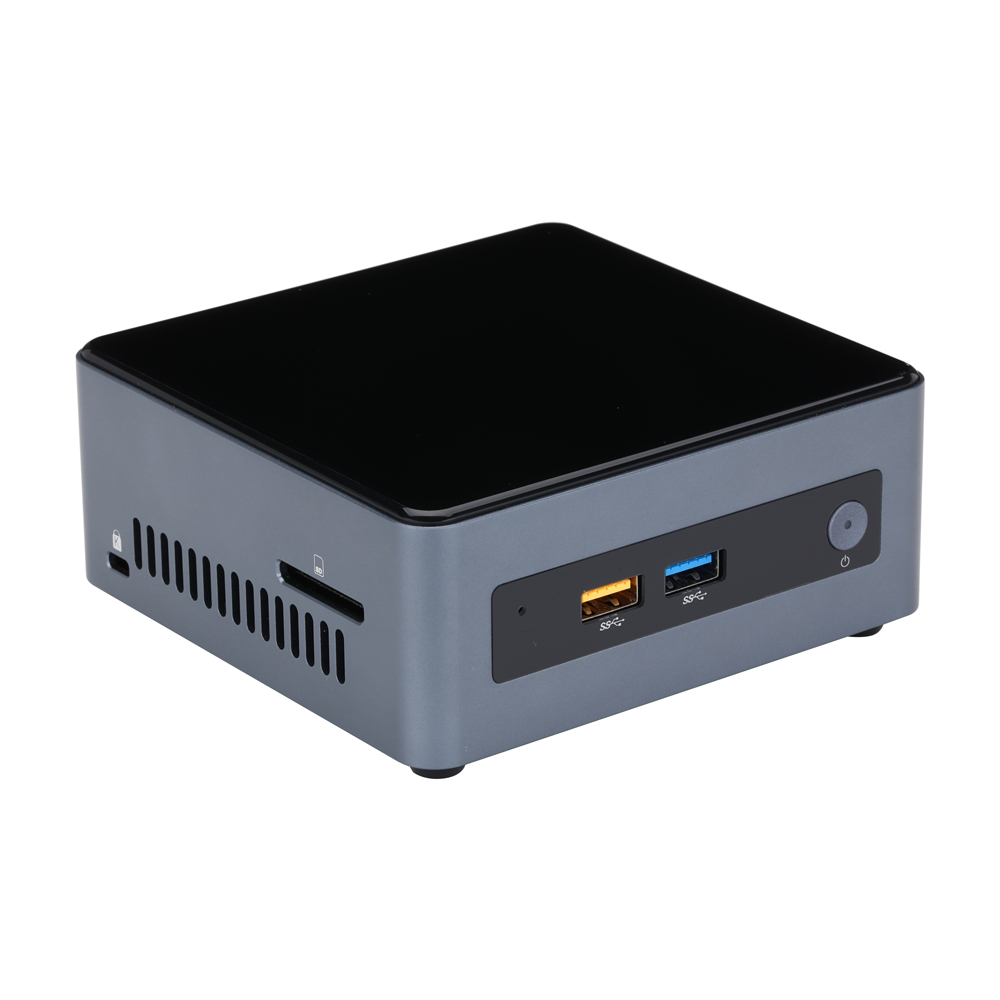

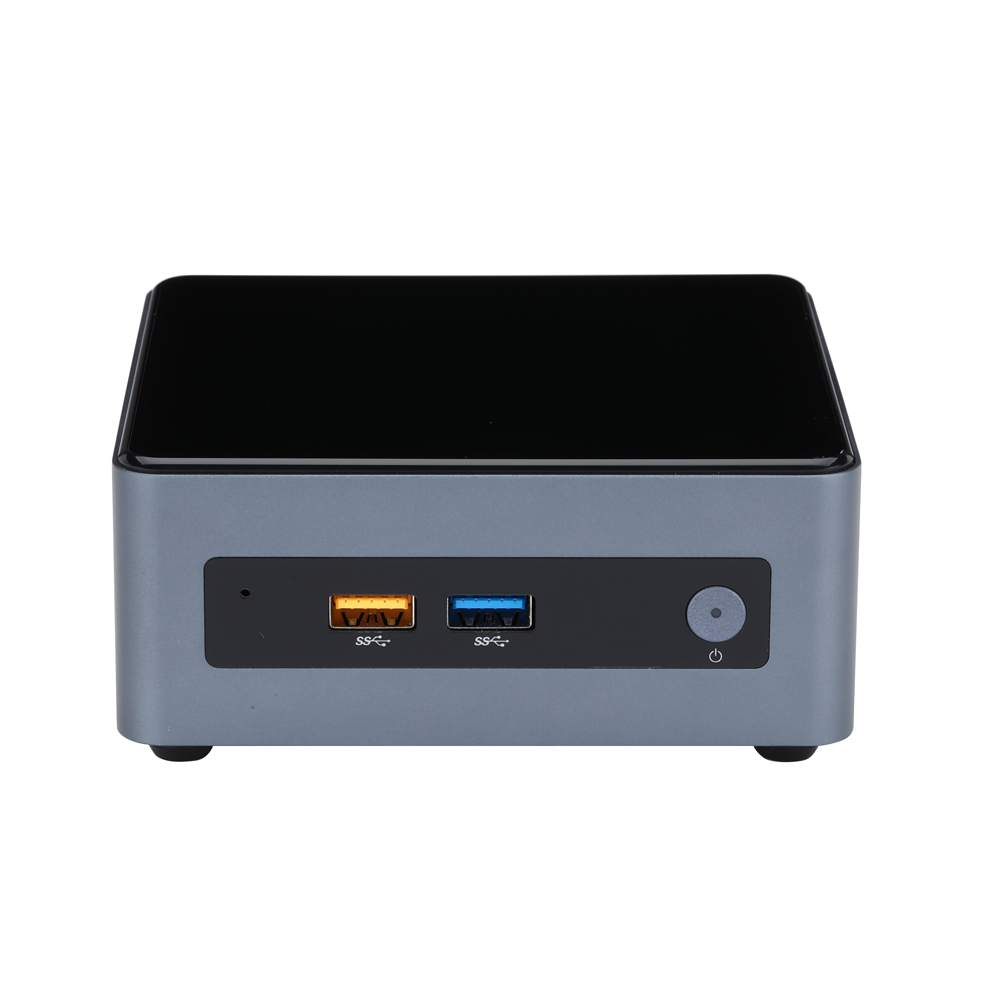

Front I/O

USB2 × USB 3.0
DC-IN1
Display2 × HDMI 2.0a
Ethernet1

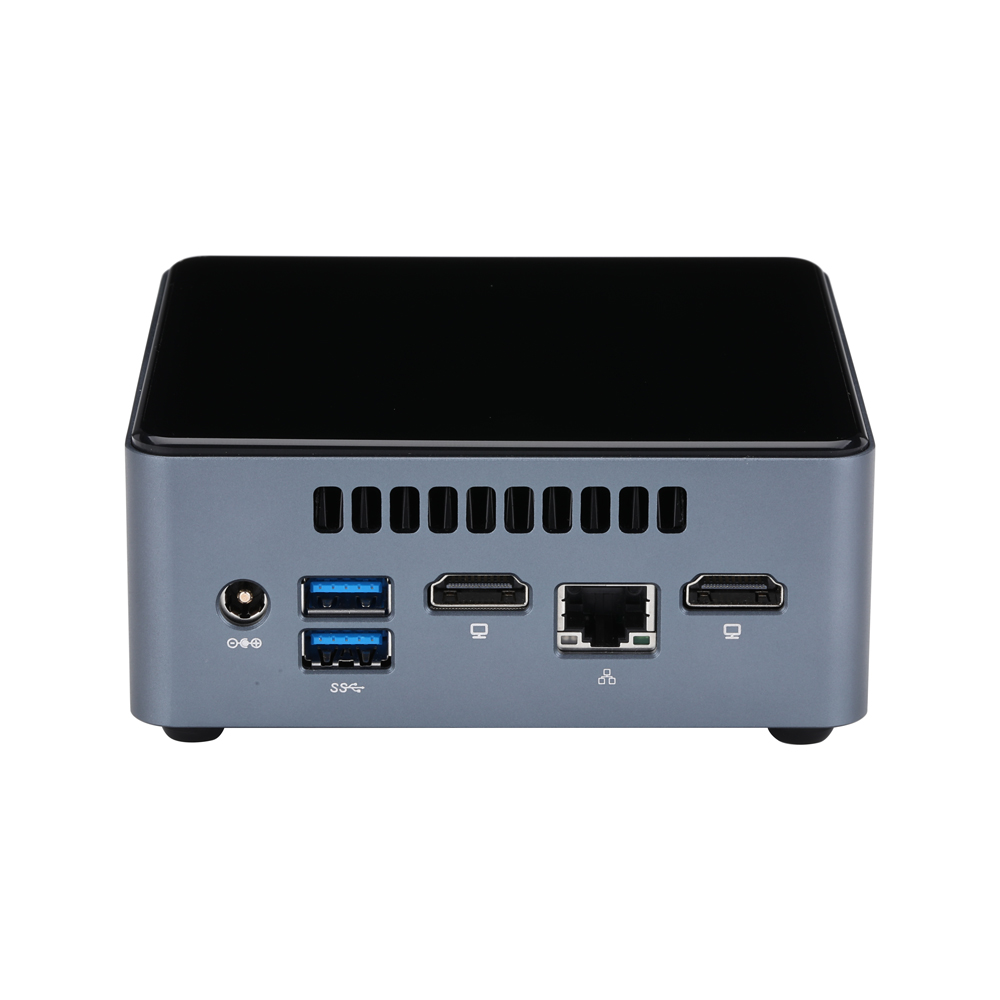

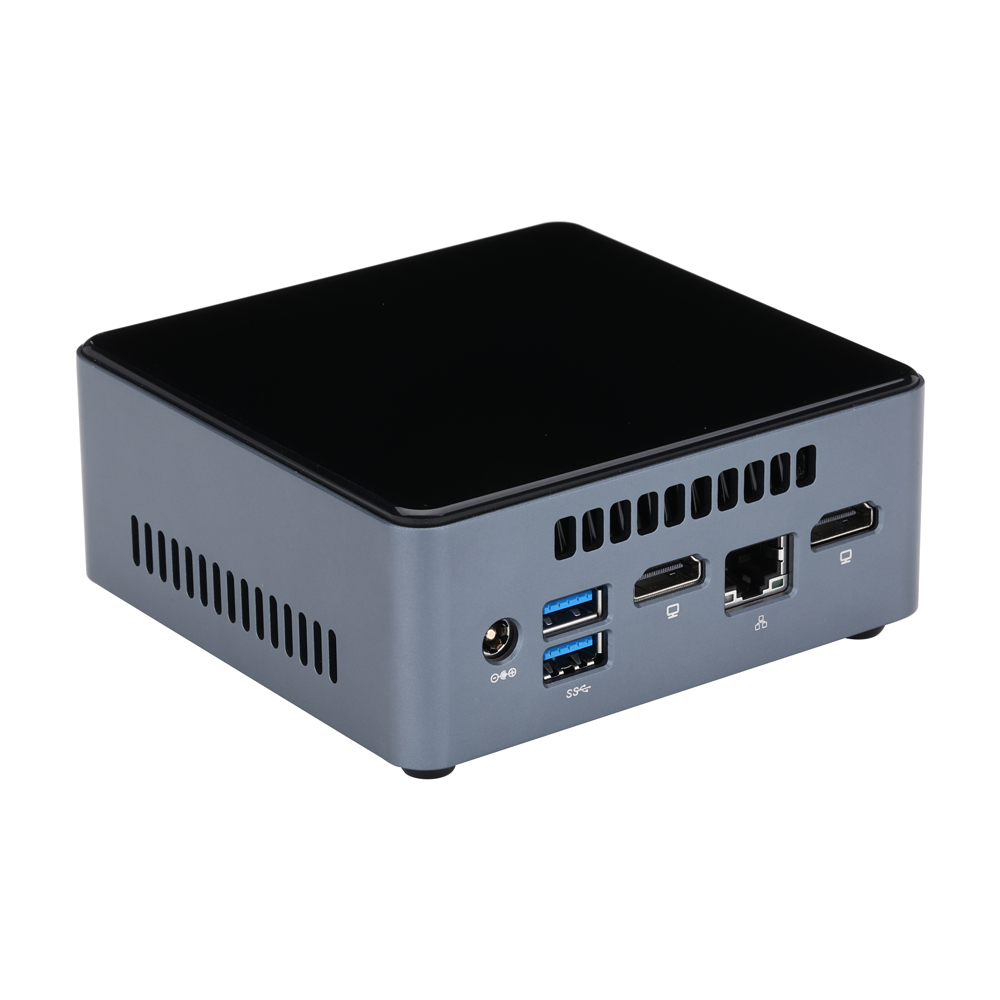

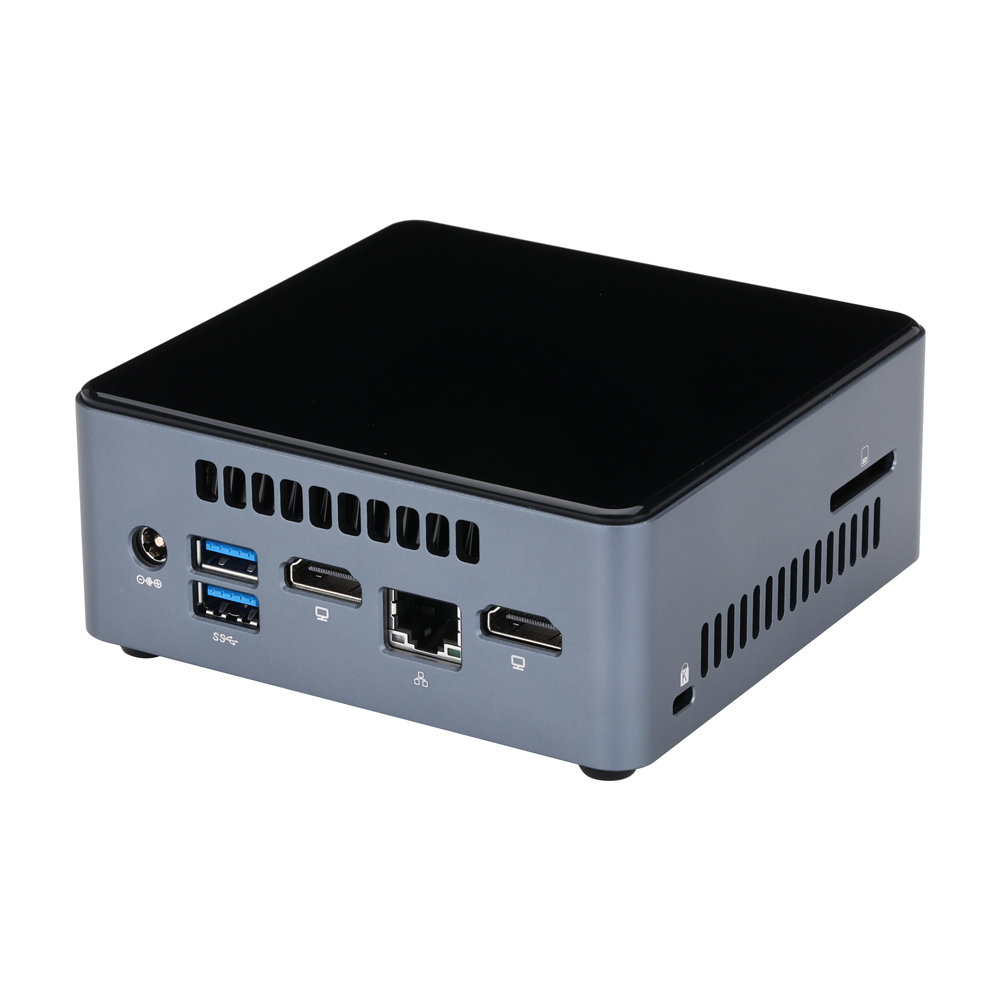

Rear I/O

USB2 × USB 3.0
Power Button1
LED1 × Power LED,1 × HDD LED
IRConsumer Infrared (CIR) sensor

Side I/O

SDXC card1 × SDXC card reader slot

Storage

Type1 × 2.5-inch HDD/SSD

Expansion

Wi-FiIntel Wireless-AC 9462-D2W wireless LAN module，Integrated
SATA1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector1,1 × 4Pin, Pitch 1.25mm
Clear CMOS JumperYes,1 × 3Pin, Pitch 1.25mm
USB 2.0 Header2,1 × 4Pin, Pitch 1.25mm
Front Panel Header1, 2 × 5Pin, Pitch 1.25mm
CPU FAN Connector1, 1 × 4Pin, Pitch 1.25mm

Power

Power Adapter19V2.1A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension115 × 111 × 46mm
Weight0.44kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockY es
Cooling ModeFan

OS Support

OSWindows 10, Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q10531-S19 CurrentGemini Lake Pentium J5005 4 / 4 1.5GHz ~ 2.8GHz 4M Intel UHD Graphics 605 10W
