Mini PC Q30600G6 S05 Series

Model: Q30600G6-S05

Total LAN6
LAN Speed1G RJ45
Serial Ports1

Key Specs

CPU
Skylake / Kaby Lake
Memory
DDR4 SO-DIMM · Max 32GB
LAN
6
Storage
mSATA, SATA

Compatible Motherboard

MB3U623-0600MB3U623-0600
Send Inquiry Buy Now
Q510G6Q520G6Q530G6Q550G6Q570G6Q515G6Q525G6Q535G6Q555G6Q575G6Q30611G6Q30612G6Q30631G6Q30651G6Q30671G6Q30711G6Q30712G6Q30731G6Q30751G6Q30771G6IntelSkylakeKaby LakeKaby Lake-RCeleronPentiumCore i3Core i5Core i73855U3955U4405U6006U6100U6200U6300U6500U6600U3865U3965U4415U7020U7100U7130U7200U7500U7560U7660U7600U

Main Features

  • Intel 6th Skylake-U Processor
  • Intel 7th Kabylake-U Processor
  • 1 × HDMI,1 × RS-232
  • 2 × USB 3.0,2 × USB 2.0,1 × SATA 3.0
  • 1 × Mini PCIe,1 × mSATA
  • 6 × Intel I211-AT/I210-AT Gigabit LAN

Processor System

CPU• Intel 6th Skylake-U Processor • Intel 7th Kabylake-U Processor
CPU TDPBy CPU
Memory1 × DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset6 × Intel I211-AT/I210-AT Gigabit LAN
AudioNo
Watch DogYes

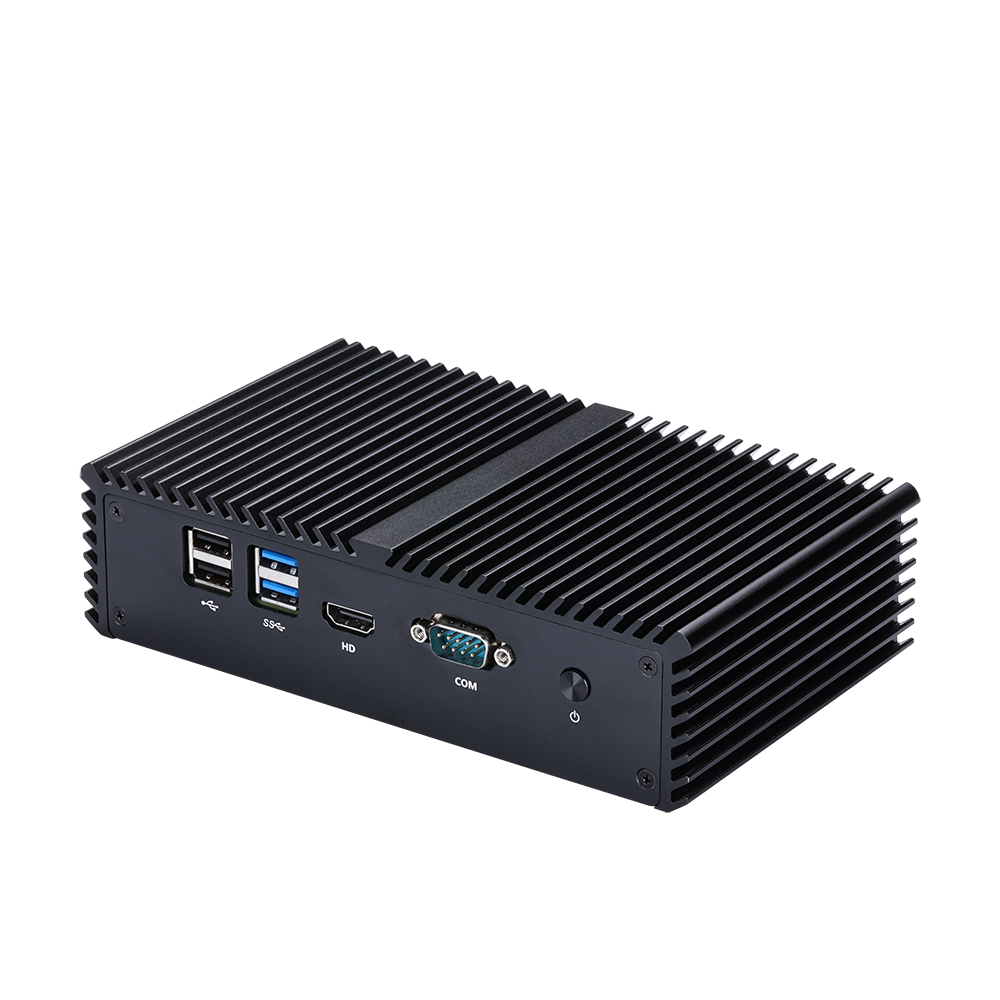

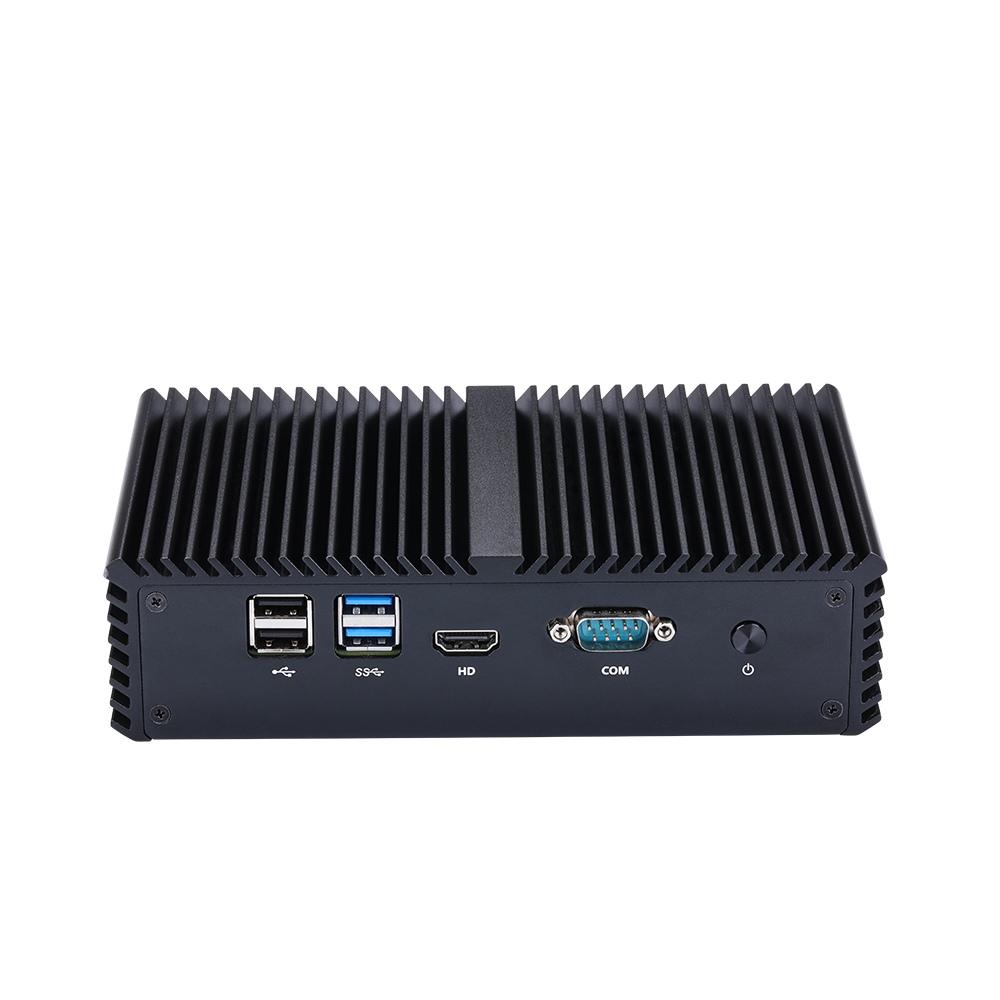

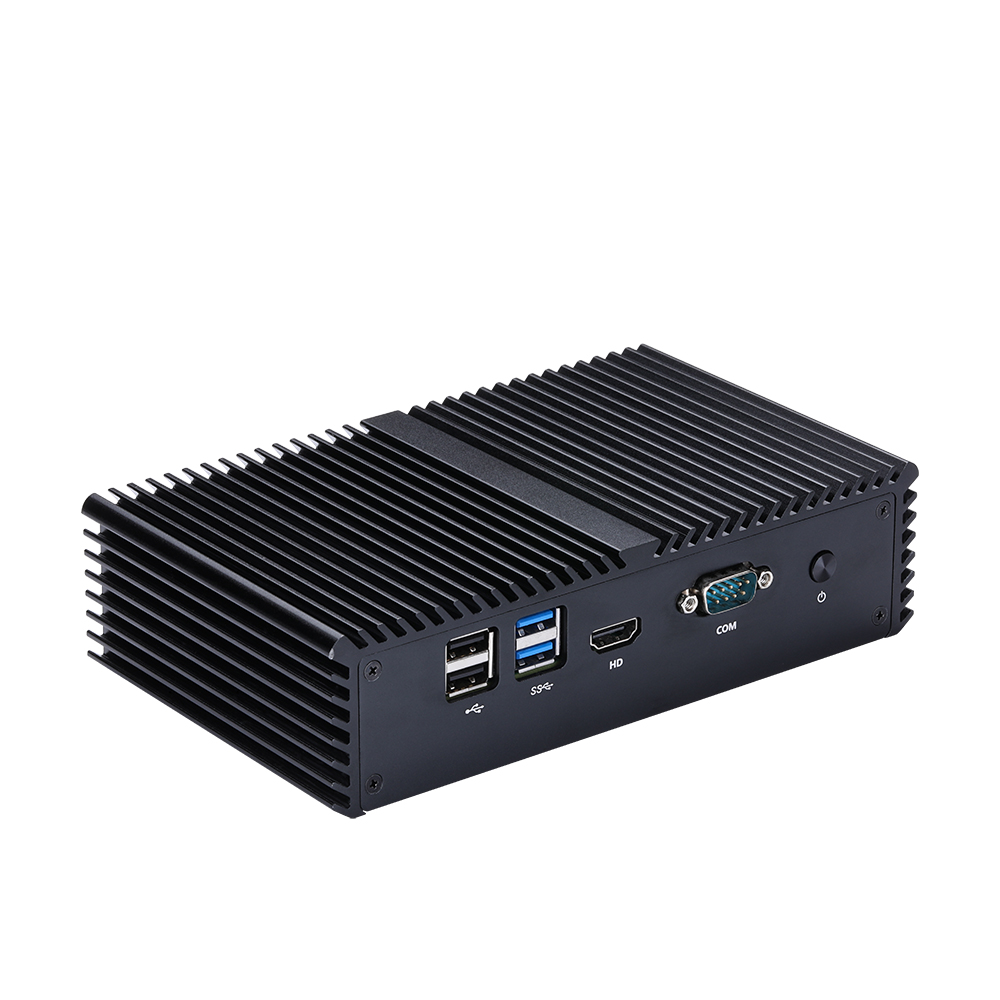

Front I/O

Power Button1
USB2 × USB 3.0,2 × USB 2.0
Serial Port1 × RS-232
Video Output1 × HDMI

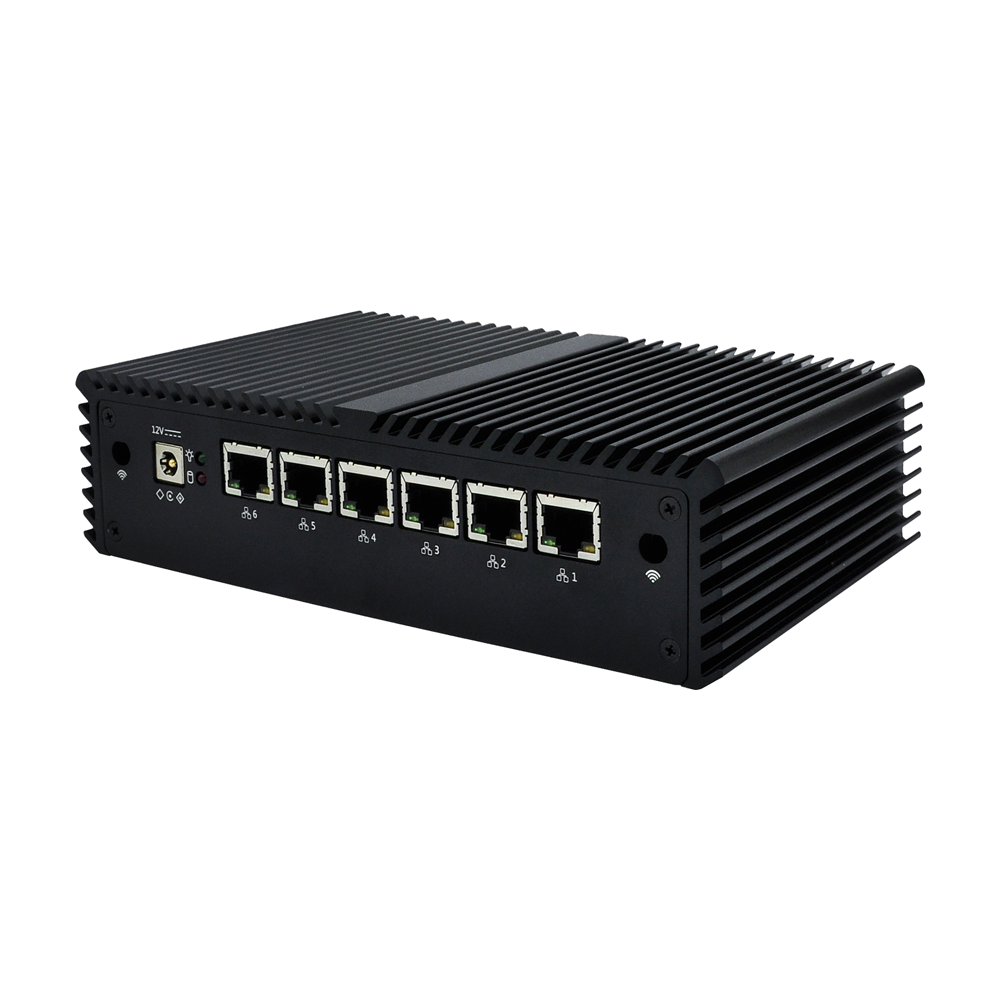

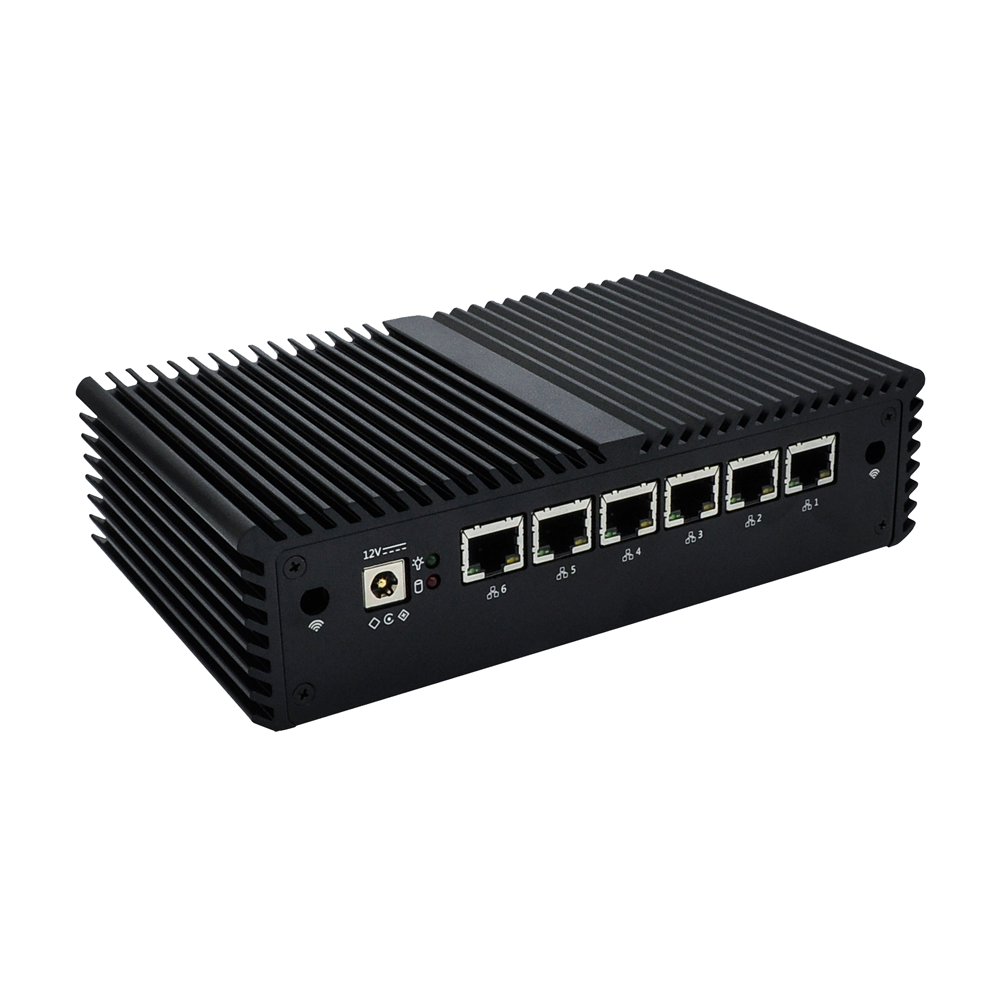

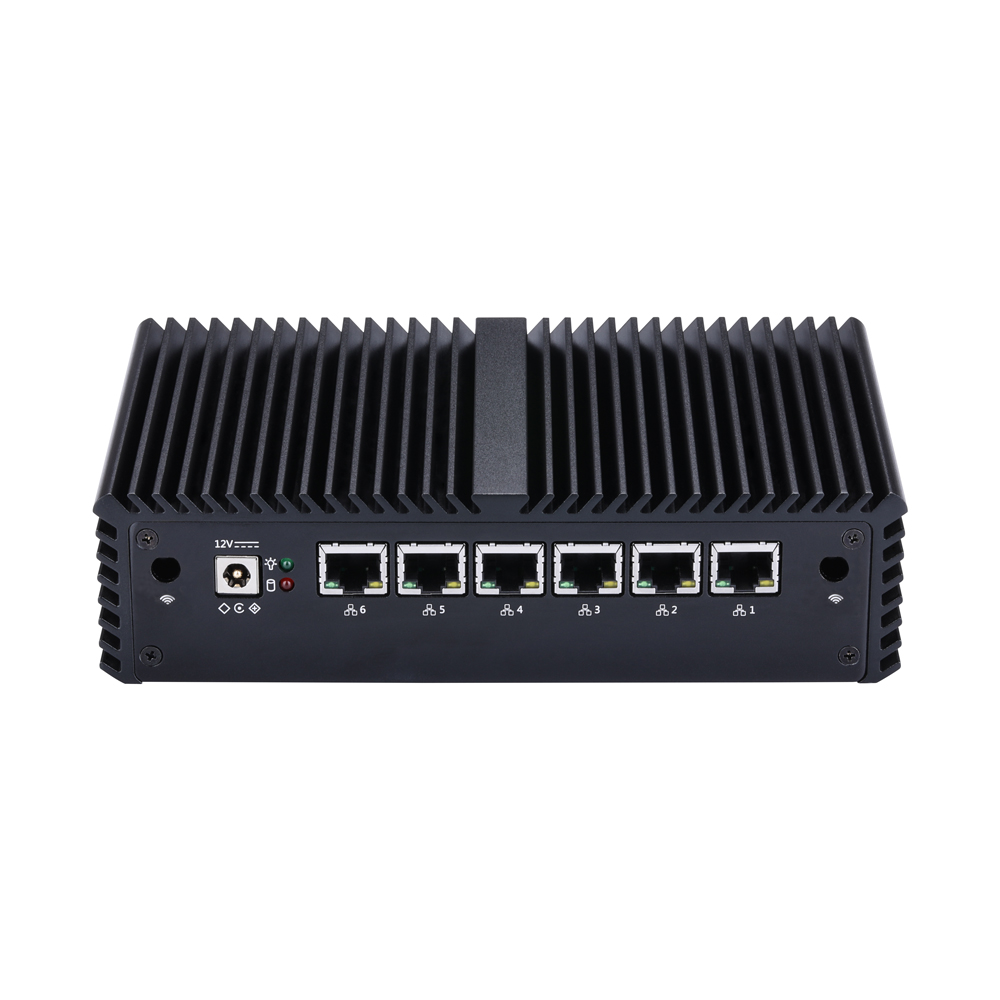

Rear I/O

Power1 × DC Jack
LAN6 × Intel I211-AT/I210-AT Gigabit LAN
LED1 × Power LED,1 × HDD LED

Storage

Type1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD

Expansion

mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Mini PCIe Full-length for 4G Half-length for Wi-Fi
SIM Card Slot1
AutoStart JumperYes,1 × 3Pin, Pitch 2.54mm
CMOS Clear JumperYes,1 × 3Pin, Pitch 2.0mm
VGA0
GPIO1,2 × 5Pin, Pitch 2.0mm
RS-485/Serial Port0

Power

Power Adapter12V4A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension187 × 111 × 49mm
Weight1.03kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSWindows 10, Linux Windows 7 (O nly for 6th Gen Skylake)

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q30611G6-S05 Q510G6 Skylake Celeron 3855U 2 / 2 1.6GHz 2M Intel HD 510 15W
Q30612G6-S05 Q520G6 Skylake Celeron 3955U 2 / 2 2.0GHz 2M Intel HD 510 15W
Q30631G6-S05 Q530G6 Skylake Core i3 6100U 2 / 4 2.3GHz 3M Intel HD 520 15W
Q30651G6-S05 Q550G6 Skylake Core i5 6200U 2 / 4 2.3GHz ~ 2.8GHz 3M Intel HD 520 15W
Q30671G6-S05 Q570G6 Skylake Core i7 6500U 2 / 4 2.5GHz ~ 3.1GHz 4M Intel HD 520 15W
Q30711G6-S05 Q515G6 Kaby Lake Celeron 3865U 2 / 2 1.8GHz 2M Intel HD 610 15W
Q30712G6-S05 Q525G6 Kaby Lake Celeron 3965U 2 / 2 2.2GHz 2M Intel HD 610 15W
Q30731G6-S05 Q535G6 Kaby Lake Core i3 7100U 2 / 4 2.4GHz 3M Intel HD 620 15W
Q30751G6-S05 Q555G6 Kaby Lake Core i5 7200U 2 / 4 2.5GHz ~ 3.1GHz 3M Intel HD 620 15W
Q30771G6-S05 Q575G6 Kaby Lake Core i7 7500U 2 / 4 2.7GHz ~ 3.5GHz 4M Intel HD 620 15W
