Qotom
Q30600PPC-S61 image 11 / 7

Panel PC Q30600PPC S61 Series

Model: Q30600PPC-S61

Total LAN2
LAN Speed1G RJ45
Serial Ports2

Key Specs

CPU
Skylake / Kaby Lake / Kaby Lake-R
Memory
DDR4 SO-DIMM · Max 64GB
LAN
2
Storage
mSATA, SATA

Compatible Motherboard

MB7U268-0600
MB7U268-0600
Send Inquiry
Q30611PPCQ30612PPCQ30631PPCQ30651PPCQ30671PPCQ30711PPCQ30712PPCQ30731PPCQ30751PPCQ30771PPCQ30811PPCQ30821PPCQ30831PPCQ30851PPCQ30871PPCIntelSkylakeKaby LakeKaby Lake RCeleronPentiumCore i3Core i5Core i73855U3955U6100U6200U6500U3865U3965U7100U7200U7500U2867U4417U8130U8250U8550U

Main Features

  • Intel 6th Skylake-U Processor

  • Intel 7th Kabylake-U Processor

  • Intel 8th Kabylake-R-U Processor

  • 1 × HDMI

  • 4 × USB 3.0

  • 2 × Mini PCIe, 1 × mSATA

  • 2 × RS-232 (RS-485)

  • 2 × Realtek Gigabit LAN

Processor System

CPU• Intel 6th Skylake-U Processor • Intel 7th Kabylake-U Processor • Intel 8th Kabylake-R-U Processor
CPU TDPBy CPU
Memory2 × DDR 4 SO-DIMM Socket s (Up to 64G,21 33/24 00MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset2 × Realtek Gigabit LAN
AudioRealtek HD Audio
Watch DogYes

Front I/O

ANT2

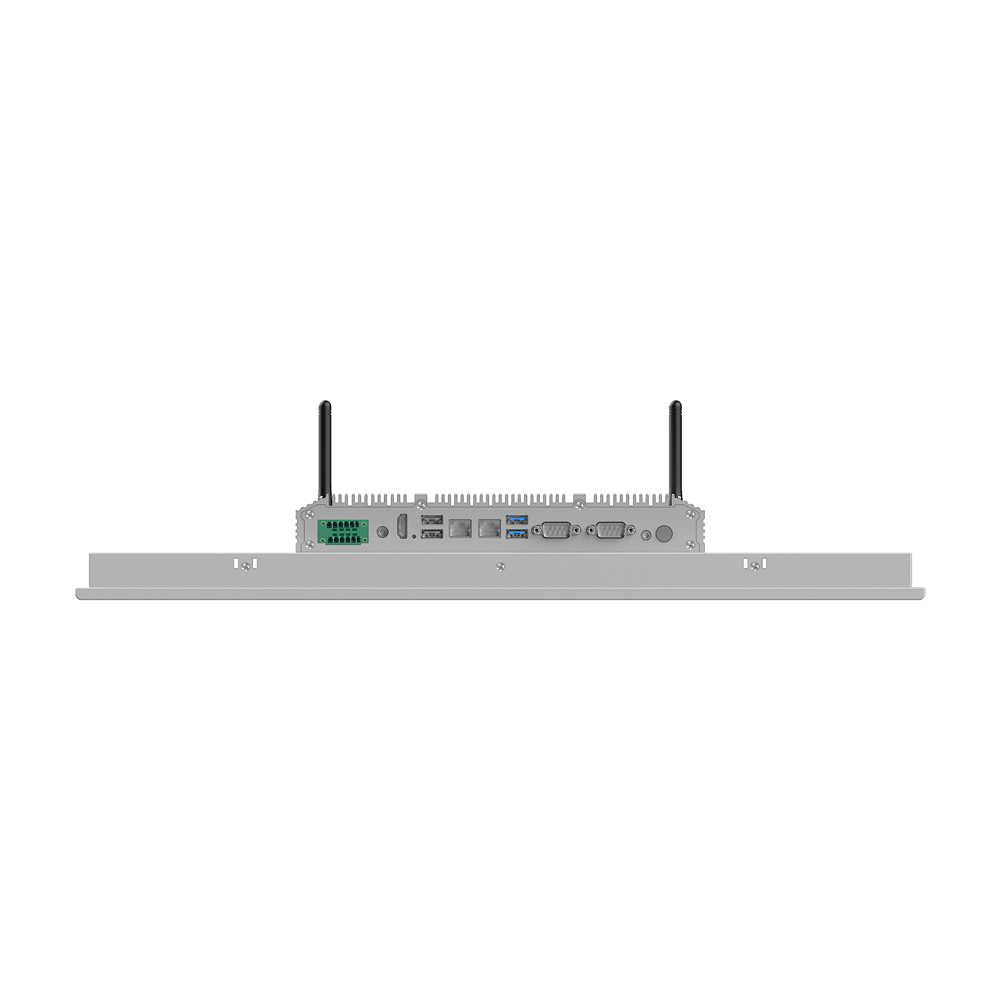

Rear I/O

Power1 × DC Jack
Video Output1 × HDMI
LAN2 × Realtek Gigabit LAN
USB4 × USB 3.0
Audio1 (Mic-in, Line-out)
Serial Port2 × RS-232 (COM1/2 can be set up as RS-485,Support 5V/12V)
Power Button1 × Power Button, 1 × Power LED
PhoenixGPIO (4 DIs/4DOs ) , Power Button Connector
CMOS Clear Button1

Storage

Type1 × Mini PCIe for mSATA SSD

Expansion

mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Mini PCIe,Half-length Mini PCIe for Wi-Fi, Full-length Mini PCIe for 4G by Default
Mini PCIe4× RS-232
SIM Card Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.0mm

Power

Power Adapter12V7A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension536× 330× 68mm
Weight7.42kg
MountingVESA Mounting Bracket
Packaging Dimension600 × 400 × 110mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSWindows 10, Windows 11, Linux Windows 7 (O nly for 6th Gen Skylake)

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q30611PPC-S61 Skylake Celeron 3855U 2 / 2 1.6GHz 2M Intel HD 510 15W
Q30612PPC-S61 Skylake Celeron 3955U 2 / 2 2.0GHz 2M Intel HD 510 15W
Q30631PPC-S61 Skylake Core i3 6100U 2 / 4 2.3GHz 3M Intel HD 520 15W
Q30651PPC-S61 Skylake Core i5 6200U 2 / 4 2.3GHz ~ 2.8GHz 3M Intel HD 520 15W
Q30671PPC-S61 Skylake Core i7 6500U 2 / 4 2.5GHz ~ 3.1GHz 4M Intel HD 520 15W
Q30711PPC-S61 Kaby Lake Celeron 3865U 2 / 2 1.8GHz 2M Intel HD 610 15W
Q30712PPC-S61 Kaby Lake Celeron 3965U 2 / 2 2.2GHz 2M Intel HD 610 15W
Q30731PPC-S61 Kaby Lake Core i3 7100U 2 / 4 2.4GHz 3M Intel HD 620 15W
Q30751PPC-S61 Kaby Lake Core i5 7200U 2 / 4 2.5GHz ~ 3.1GHz 3M Intel HD 620 15W
Q30771PPC-S61 Kaby Lake Core i7 7500U 2 / 4 2.7GHz ~ 3.5GHz 4M Intel HD 620 15W
Q30811PPC-S61 Kaby Lake R Celeron 3867U 2 / 2 1.8GHz 2M Intel HD 610 15W
Q30821PPC-S61 Kaby Lake R Pentium 4417U 2 / 2 2.3GHz 2M Intel HD 610 15W
Q30831PPC-S61 Kaby Lake R Core i3 8130U 2 / 4 2.0GHz ~ 3.40GHz 4M Intel UHD 620 15W
Q30851PPC-S61 Kaby Lake R Core i5 8250U 4 / 8 1.6GHz ~ 3.4GHz 6M Intel UHD 620 15W
Q30871PPC-S61 Kaby Lake R Core i7 8550U 4 / 8 1.8GHz ~ 4.0GHz 8M Intel UHD 620 15W
