1 / 8Mini PC Q30900X S10 Series
Model: Q30900X-S10
Built around industrial I/O requirements, Q30900X-S10 provides fanless industrial Mini PC equipped with 6 serial ports, 2×2.5G LAN and DDR4 up to 32GB. The platform also includes Whiskey Lake, Coffee Lake and Comet Lake processors, it provides M.2 and SATA storage expansion for PLC communication,. It can serve machine connectivity, industrial data acquisition and controller integration.
Key Specs
- CPU
- Whiskey Lake / Coffee Lake / Comet lake
- Memory
- DDR4 SO-DIMM · Max 32GB
- LAN
- 2
- Storage
- M.2 Mkey, SATA
Compatible Motherboard
Main Features
Intel 8th Whiskey Lake-U Processor
Intel 8th Coffee Lake-U Processor
Intel 10th Comet lake-U Processor
1 × Display Port, 1 × HDMI, 1 × VGA
4 × USB 3.0, 4 × USB 2.0
2 × M.2, 1 × Mini PCIe, 1 × SATA 3.0

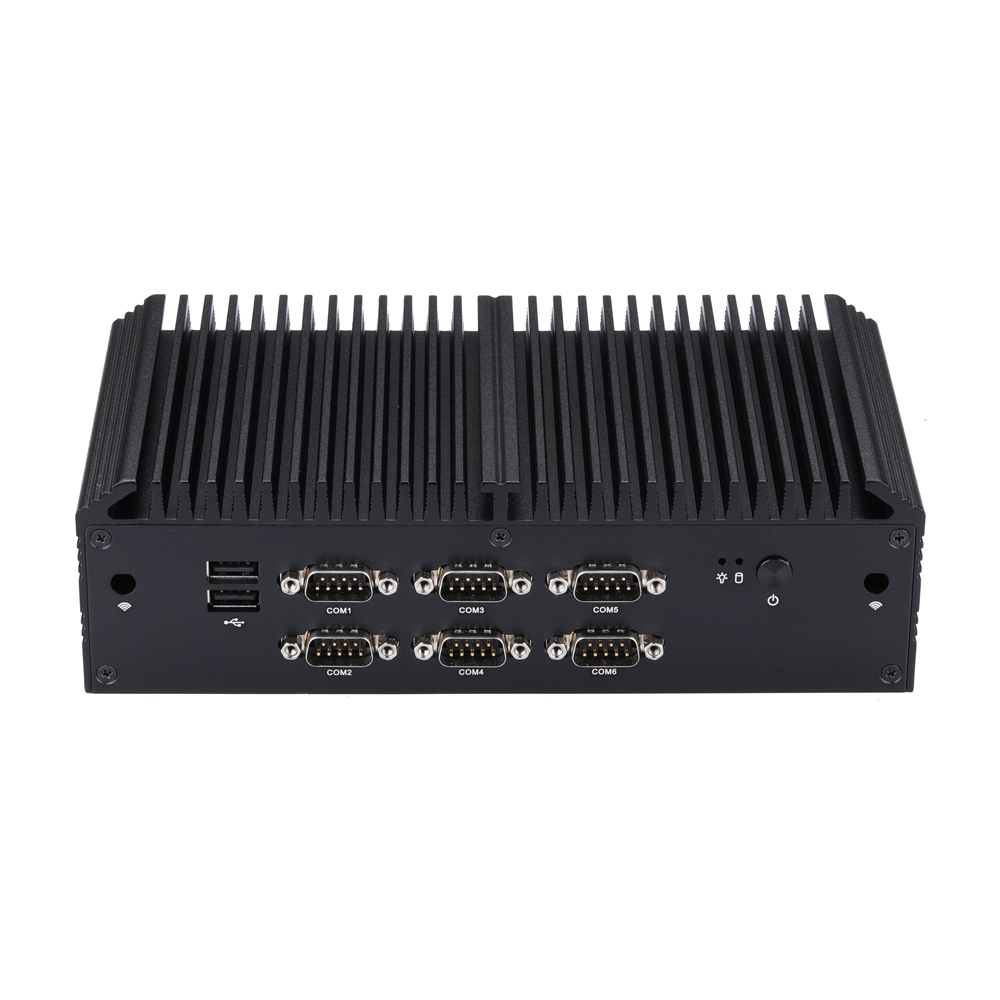

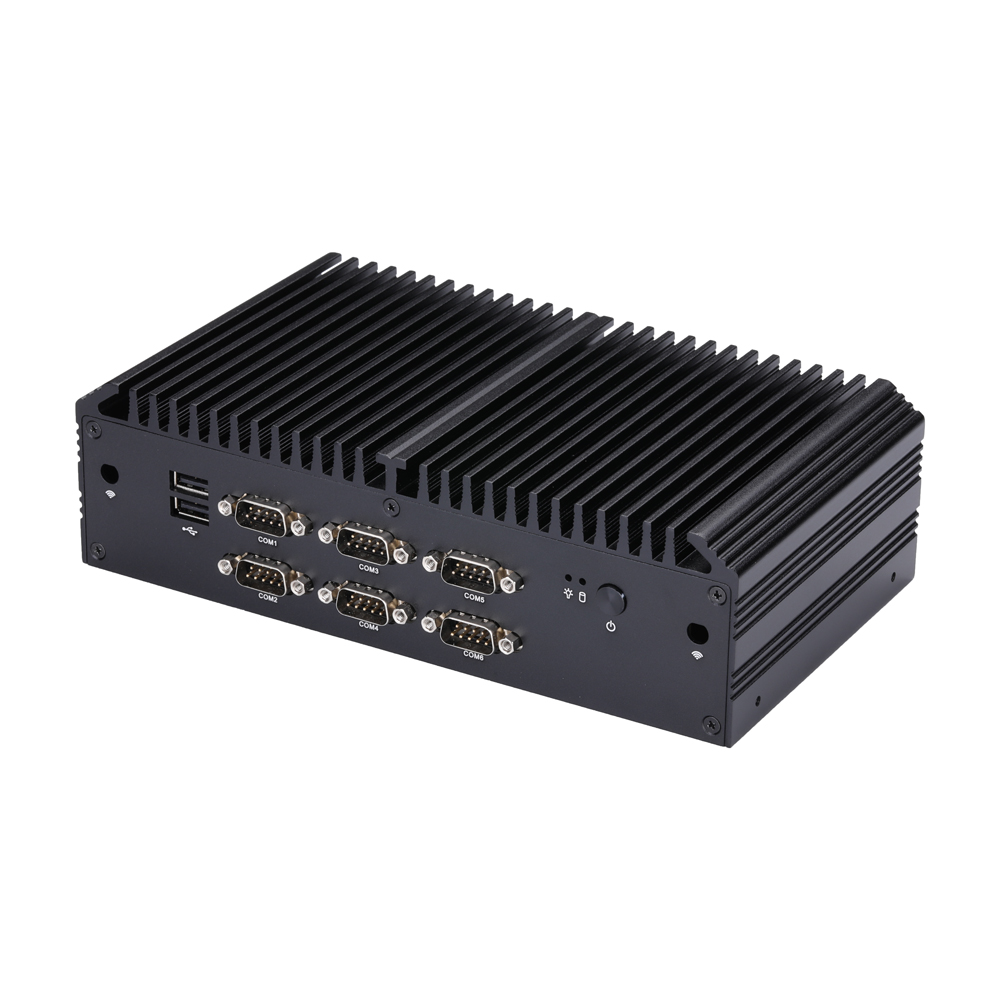

6 × RS-232, 1 × PS/2
2 × Intel I225-V/I226-V 2.5G LAN
