Mini PC Q71200X S18 Series

Model: Q71200X-S18

Total LAN2
LAN Speed2.5G RJ45
Serial Ports6

Key Specs

CPU
Alder lake-S / Raptor Lake-S
Memory
DDR4 SO-DIMM · Max 64GB
LAN
2
Storage
M.2 Mkey, SATA

Compatible Motherboard

MB7S26B-1200
MB7S26B-1200
Send Inquiry Buy Now
Q71211XQ71221XQ71231XQ71251XQ71271XQ71311XQ71321XQ71331XQ71351XQ71371XIntelAlder lake-SRaptor Lake-SRaptor Lake R-SBartlett lake-SCeleronPentiumCore i3Core i5Core i7Core i9G6900G740012100123001240012500126001270012900131001340013500136001370013900300T141001440014500146001470014900

Main Features

  • Intel 12th Alder lake -S Processor

  • Intel 13th Raptor Lake-S Processor

  • 2 × DDR4 3200 MHz SO-DIMM up to 64GB

  • 1 × Display Port, 1 × HDMI, 1 × VGA

  • 4 × USB 3.0, 4 × USB 2.0, 3 × M.2, 2 × SATA 3.0

  • 2 × Intel I225-V/I226-V 2.5G LAN

  • 6 × RS-232

Processor System

CPU• Intel 12th Alder lake -S Processor • Intel 13th Raptor Lake-S Processor
CPU TDPBy CPU
Memory2 × DDR4 SO-DIMM Socket (Up to 64G)
ChipsetIntel H6 1 0
GraphicsBy CPU
LAN Chipset2 × Intel I225-V/I226-V 2.5G LAN
AudioRealtek HD Audio
Watch DogYes

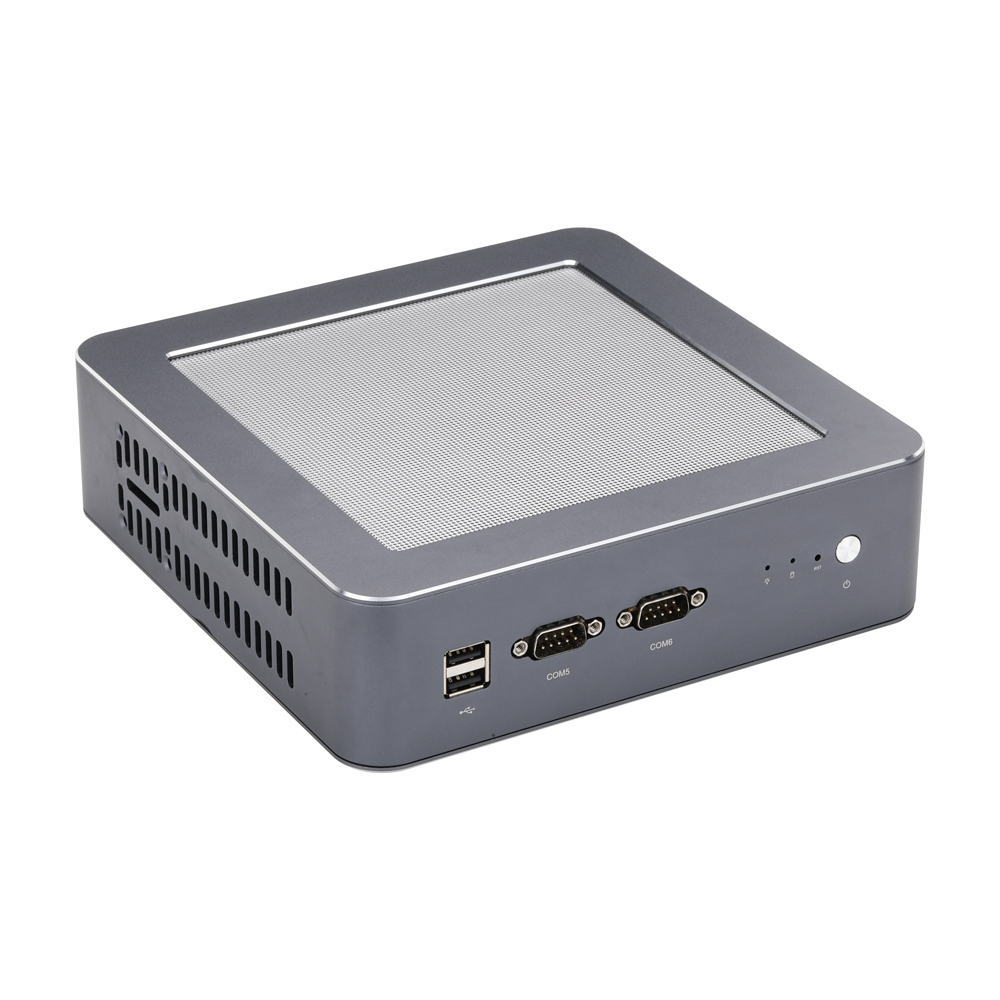

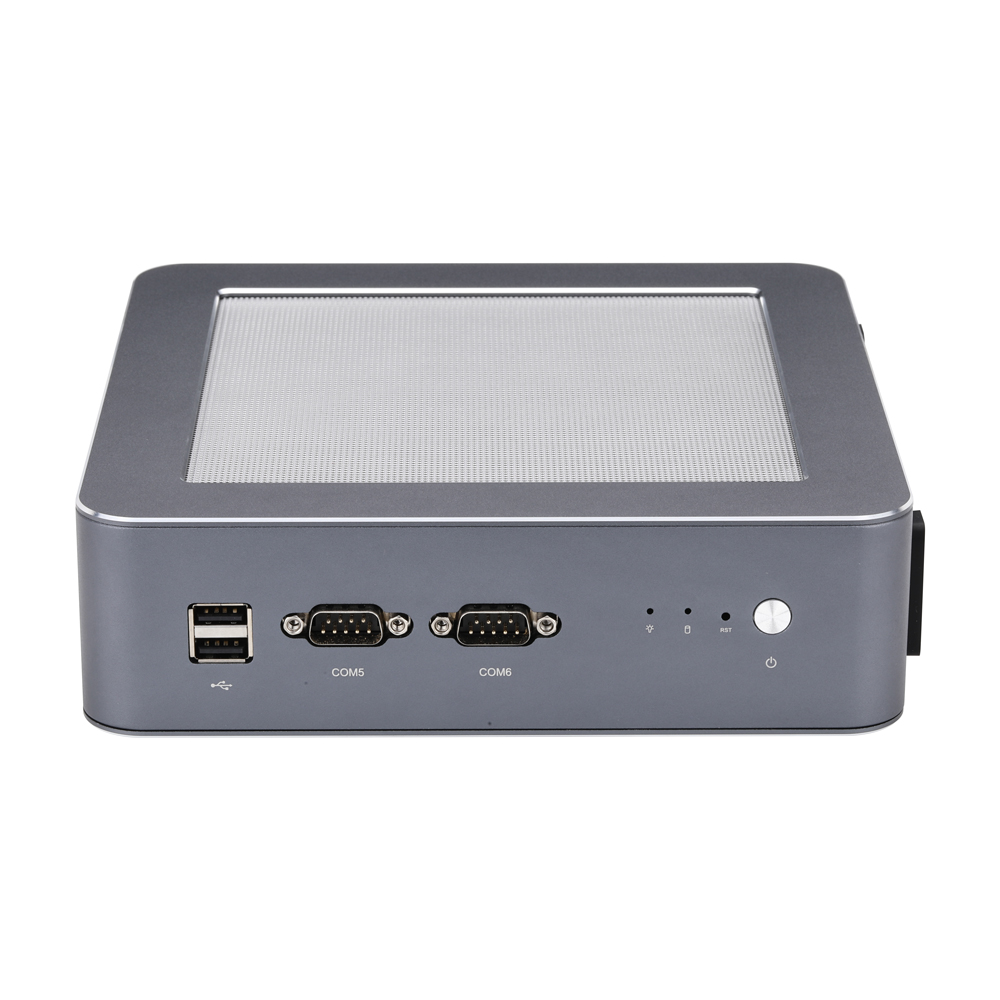

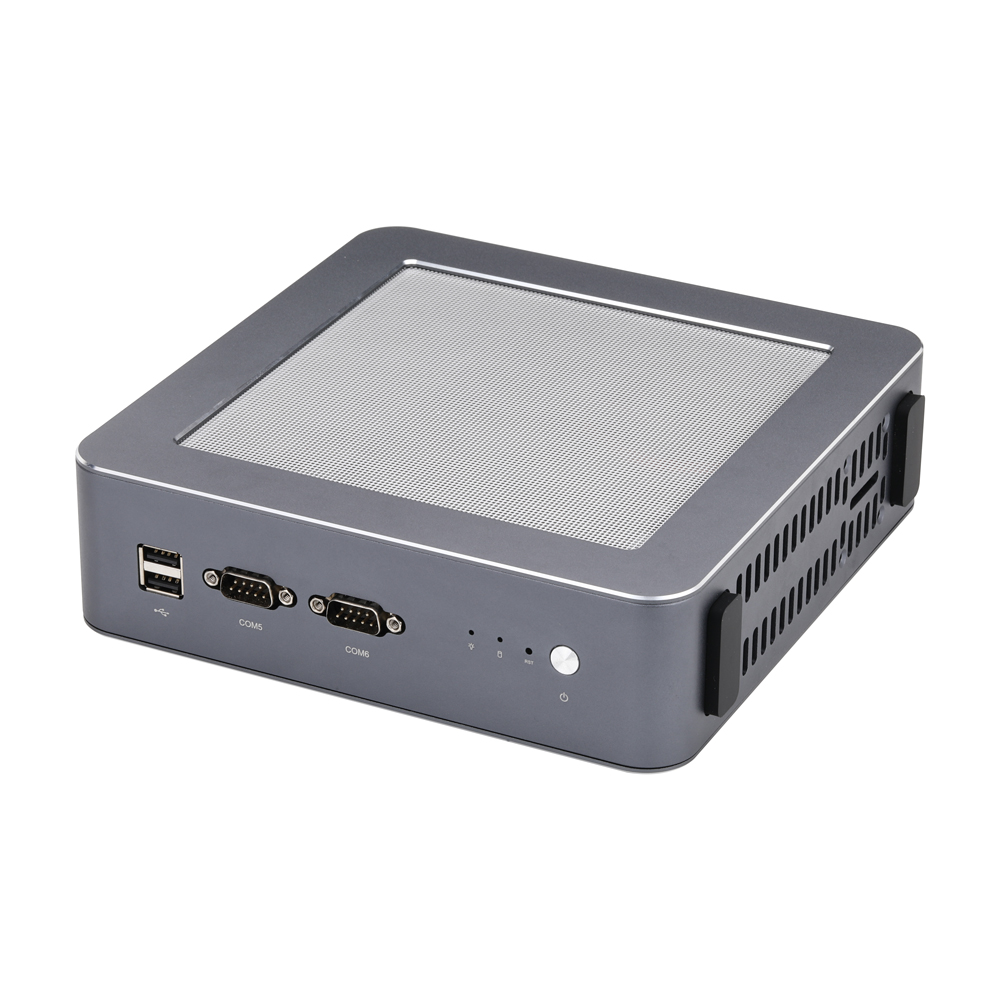

Front I/O

Power Button1 × Power Button,1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB2 × USB 2.0
Serial Port2 × RS-232

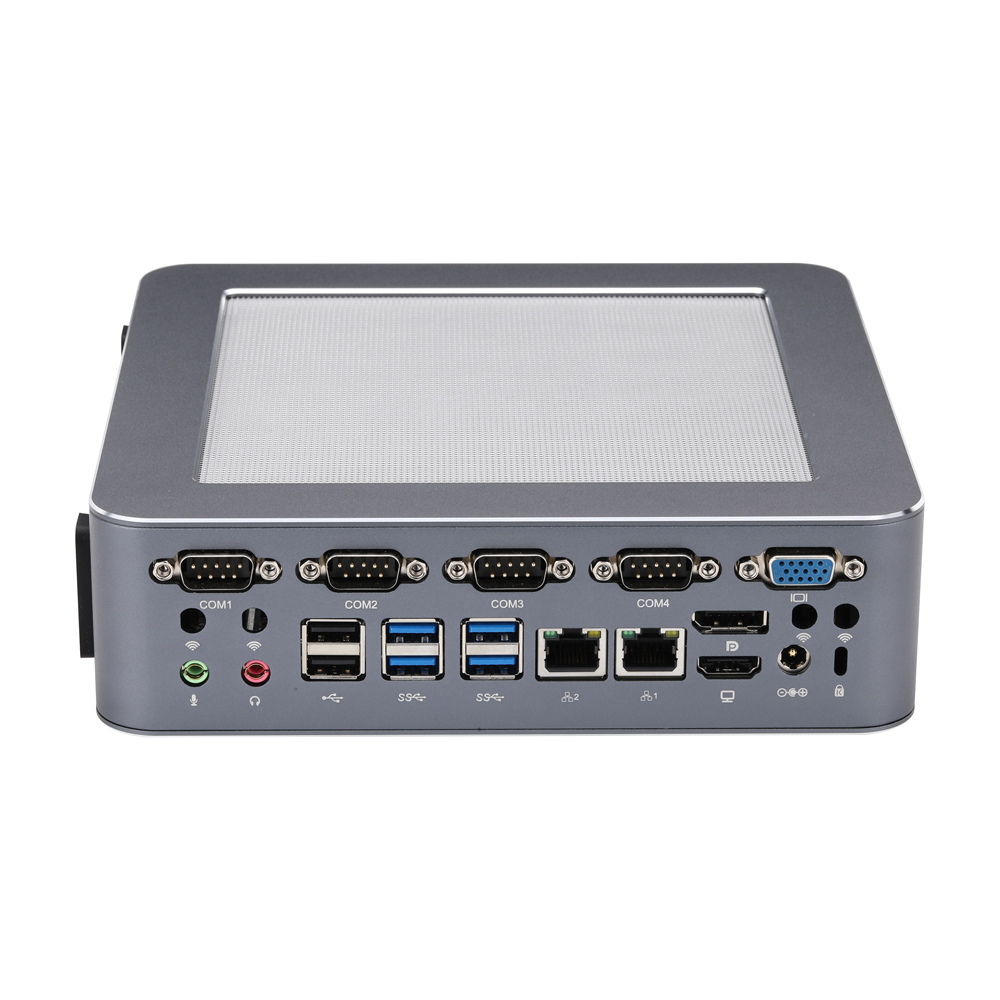

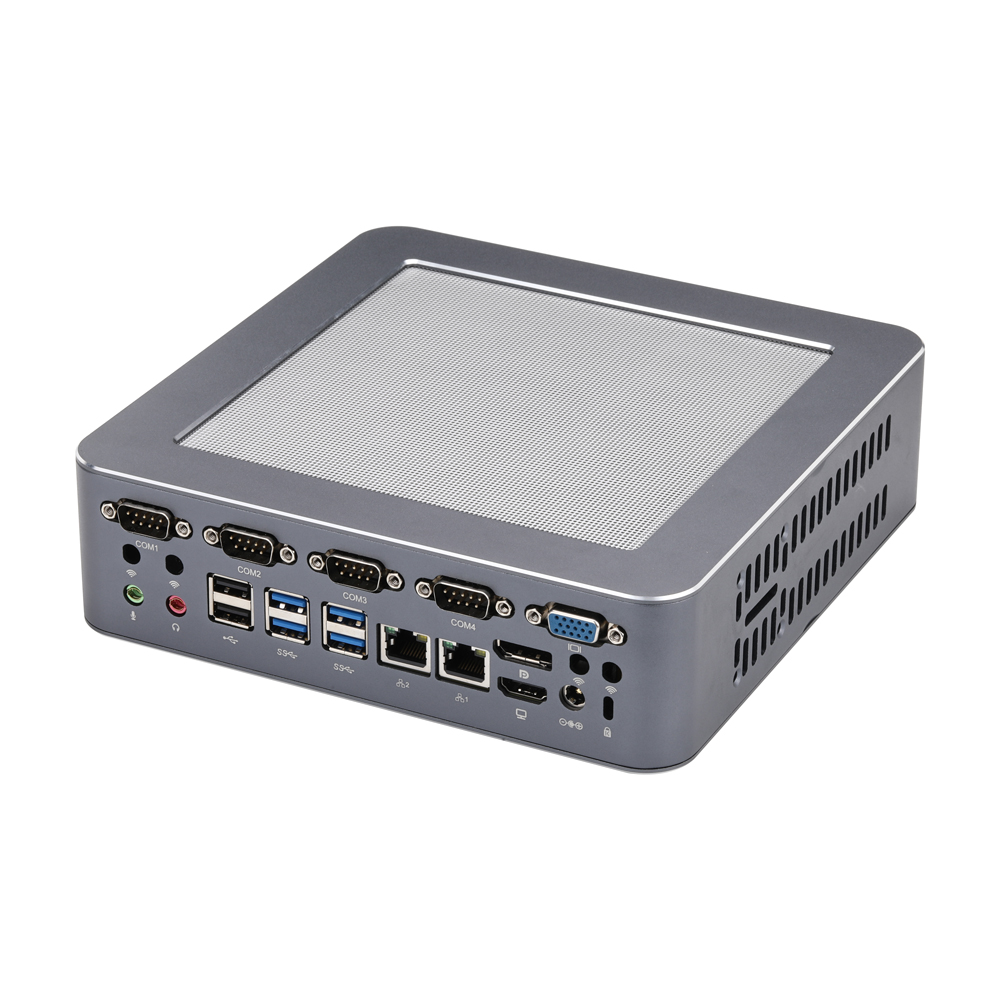

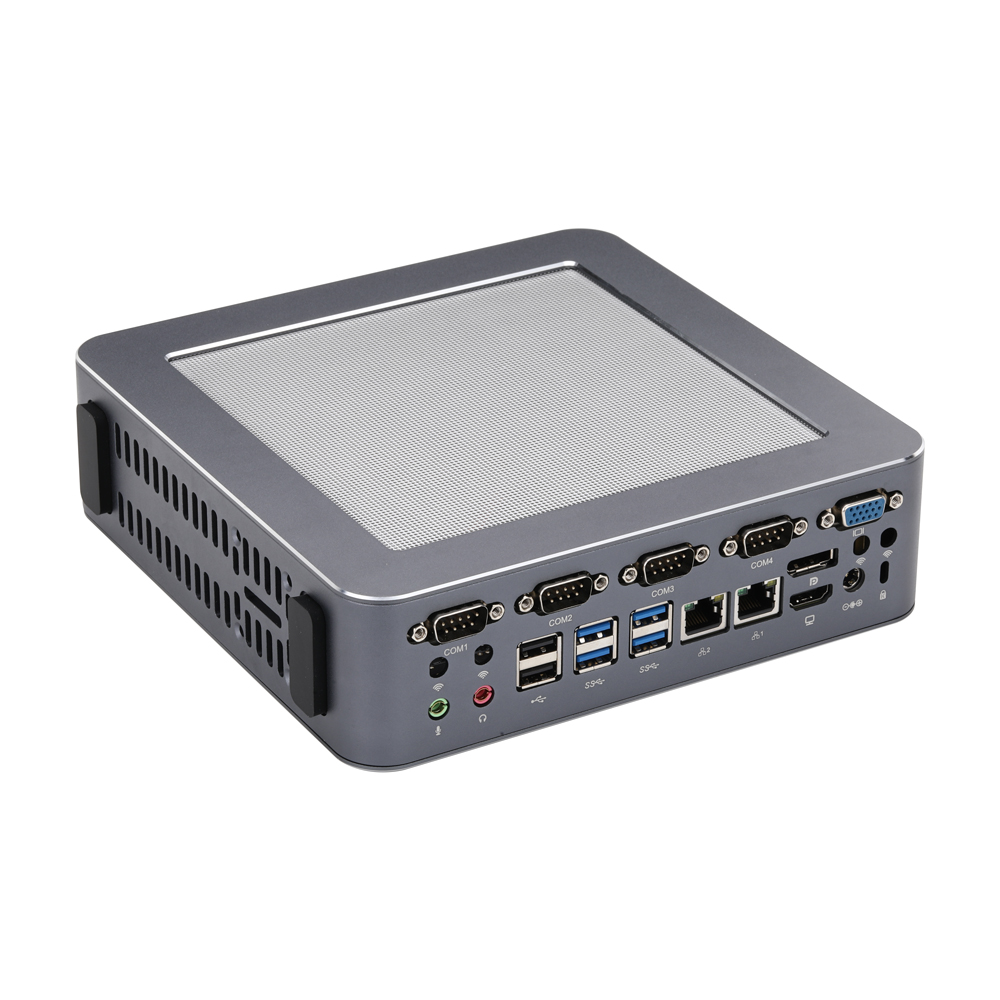

Rear I/O

Power1 × DC Jack
Video Output1 × Display Port,1 × HDMI,1 × VGA
LAN2 × Intel I225-V/I226-V 2.5G LAN
USB4 × USB 3.0,2 × USB 2.0
Audio1 × Mic-in,1 × Line-out
Serial Port4 × RS-232

Storage

Type4 × 2.5-inch HDD/SSD,1 × 3.5-inch HDD/SSD 1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4)

Expansion

M.21 × M.2 for SSD (M key,Type: 2280) 1 × M.2 for Wi-Fi (E key, Type: 2230) 1 × M.2 for 4G/5G (B key, Type: 3042/3052) 5G Defaults to PCIe Mode, USB 3.0 Mode Requires Customization
SIM Card Slot1
AutoStart JumperYes,1 × 3Pin, Pitch 2.0mm
CMOS Clear JumperYes,1 × 3Pin, Pitch 2.0mm
GPIO1,2 × 5Pin, Pitch 2.0mm
RS-4852 × RS-232 (COM3/4 can be set up as RS-422/RS-485)
Serial PortCOM1-COM6 Support 5V/12V

Power

Power Adapter19V4.74A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension200 × 200 × 57mm
Weight1.65kg
MountingVESA Mounting Bracket
Packaging Dimension285 × 260 × 120mm
Kensington LockYes
Cooling ModeFan

OS Support

OSUEFI Windows 10, UEFI Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPP-CoresE-CoresDatasheet
Q71211X-S18 Alder Lake S Celeron G6900 2 / 2 3.40 GHz 4M Intel UHD Graphics 710 46W 2 -
Q71221X-S18 Alder Lake S Pentium G7400 2 / 4 3.70 GHz 6M Intel UHD Graphics 710 46W 2 -
Q71231X-S18 Alder Lake S Core i3 12100 4 / 8 3.30 GHz ~ 4.30 GHz 12M Intel UHD Graphics 730 60W-89W 4 -
Q71251X-S18 Alder Lake S Core i5 12400 6 / 12 2.50 GHz ~ 4.40 GHz 18M Intel UHD Graphics 730 65W-117W 6 -
Q71271X-S18 Alder Lake S Core i7 12700 12 / 20 2.10 GHz ~ 4.80 GHz 25M Intel UHD Graphics 770 65W-180W 8 4
Q71311X-S18 Raptor Lake S Celeron - - - - - - - -
Q71321X-S18 Raptor Lake S Pentium - - - - - - - -
Q71331X-S18 Raptor Lake S Core i3 13100 4 / 8 3.40 GHz ~ 4.50 GHz 12M Intel UHD Graphics 730 60W-110W 4 -
Q71351X-S18 Raptor Lake S Core i5 13400 10 / 16 2.50 GHz ~ 4.60 GHz 20M Intel UHD Graphics 730 65-148W 6 4
Q71371X-S18 Raptor Lake S Core i7 13700 16 / 24 2.10 GHz ~ 5.10 GHz 30M Intel UHD Graphics 770 65W-219W 8 8
