Motherboard MB1J124-0500 Series

Name: Motherboard MB1J124-0500 Series
Brand: Qotom
SKU: MB1J124-0500

Model: MB1J124-0500

Total LAN1

LAN Speed1G RJ45

Serial Ports2

MB1J124-0500 targets custom computer integration through compact 105 × 70mm motherboard supporting Gemini Lake processors including J4105, J5005 and J4125. HDMI + eDP, M.2, mSATA, USB 3.0 and Gigabit LAN make it suitable for compact mini computers, HMI terminals, kiosks, POS systems and.

Key Specs

CPU: Gemini Lake / Gemini Lake-R
Memory: DDR4 SO-DIMM · Max Integrated
LAN: 1
Storage: mSATA
Board Size: 105x70

Compatible Systems

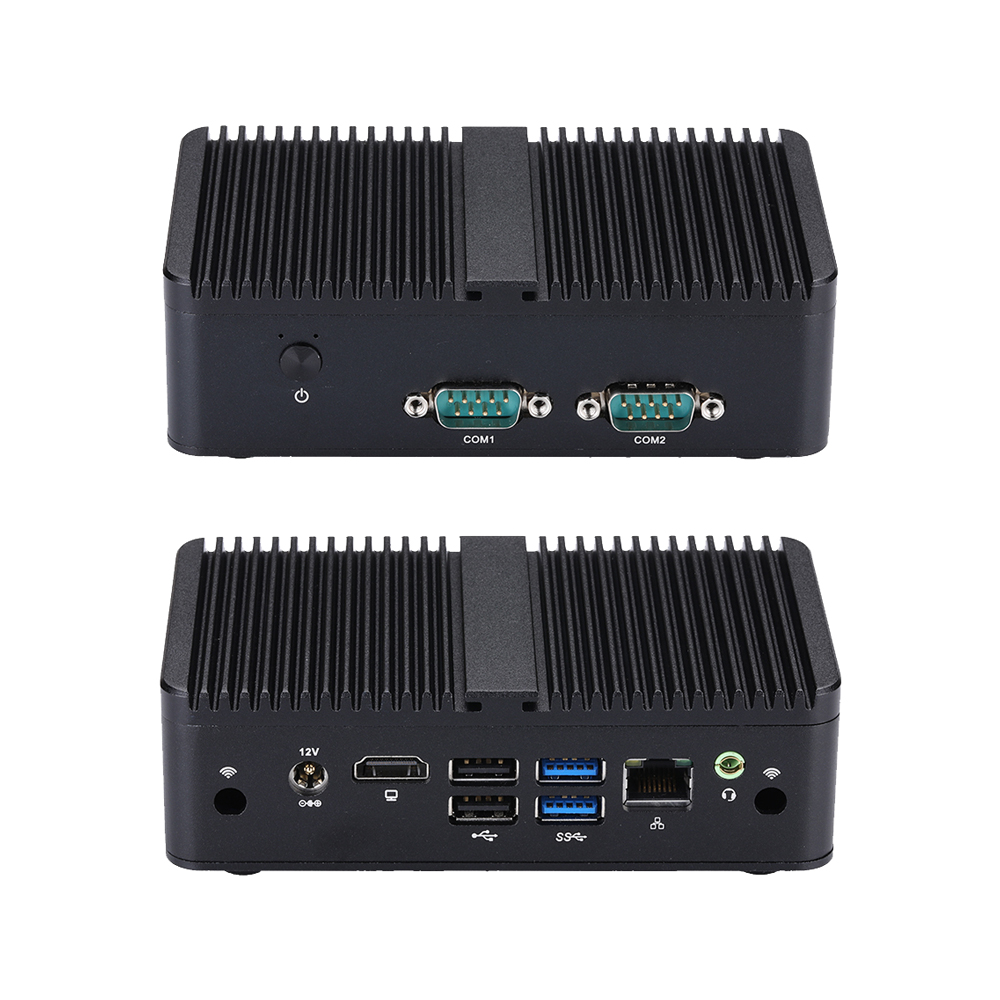

Q10500C-S11

Q10500N-S11

Send Inquiry

MB1J124-0511 MB1J124-0512 MB1J124-0521 MB1J124-0611 MB1J124-0621 MB1J124-062A Intel Gemini Lake Gemini Lake-R Pentium Celeron ATOM N4000 N4100 J4005 J4105 N5000 J5005 N4020 N4120 J4025 J4125 N5030 J5040

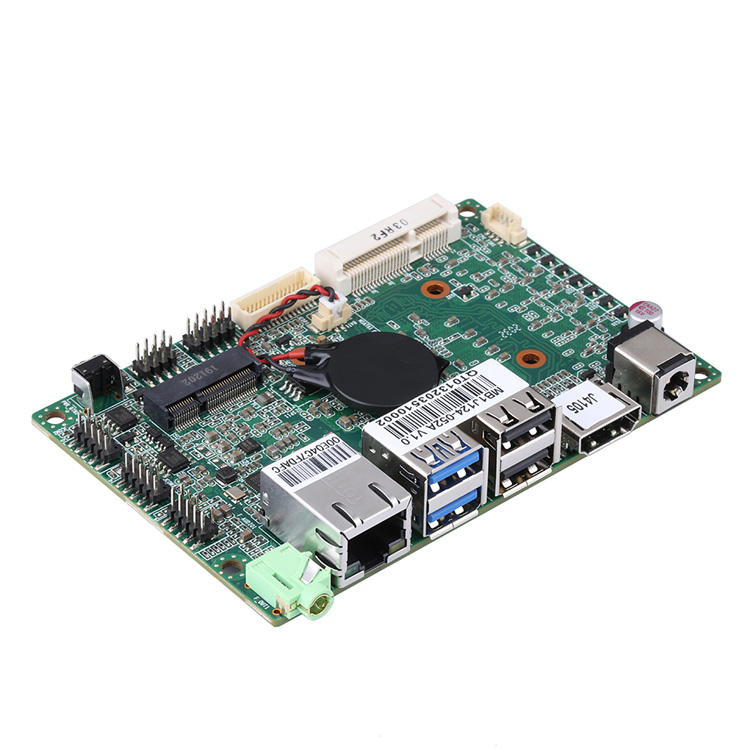

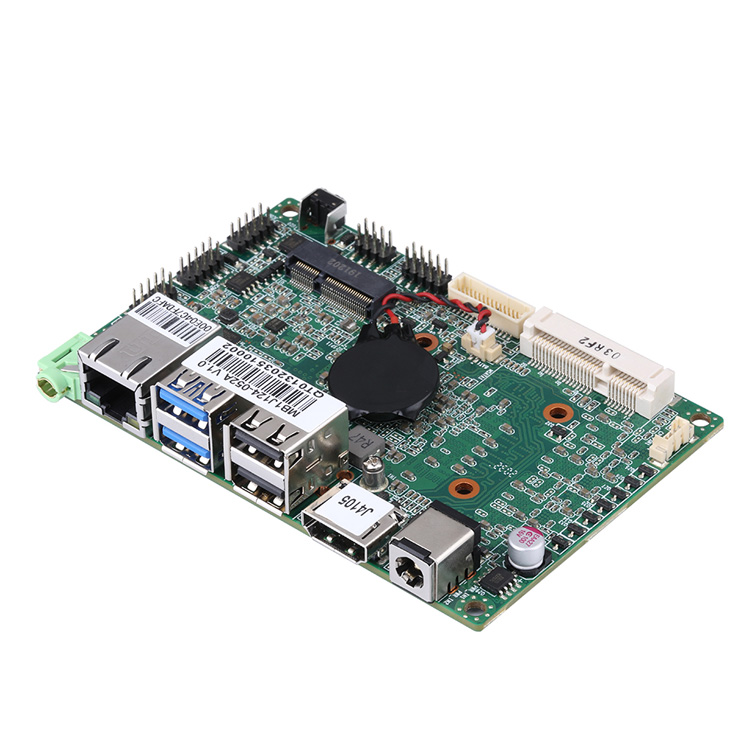

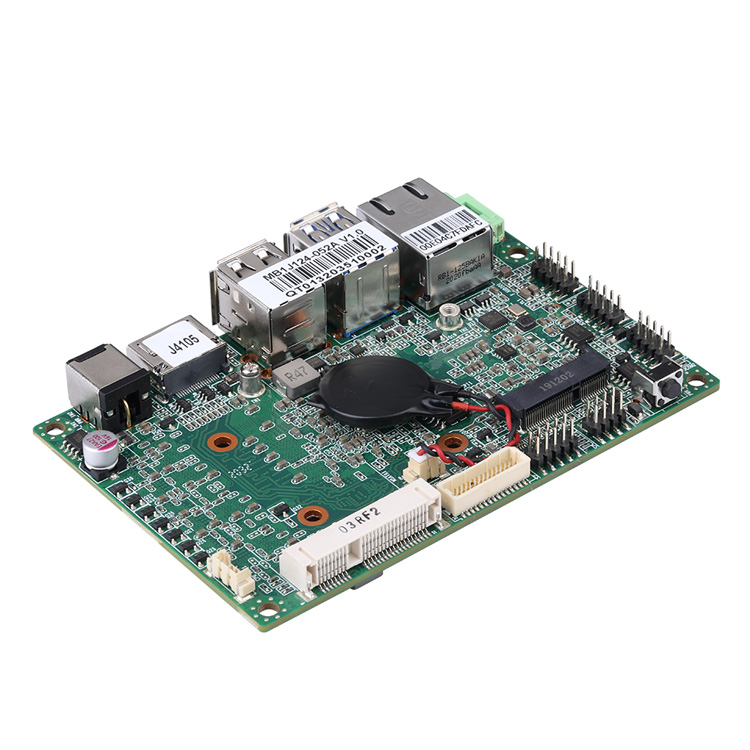

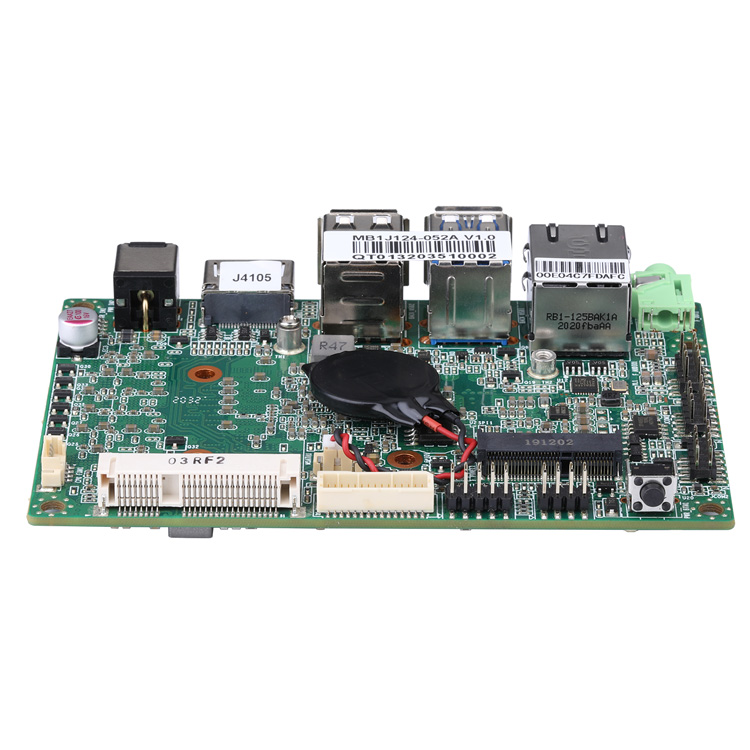

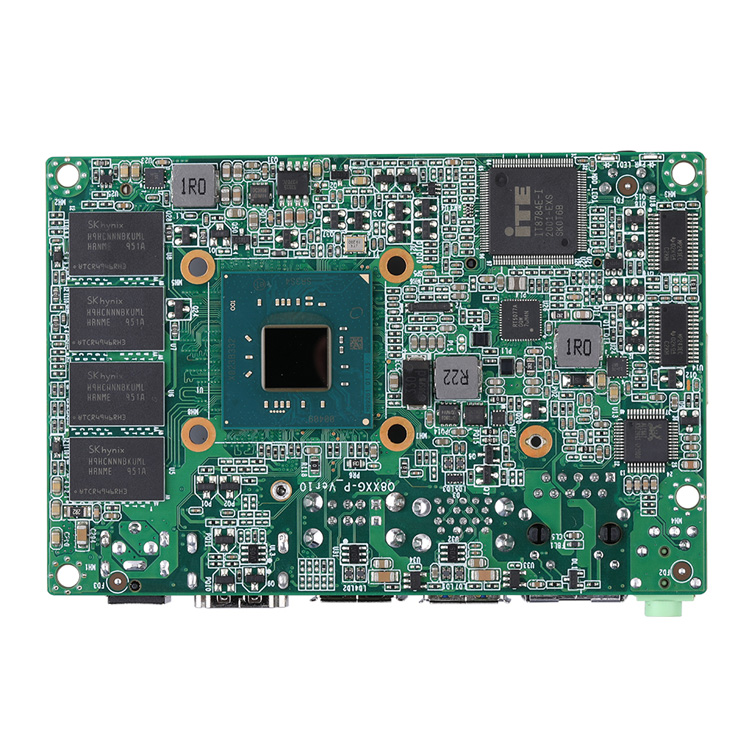

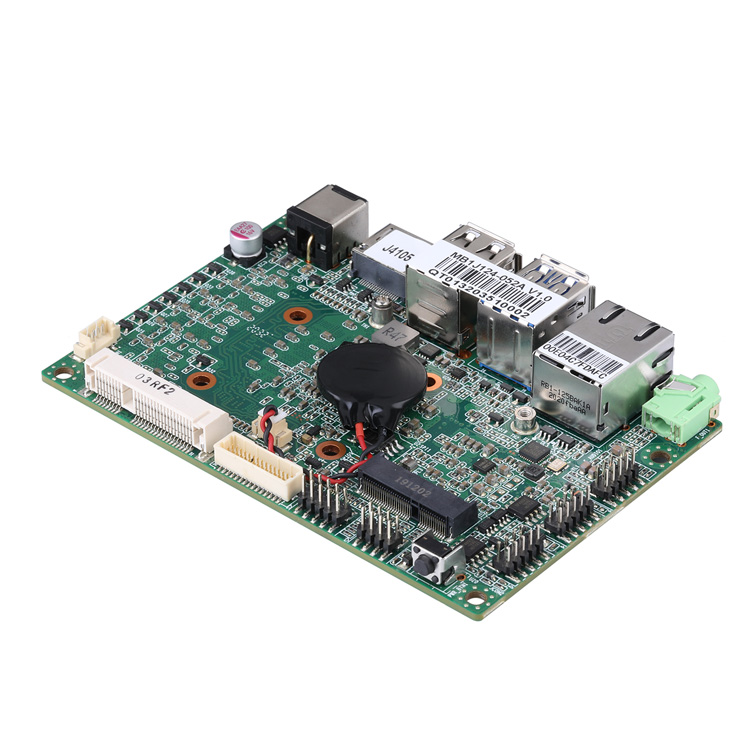

Main Features

Intel Gemini Lake Processor
Intel Gemini Lake-R Processor

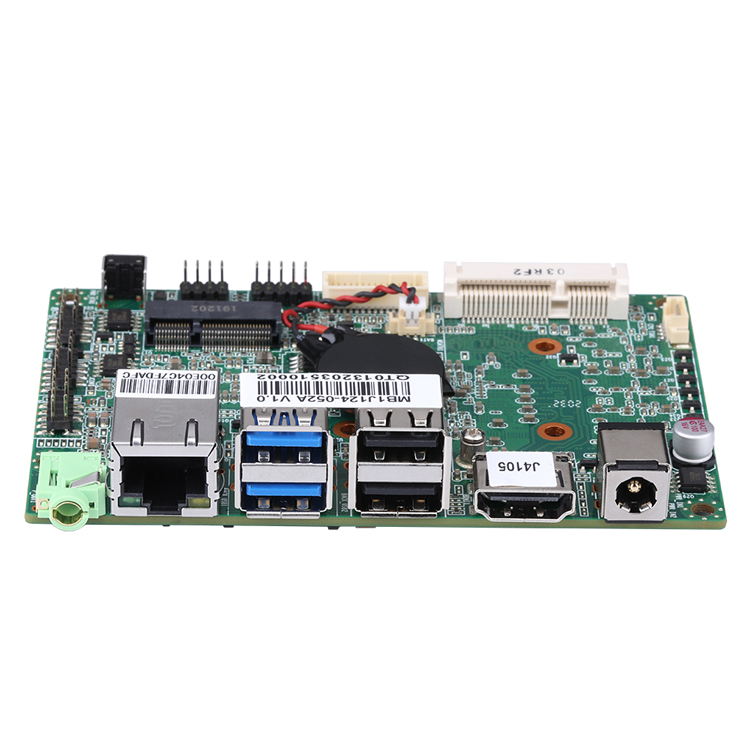

1 × HDMI, 1 × EDP
2 × USB 3.0, 2 × USB 2.0
1 × M.2, 1 × mSATA
1 × Realtek Gigabit LAN
