Mini PC Q10500N S11 Series

Model: Q10500N-S11

Total LAN1
LAN Speed1G RJ45

Key Specs

CPU
Gemini Lake / Gemini Lake-R
Memory
DDR4 SO-DIMM
LAN
1
Storage
mSATA

Compatible Motherboard

MB1J124-0500
MB1J124-0500
Send Inquiry
Q730NQ750NQ10511NQ10512NQ10521NQ10522NQ10611NQ10612NQ10621NQ10621N2IntelGemini LakeGemini Lake-RPentiumCeleronATOMN4000N4100J4005J4105N5000J5005N4020N4120J4025J4125N5030J5040

Main Features

  • Intel Gemini Lake Processor

  • Intel Gemini Lake-R Processor

  • 1 × HDMI

  • 2 × USB 3.0,2 × USB 2.0

  • 1 × M.2,1 × mSATA

  • 1 × Realtek Gigabit LAN

Processor System

CPU• Intel Gemini Lake Processor • Intel Gemini Lake-R Processor
CPU TDPBy CPU
Memory4GB, Integrated (Up to 8G)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset1 × Realtek Gigabit LAN
AudioRealtek HD Audio
Watch DogYes

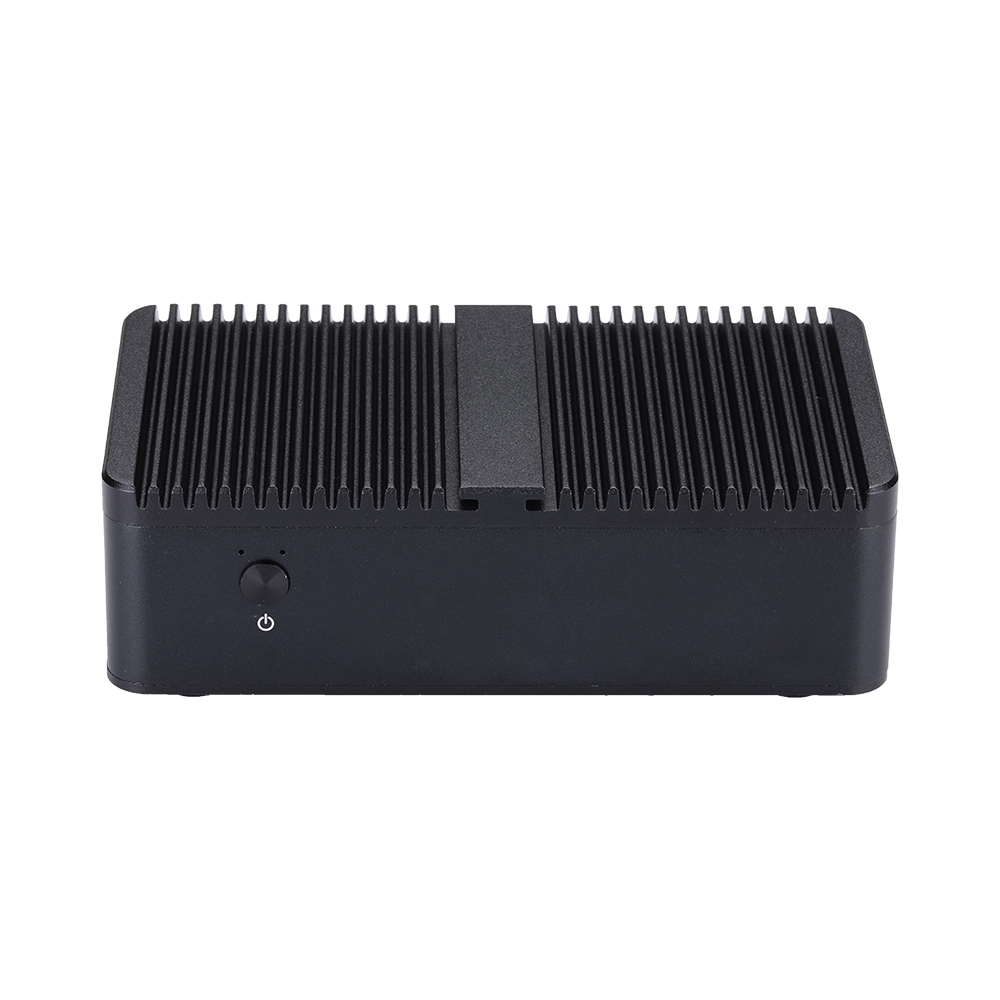

Front I/O

Power Button1
LED1 × Power LED,1 × HDD LED
Serial Port0

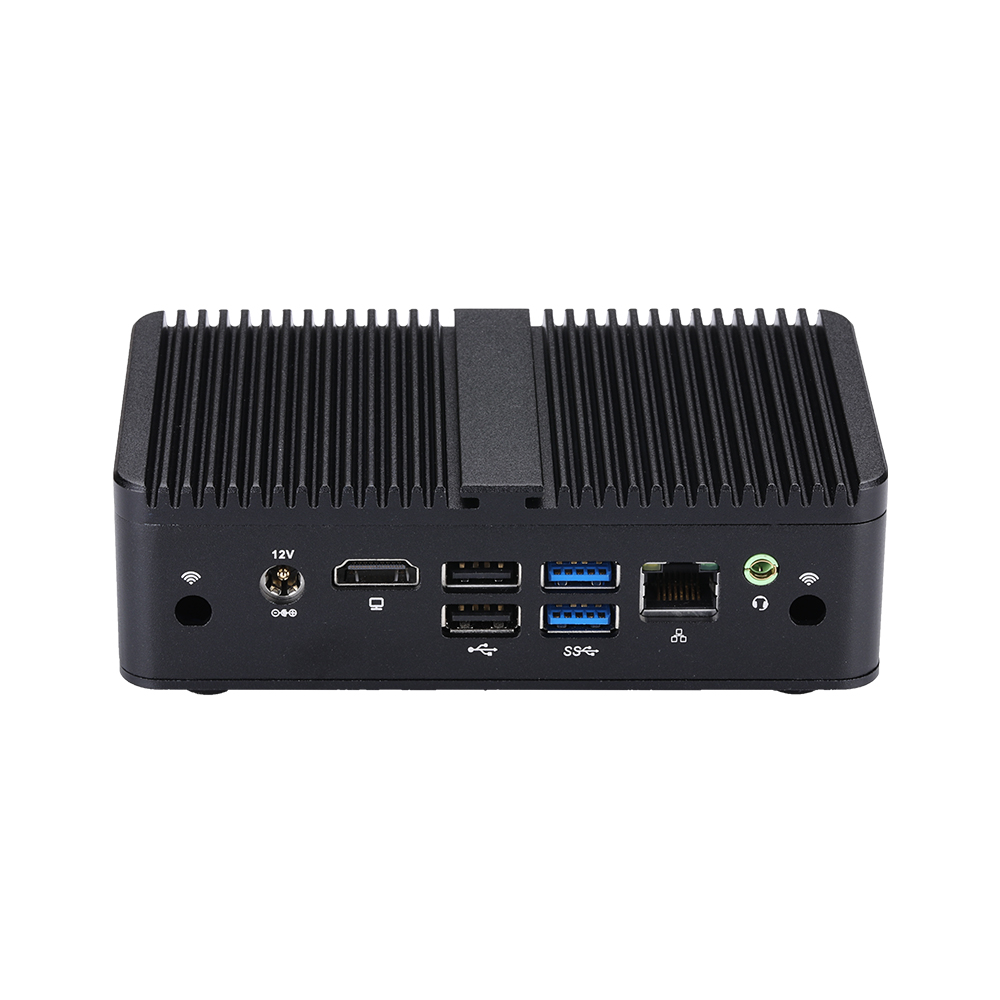

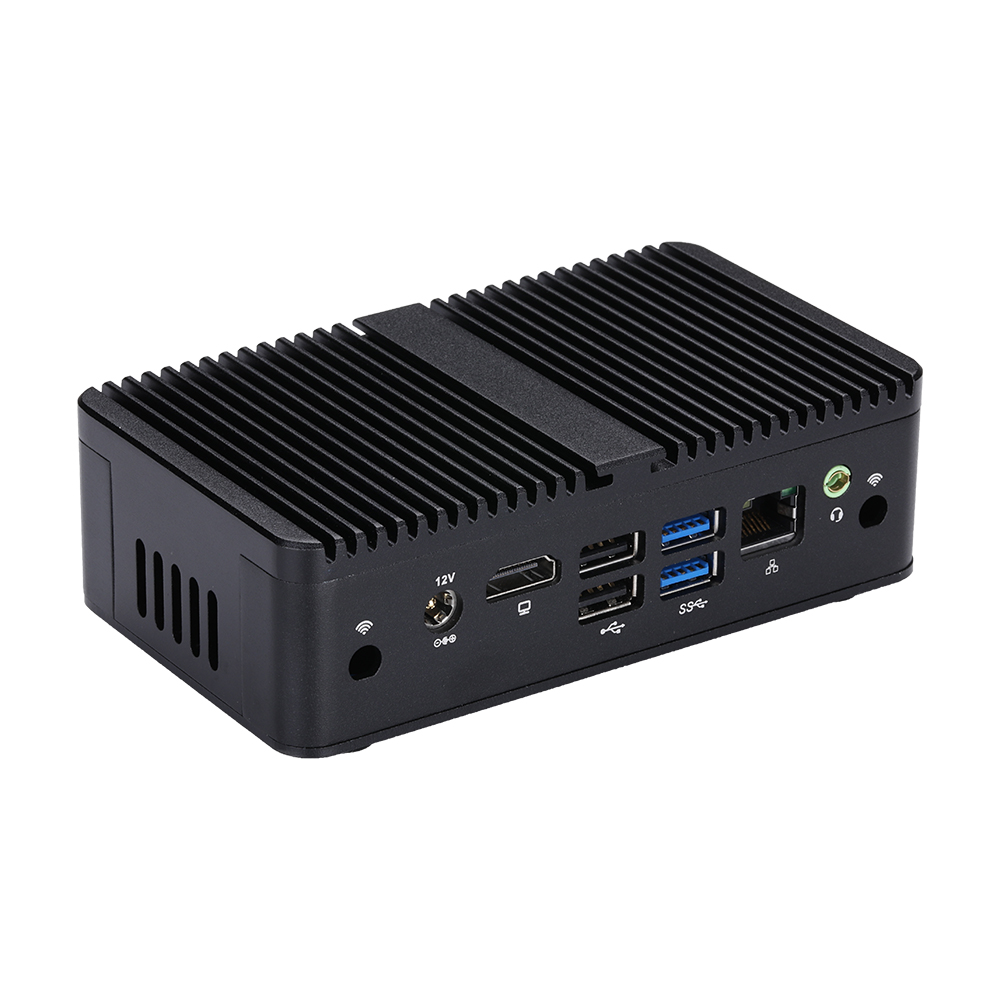

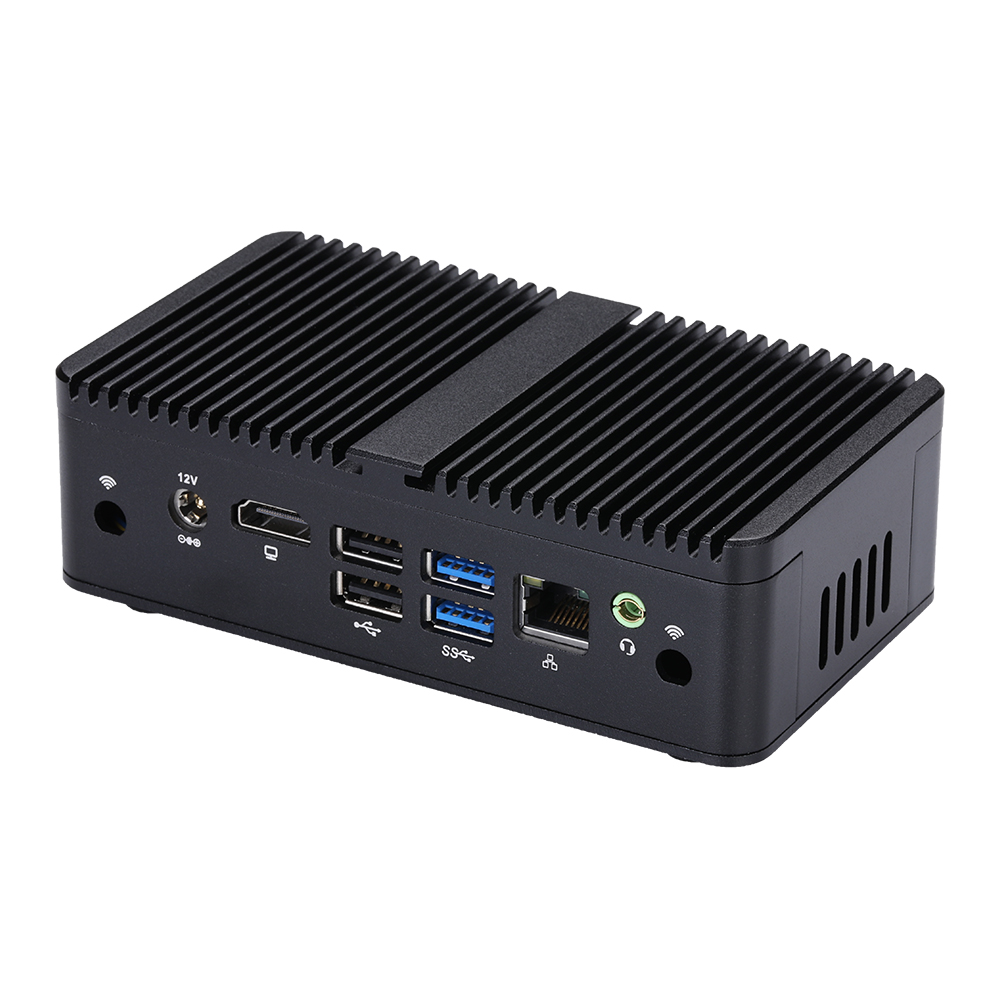

Rear I/O

Power1 × DC Jack
Video Output1 × HDMI
LAN1 × Realtek Gigabit LAN
USB2 × USB 2.0,2 × USB 3.0
Audio1 (Mic-in, Line-out)

Storage

Type1 × Mini PCIe for mSATA SSD

Expansion

mSATA1 × Full-length Mini PCIe for SSD
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
GPIO1,2 × 5Pin, Pitch 2.0mm
EDP1
Front Audio1,2 × 5Pin, Pitch 2.0mm
Front Panel Header1,2 × 5Pin, Pitch 2.0mm

Power

Power Adapter12V3A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension136 × 77 × 40mm
Weight0.41kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo

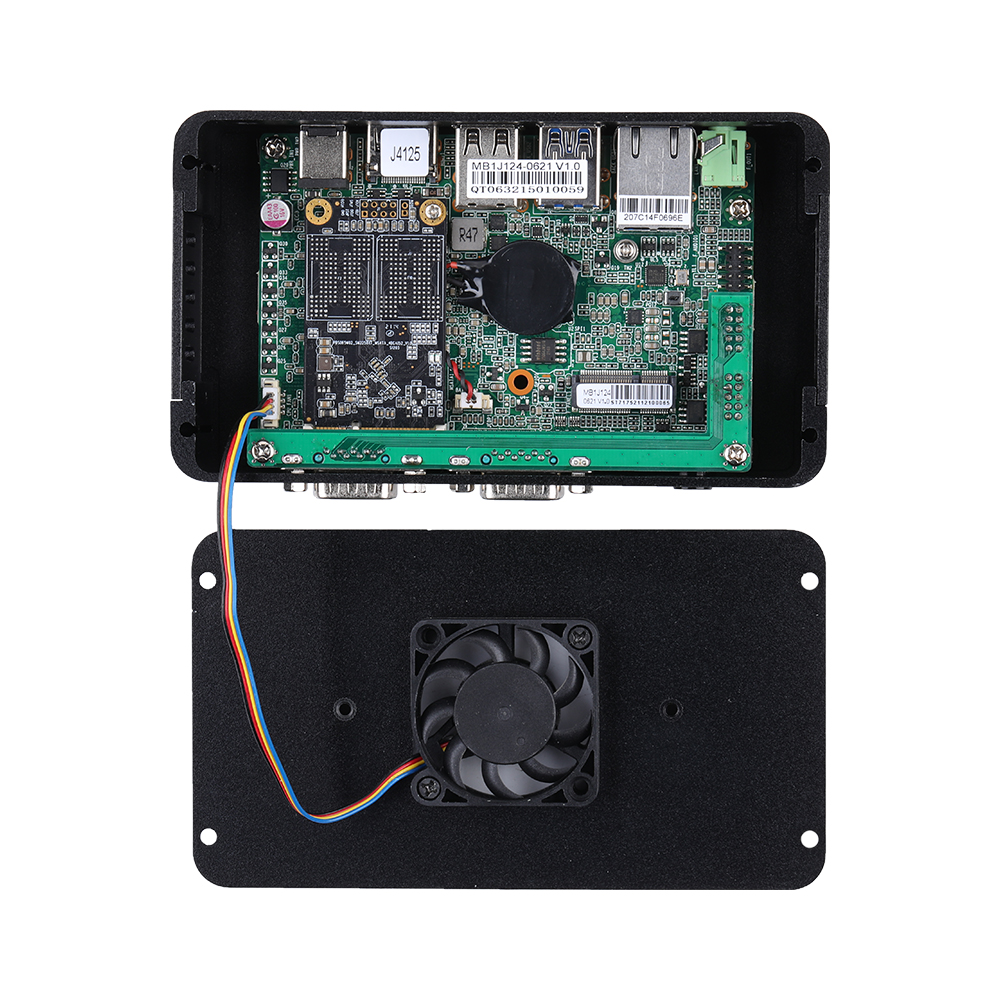

Cooling ModeFanless Design by Default, Fan-assisted Cooling

OS Support

OSWindows 10, Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPCode NameLegacy ModelDatasheet
MEMORY:4GB,INTEGRATED-S11 - - - - - - - - -
Q10511N-S11 Celeron J4005 2 / 2 2.0GHz ~ 2.7GHz 4M Intel UHD Graphics 600 10W Gemini Lake -
Q10521N-S11 Celeron J4105 4 / 4 1.5GHz ~ 2.5GHz 4M Intel UHD Graphics 600 10W Gemini Lake Q730N
Q10621N-S11 Celeron J4125 4 / 4 2.0GHz ~ 2.7GHz 4M Intel UHD Graphics 600 10W Gemini Lake Refresh Q750N
MEMORY:8GB,INTEGRATED-S11 - - - - - - - - -
Q10621N2-S11 Celeron J4125 4 / 4 2.0GHz ~ 2.7GHz 4M Intel UHD Graphics 600 10W Gemini Lake Refresh -
