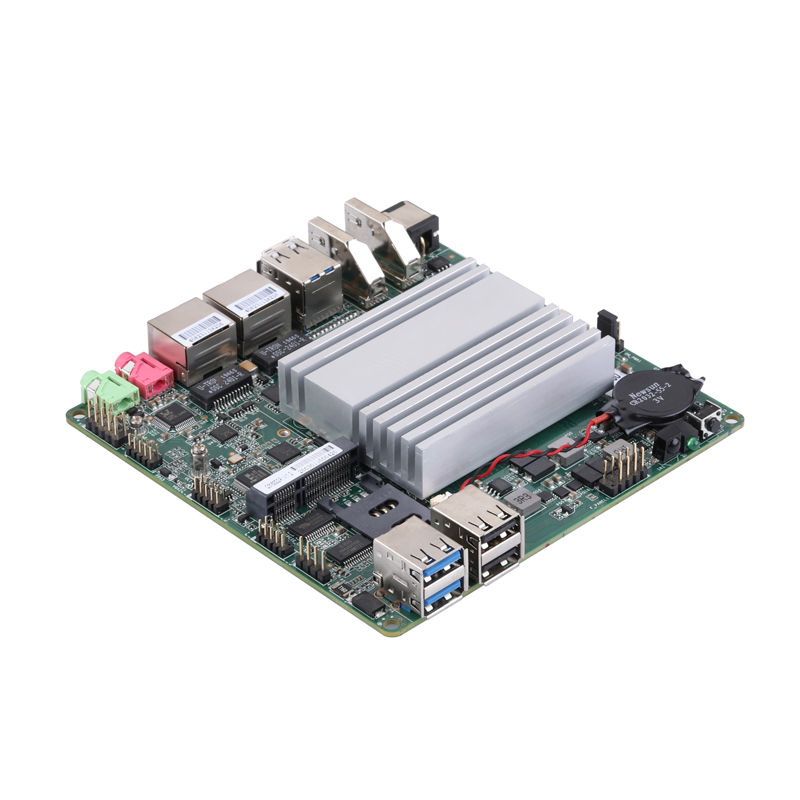

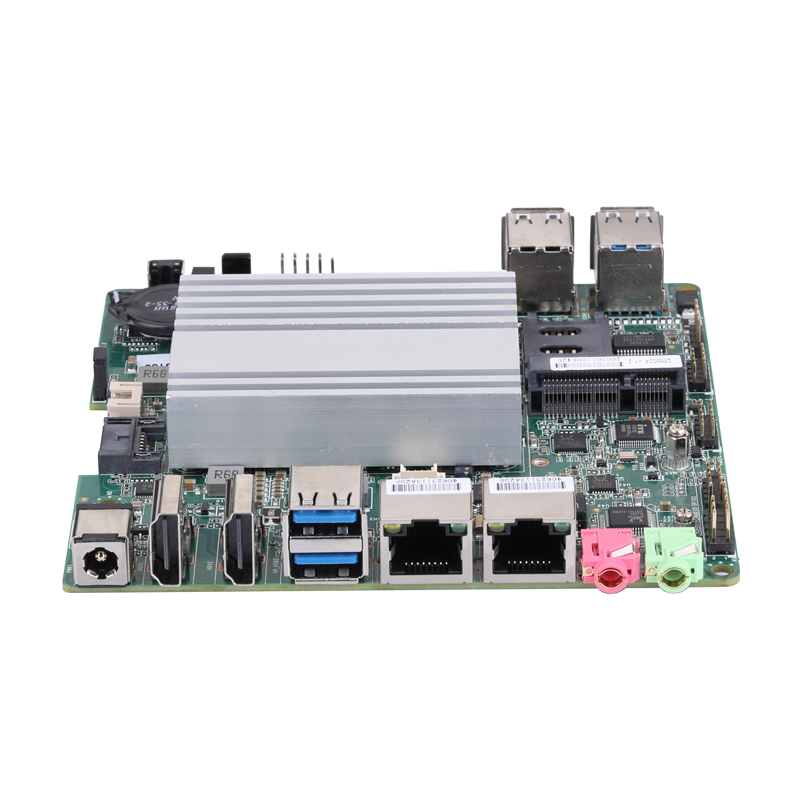

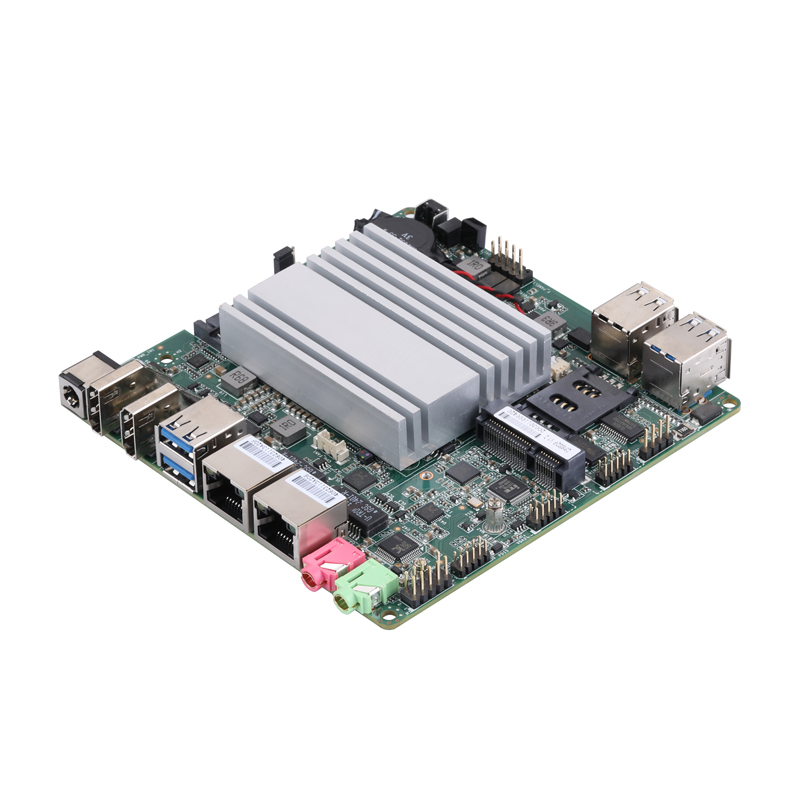

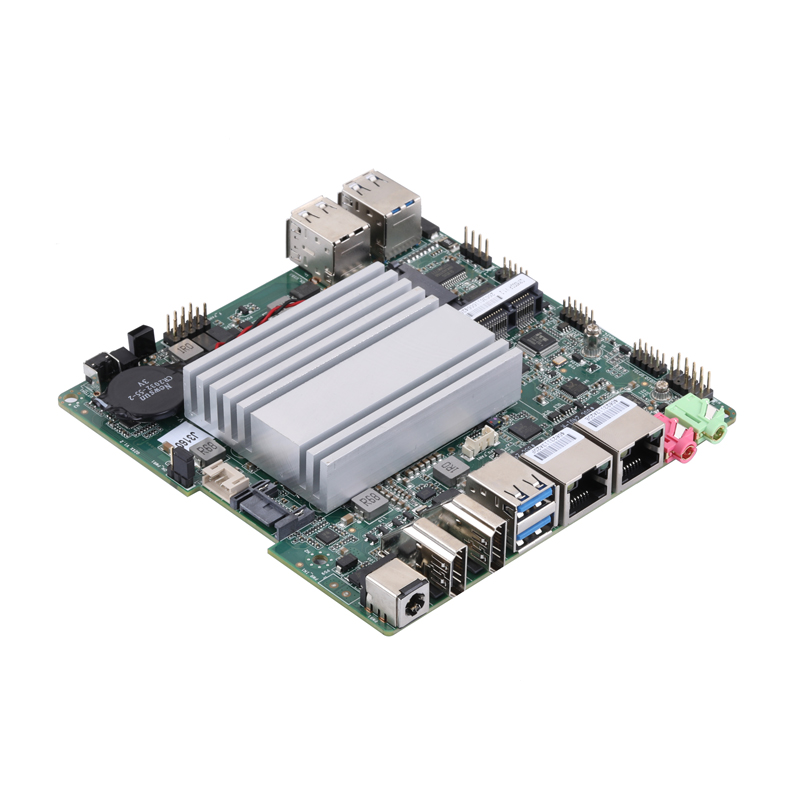

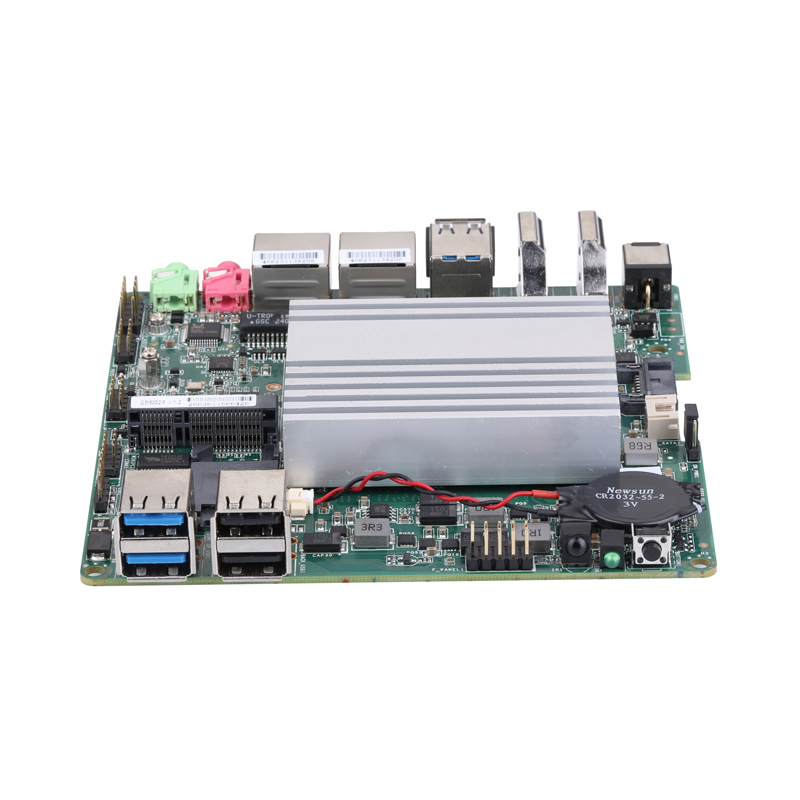

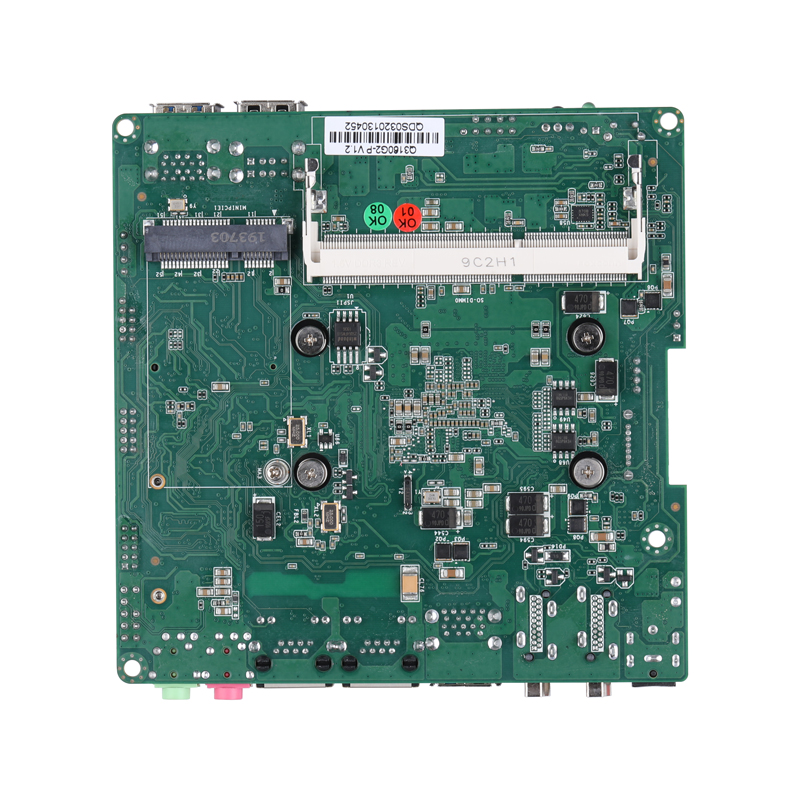

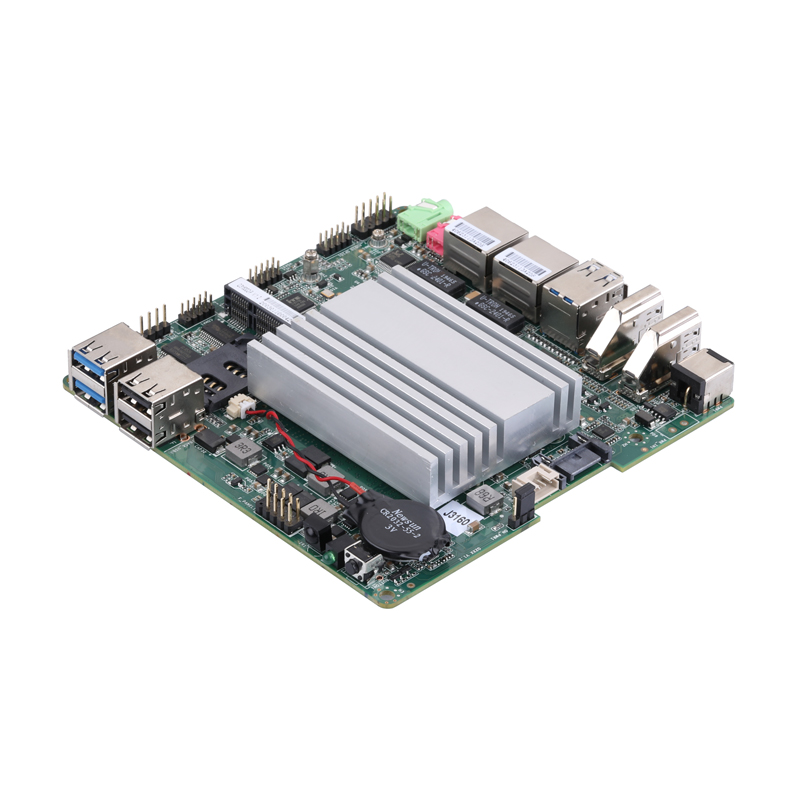

Motherboard MB2J217-0300 Series

Name: Motherboard MB2J217-0300 Series
Brand: Qotom
SKU: MB2J217-0300

Model: MB2J217-0300

Total LAN2

LAN Speed1G RJ45

Serial Ports1

For network and industrial equipment development, MB2J217-0300 offers Braswell embedded motherboard supporting processors including N3060, N3160 and Pentium J3710 with up to 8GB DDR3L. The platform also includes Dual HDMI, 4 × USB 3.0, RS232, dual Gigabit LAN, mSATA and SATA make it suitable for digital signage, commercial displays, embedded.

Key Specs

CPU: Braswell
Memory: DDR3L SO-DIMM · Max 8GB
LAN: 2
Storage: mSATA, SATA
Board Size: 120x120

Compatible Systems

Q3060G2-P Q3160G2-P Q3710G2-P MB2J217-0311 MB2J217-0321 MB2J217-0331 Intel Braswell Pentium Celeron ATOM J3060 N3060 J3160 N3160 J3710 N3710

Main Features

Intel Braswell Processor
2 × HDMI, 1 × RS-232, 1 × VGA (Header)
4 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0
1 × Mini-PCIe, 1 × mSATA
2 × Realtek Gigabit LAN

Related Products

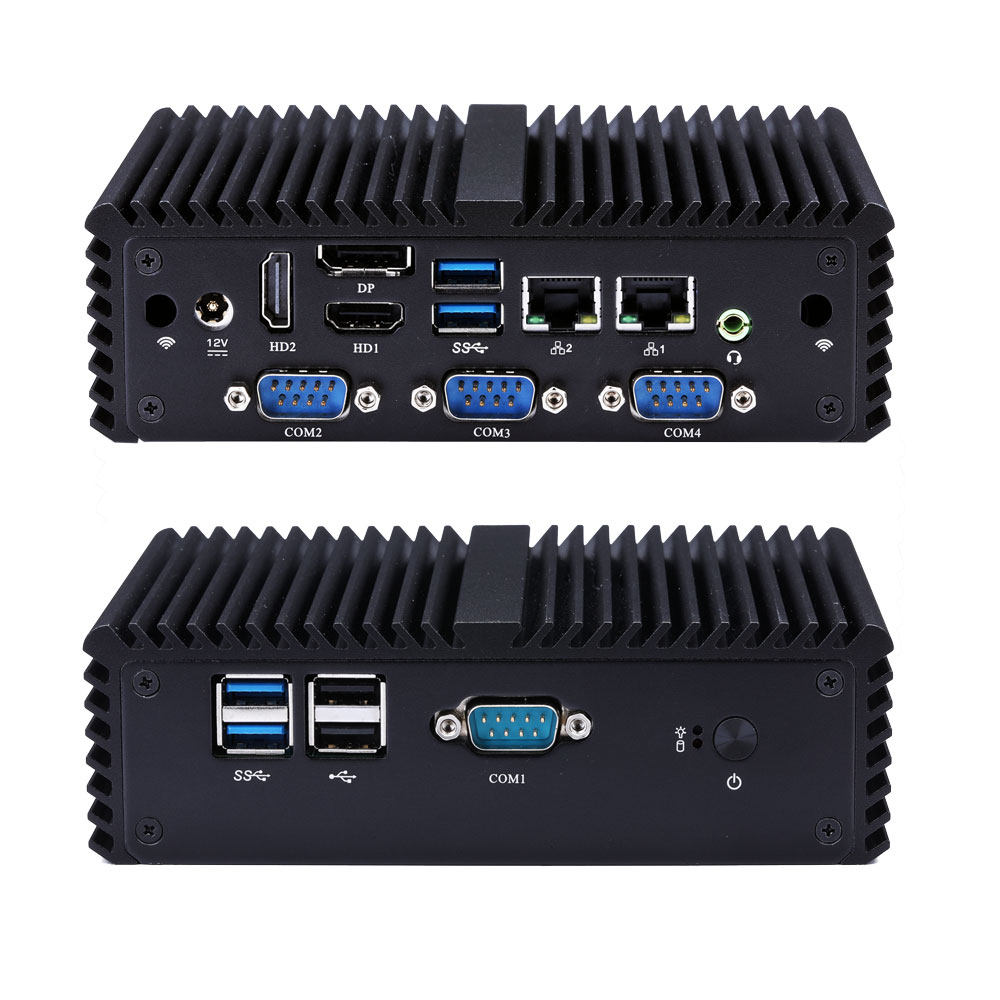

Mini PC Q10300P S08 Series

Q10300P-S08

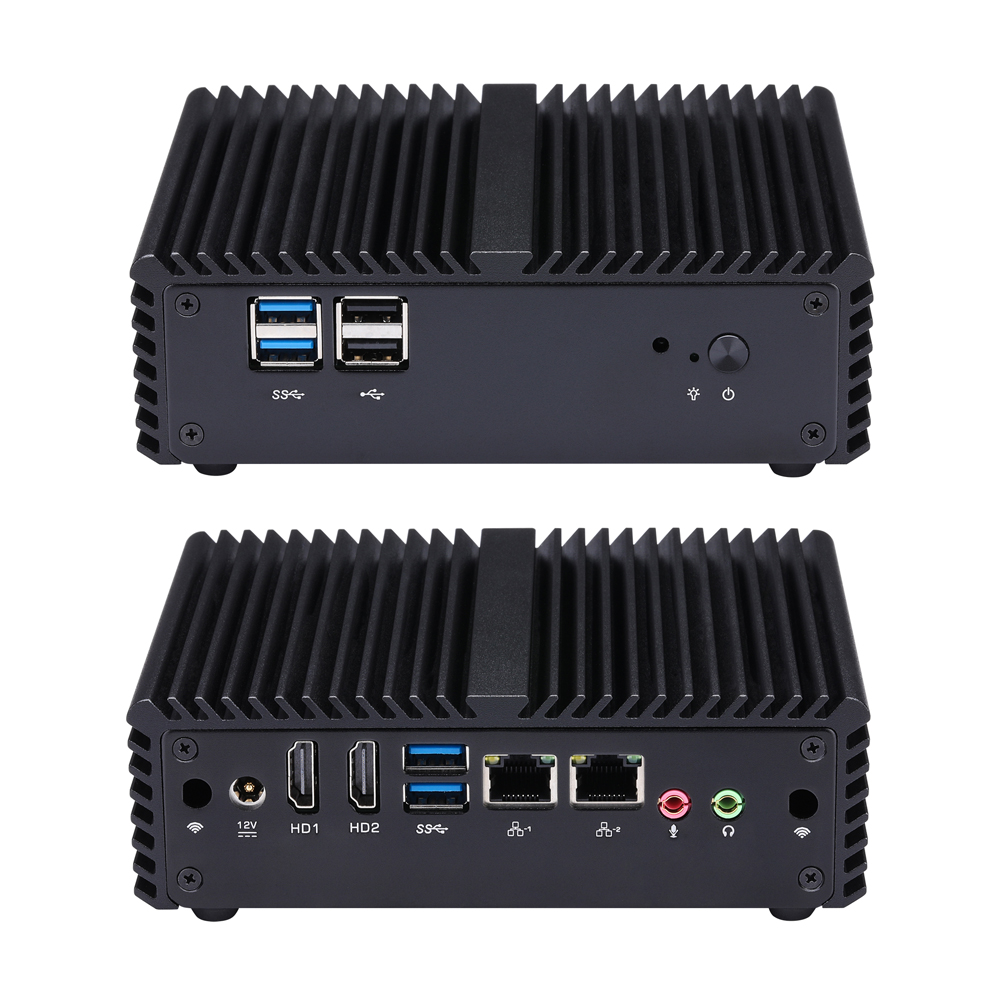

Mini PC Q10300S S08 Series

Q10300S-S08

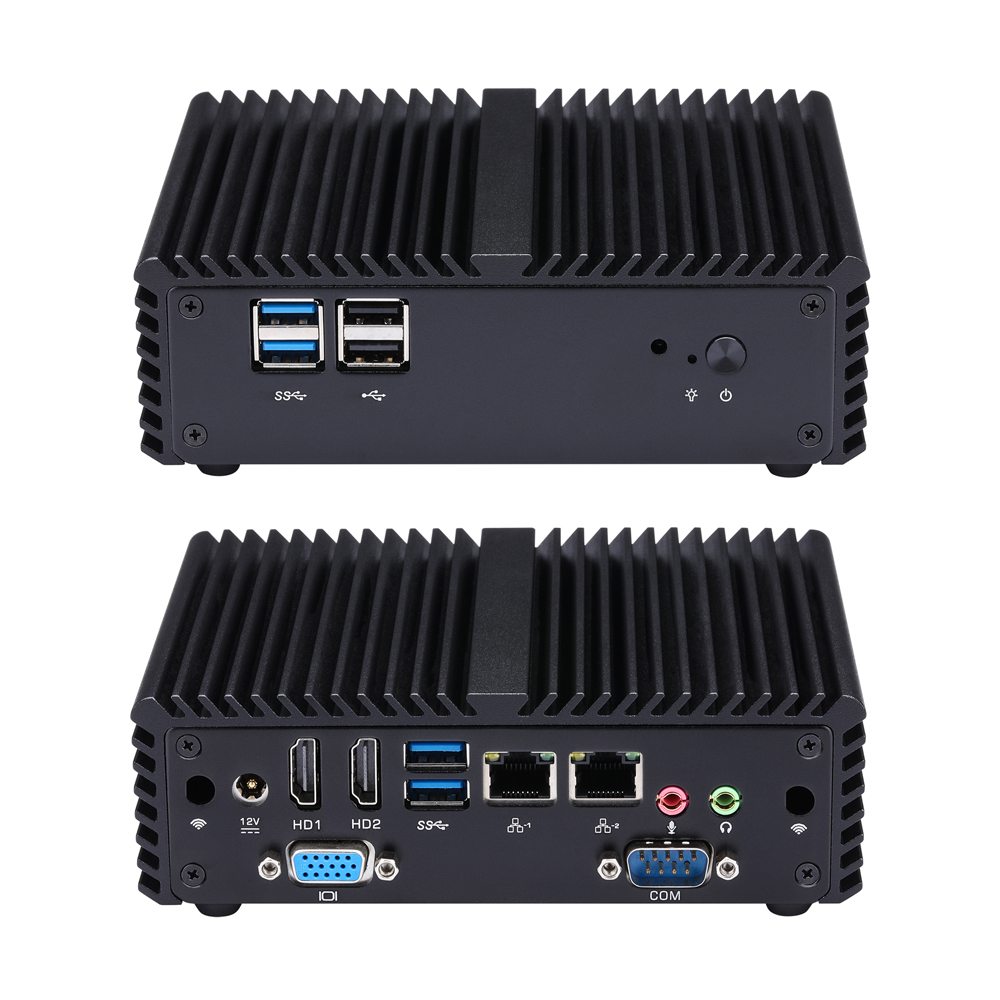

Mini PC Q10300SV S08 Series

Q10300SV-S08

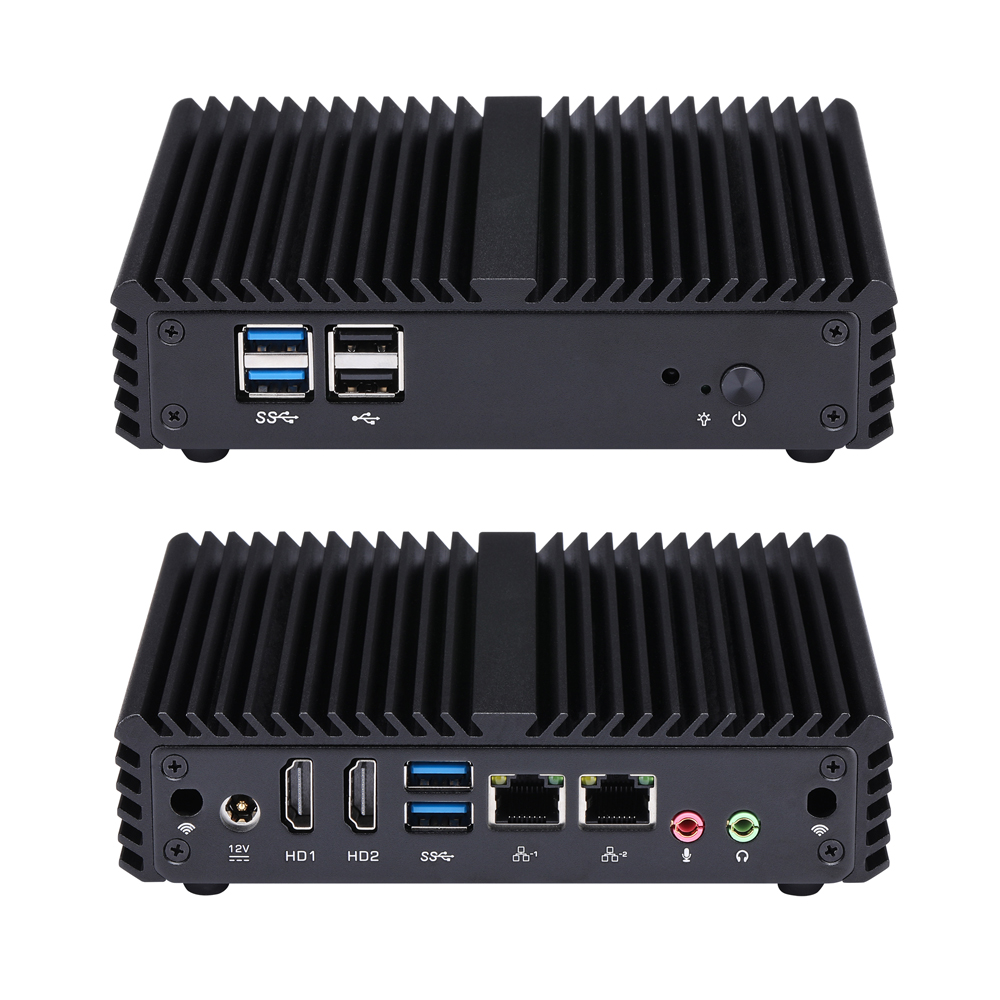

Mini PC Q10300S S07 Series

Q10300S-S07

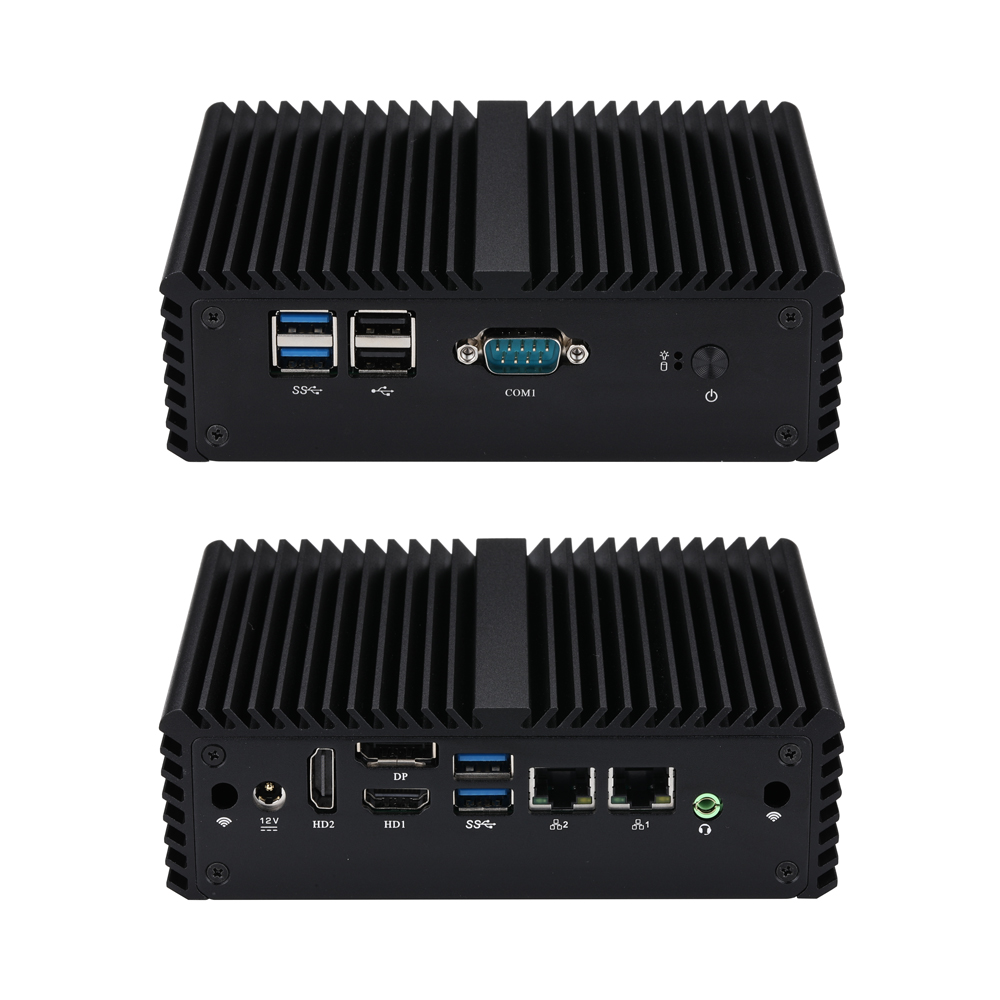

Mini PC Q10300SN S08 Series

Q10300SN-S08

Mini PC Q10300SN S01 Series

Q10300SN-S01

CPU	Intel Braswell Processor
Chipset	By CPU
Dimension	120 × 120mm
Core Number	By CPU
Max. Speed	By CPU
L2 Cache	By CPU
BIOS	UEFI

Technology	DDR3L 1333/1600MHz SDRAM
Max.	8GB
Socket	1 × SO-DIMM

Controller	By CPU
VRAM	Shared Memory
VGA	1 (Header)
HDMI	2 (Support HDMI 1.4a)
Multi Display	Yes

Interface	10/100/1000Mbps
Controller	2 × Realtek Gigabit LAN
Connector	2 × RJ-45

Power Button	1
LED	1 × Power LED
USB	2 × USB 3.0, 2 × USB 2.0
IR	1 (Option)

Motherboard MB2J217-0300 Series

Key Specs

Compatible Systems

Main Features

Processor System

Memory

Graphics

Ethernet

Audio

Front I/O

Rear I/O

Storage

Expansion

Internal Connector

Environmental

Accessories

OS Support

Package Contents

Order & Specification Selection

BIOS & Firmware

Driver Downloads

Related Products

USB	2 × USB 3.0
Audio	2 (Mic-in, Line-out)
DC-IN	1
HDMI	2
Ethernet	2

mSATA	1 × Full-length Mini PCIe for SSD
Mini PCIe	1 × Mini PCIe, Full-length Mini PCIe for 4G, Half-length Mini PCIe for Wi-Fi by Default

VGA Header	1, 2 × 5Pin, Pitch 2.0mm
Serial Port	1, 2 × 5Pin, Pitch 2.0mm
SATA	1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector	1, 1 × 4Pin, Pitch PH2.0mm
SIM Slot	1
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.54mm
GPIO Header	1, 2 × 5Pin, Pitch 2.0mm
USB 2.0 Header	1, 1 × 4Pin, Pitch 2.54mm
Front Panel Header	1, 2 × 5Pin, Pitch 2.54mm
Speakers Header	1, 2 × 5Pin, Pitch 2.54mm
Power Header	1, 1 × 2Pin, Pitch 4.2mm (Option)
Input PWR	12V DC in, 5.5mm/2.5mm

Ordering Code	Legacy Model	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP
MB2J217-0311	Q3060G2-P	Braswell	Celeron	N3060	2 / 2	1.6Ghz ~ 2.48Ghz	2M	Intel HD Graphics	6W
MB2J217-0321	Q3160G2-P	Braswell	Celeron	N3160	4 / 4	1.6Ghz ~ 2.24Ghz	2M	Intel HD Graphics	6W
MB2J217-0331	Q3710G2-P	Braswell	Pentium	J3710	4 / 4	1.6Ghz ~ 2.64Ghz	2M	Intel HD Graphics	6.5W
