Mini PC Q10300S S07 Series

Model: Q10300S-S07

Total LAN2
LAN Speed1G RJ45

Key Specs

CPU
Braswell
Memory
DDR3L SO-DIMM · Max 8GB
LAN
2
Storage
mSATA, SATA

Compatible Motherboard

MB2J217-0300MB2J217-0300

This product is available via inquiry and OEM/ODM customization.

Send Inquiry
Q106SQ150SQ170SQ10311SQ10321SQ10331SIntelBraswellPentiumCeleronATOMJ3060N3060J3160N3160J3710N3710

Main Features

  • Intel Braswell Processor
  • 2 × HDMI
  • 4 × USB 3.0,2 × USB 2.0
  • 1 × Mini PCIe,1 × mSATA
  • 2 × Realtek Gigabit LAN

Processor System

CPUIntel Braswell Processor
CPU TDPBy CPU
Memory1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)
ChipsetBy CPU
GraphicsIntel HD Graphics
LAN Chipset2 × Realtek Gigabit LAN
AudioRealtek HD Audio
Watch DogNo

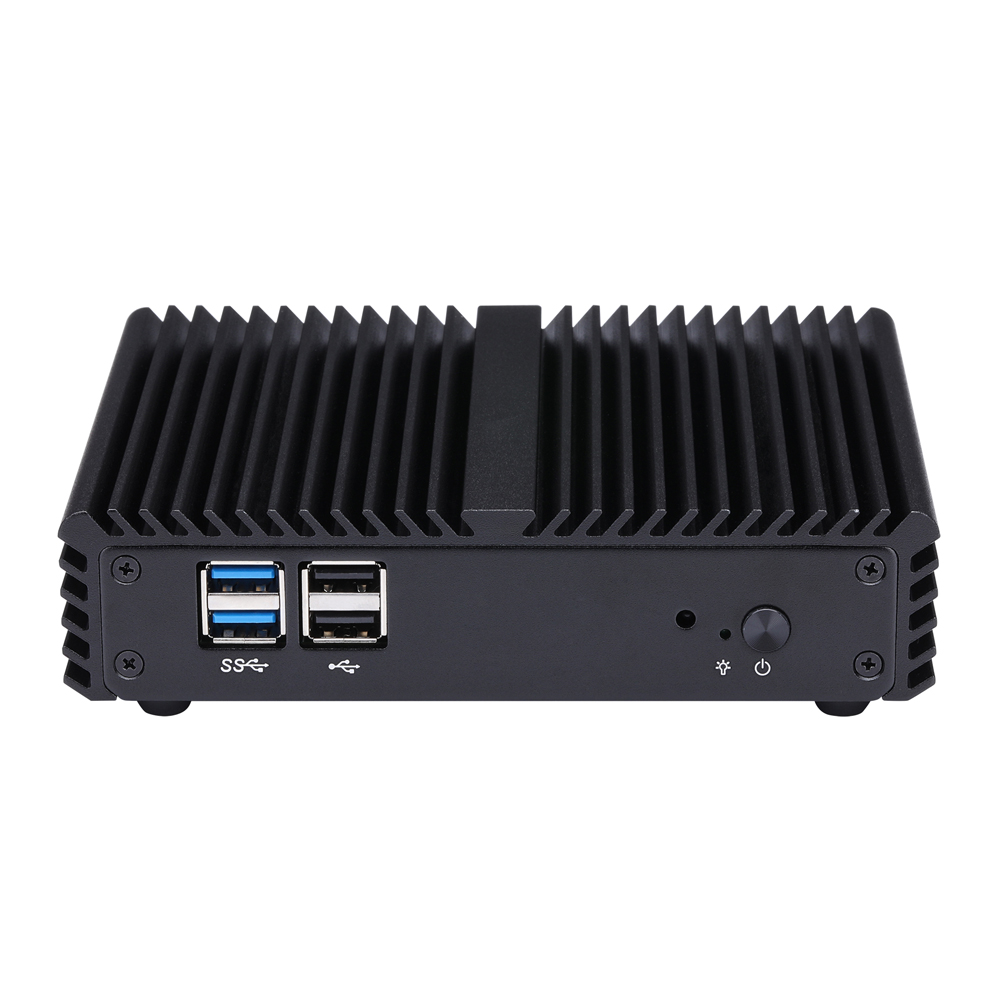

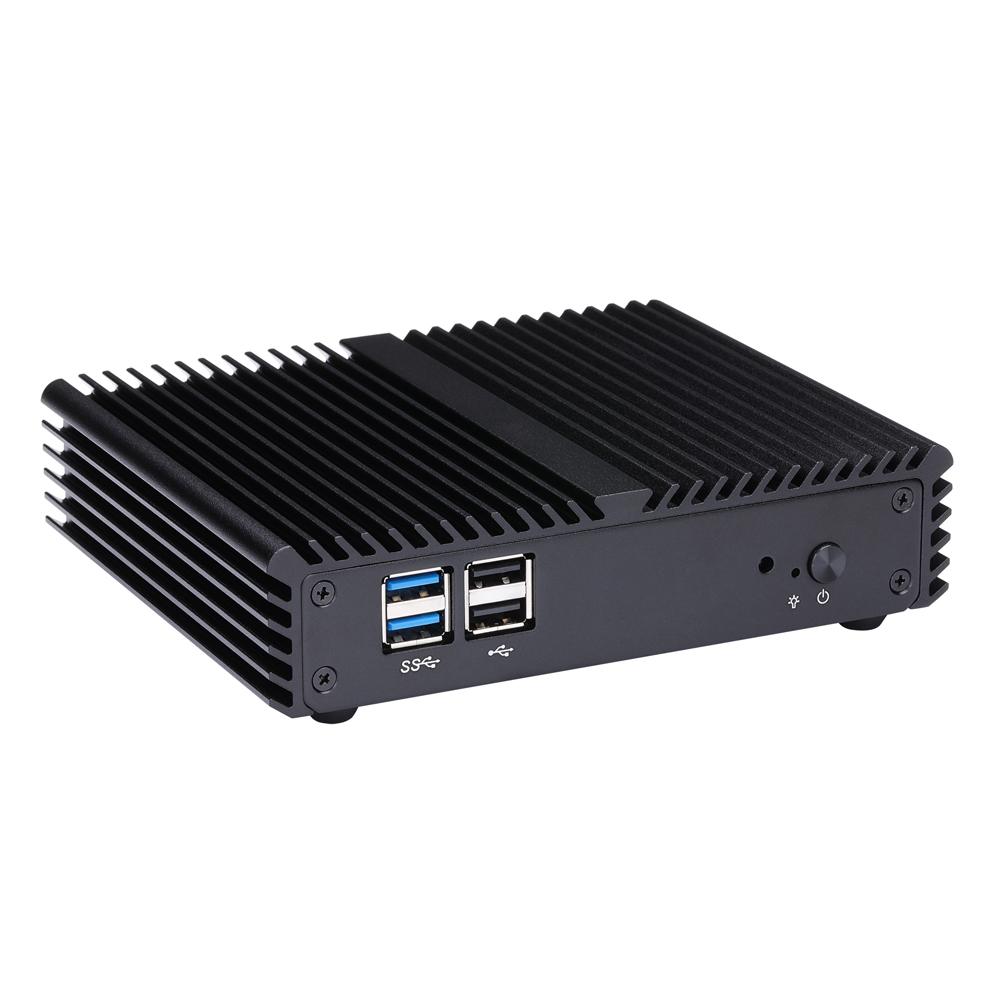

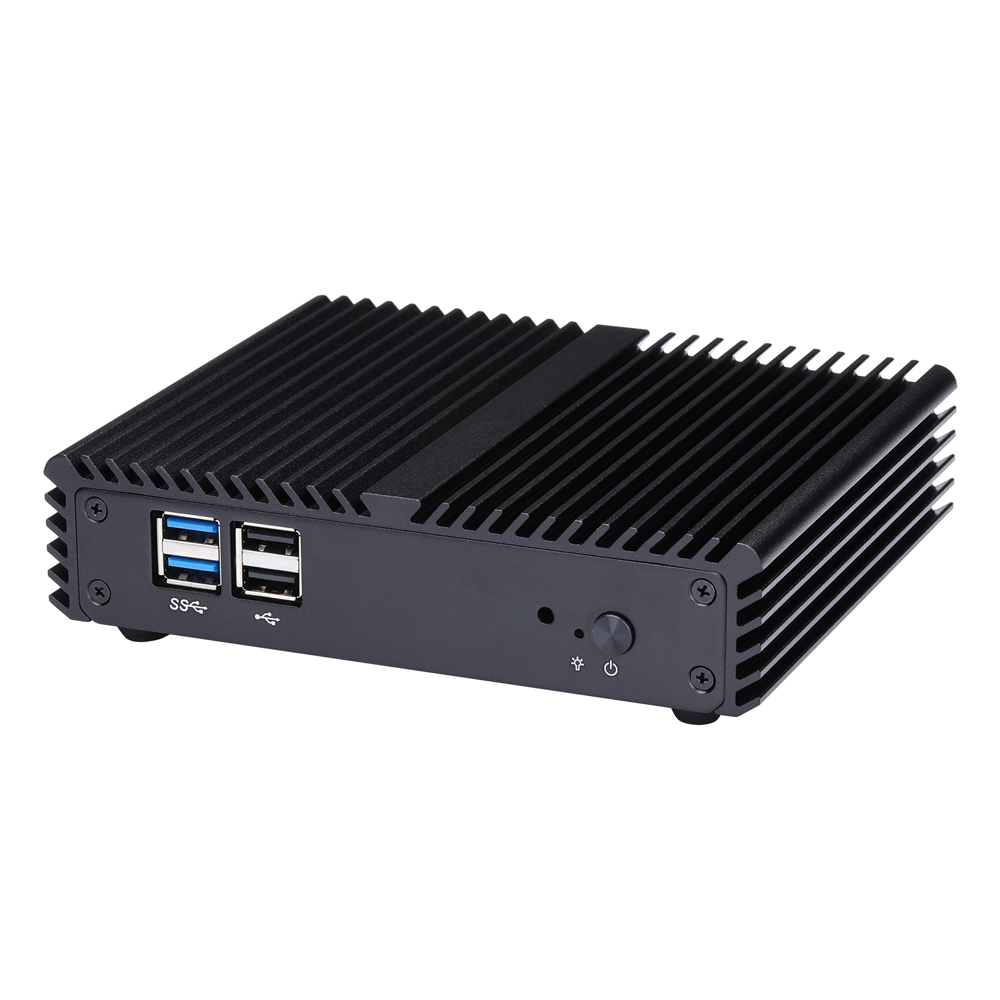

Front I/O

Power Button1
LED1 × Power LED
USB2 × USB 3.0,2 × USB 2.0
IR0

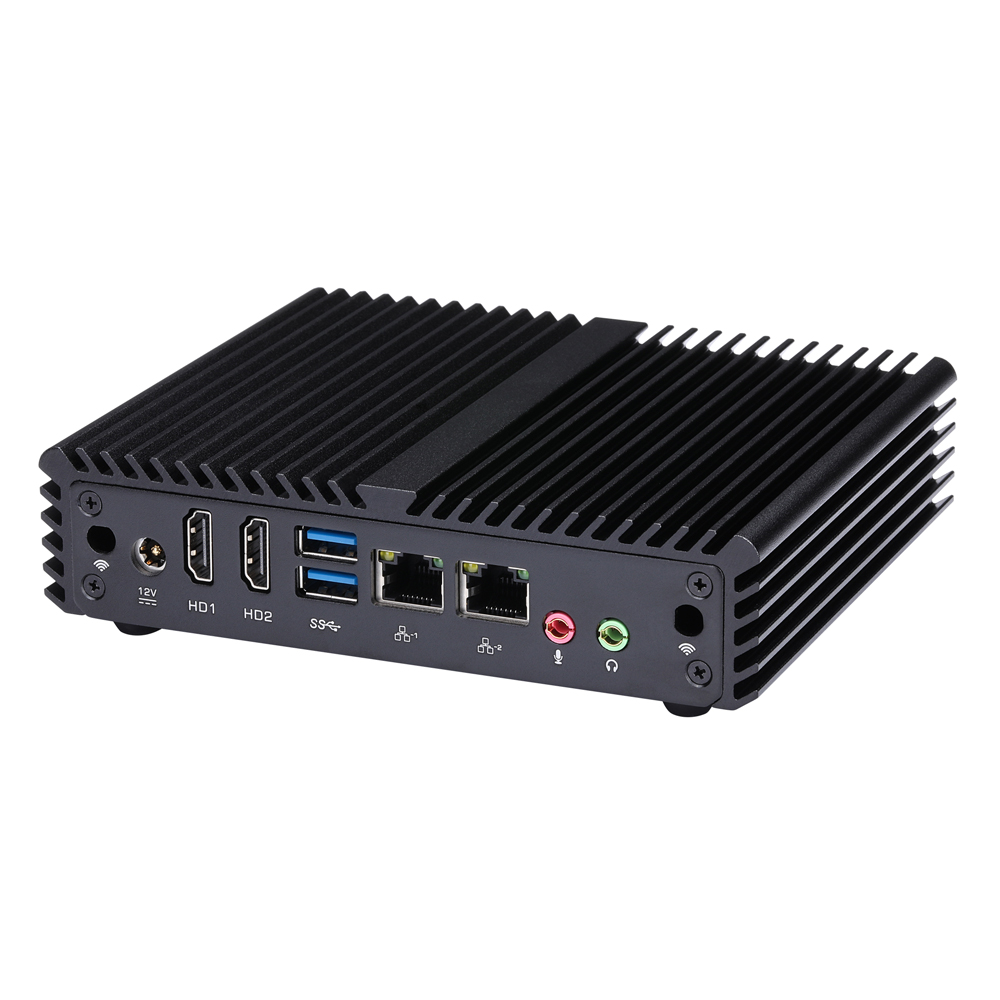

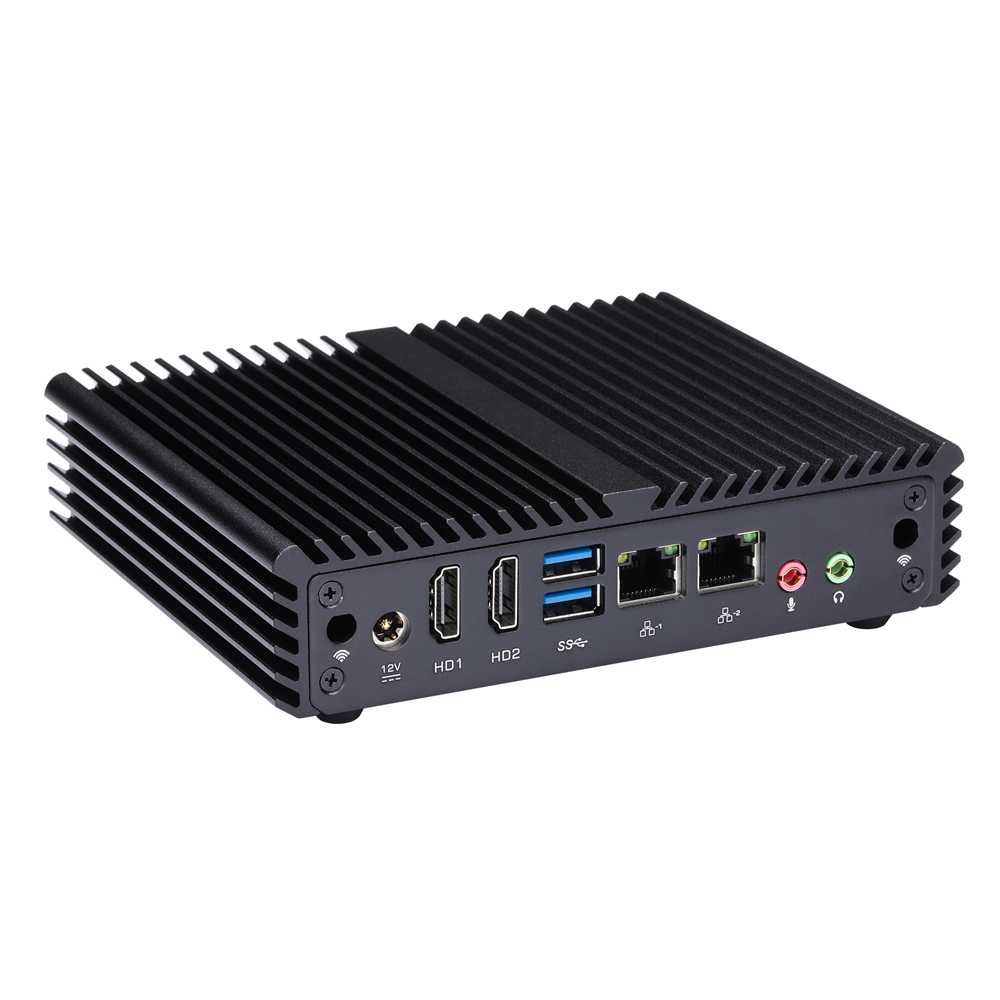

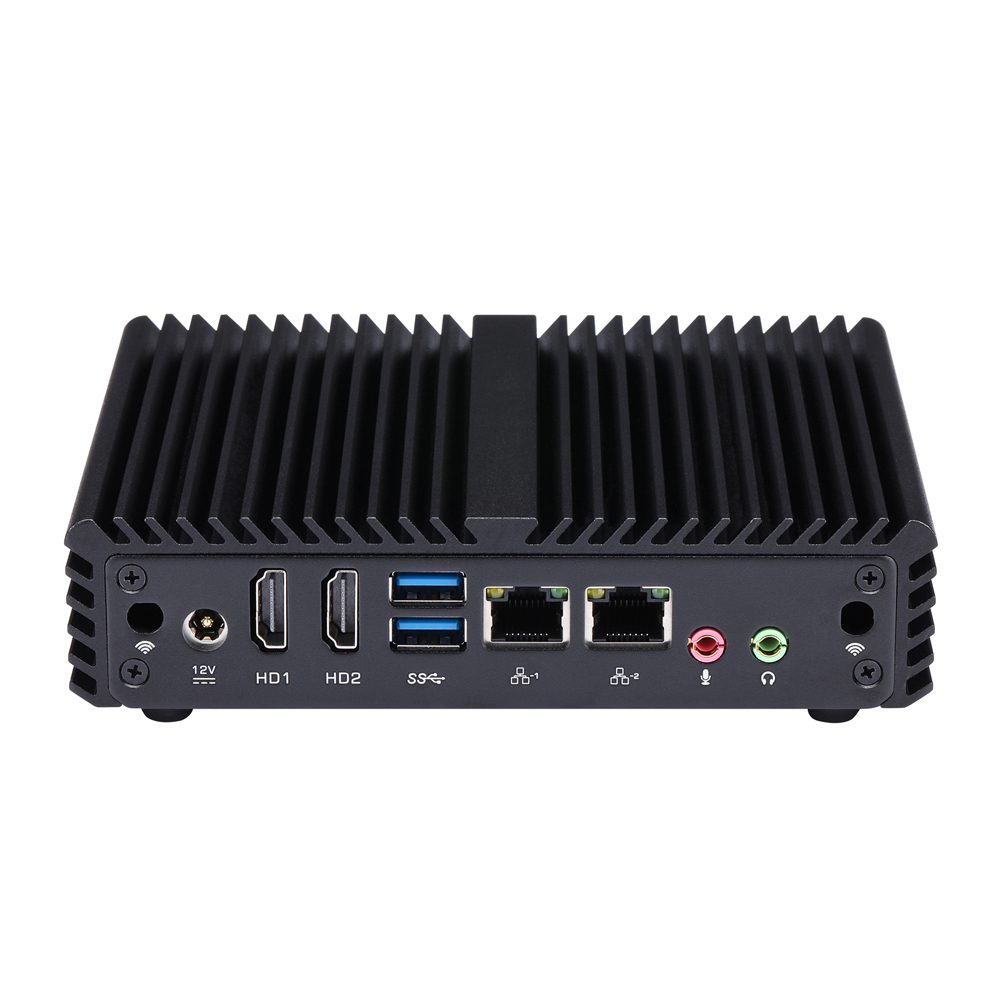

Rear I/O

Power1 × DC Jack
Video Output2 × HDMI
LAN2 × Realtek Gigabit LAN
USB2 × USB 3.0
Audio1 × Mic-in,1 × Line-out
VGA0
Serial Port0

Storage

Type1 × Mini PCIe for mSATA SSD

Expansion

mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi
SIM Card Slot1
AutoStart JumperYes,1 × 3Pin, Pitch 2.54mm
DC-INNo
VGA1,2 × 5Pin, Pitch 2.0mm
GPIO1,2 × 5Pin, Pitch 2.0mm
RS-4850

Power

Power Adapter12V3A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension155 × 127 × 36mm
Weight0.78kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSWindows 7, Windows 8, Windows 10, Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q10311S-S07 Q106S Braswell Celeron N3060 2 / 2 1.6Ghz ~ 2.48Ghz 2M Intel HD Graphics 6W
Q10321S-S07 Q150S Braswell Celeron N3160 4 / 4 1.6Ghz ~ 2.24Ghz 2M Intel HD Graphics 6W
Q10331S-S07 Q170S Braswell Pentium J3710 4 / 4 1.6Ghz ~ 2.64Ghz 2M Intel HD Graphics 6.5W
