Mini PC Q10300P S08 Series

Model: Q10300P-S08

Total LAN2
LAN Speed1G RJ45
Serial Ports4

For equipment requiring multiple serial connections, Q10300P-S08 offers fanless industrial Mini PC powered by Intel Braswell processors with 4×RS232, dual Gigabit LAN and DDR3L up to 8GB. It supports mSATA, 2.5-inch HDD/SSD, Mini PCIe, VESA mounting and Windows/Linux for POS systems, industrial terminals and serial. Its intended uses include factory automation, data collection and control terminals.

Key Specs

CPU
Braswell
Memory
DDR3L SO-DIMM · Max 8GB
LAN
2
Storage
mSATA, SATA

Compatible Motherboard

MB2J249-0300
MB2J249-0300
Send Inquiry Buy Now
Q161PQ160PQ177PQ10311PQ10321PQ10331PIntelBraswellPentiumCeleronATOMJ3060N3060J3160N3160J3710N3710

Main Features

  • Intel Braswell Processor

  • Intel HD Graphics

  • 1 × Display Port,2 × HDMI,4 × RS-232

  • 4 × USB 3.0,2 × USB 2.0

  • 1 × Mini PCIe,1 × mSATA,1 × M.2

  • 2 × Realtek Gigabit LAN

Processor System

CPUIntel Braswell Processor
CPU TDPBy CPU
Memory1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset2 × Realtek Gigabit LAN
AudioRealtek HD Audio
Watch DogYes

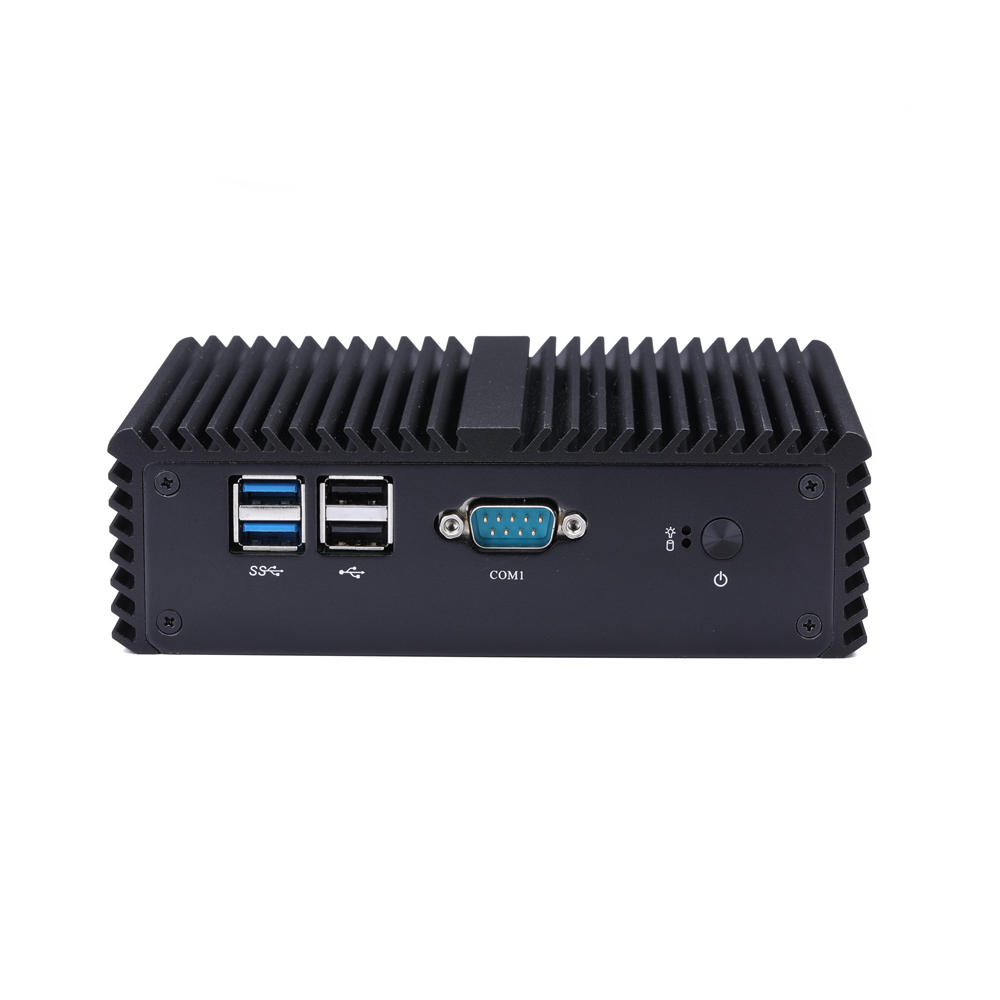

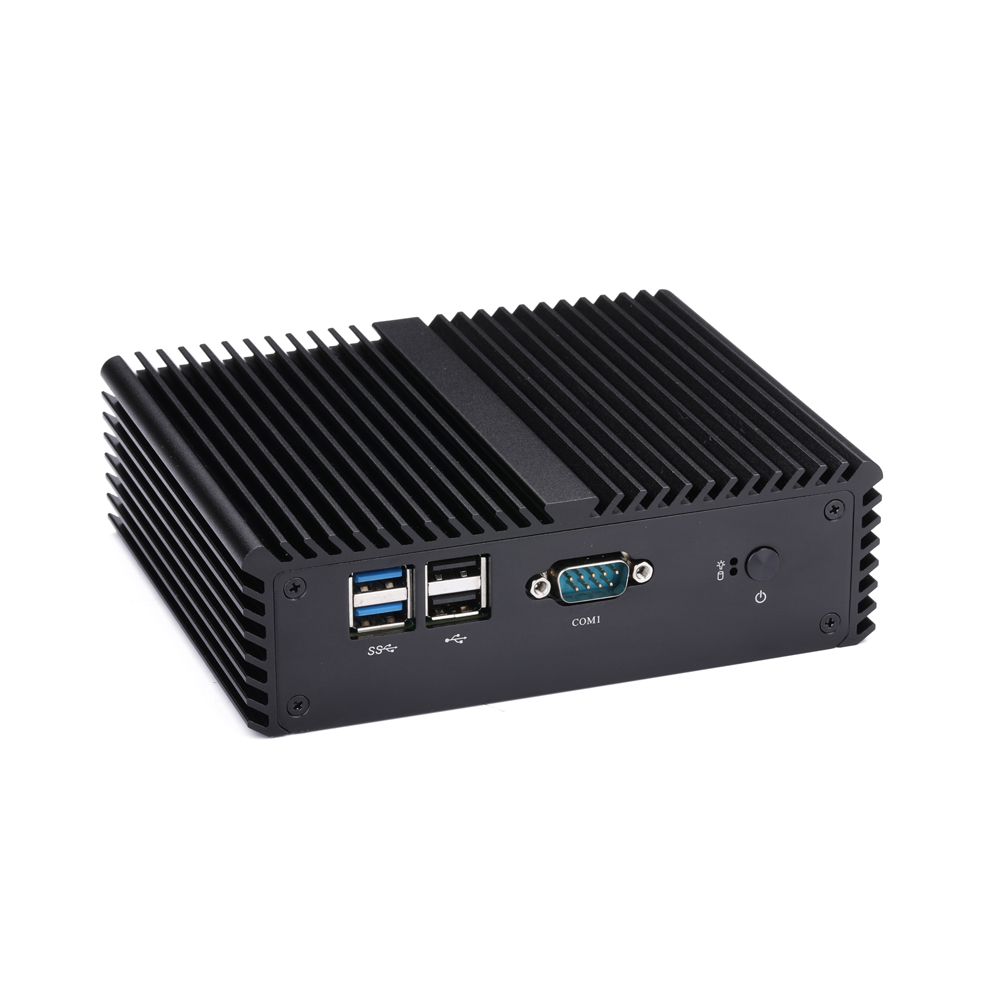

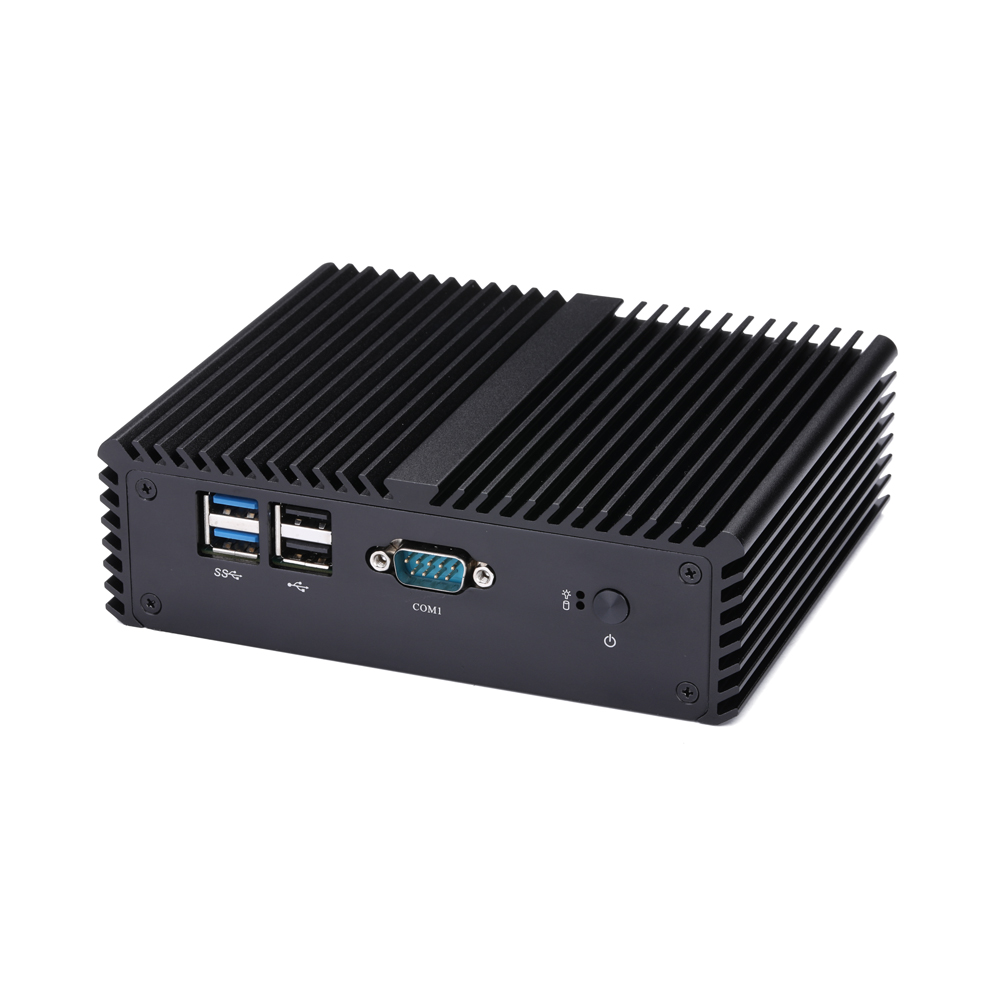

Front I/O

Power Button1
LED1 × Power LED,1 × HDD LED
USB2 × USB 3.0,2 × USB 2.0
Serial Port1 × RS-232 (COM1)

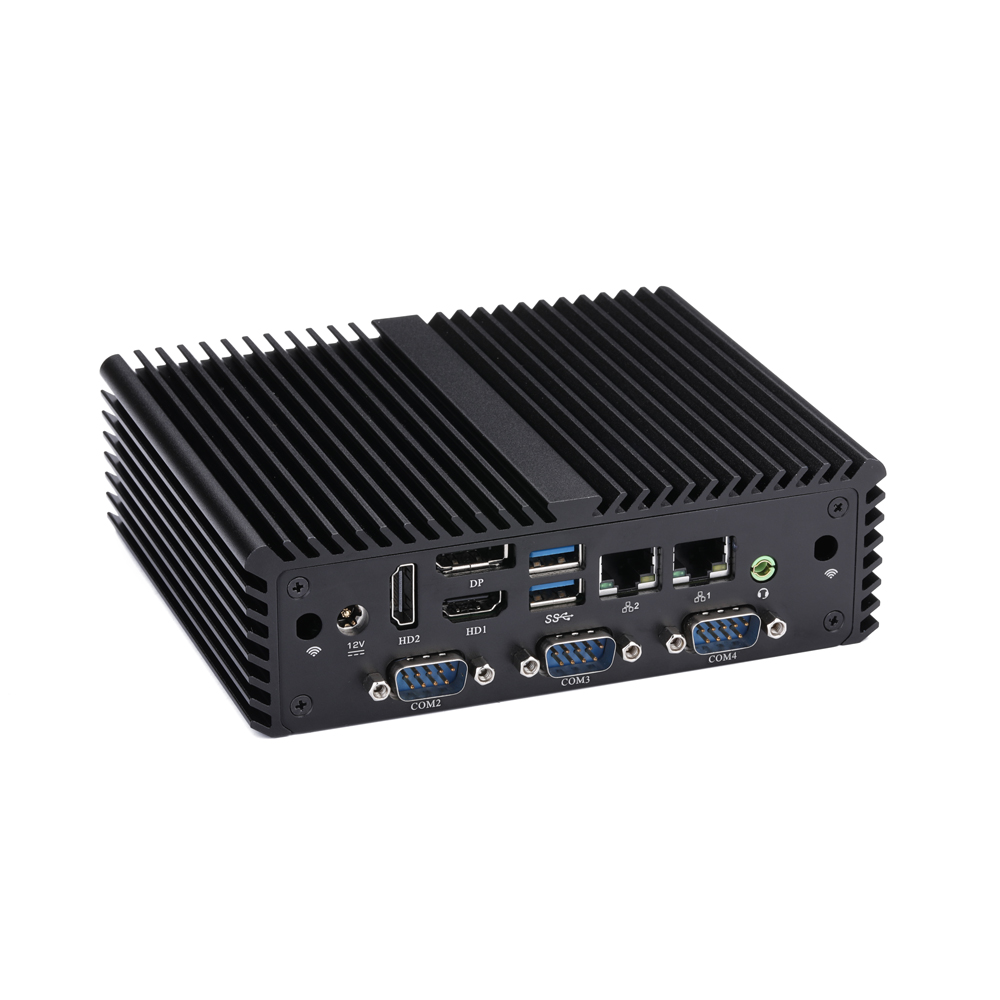

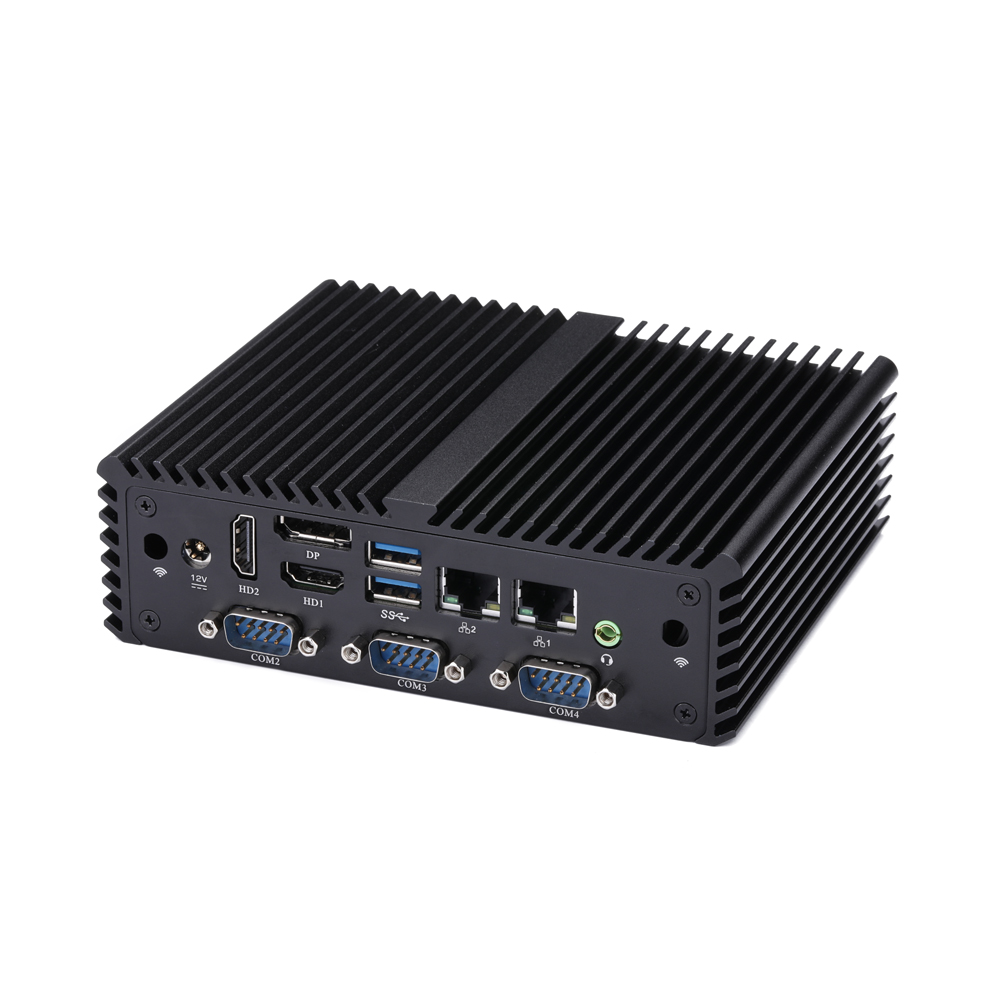

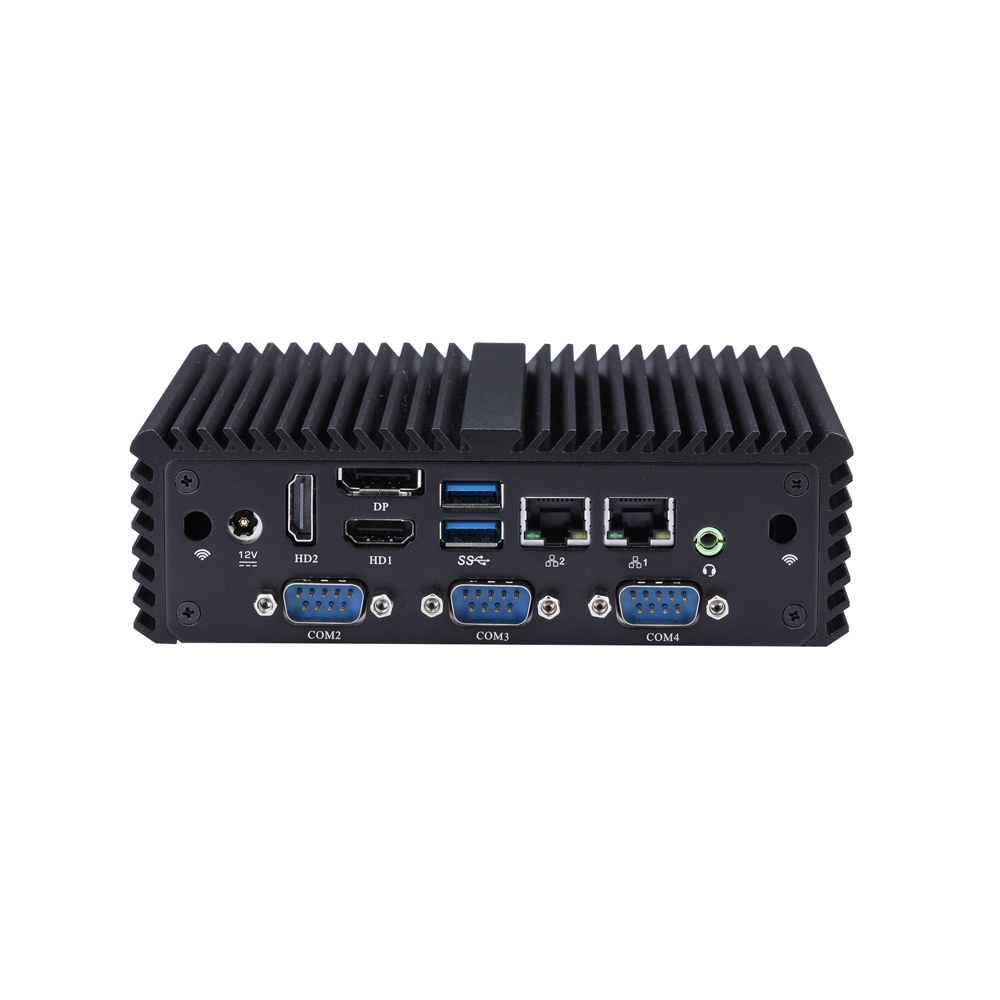

Rear I/O

Power1 × DC Jack
Video Output2 × HDMI
Video Output1 × Display Port
LAN2 × Realtek Gigabit LAN
USB2 × USB 3.0
Audio1 (Mic-in, Line-out)
Serial Port3 × RS-232 (COM3/COM4 Support 5V/12V)

Storage

Type1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD

Expansion

mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi
M.2 Slot1 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot1
AutoStart JumperYes,1 × 3Pin, Pitch 2.54mm
DC-INNo
GPIO1,2 × 5Pin, Pitch 2.0mm
RS-4850

Power

Power Adapter12V3A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension155 × 127 × 48mm
Weight0.93kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSWindows 7 x64, Windows 8, Windows 10, Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q10311P-S08 Q161P Braswell Celeron N3060 2 / 2 1.6Ghz ~ 2.48Ghz 2M Intel HD Graphics 6W
Q10321P-S08 Q160P Braswell Celeron N3160 4 / 4 1.6Ghz ~ 2.24Ghz 2M Intel HD Graphics 6W
Q10331P-S08 Q177P Braswell Pentium J3710 4 / 4 1.6Ghz ~ 2.64Ghz 2M Intel HD Graphics 6.5W
