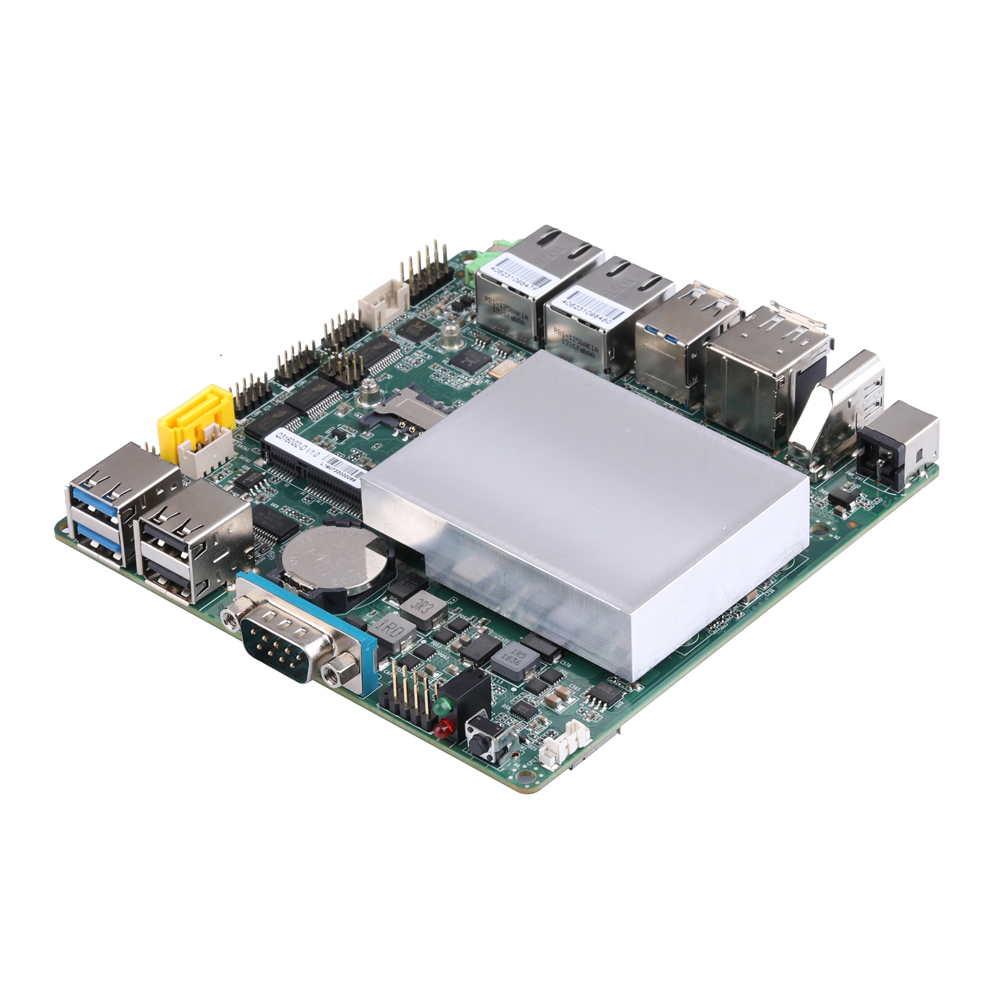

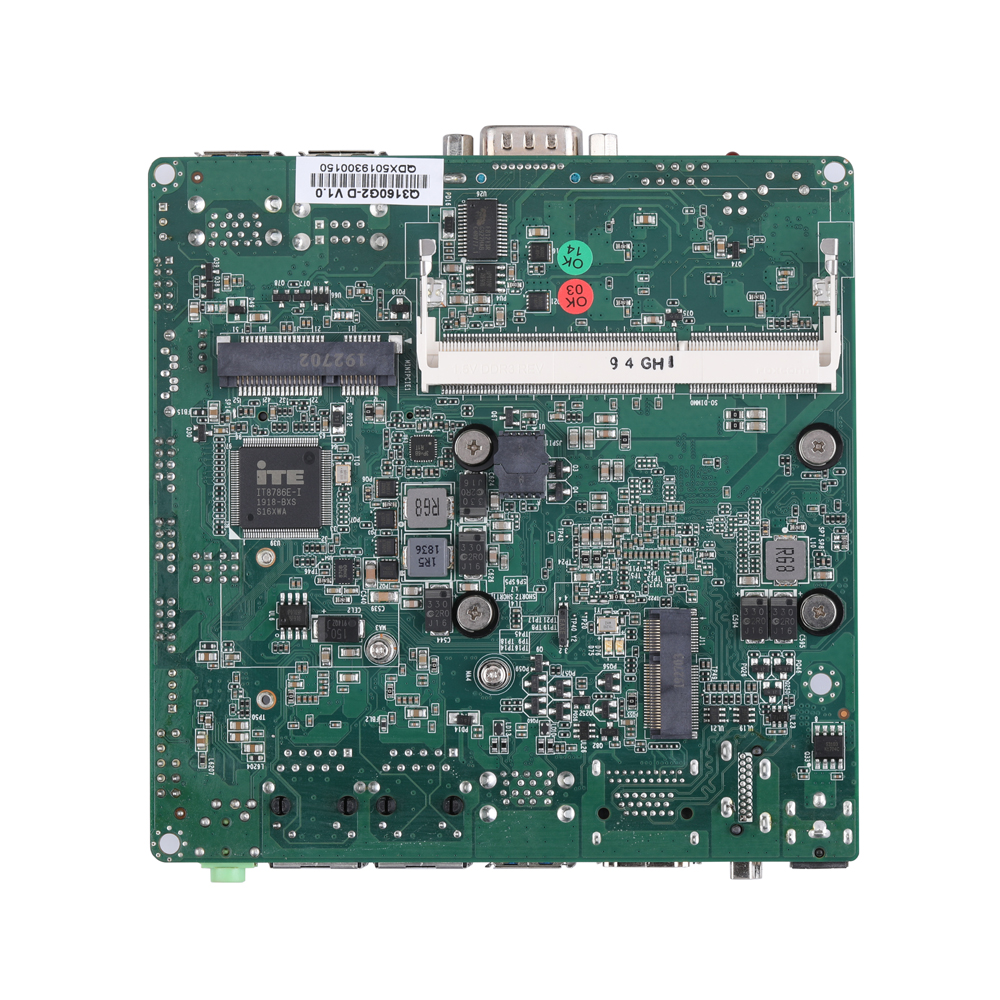

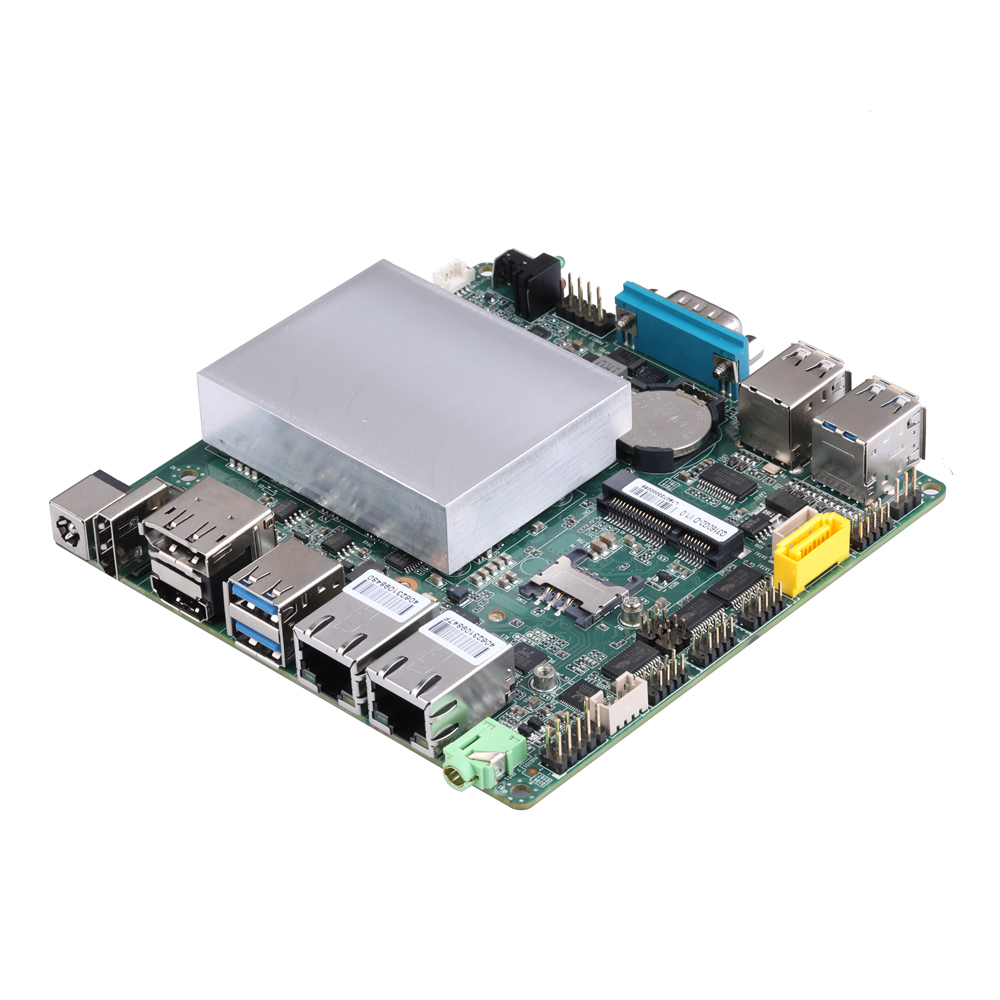

Motherboard MB2J249-0300 Series

Name: Motherboard MB2J249-0300 Series
Brand: Qotom
SKU: MB2J249-0300

Model: MB2J249-0300

Total LAN2

LAN Speed1G RJ45

Serial Ports4

Embedded hardware designs can start with MB2J249-0300, featuring compact mini computer motherboard featuring 4 serial ports, 6 USB interfaces and multi-display connectivity. Deployment scenarios range from compact server platforms and specialized hardware designs.

Key Specs

CPU: Braswell
Memory: DDR3L SO-DIMM · Max 8GB
LAN: 2
Storage: mSATA, SATA
Board Size: 120x120

Compatible Systems

Q3060G2-D Q3160G2-D Q3710G2-D MB2J249-0311 MB2J249-0321 MB2J249-0331 Intel Braswell Pentium Celeron ATOM J3060 N3060 J3160 N3160 J3710 N3710

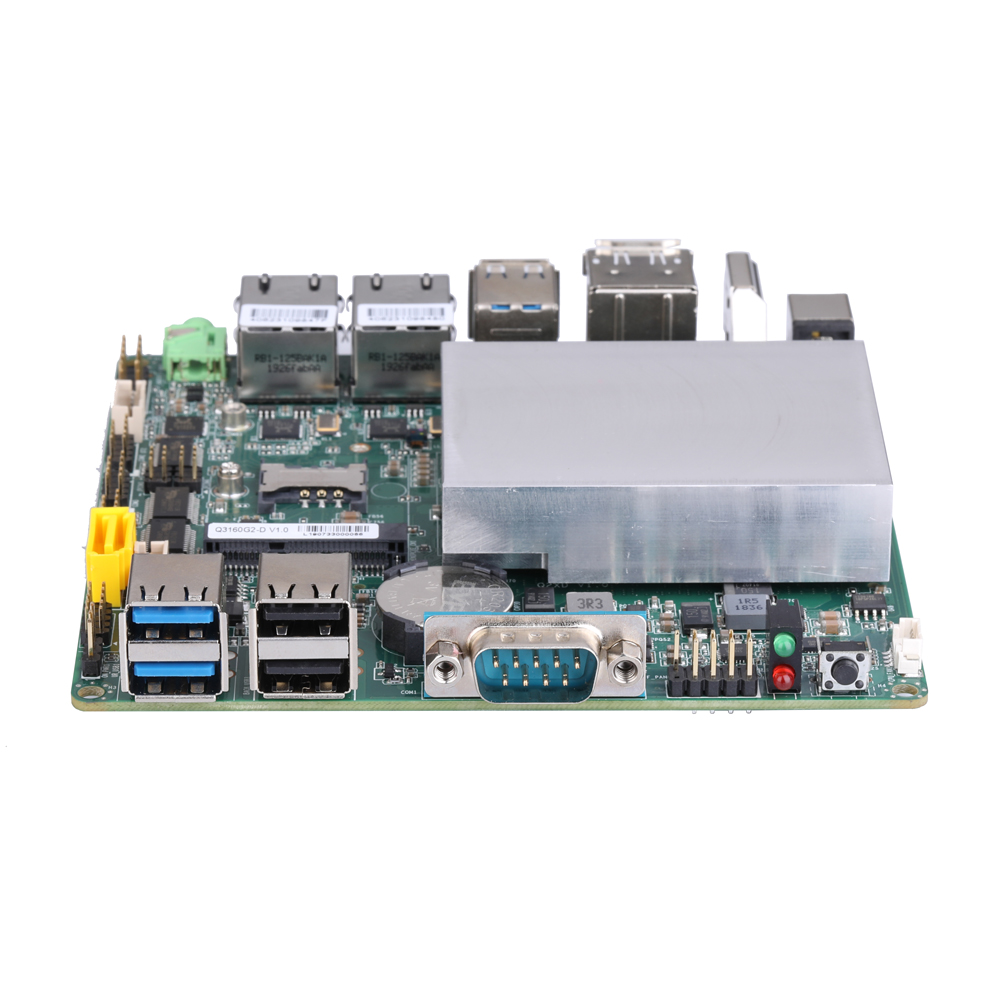

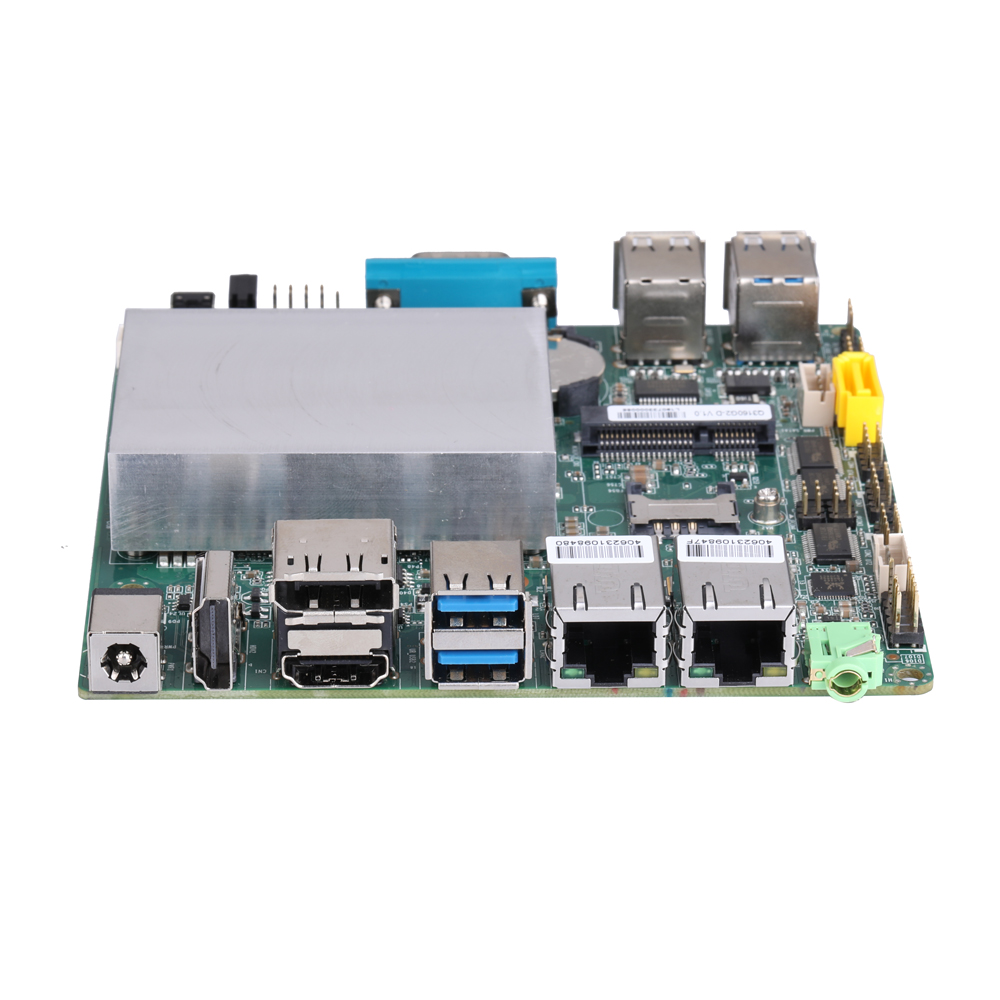

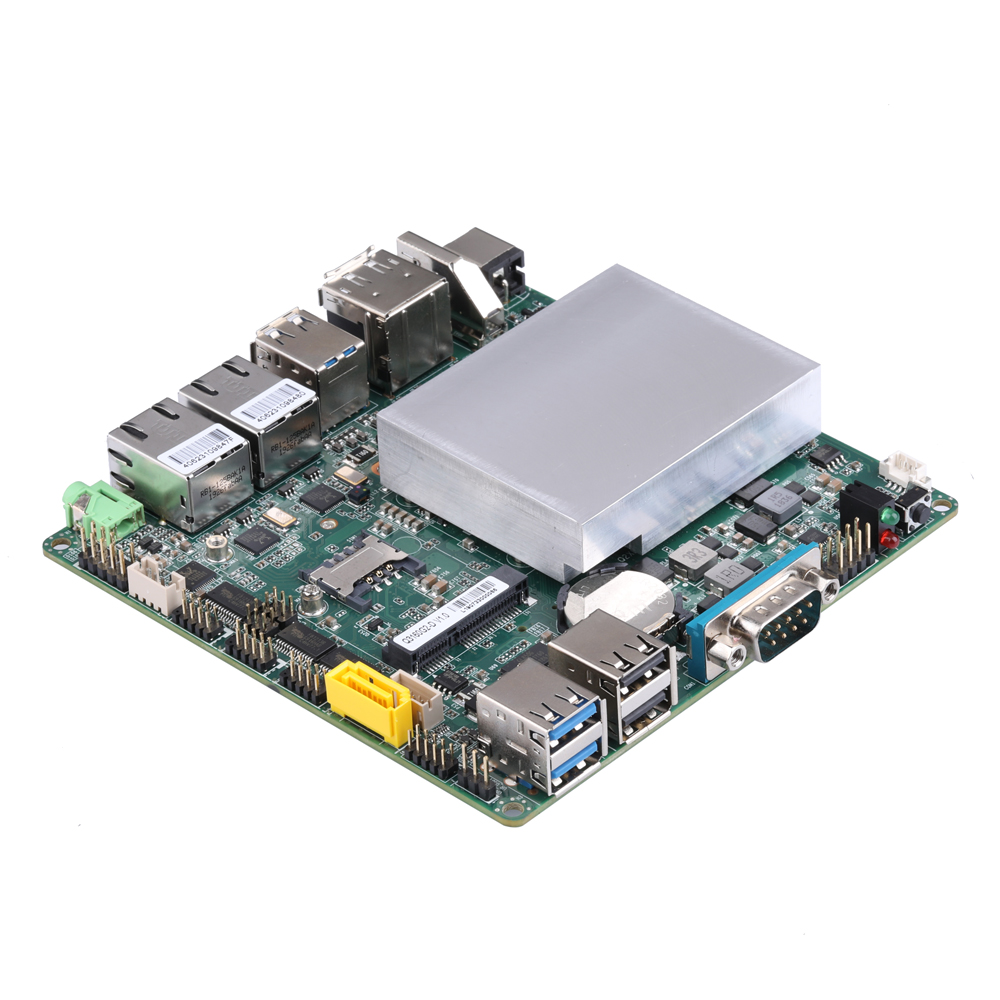

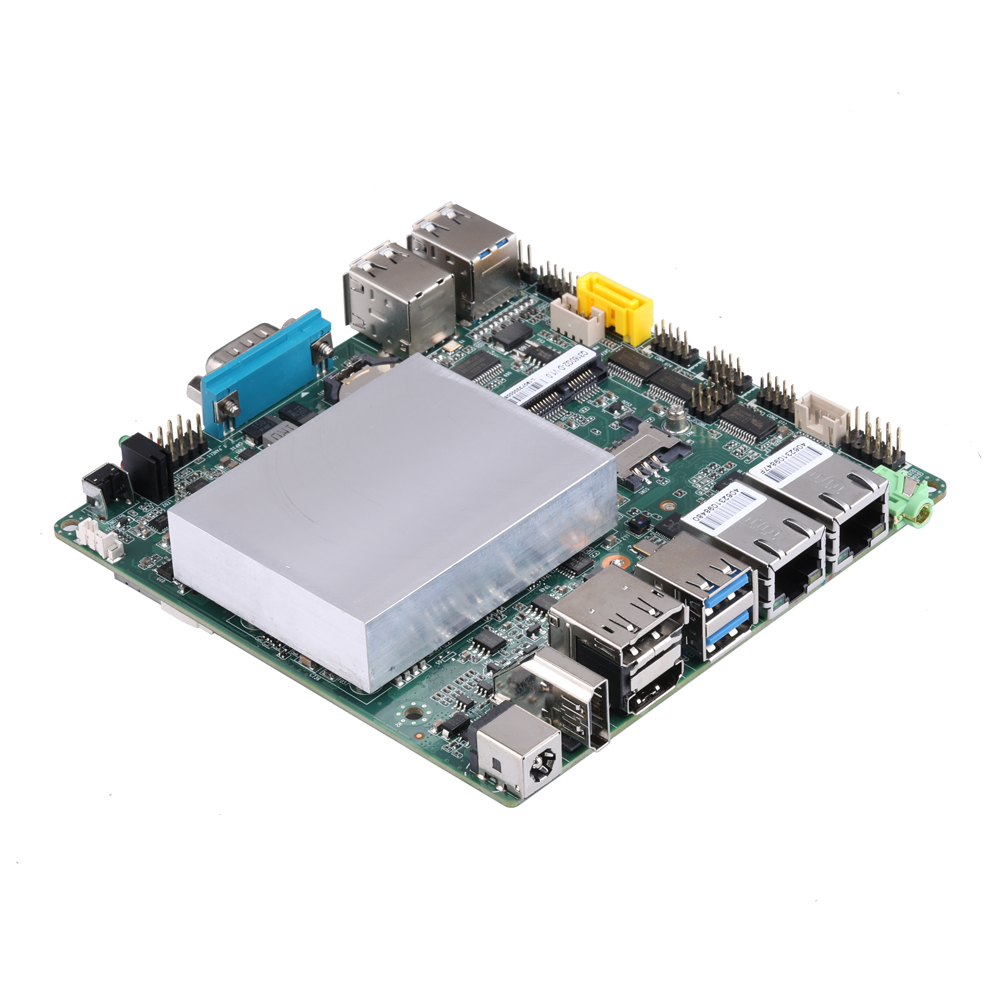

Main Features

Intel Braswell Processor
2 × HDMI, 1 × Display Port
4 × USB 3.0, 2 × USB 2.0
1 × M.2, 1 × mSATA
1 × Mini-PCIe, 1 × SATA 3.0
4 × RS-232 Serial Port
2 × Realtek Gigabit LAN
