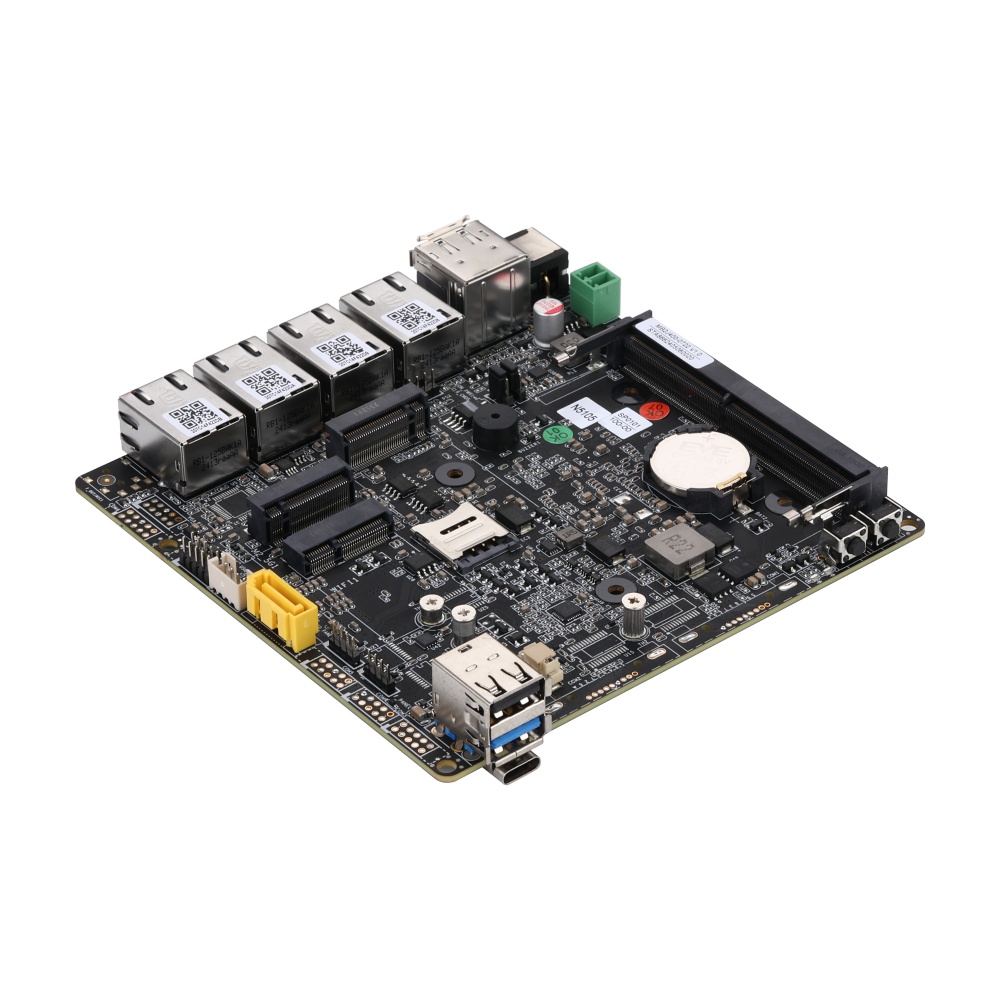

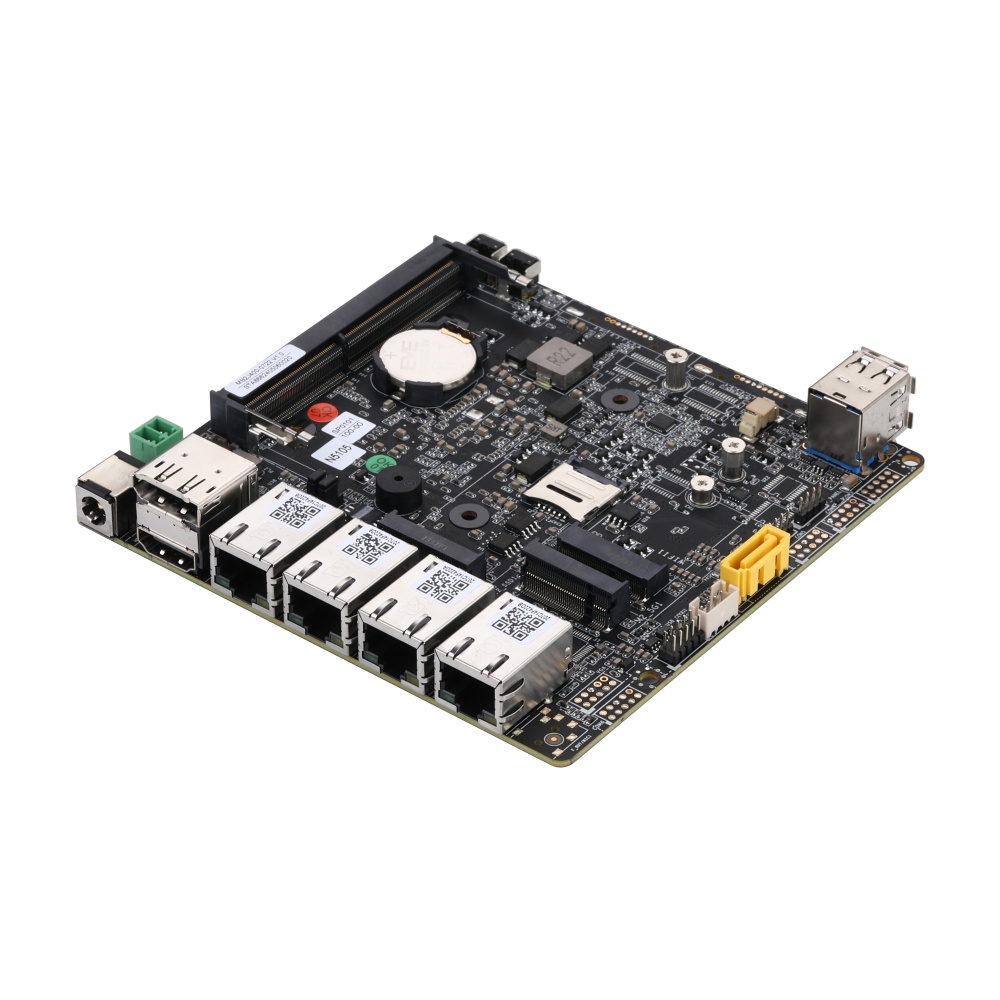

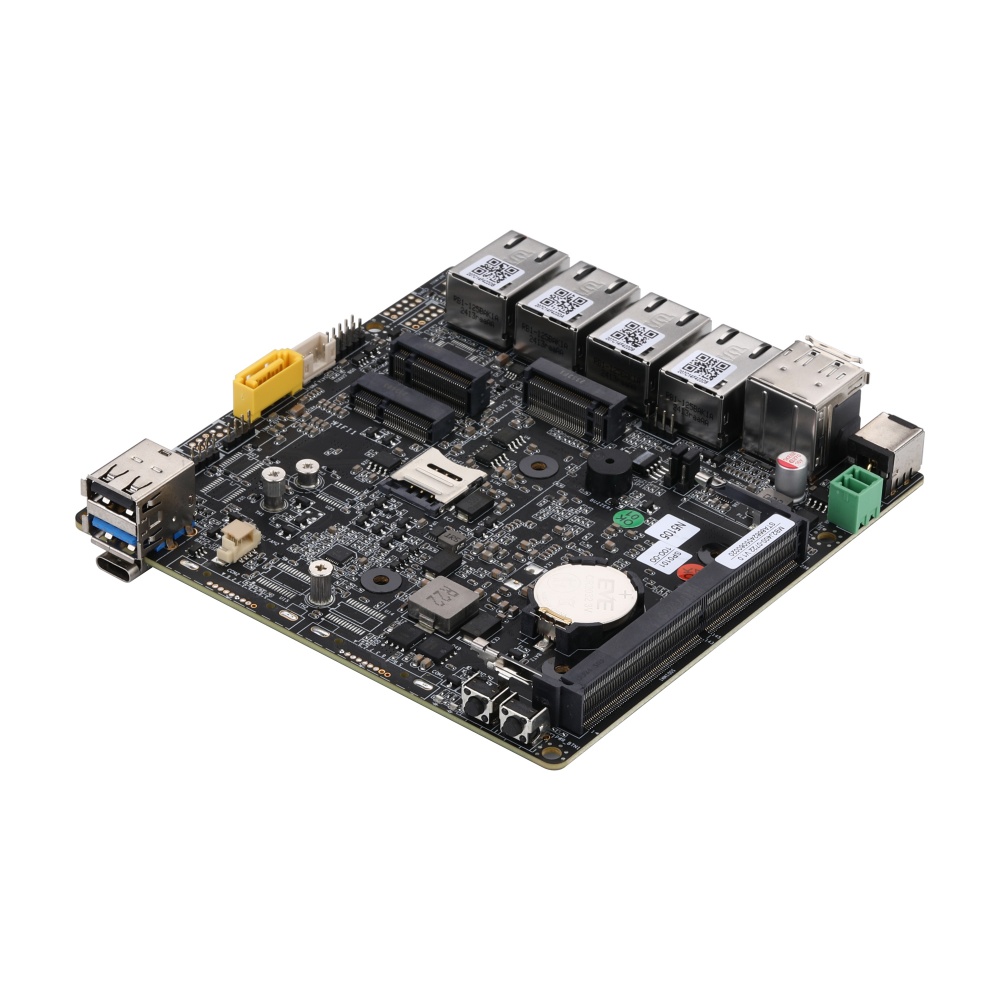

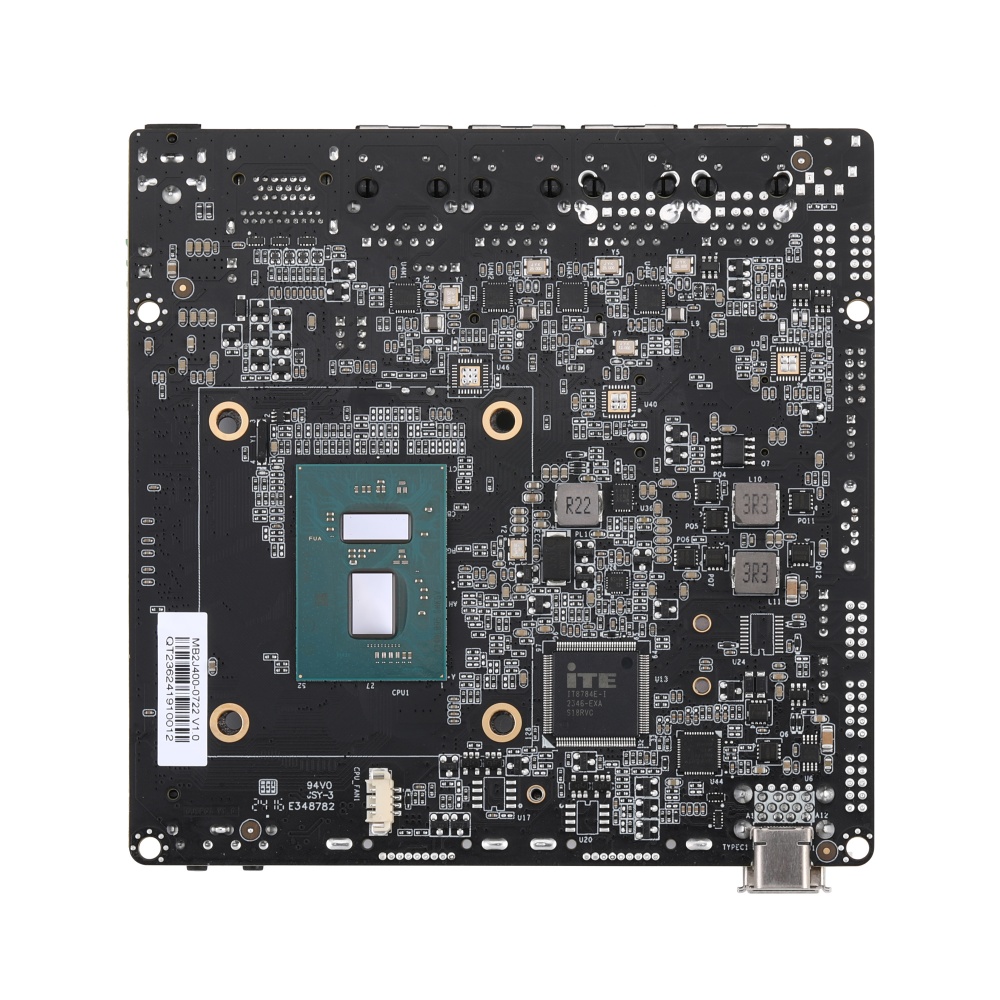

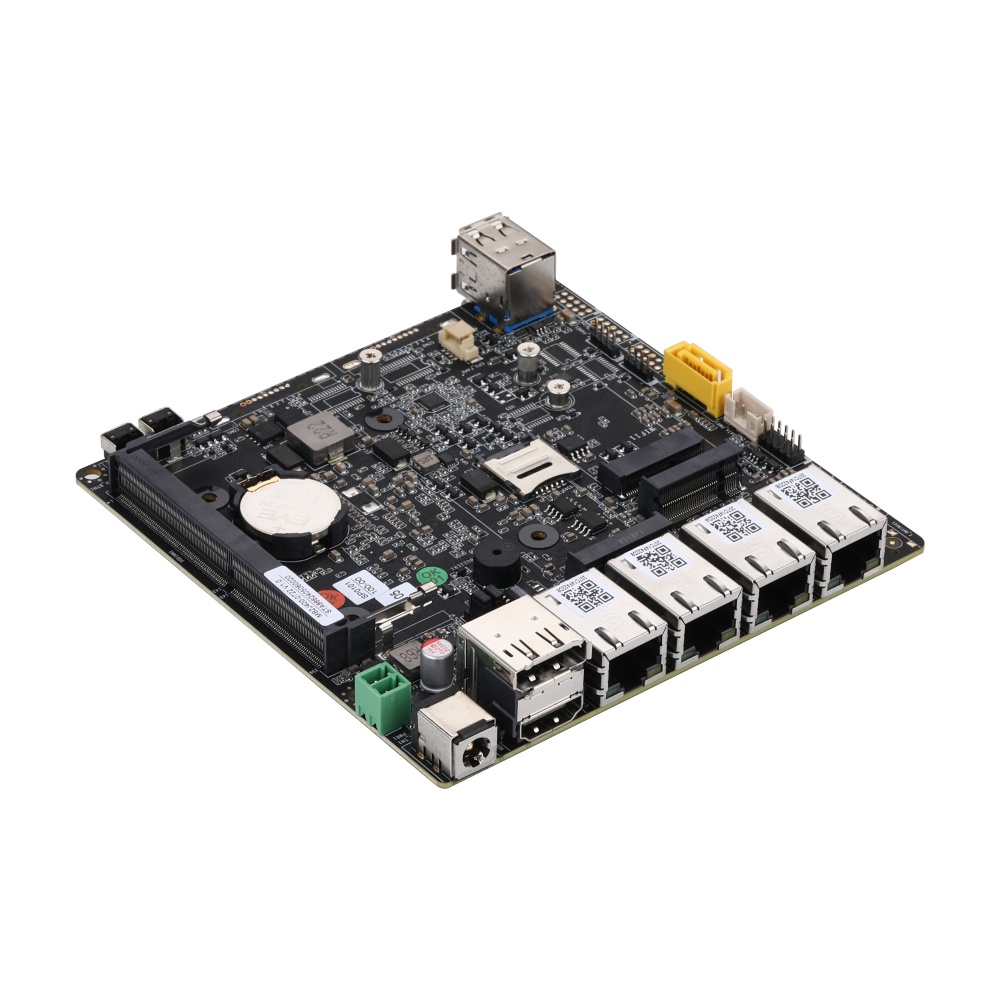

Motherboard MB2J400-0700 Series

Name: Motherboard MB2J400-0700 Series
Brand: Qotom
SKU: MB2J400-0700

Model: MB2J400-0700

Total LAN4

LAN Speed1G RJ45

Embedded hardware designs can start with MB2J400-0700, featuring compact 120 × 120mm Jasper Lake motherboard supporting N5095, N5100, N5105, N6000 and N6005 processors with DDR4 up to 32GB. Four LAN ports and expandable storage make it suitable for Linux routers, network gateways, small firewall appliances and embedded.

Key Specs

CPU: Jasper Lake
Memory: DDR4 SO-DIMM · Max 32GB
LAN: 4
Storage: M.2 Mkey, SATA
Board Size: 120x120

Compatible Systems

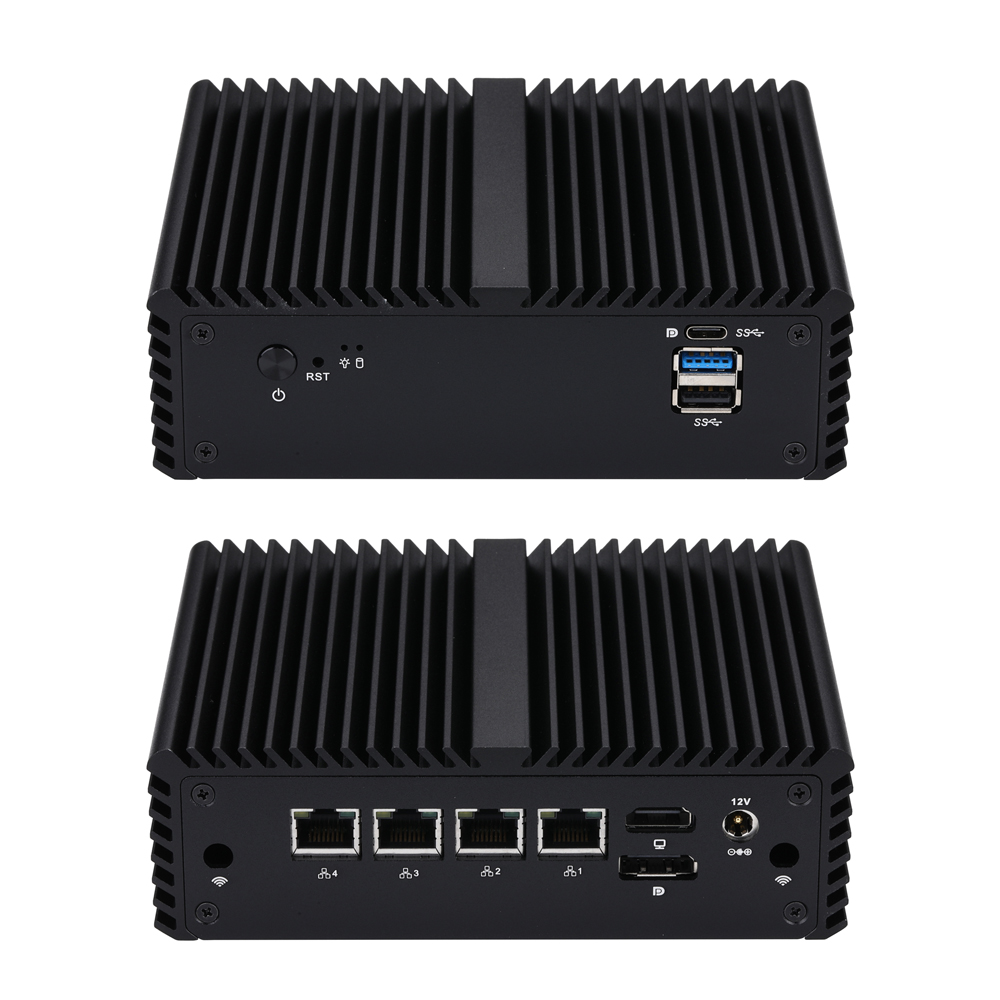

Q10700G4-S08

Send Inquiry

MB2J400-0711 MB2J400-0712 MB2J400-0721 MB2J400-0722 MB2J400-0723 MB2J400-0731 MB2J400-0732 Intel Jasper Lake Pentium Celeron ATOM N5095 N5100 N5105 N4505 N4500 N6000 N6005

Main Features

Intel Jasper Lake Processor
1 × HDMI,1 × Display Port, 1 × VGA (Header)
1 × USB 3.0, 5 × USB 2.0, 1 × Type C
3 × M.2, 1 × SATA 3.0
4 × Realtek Gigabit LAN

Related Products

Motherboard MB7UT1X-1500 Series

MB7UT1X-1500

Mini PC Q10700X S08 Series

Q10700X-S08

Mini PC Q10700XV S08 Series

Q10700XV-S08

Mini PC Q10700XVP S08 Series

Q10700XVP-S08

Mini PC Q10700G4 S08 Series

Q10700G4-S08

Mini PC Q10700C S08 Series

Q10700C-S08

CPU	Intel Jasper Lake Processor
Chipset	By CPU
Dimension	120 × 120mm
Core Number	By CPU
Speed	By CPU
L2 Cache	By CPU
BIOS	UEFI

Technology	DDR4 2666MHz SDRAM
Max.	32GB
Socket	1 × SO-DIMM

Controller	By CPU
VRAM	Shared Memory
Display Port	1 × Display Port
HDMI	1 (Support HDMI 1.4a)
Multi Display	Yes

Interface	100/1000Mbps
Controller	4 × Realtek Gigabit LAN
Connector	4 × RJ-45

Power Button	1 × Power Button, 1 × Reset Button
LED	1 × Power LED, 1 × HDD LED
USB	1 × USB 3.0, 1 × USB 2.0
DC-IN	1
Display	1 × HDMI, 1 × Display Port
Ethernet	4
Type C	1, USB 3.0 and Display Port

Motherboard MB2J400-0700 Series

Key Specs

Compatible Systems

Main Features

Processor System

Memory

Graphics

Ethernet

Audio

Front I/O

Storage

Expansion

Internal Connector

Watchdog Timer

Power

Environmental

Accessories

OS Support

Package Contents

Order & Specification Selection

BIOS & Firmware

Driver Downloads

Related Products

M.2	1 × M.2 for SSD (M key, Type:2280,PCIe 3.0 × 1)
M.2	1 × M.2 for 4G/5G (B key, Type: 3042/3052)
M.2	1 × M.2 for Wi-Fi (E key, Type: 2230)

PS/2	2, 1 × 4Pin, Pitch 2.0mm
SATA	1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector	1, 1 × 4Pin, Pitch PH2.0mm
SIM Slot	1
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
Clear CMOS Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
USB 2.0 Header	2, 2 × 5Pin, Pitch 2.0mm
Front Panel Header	2, 1 × 4Pin, Pitch 2.0mm
Power Header	1, Phoenix 1 × 2Pin, Pitch 3.5mm (Option)
CPU FAN Connector	1, 1 × 4Pin, Pitch PH 1.25mm
SYS FAN Connector	1, 1 × 4Pin, Pitch PH 1.25mm

Output	From Super I/O to Drag RESETCON#
Interval	256 Segments,0,1,2,3,,,255 sec/min

Ordering Code	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP
MB2J400-0711	Jasper Lake	Celeron	N4500	2 / 2	1.1GHz ~ 2.8GHz	4M	Intel UHD Graphics	6W
MB2J400-0712	Jasper Lake	Celeron	N4505	2 / 2	2.0GHz ~ 2.9GHz	4M	Intel UHD Graphics	10W
MB2J400-0721	Jasper Lake	Celeron	N5100	4 / 4	1.1GHz ~ 2.8GHz	4M	Intel UHD Graphics	6W
MB2J400-0722	Jasper Lake	Celeron	N5105	4 / 4	2.0GHz ~ 2.9GHz	4M	Intel UHD Graphics	10W
MB2J400-0723	Jasper Lake	Celeron	N5095	4 / 4	2.0GHz ~ 2.9GHz	4M	Intel UHD Graphics	15W
MB2J400-0731	Jasper Lake	Pentium	N6000	4 / 4	1.1GHz ~ 3.0GHz	4M	Intel UHD Graphics	6W
MB2J400-0732	Jasper Lake	Pentium	N6005	4 / 4	2.0GHz ~ 3.3GHz	4M	Intel UHD Graphics	10W
