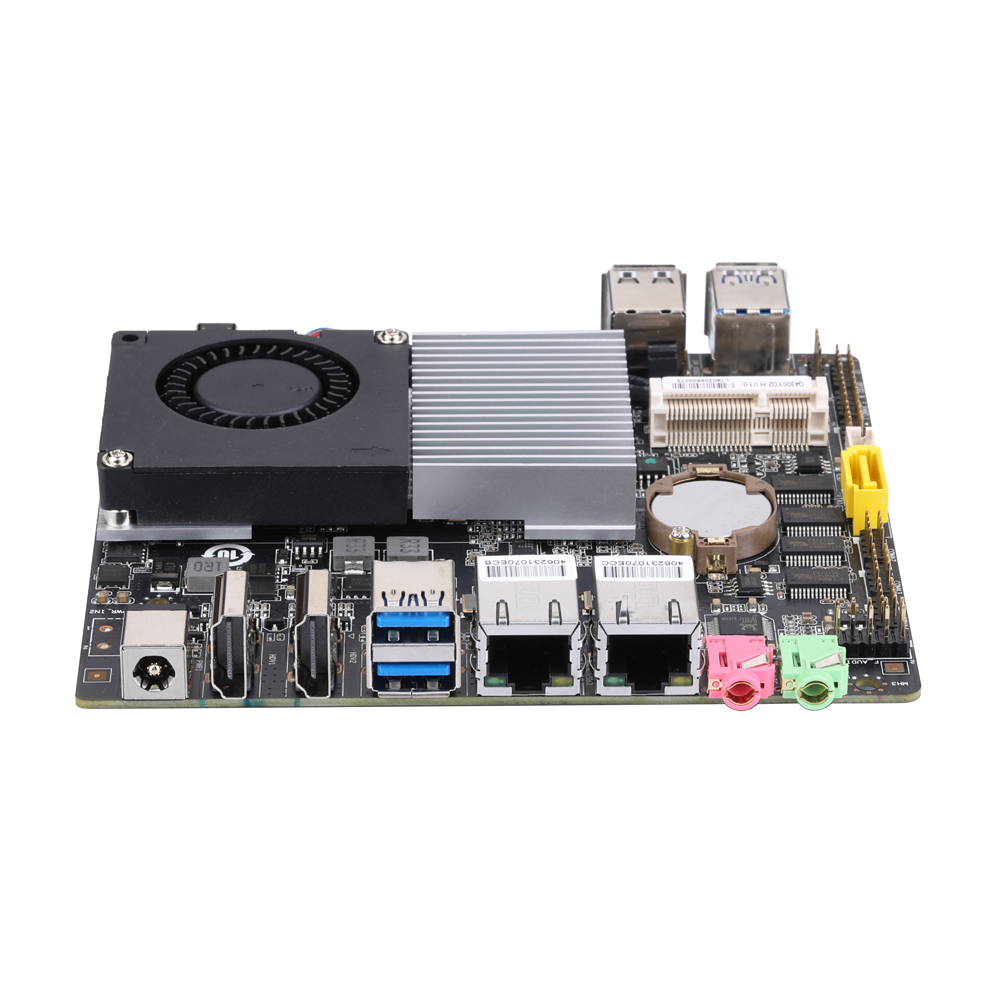

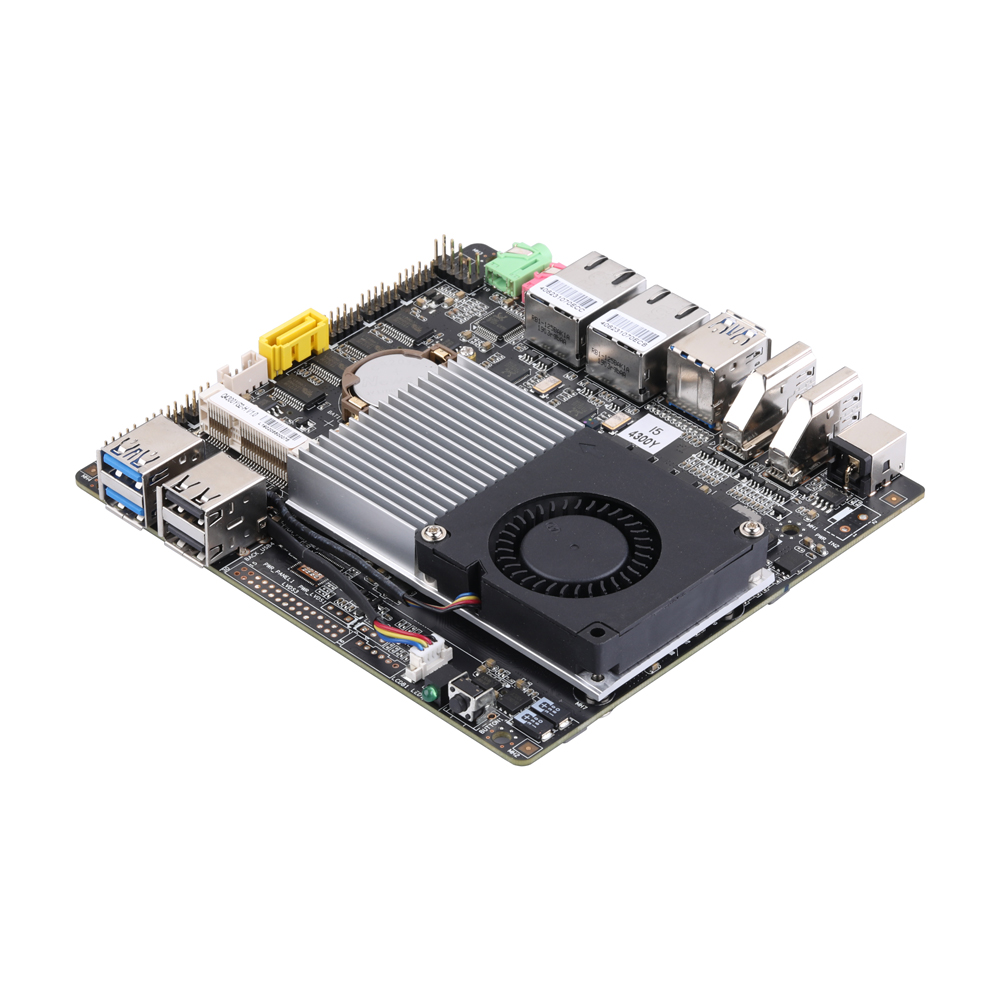

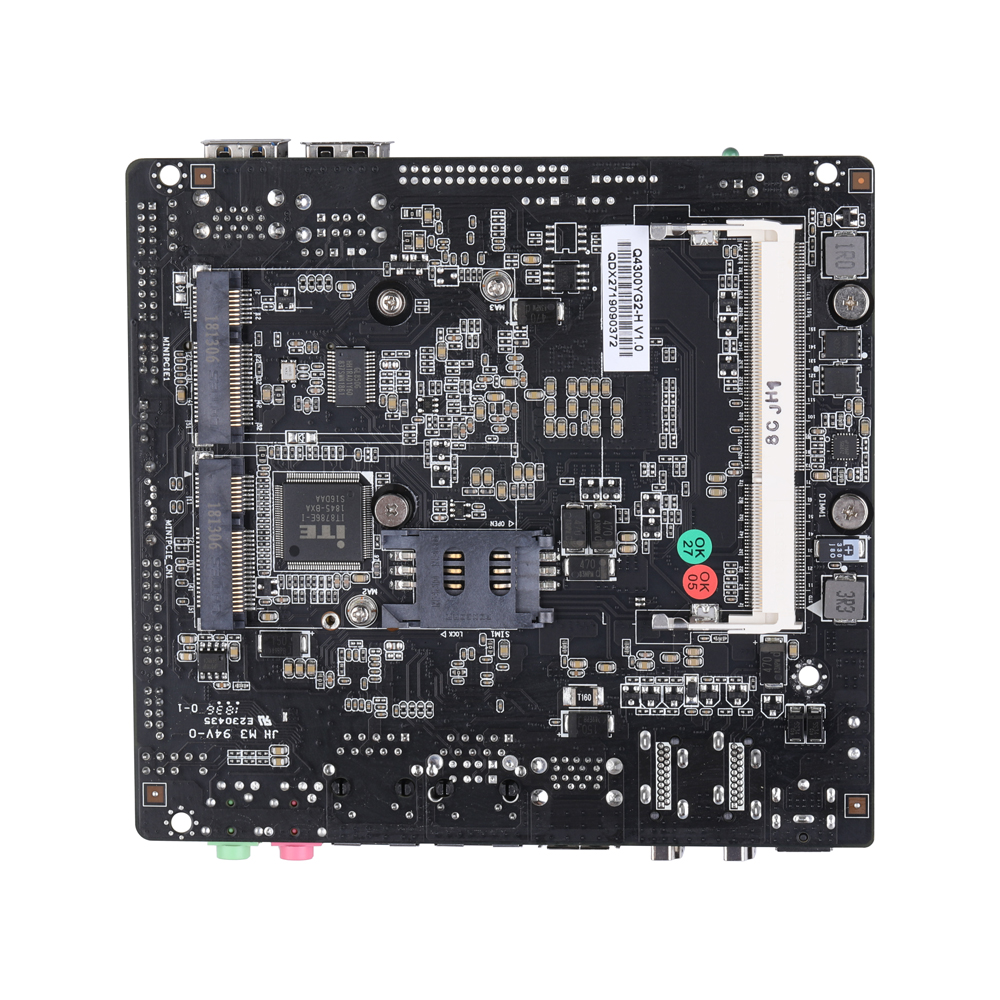

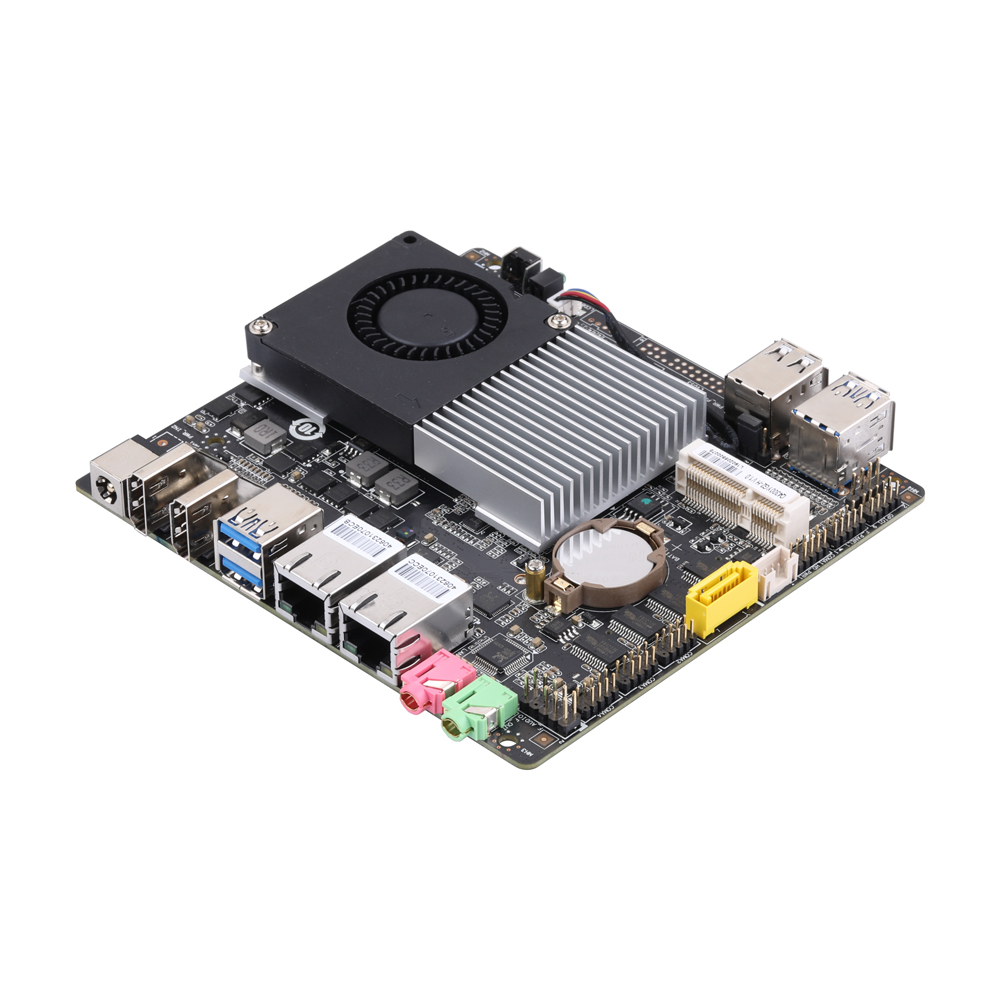

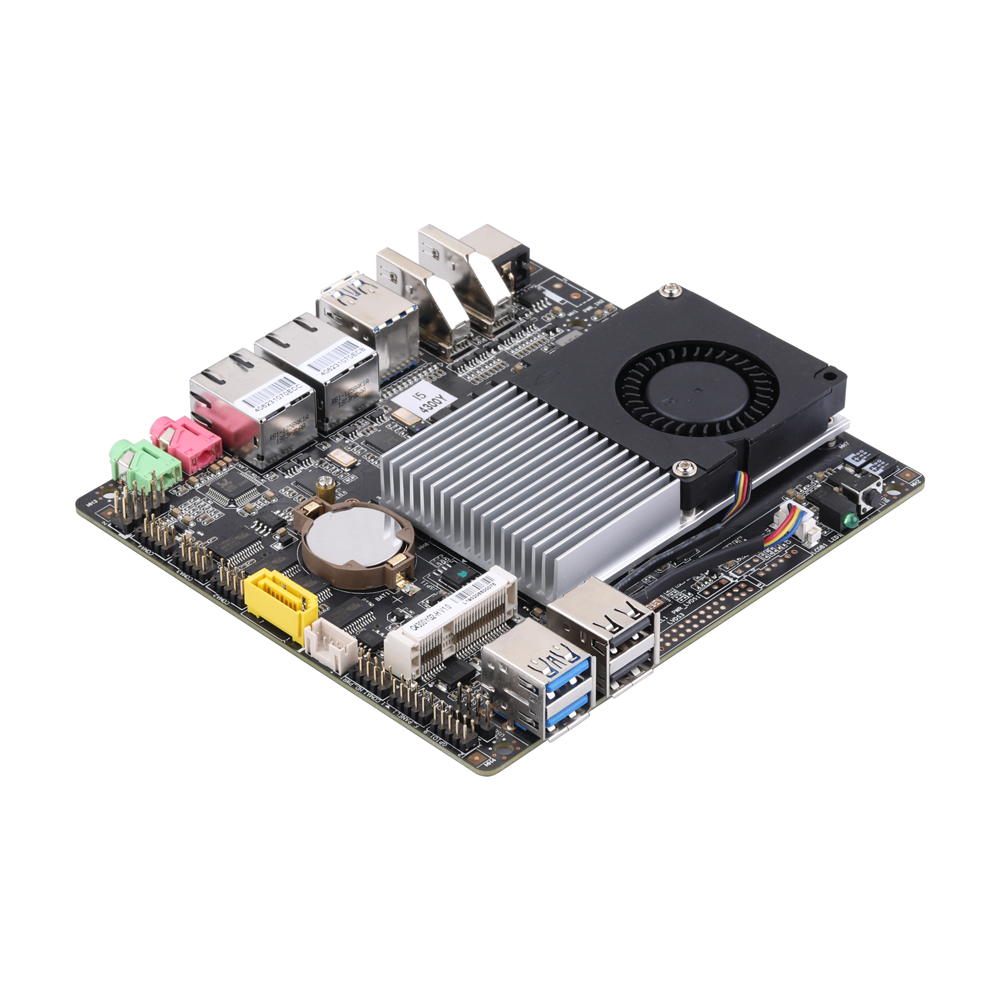

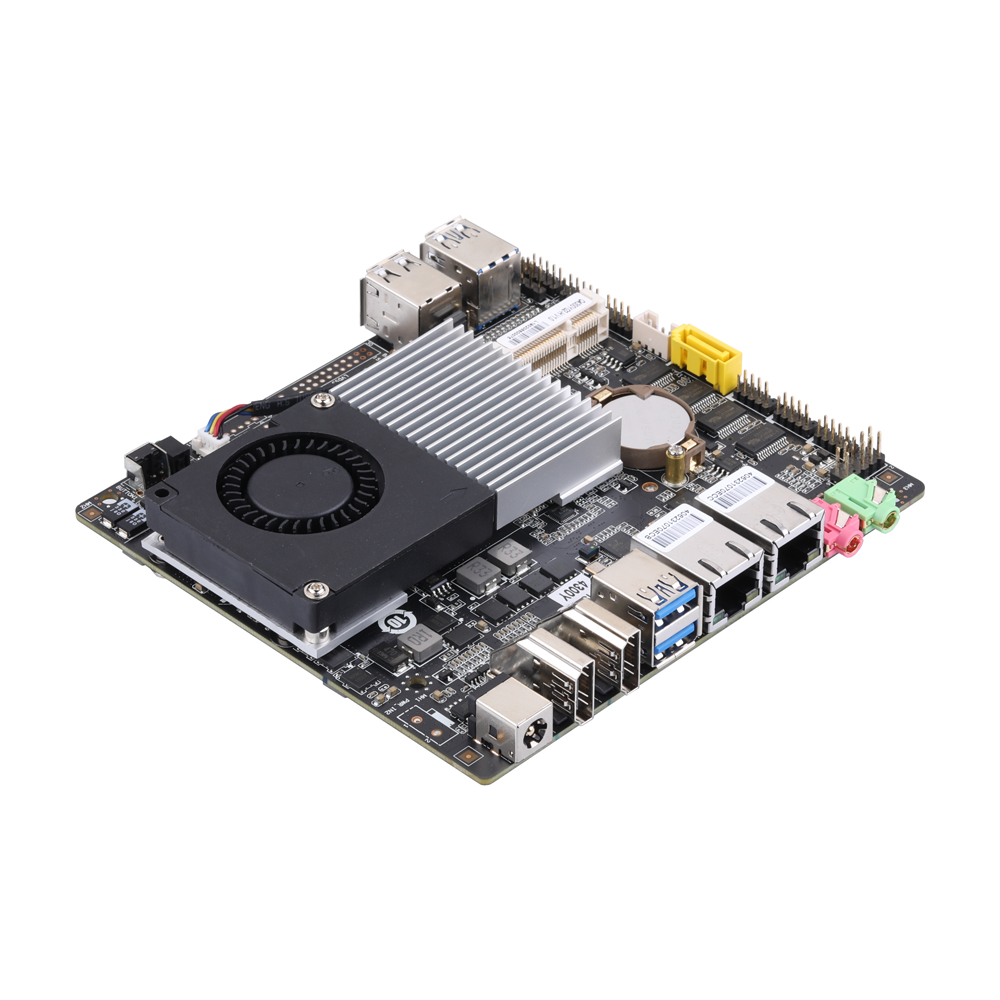

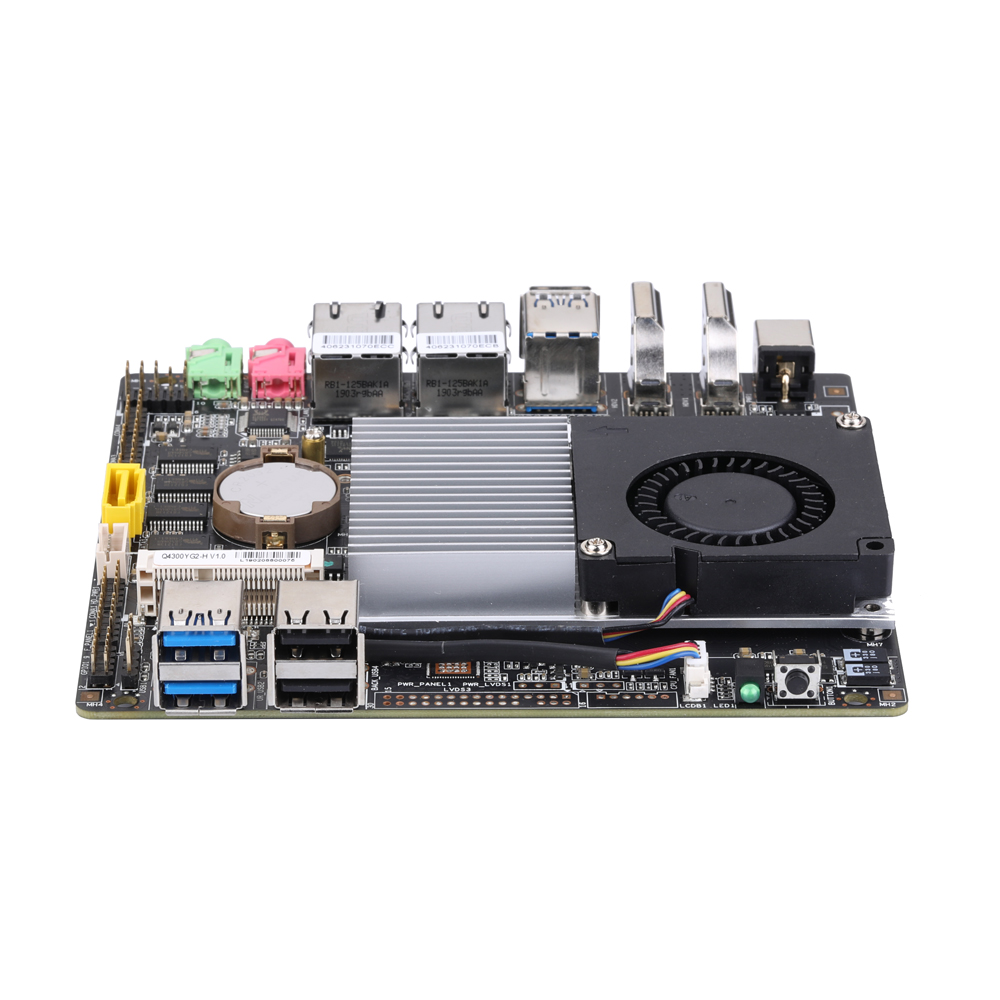

Motherboard MB2U246-0400 Series

Model: MB2U246-0400

Total LAN2
LAN Speed1G RJ45
Serial Ports4

Embedded hardware designs can start with MB2U246-0400, featuring compact x86 motherboard supporting Intel Haswell/Broadwell processors including Core i5 options. Four serial ports, dual Gigabit Ethernet and expandable storage make it practical for machine controllers, industrial terminals, POS. Deployment scenarios range from OEM network appliances, embedded systems and custom computer builds.

Key Specs

CPU
Haswell / Broadwell
Memory
DDR3L SO-DIMM · Max 8GB
LAN
2
Storage
mSATA, SATA
Board Size
120x120

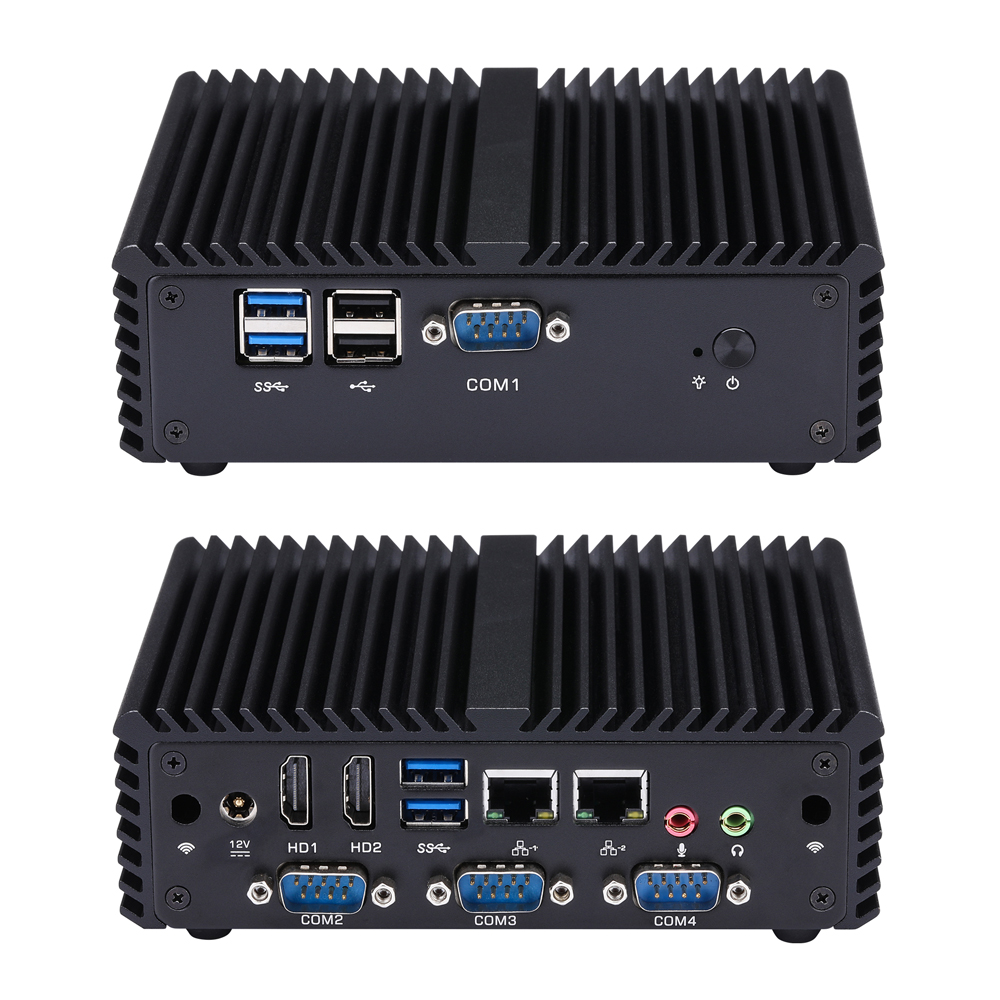

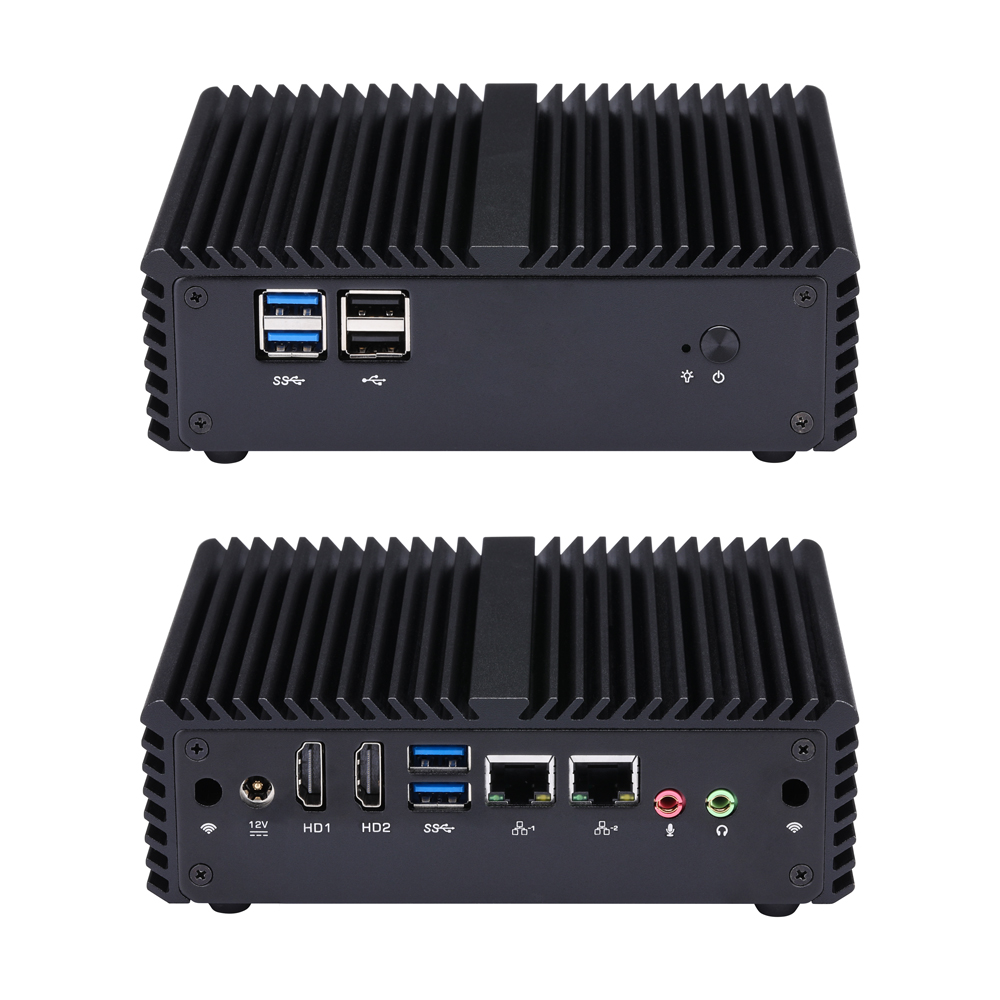

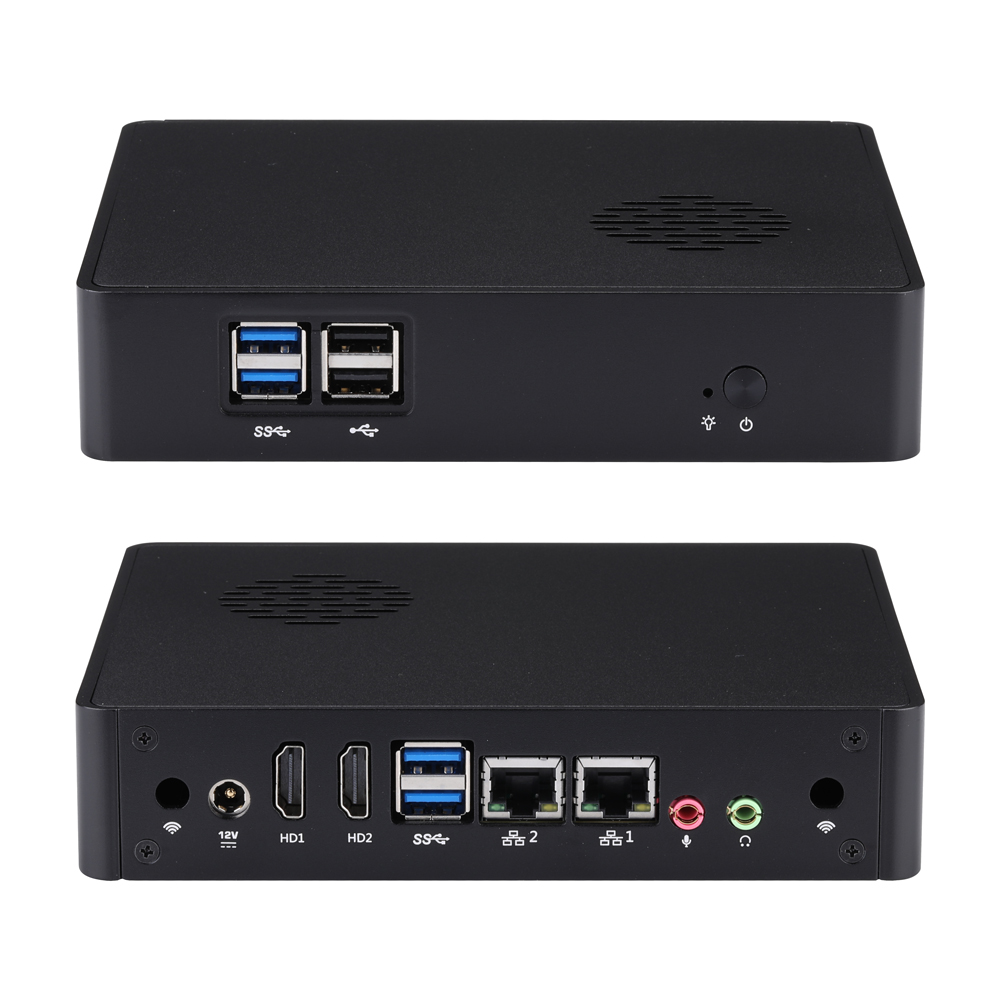

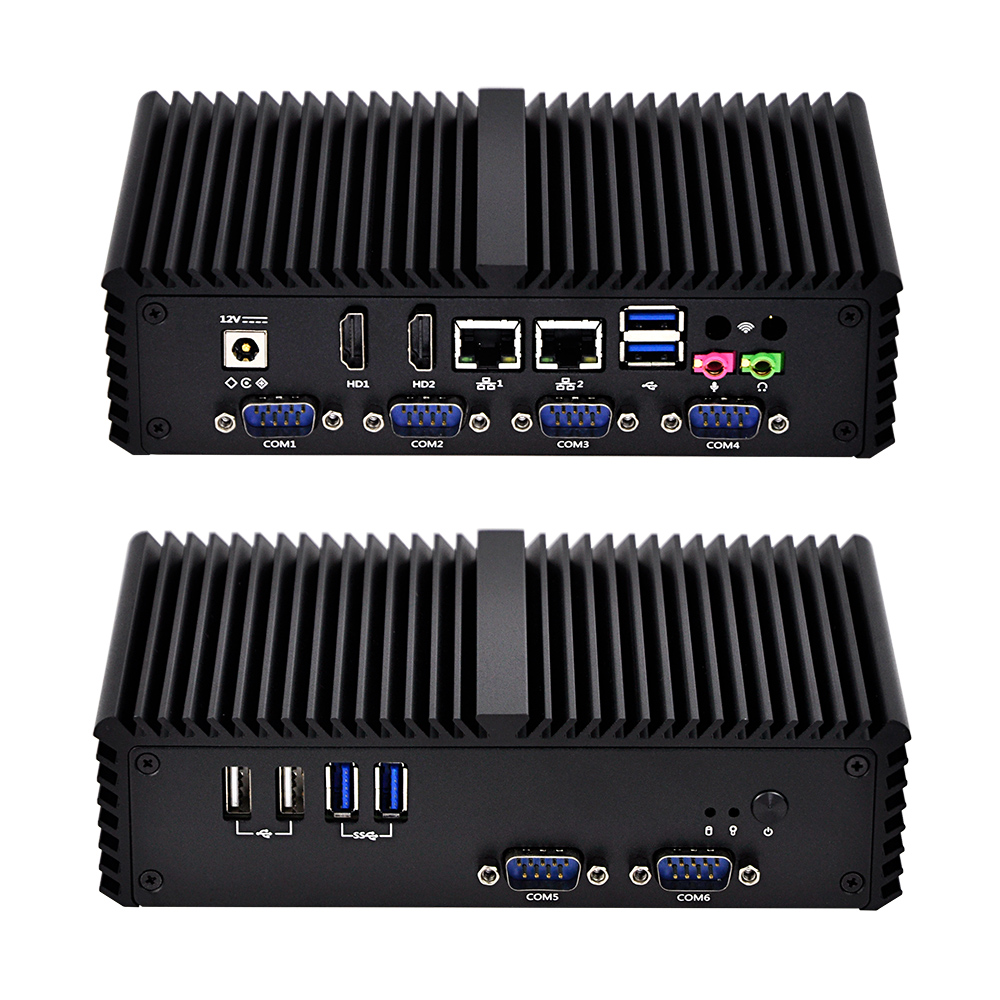

Compatible Systems

Main Features

  • Intel 4th Haswell –U/Y Processor

  • Intel 5th Broadwell-U Processor

  • 2 × HDMI, 4 × RS-232

  • 4 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0

  • 2 × Mini-PCIe, 1 × mSATA

  • 2 × Realtek Gigabit LAN

Processor System

CPU• Intel 4th Haswell –U/Y Processor • Intel 5th Broadwell-U Processor
ChipsetBy CPU
Dimension120 × 130mm
Core NumberBy CPU
Max. SpeedBy CPU
L2 CacheBy CPU
BIOSUEFI

Memory

TechnologyDDR3L 1333/1600MHz SDRAM
Max.8GB
Socket1 × SO-DIMM

Graphics

ControllerBy CPU
VRAMShared Memory
LVDS1 (Option)
HDMI2 (Support HDMI 1.4a)
Multi DisplayYes

Ethernet

Interface10/100/1000Mbps
Controller2 × Realtek Gigabit LAN
Connector2 × RJ-45

Audio

ControllerRealtek HD Audio

Front I/O

Power Button1
LED1 × Power LED
USB2 × USB 3.0, 2 × USB 2.0

Rear I/O

USB2 × USB 3.0
Audio2 (Mic-in, Line-out)
DC-IN1
HDMI2
Ethernet2

Storage

Max. Data Transfer RateSATA 3.0 (6.0Gb/S)

Expansion

mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1× Full-length Mini PCIe for 4G
Mini PCIe1× Half-length Mini PCIe for Wi-Fi Module

Internal Connector

LVDS1, 2 × 10Pin, Pitch 1.0mm (Option)
VGA Header0
Serial Port4, 2 × 5Pin, Pitch 2.0mm
RS-4850
SATA1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector1, 1 × 4Pin, Pitch PH2.0mm
SIM Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.54mm
Clear CMOS Jumper0
GPIO Header1, 2 × 5Pin, Pitch 2.0mm
USB 2.0 Header1, 1 × 4Pin, Pitch 2.54mm
Front Panel Header1, 2 × 5Pin, Pitch 2.0mm
Speakers Header1, 2 × 5Pin, Pitch 2.54mm
Power Header1, 1 × 2Pin, Pitch 5.5mm (Option)

Watchdog Timer

OutputFrom Super I/O to Drag RESETCON#
Interval256 Segments,0,1,2,3,,,255 sec/min

Power

Input PWR12V DC in, 5.5mm/2.5mm

Environmental

Operating Temperature0-50℃

Accessories

AccessoriesCable for HDD, Cable for Serial Port

OS Support

OSWindows 7, Windows 10, Linux

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1
  • COM Extension Cable × 3

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q2955UG2-H Haswell Celeron 2955U 2 / 2 1.4GHz 2M Intel HD Graphics 15W
Q4005UG2-H Haswell Core i3 4005U 2 / 4 1.7GHz 3M Intel HD 4400 15W
Q4200UG2-H Haswell Core i5 4200U 2 / 4 1.6GHz ~ 2.6GHz 3M Intel HD 4400 15W
Q4500UG2-H Haswell Core i7 4500U 2 / 4 1.8GHz ~ 3.0GHz 4M Intel HD 4400 15W
Q4010YG2-H Haswell Core i3 4010Y 2 / 4 1.3GHz 3M Intel HD 4200 11.5W
Q4200YG2-H Haswell Core i5 4200Y 2 / 4 1.4GHz ~ 1.9GHz 3M Intel HD 4200 11.5W
Q4258UG2-H Haswell Core i5 4258U 2 / 4 2.4GHz ~ 2.9GHz 3M Intel I ris Graphics 5100 28W
Q3205UG2-H Broadwell Celeron 3205U 2 / 2 1.5GHz 2M Intel HD Graphics 15W
Q3215UG2-H Broadwell Celeron 3215U 2 / 2 1.7GHz 2M Intel HD Graphics 15W
Q3805UG2-H Broadwell Pentium 3805U 2 / 2 1.9GHz 2M Intel HD Graphics 15W
Q5005UG2-H Broadwell Core i3 5005U 2 / 4 2.0GHz 3M Intel HD 5500 15W
Q5200UG2-H Broadwell Core i5 5200U 2 / 4 2.2GHz ~ 2.7GHz 3M Intel HD 5500 15W
Q5500UG2-H Broadwell Core i7 5500U 2 / 4 2.4GHz ~ 3.0GHz 4M Intel HD 5500 15W
