Mini PC Q300X S05 Series

Model: Q300X-S05

Total LAN2
LAN Speed1G RJ45
Serial Ports6

Q300X-S05 brings industrial Mini PC with 6 serial ports, dual Gigabit LAN and DDR3L up to 8GB, supporting Intel Haswell and Broadwell processors to industrial communication and embedded control projects. The platform also includes Multiple serial interfaces and flexible storage make it suitable for automation controllers, factory equipment, serial device.

Key Specs

CPU
Haswell / Broadwell
Memory
DDR3L SO-DIMM · Max 8GB
LAN
2
Storage
mSATA, SATA

Compatible Motherboard

Main Features

  • Intel 4th Haswell –U/Y Processor

  • Intel 5th Broadwell-U Processor

  • 2 × HDMI,6 × RS-232,1 × RS-485

  • 4 × USB 3.0,2 × USB 2.0,1 × SATA 3.0

  • 1 × Mini PCIe,1 × mSATA

  • 2 × Intel I211-AT/I210-AT Gigabit LAN

Processor System

CPU• Intel 4th Haswell –U/Y Processor • Intel 5th Broadwell-U Processor
CPU TDPBy CPU
Memory1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset2 × Intel I211-AT/I210-AT Gigabit LAN
AudioRealtek HD Audio
Watch DogYes

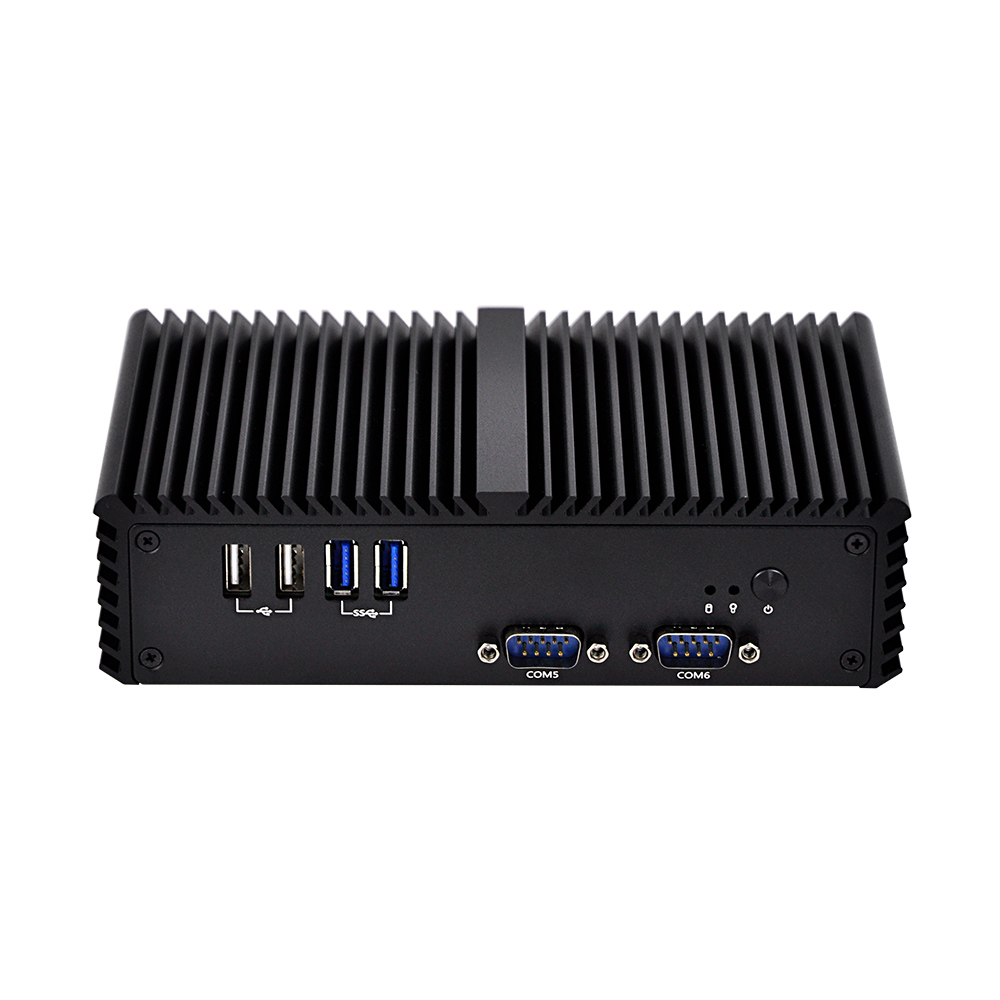

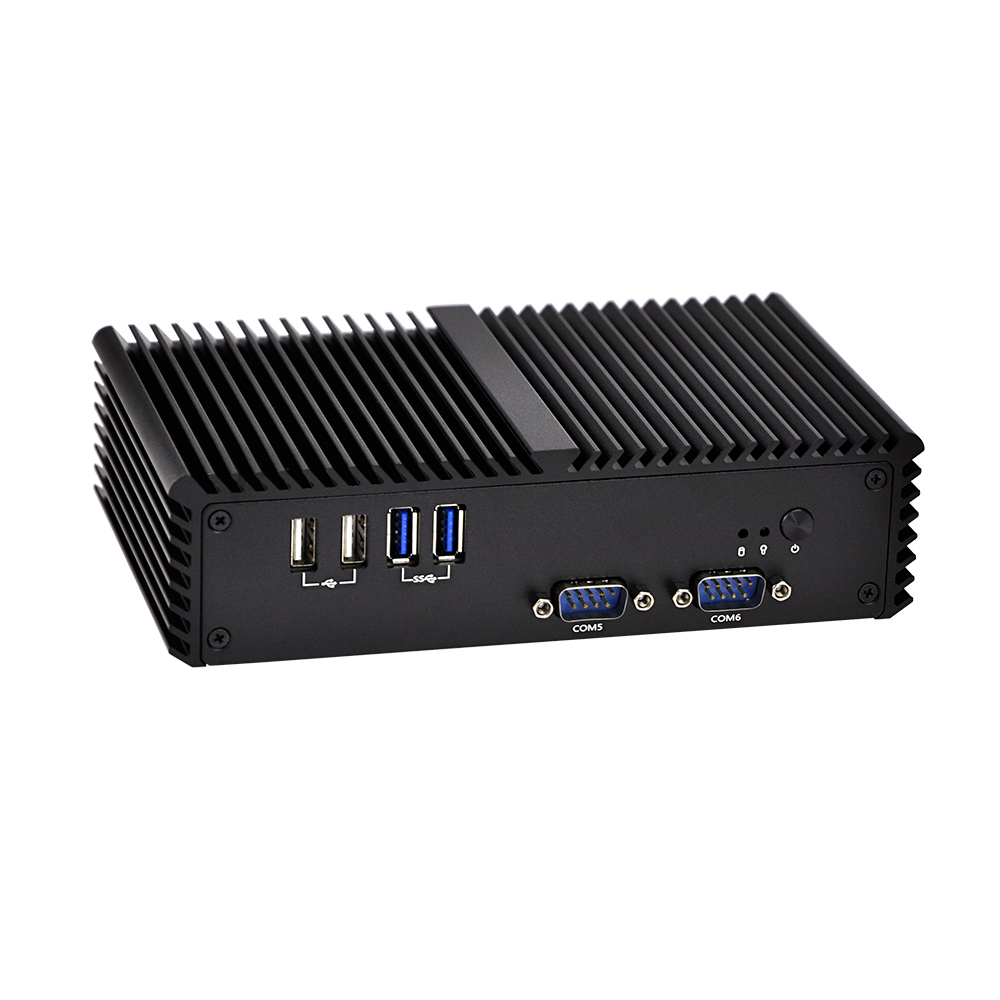

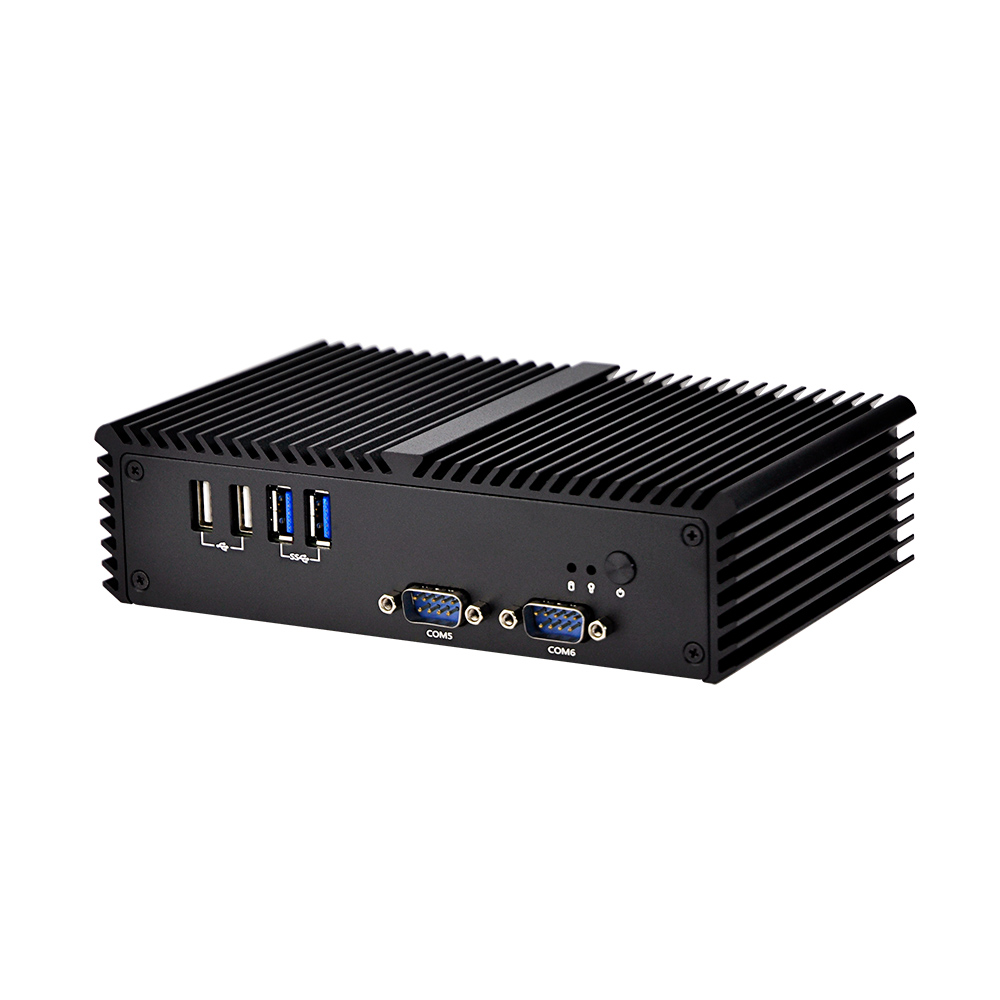

Front I/O

Power Button1
LED1 × Power LED,1 × HDD LED
USB2 × USB 3.0,2 × USB 2.0
Serial Port2 × RS-232 (COM5, COM6)

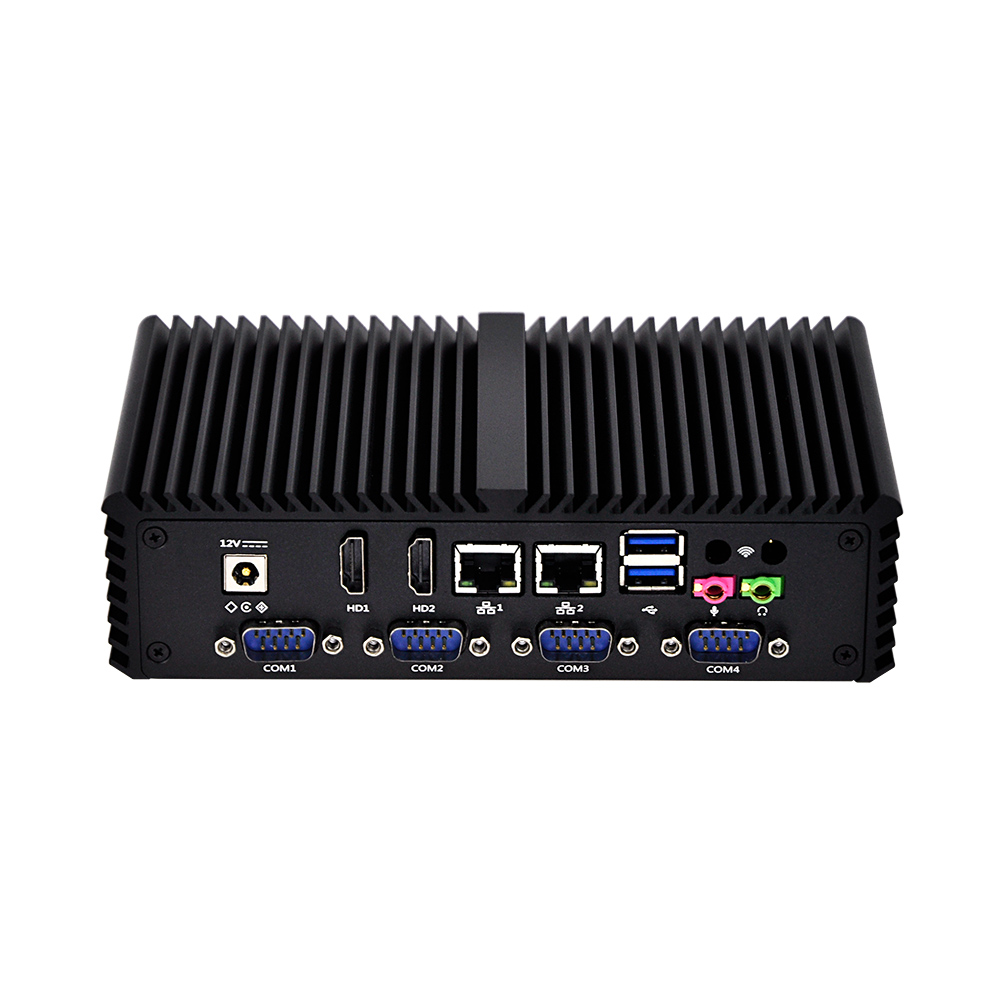

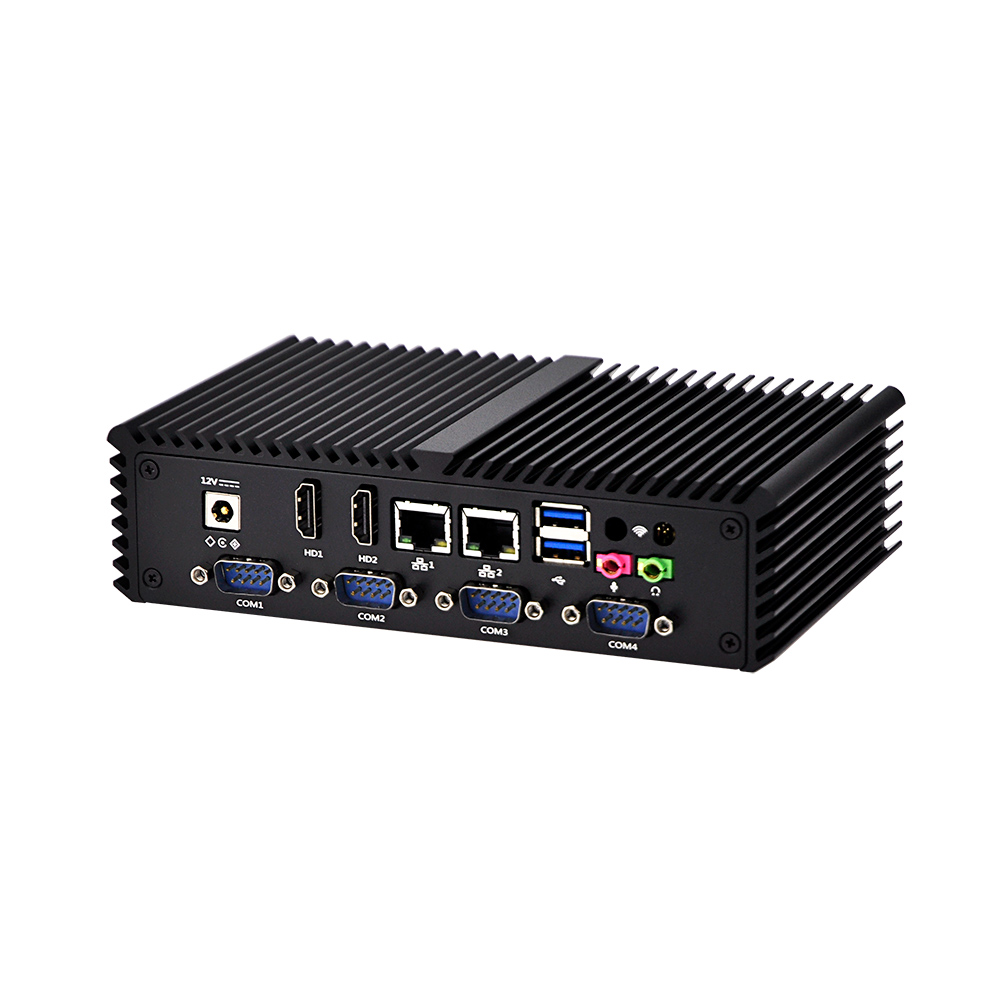

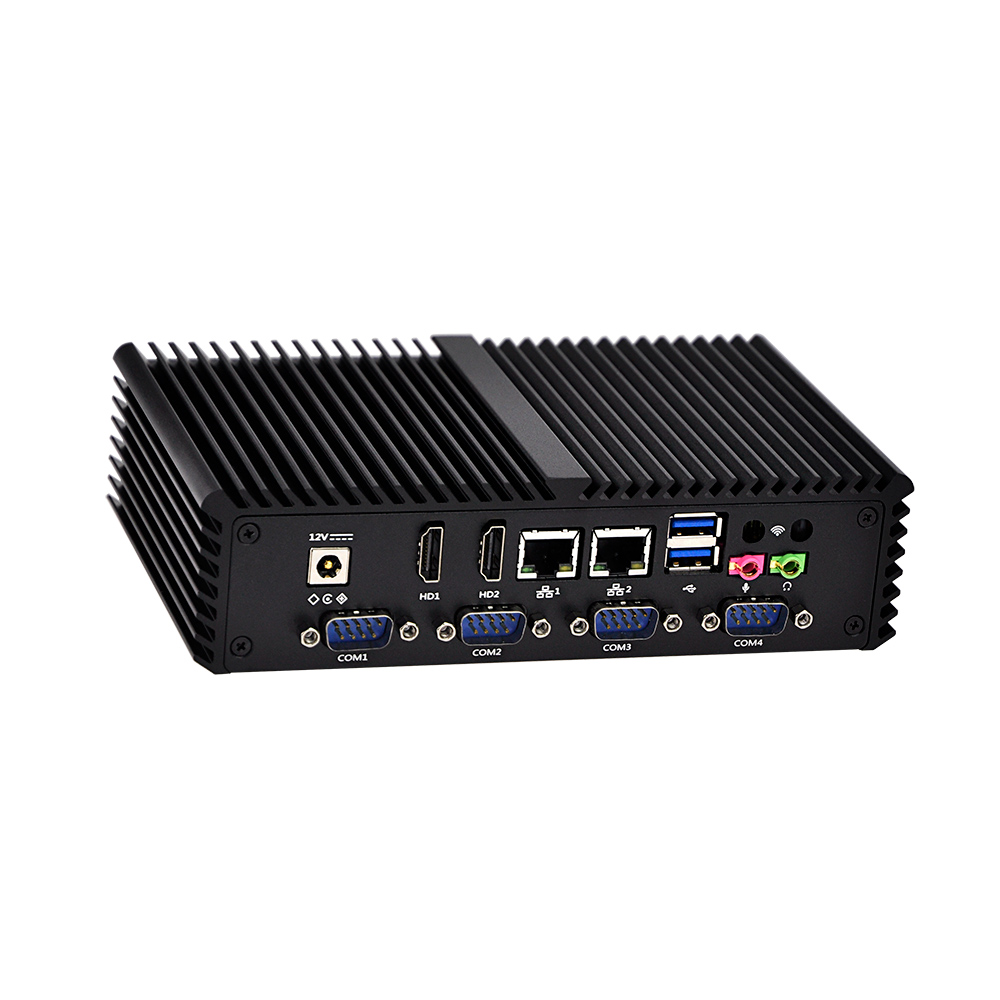

Rear I/O

Power1 × DC Jack
Video Output2 × HDMI
LAN2 × Intel I211-AT/I210-AT Gigabit LAN
USB2 × USB 3.0
Audio1 × Mic-in,1 × Line-out
Serial Port4 × RS-232 (COM1, COM2, COM3, COM4)

Storage

Type1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD

Expansion

mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi
SIM Card Slot1
AutoStart JumperYes,1 × 3Pin, Pitch 2.54mm
VGA1,2 × 5Pin, Pitch 2.0mm
GPIO1,2 × 5Pin, Pitch 2.0mm
RS-485COM2 can be set up as RS-485 (Factory Setting)
VGACOM3 can be set up as VGA (Factory Setting)
CMOS Clear JumperYes,1 × 3Pin, Pitch 2.0mm

Power

Power Adapter12V4A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension187 × 111 × 49mm
Weight1.09kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSWindows 7, Windows 8, Windows 10, Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q301X-S05 Q301P Haswell Celeron 2955U 2 / 2 1.4GHz 2M Intel HD Graphics 15W
Q330X-S05 Q330P Haswell Core i3 4005U 2 / 4 1.7GHz 3M Intel HD 4400 15W
Q350X-S05 Q350P Haswell Core i5 4200U 2 / 4 1.6GHz ~ 2.6GHz 3M Intel HD 4400 15W
Q370X-S05 Q370P Haswell Core i7 4500U 2 / 4 1.8GHz ~ 3.0GHz 4M Intel HD 4400 15W
Q330XY-S05 Q330PY Haswell Core i3 4010Y 2 / 4 1.3GHz 3M Intel HD 4200 11.5W
Q350XY-S05 Q350PY Haswell Core i5 4200Y 2 / 4 1.4GHz ~ 1.9GHz 3M Intel HD 4200 11.5W
Q305X-S05 Q305P Broadwell Celeron 3205U 2 / 2 1.5GHz 2M Intel HD Graphics 15W
Q310X-S05 Q310P Broadwell Celeron 3215U 2 / 2 1.7GHz 2M Intel HD Graphics 15W
Q320X-S05 Q320P Broadwell Pentium 3805U 2 / 2 1.9GHz 2M Intel HD Graphics 15W
Q335X-S05 Q335P Broadwell Core i3 5005U 2 / 4 2.0GHz 3M Intel HD 5500 15W
Q355X-S05 Q355P Broadwell Core i5 5200U 2 / 4 2.2GHz ~ 2.7GHz 3M Intel HD 5500 15W
Q375X-S05 Q375P Broadwell Core i7 5500U 2 / 4 2.4GHz ~ 3.0GHz 4M Intel HD 5500 15W
