Mini PC Q400S S08 Series

Model: Q400S-S08

Total LAN2
LAN Speed1G RJ45

Q400S-S08 features Intel Haswell/Broadwell processors including Core i5 processor options with up to 8GB DDR3L, dual HDMI, SATA HDD/SSD, mSATA and dual Gigabit LAN. The platform also includes The fanless aluminum chassis suits quiet offices, POS systems, multimedia displays and embedded commercial applications. This configuration suits embedded installations, everyday computing and system integration.

Key Specs

CPU
Haswell / Broadwell
Memory
DDR3L SO-DIMM · Max 8GB
LAN
2
Storage
mSATA, SATA

Compatible Motherboard

Main Features

  • Intel 4th Haswell –U/Y Processor

  • Intel 5th Broadwell-U Processor

  • 2 × HDMI

  • 4 × USB 3.0,2 × USB 2.0,1 × SATA 3.0

  • 2 × Mini PCIe,1 × mSATA

  • 2 × Realtek Gigabit LAN

Processor System

CPU• Intel 4th Haswell –U/Y Processor • Intel 5th Broadwell-U Processor
CPU TDPBy CPU
Memory1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset2 × Realtek Gigabit LAN
AudioRealtek HD Audio
Watch DogYes

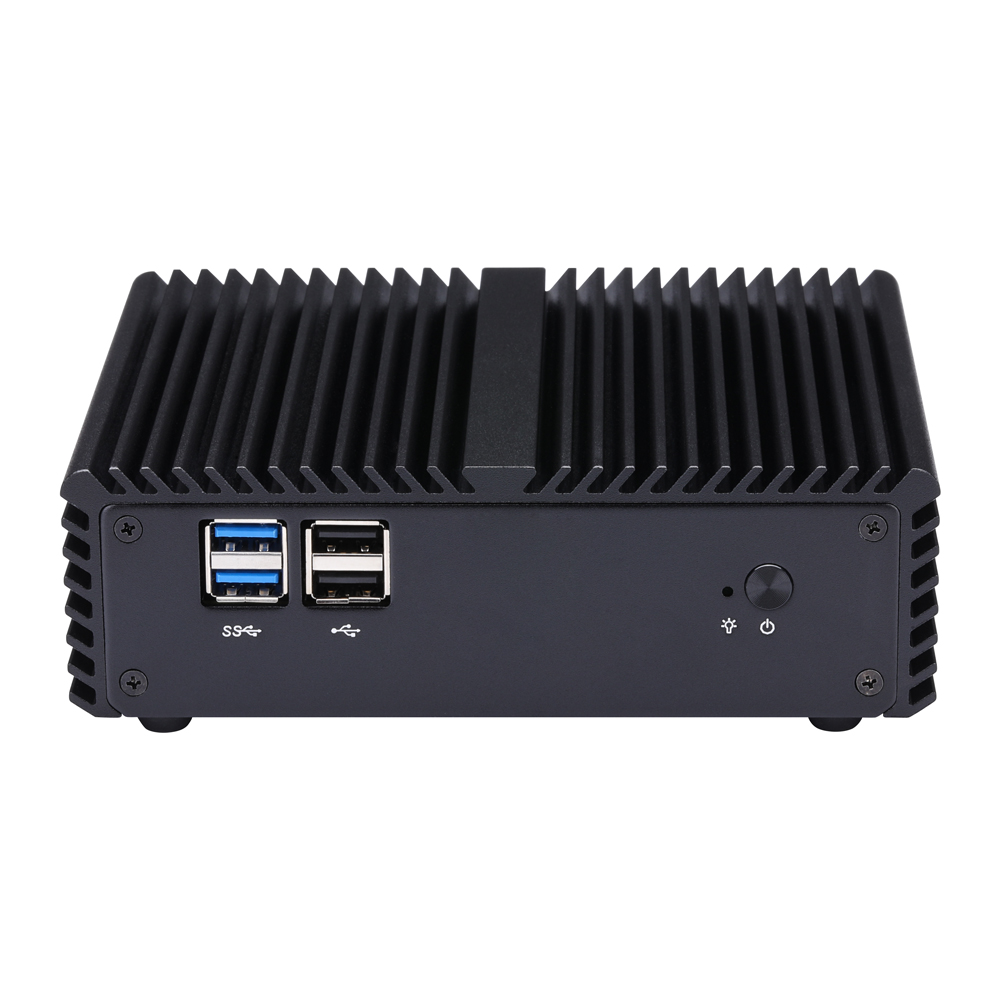

Front I/O

Power Button1
LED1 × Power LED
USB2 × USB 3.0,2 × USB 2.0
Serial Port0

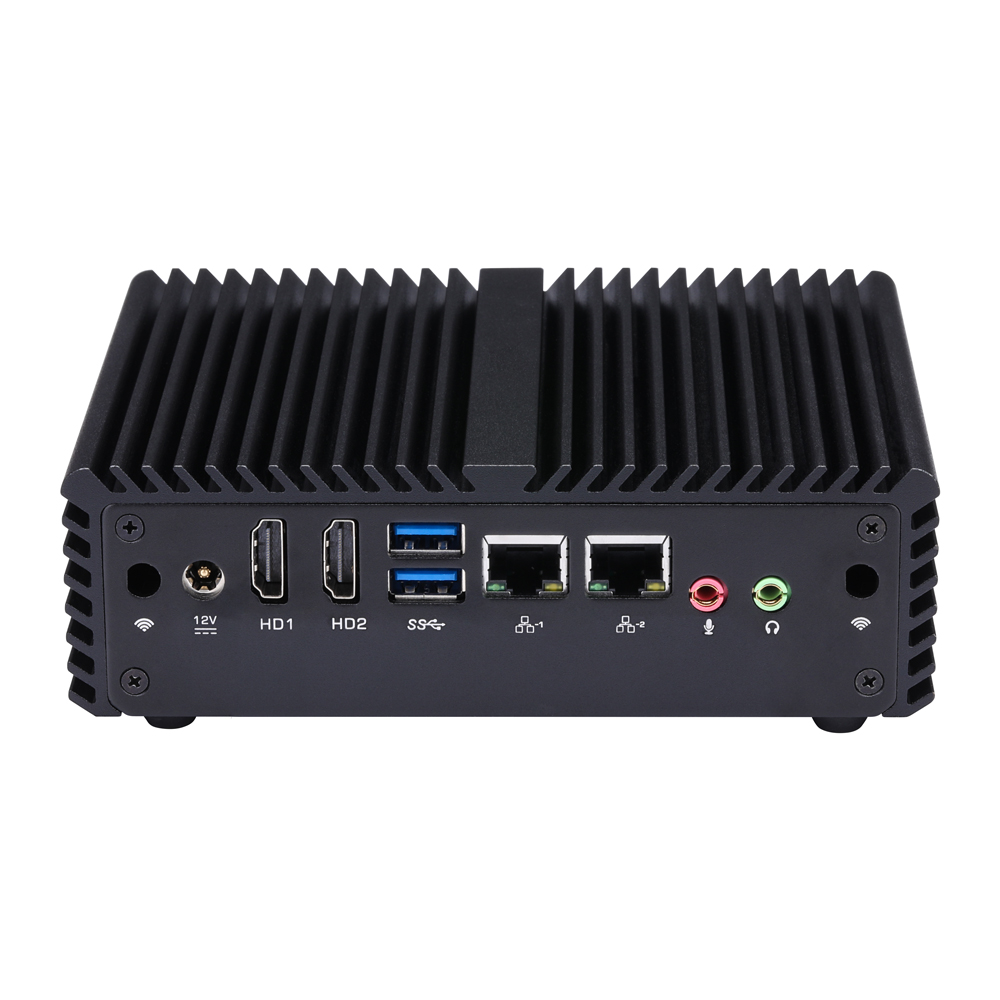

Rear I/O

Power1 × DC Jack
Video Output2 × HDMI
LAN2 × Realtek Gigabit LAN
USB2 × USB 3.0
Audio1 × Mic-in,1 × Line-out
Serial Port0

Storage

Type1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD

Expansion

mSATA1 × Mini PCIe, Full-length for SSD
Mini PCIe1 × Mini PCIe, Half-length for Wi-Fi
Mini PCIe1 × Mini PCIe, Full-length for 4G
SIM Card Slot1
AutoStart JumperYes,1 × 3Pin, Pitch 2.54mm
DC-INNo
GPIO1,2 × 5Pin, Pitch 2.0mm
RS-4850

Power

Power Adapter12V4A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension155 × 127 × 48mm
Weight0.92kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSWindows 7, Windows 8, Windows 10, Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q401S-S08 Haswell Celeron 2955U 2 / 2 1.4GHz 2M Intel HD Graphics 15W
Q430S-S08 Haswell Core i3 4005U 2 / 4 1.7GHz 3M Intel HD 4400 15W
Q450S-S08 Haswell Core i5 4200U 2 / 4 1.6GHz ~ 2.6GHz 3M Intel HD 4400 15W
Q470S-S08 Haswell Core i7 4500U 2 / 4 1.8GHz ~ 3.0GHz 4M Intel HD 4400 15W
Q430SY-S08 Haswell Core i3 4010Y 2 / 4 1.3GHz 3M Intel HD 4200 11.5W
Q450SY-S08 Haswell Core i5 4200Y 2 / 4 1.4GHz ~ 1.9GHz 3M Intel HD 4200 11.5W
Q460S-S08 Haswell Core i5 4258U 2 / 4 2.4GHz ~ 2.9GHz 3M Intel I ris Graphics 5100 28W
Q405S-S08 Broadwell Celeron 3205U 2 / 2 1.5GHz 2M Intel HD Graphics 15W
Q410S-S08 Broadwell Celeron 3215U 2 / 2 1.7GHz 2M Intel HD Graphics 15W
Q420S-S08 Broadwell Pentium 3805U 2 / 2 1.9GHz 2M Intel HD Graphics 15W
Q435S-S08 Broadwell Core i3 5005U 2 / 4 2.0GHz 3M Intel HD 5500 15W
Q455S-S08 Broadwell Core i5 5200U 2 / 4 2.2GHz ~ 2.7GHz 3M Intel HD 5500 15W
Q475S-S08 Broadwell Core i7 5500U 2 / 4 2.4GHz ~ 3.0GHz 4M Intel HD 5500 15W
