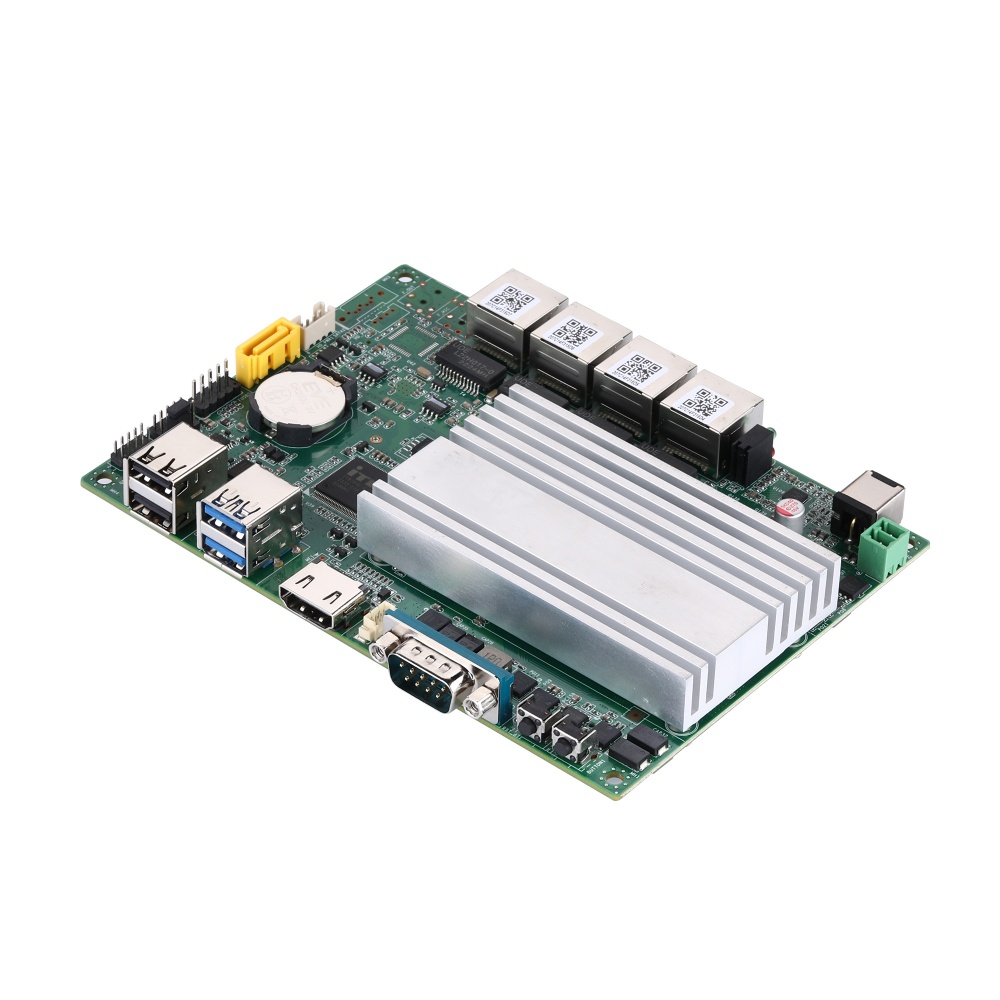

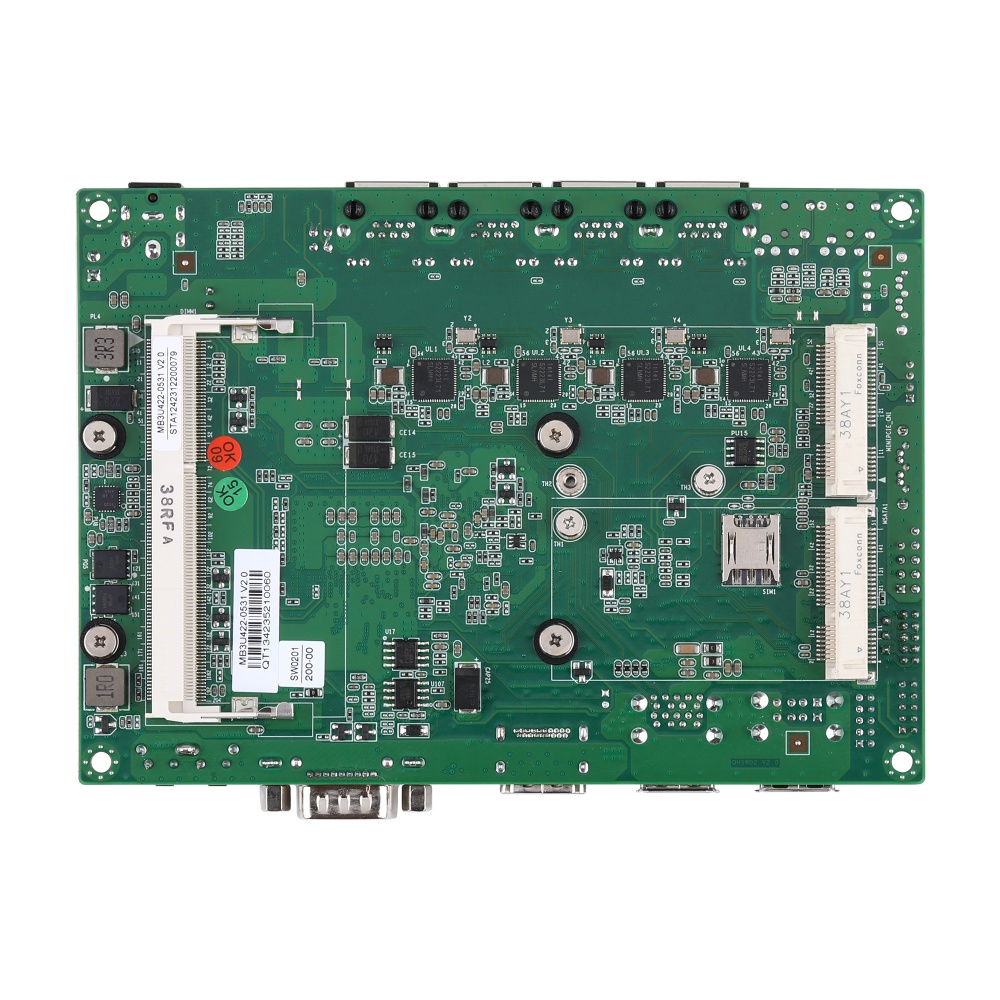

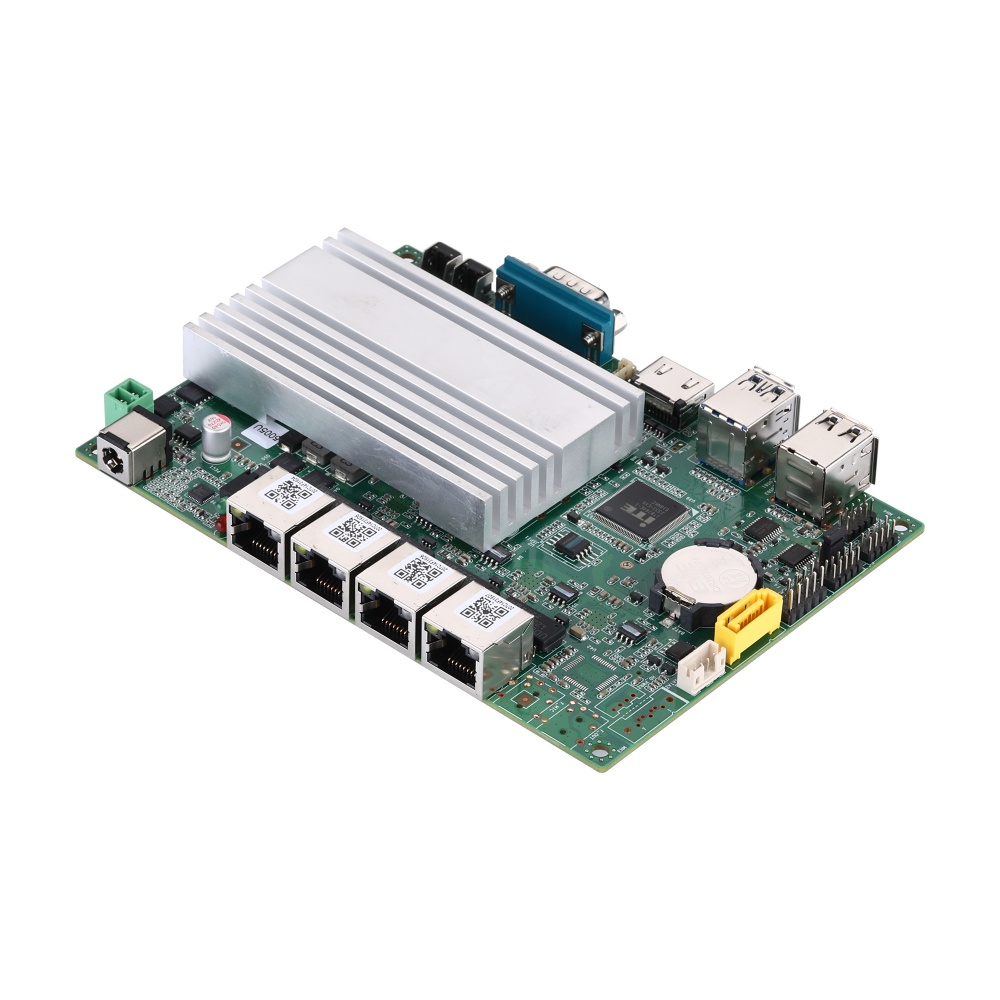

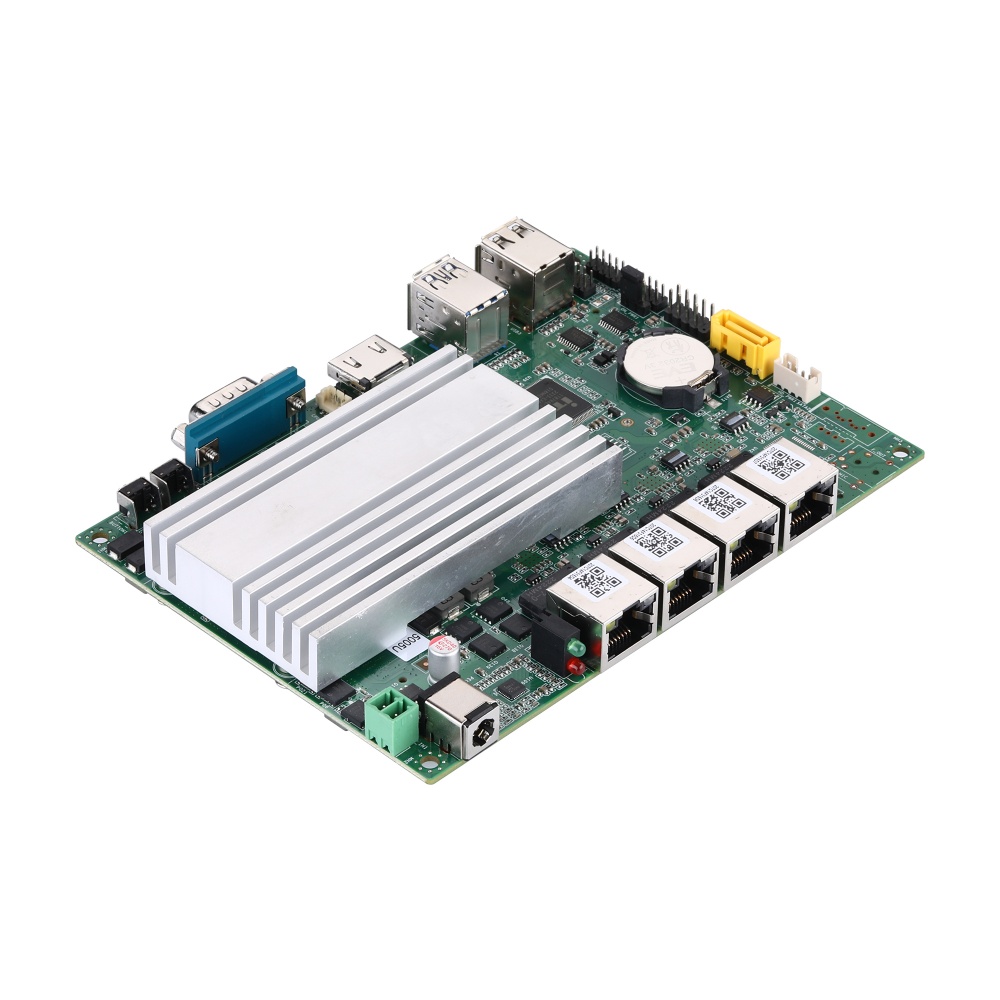

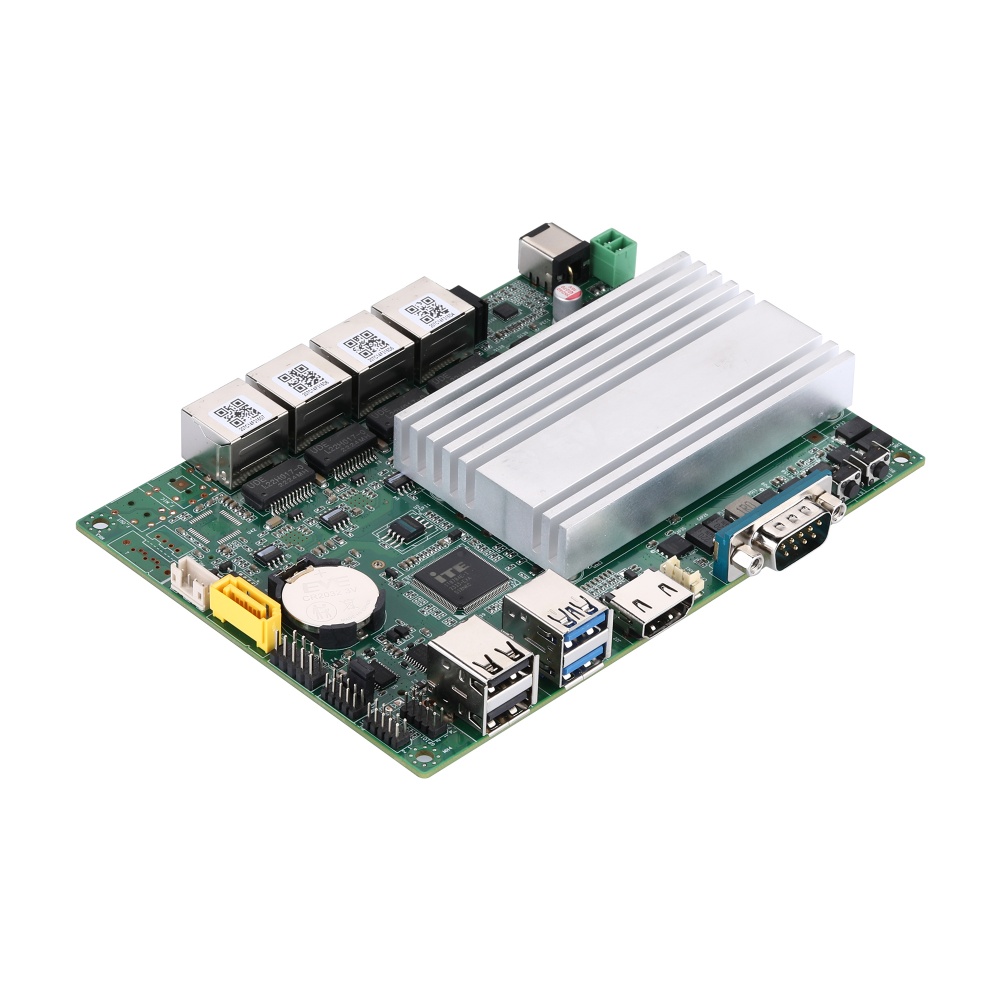

Motherboard MB3U422-0500 Series

Model: MB3U422-0500

Total LAN4
LAN Speed2.5G RJ45
Serial Ports1

MB3U422-0500 provides a board-level foundation with compact industrial PC motherboard based on Intel Broadwell processors with four Gigabit Ethernet ports and expandable storage. Typical applications include OEM network appliances, embedded systems and custom computer builds.

Key Specs

CPU
Haswell / Broadwell
Memory
DDR3L SO-DIMM · Max 8GB
LAN
4
Storage
mSATA, SATA
Board Size
148x104

Main Features

  • Intel 4th Haswell –U/Y Processor

  • Intel 5th Broadwell-U Processor

  • 1 × HDMI, 1 × RS-232

  • 2 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0

  • 1 × Mini-PCIe, 1 × mSATA

  • 4 × Intel I225-V/I226-V 2.5G LAN

Processor System

CPU• Intel 4th Haswell –U/Y Processor • Intel 5th Broadwell-U Processor
ChipsetBy CPU
Dimension148 × 104mm
Core NumberBy CPU
Max. SpeedBy CPU
L2 CacheBy CPU
BIOSUEFI

Memory

TechnologyDDR3L 1333/1600MHz SDRAM
Max.8GB
Socket1 × SO-DIMM

Graphics

ControllerBy CPU
VRAMShared Memory
HDMI1 (Support HDMI 1.4a)
Multi DisplayNo

Ethernet

Interface100/1000/2500Mbps
Controller4 × Intel I225-V/I226-V 2.5G LAN
Connector4 × RJ-45

Audio

ControllerRealtek HD Audio (Option)

Front I/O

Power Button1 × Power Button, 1 × Reset Button
USB2 × USB 3.0, 2 × USB 2.0
Serial Port1 × RS-232
HDMI1

Rear I/O

Audio2 (Mic-in, Line-out) (Option)
DC-IN1
LED1 × Power LED, 1 × HDD LED
Ethernet4

Storage

Max. Data Transfer RateSATA 3.0 (6.0Gb/S)

Expansion

mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Mini PCIe Full-length Mini PCIe for 4G Half-length Mini PCIe for Wi-Fi by Default

Internal Connector

Serial Port1, 2 × 5Pin, Pitch 2.0mm (Option)
SATA1 × SATA 3.0 (6.0Gb/S) 1, Only for Core i5/i7 (Option)
SATA PWR Connector1,1 × 4Pin, Pitch PH2.0mm, 1,Only for Core i5/i7 (Option)
SIM Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.54mm
GPIO Header1, 2 × 5Pin, Pitch 2.0mm
USB 2.0 Header2, 2 × 5Pin, Pitch 2.54mm
Front Panel Header1, 2 × 5Pin, Pitch 2.0mm
Power Header1, 1 × 2Pin, Pitch 3.5mm (Option)

Watchdog Timer

OutputFrom Super I/O to Drag RESETCON#
Interval256 Segments,0,1,2,3,,,255 sec/min

Power

Input PWR12V DC in, 5.5mm/2.5mm

Environmental

Operating Temperature0-50℃

Accessories

AccessoriesCable for HDD

OS Support

OSWindows 7, Windows 10, Linux

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
MB3U422-0411 Haswell Celeron 2955U 2 / 2 1.4GHz 2M Intel HD Graphics 15W
MB3U422-0431 Haswell Core i3 4005U 2 / 4 1.7GHz 3M Intel HD 4400 15W
MB3U422-0451 Haswell Core i5 4200U 2 / 4 1.6GHz ~ 2.6GHz 3M Intel HD 4400 15W
MB3U422-0471 Haswell Core i7 4500U 2 / 4 1.8GHz ~ 3.0GHz 4M Intel HD 4400 15W
MB3U422-0432 Haswell Core i3 4010Y 2 / 4 1.3GHz 3M Intel HD 4200 11.5W
MB3U422-0452 Haswell Core i5 4200Y 2 / 4 1.4GHz ~ 1.9GHz 3M Intel HD 4200 11.5W
MB3U422-0511 Broadwell Celeron 3205U 2 / 2 1.5GHz 2M Intel HD Graphics 15W
MB3U422-0512 Broadwell Celeron 3215U 2 / 2 1.7GHz 2M Intel HD Graphics 15W
MB3U422-0521 Broadwell Pentium 3805U 2 / 2 1.9GHz 2M Intel HD Graphics 15W
MB3U422-0531 Broadwell Core i3 5005U 2 / 4 2.0GHz 3M Intel HD 5500 15W
MB3U422-0551 Broadwell Core i5 5200U 2 / 4 2.2GHz ~ 2.7GHz 3M Intel HD 5500 15W
MB3U422-0571 Broadwell Core i7 5500U 2 / 4 2.4GHz ~ 3.0GHz 4M Intel HD 5500 15W
