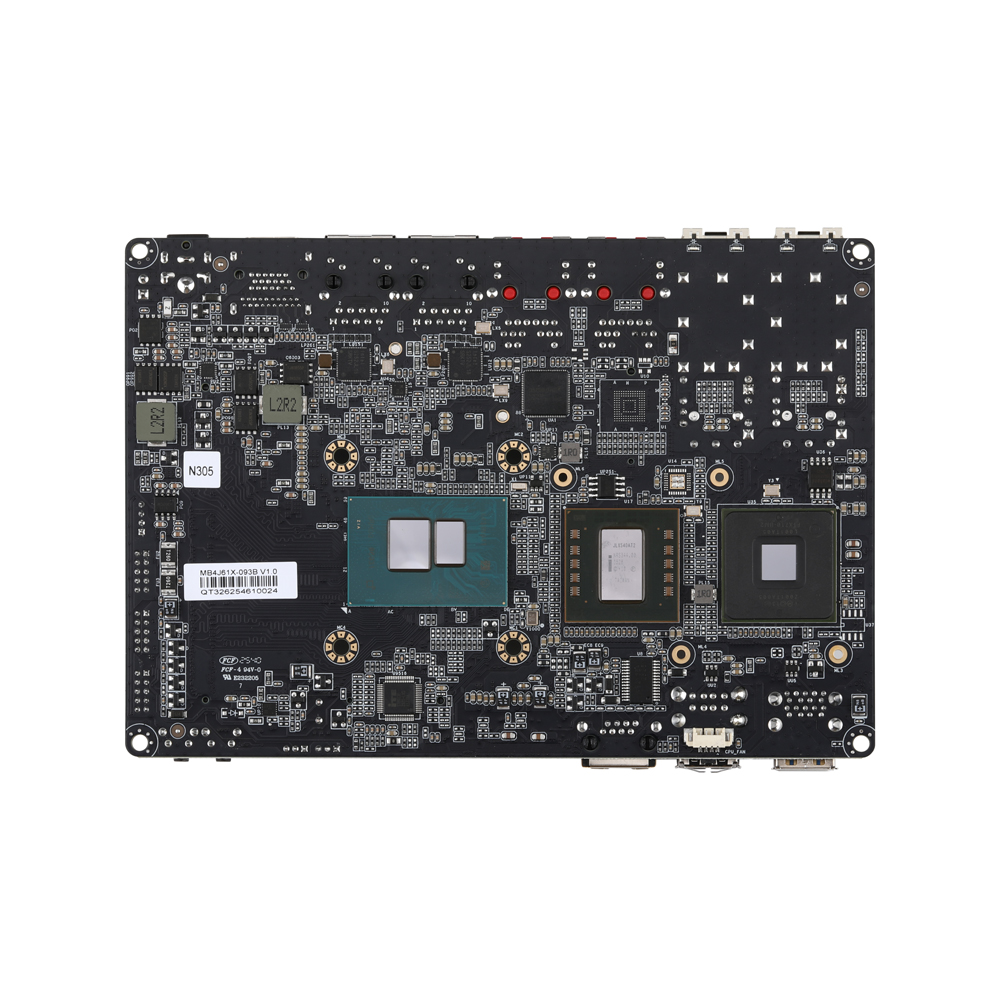

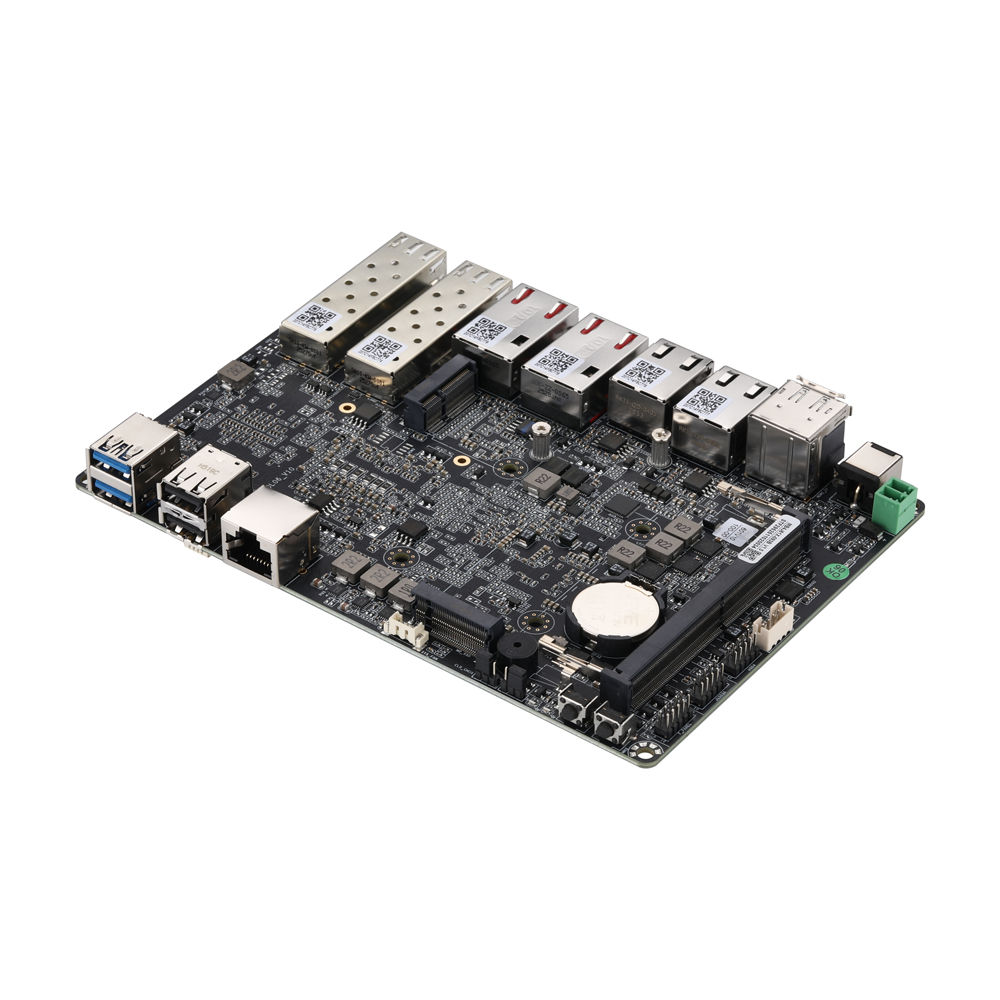

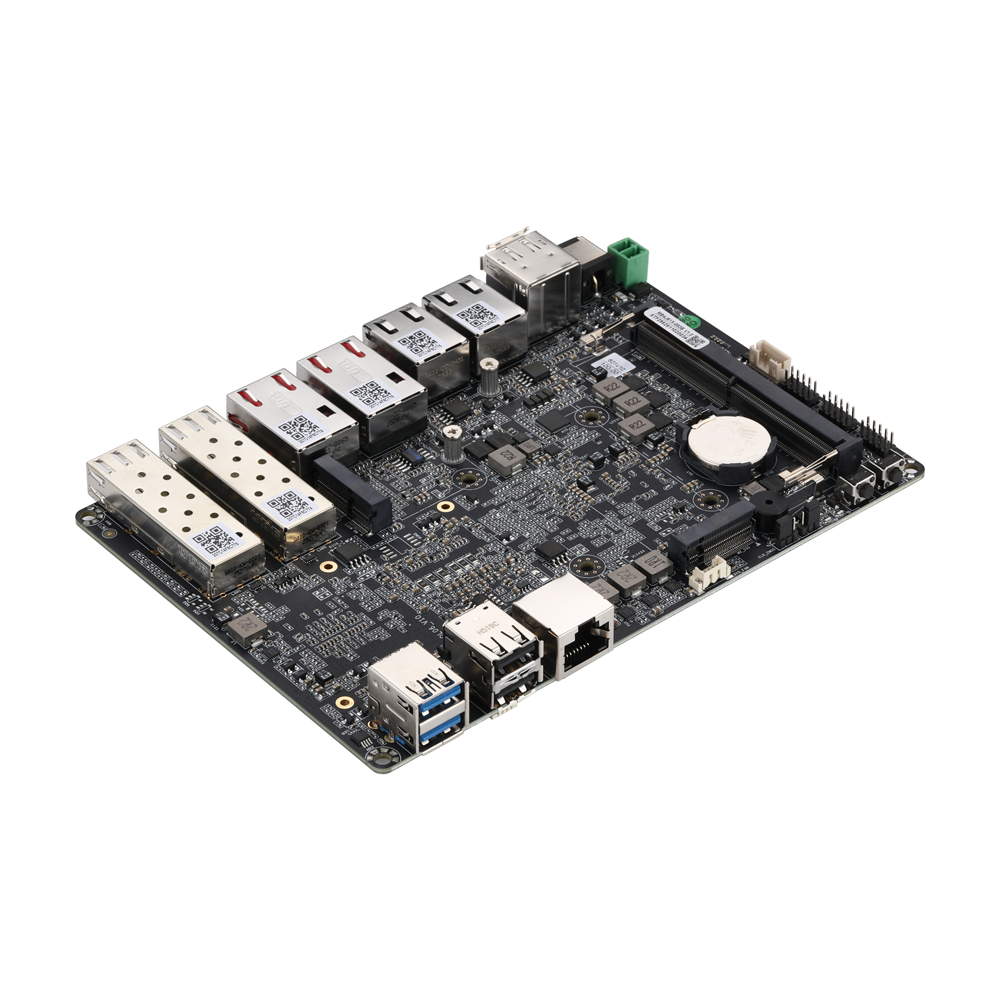

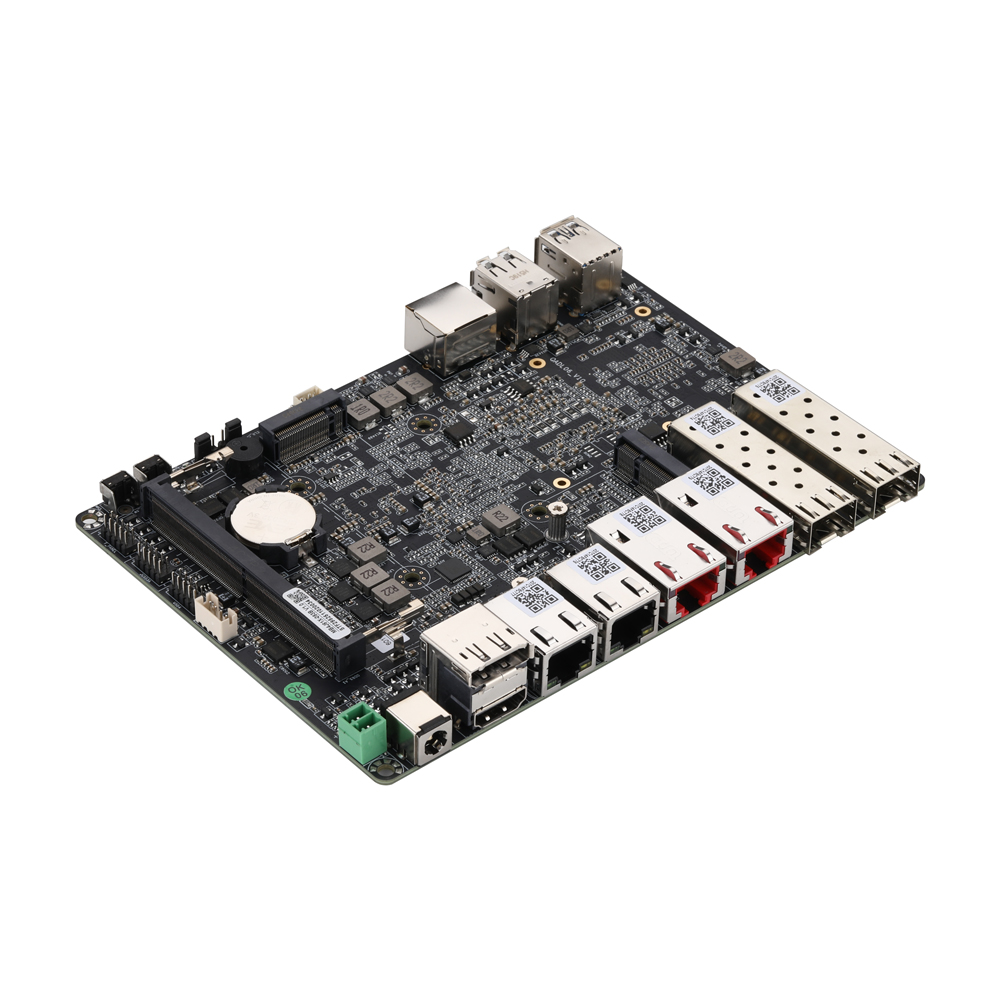

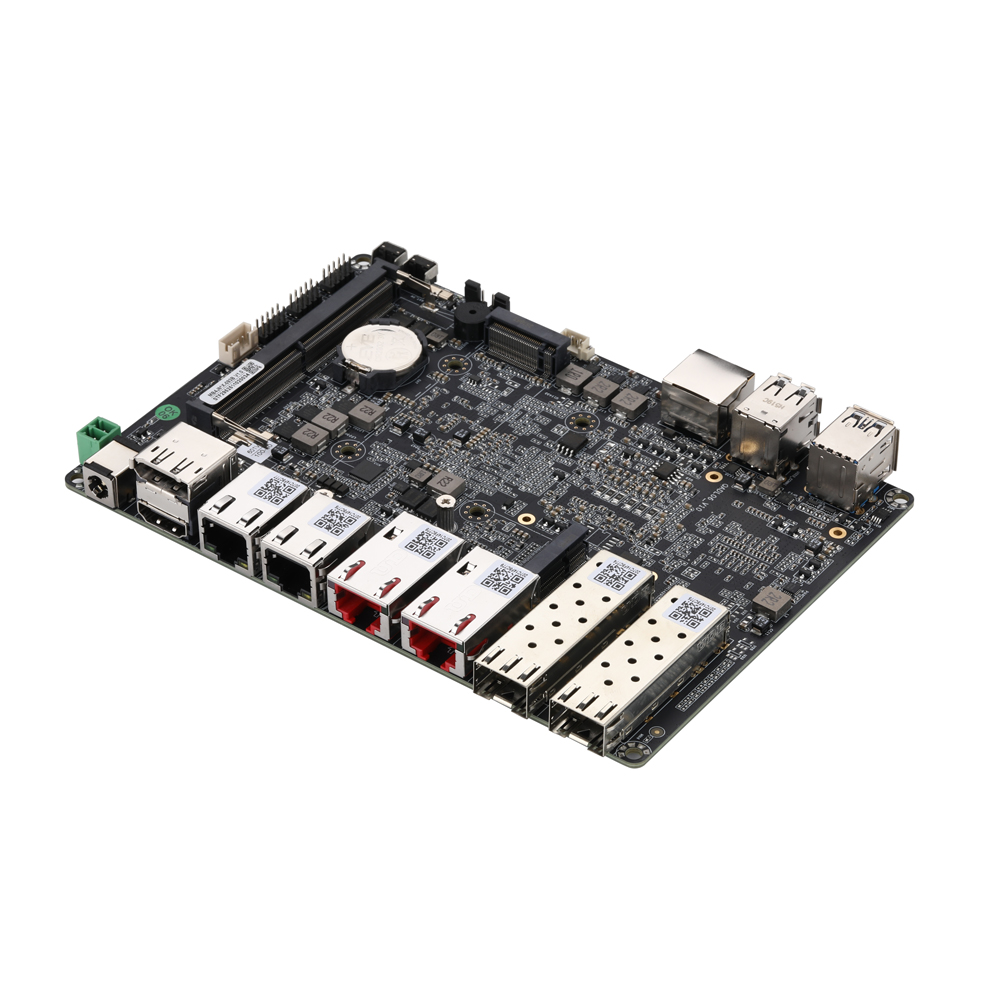

Motherboard MB4J61X-090A Series

Name: Motherboard MB4J61X-090A Series
Brand: Qotom
SKU: MB4J61X-090A

Model: MB4J61X-090A

Total LAN6

LAN Speed2.5G RJ45 / 10G RJ45 / 10G SFP+

Serial Ports1

MB4J61X-090A provides a board-level foundation with 165 × 115mm network mini PC motherboard supporting Alder Lake-N and Twin Lake processors including N100, N305, N150 and N355, with DDR5 up to 48GB. The platform also includes 2 × 2.5G + 2 × 10G RJ45 + 2 × 10G SFP+ configuration is. Typical applications include compact server platforms and specialized hardware designs.

Key Specs

CPU: Alder lake N / Twin Lake
Memory: DDR5 SO-DIMM · Max 48GB
LAN: 6
Storage: M.2 Mkey
Board Size: 165x115

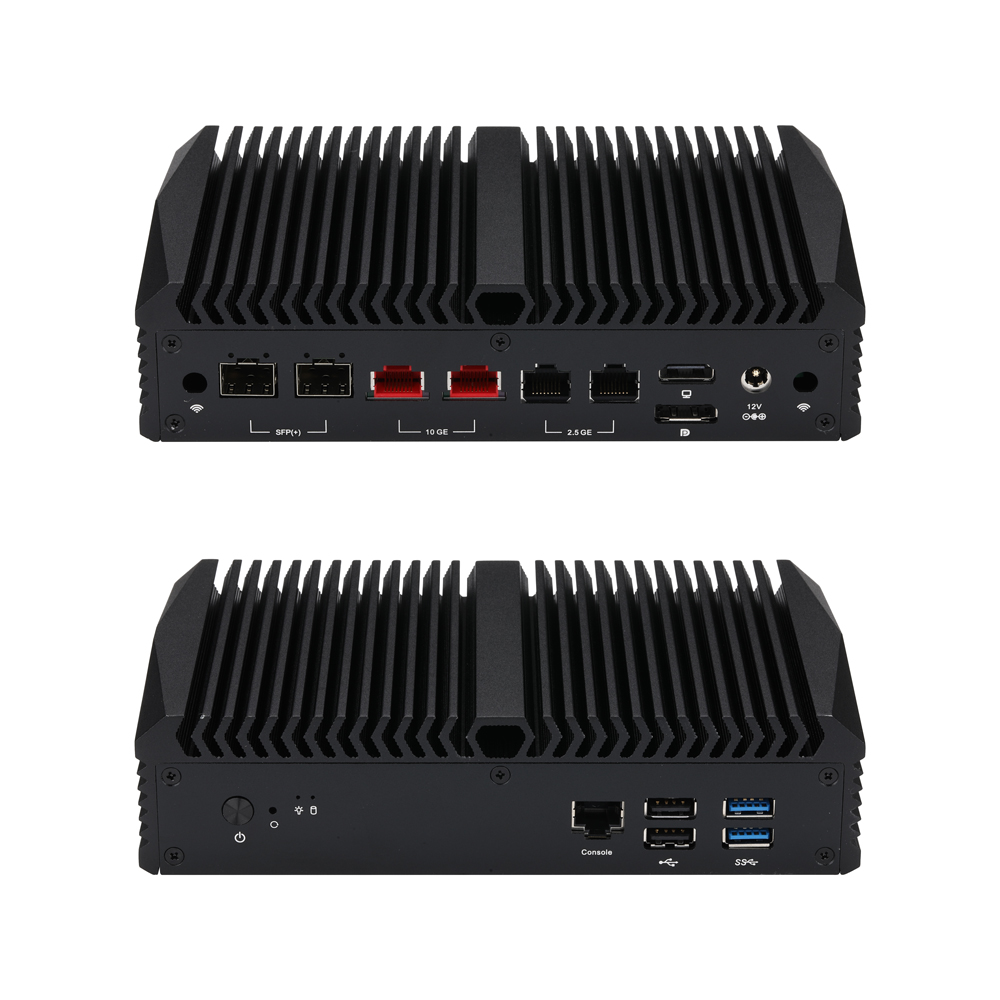

Compatible Systems

Main Features

Intel Alder Lake-N Processor
Intel Twin Lake-N Processor
1 × HDMI, 1 × Display Port
2 × USB 3.0 ,2 × USB 2.0
2 × M.2 ,1 × RS-232 (RJ45)
2× Intel I226-V 2.5G LAN
2, Intel X540 10G LAN
2, Intel X710-BM2 10G SFP+

Related Products

Motherboard MB7UT1X-1500 Series

MB7UT1X-1500

Mini PC Q10900H6 1U16 Series

Q10900H6-1U16

Mini PC Q10900H6 S13 Series

Q10900H6-S13

Mini PC Q10900S6 1U13 Series

Q10900S6-1U13

Mini PC Q10900S6 S13 Series

Q10900S6-S13

Mini PC Q10900X S04 Series

Q10900X-S04

CPU	Intel Alder Lake-N Processor Intel Twin Lake-N Processor
Chipset	By CPU
Dimension	165 × 115mm
Core Number	By CPU
Speed	By CPU
L2 Cache	By CPU
BIOS	UEFI

Technology	DDR5 4800MHz SDRAM
Max.	48GB
Socket	1 × SO-DIMM

Controller	By CPU
VRAM	Shared Memory
HDMI	1 (Support HDMI 1.4a)
Display Port	1
Multi Display	Yes

RJ45/2.5G	2 × Intel I226-V 2.5G LAN
RJ45/10G	2, Intel X540 10G LAN (10GbE/1GbE) Both interfaces support up to 12Gbps
SFP+ / 10G	2, Intel X710-BM2 10G SFP+ (10GbE/1GbE)

Power Button	1 × Power Button, 1 × Reset Button
LED	1 × Power LED,1 × HDD LED
USB	2 × USB 3.0, 2 × USB 2.0
Serial Port	1 × Connector, RS-232 (RJ-45)
DC-IN	1
Display	1× HDMI,1× Display Port
SFP+	2 × 10G SFP+
Ethernet	2 × 10G
Ethernet	2 × 2.5G

Motherboard MB4J61X-090A Series

Key Specs

Compatible Systems

Main Features

Processor System

Memory

Graphics

Ethernet

Audio

Front I/O

Storage

Expansion

Internal Connector

Watchdog Timer

Power

Environmental

Accessories

OS Support

Package Contents

Order & Specification Selection

BIOS & Firmware

Driver Downloads

Related Products

M.2	1× M.2 for SSD (M key, Type:2280,PCIe 3.0 × 1)
M.2	1 × M.2 for Wi-Fi (E key, Type: 2230)

SATA	SATA support via a Converter Card
SATA PWR Connector	1, 1 × 4Pin, Pitch PH2.0mm
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
Clear CMOS Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
Front Panel Header	1, 2 × 5Pin, Pitch 2.0mm
USB 2.0 Header	2, 2 × 5Pin, Pitch 2.0mm
USB 3.0 Header	1, 2 × 5Pin, Pitch 2.0mm (Option)
Power Header	1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin

Output	From Super I/O to Drag RESETCON#
Interval	256 Segments,0,1,2,3,,,255 sec/min

Ordering Code	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP
MB4J61X-091A	A lder lake-N	-	N50	2 / -	3.4GHz	6M	Intel UHD Graphics	6W
MB4J61X-092A	Alder lake-N	-	N97	4 / -	3.6GHz	6M	Intel UHD Graphics	12W
MB4J61X-092B	Alder lake-N	-	N100	4 / 4	3.4GHz	6M	Intel UHD Graphics	6W
MB4J61X-092C	Alder lake-N	-	N200	4 / 4	3.7GHz	6M	Intel UHD Graphics	6W
MB4J61X-092D	Alder lake-N	Atom	X7425E	4 / 4	3.4GHz	6M	Intel UHD Graphics	12W
MB4J61X-093A	Alder lake-N	Core i3	N300	8 / 8	3.8GHz	6M	Intel UHD Graphics	7W
MB4J61X-093B	Alder lake-N	Core i3	N305	8 / 8	3.8GHz	6M	Intel UHD Graphics	15W
MB4J61X-102B	Twin Lake-N	-	N150	4 / 4	3.6GHz	6M	Intel Graphics	6W
MB4J61X-102C	Twin Lake-N	-	N250	4 / 4	3.8GHz	6M	Intel Graphics	6W
MB4J61X-103A	Twin Lake-N	Core i3	N350	8 / 8	3.9GHz	6M	Intel Graphics	7W
MB4J61X-103B	Twin Lake-N	Core i3	N355	8 / 8	3.9GHz	6M	Intel Graphics	15W
