Mini PC Q30600P S02 Series

Model: Q30600P-S02

Total LAN2
LAN Speed1G RJ45
Serial Ports4

Q30600P-S02 brings 4×RS232, 2×Realtek Gigabit LAN and DDR4 up to 32GB, with Intel Skylake and Kaby Lake processor options to industrial communication and embedded control projects. The platform also includes Dual HDMI, M.2 SSD, SATA, GPIO, Watchdog and AutoStart support industrial automation, POS equipment, machine communication and. Typical applications include machine connectivity, industrial data acquisition and controller integration.

Key Specs

CPU
Skylake / Kaby Lake
Memory
DDR4 SO-DIMM · Max 32GB
LAN
2
Storage
M.2 Mkey, SATA

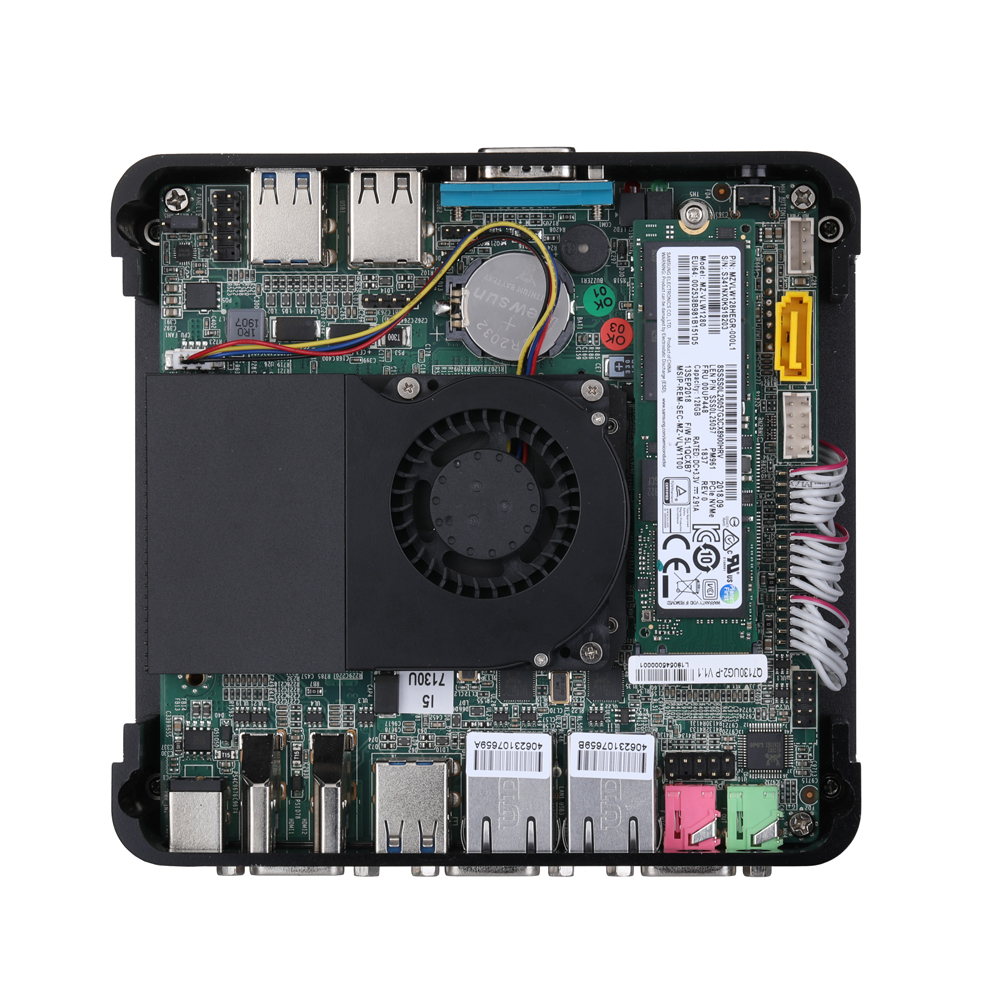

Compatible Motherboard

MB2U247-0600
MB2U247-0600
Send Inquiry Buy Now
Q510PQ520PQ530PQ550PQ570PQ515PQ525PQ535PQ555PQ575PQ30611PQ30612PQ30631PQ30651PQ30671PQ30711PQ30712PQ30731PQ30751PQ30771PIntelSkylakeKaby LakeKaby Lake-RCeleronPentiumCore i3Core i5Core i73855U3955U4405U6006U6100U6200U6300U6500U6600U3865U3965U4415U7020U7100U7130U7200U7500U7560U7660U7600U

Main Features

  • Intel 6th Skylake-U Processor

  • Intel 7th Kabylake-U Processor

  • 2 × HDMI,4 × RS-232

  • 4 × USB 3.0,2 × USB 2.0,1 × SATA 3.0

  • 2 × M.2 Slot

  • 2 × Realtek Gigabit LAN

Processor System

CPU• Intel 6th Skylake-U Processor • Intel 7th Kabylake-U Processor
CPU TDPBy CPU
Memory1 × DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset2 × Realtek Gigabit LAN
AudioRealtek HD Audio
Watch DogYes

Front I/O

Power Button1

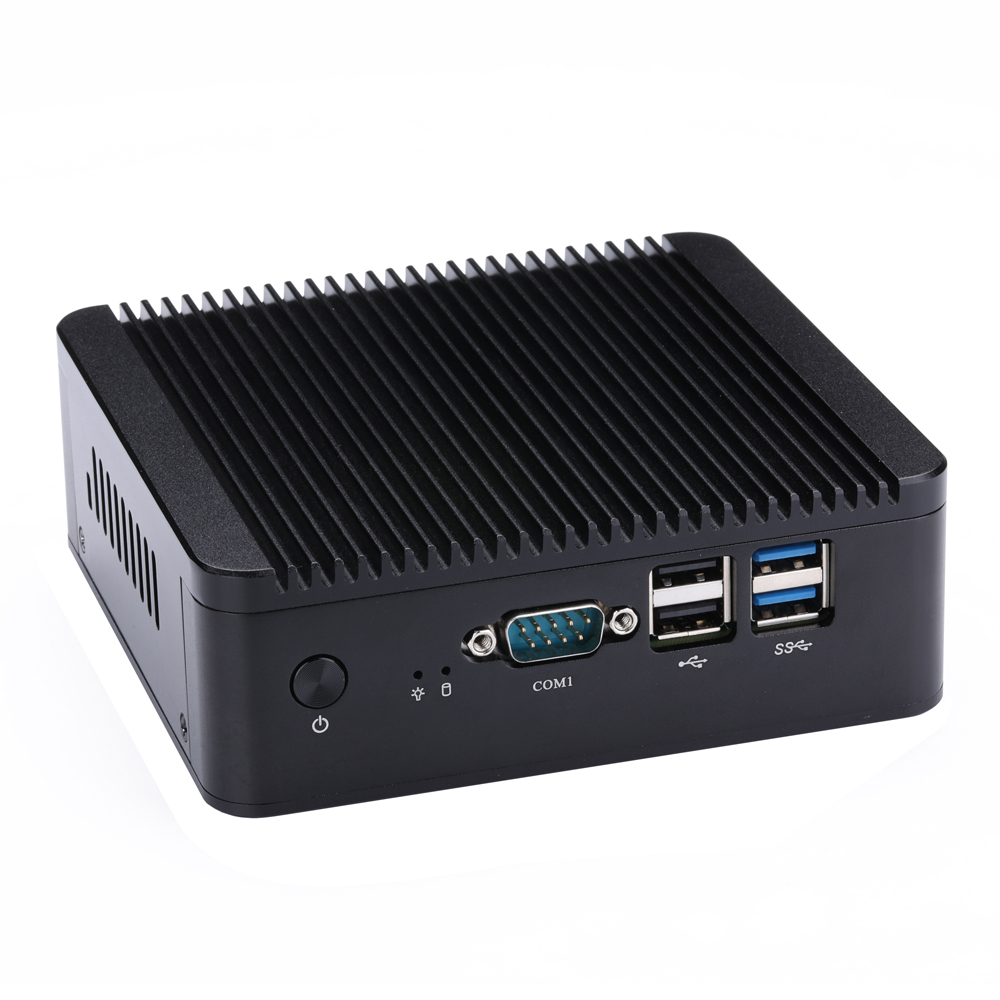

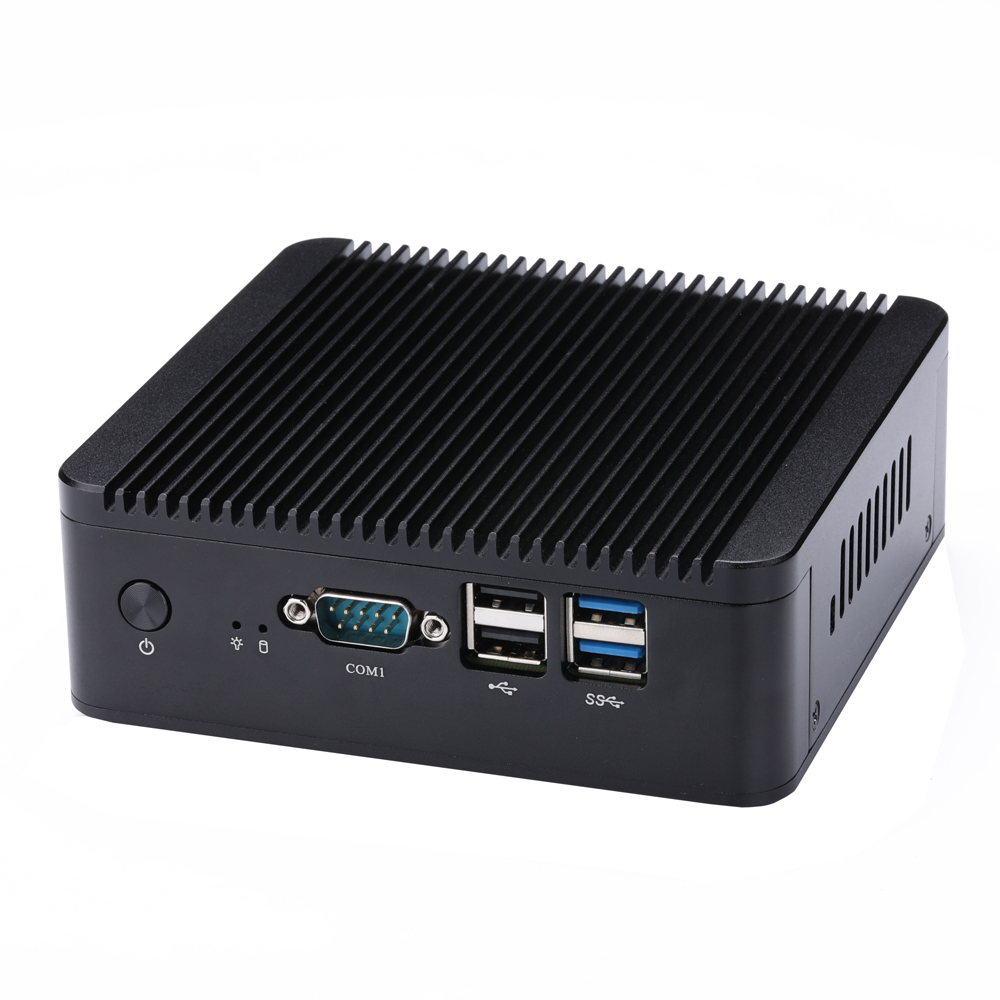

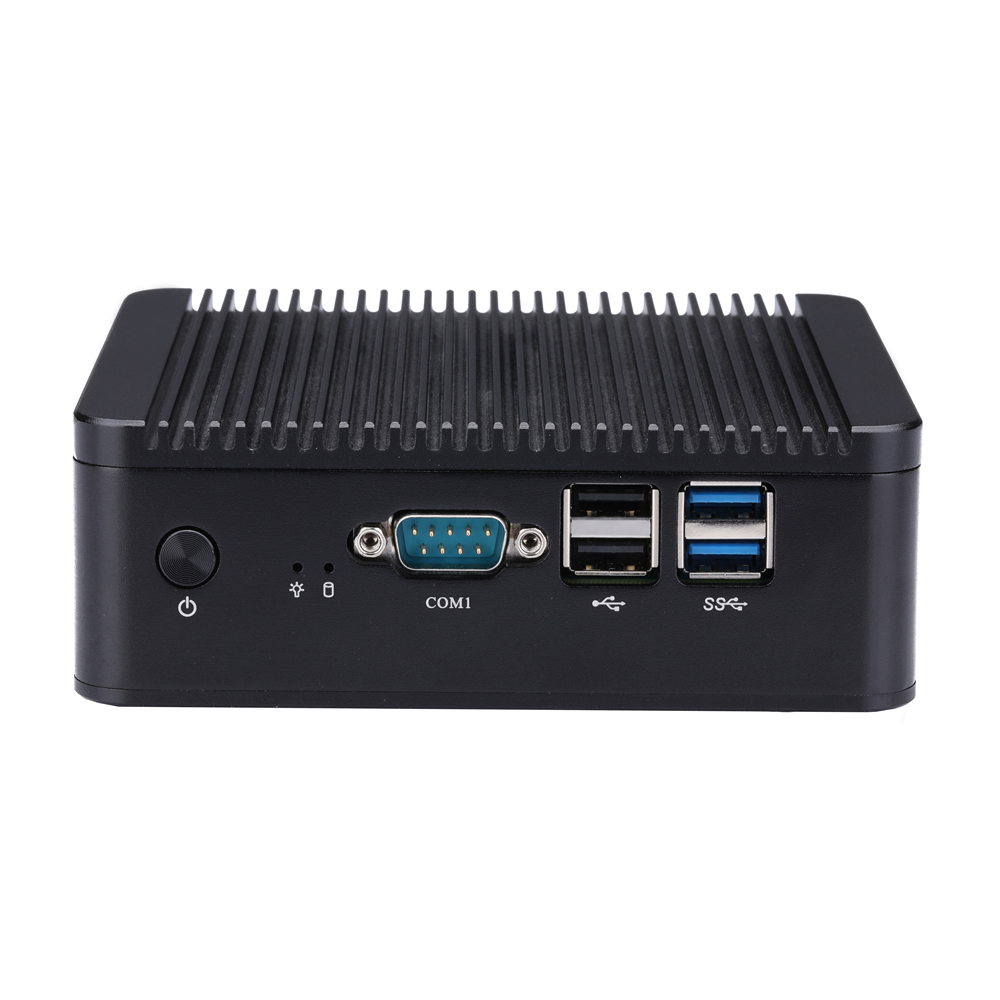

LED1 × Power LED,1 × HDD LED
USB2 × USB 3.0,2 × USB 2.0
Serial Port1 × RS-232 (COM1)
Audio0

Rear I/O

Power1 × DC Jack

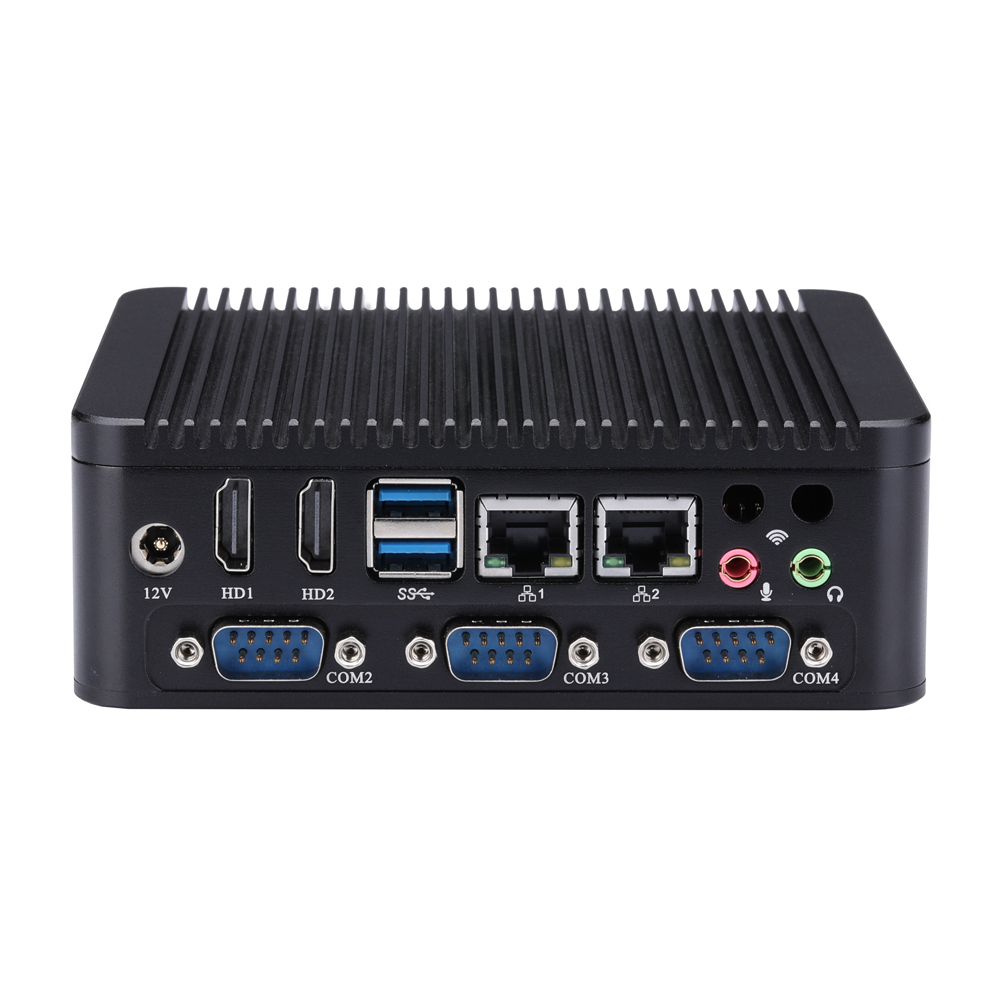

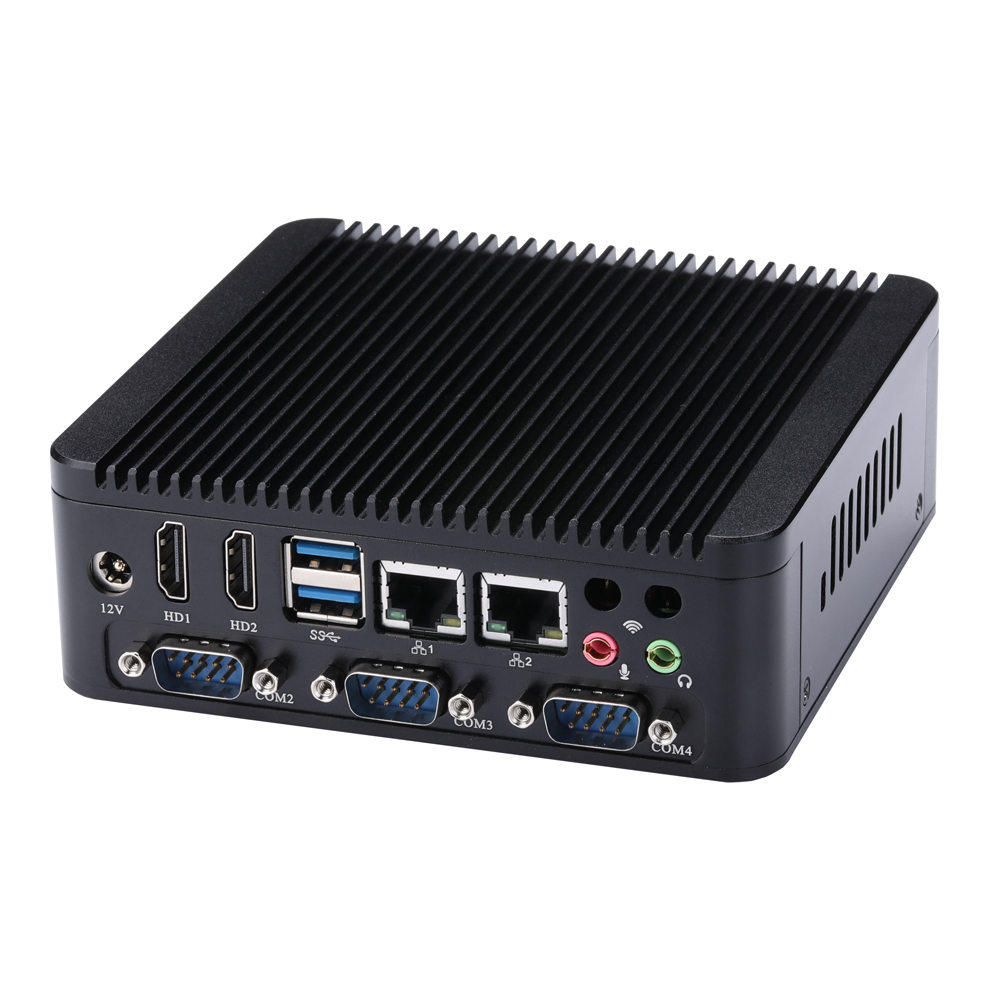

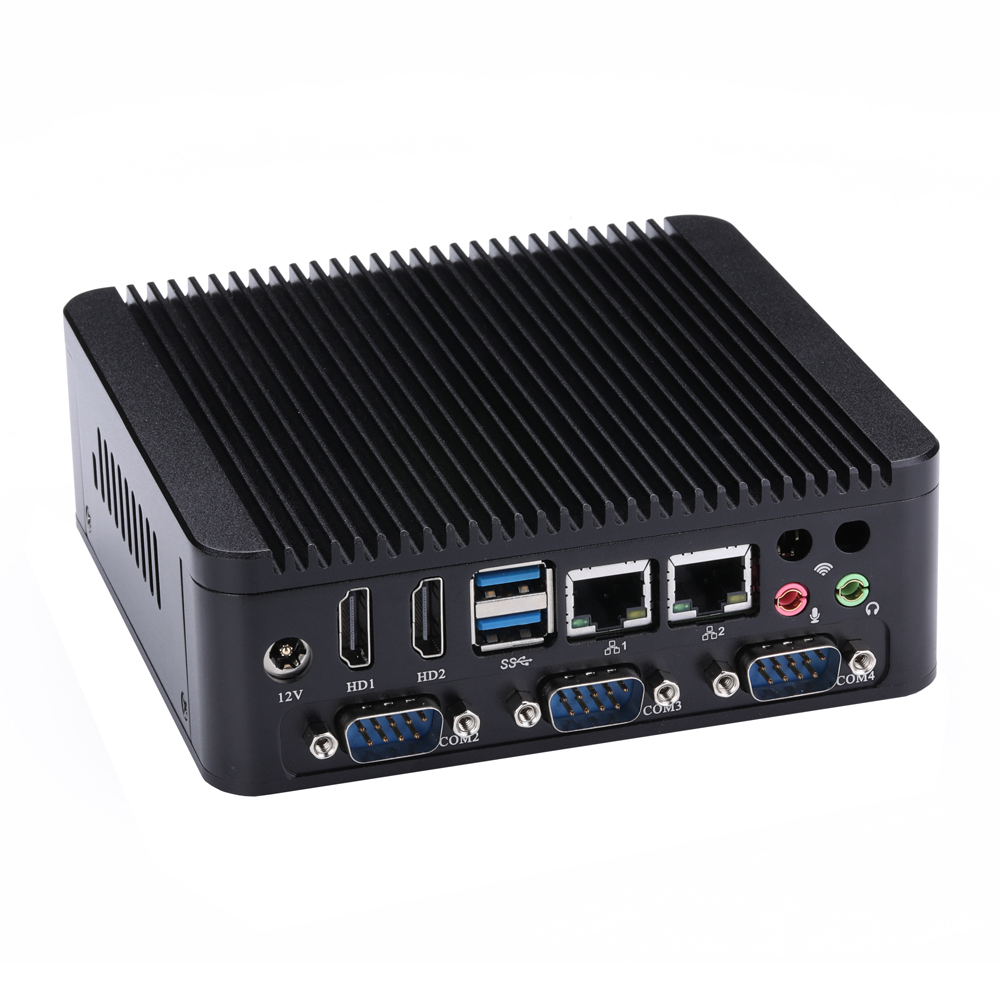

Video Output2 × HDMI
LAN2 × Realtek Gigabit LAN
USB2 × USB 3.0
Audio1 × Mic-in,1 × Line-out
Serial Port3 × RS-232 (COM2, COM3, COM4)

Storage

Type1 × 2.5-inch HDD/SSD 1 × M.2 S lot for SSD (M key, Type:2280)

Expansion

M.21 × M.2 for SSD (M key, Type:2280)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot0
AutoStart JumperYes,1 × 3Pin, Pitch 2.54mm
CMOS Clear JumperYes,1 × 3Pin, Pitch 2.0mm
VGA0
GPIO1,2 × 5Pin, Pitch 2.0mm
RS-4850

Power

Power Adapter12V4A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension134 × 127 × 46mm
Weight0.72kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockSupport
Cooling ModeWith Fan

OS Support

OSWindows 10, Linux Windows 7 (O nly for 6th Gen Skylake)

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q30611P-S02 Q510P Skylake Celeron 3855U 2 / 2 1.6GHz 2M Intel HD 510 15W
Q30612P-S02 Q520P Skylake Celeron 3955U 2 / 2 2.0GHz 2M Intel HD 510 15W
Q30631P-S02 Q530P Skylake Core i3 6100U 2 / 4 2.3GHz 3M Intel HD 520 15W
Q30651P-S02 Q550P Skylake Core i5 6200U 2 / 4 2.3GHz ~ 2.8GHz 3M Intel HD 520 15W
Q30671P-S02 Q570P Skylake Core i7 6500U 2 / 4 2.5GHz ~ 3.1GHz 4M Intel HD 520 15W
Q30711P-S02 Q515P Kaby Lake Celeron 3865U 2 / 2 1.8GHz 2M Intel HD 610 15W
Q30712P-S02 Q525P Kaby Lake Celeron 3965U 2 / 2 2.2GHz 2M Intel HD 610 15W
Q30731P-S02 Q535P Kaby Lake Core i3 7100U 2 / 4 2.4GHz 3M Intel HD 620 15W
Q30751P-S02 Q555P Kaby Lake Core i5 7200U 2 / 4 2.5GHz ~ 3.1GHz 3M Intel HD 620 15W
Q30771P-S02 Q575P Kaby Lake Core i7 7500U 2 / 4 2.7GHz ~ 3.5GHz 4M Intel HD 620 15W
