Mini PC Q30600PV S02 Series
Model: Q30600PV-S02
For equipment requiring multiple serial connections, Q30600PV-S02 offers industrial Mini PC based on Intel Skylake and Kaby Lake processors with 3 serial ports, dual Gigabit LAN, VGA and DDR4 up to 32GB. The platform also includes M.2 and SATA storage, GPIO and VESA mounting make it suitable for legacy equipment, industrial terminals, machine control and system.
Key Specs
- CPU
- Skylake / Kaby Lake
- Memory
- DDR4 SO-DIMM · Max 32GB
- LAN
- 2
- Storage
- M.2 Mkey, SATA

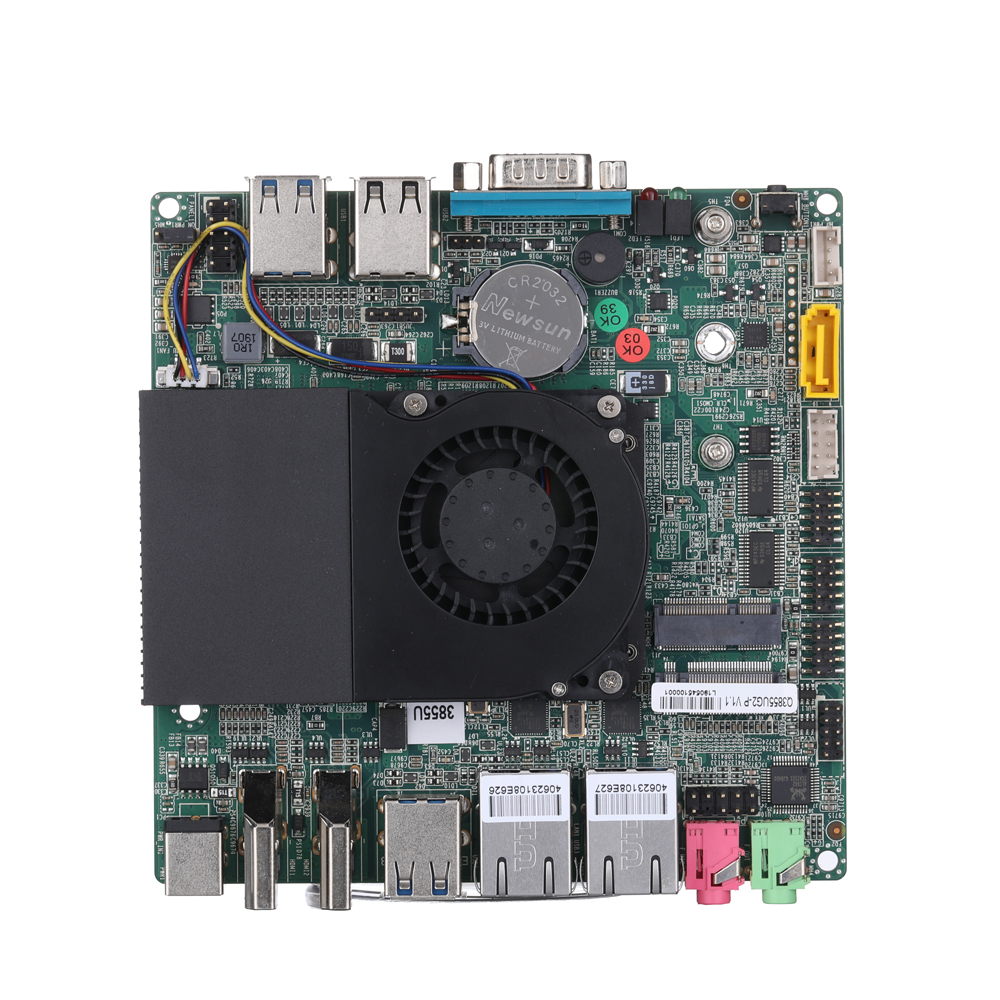

Compatible Motherboard
Q510PVQ520PVQ530PVQ550PVQ570PVQ515PVQ525PVQ535PVQ555PVQ575PVQ30611PVQ30612PVQ30631PVQ30651PVQ30671PVQ30711PVQ30712PVQ30731PVQ30751PVQ30771PVIntelSkylakeKaby LakeKaby Lake-RCeleronPentiumCore i3Core i5Core i73855U3955U4405U6006U6100U6200U6300U6500U6600U3865U3965U4415U7020U7100U7130U7200U7500U7560U7660U7600U
Main Features
Intel 6th Skylake-U Processor
Intel 7th Kabylake-U Processor
2 × HDMI, 1 × VGA, 4 × RS-232
4 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0
2 × M.2 Slot
2 × Realtek Gigabit LAN
