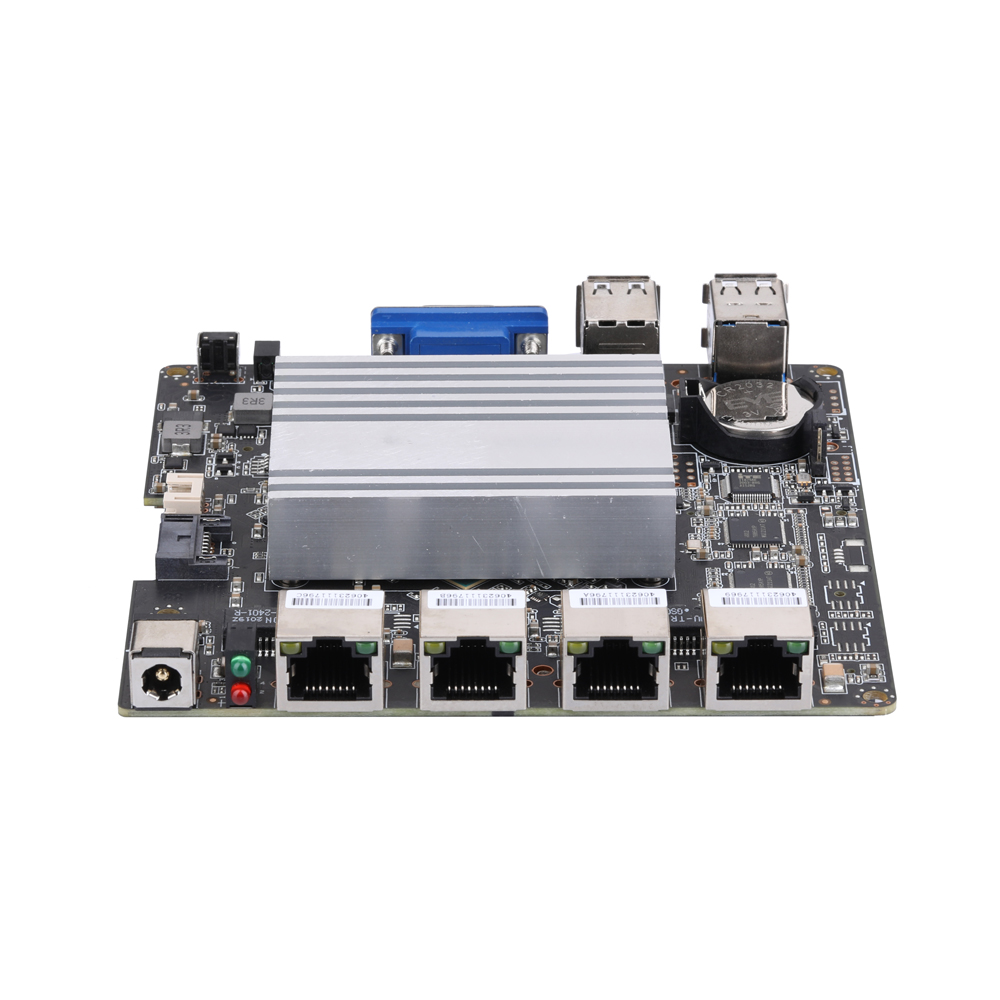

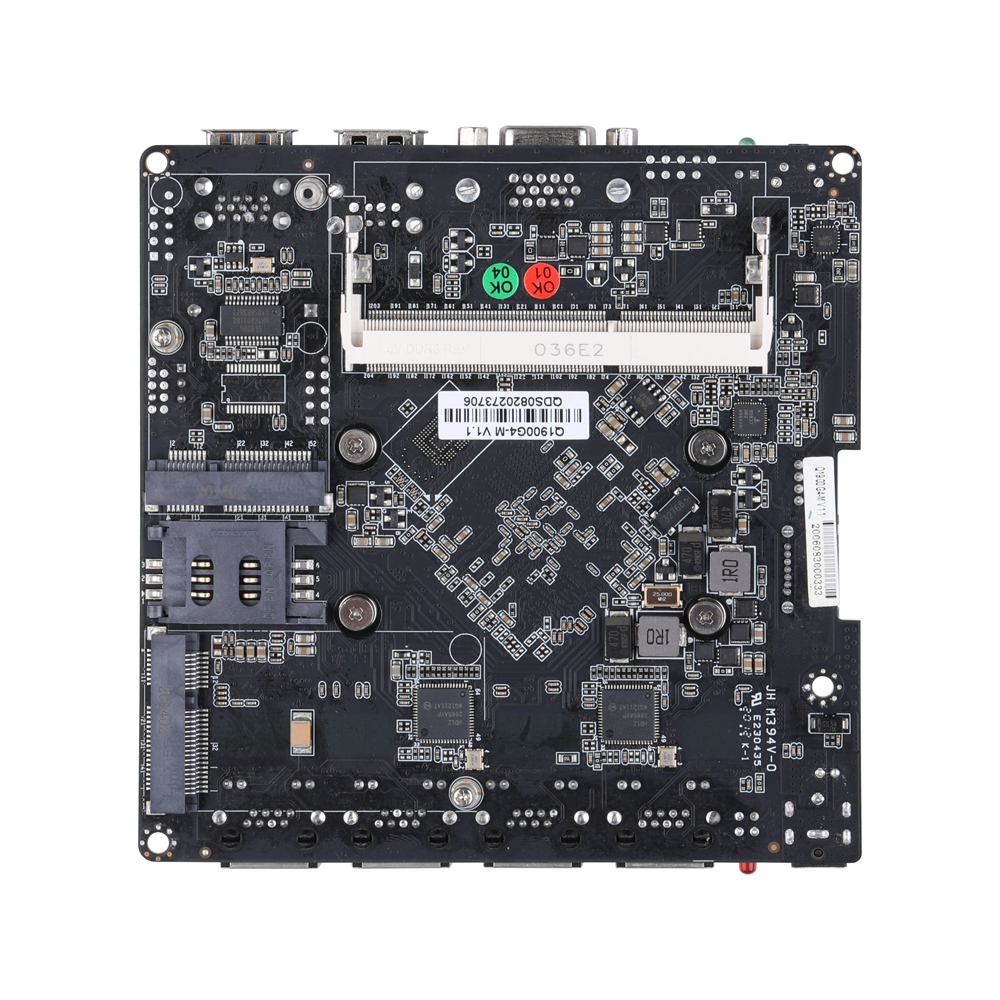

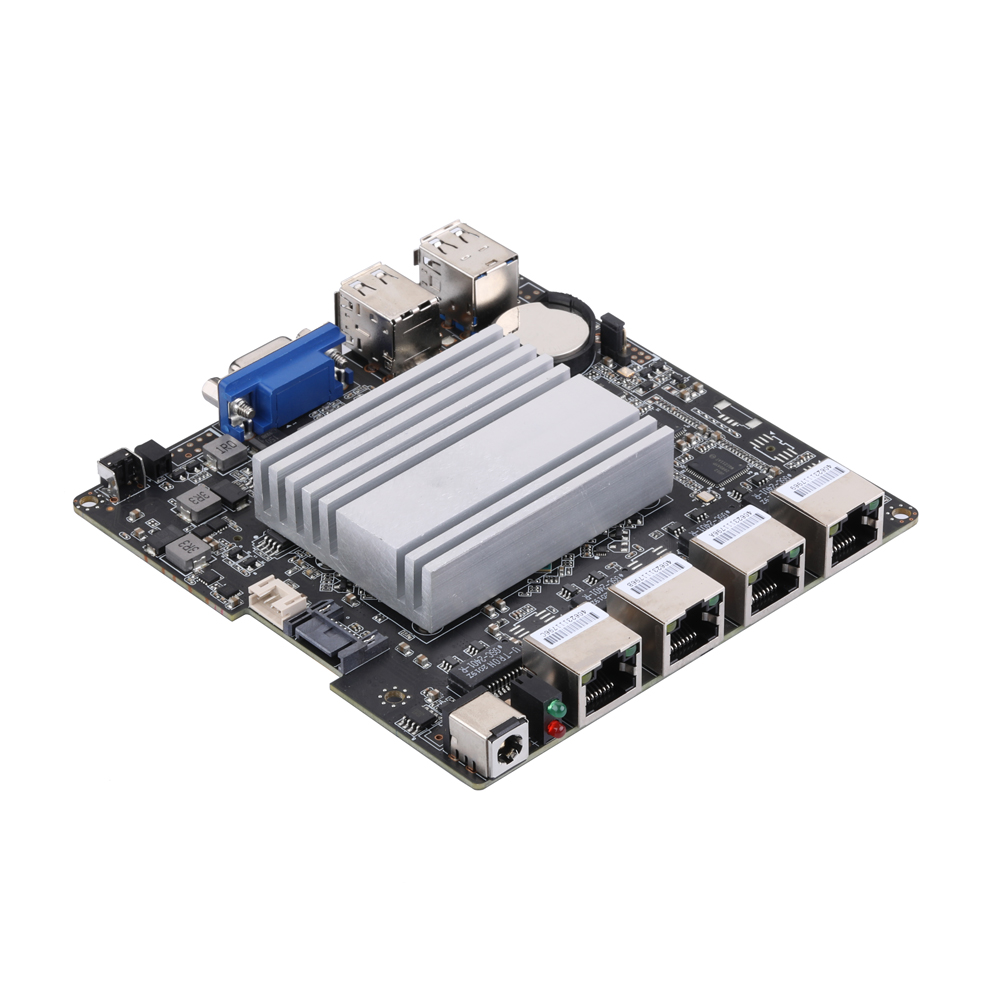

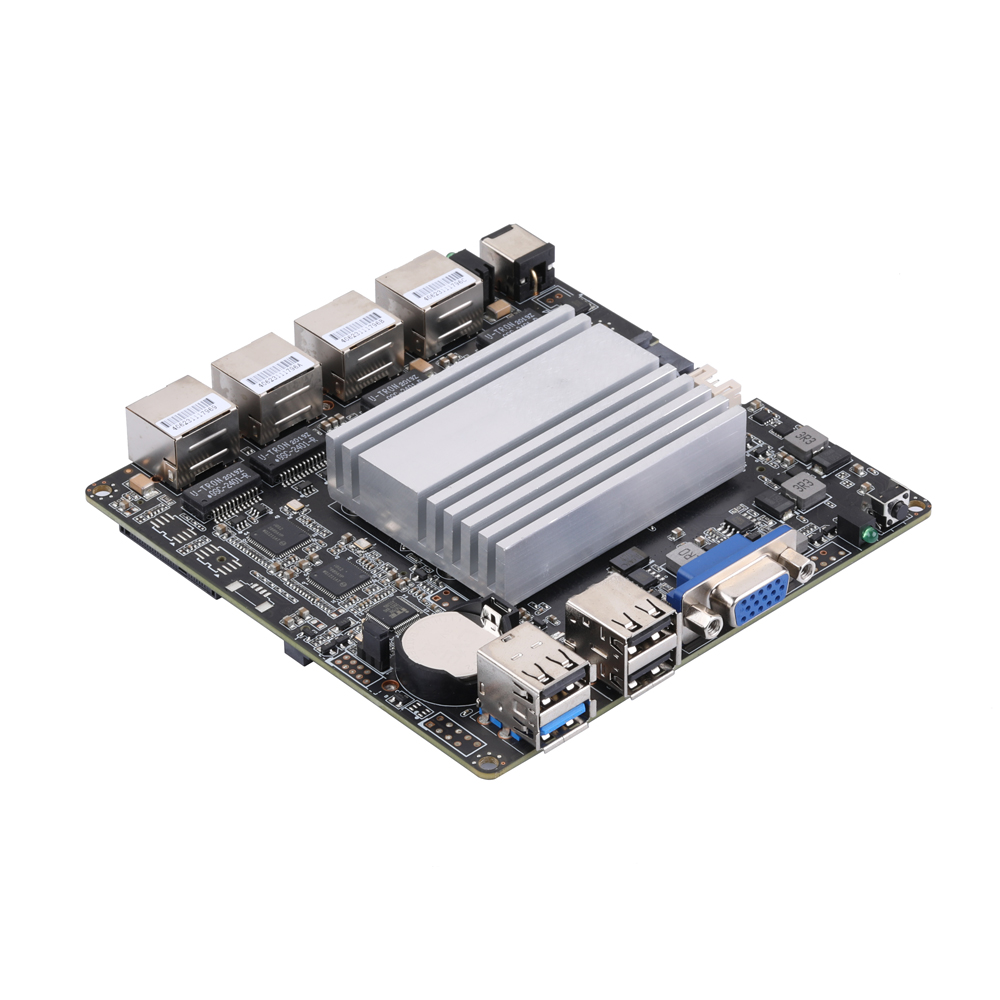

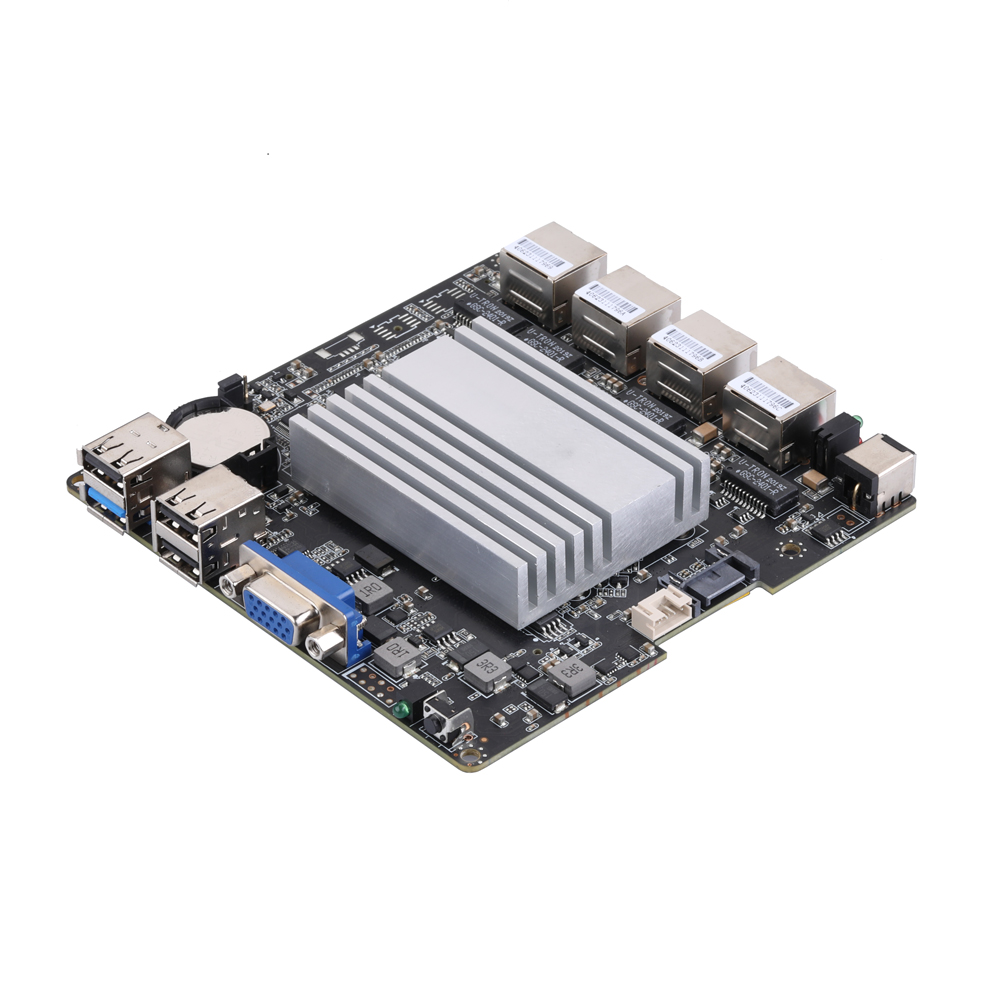

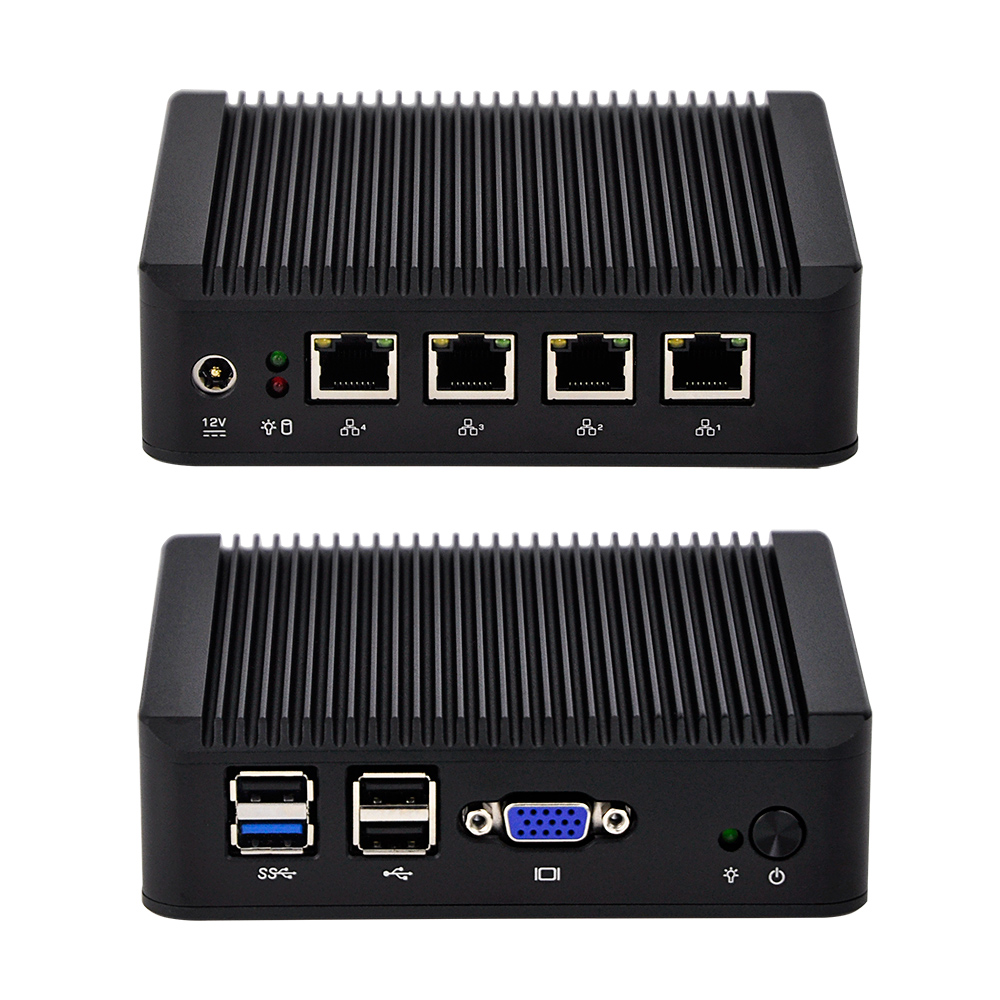

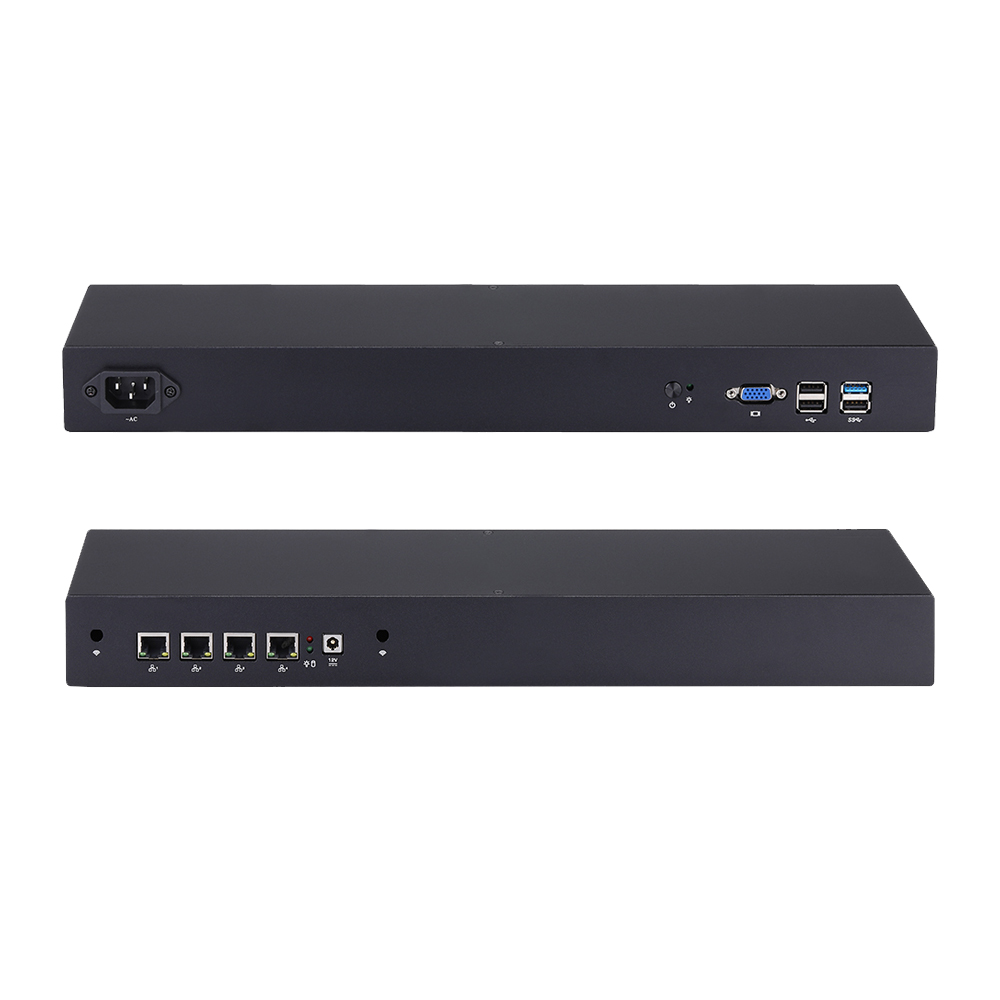

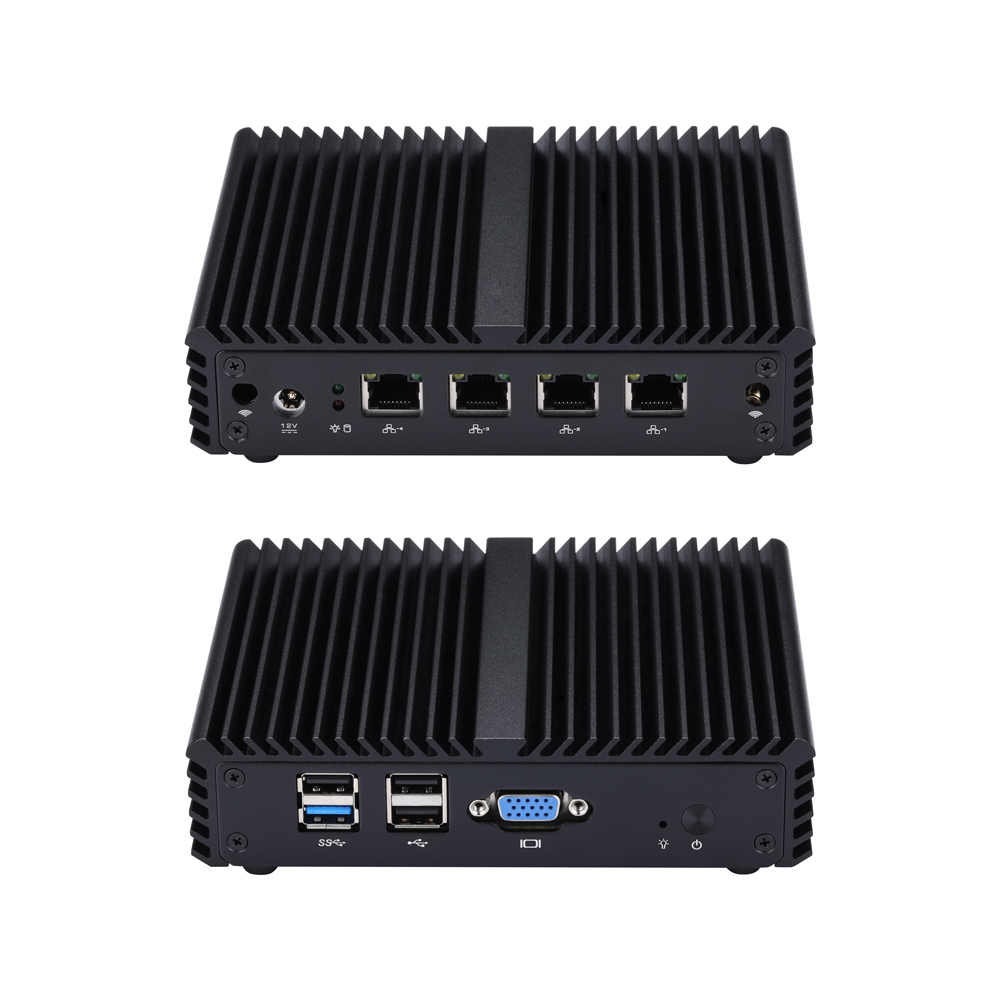

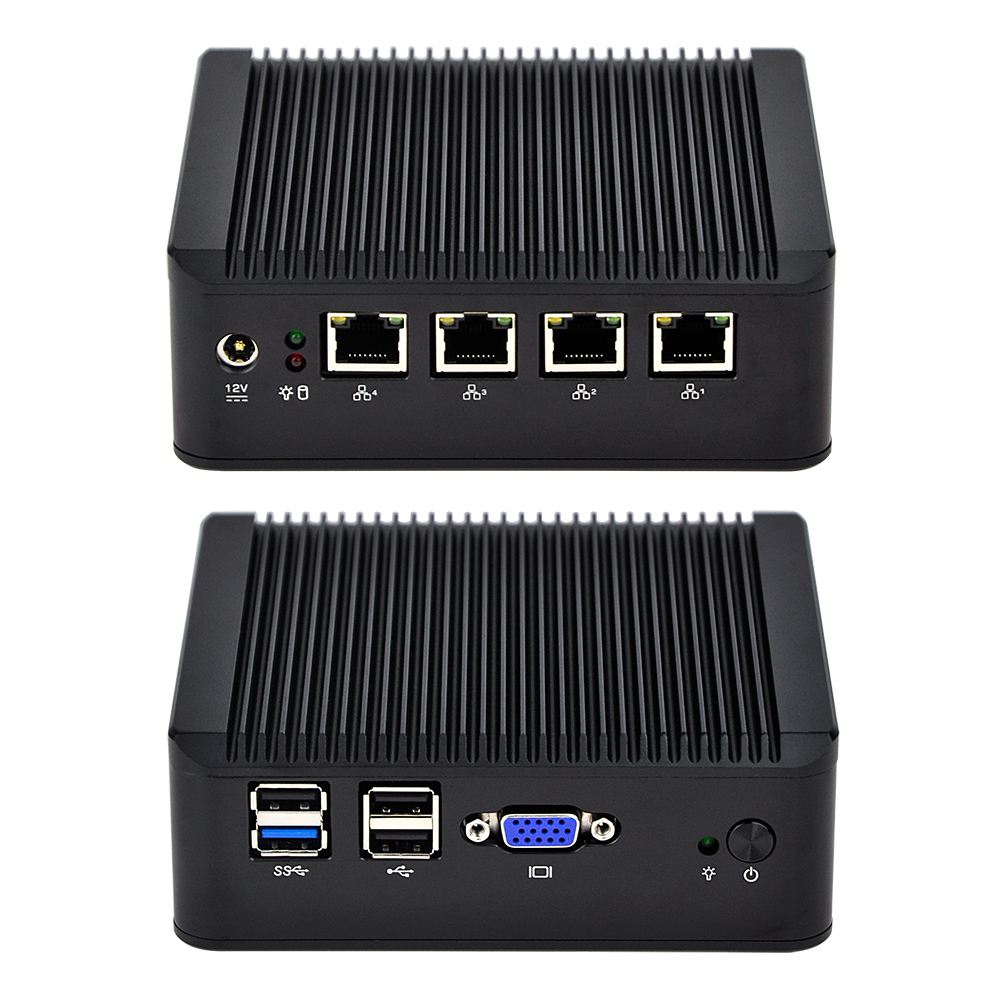

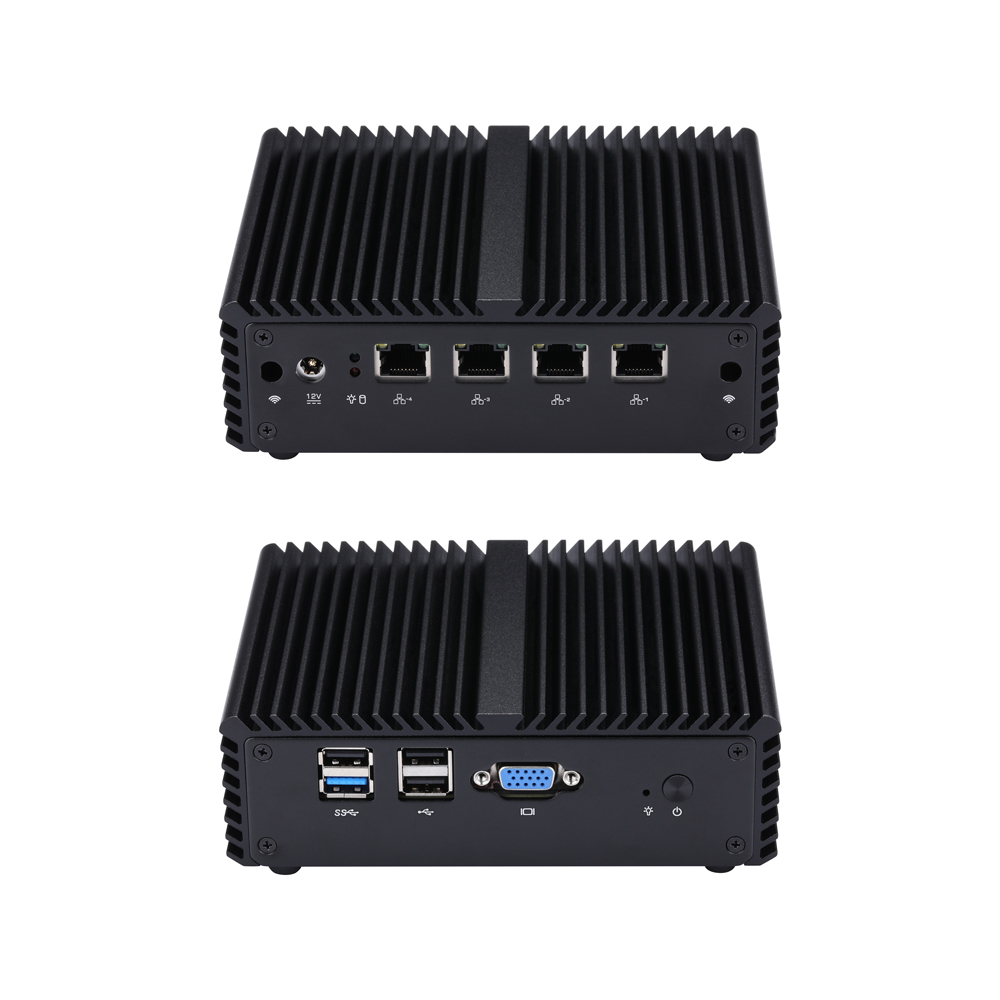

Motherboard MB2J401-0100 Series

Name: Motherboard MB2J401-0100 Series
Brand: Qotom
SKU: MB2J401-0100

Model: MB2J401-0100

Total LAN4

LAN Speed1G RJ45

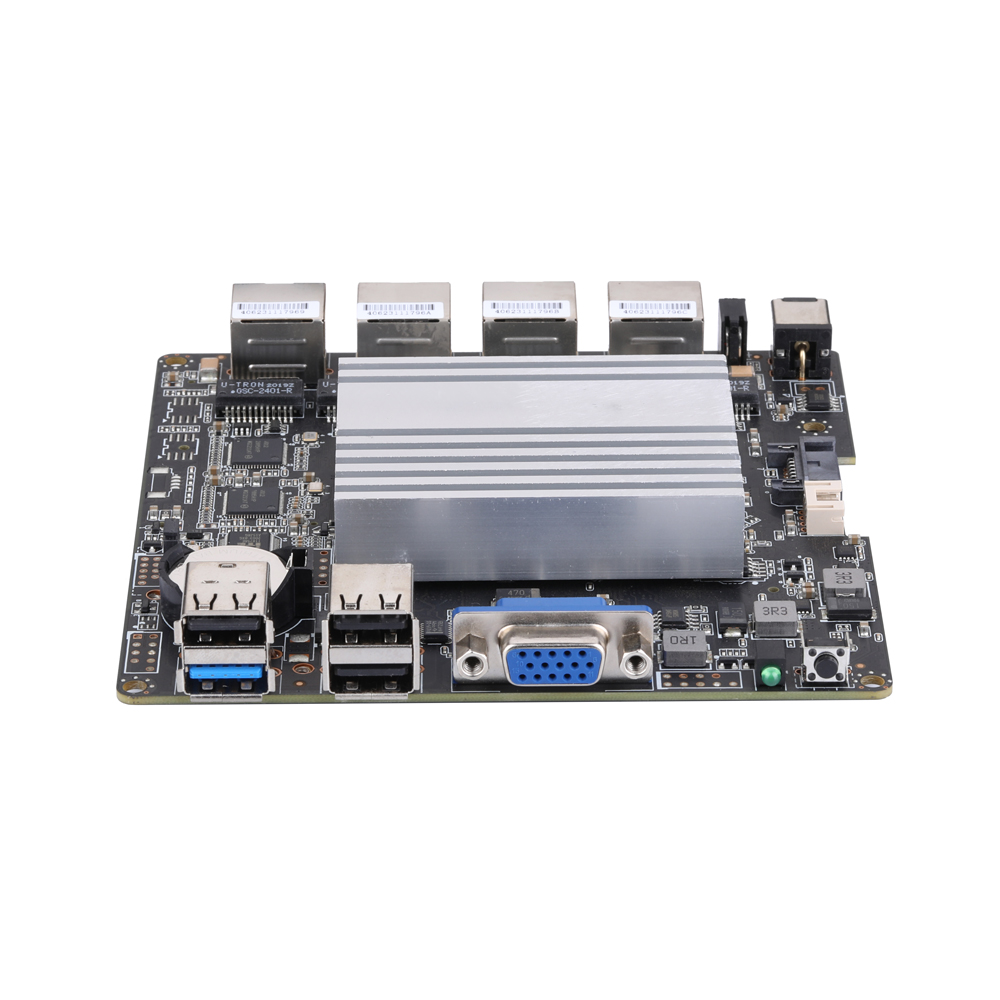

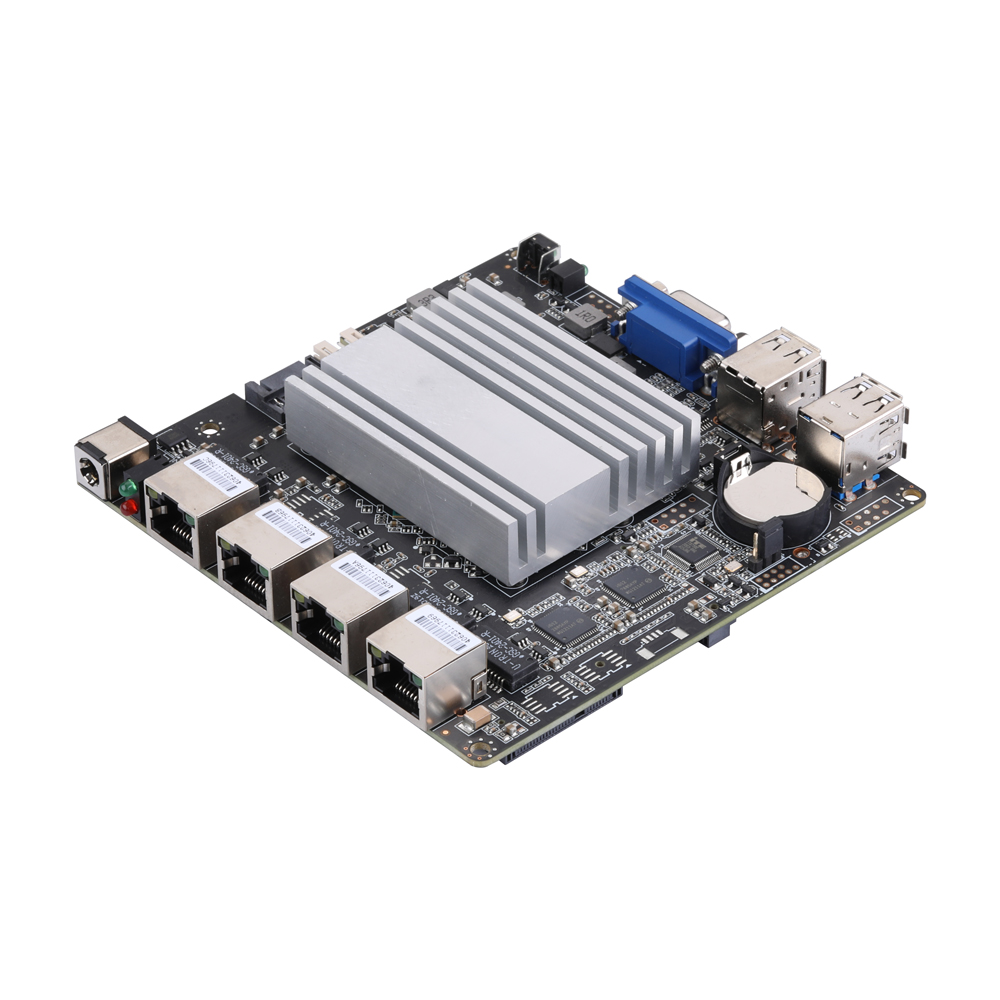

MB2J401-0100 integrates compact 120 × 120mm Bay Trail motherboard supporting J1800, J1900 and N-series processors. Four Gigabit LAN ports and expandable storage provide a cost-effective platform for embedded network controllers, industrial gateways,. It can serve custom embedded computers and commercial equipment development.

Key Specs

CPU: Bay Trail
Memory: DDR3L SO-DIMM · Max 8GB
LAN: 4
Storage: mSATA, SATA
Board Size: 120x120

Compatible Systems

Q1800G4-M Q1900G4-M MB2J401-0111 MB2J401-0121 MB2J401-0122 MB2J401-0123 MB2J401-0125 MB2J401-0134 Intel Bay Trail Pentium Celeron ATOM N2840 J1800 J1900 N2920 N2930 N3540

Main Features

Intel Bay Trail Processor
1 × VGA
2 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0
1 × Mini-PCIe, 1 × mSATA
4 × Intel I211-AT/I210-AT Gigabit LAN

Related Products

Motherboard MB7UT1X-1500 Series

MB7UT1X-1500

Mini PC Q10100X S04 Series

Q10100X-S04

Mini PC Q10100XP S04 Series

Q10100XP-S04

Mini PC Q10100XL S04 Series

Q10100XL-S04

Mini PC Q10100P S02 Series

Q10100P-S02

Mini PC Q10100P S08 Series

Q10100P-S08

CPU	Intel Bay Trail Processor
Chipset	By CPU
Dimension	120 × 120mm
Core Number	By CPU
Max. Speed	By CPU
L2 Cache	By CPU
BIOS	UEFI

Technology	DDR3L 1333/1600MHz SDRAM
Max.	8GB
Socket	1 × SO-DIMM

Controller	By CPU
VRAM	Shared Memory
VGA	1
Multi Display	No

Interface	10/100/1000Mbps
Controller	4 × Intel I211-AT/I210-AT Gigabit LAN
Connector	4 × RJ-45

Power Button	1
LED	1 × Power LED
VGA	1
USB	1 × USB 3.0, 3 × USB 2.0

Motherboard MB2J401-0100 Series

Key Specs

Compatible Systems

Main Features

Processor System

Memory

Graphics

Ethernet

Audio

Front I/O

Rear I/O

Storage

Expansion

Internal Connector

Environmental

Accessories

OS Support

Package Contents

Order & Specification Selection

BIOS & Firmware

Driver Downloads

Related Products

mSATA	1 × Full-length Mini PCIe for SSD
Mini PCIe	1 × Mini PCIe, Full-length Mini PCIe for 4G Half-length Mini PCIe for Wi-Fi by Default (Only for USB Device)

Serial Port	1, 2 × 5Pin, Pitch 2.0mm (Option)
SATA	1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector	1, 1 × 4Pin, Pitch PH2.0mm
SIM Slot	1
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.54mm
USB 2.0 Header	2, 2 × 5Pin, Pitch 2.54mm (Option)
Front Panel Header	1, 2 × 5Pin, Pitch 2.54mm (Option)
Power Header	1, 1 × 2Pin, Pitch 2.5mm (Option)
Input PWR	12V DC in, 5.5mm/2.5mm

Ordering Code	Legacy Model	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP
MB2J401-0111	Q1800G4-M	Bay trail	Celeron	J1800	2 / 2	2.41Ghz ~ 2.58Ghz	1M	Intel HD Graphics	10W
MB2J401-0121	Q1900G4-M	Bay trail	Celeron	J1900	4 / 4	2.00Ghz ~ 2.42Ghz	2M	Intel HD Graphics	7.5W
MB2J401-0122	-	Bay trail	Celeron	N2920	4 / 4	1.86Ghz ~ 2.00Ghz	2M	Intel HD Graphics	7.5W
MB2J401-0123	-	Bay trail	Celeron	N2930	4 / 4	1.83Ghz ~ 2.16Ghz	2M	Intel HD Graphics	7.5W
MB2J401-0134	MB2J401-0125	Bay trail	Pentium	N3540	4 / 4	2.16Ghz ~ 2.66Ghz	2M	Intel HD Graphics	7.5W
