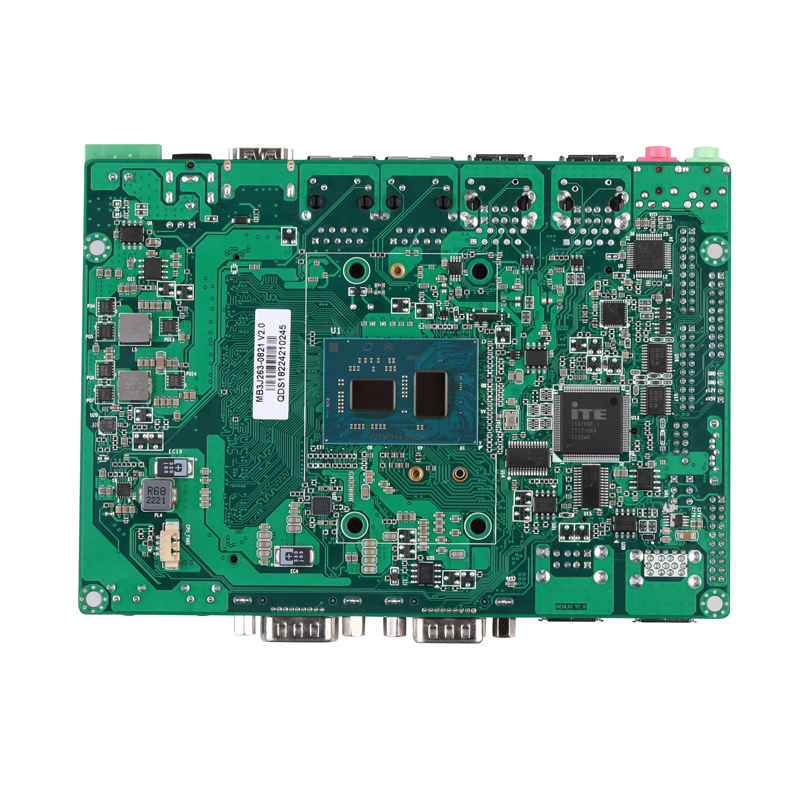

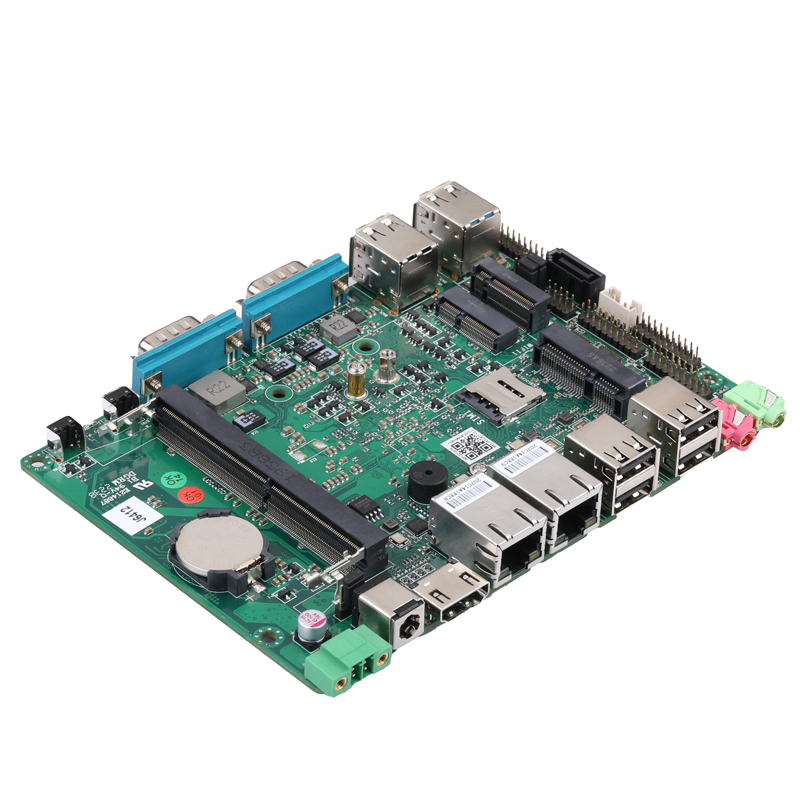

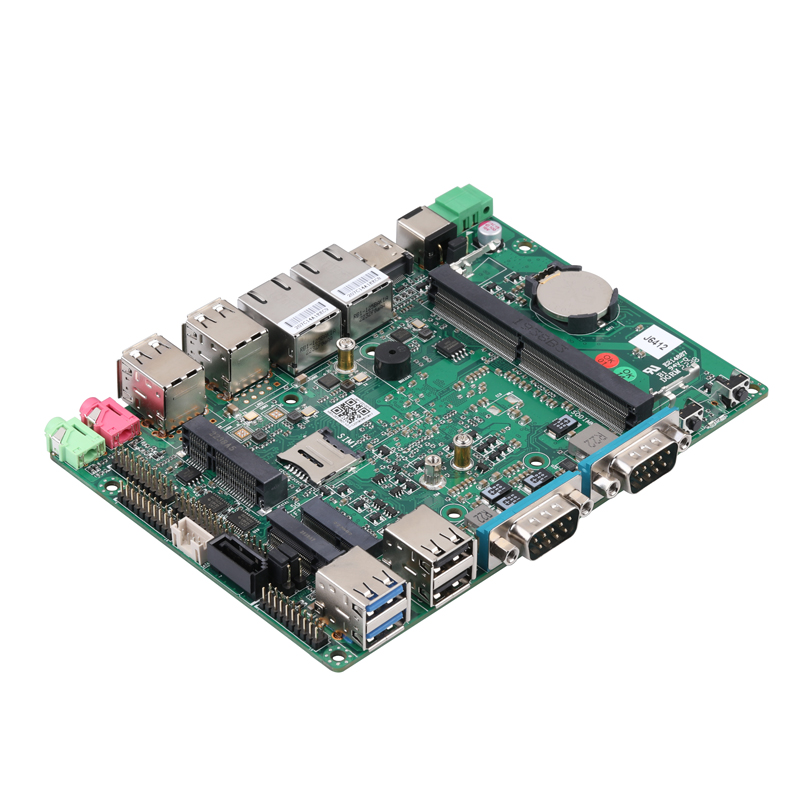

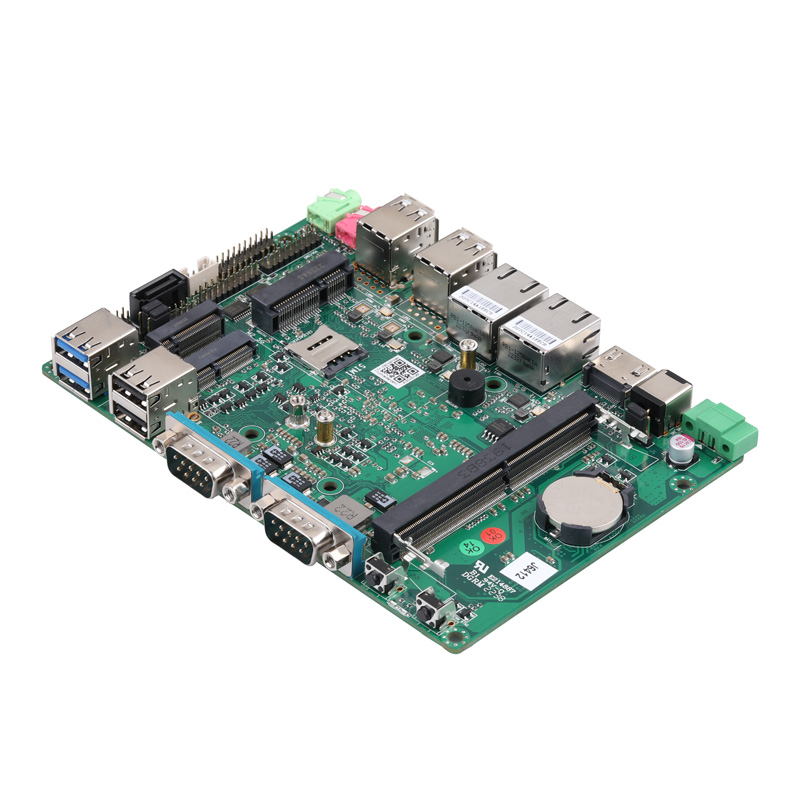

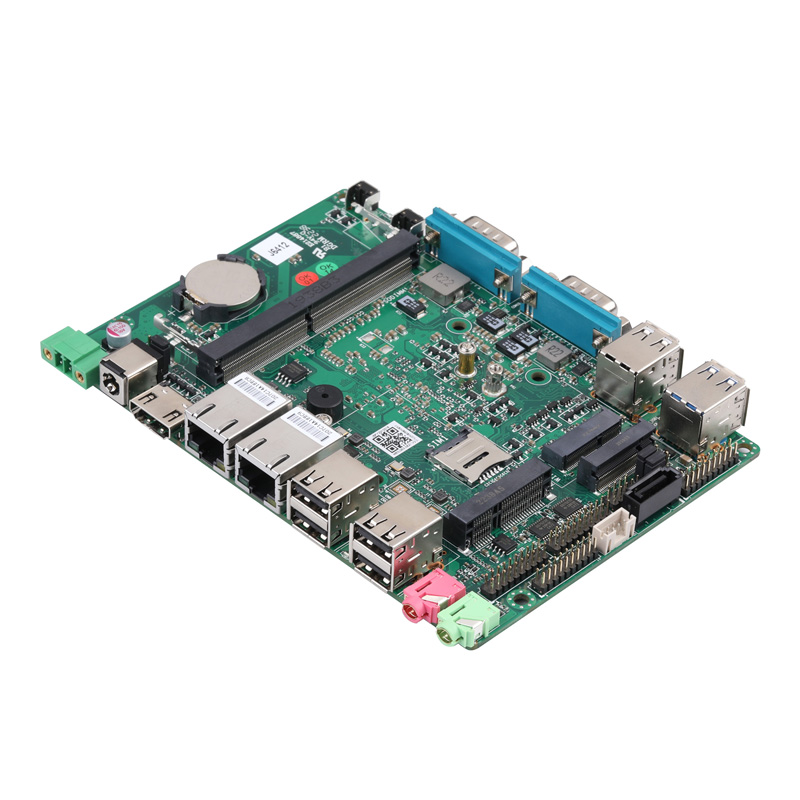

Motherboard MB3J263-0800 Series

Name: Motherboard MB3J263-0800 Series
Brand: Qotom
SKU: MB3J263-0800

Model: MB3J263-0800

Total LAN2

LAN Speed1G RJ45

Serial Ports6

MB3J263-0800 is an Elkhart Lake embedded motherboard supporting processors including J6412 with DDR4 memory, 6 serial ports, dual Gigabit LAN and expandable storage. Designed for industrial IoT gateways, HMI terminals, machine communication, POS equipment and embedded automation systems.

Key Specs

CPU: Elkhart Lake
Memory: DDR4 SO-DIMM · Max 32GB
LAN: 2
Storage: mSATA, SATA
Board Size: 148x104

Compatible Systems

MB3J263-0811 MB3J263-0821 MB3J163-0821 Intel Elkhart Lake Pentium Celeron ATOM N6210 N6211 J6412 J6413 J6415 J6426

Main Features

Intel Elkhart Lake Processor
1 × HDMI,1 × VGA (Header)
2 × USB 3.0, 6 × USB 2.0
2 × M.2, 1 × mSATA, 1 × SATA 3.0
6 × RS-232, 2 × PS/2
2 × Realtek Gigabit LAN

Related Products

Mini PC Q10800XPGV S04 Series

Q10800XPGV-S04

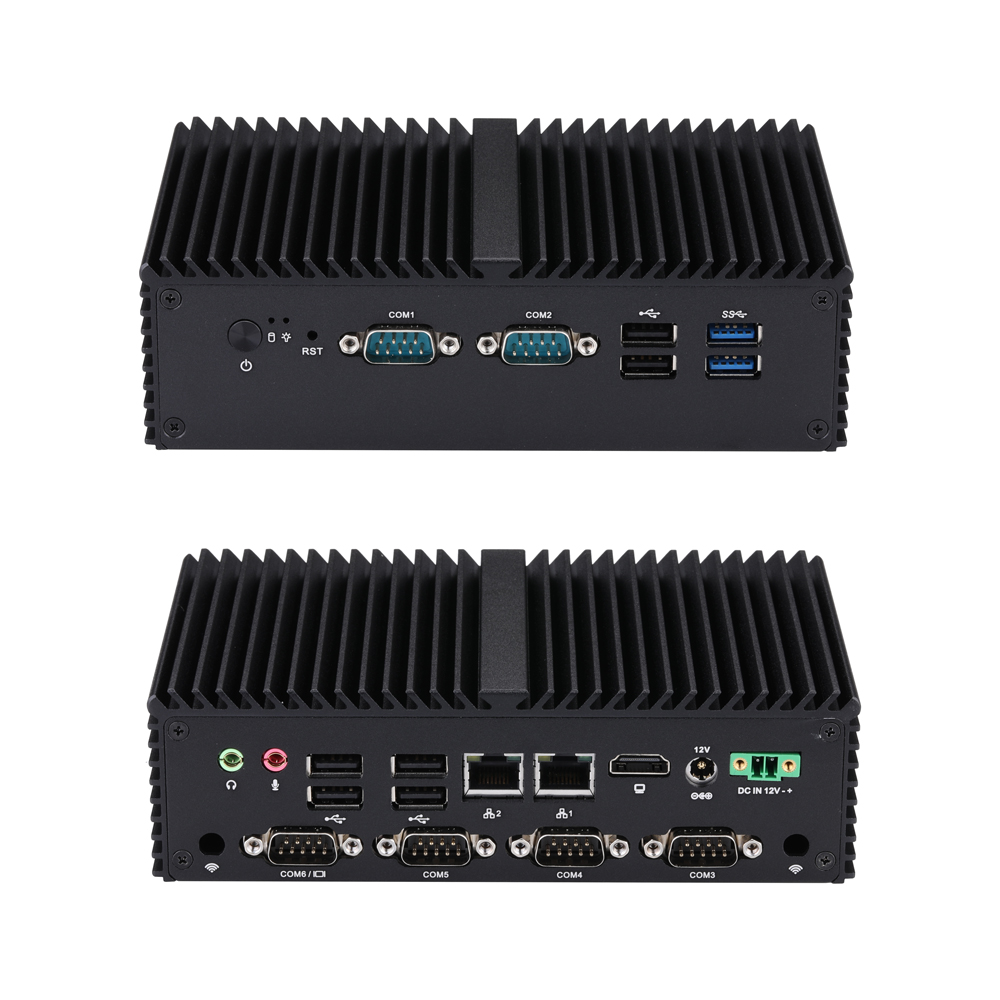

Mini PC Q10800X S04 Series

Q10800X-S04

Mini PC Q10800XV S04 Series

Q10800XV-S04

Mini PC Q10800XP S04 Series

Q10800XP-S04

Mini PC Q10800XPV S04 Series

Q10800XPV-S04

Mini PC Q10800XPG S04 Series

Q10800XPG-S04

CPU	Intel Elkhart Lake Processor
Chipset	By CPU
Dimension	148× 104mm
Core Number	By CPU
Speed	By CPU
L2 Cache	By CPU
BIOS	UEFI

Technology	DDR4 2133/2400MHz SDRAM
Max.	32GB
Socket	1× SO-DIMM

Controller	By CPU
VRAM	Shared Memory
VGA	1 (Header)
HDMI	1 (Support HDMI 1.4a)
Multi Display	Yes

Interface	10/100/1000Mbps
Controller	2× Realtek Gigabit LAN
Connector	2× RJ-45

Power Button	1 × Power Button, 1 × Reset Button
LED	1 × Power LED, 1 × HDD LED
USB	4× USB 2.0
USB	2 × USB 3.0, 2 × USB 2.0
Serial Port	2 × RS-232
DC-IN	1
Phoenix 2Pin	1, 1× 2Pin, Pitch 3.5mm
HDMI	1
Ethernet	2
Audio	2 (Mic-in, Line-out)

Motherboard MB3J263-0800 Series

Key Specs

Compatible Systems

Main Features

Processor System

Memory

Graphics

Ethernet

Audio

Front I/O

Storage

Expansion

Internal Connector

Watchdog Timer

Power

Environmental

Accessories

OS Support

Package Contents

Order & Specification Selection

BIOS & Firmware

Driver Downloads

Related Products

mSATA	1 × Full-length Mini PCIe for SSD
M.2	1× M.2 for 4G/5G (B key, Type: 3042/3052), 5G Defaults to PCIe Mode, USB 3.0 Mode Requires Customization
M.2	1× M.2 for Wi-Fi (E key, Type: 2230)

VGA Header	1, 2 × 5Pin, Pitch 2.0mm
Serial Port	4, 2 × 5Pin, Pitch 2.0mm
RS-485	COM1/2 can be set up as RS-485
PS/2	1, 2 × 5Pin, Pitch 2.0mm
SATA	1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector	1, 1 × 4Pin, Pitch PH2.0mm
SIM Slot	1
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.54mm
Clear CMOS Jumper	Yes, 1 × 3Pin, Pitch 2.54mm
GPIO Header	1, 2 × 5Pin, Pitch 2.0mm
GPIO Power Select	Yes, 1 × 3Pin, Pitch 2.54mm
Front Panel Header	1, 2 × 5Pin, Pitch 2.0mm
Power Header	1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Option)

Output	From Super I/O to Drag RESETCON#
Interval	256 Segments,0,1,2,3,,,255 sec/min

Ordering Code	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP	Datasheet
MB3J263-0811	Elkhart Lake	Celeron	N6210	2 / 2	1.20Ghz ~ 2.6Ghz	1.5M	Intel UHD Graphics	6.5W
MB3J263-0821	Elkhart Lake	Celeron	J6412	4 / 4	2.00Ghz ~ 2.60Ghz	1.5M	Intel UHD Graphics	10W
