Q10800XP-S04 image 11 / 5

Mini PC Q10800XP S04 Series

Model: Q10800XP-S04

Total LAN2
LAN Speed1G RJ45
Serial Ports6

Q10800XP-S04 offers an Intel Elkhart Lake J6412 platform with 6 RS232, PS/2, 8 USB ports, dual Gigabit LAN and M.2/mSATA/SATA expansion. Designed for quiet 24-hour-style unattended deployments such as CNC terminals, machine interfaces and factory control stations.

Key Specs

CPU
Elkhart Lake
Memory
DDR4 SO-DIMM · Max 32GB
LAN
2
Storage
mSATA, SATA

Compatible Motherboard

MB3J263-0800
MB3J263-0800
Send Inquiry Buy Now
Q780XPQ790XPQ10811XPQ10821XPIntelElkhart LakePentiumCeleronATOMN6210N6211J6412J6413J6415J6426

Main Features

  • Intel Elkhart Lake Processor

  • 1 × HDMI

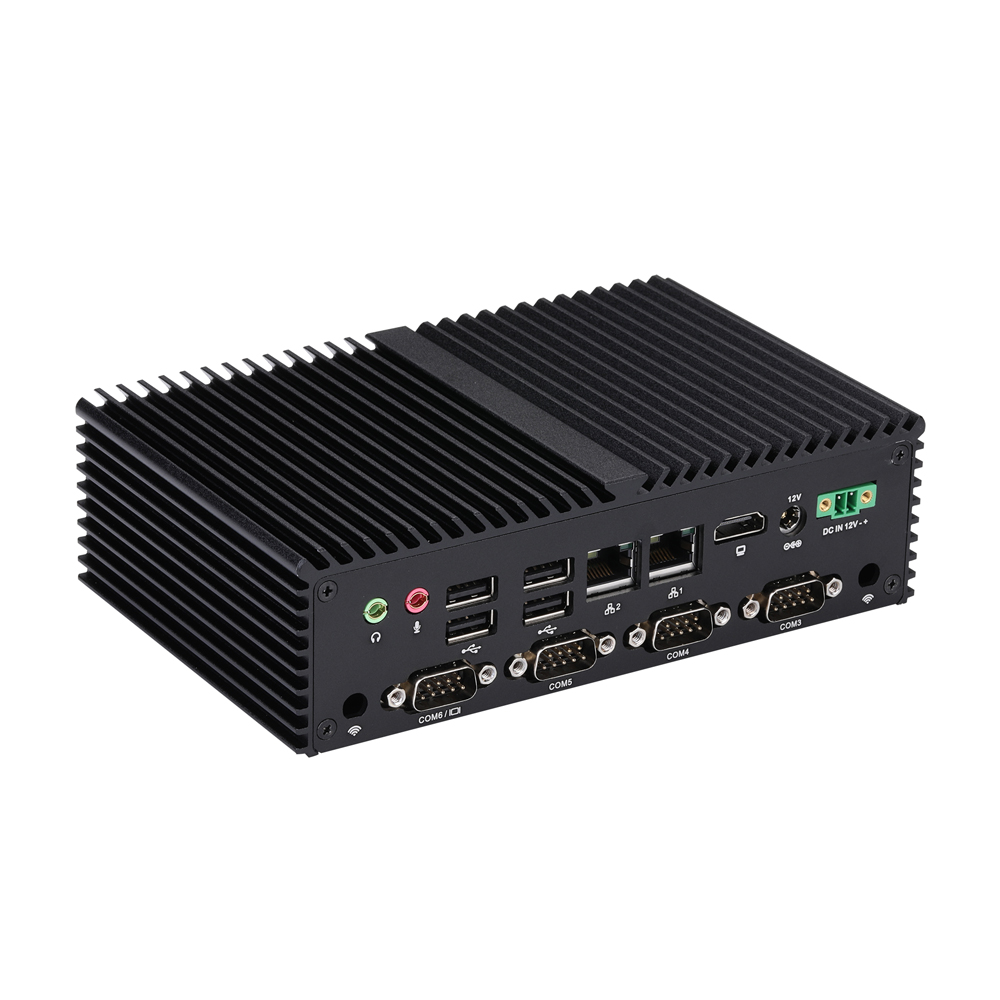

  • 2 × USB 3.0,6 × USB 2.0,6 × RS-232

  • 2 × M.2,1 × mSATA,1 × SATA 3.0

  • 2 × Realtek Gigabit LAN

Processor System

CPUIntel Elkhart Lake Processor
CPU TDPBy CPU
Memory1 × DDR4 SO-DIMM Socket (Up to 32G)
ChipsetBy CPU
GraphicsBy CPU
AudioRealtek HD Audio
Watch DogYes

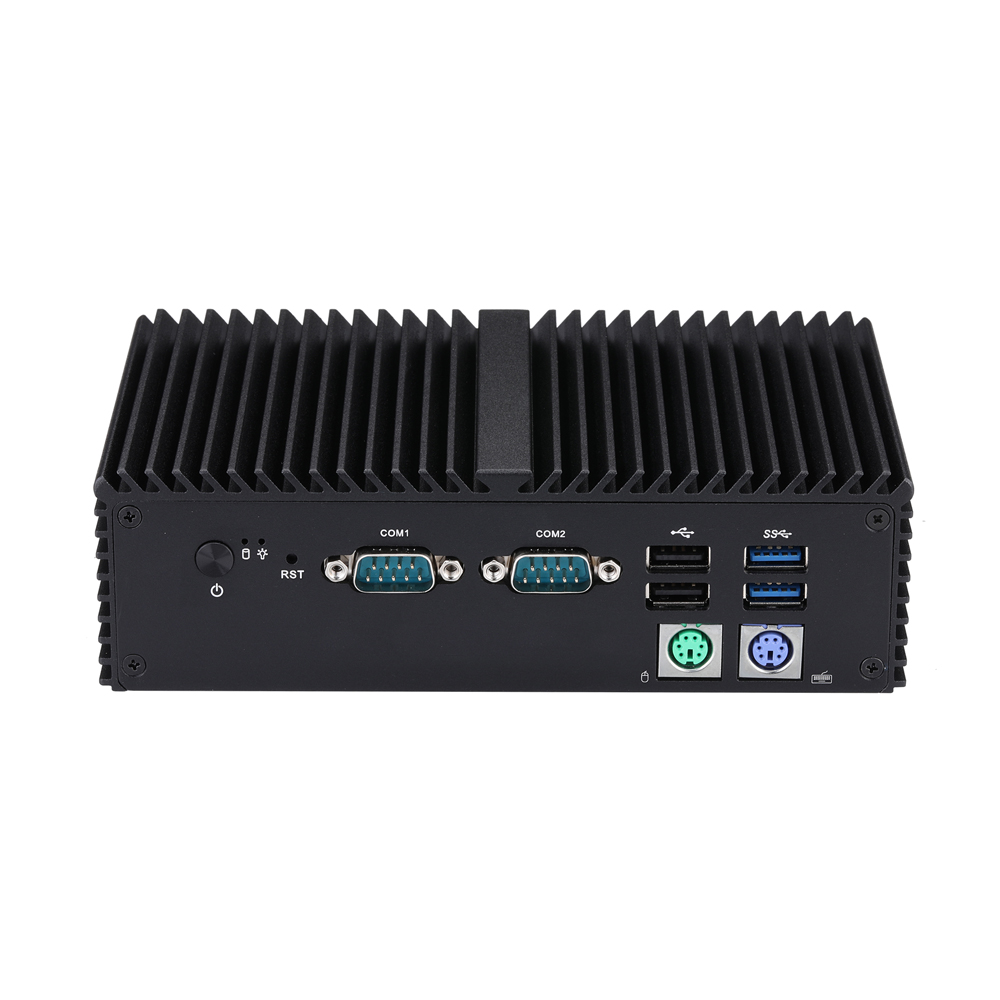

Front I/O

Power Button1 × Power Button,1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB2 × USB 2.0,2 × USB 3.0
Serial Port2 × RS-232 (COM1/2 can be set up as RS-485)
PS/22

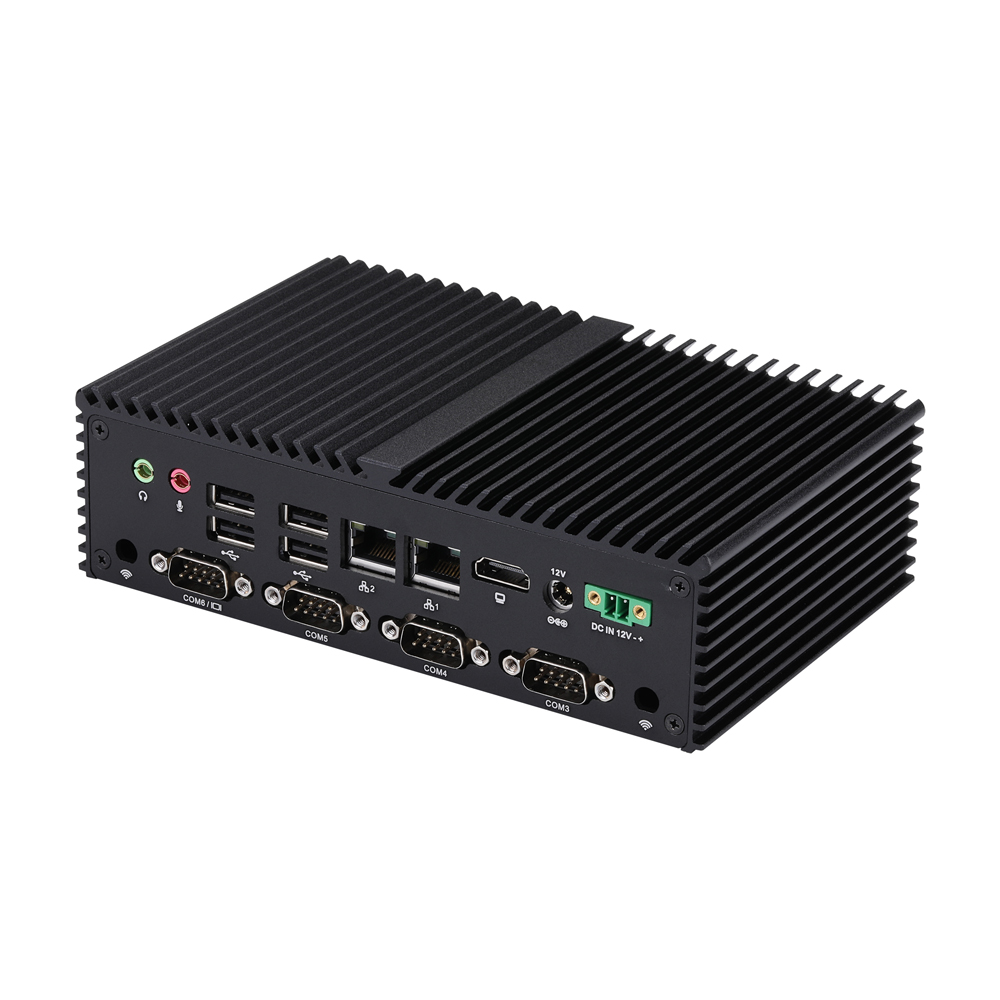

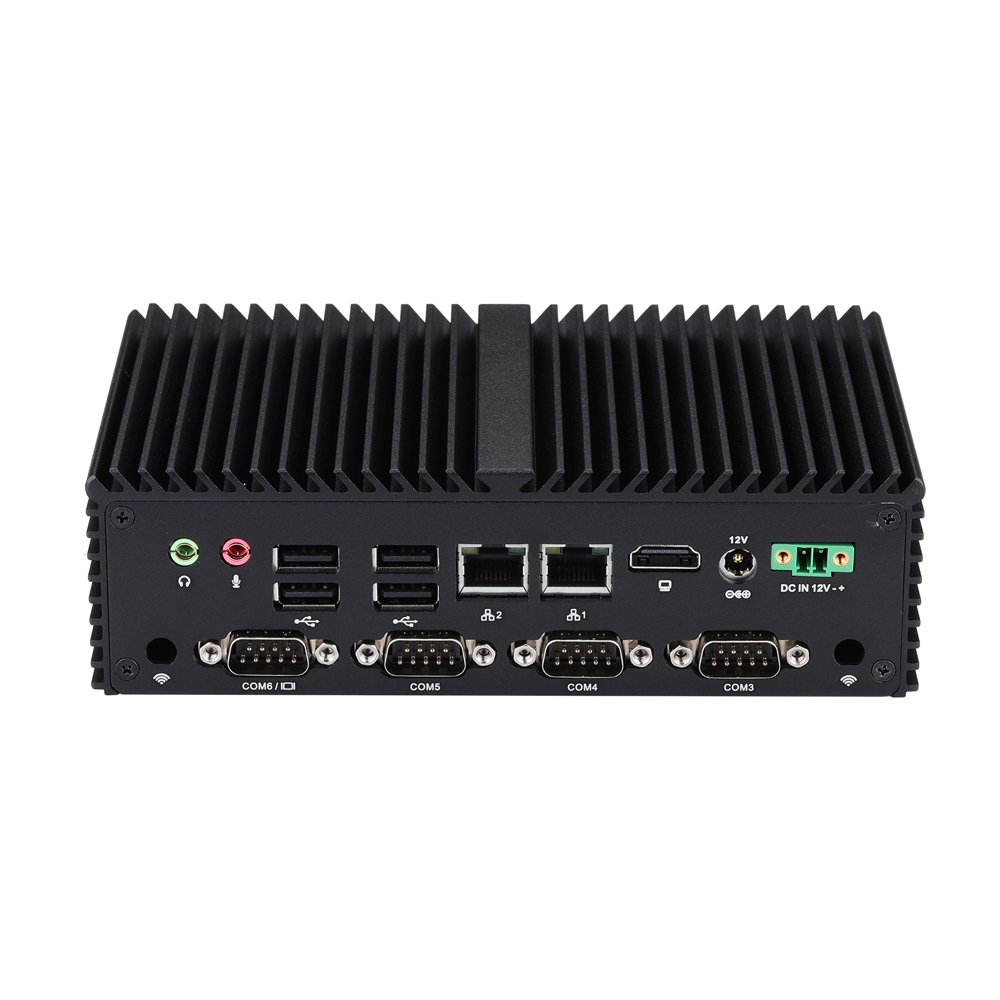

Rear I/O

Power1 × DC Jack
LAN2 × Realtek Gigabit LAN
USB4 × USB 2.0
Audio1 × Mic-in,1 × Line-out
Phoenix1 × 2Pin
Display1 × HDMI
Serial Port4 × RS-232

Storage

Type1 × 2.5-inch HDD/SSD
Type1 × Mini PCIe for mSATA SSD

Expansion

mSATA1 × mSATA for SSD
M.21 × M.2 for 4G/5G (B key, Type: 3042/3052) 5G Defaults to PCIe Mode, USB 3.0 Mode Requires Customization
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot1
AutoStart JumperYes,1 × 3Pin, Pitch 2.54mm
GPIO1,2 × 5Pin, Pitch 2.0mm
VGA1
Serial Port0
Clear CMOS JumperYes,1 × 3Pin, Pitch 2.54mm
Front Panel Header1,2 × 5Pin, Pitch 2.0mm

Power

Power Adapter12V3A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension178 × 111 × 52mm
Weight0.85kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSUEFI Windows 10, UEFI Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q10811XP-S04 Q780XP Elkhart Lake Celeron N6210 2 / 2 1.20Ghz ~ 2.6Ghz 1.5M Intel UHD Graphics 6.5W
Q10821XP-S04 Q790XP Elkhart Lake Celeron J6412 4 / 4 2.00Ghz ~ 2.60Ghz 1.5M Intel UHD Graphics 10W
