Mini PC Q10800XPV S04 Series

Name: Mini PC Q10800XPV S04 Series
Brand: Qotom
SKU: Q10800XPV-S04

Model: Q10800XPV-S04

Total LAN2

LAN Speed1G RJ45

Serial Ports5

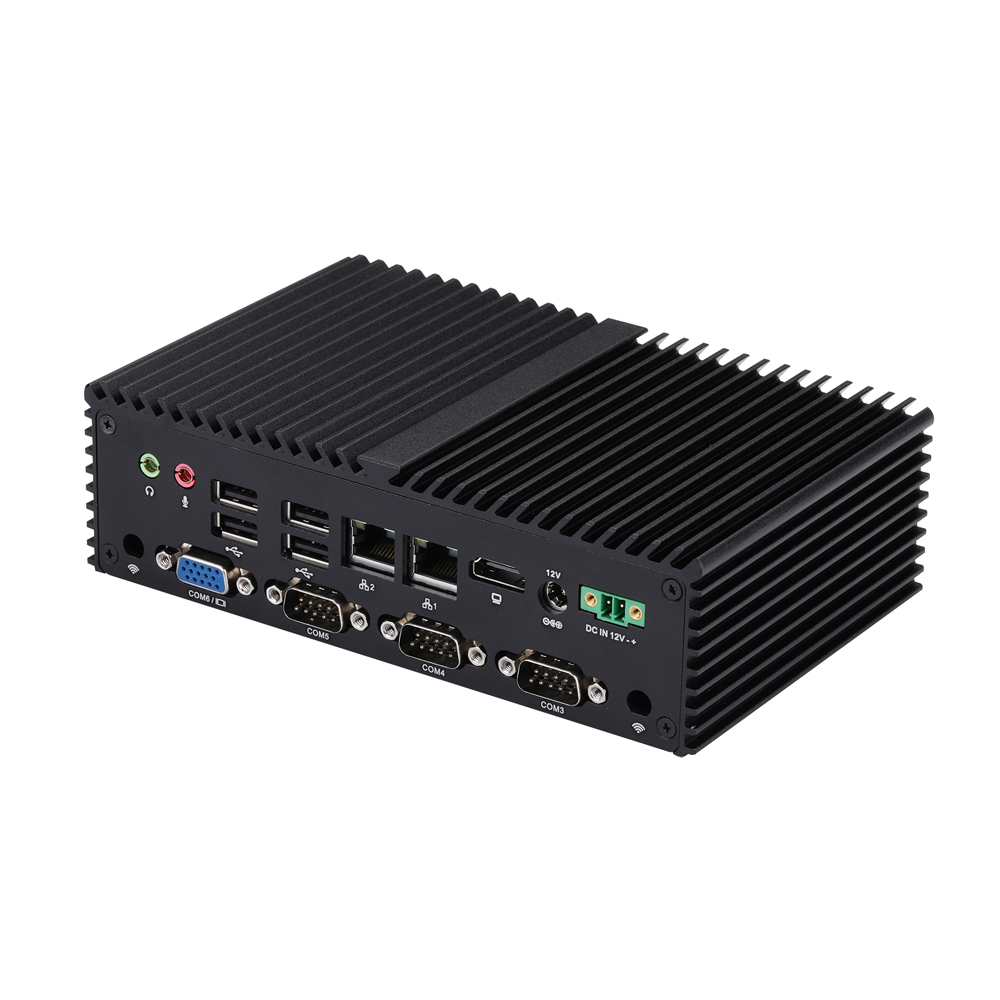

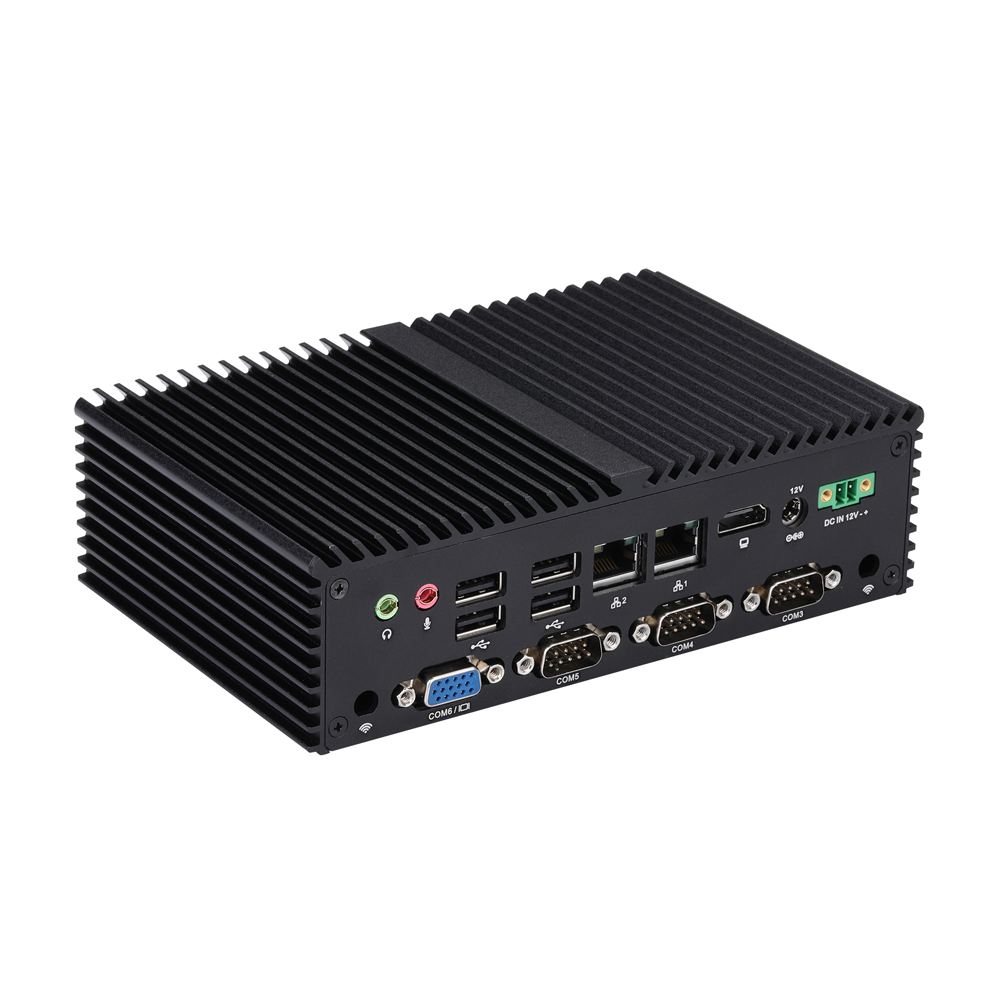

Q10800XPV-S04 provides Intel J6412 processing, 5 RS232, VGA, PS/2, 8 USB ports and flexible HDD/SSD storage in a compact aluminum chassis. It suits industrial kiosks, legacy operator panels, production terminals and equipment retrofit projects.

Key Specs

CPU: Elkhart Lake
Memory: DDR4 SO-DIMM · Max 32GB
LAN: 2
Storage: mSATA, SATA

Compatible Motherboard

MB3J263-0800

Send Inquiry Buy Now

Q780XPV Q790XPV Q10811XPV Q10821XPV Intel Elkhart Lake Pentium Celeron ATOM N6210 N6211 J6412 J6413 J6415 J6426

Main Features

Intel Elkhart Lake Processor
1 × HDMI,1 × VGA
2 × USB 3.0,6 × USB 2.0,5 × RS-232
2 × M.2,1 × mSATA,1 × SATA 3.0
2 × Realtek Gigabit LAN

Related Products

Mini PC Q10700X S08 Series

Q10700X-S08

Mini PC Q30900P S08 Series

Q30900P-S08

Mini PC Q10800XPGV S04 Series

Q10800XPGV-S04

Mini PC Q30900X S20 Series

Q30900X-S20

Mini PC Q31200X S20 Series

Q31200X-S20

Mini PC Q71200X S18 Series

Q71200X-S18

CPU	Intel Elkhart Lake Processor
CPU TDP	By CPU
Memory	1 × DDR4 SO-DIMM Socket (Up to 32G)
Chipset	By CPU
Graphics	By CPU
Audio	Realtek HD Audio
Watch Dog	Yes

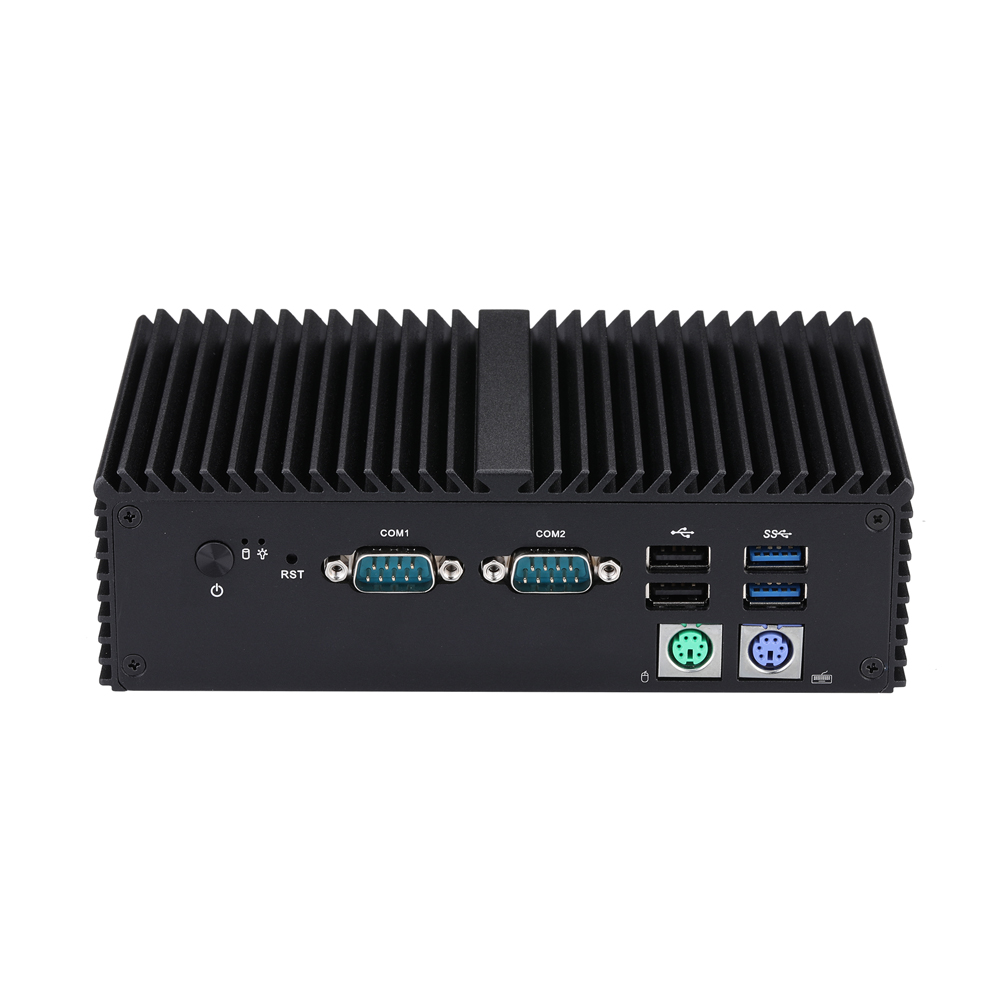

Power Button	1 × Power Button,1 × Reset Button
LED	1 × Power LED,1 × HDD LED
USB	2 × USB 2.0,2 × USB 3.0
Serial Port	2 × RS-232 (COM1/2 can be set up as RS-485)
PS/2	2
GPIO	0

Power	1 × DC Jack

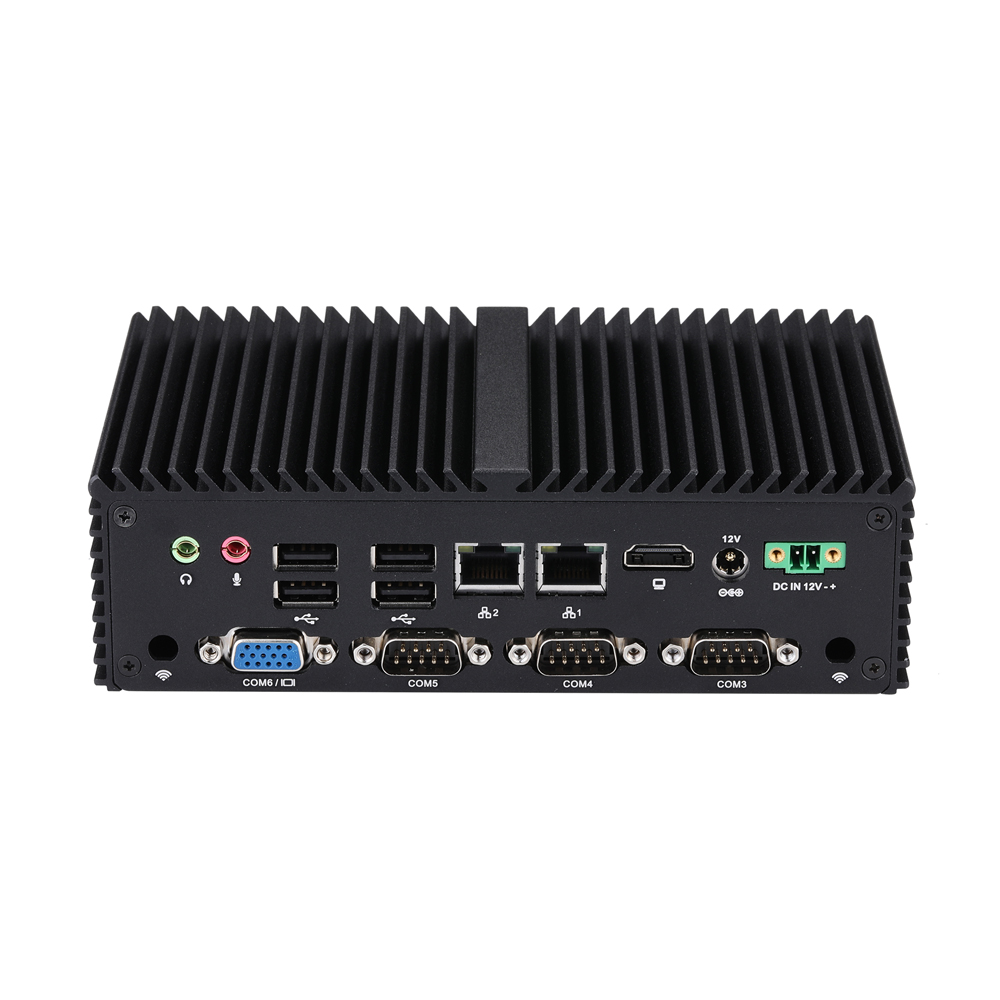

LAN	2 × Realtek Gigabit LAN
USB	4 × USB 2.0
Audio	1 × Mic-in,1 × Line-out
Phoenix	1 × 2Pin
Display	1 × HDMI,1 × VGA
Serial Port	3 × RS-232

Type	1 × 2.5-inch HDD/SSD
Type	1 × Mini PCIe for mSATA SSD

mSATA	1 × mSATA for SSD
M.2	1 × M.2 for 4G/5G (B key, Type: 3042/3052) 5G Defaults to PCIe Mode, USB 3.0 Mode Requires Customization
M.2	1 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot	1
AutoStart Jumper	Yes,1 × 3Pin, Pitch 2.54mm
GPIO	1,2 × 5Pin, Pitch 2.0mm
VGA	0
Serial Port	0
Clear CMOS Jumper	Yes,1 × 3Pin, Pitch 2.54mm
Front Panel Header	1,2 × 5Pin, Pitch 2.0mm

Mini PC Q10800XPV S04 Series

Key Specs

Compatible Motherboard

Main Features

Processor System

Front I/O

Rear I/O

Storage

Expansion

Power

Environmental

Mechanical

OS Support

Package Contents

Order & Specification Selection

BIOS & Firmware

Driver Downloads

Related Products

Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%

Material	Aluminium Alloy
Dimension	178 × 111 × 52mm
Weight	0.85kg
Mounting	VESA Mounting Bracket
Packaging Dimension	261 × 218 × 75mm
Kensington Lock	No
Cooling Mode	Fanless Design

Ordering Code	Legacy Model	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP	Datasheet
Q10811XPV-S04	Q780XPV	Elkhart Lake	Celeron	N6210	2 / 2	1.20Ghz ~ 2.6Ghz	1.5M	Intel UHD Graphics	6.5W
Q10821XPV-S04	Q790XPV	Elkhart Lake	Celeron	J6412	4 / 4	2.00Ghz ~ 2.60Ghz	1.5M	Intel UHD Graphics	10W

Power Adapter	12V3A
DC Jack	5.5mm, 2.5mm
