Mini PC Q10800XV S04 Series

Model: Q10800XV-S04

Total LAN2
LAN Speed1G RJ45
Serial Ports5

Q10800XV-S04 combines Intel J6412 low-power processing with 5 RS232, VGA and HDMI, up to 32GB DDR4 and flexible SSD storage. Its aluminum fanless design, VESA mounting and Linux support fit operator terminals, testing equipment and industrial display applications.

Key Specs

CPU
Elkhart Lake
Memory
DDR4 SO-DIMM · Max 32GB
LAN
2
Storage
mSATA, SATA

Compatible Motherboard

MB3J263-0800
MB3J263-0800
Send Inquiry Buy Now
Q780XVQ790XVQ10811XVQ10821XVIntelElkhart LakePentiumCeleronATOMN6210N6211J6412J6413J6415J6426

Main Features

  • Intel Elkhart Lake Processor

  • 1 × HDMI,1 × VGA

  • 2 × USB 3.0,6 × USB 2.0,5 × RS-232

  • 2 × M.2,1 × mSATA,1 × SATA 3.0

  • 2 × Realtek Gigabit LAN

Processor System

CPUIntel Elkhart Lake Processor
CPU TDPBy CPU
Memory1 × DDR4 SO-DIMM Socket (Up to 32G)
ChipsetBy CPU
GraphicsBy CPU
AudioRealtek HD Audio
Watch DogYes

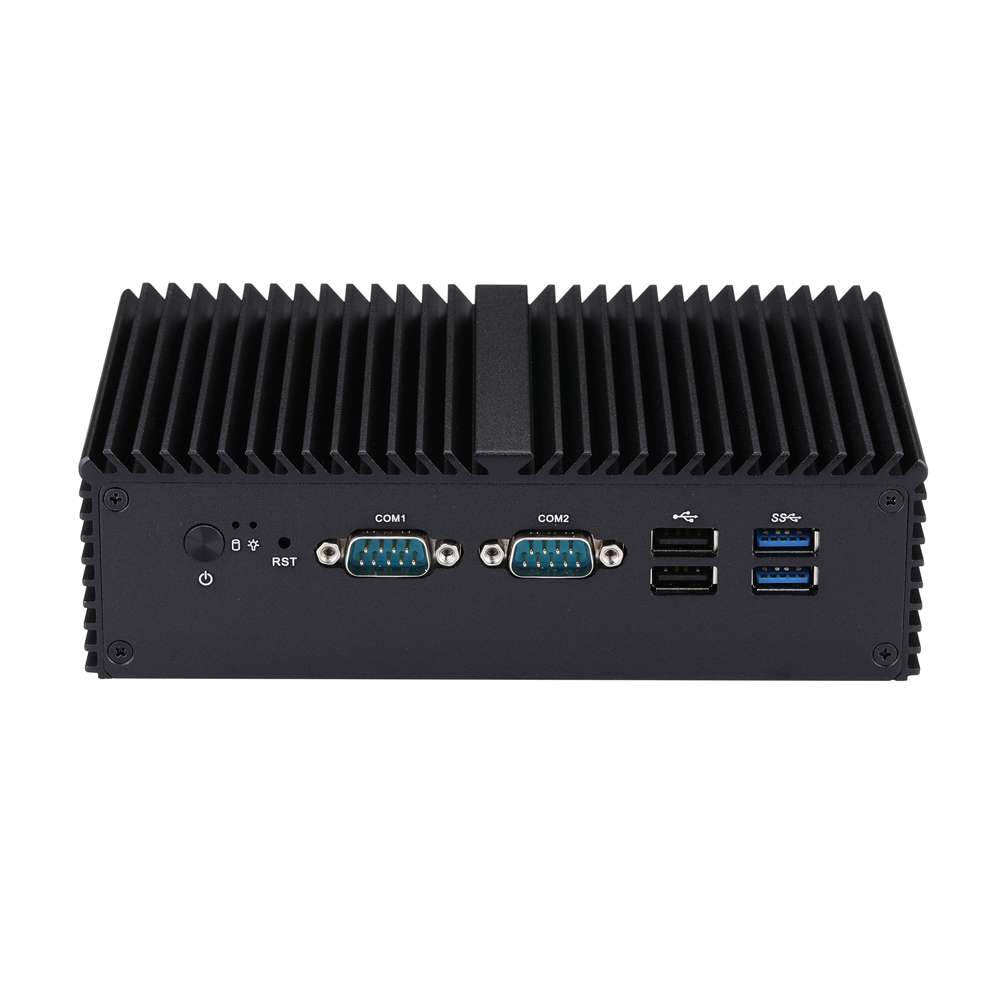

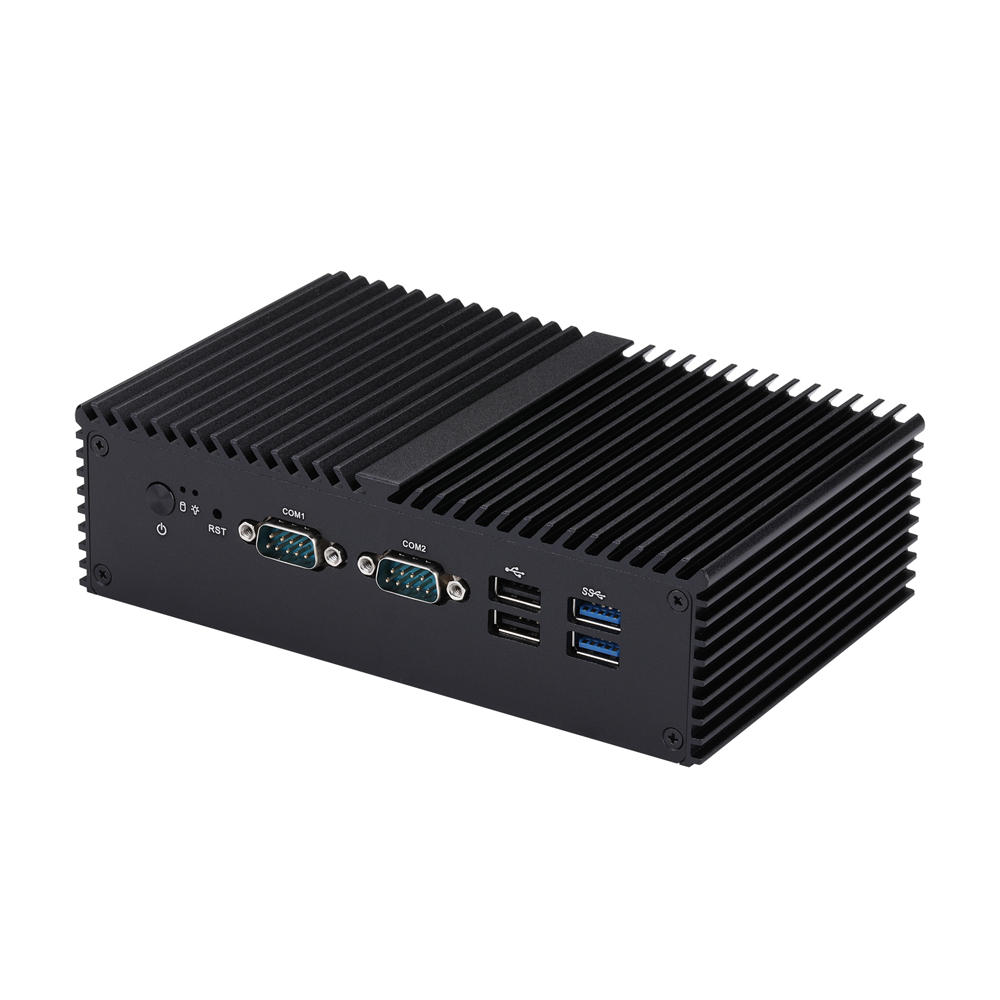

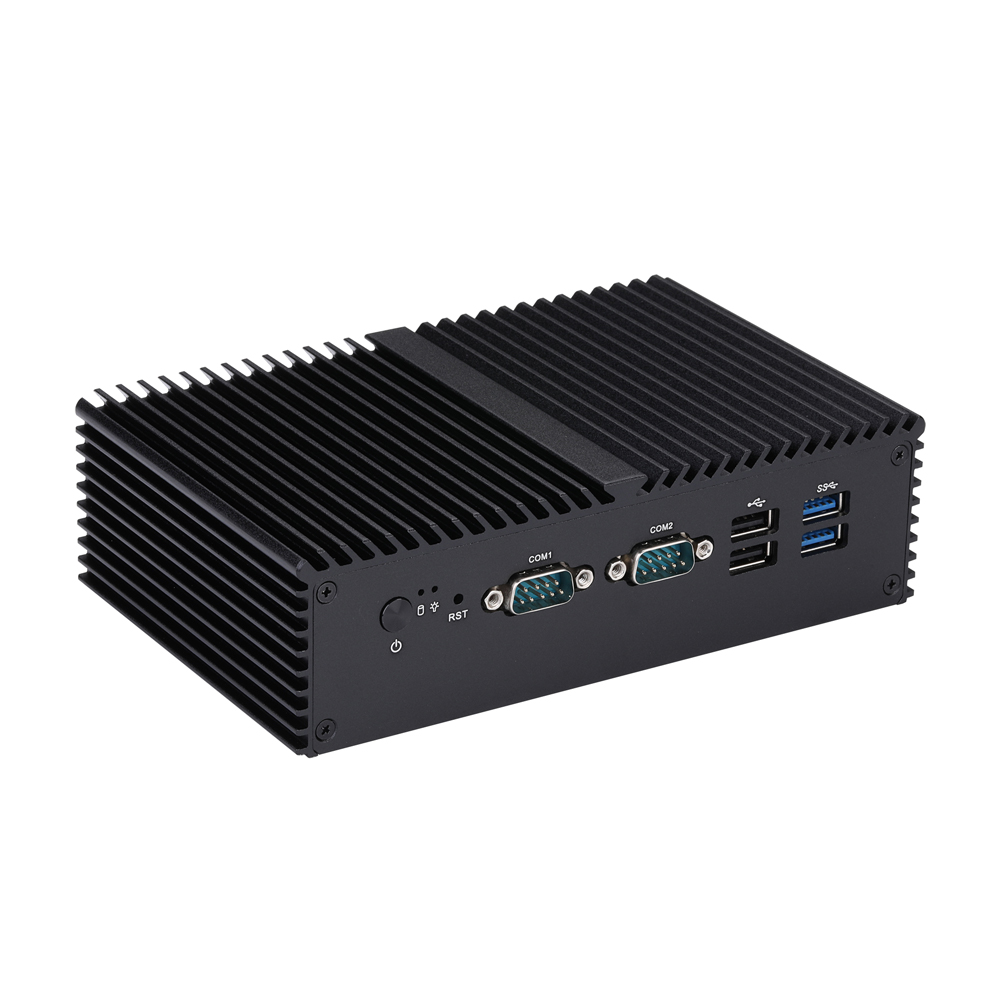

Front I/O

Power Button1 × Power Button,1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB2 × USB 2.0,2 × USB 3.0
Serial Port2 × RS-232 (COM1/2 can be set up as RS-485)
PS/20

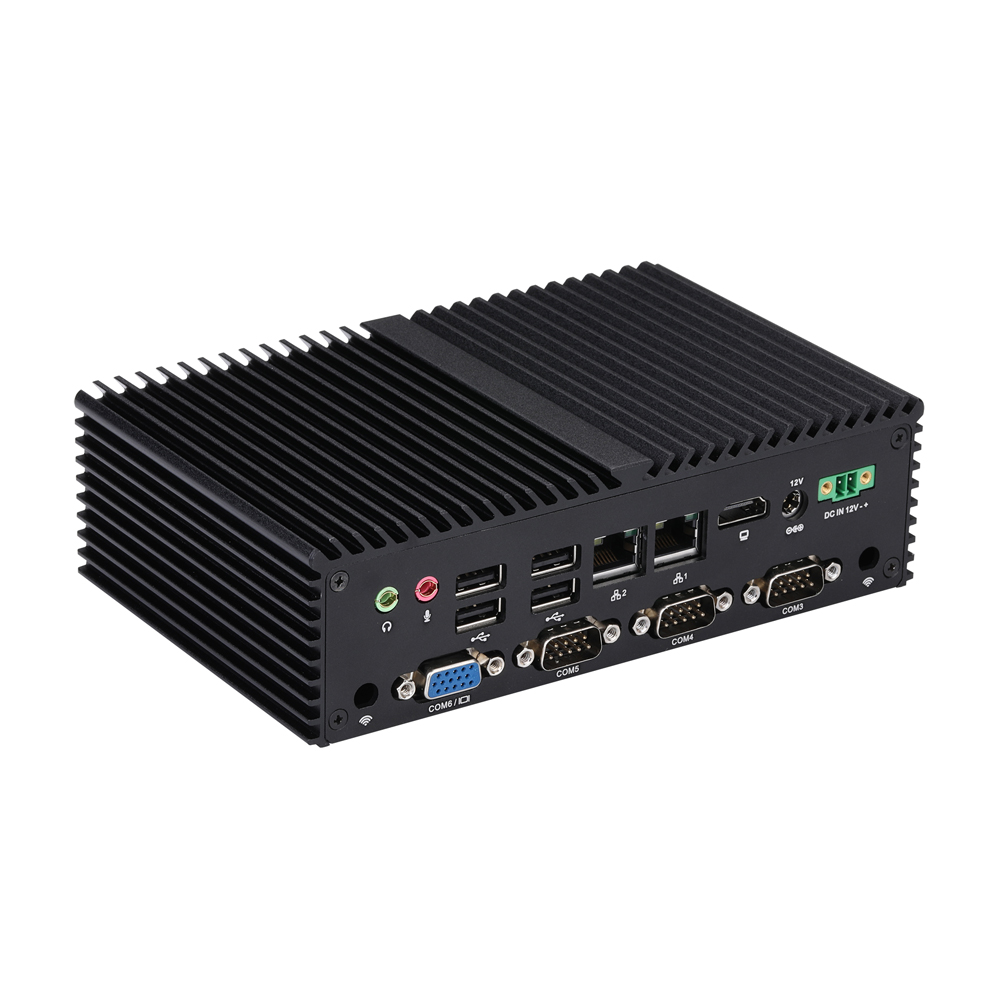

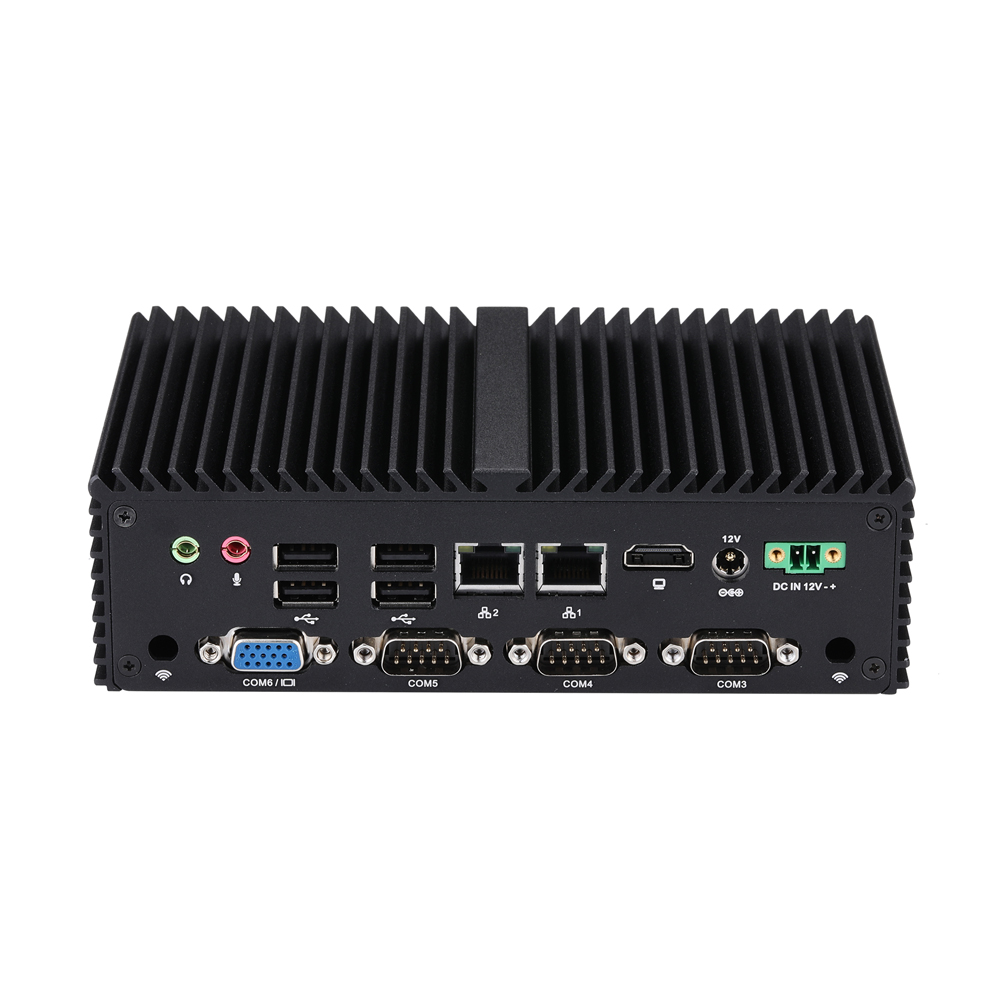

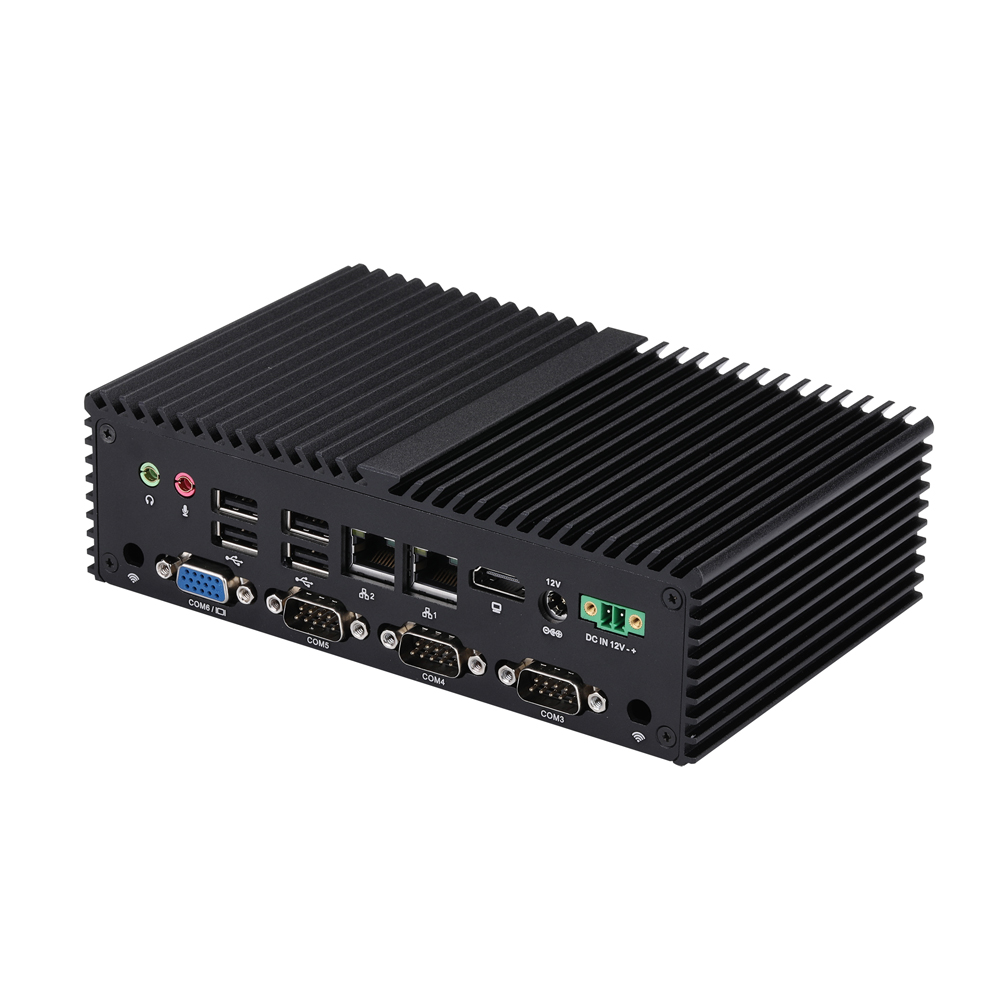

Rear I/O

Power1 × DC Jack
LAN2 × Realtek Gigabit LAN
USB4 × USB 2.0
Audio1 × Mic-in,1 × Line-out
Phoenix1 × 2Pin
Display1 × HDMI,1 × VGA
Serial Port3 × RS-232

Storage

Type1 × 2.5-inch HDD/SSD
Type1 × Mini PCIe for mSATA SSD

Expansion

mSATA1 × mSATA for SSD
M.21 × M.2 for 4G/5G (B key, Type: 3042/3052) 5G Defaults to PCIe Mode, USB 3.0 Mode Requires Customization
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot1
AutoStart JumperYes,1 × 3Pin, Pitch 2.54mm
GPIO1,2 × 5Pin, Pitch 2.0mm
VGA0
Serial Port0
Clear CMOS JumperYes,1 × 3Pin, Pitch 2.54mm
Front Panel Header1,2 × 5Pin, Pitch 2.0mm

Power

Power Adapter12V3A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension178 × 111 × 52mm
Weight0.83kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSUEFI Windows 10, UEFI Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q10811XV-S04 Q780XV Elkhart Lake Celeron N6210 2 / 2 1.20Ghz ~ 2.6Ghz 1.5M Intel UHD Graphics 6.5W
Q10821XV-S04 Q790XV Elkhart Lake Celeron J6412 4 / 4 2.00Ghz ~ 2.60Ghz 1.5M Intel UHD Graphics 10W
