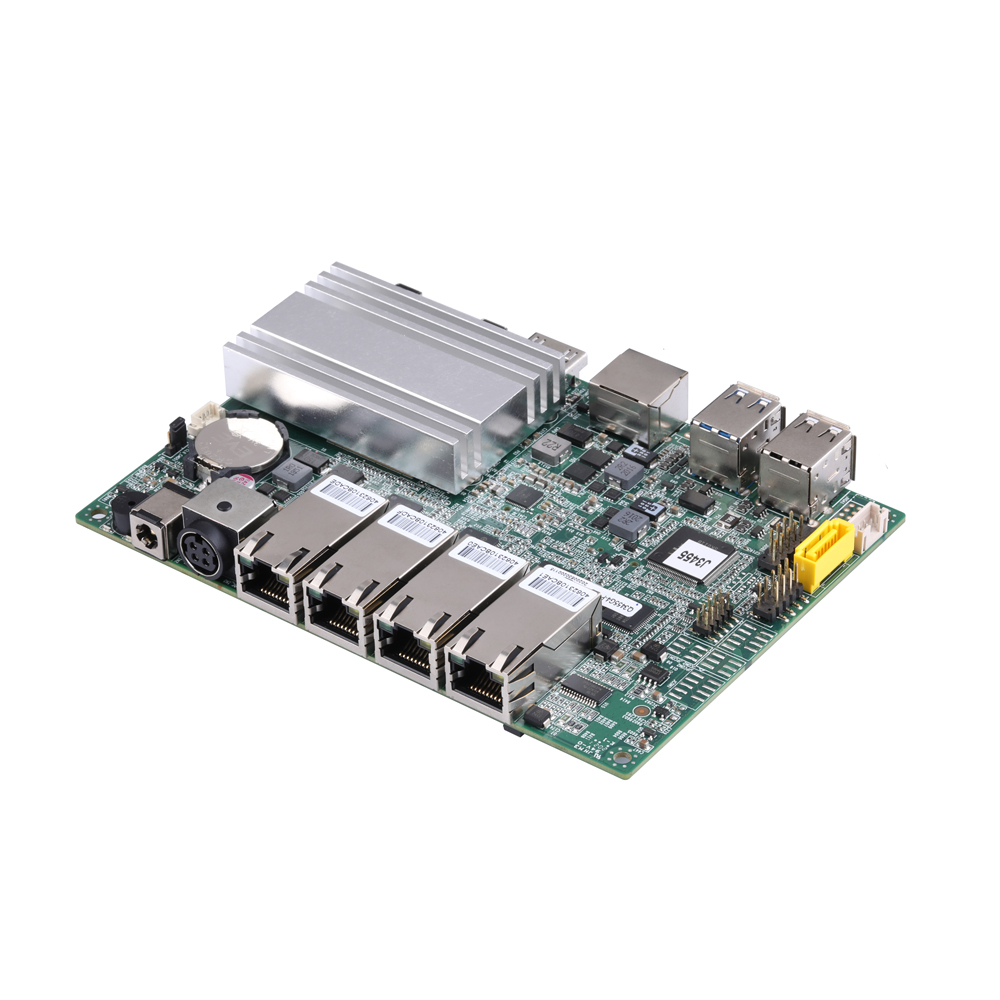

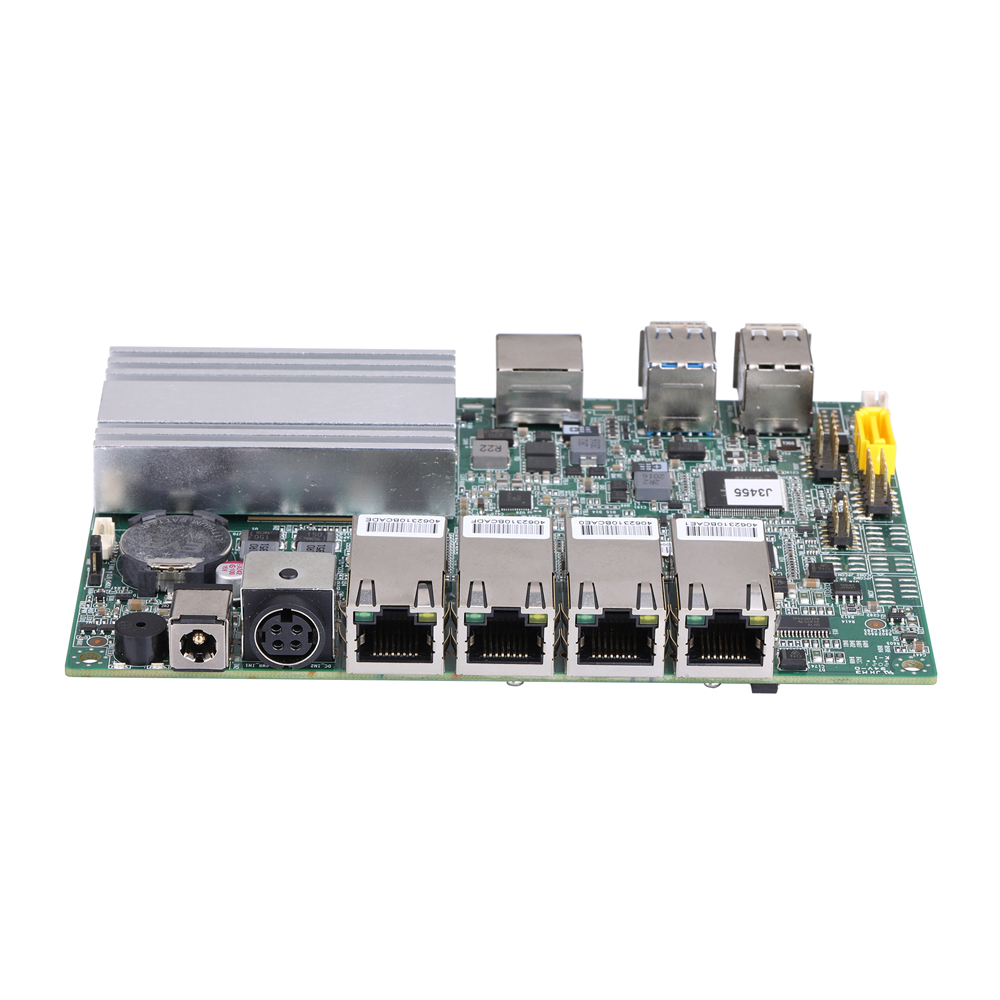

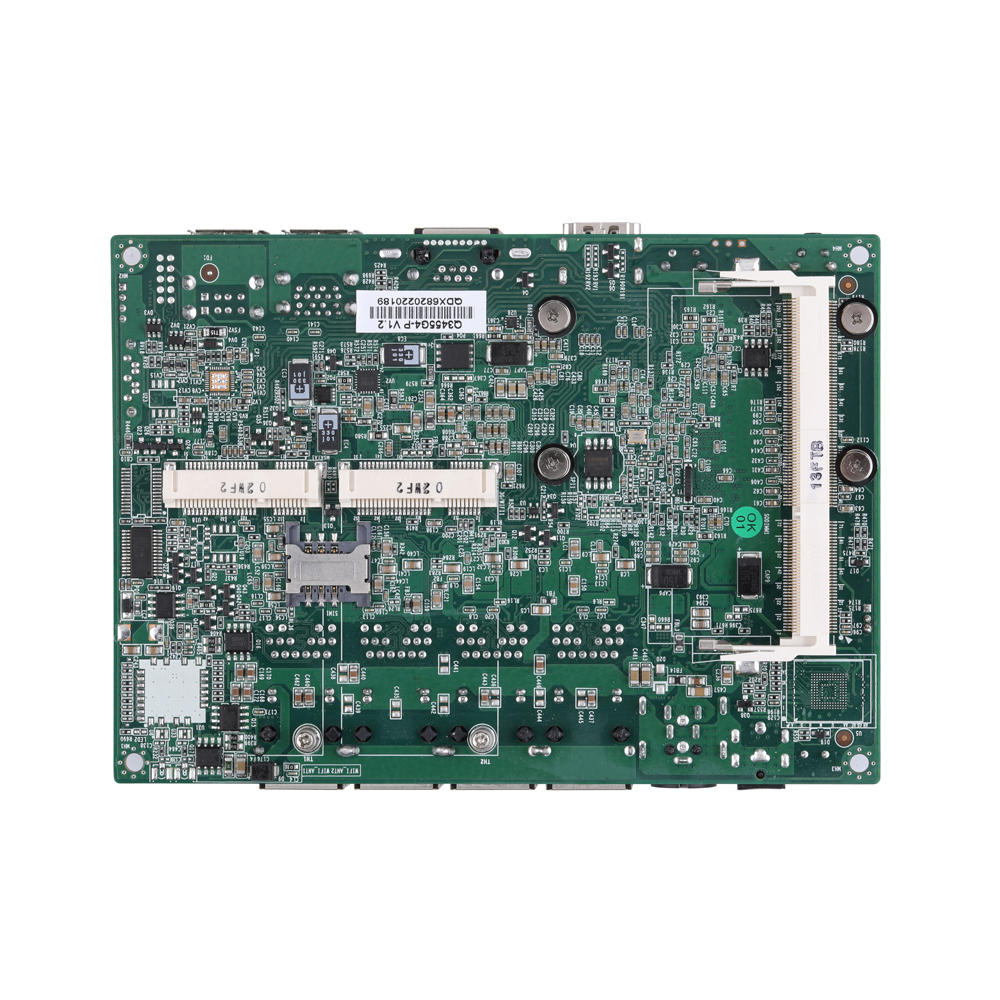

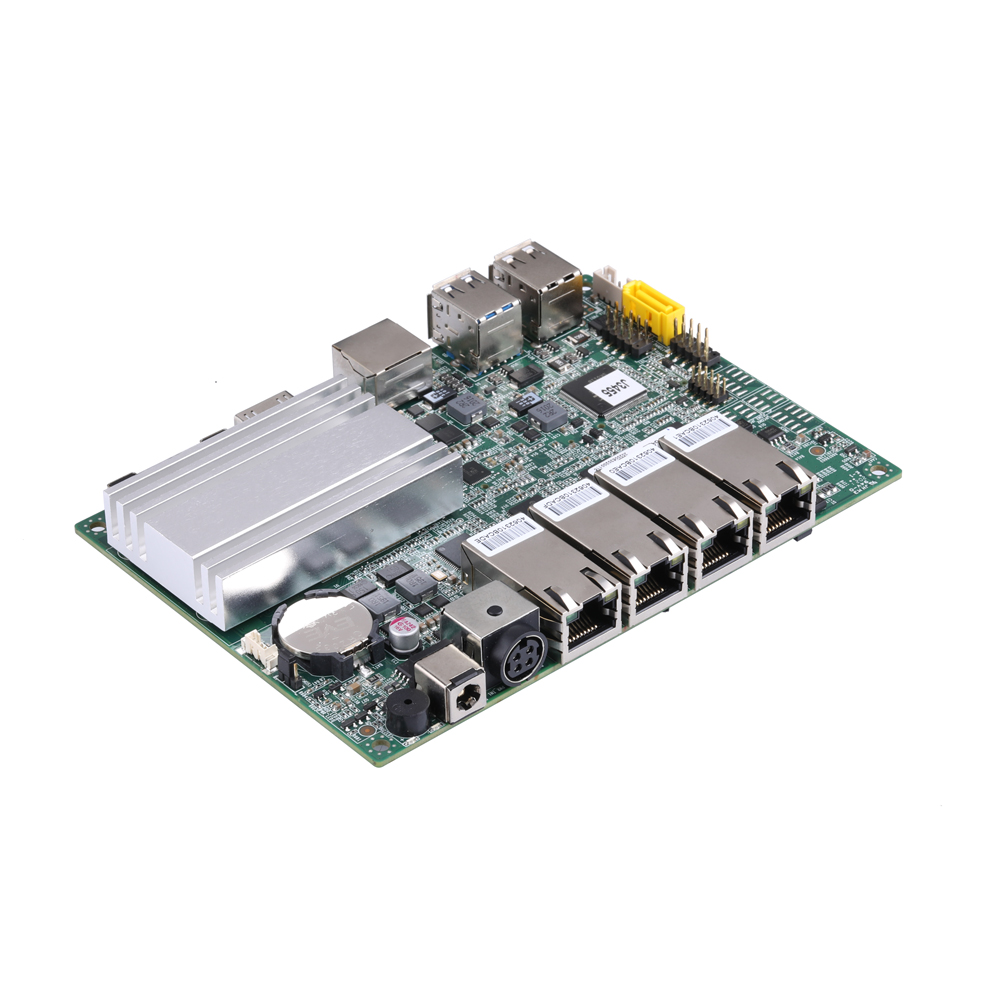

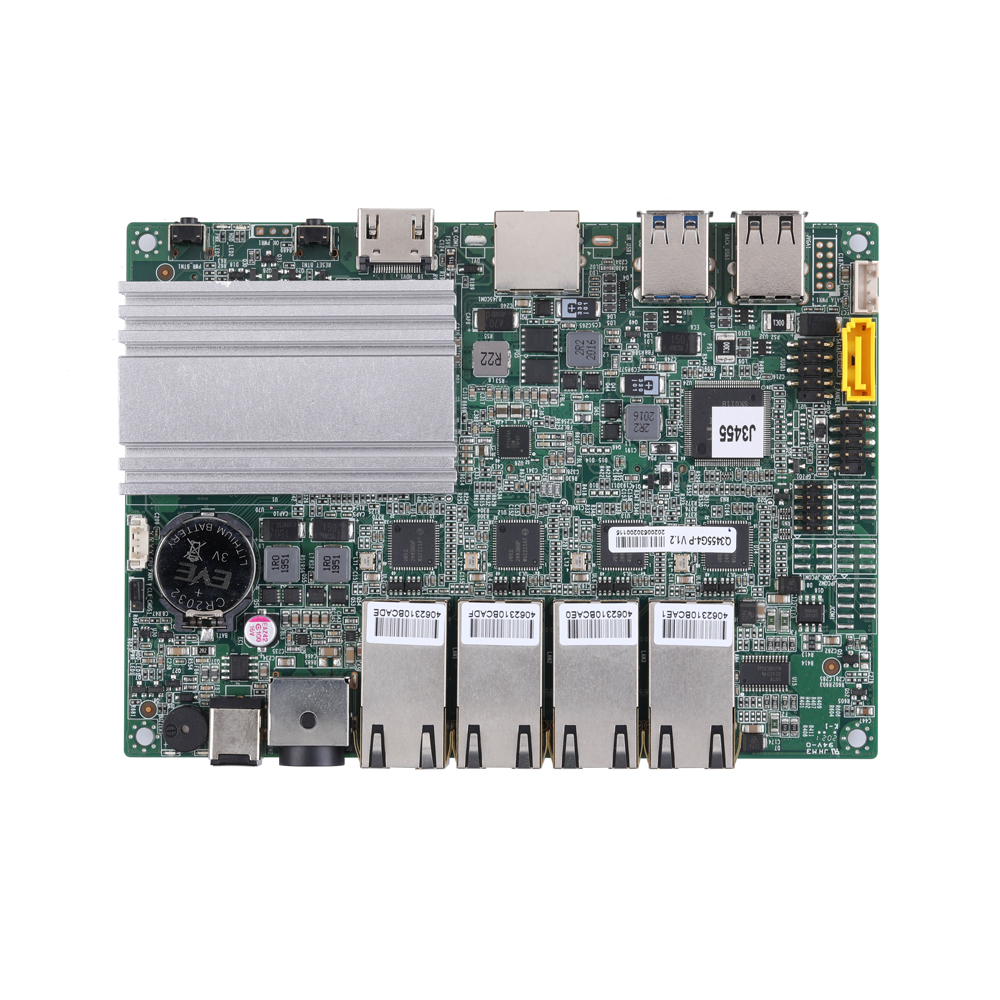

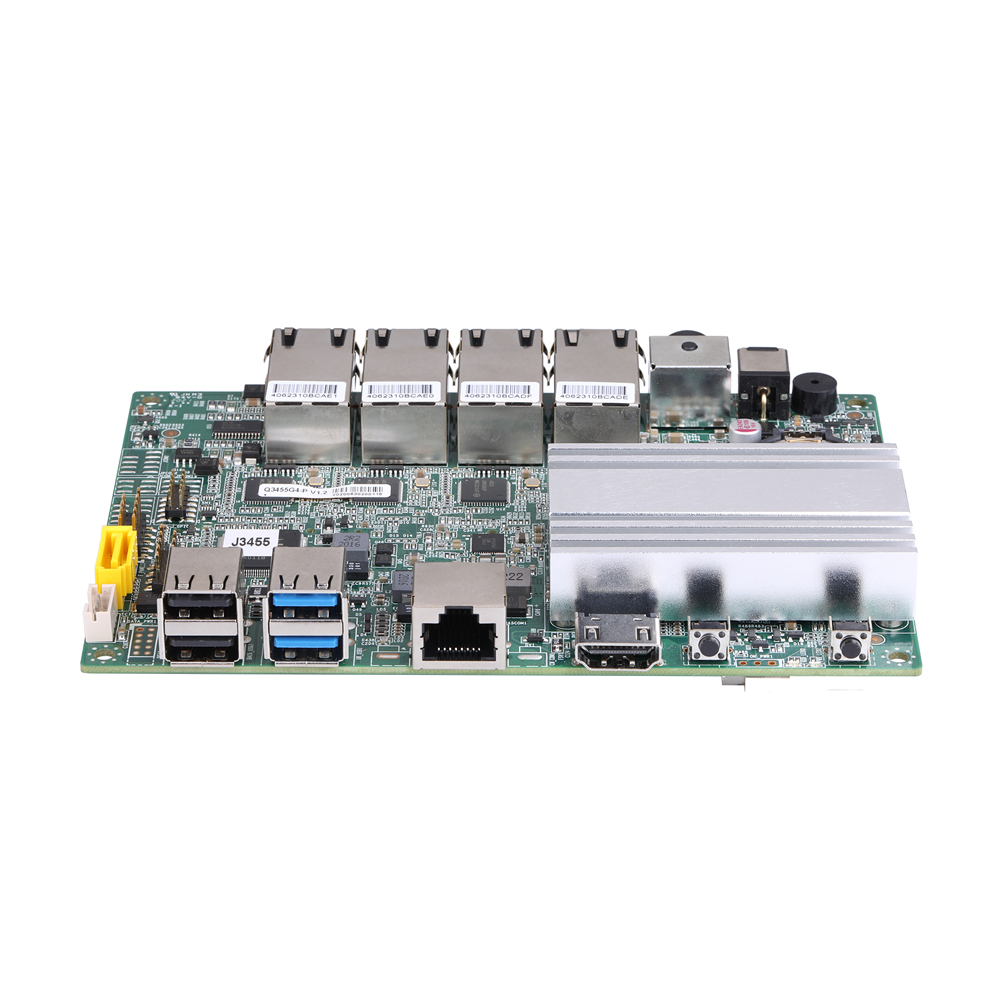

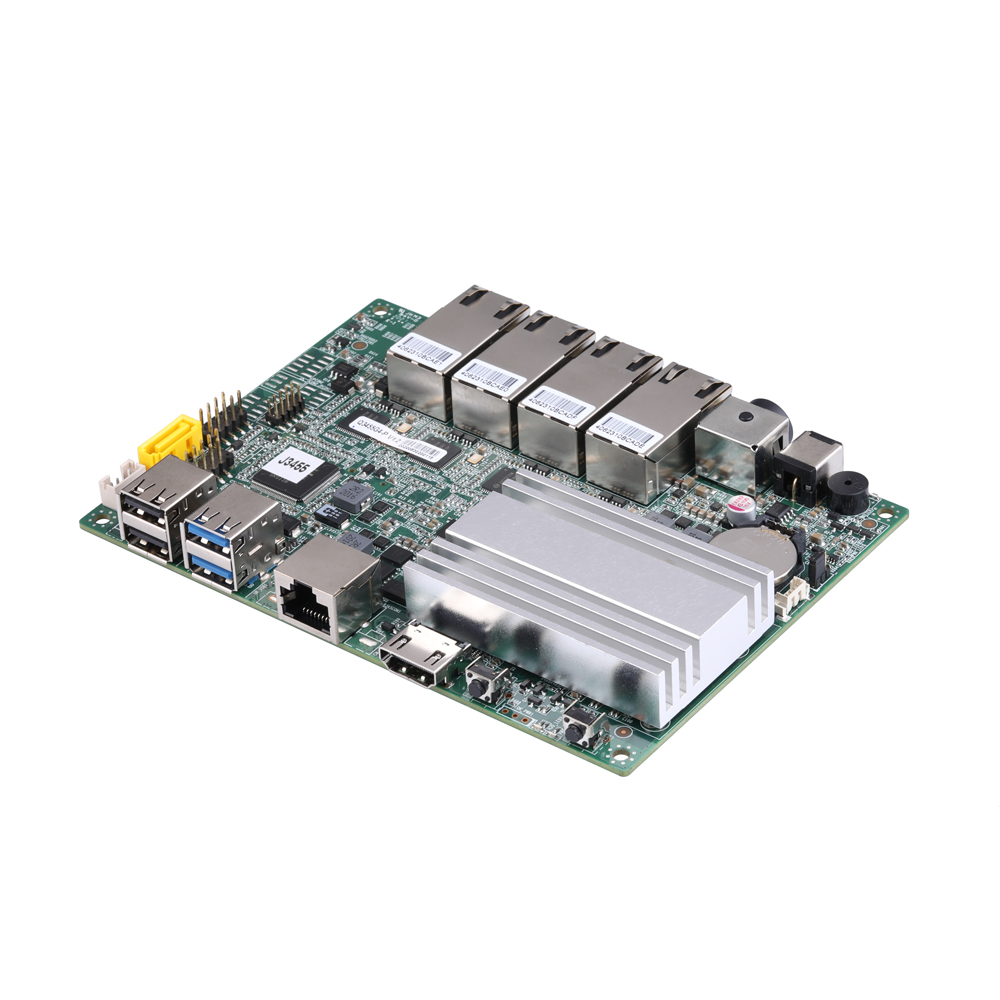

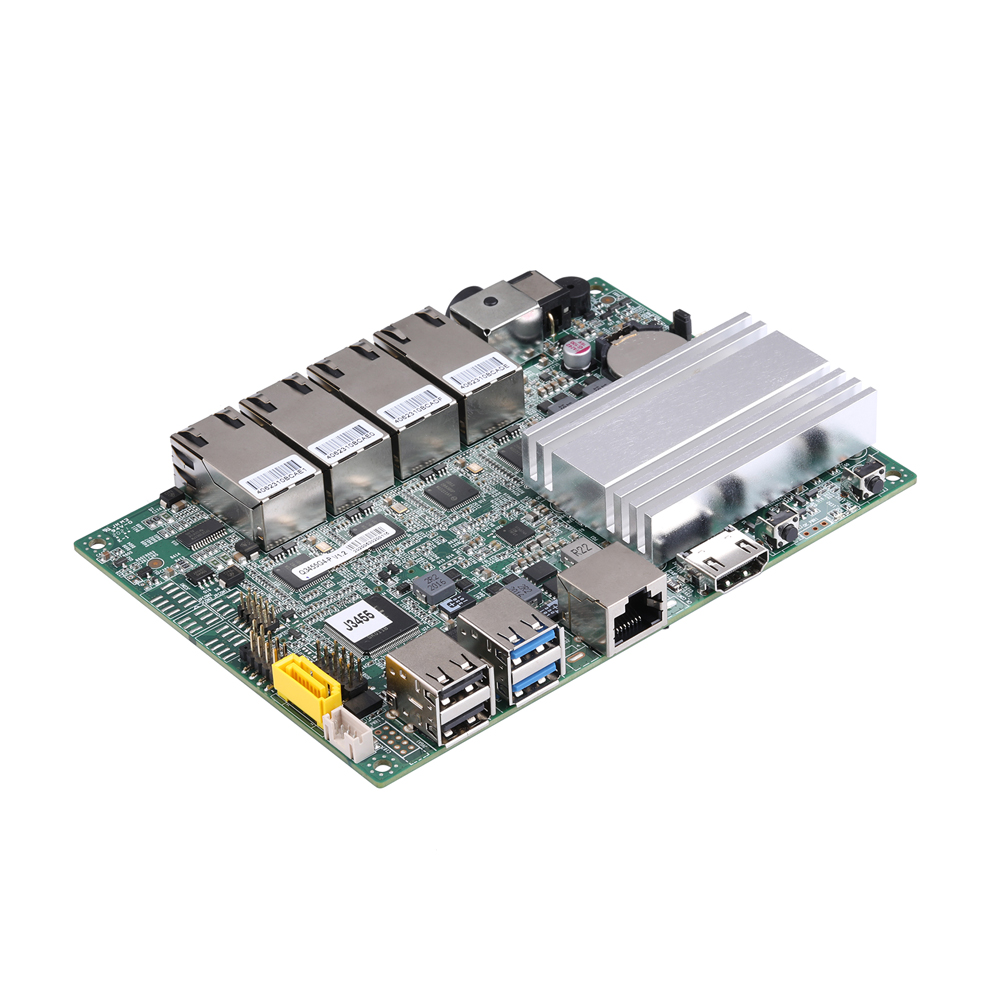

Motherboard MB3J422-0400 Series

Name: Motherboard MB3J422-0400 Series
Brand: Qotom
SKU: MB3J422-0400

Model: MB3J422-0400

Total LAN4

LAN Speed1G RJ45

Serial Ports1

For network and industrial equipment development, MB3J422-0400 offers Apollo Lake embedded motherboard supporting processors including J3355, J3455, N3350, N3450 and N4200. Four Gigabit LAN, serial connectivity and expandable storage make it suitable for IoT gateways, industrial communication, equipment.

Key Specs

CPU: Apollo Lake
Memory: DDR3L SO-DIMM · Max 8GB
LAN: 4
Storage: mSATA, SATA
Board Size: 148x104

Compatible Systems

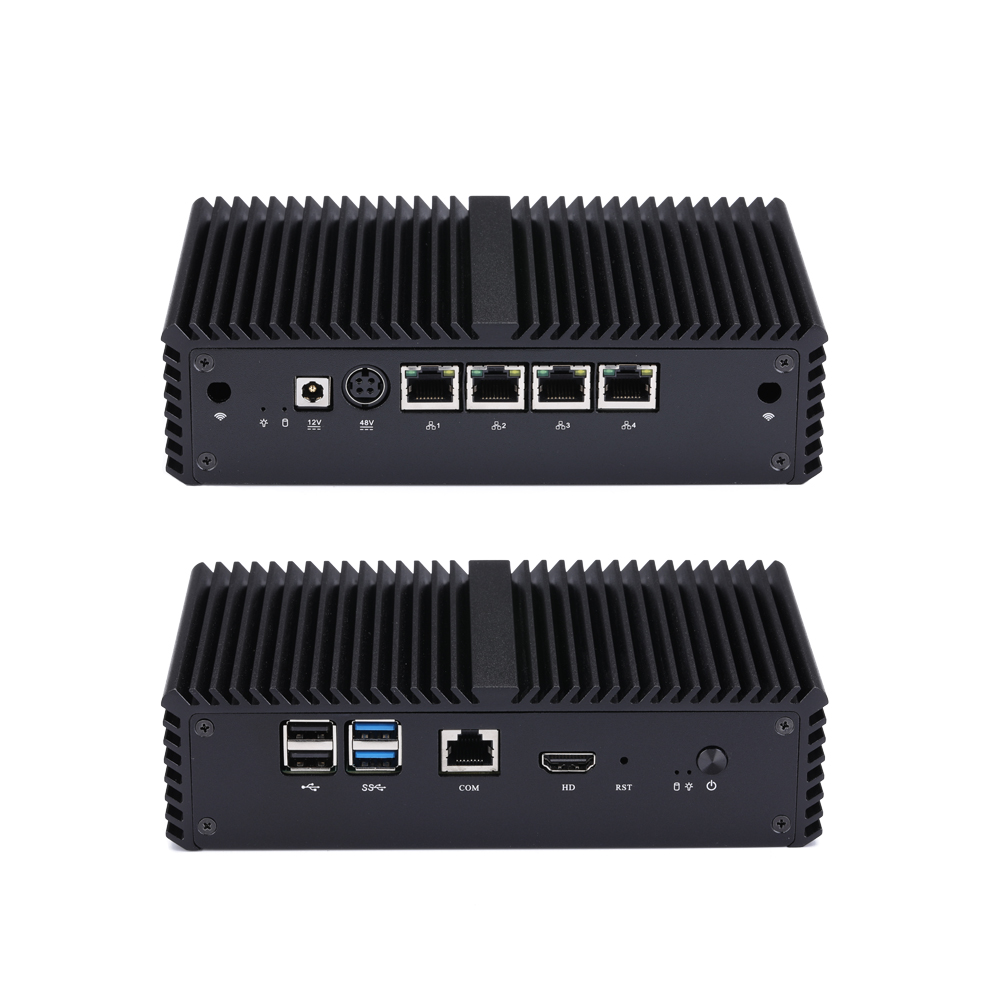

Q10400G4-S05

Send Inquiry

Q3355G4-P Q3455G4-P MB3J422-0411 MB3J422-0421 Intel Apollo Lake Pentium Celeron ATOM J3355 J3455 N3350 N3450 N4200 J4205

Main Features

Intel Apollo Lake Processor
1 × HDMI
2 × USB 3.0, 2 × USB 2.0
1 × mSATA,1 × Mini-PCIe, 1 × SATA 3.0
4 × Intel WGI211-AT/I210-AT Gigabit LAN
4 × POE Out

Related Products

Motherboard MB7UT1X-1500 Series

MB7UT1X-1500

Mini PC Q10400G4 S05 Series

Q10400G4-S05

Motherboard MB2J401-0100 Series

MB2J401-0100

Motherboard MB3J613-0100 Series

MB3J613-0100

Motherboard MB2J513-0500 Series

MB2J513-0500

Motherboard MB2J400-0700 Series

MB2J400-0700

CPU	Intel Apollo Lake Processor
Chipset	By CPU
Dimension	148 × 104mm
Core Number	By CPU
Max. Speed	By CPU
L2 Cache	By CPU
BIOS	UEFI

Technology	DDR3 1333/1600MHz SDRAM
Max.	8GB
Socket	1 × SO-DIMM

Controller	By CPU
VRAM	Shared Memory
VGA	1 (Option)
HDMI	1 (Support HDMI 1.4a)
Multi Display	Yes

Interface	10/100/1000Mbps
Controller	4 × Intel I211-AT/I210-AT Gigabit LAN (With POE)
Connector	4 × RJ-45

Power Button	1 × Power Button, 1 × Reset Button
LED	1 × Power LED,1 × HDD LED
USB	2 × USB 3.0, 2 × USB 2.0
Serial Port	1 × Connector,RS-232 (RJ-45) by Default RS-232 (DB9) (Option)
HDMI	1

Motherboard MB3J422-0400 Series

Key Specs

Compatible Systems

Main Features

Processor System

Memory

Graphics

Ethernet

Audio

Front I/O

Rear I/O

Storage

Expansion

Internal Connector

Watchdog Timer

Power

Environmental

Accessories

OS Support

Package Contents

Order & Specification Selection

BIOS & Firmware

Driver Downloads

Related Products

mSATA	1 × Full-length Mini PCIe for SSD
Mini PCIe	1 × Full-length Mini PCIe for 4G

VGA Header	1, 2 × 5Pin, Pitch 2.0mm (Option)
Serial Port	3, 2 × 5Pin, Pitch 2.0mm (Option)
RS-485	0
SATA	1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector	1, 1 × 4Pin, Pitch PH2.0mm
SIM Slot	1
AutoStart Jumper	No
Clear CMOS Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
GPIO Header	1, 2 × 5Pin, Pitch 2.0mm
USB 2.0 Header	2, 2 × 5Pin, Pitch 2.54mm
Front Panel Header	1, 2 × 5Pin, Pitch 2.54mm
Power Header	1, 12V, 1 × 2Pin, Pitch 5.08mm (Option)
Power Header	1, 48V, 1 × 2Pin, Pitch 5.08mm (Option)

Output	From Super I/O to Drag RESETCON#
Interval	256 Segments,0,1,2,3,,,255 sec/min

Ordering Code	Legacy Model	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP	Datasheet
MB3J422-0411	Q3355G4-P	Apollo Lake	Celeron	J3355	2 / 2	2.00Ghz ~ 2.50Ghz	2M	Intel HD 500	10W
MB3J422-0421	Q3455G4-P	Apollo Lake	Celeron	J3455	4 / 4	1.50Ghz ~ 2.50Ghz	2M	Intel HD 500	10W

Ethernet	4
DC-IN 1	1, 12V
DC-IN 2	1, 48V Mini Din

Input PWR	12V DC in, 5.5mm/2.5mm
Input PWR	48V Mini Din DC in
