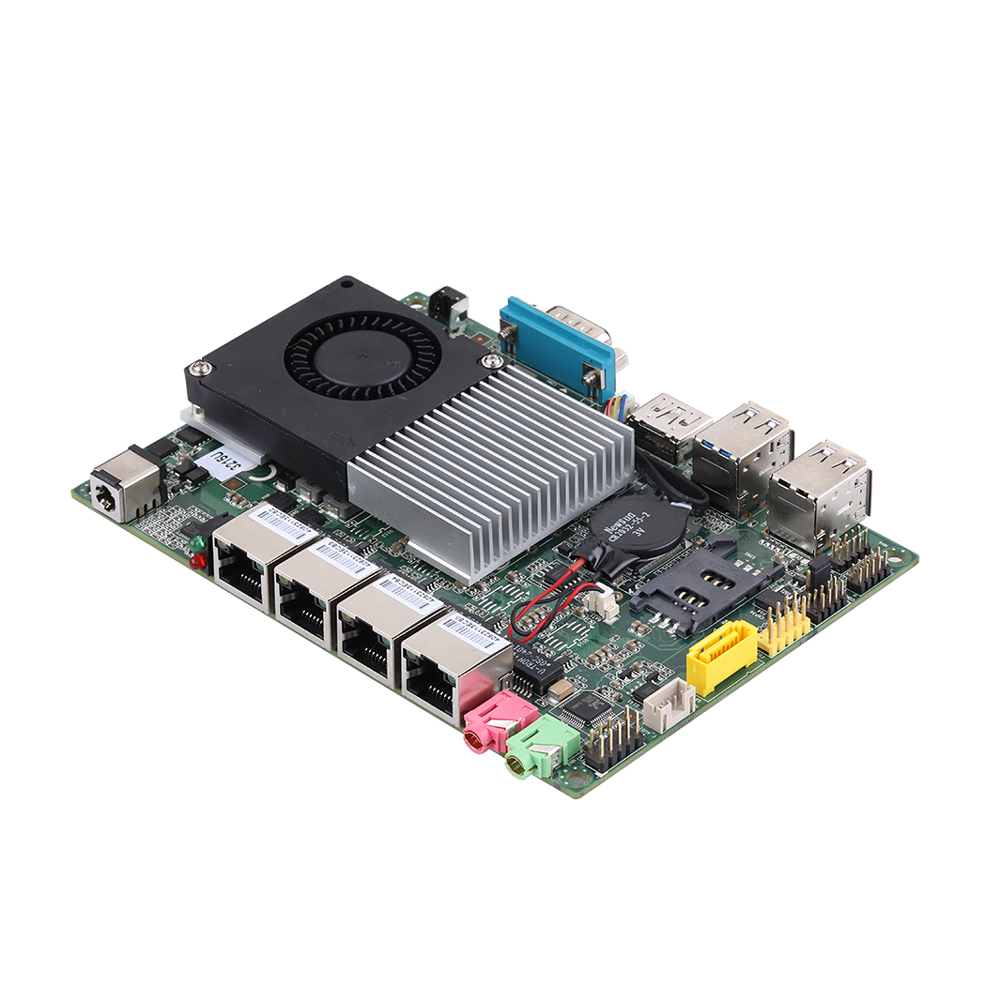

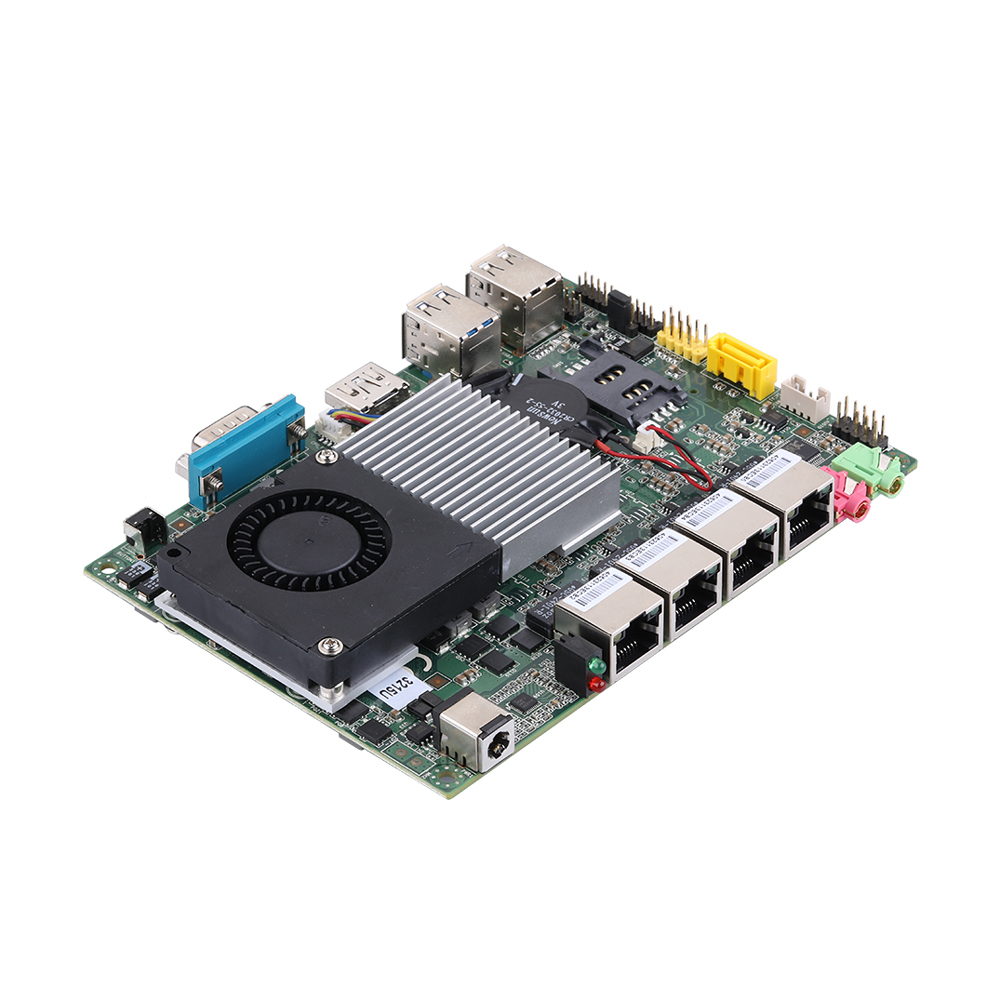

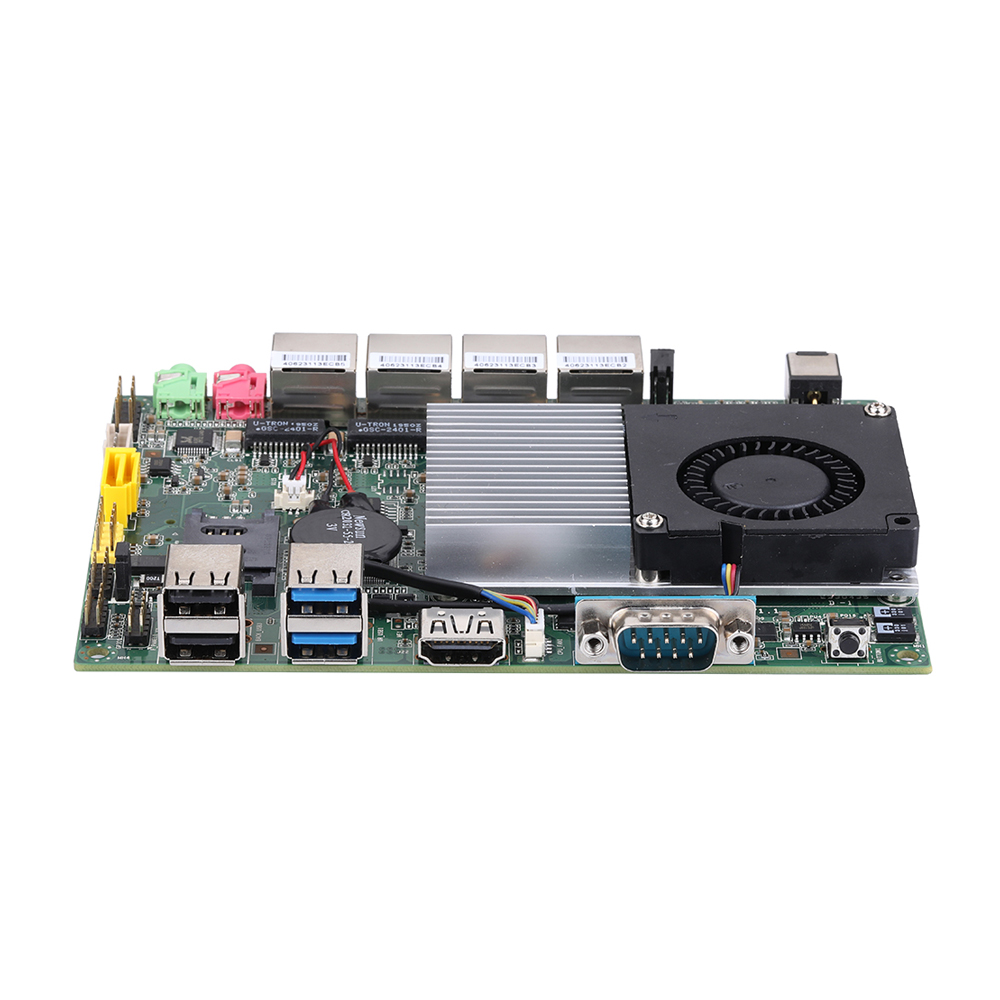

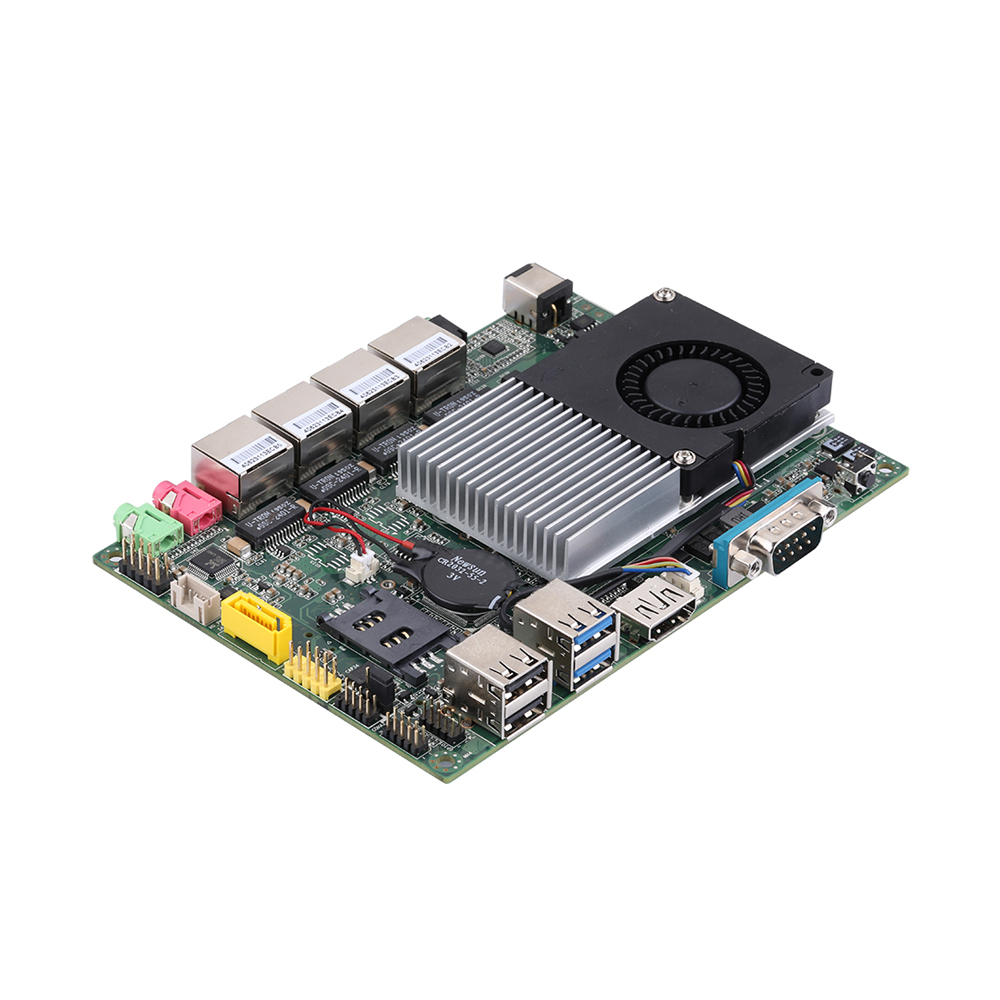

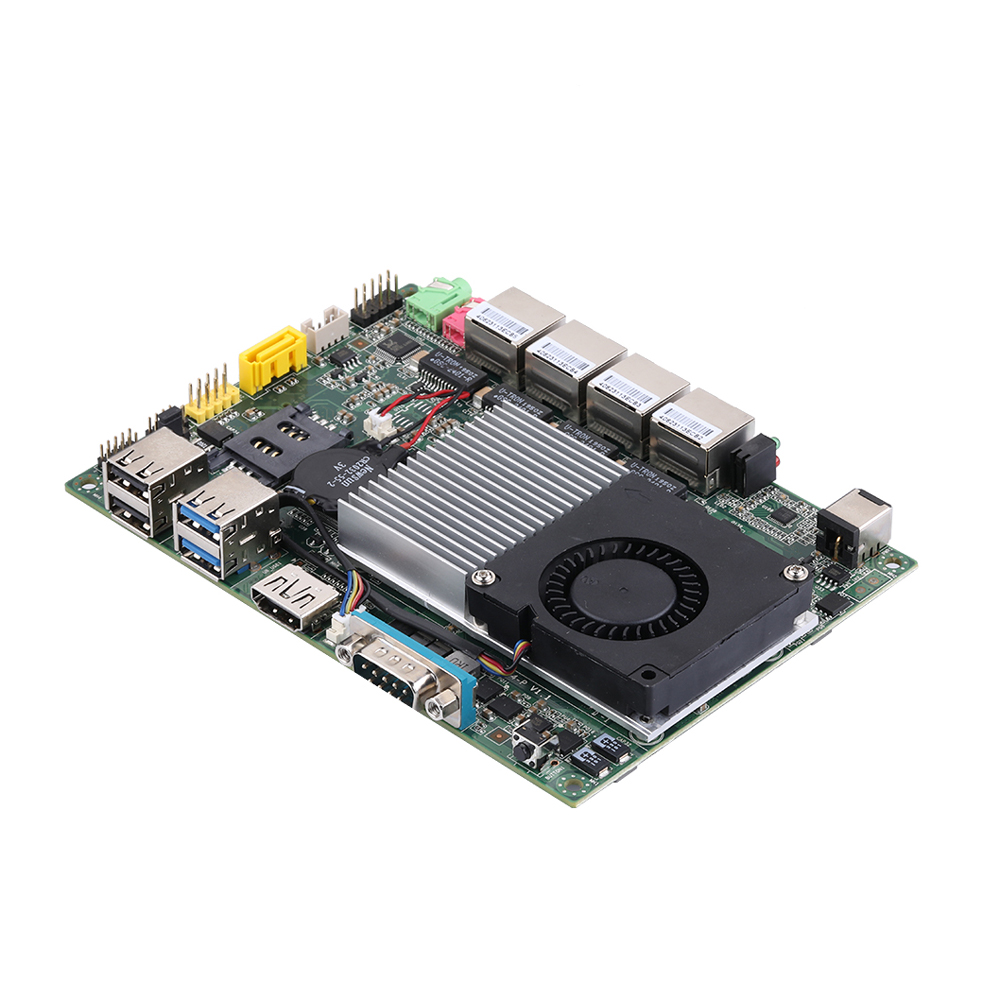

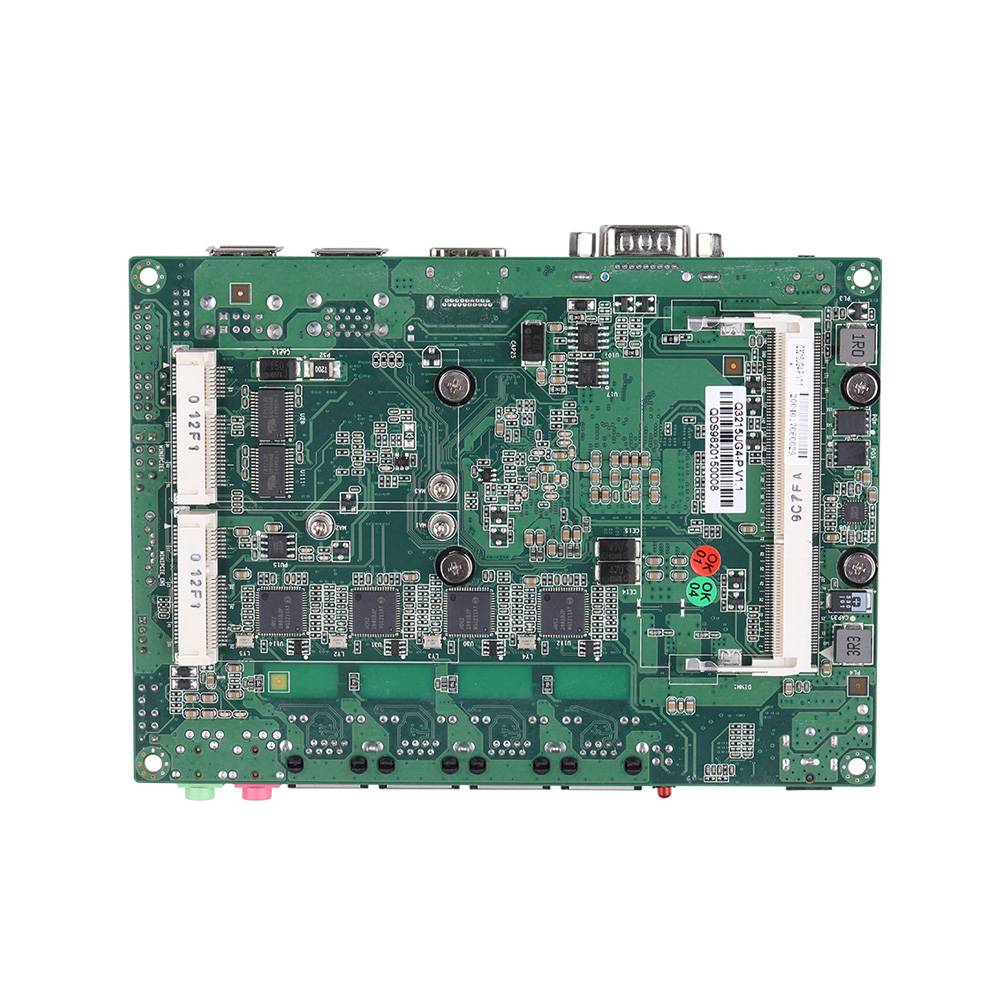

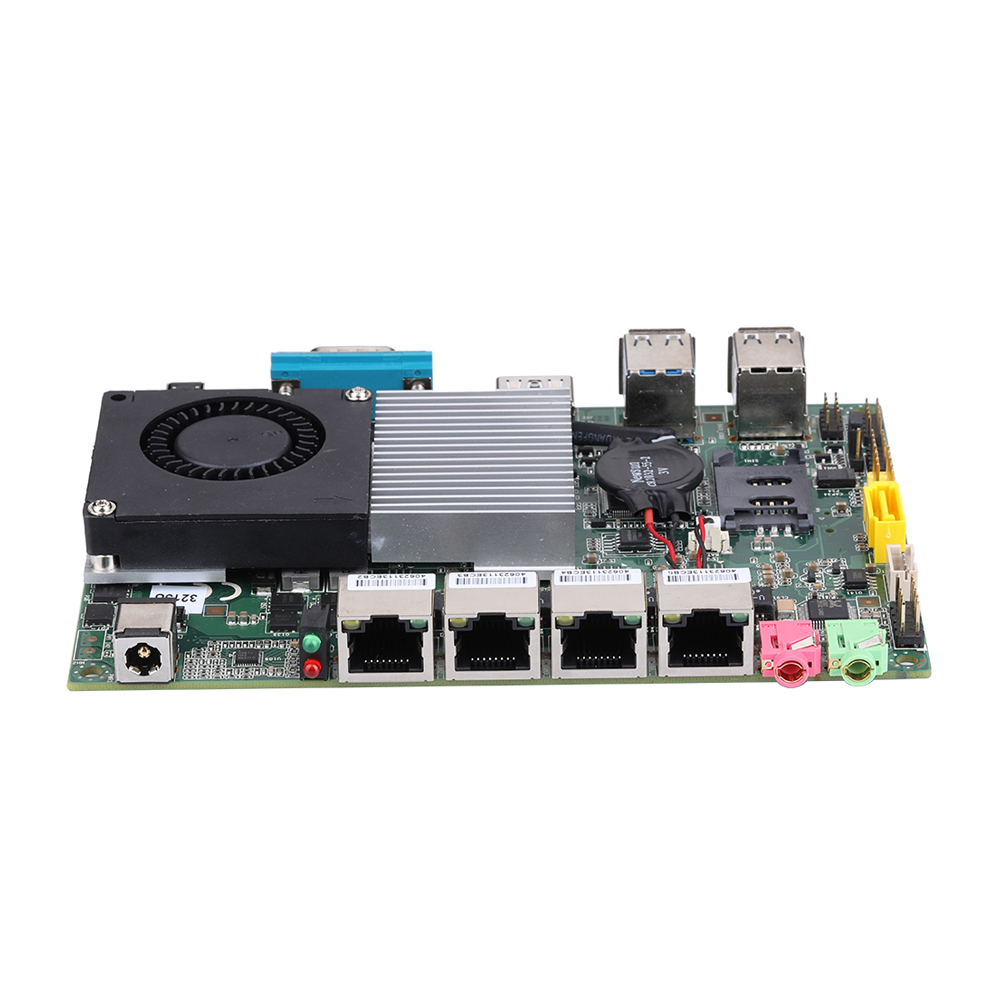

Motherboard MB3U422-0400 Series

Name: Motherboard MB3U422-0400 Series
Brand: Qotom
SKU: MB3U422-0400
Availability: InStock

Model: MB3U422-0400

Total LAN4

LAN Speed1G RJ45

Serial Ports1

Key Specs

CPU: Haswell / Broadwell
Memory: DDR3L SO-DIMM · Max 8GB
LAN: 4
Storage: mSATA, SATA
Board Size: 148x104

Compatible Systems

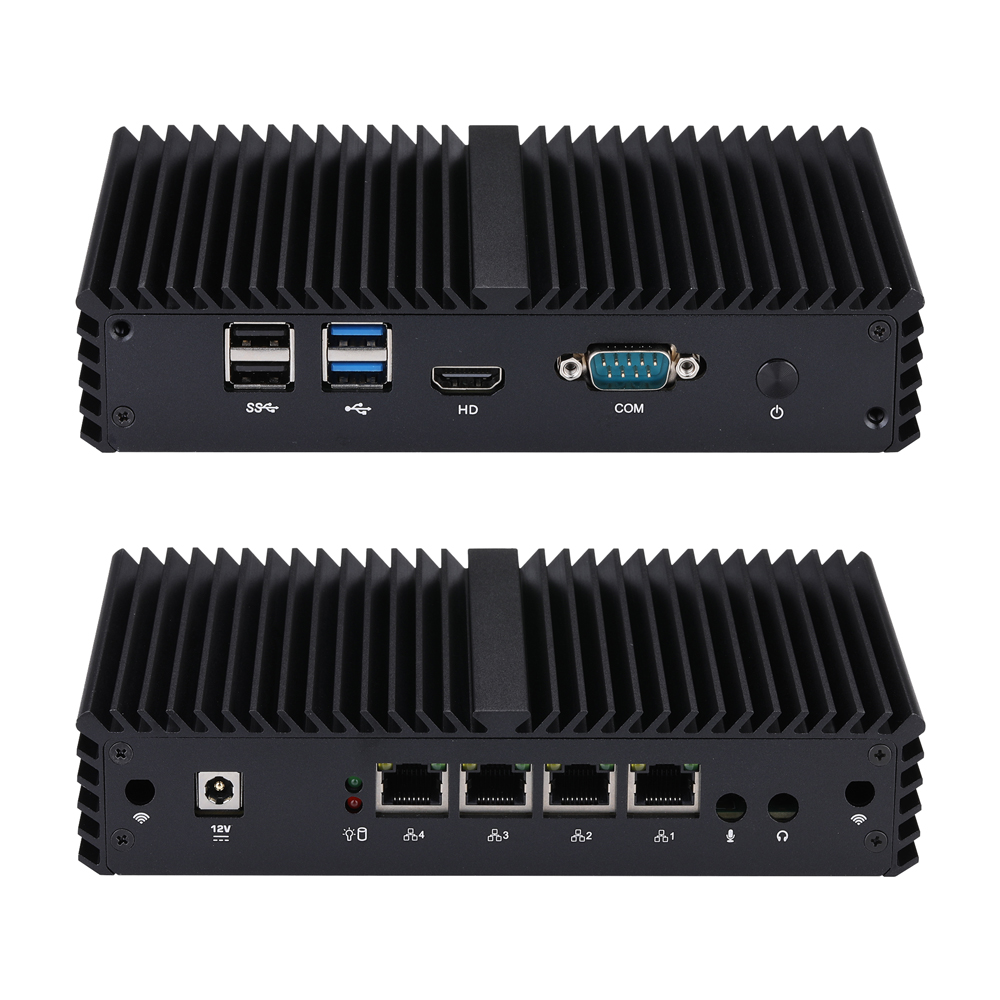

Q300G4-S06

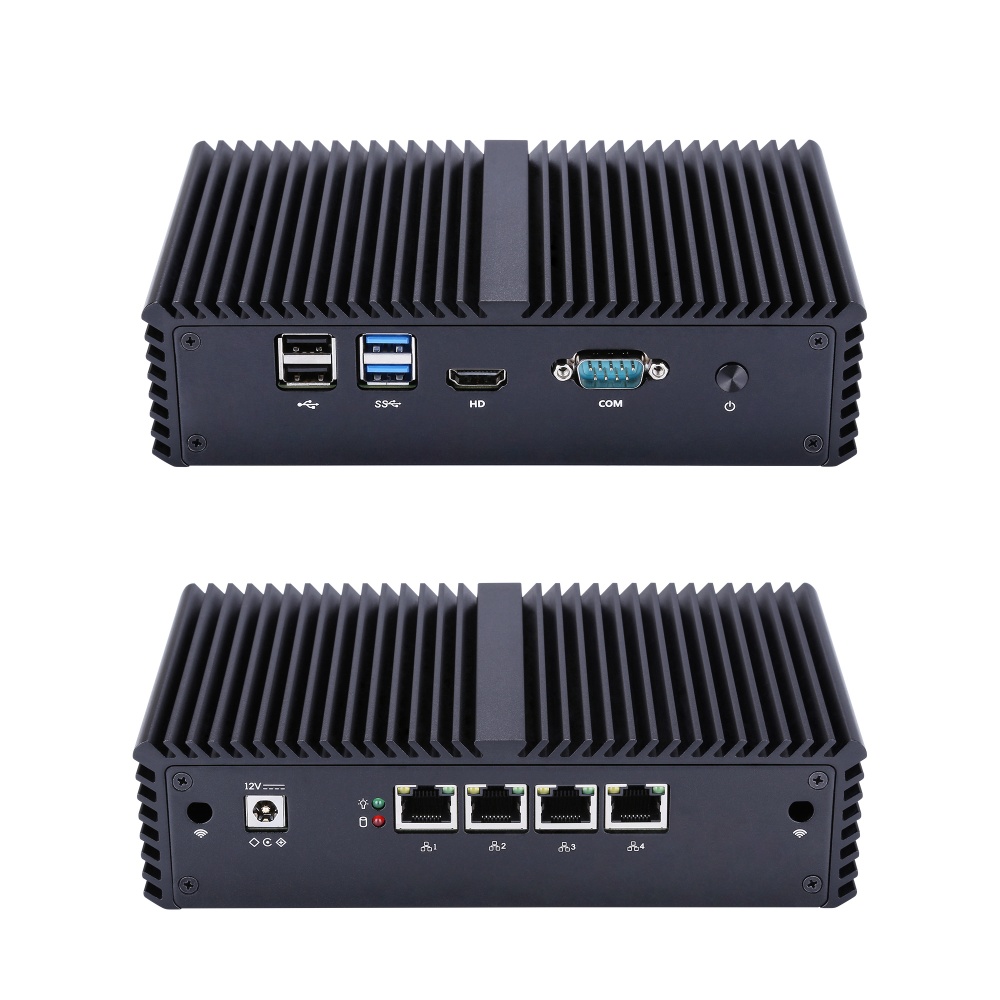

Q300G4-S05

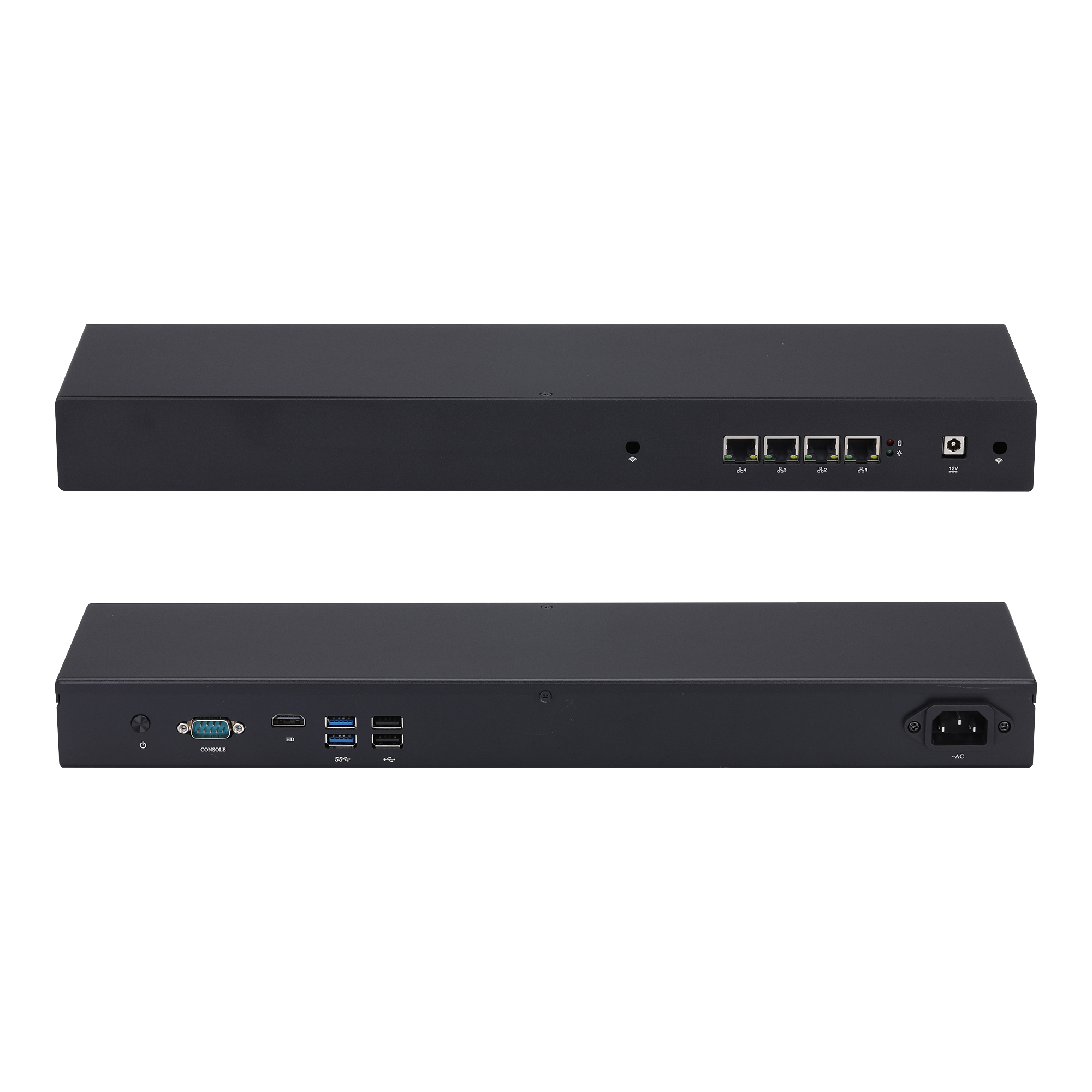

Q300G4-1U02

This product is available via inquiry and OEM/ODM customization.

Send Inquiry

Main Features

Intel 4 th Haswell –U/Y Processor
Intel 5 th Broadwell-U Processor
1 × HDMI, 1 × RS-232
2 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0
1 × Mini-PCIe, 1 × mSATA
4 × Intel I211-AT/I210-AT Gigabit LAN

Related Products

Mini PC Q30400GE S20 Series

Q30400GE-S20

Mini PC Q30400GEX S10 Series

Q30400GEX-S10

Mini PC Q30400X S05 Series

Q30400X-S05

Mini PC Q30400GE S10 Series

Q30400GE-S10

Mini PC Q300X S05 Series

Q300X-S05

Mini PC Q30400GER 1U05 Series

Q30400GER-1U05

CPU	• Intel 4 th Haswell –U/Y Processor • Intel 5 th Broadwell-U Processor
Chipset	By CPU
Dimension	148 × 104mm
Core Number	By CPU
Max. Speed	By CPU
L2 Cache	By CPU
BIOS	UEFI

Technology	DDR3L 1333/1600MHz SDRAM
Max.	8GB
Socket	1 × SO-DIMM

Controller	By CPU
VRAM	Shared Memory
HDMI	1 (Support HDMI 1.4a)
Multi Display	No

Interface	10/100/1000Mbps
Controller	4 × Intel I211-AT/I210-AT Gigabit LAN
Connector	4 × RJ-45

Audio	2 (Mic-in, Line-out) (Option)
DC-IN	1
LED	1 × Power LED, 1 × HDD LED
Ethernet	4
