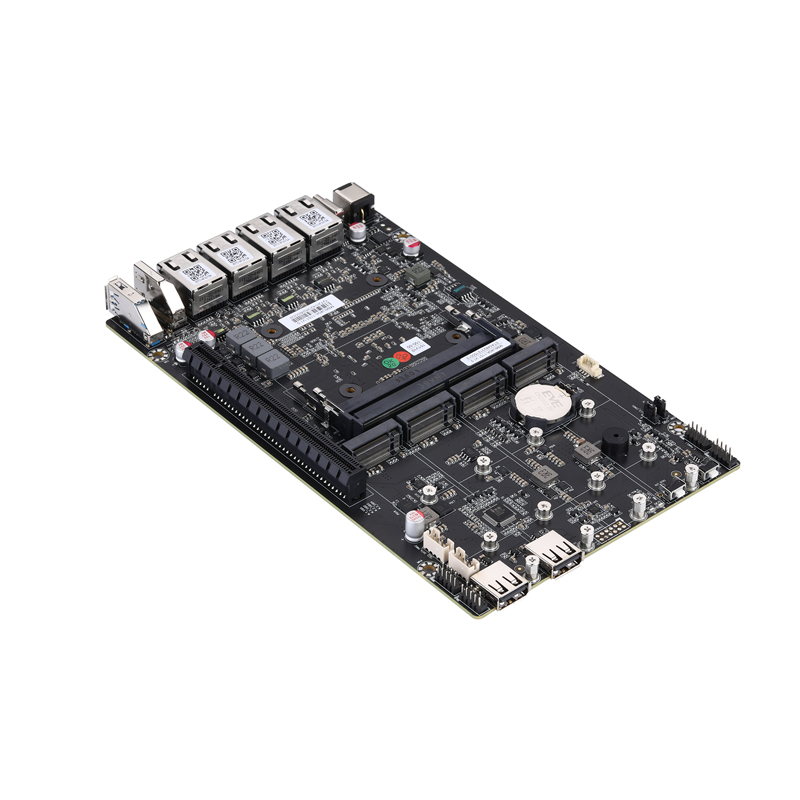

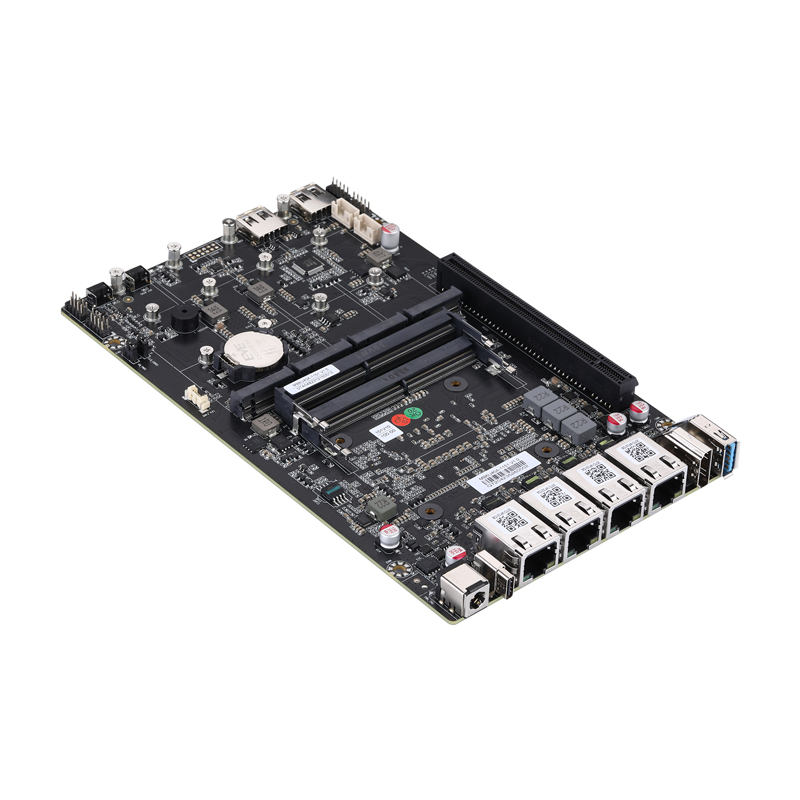

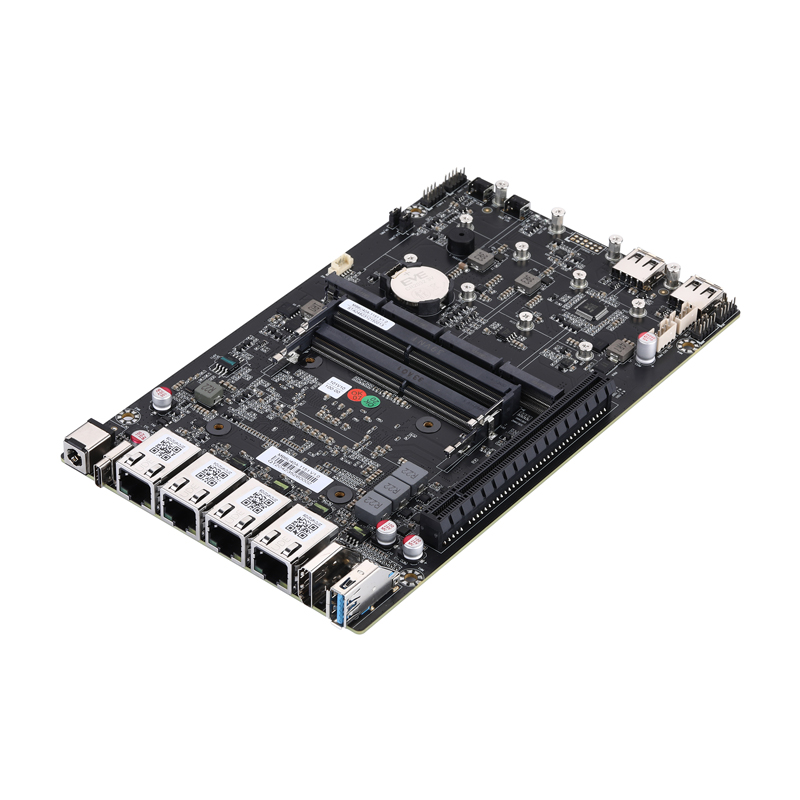

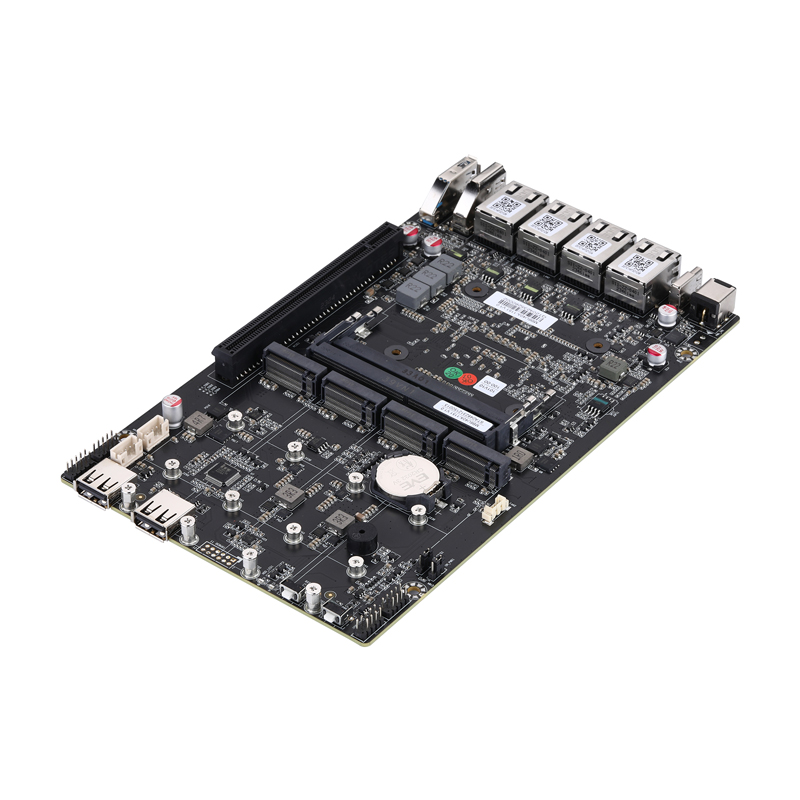

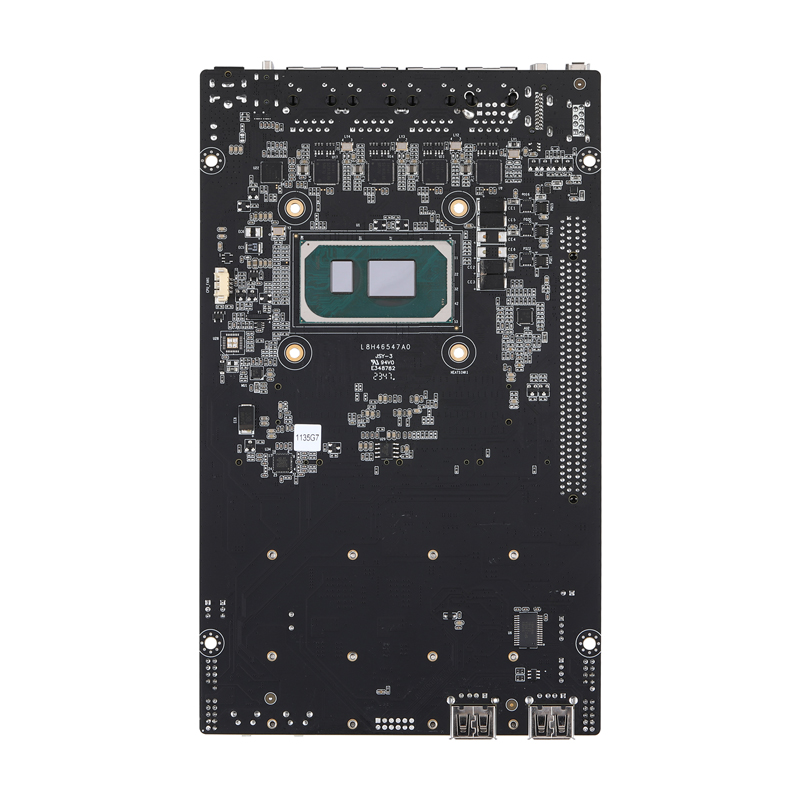

Motherboard MB6U40A-1100 Series

Name: Motherboard MB6U40A-1100 Series
Brand: Qotom
SKU: MB6U40A-1100

Model: MB6U40A-1100

Total LAN4

LAN Speed2.5G RJ45

Embedded hardware designs can start with MB6U40A-1100, featuring industrial motherboard supporting Intel 11th Gen Tiger Lake Core processors, DDR4 memory and 4 × 2.5G Ethernet. Deployment scenarios range from OEM network appliances, embedded systems and custom computer builds.

Key Specs

CPU: Tiger Lake
Memory: DDR4 SO-DIMM · Max 64GB
LAN: 4
Storage: M.2 Mkey
Board Size: 120x200

Compatible Systems

Q31100G4-S17

Send Inquiry

Main Features

Intel 11th Tiger Lake Processor
1 × HDMI
1 × USB 3.0, 6 × USB 2.0, 1 × Type C
4 × M.2
4 × Intel I225-V/I226-V 2.5G LAN

Related Products

Motherboard MB7UT1X-1500 Series

MB7UT1X-1500

NAS Q31100G4 S17 Series

Q31100G4-S17

Mini PC Q31100GT S23 Series

Q31100GT-S23

Mini PC Q31100GT 1U18 Series

Q31100GT-1U18

Motherboard MB2J401-0100 Series

MB2J401-0100

Motherboard MB3J613-0100 Series

MB3J613-0100

CPU	Intel 11th Tiger Lake Processor
Chipset	By CPU
Dimension	120 × 200mm
Core Number	By CPU
Max. Speed	By CPU
L2 Cache	By CPU
BIOS	UEFI

Technology	DDR4 3200MHz SDRAM
Max.	64GB
Socket	2 × SO-DIMMs

Controller	By CPU
VRAM	Shared Memory
Display Port	Display Port (Type C)
HDMI	1 (Support HDMI 1.4a)
Multi Display	Yes

Interface	100/1000/2500Mbps
Controller	4 × Intel I225-V/I226-V 2.5G LAN
Connector	4 × RJ-45

Power Button	1 × Power Button, 1 × Reset Button
LED	1 × Power LED, 1 × HDD LED
USB	1× USB 3.0
USB	2 × USB 2.0
DC-IN	1
Type C	1, USB 3.0 and Display Port
HDMI	1
Ethernet	4

Motherboard MB6U40A-1100 Series

Key Specs

Compatible Systems

Main Features

Processor System

Memory

Graphics

Ethernet

Audio

Front I/O

Storage

Expansion

Internal Connector

Watchdog Timer

Power

Environmental

Accessories

OS Support

Package Contents

Order & Specification Selection

BIOS & Firmware

Driver Downloads

Related Products

M.2	2 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 2)
M.2	2 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1)

M.2	2 × M.2 for SSD, PCIe 3.0 × 2 (M key, Type: 2242/2260/2280)
M.2	2 × M.2 for SSD, PCIe 3.0 × 1 (M key, Type: 2242/2260/2280) (NGFF for Core i5/i7)
PCIe	1, PCIe slot (Type:X16, PCIe 4.0 × 4)
AutoStart Jumper	1, 1 × 3Pin, Pitch 2.0mm
CMOS Clear Jumper	1, 1 × 3Pin, Pitch 2.0mm
Front Panel	1, 2 × 5Pin, Pitch 2.0mm
USB 2.0 Header	4, 2 × 5Pin, Pitch 2.0mm
Serial Port	1 × RS-232,1, 2 × 5Pin, Pitch 2.0mm
Power Header	1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Option)

Output	From Super I/O to Drag RESETCON#
Interval	256 Segments,0,1,2,3,,,255 sec/min

Ordering Code	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP
MB6U40A-1111	Tiger Lake	Celeron	6305	2 / 2	1.80 GHz	4M	Intel UHD Graphics	15W
MB6U40A-1121	Tiger Lake	Pentium	7505	2 / 4	2.00 GHz ~ 3.50 GHz	4M	Intel UHD Graphics	15W
MB6U40A-1131	Tiger Lake	Core i3	1115G4	2 / 4	3.00 GHz ~ 4.10 GHz	6M	Intel UHD Graphics	12-28W
MB6U40A-1132	Tiger Lake	Core i3	1125G4	4 / 8	2.00 GHz ~ 3.70 GHz	8M	Intel UHD Graphics	12-28W
MB6U40A-1151	Tiger Lake	Core i5	1135G7	4 / 8	2.40 GHz ~ 4.20 GHz	8M	Intel Iris Xe Graphics	12-28W
MB6U40A-1152	Tiger Lake	Core i5	1145G7	4 / 8	2.60 GHz ~ 4.40 GHz	8M	Intel Iris Xe Graphics	12-28W
MB6U40A-1153	Tiger Lake	Core i5	1155G7	4 / 8	2.50 GHz ~ 4.50 GHz	8M	Intel Iris Xe Graphics eligible	12-28W
MB6U40A-1171	Tiger Lake	Core i7	1165G7	4 / 8	2.80 GHz ~ 4.70 GHz	12M	Intel Iris Xe Graphics	12-28W
MB6U40A-1172	Tiger Lake	Core i7	1185G7	4 / 8	3.00 GHz ~ 4.80 GHz	12M	Intel Iris Xe Graphics	12-28W
MB6U40A-1173	Tiger Lake	Core i7	1195G7	4 / 8	2.90 GHz ~ 5.00 GHz	12M	Intel Iris Xe Graphics eligible	12-28W
MB6H40A-1151	Tiger Lake	Core i5	11300H	4 / 8	2.60 GHz ~ 4.40 GHz	8M	Intel Iris Xe Graphics	28-35W
MB6H40A-1152	Tiger Lake	Core i5	11320H	4 / 8	2.50 GHz ~ 4.50 GHz	8M	Intel Iris Xe Graphics eligible	28-35W
MB6H40A-1171	Tiger Lake	Core i7	11370H	4 / 8	3.00 GHz ~ 4.80 GHz	12M	Intel Iris Xe Graphics	28-35W
MB6H40A-1172	Tiger Lake	Core i7	11375H	4 / 8	3.00 GHz ~ 5.00 GHz	12M	Intel Iris Xe Graphics	28-35W
MB6H40A-1173	Tiger Lake	Core i7	11390H	4 / 8	2.90 GHz ~ 5.00 GHz	12M	Intel Iris Xe Graphics eligible	28-35W
